Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

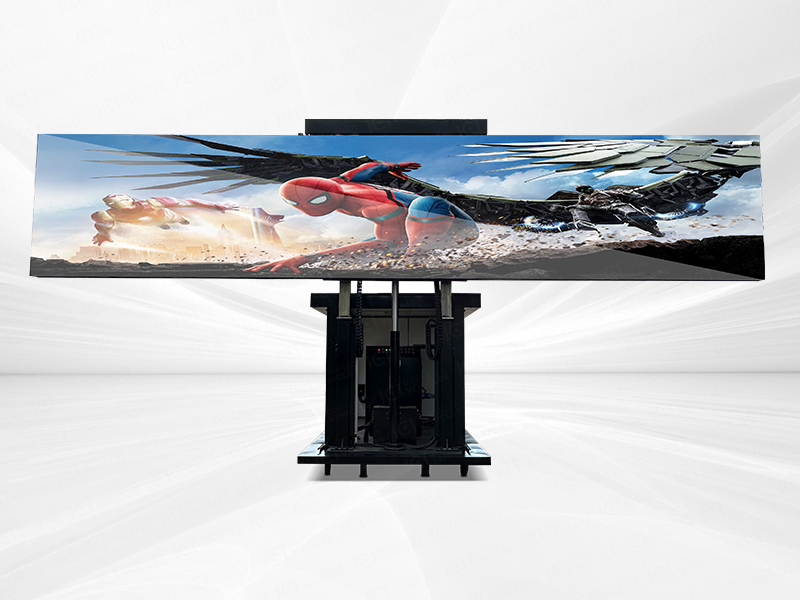

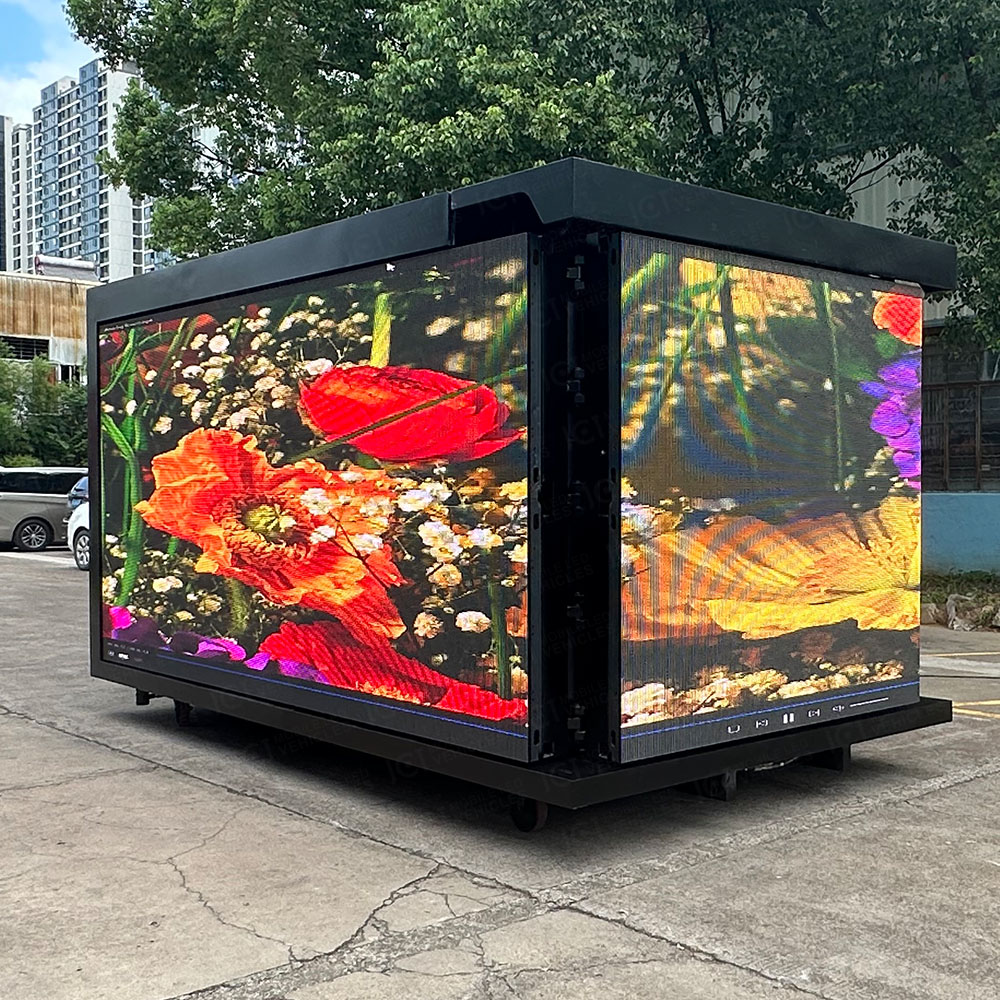

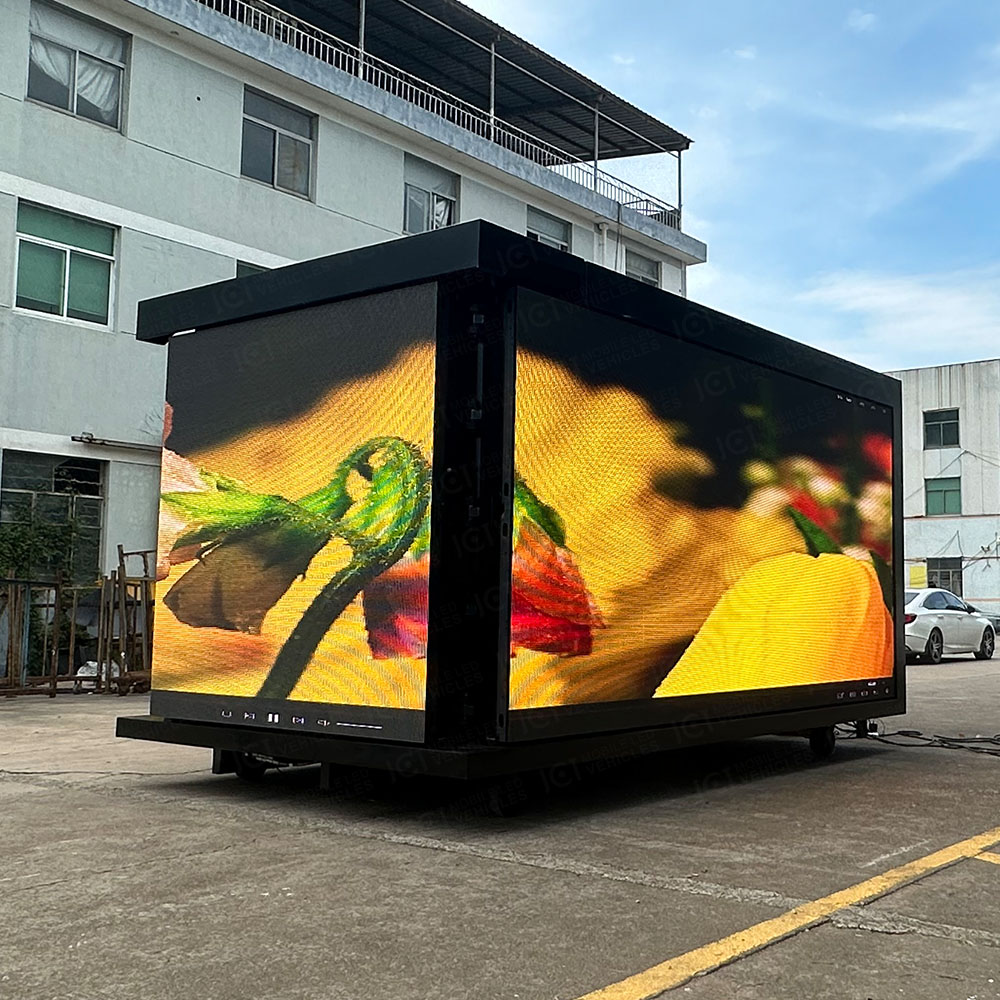

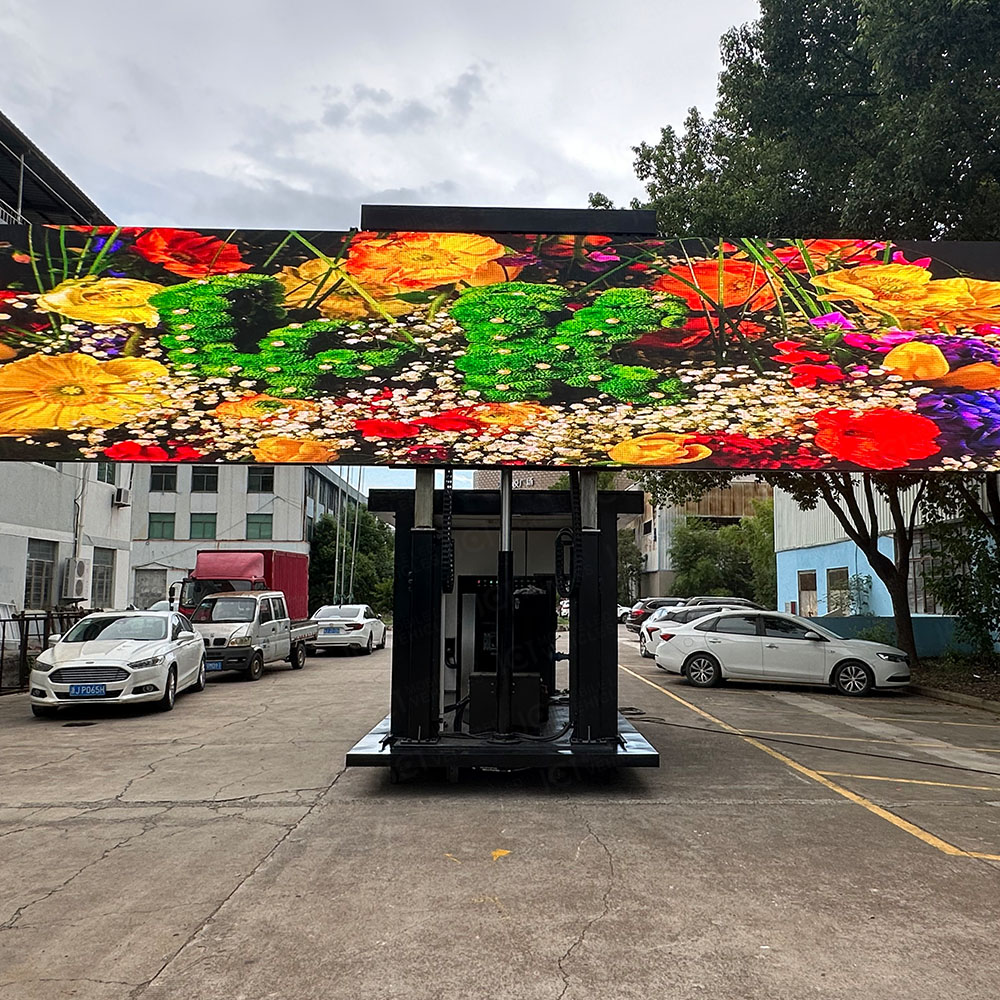

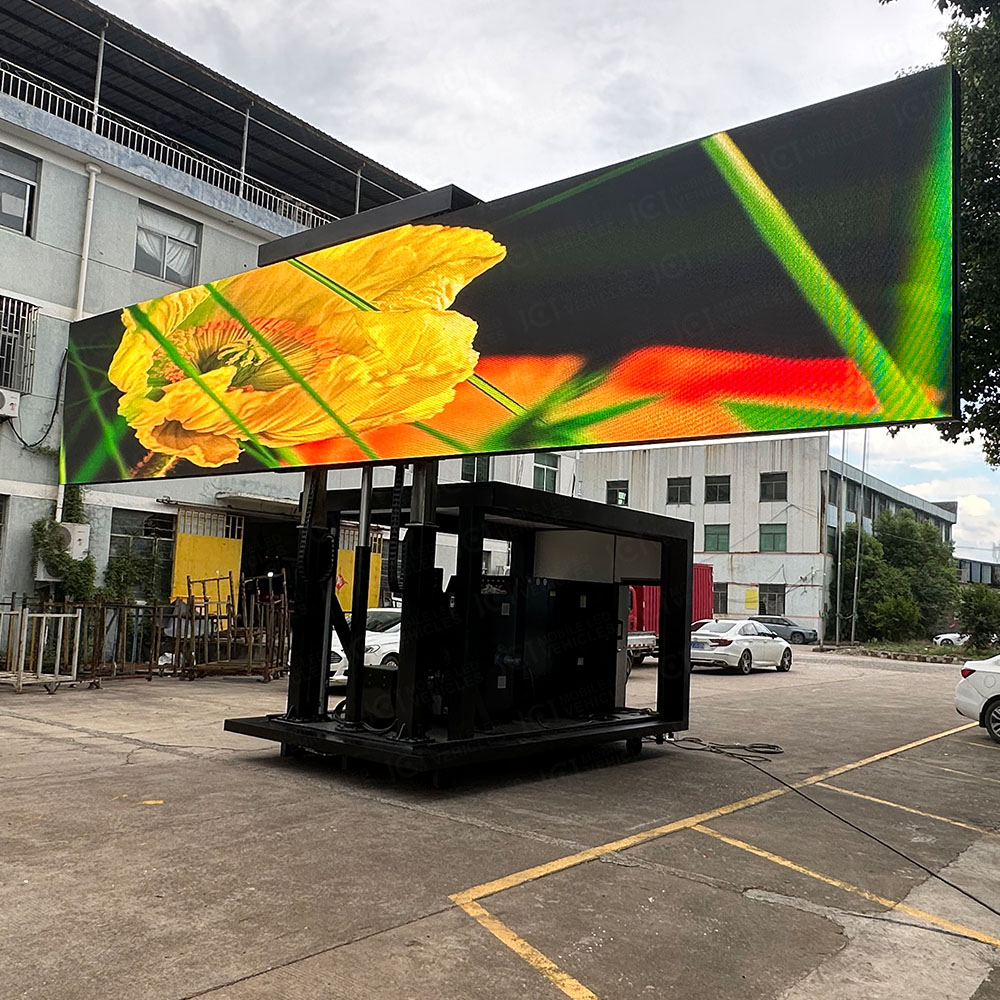

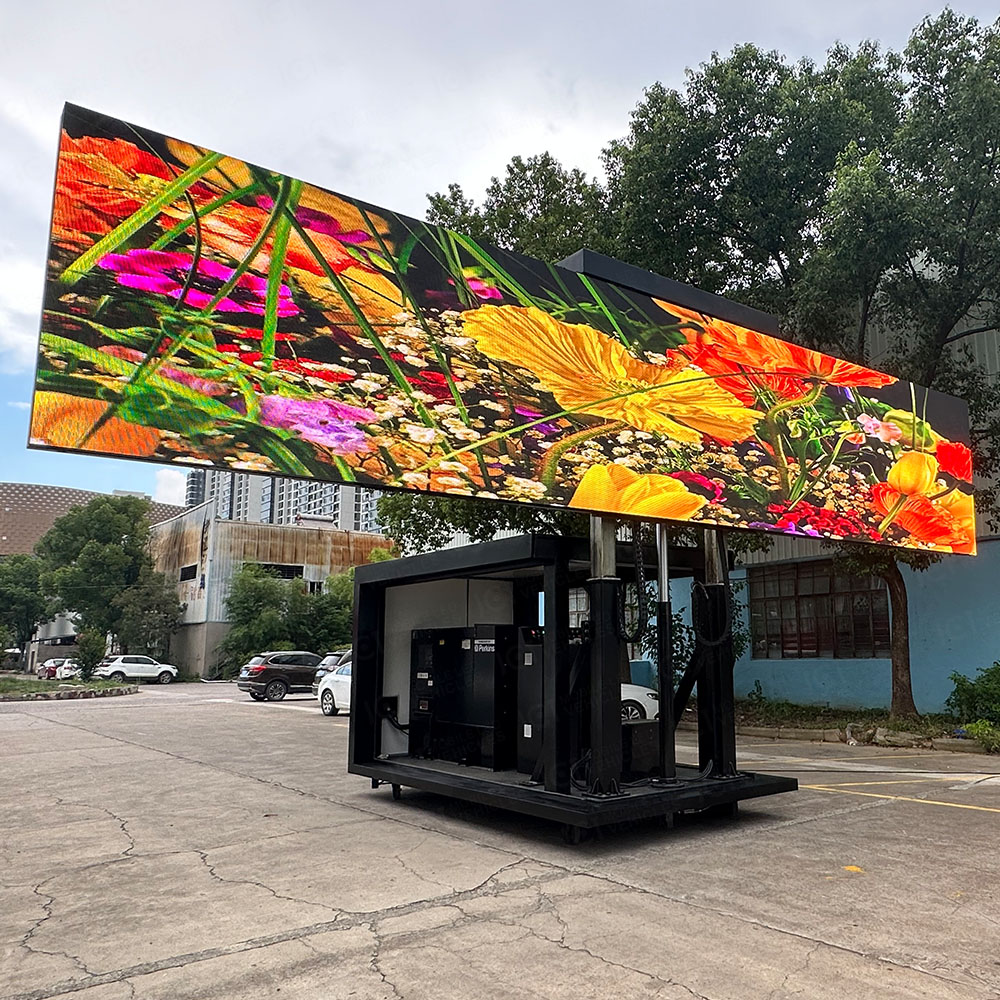

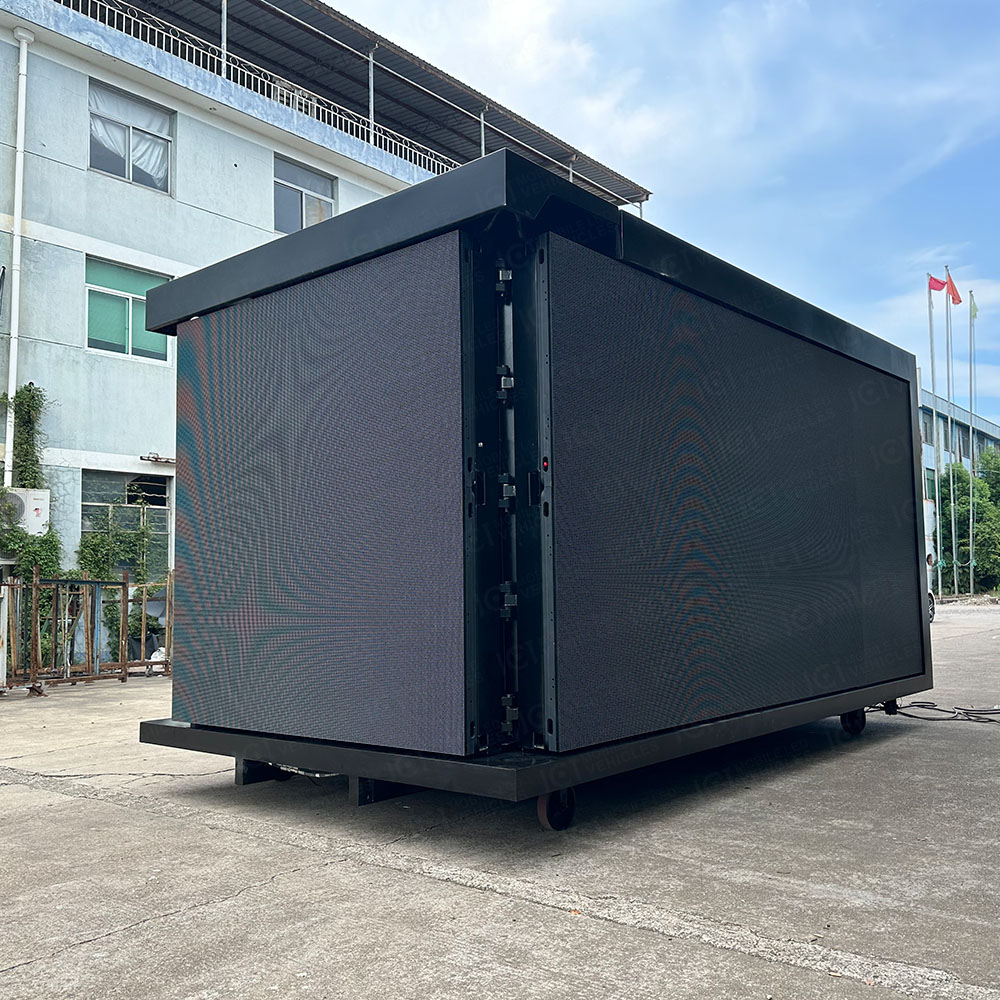

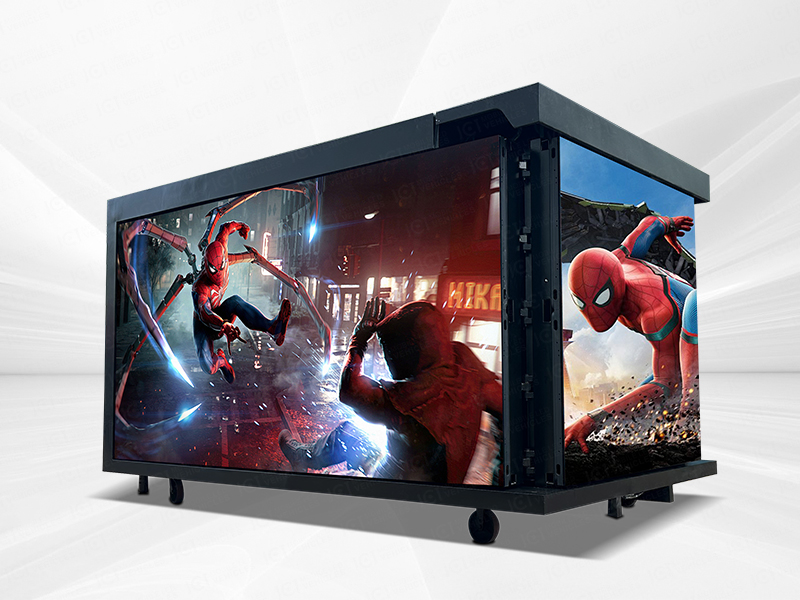

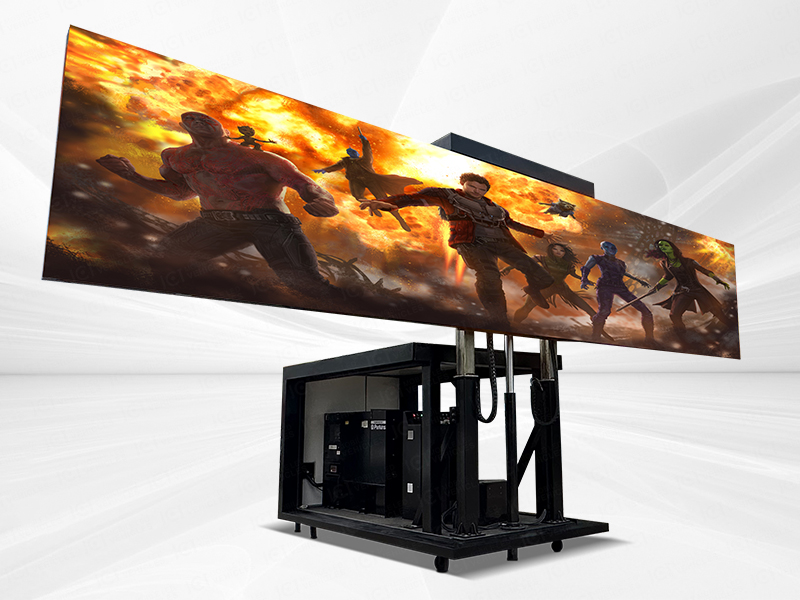

On each side of the E-3SF18 LED truck is an LED outdoor HD screen of 3840mm * 1920mm, and a screen of 1920mm * 1920mm at the rear of the car. The screens on both sides of the car adopt the folding side expansion mode with one key control. After the left and right sides of the screen, the screens are perfectly stitched together with the screen at the rear of the car into a large screen with a size of 9600mm * 1920mm. In the advertising industry, a platform that can display the content quickly and conveniently is crucial. In particular, the screens on both sides of the car use a one-click control folding side expansion mode. When a larger picture needs to be displayed, the screens on the left and right sides can be easily unfolded and perfectly stitched together with the screen at the rear of the car to form a large screen of 9600mm * 1920mm. This seamless stitching technology completely eliminates the interference of the visual gap, making the picture display more complete and coherent, and bringing an unprecedented visual feast for the audience.
One key control

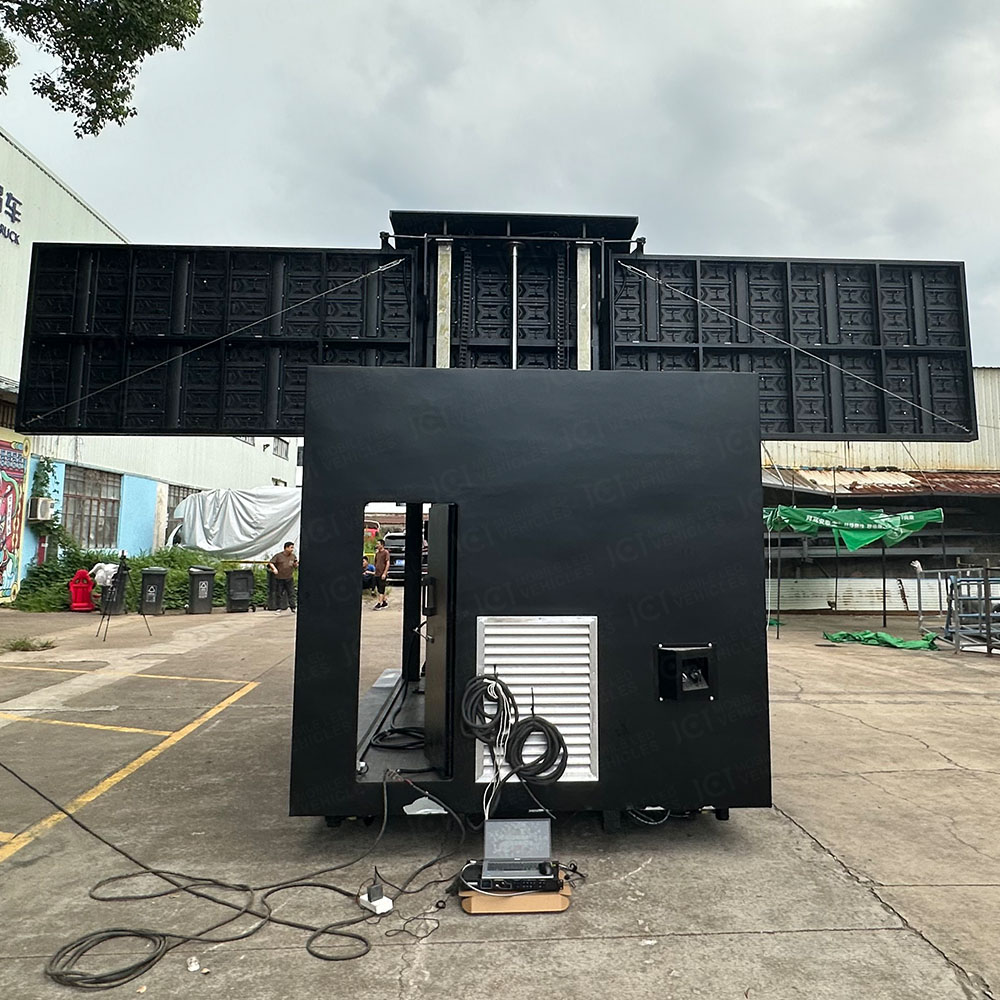

The E-3SF18 LED truck is designed to provide users with the most convenient operation experience. Therefore, the folding side control mode of the carriage adopts a highly intelligent control system. By gently pressing the button, the screens on both sides of the car unfold automatically and quickly, without complicated steps or cumbersome operations. The whole card car is not only easy to operate, but also has a very fast unfolding speed. This is crucial for advertising display, because it means that advertisers can show the advertising content to the public in the shortest possible time, thus effectively capturing the attention of the target audience. At the same time, the expanded screen structure is stable to ensure that the picture is clear and without shaking.
Performance excellence
In terms of performance, the LED truck also performs well. Its high-performance control system enables the three screens to not only play the same content and audio simultaneously, but also realize the function of playing different content on split screens. This means that advertisers can flexibly switch broadcast content according to the needs, fully meet the needs of personalized propaganda. At the same time, the reliable performance ensures the stability and fluency of the broadcast content, so that the audience can enjoy a high-quality visual experience at any time.
In short, the E-3SF18 LED truck has become a unique landscape on the city streets with its innovative technological design and excellent visual performance. Whether it is brand promotion or product promotion, it can provide advertisers with efficient and accurate publicity solutions, and help the brand to stand out in the fierce market competition.
|
E - 3SF18 led truck body |
|||
|
Specification |
|||
|
Truck chassis(customer provide) |
|||
|
Brand |
DF Auto |
Dimension |
5990x2450x3200mm |
|
Engine: |
Isuzu JE493ZLQ3A (75KW/240NM), Euro II |
Model: |
EM97-101-902J (Type 2 chassis) |
|
Seat |
Single row |
Total mass |
4500kg |
|
Wheelbase: |
3308MM, plate spring: 6/6+5 |
Axle base |
3308mm |
|
Tyres: |
7.00R16, rear twin |
Axle: |
Bangle 2.2/ Jiangling 3.5T |
|
Other configuration: |
right rudder/air conditioning /190mm frame/liquid brake/power rotation /76L fuel tank /12V |
|
|
|
Transport trailer |
|||
|
5T low speed trailer |
|
Trailer chassis |
Used for roll on/roll-off transport |
|

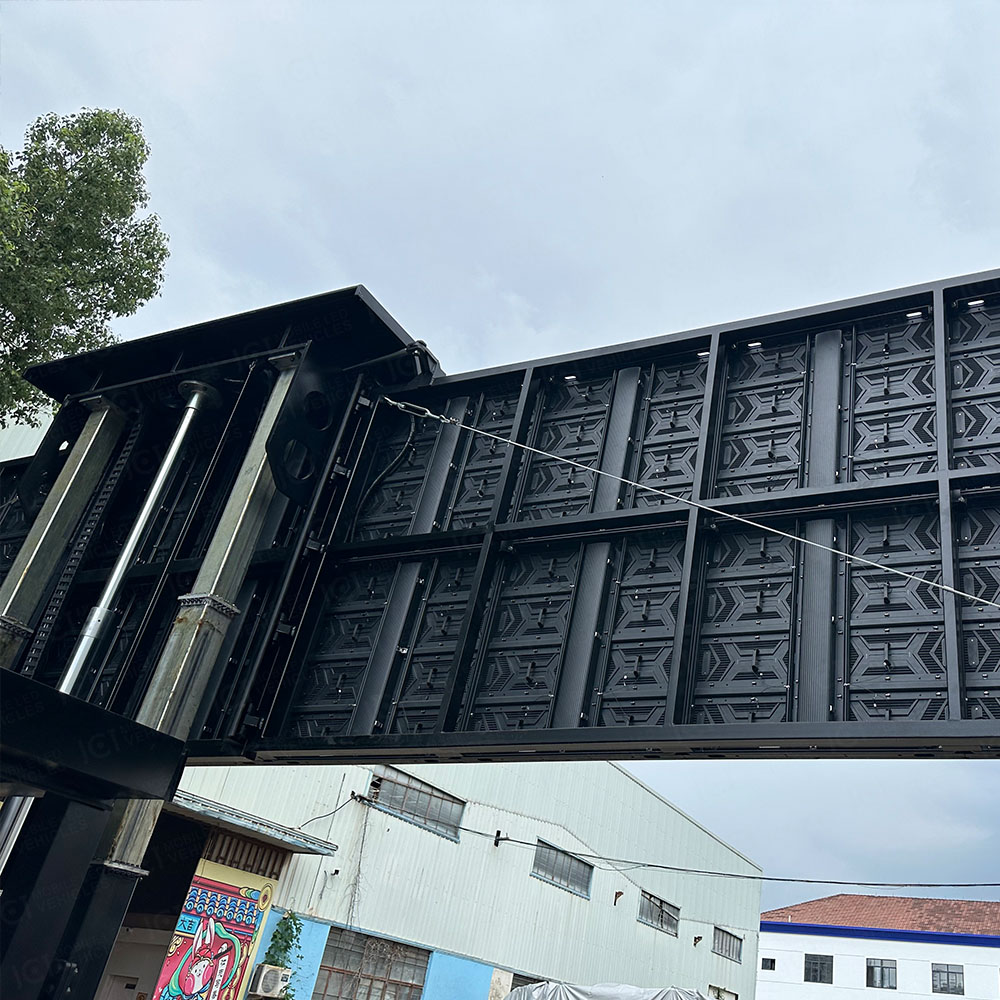

Hydraulic Lifting and Supporting System |
|||
|
Led screen 90 degree hydraulic turnover cylinder |
2pcs |
Supporting legs |
Stretching distance 300mm,4pcs |
|
Silent generator group |
|||
|
Dimension |
1260*750*1040mm |
Output power |
16KW |
|
Generator: |
GPI 184ES |
Engine: |
YSD490D |
|
Voltage and frequency |
3 phase, 50HZ, 230/400V, 1500 RPM, rated |
Control module: |
HGM410 |
|
Silent type, black for sound box |
|
No battery, under the air, under the air exhaust smoke; |
|
|
LED Screen |
|||
|
Dimension |
3840mm*1920mm*2sides+1920*1920mm*1pcs |
Module Size |
320mm(W)*320mm(H) |
|
Light brand |
Kinglight |
Dot Pitch |
4mm |
|
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Die cast aluminum |
Cabinet weight |
Aluminum 30kg |
|
Maintenance mode |
Front service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
|
Module resolution |
80*80Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
system support |
Windows XP,WIN 7， |
|
|
|
Power parameter |
|||
|
Input voltage |
Three phases five wires 380V |
Output voltage |
220V |
|
Inrush current |
40A |
Power |
250wh/㎡ |
|
Multimedia Control System |
|||
|
Video processor |
NOVA |
Model |
VX400 |
|
Luminance sensor |
NOVA |
|
|
|
Sound System |
|||
|
Power amplifier |
Power output:500W |
Speaker |
Max power consumption:120W*4 |
