6m long led mobile advertising truck- -fusion innovation, leading the new trend of advertising

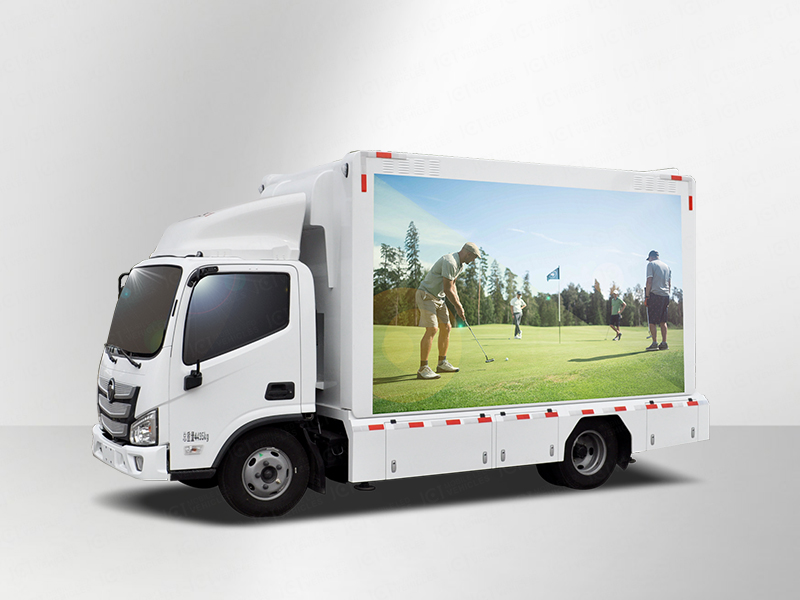

JCT's EW3360 LED mobile advertising truck integrates the stability of Foton high-end Omark chassis with the dazzle of LED outdoor full-color premium screen, which is a perfect combination of advertising, information release and live broadcast. Its unique design makes it travel freely through the busy city, which not only improves the coverage of advertising, but also increases the convenience and efficiency of activities.
Mobile is flexible and convenient

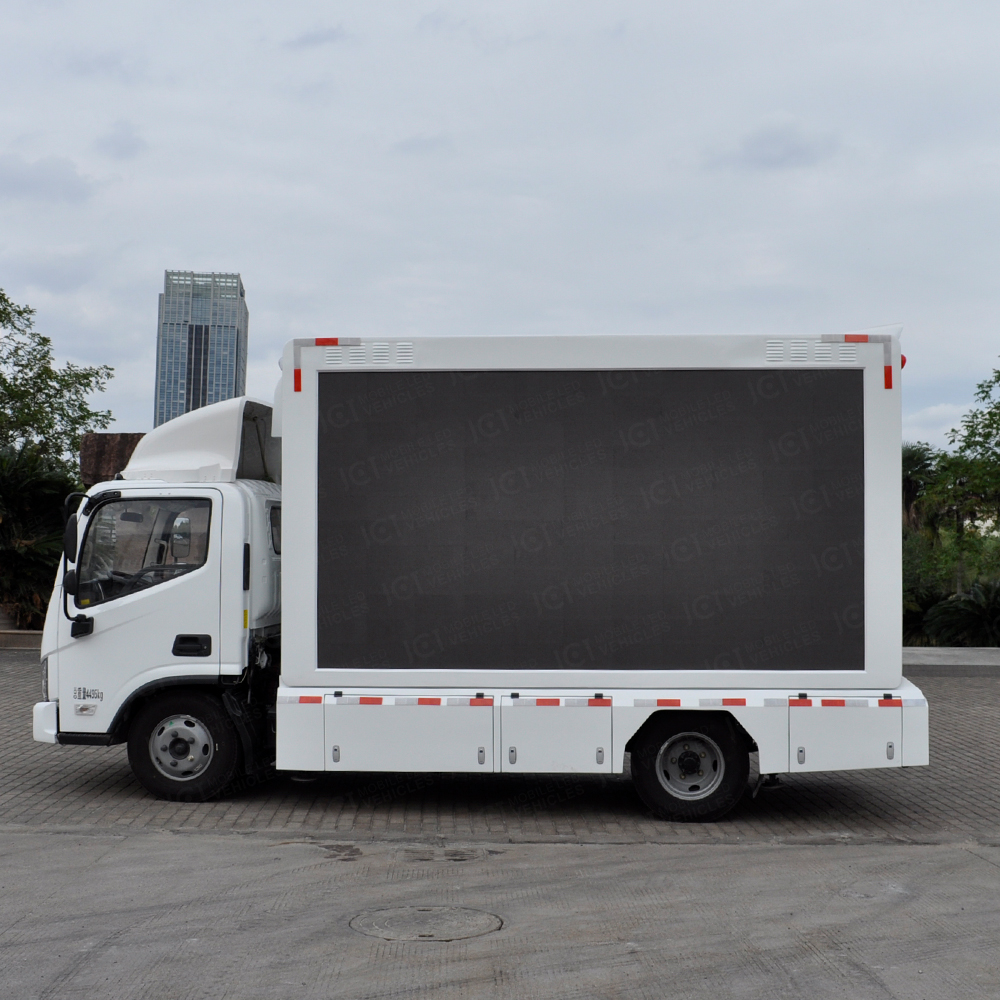

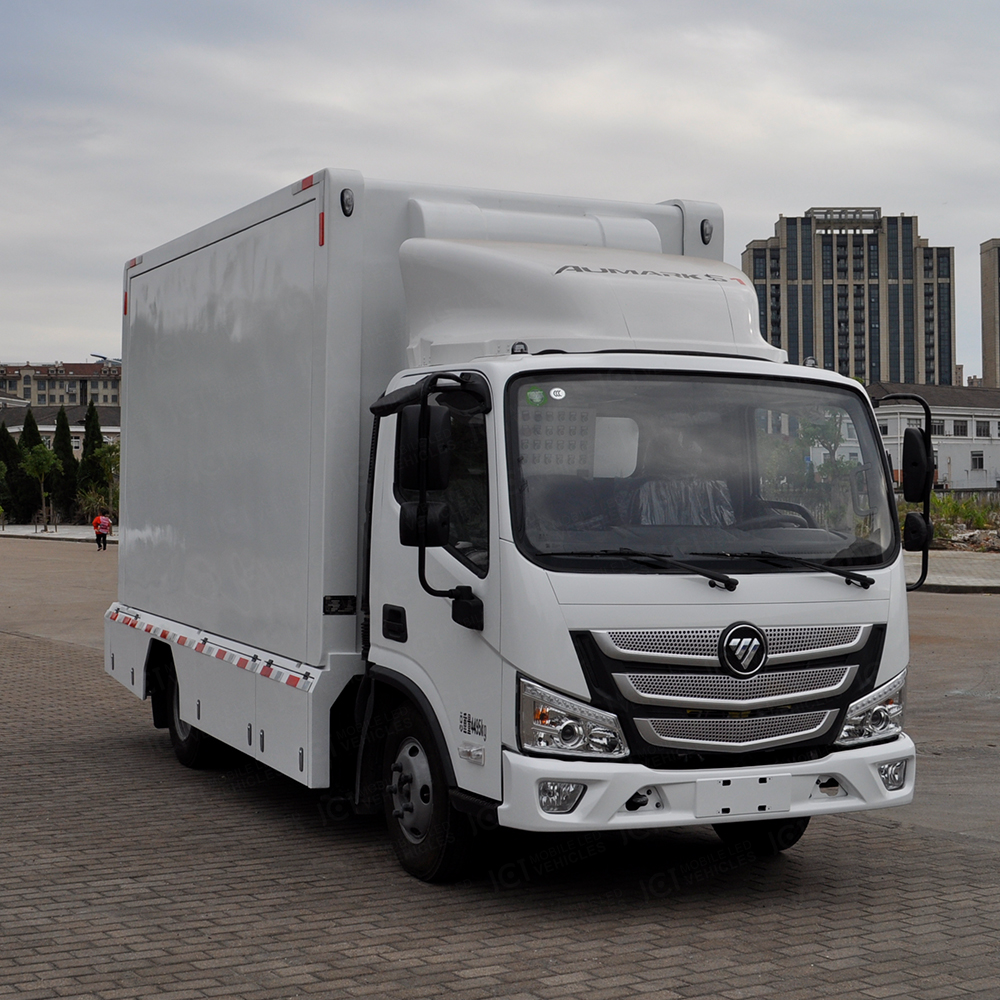

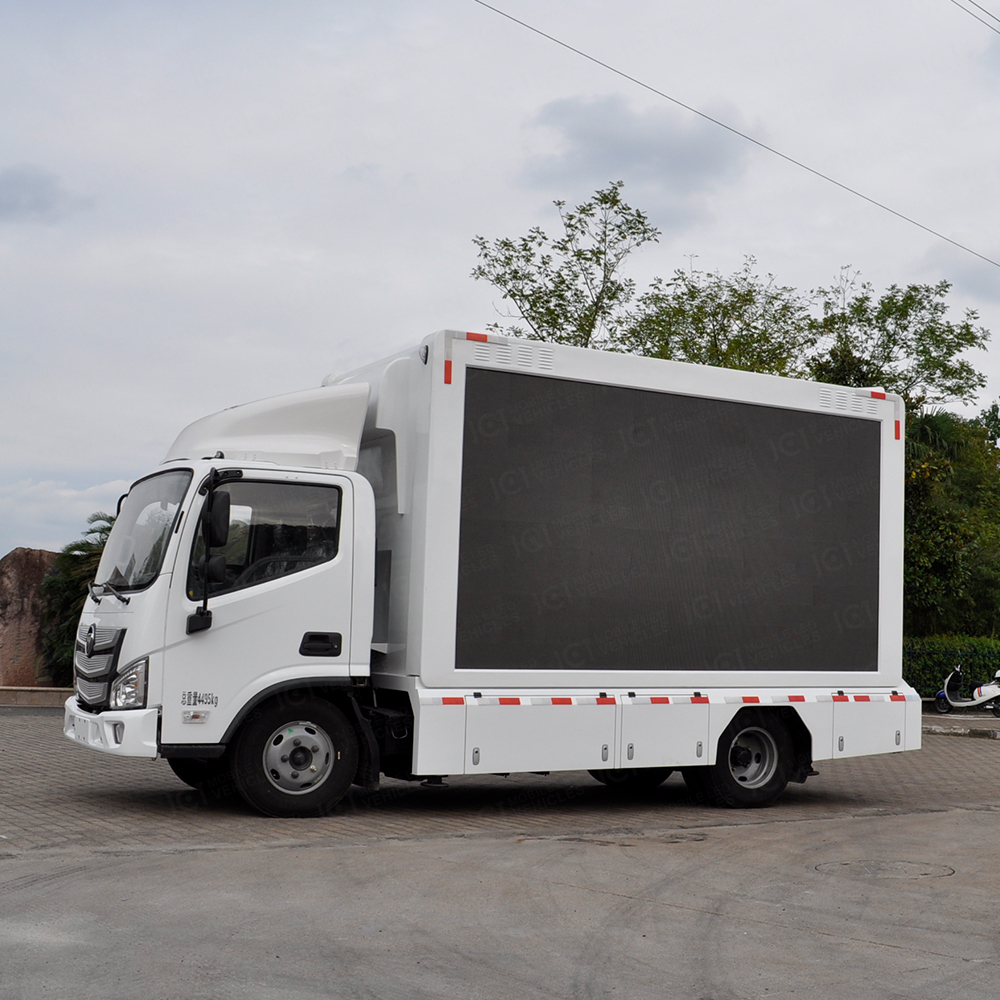

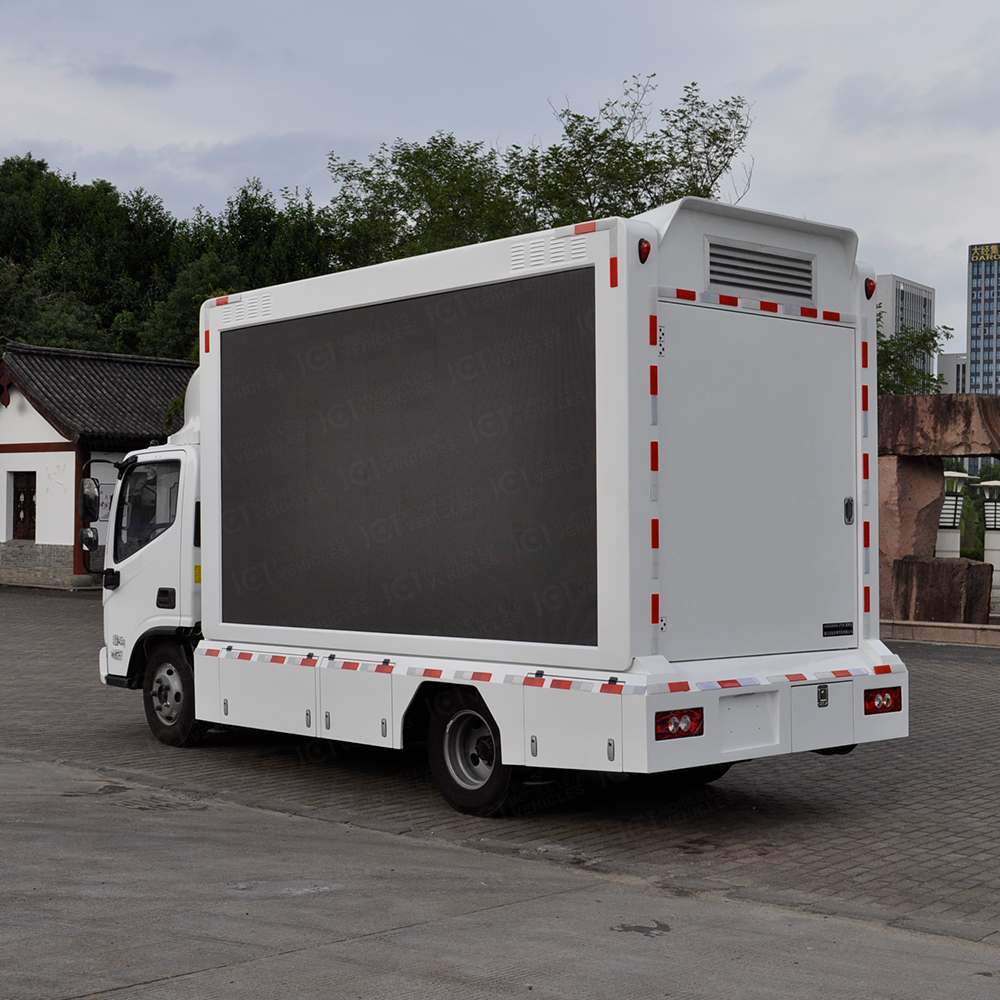

Based on the chassis of Foton Omark, this car has a small body while maintaining stability, with the overall size of 5995 * 2160 * 3240mm. The body length of less than 6 meters makes the LED advertising truck more convenient to drive freely in the city, avoiding the traffic problems caused by the large volume.
Built-in media optimization control system:
This LED mobile advertising truck installs all the multimedia operation equipment in the interior space of the car body. This design not only simplifies the update process of advertising content, but also realizes the centralized control of multimedia playback, LED screen brightness, volume and other key parameters, making the operation more intuitive and convenient. The car is equipped with advanced multimedia playback system, not only support U disk playback, but also compatible with mainstream video format, providing users with a wide range of playback options.
Personalized customization, to meet the full range of needs
The Model EW3360 LED mobile advertising truck, with its high degree of flexibility and strong customization, provides a brand new solution for advertising and branding. This advertising truck not only reflects the perfect combination of modern technology and creative design, but also reflects the in-depth insight and satisfaction of user needs.
In the power supply system, EW3360 LED mobile advertising truck provides customers with generator power supply and large capacity battery power supply. This design ensures the stable operation of advertising vehicles in a variety of environments and conditions, whether urban streets, rural trails or remote areas, they can continuously output strong power supply.

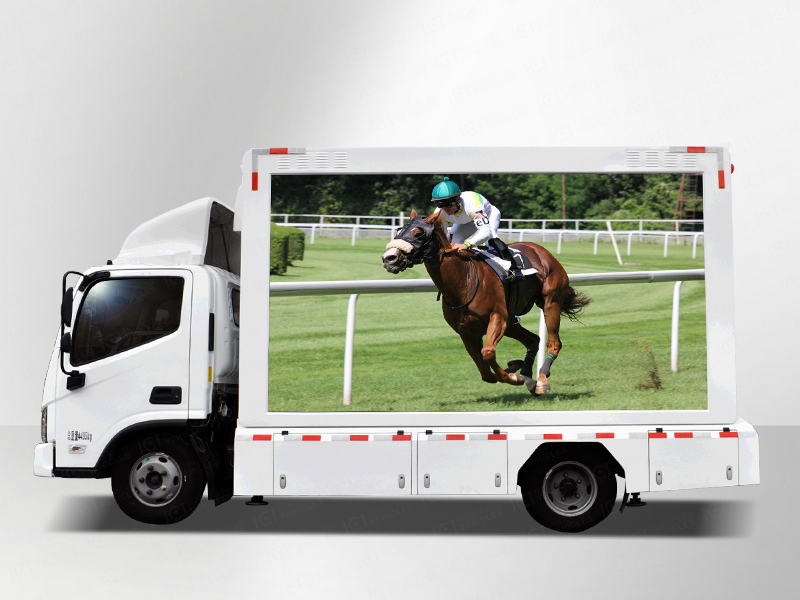

In the LED screen configuration, the EW3360 LED mobile advertising truck also provides a variety of options. Screen clarity can be freely selected according to the specific needs of customers. In addition, the LED screen moves up to 1700mm, combined with the hydraulic lifting function, the screen can be easily adjusted to the best viewing Angle. Customers can also choose a single-sided or double-sided lift to meet the needs of different scenarios and activities.

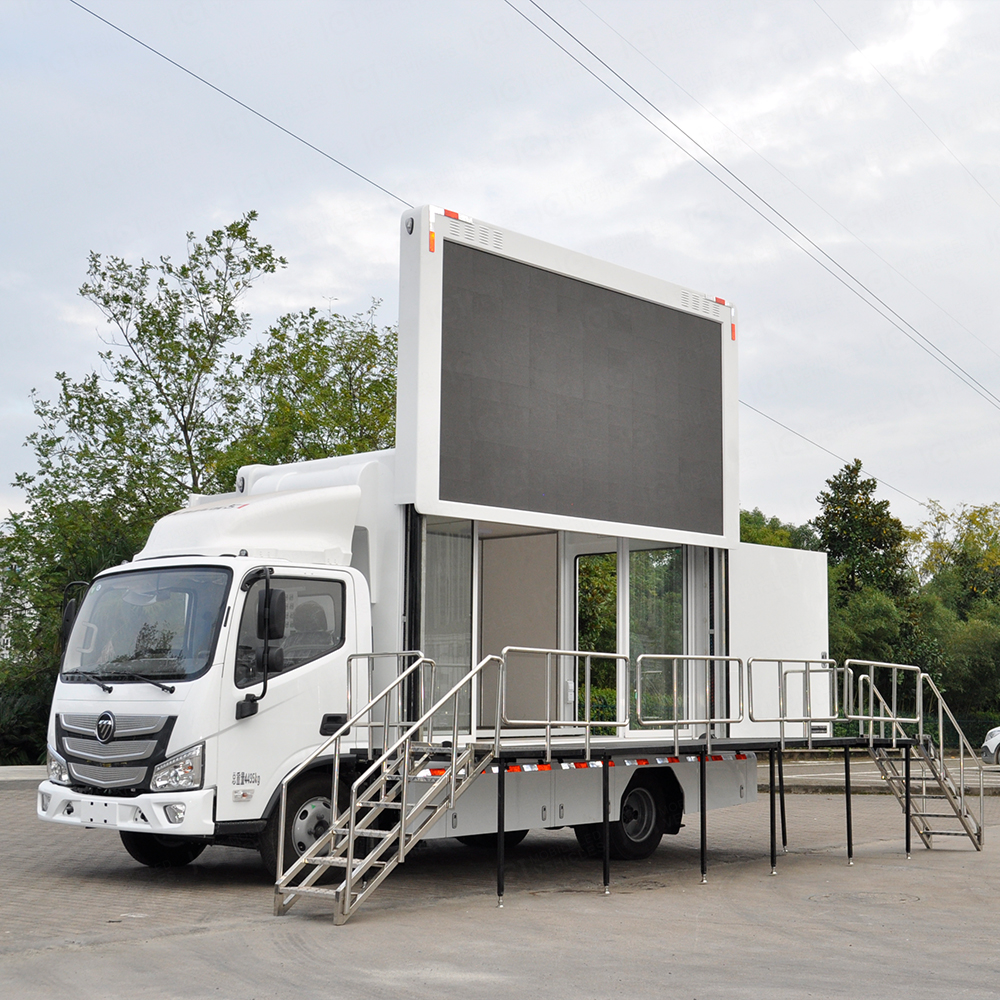

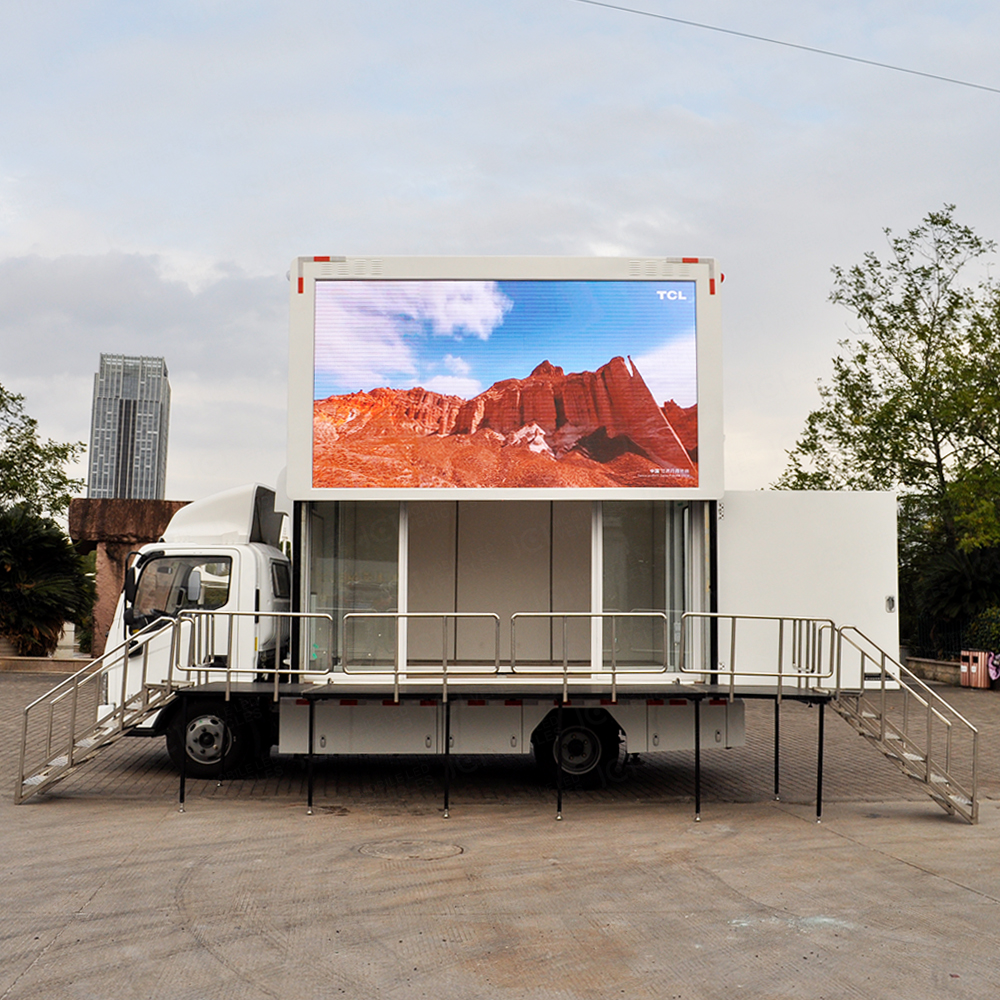

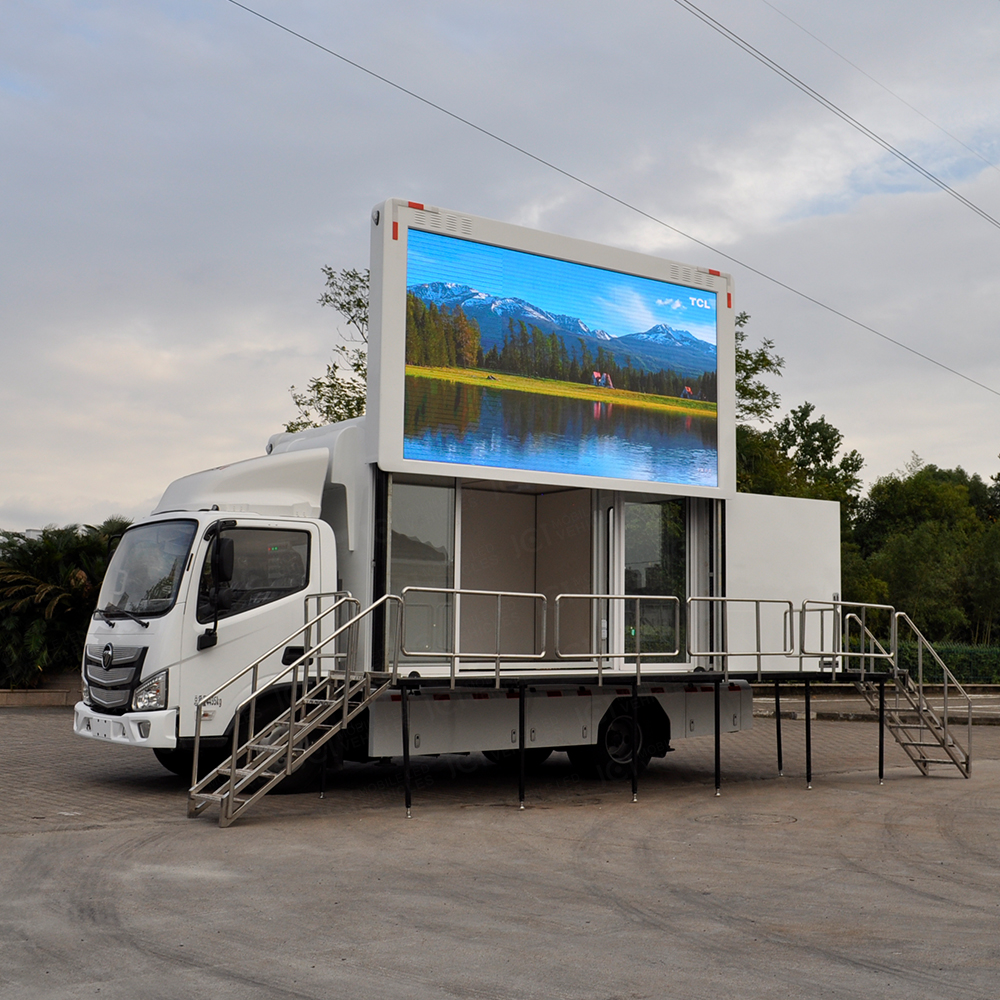

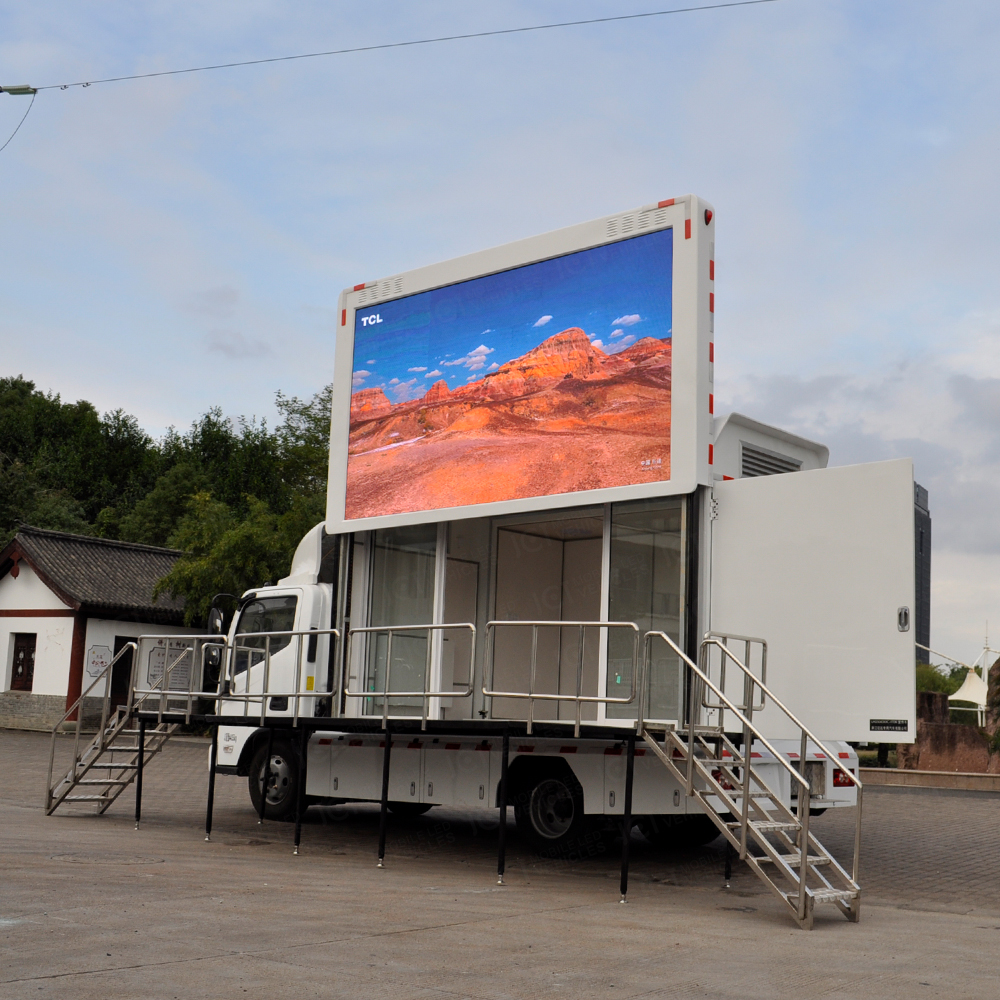

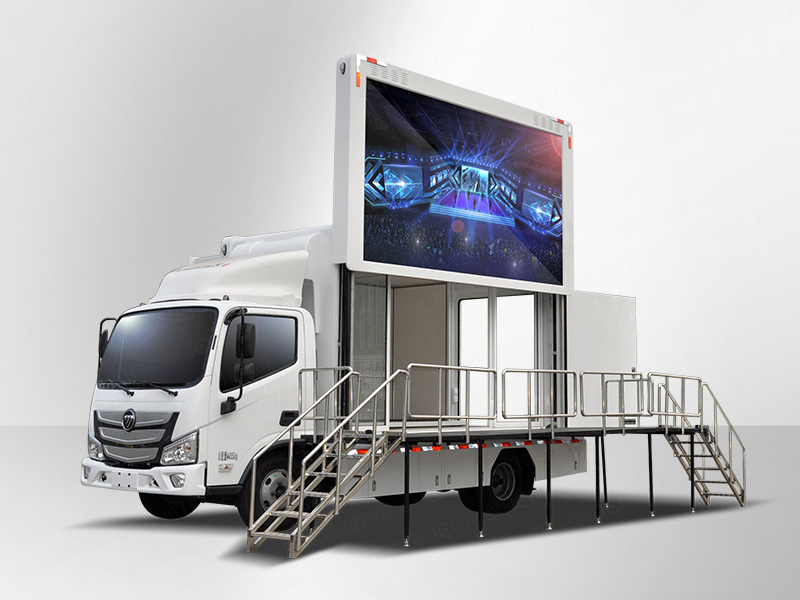

Even better, the EW3360 LED mobile advertising truck is also equipped with a customizable hydraulic stage. This design makes the advertising car not only a display platform, but also a multi-functional space for all kinds of small activities. With only one button operation, the folding stage can be quickly expanded, and the expanded area reaches 5200mm * 1400mm, providing sufficient space for all kinds of activities.
EW3360 led mobile advertising truck integration innovation, leading the new trend of advertising, it can be applied to a variety of commercial promotion activities, exhibitions, brand promotion and live broadcast scenes. Whether it is the bustling streets of the city or the open areas of the suburbs, it can bring a unique publicity effect to your brand with its excellent performance and excellent design.

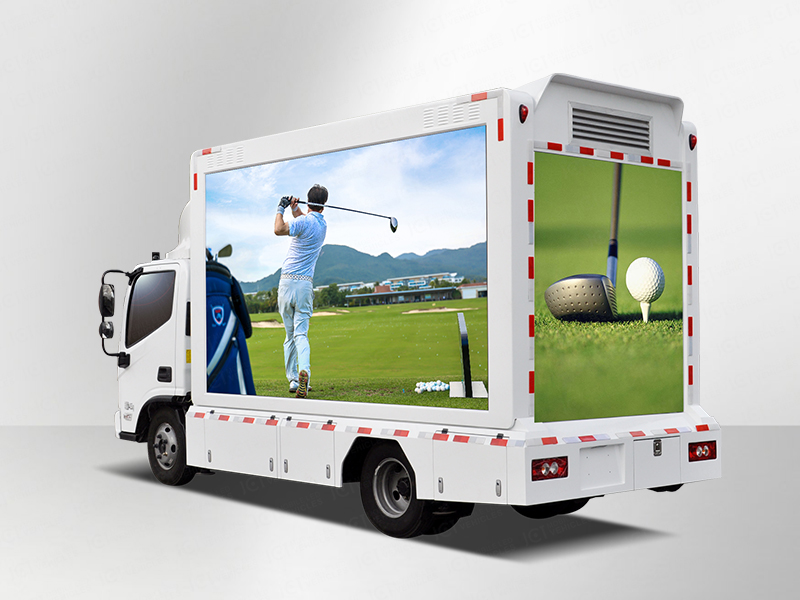

E-W3360 3 sides screen |
|||
Specification |
|||
Chassis |
|||
Brand |
Foton Aumark |
Dimension |
5995x2160x3240mm |
Power |
Foton 4J28TC3 |
Total mass |
4495 KG |
Axle base |
3360mm |
Unladen mass |
4300 KG |
Emission standard |
National standard III |
Seat |
2 |
Silent generator group |
|||
Dimension |
1850*920*1140mm |
Power |
16KW diesel generator set |
Voltage and frequency |
220V/50HZ |
Engine: |
AGG, engine model: AF2270 |
Motor |
GPI184ES |
Noise |
Super silent box |
Others |
electronic speed regulation |
|
|
Outdoor full color screen (left and right) P4 |
|||
Dimension |
3520mm*1920mm |
Module Size |
320mm(W)*160mm(H) |
Light brand |
Kinglight |
Dot Pitch |
4mm |
Brightness |
5500cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
Power Supply |
G-ENERGY |
DRIVE IC |
ICN2153 |
Receiving card |
Nova MRV416 |
Fresh rate |
3840 |
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
Module power |
18W |
scanning method |
1/8 |
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
Module resolution |
80*40Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Operating temperature |
-20~50℃ |
system support |
Windows XP,WIN 7, |
|
|
Outdoor full color screen (Rear side) P4 |
|||
Dimension |
1280mm*1760mm |
Module Size |
320mm(W)*160mm(H) |
Light brand |
Kinglight |
Dot Pitch |
4mm |
Brightness |
5500cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
Power Supply |
G-ENERGY |
DRIVE IC |
ICN2153 |
Receiving card |
Nova MRV416 |
Fresh rate |
3840 |
Power parameter (external prower supply) |
|||
Input voltage |
Single phase 220V |
Output voltage |
220V |
Inrush current |
30A |
Average power consumption |
300wh/㎡ |
Multimedia control system |
|||
Video processor |
NOVA |
Model |
TB50-4G |
Speaker |
CDK 100W,4 pecs |
Power amplifier |
CDK 500W |
hydraulic lifting |
|||
distance of travel |
1700 mm |
|
|
Hydraulic stage |
|||
Size |
5200 mm*1400 mm |
stairs |
2 pecs |
