E-W4800 mobile LED display truck: the new favorite of display and communication
With the continuous development of science and technology and the increasing improvement of people's aesthetic appreciation, the form and content of outdoor advertising are also constantly innovating and evolving. Today, we would like to introduce to you is the JCT company produced EW4800 LED display truck, it is not only beautiful appearance, advanced technology, but also for advertising and brand publicity to bring a new, mobile way of display.
Powerful hardware facilities

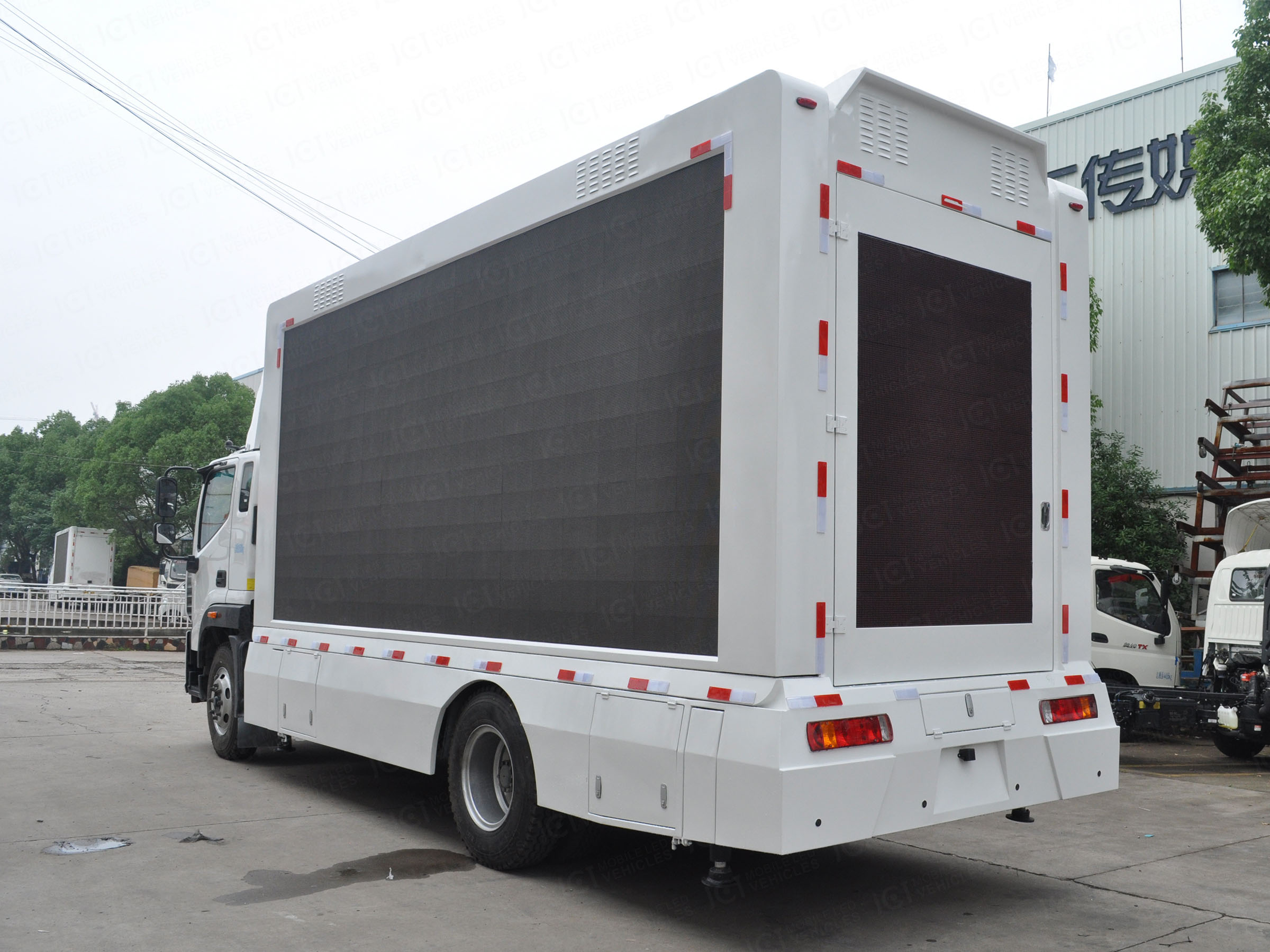

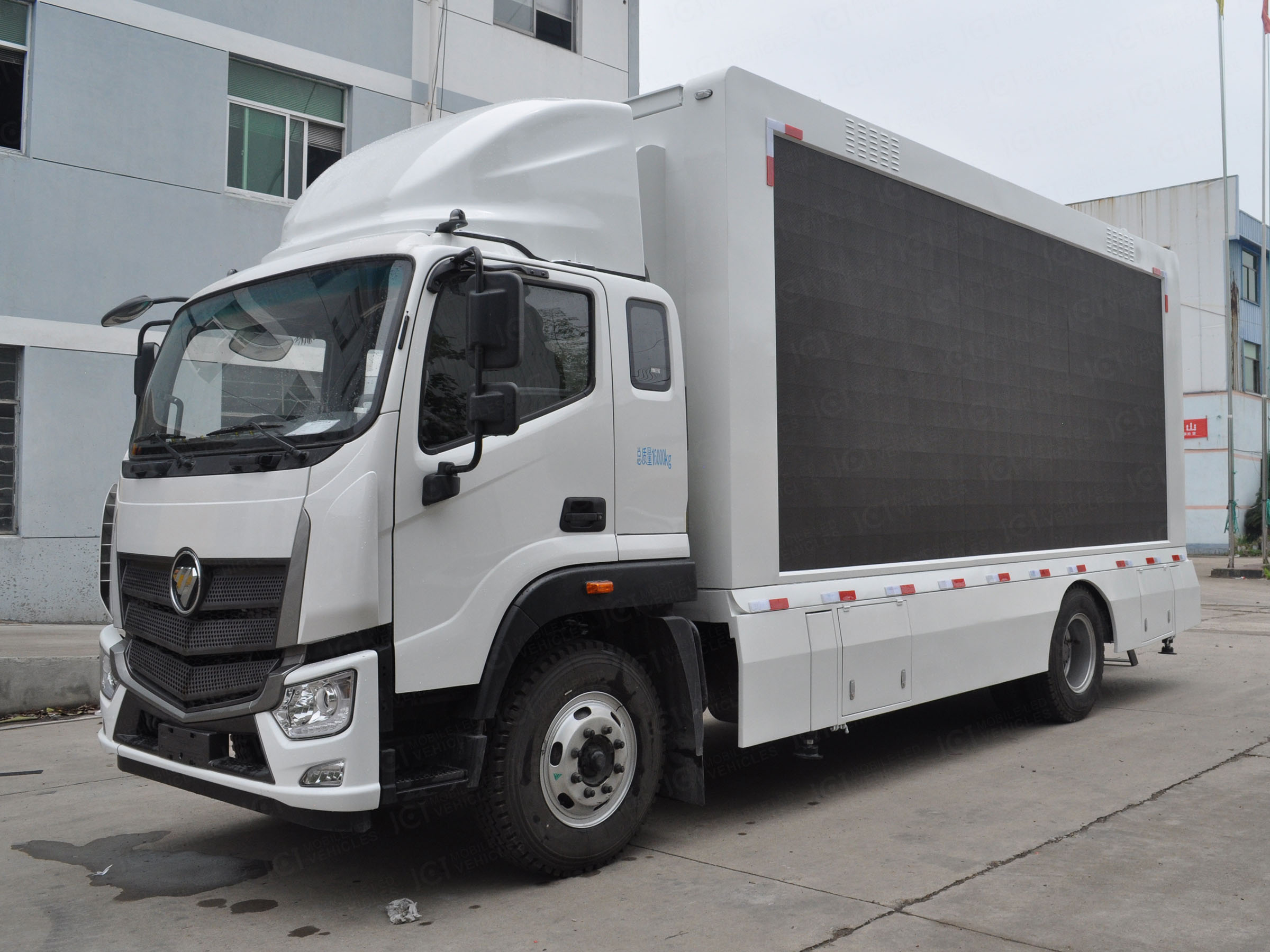

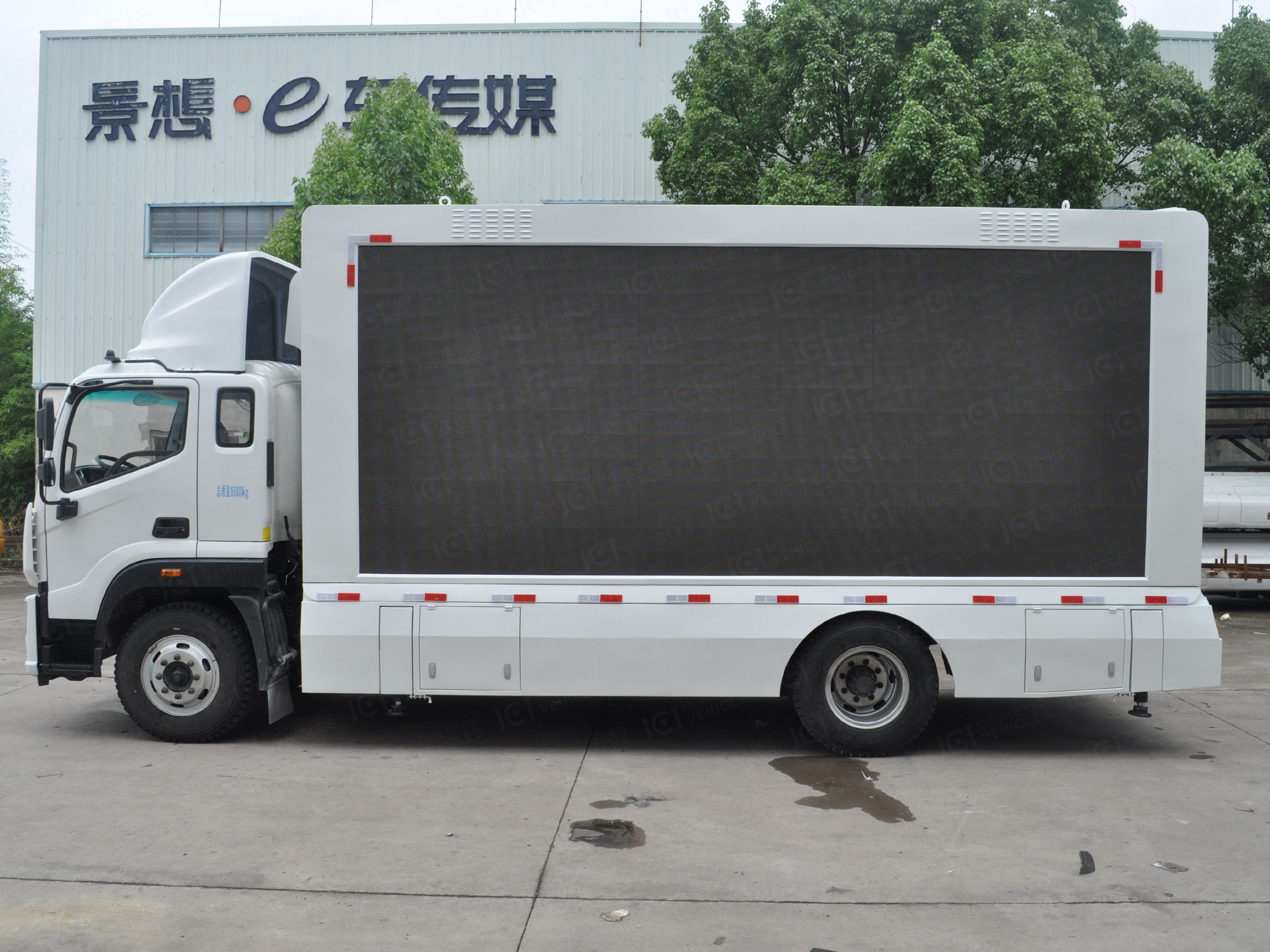

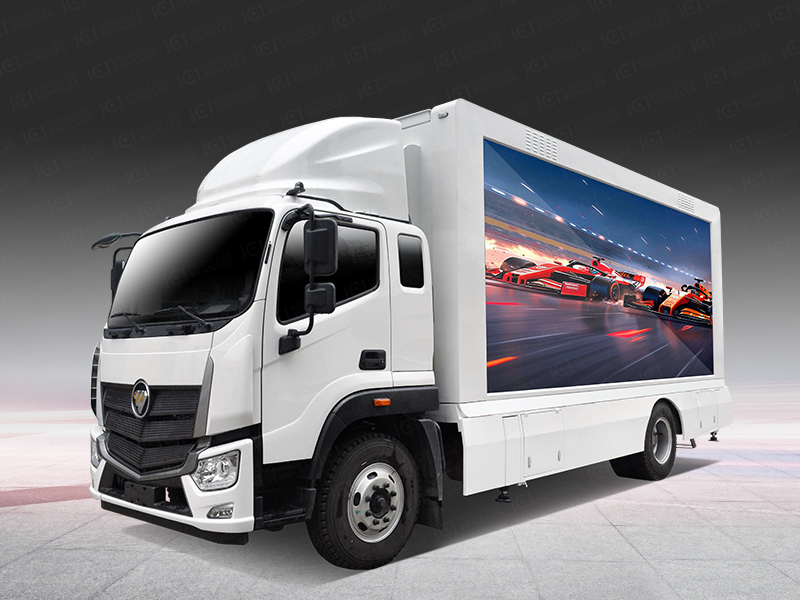

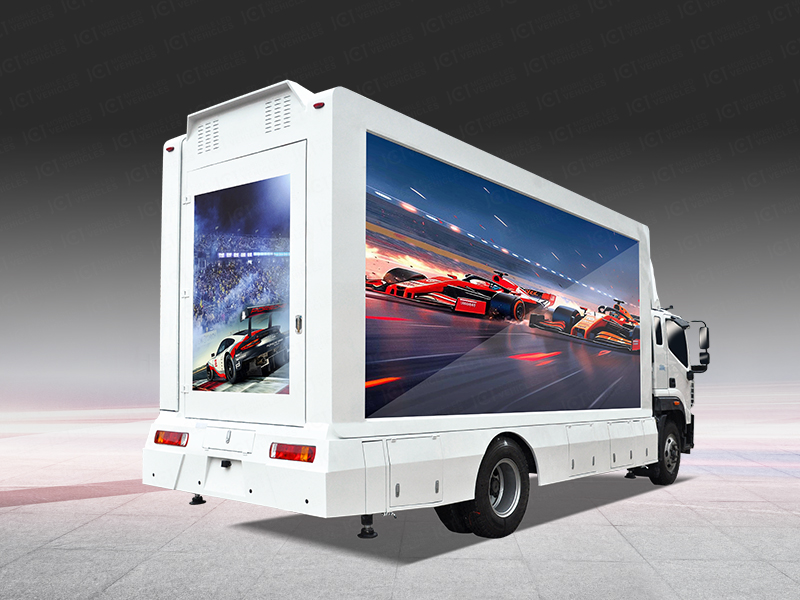

The EW4800 LED display truck is based on the special chassis to ensure the stability and durability of the vehicle. The overall size of the vehicle reaches 8730mm x 2370mm x 3990mm, and the length of the body is nearly 9m long, which not only ensures the sufficient space in the truck, but also ensures the driving stability on various roads. The LED full-color display on the truck is its bright spot. This display not only reaches an amazing area of 5440 x 2240mm, but also supports one or both lifts, with automatic hydraulic stage, can instantly incarnate into a mobile stage truck, attracting attention.
Independent power supply support
In order to allow the LED display truck to move freely in any site, the EW4800 LED display truck is equipped with an imported silent diesel generator with a built-in power supply to guarantee media playback time for more than 20 hours. This means that even in the case of limited space and no external power supply, LED display trucks can successfully complete all kinds of cruises, roadshows, and promotional activities to ensure that the advertising spread is not affected.
Multifunction hydraulic stage

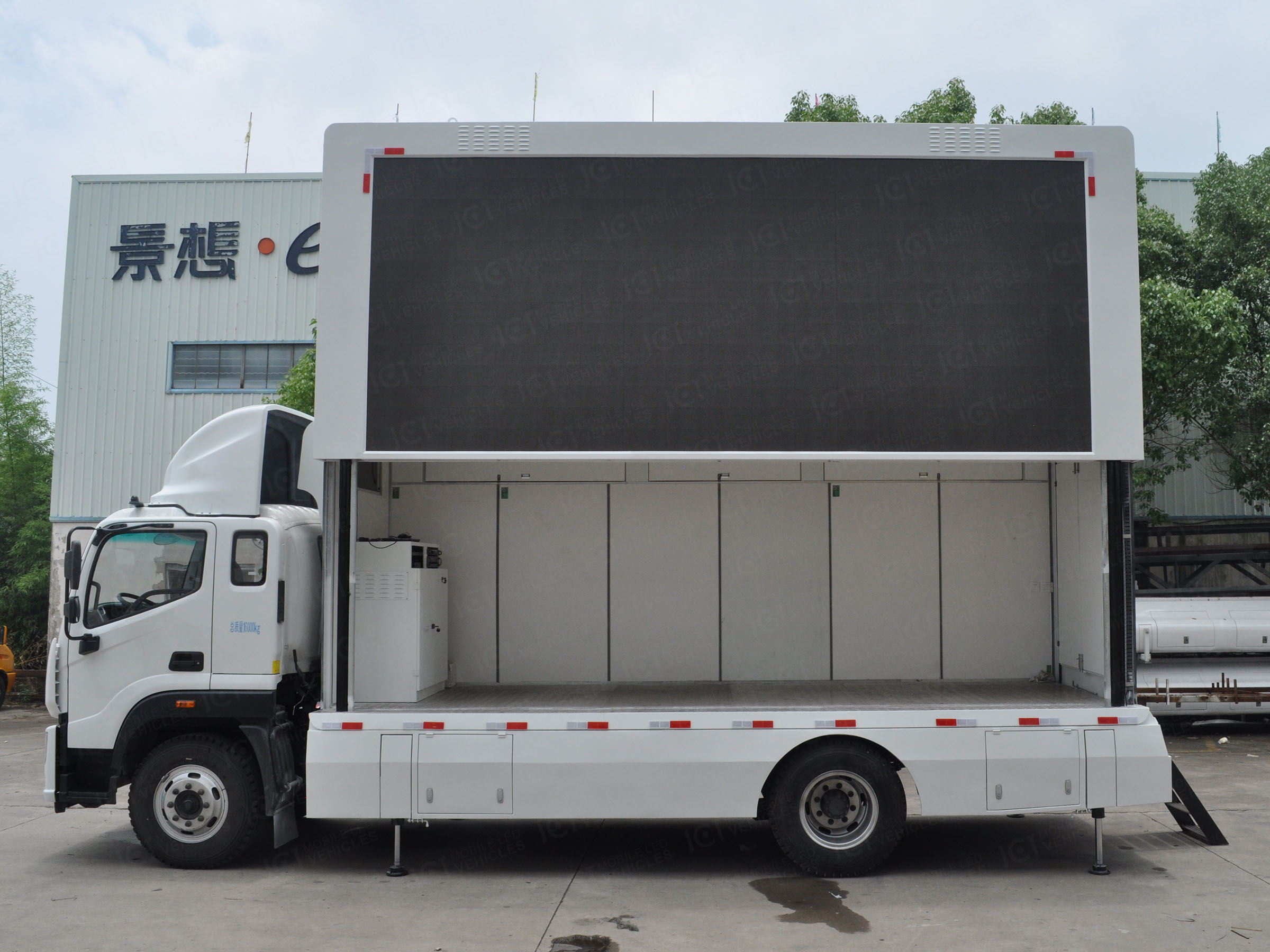

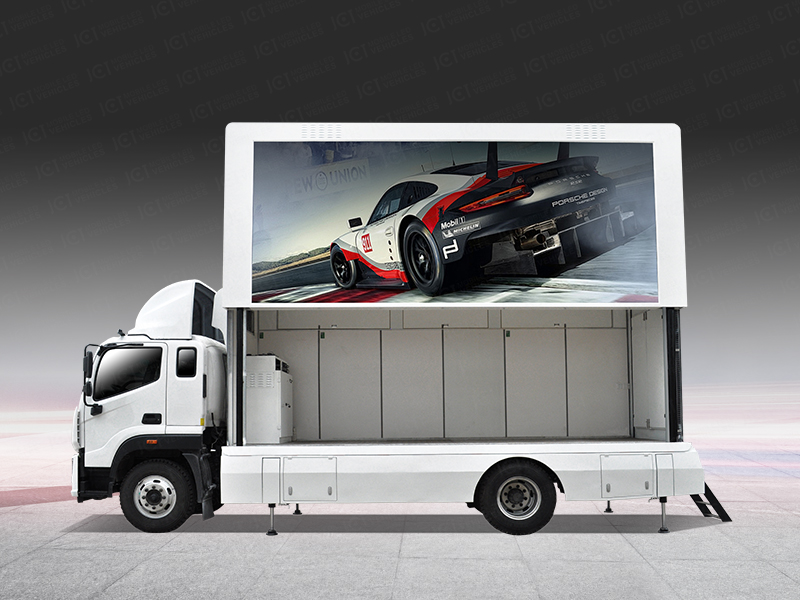

The 9m long LED display truck is also equipped with a fully automatic hydraulic stage, which instantly turns into a flowing stage car. This stage can be configured to install the stage, shelves and other special equipment according to different activity needs, to provide personalized transformation and car body painting services for the promotion project, to make it more close to the promotion theme, and to create a more unique publicity atmosphere for the brand or product.
Wide range of application scenarios

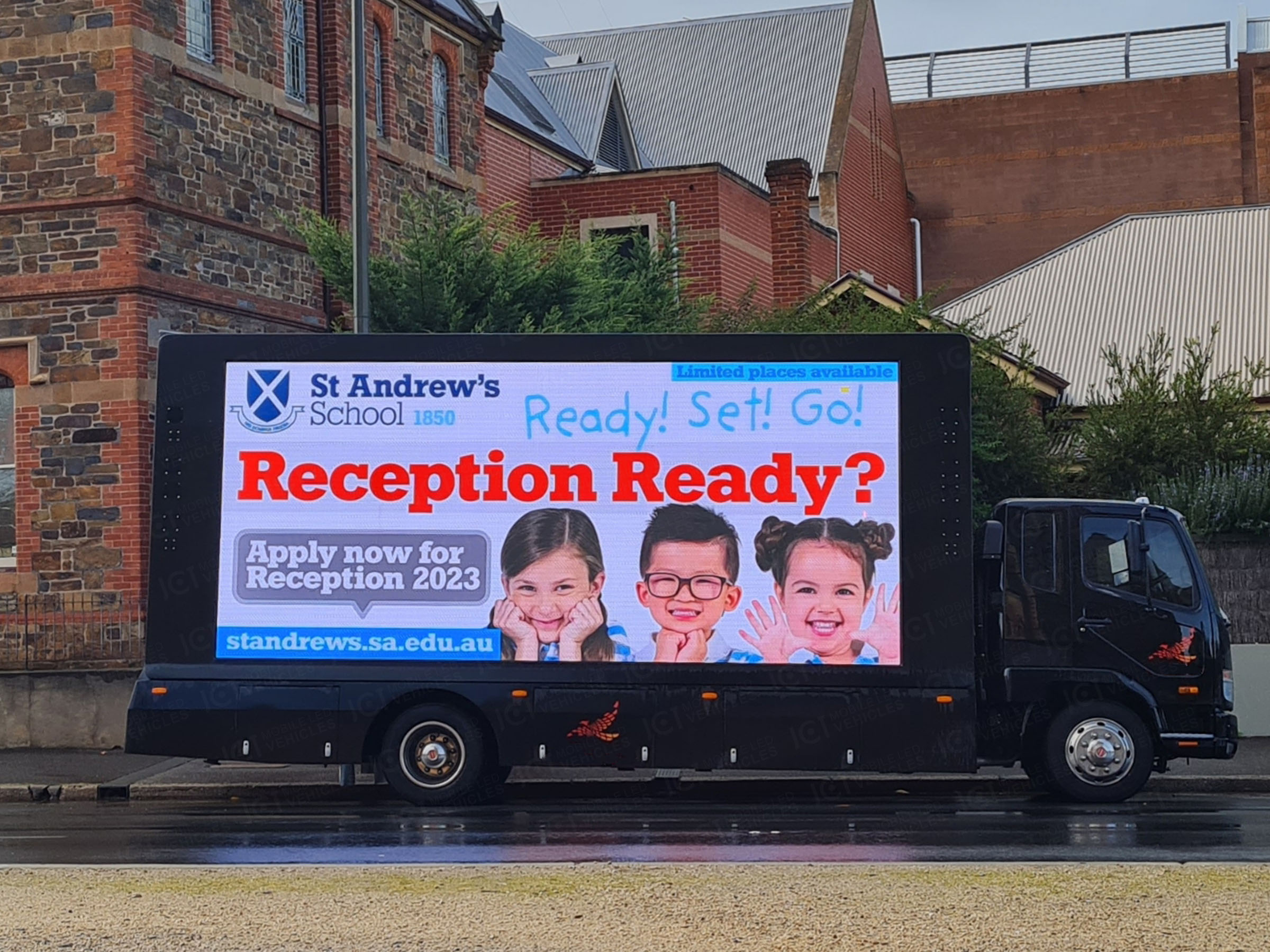

E-W4800 LED publicity vehicle is not only applicable to the city's bustling business district and densely populated areas, but also deep into the countryside, communities, schools and other corners, to achieve a wide coverage of advertising. Whether it is product promotion, brand promotion, or talent show, sports events, concerts, concerts, etc., E-W4800 can provide you with the best publicity program
The 9m long EW4800 LED display truck built by JCT company is not only a technologically advanced outdoor advertising equipment, but also a mobile publicity platform. It has become a new favorite of advertising and brand publicity with its beautiful appearance, ultra-high definition display screen, a variety of displays and a wide range of display content and application scenarios. Choose LED display truck, let your advertising more vivid, intuitive, deeply popular!
|
EW4800 |
|||
|
Specification |
|||
|
Truck Chassis |
|||
|
Overall vehicle dimensions |
8730*2370*3990mm |
Chassis |
DF AUTO |
|
Total mass |
12000KG |
Engine |
Cummins B140 33 (103KW/ 502N.m), Euro II |
|
Wheelbase |
4700mm |
Box dimension |
6200x2300x2600mm |
|
Transmission: |
Faust 6 speed |
Bridge |
Dana 3.9/6.8T (main minus 5.125) |
|
Tyre: |
245/70R19.5 14PR vacuum tyre |
Other configuration: |
left rudder/air conditioning /232mm frame/air brake/rear transverse stabilizer bar |
|
Silent generator group |
|||
|
Generator set |
24KW/Yangdong |
dimension |
2200*900*1350mm |
|
Frequency: |
60HZ |
Voltage: |
415V/3 phase |
|
Generator: |
Stanford PI144E (full copper coil, brushless self-excitation, including automatic pressure regulating plate) |
LCD controller: |
Zhongzhi HGM6110 |
|
Micro break: |
LS, relay: Siemens, indicator light + wiring terminal + key switch + emergency stop: Shanghai Youbang Group |
Maintenance-free DF battery |
CAMEL |
|
LED full color screen (Left and right side) |
|||
|
Dimension |
5440mm(W)*2240mm(H) |
Module size |
320mm(W) x 160mm(H) |
|
Module resolution |
64 x32 Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Kinglight light |
Dot pitch |
5mm |
|
Light brand |
Kinglight |
Brightness |
≥6500cd/㎡ |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
40000 Dots/㎡ |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
system support |
Windows XP,WIN 7， |
Operating temperature |
-20~50℃ |
|
|
|
|
|
|

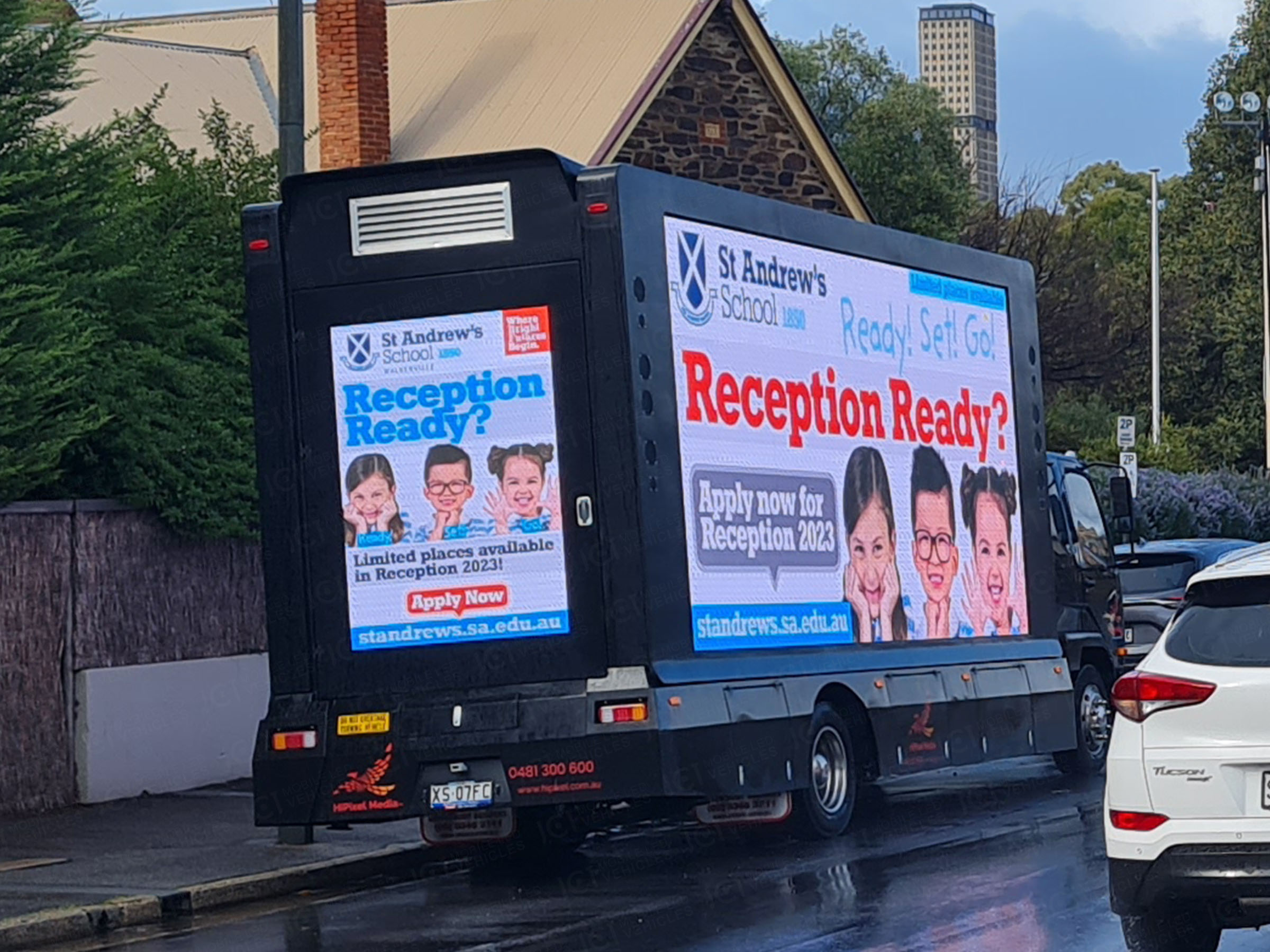

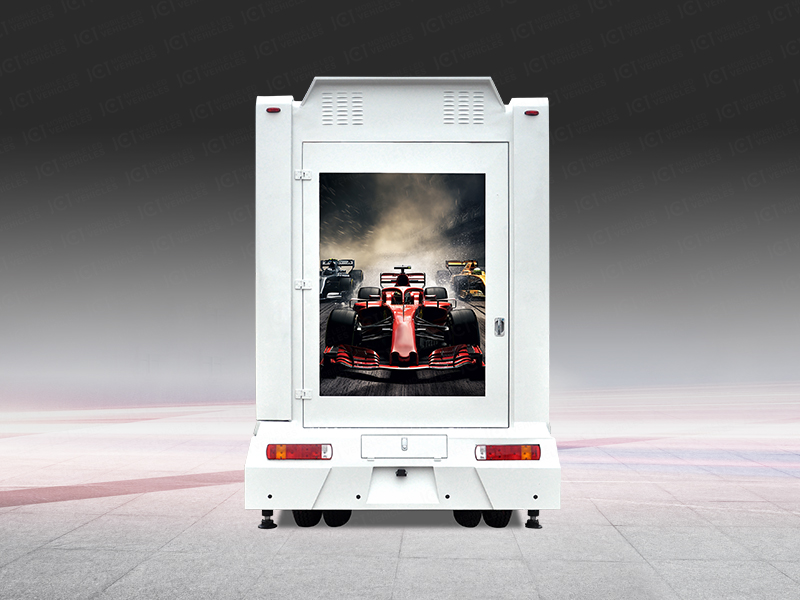

LED full color screen (Rear side) |
|||
|
Dimension(rear side) |
1280mm*1760mm |
Module size |
320mm(W) x 160mm(H) |
|
Module resolution |
64 x32 Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Nationstar/Kinglight light |
Dot pitch |
5mm |
|
Light model |
SMD2727 |
Refresh rate |
3840 |
|
Power supply |
Meanwell |
Brightness |
≥6500cd/ m² |
|
Average power consumption |
300w/㎡ |
Max power consumption |
700w/㎡ |
|
Power parameter (external prower supply) |
|||
|
Input voltage |
3phase five-wire 380V |
Output voltage |
220V |
|
Inrush current |
70A |
Average power consumption |
0.3kwh/㎡ |
|
Player control system |
|||
|
Video processor |
NOVA |
Model |
VX600 |
|
Sound system |
|||
|
Power amplifier |
1500W |
Speaker |
200W,4 pcs |
|
hydraulic lifting |
|||
|
distance of travel |
2000 mm |
bearing |
3000KG |
|
Hydraulic stage |
|||
|
Size |
6000 mm*3000 mm |
stairs |
2 pecs |
|
guardrail |
1 set |
|
|
