Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

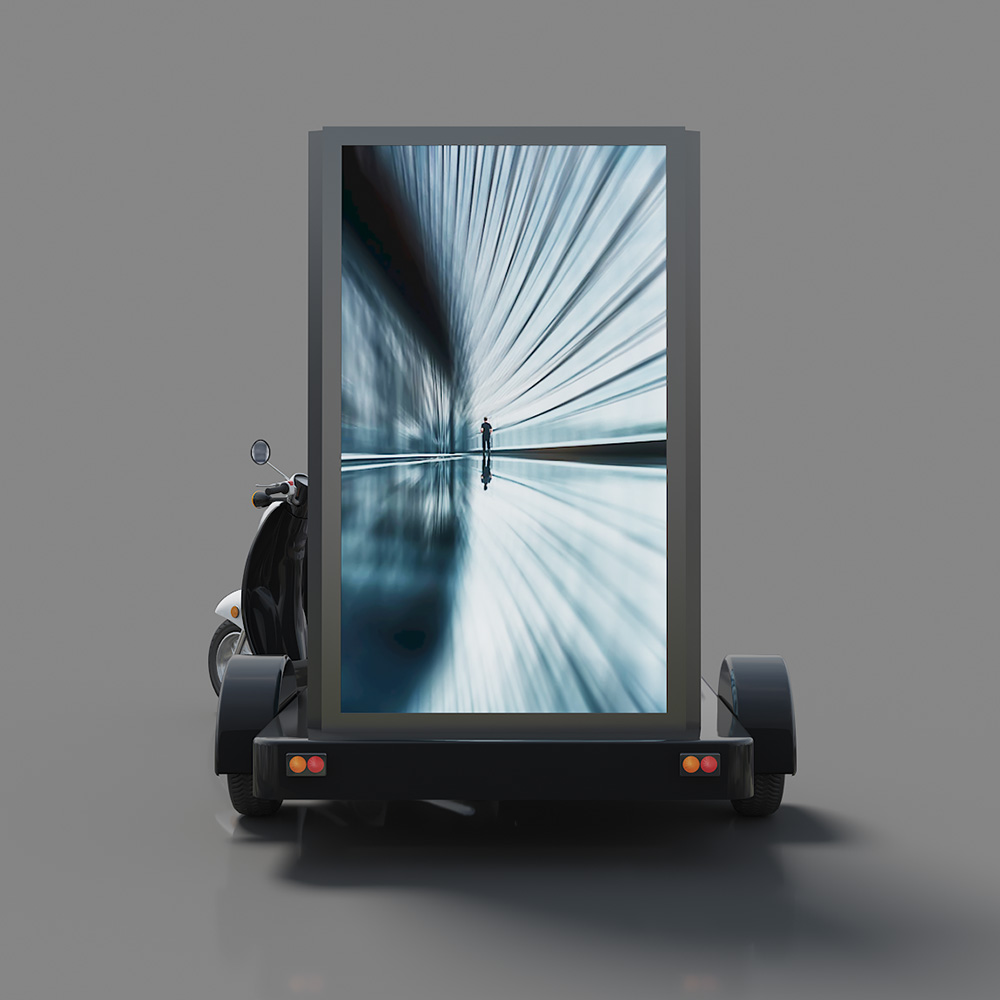

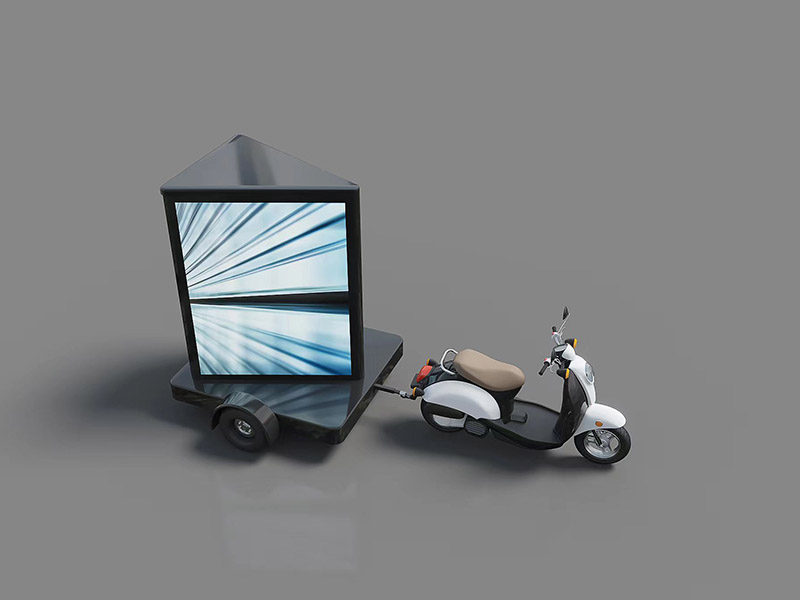

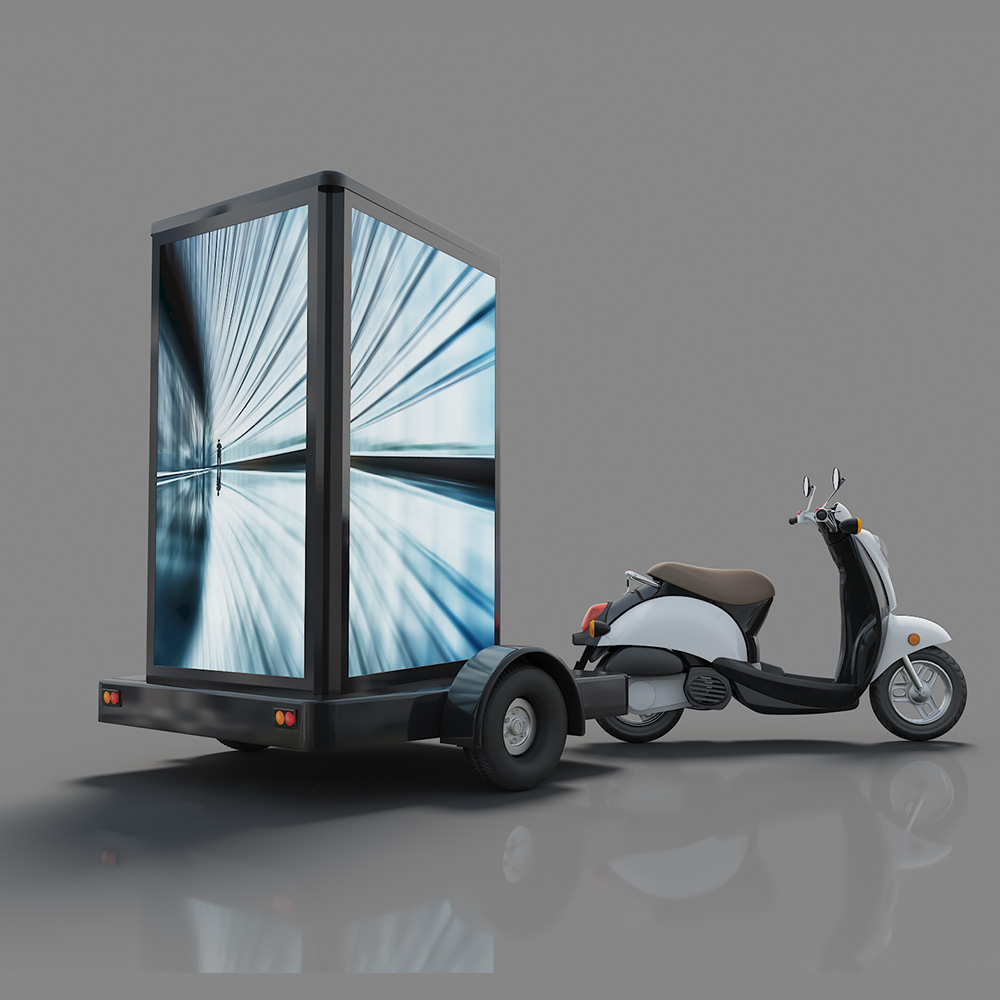

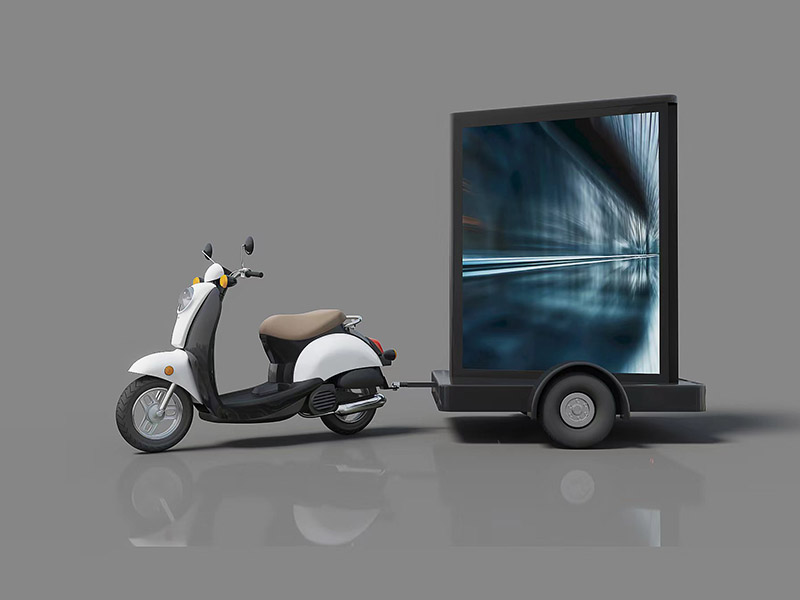

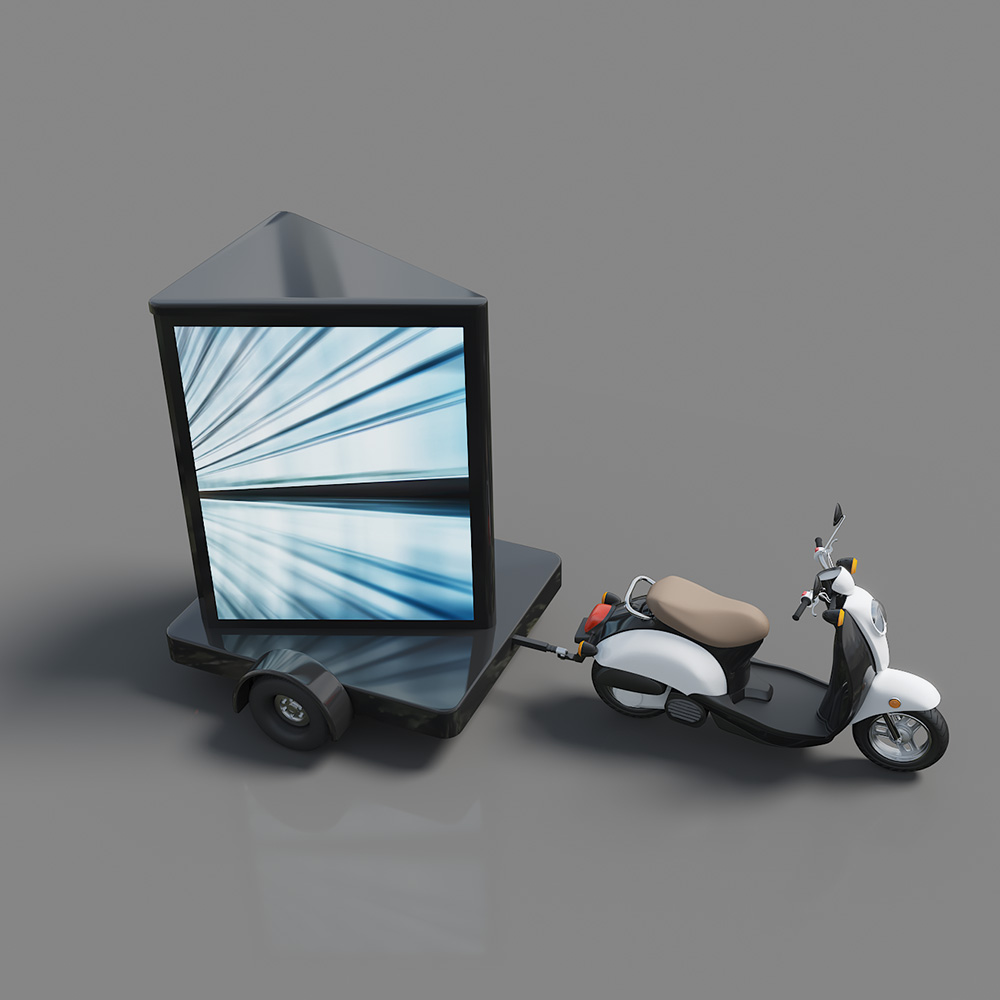

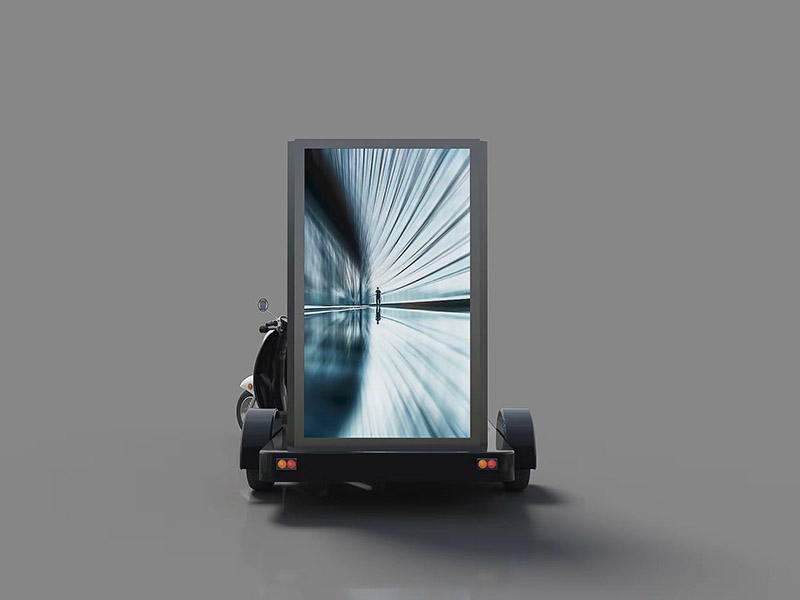

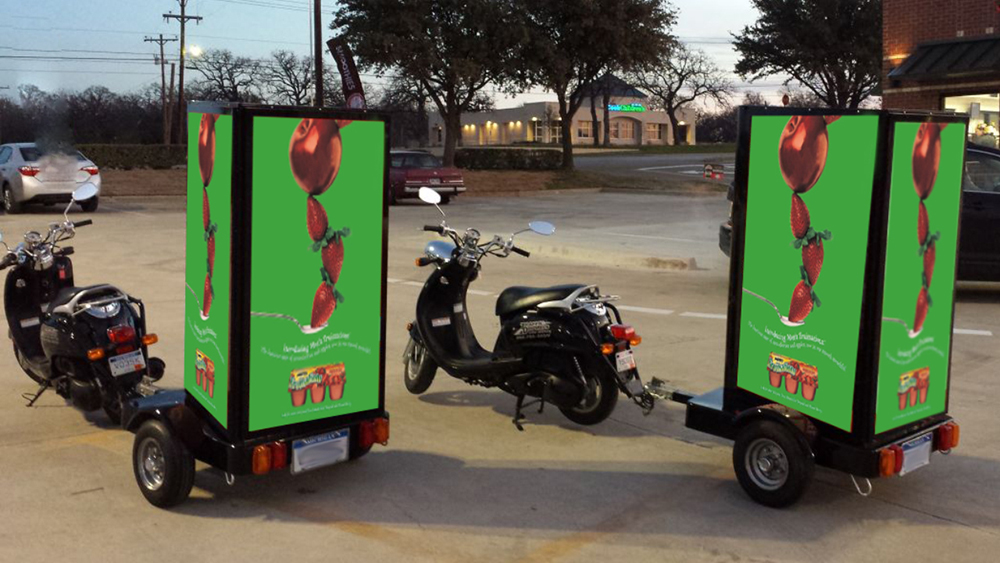

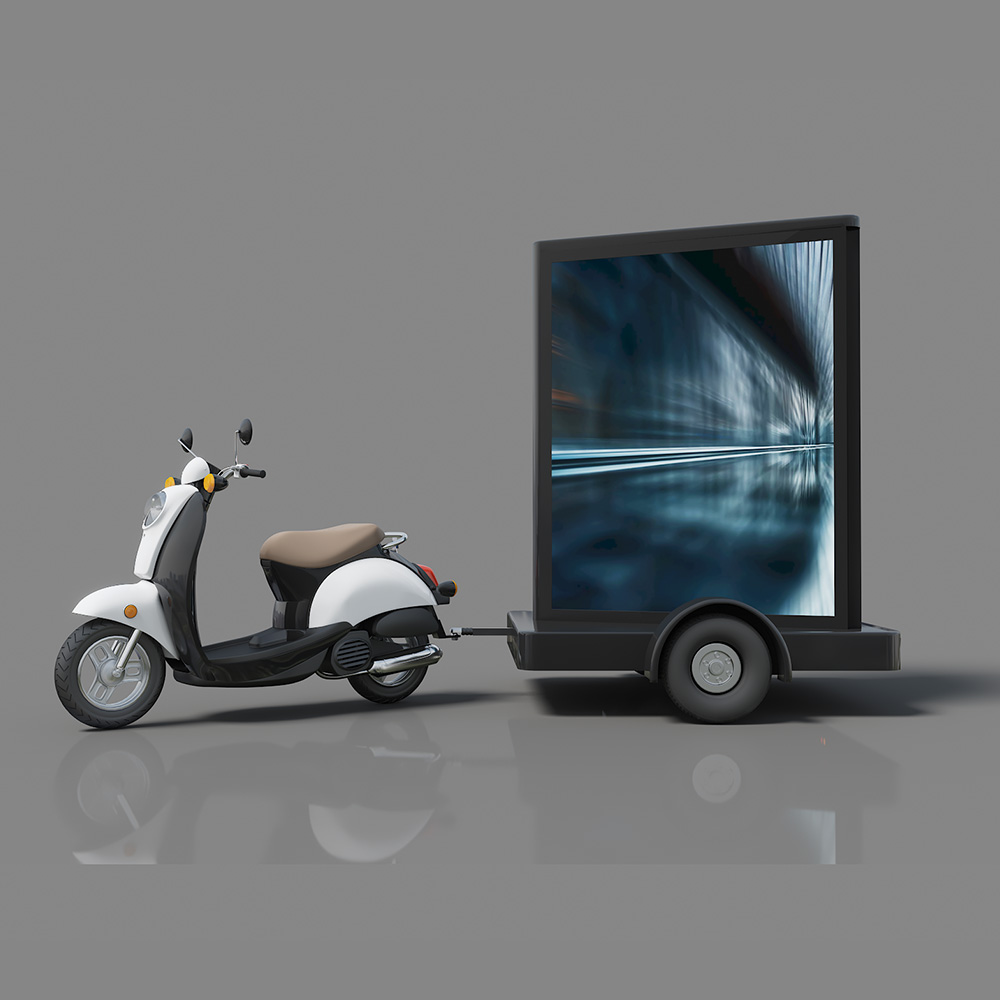

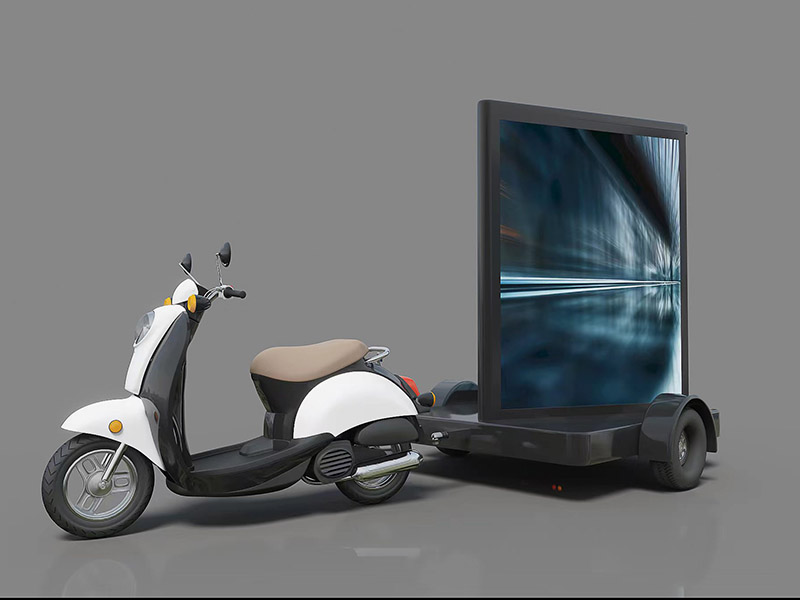

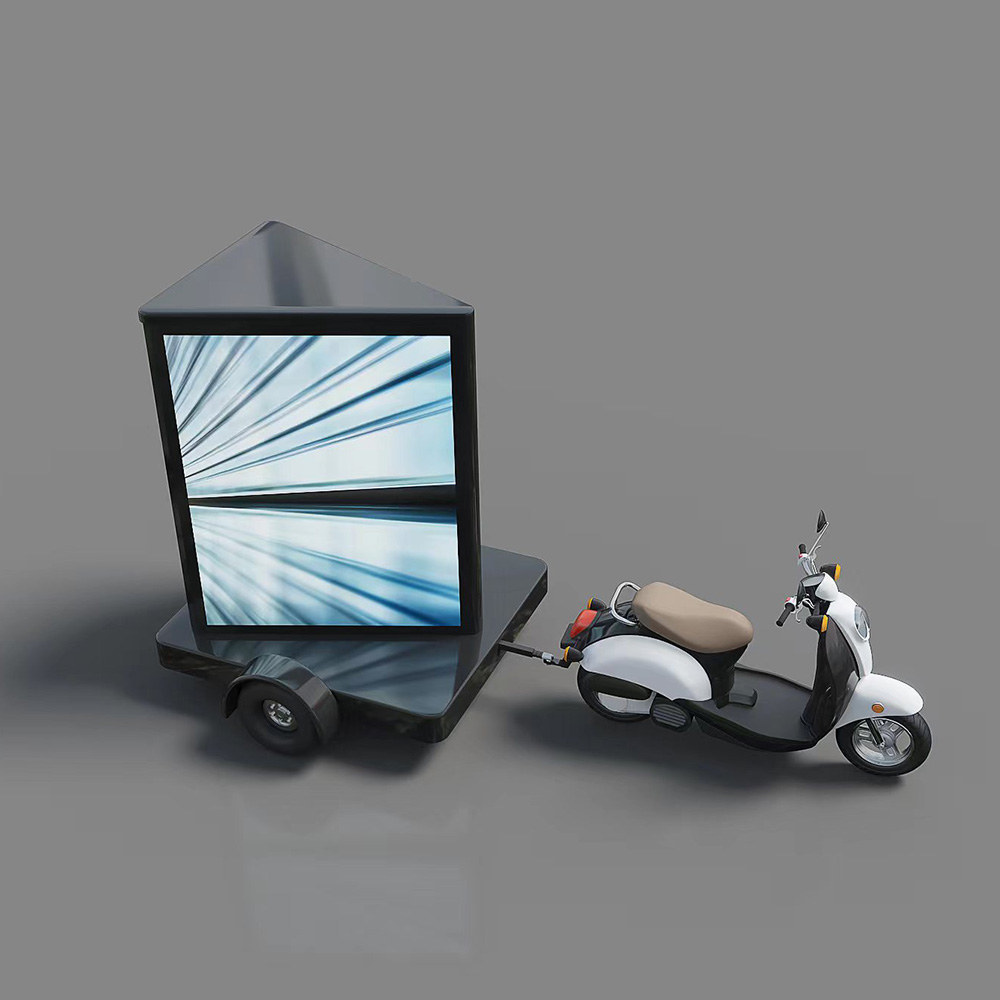

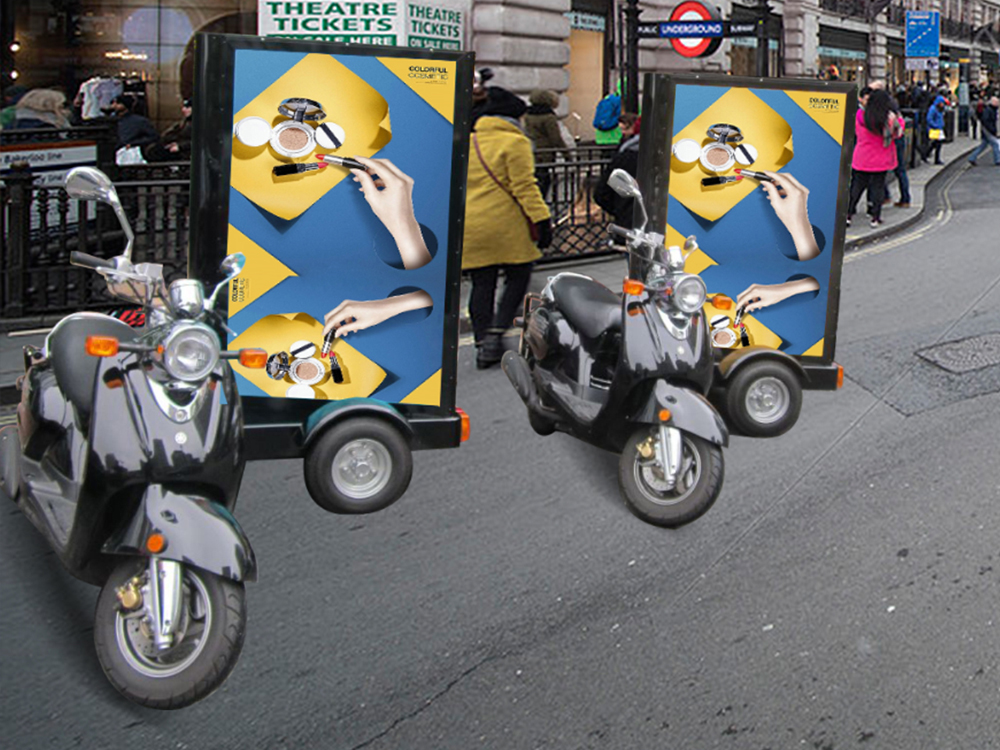

SAT4 Scooter advertising trailer - its essence is a mobile advertising medium, which is a perfect combination of green new energy and new technology. It is not only uses LED screen materials with environmental protection, energy the combination of advertising creativity and movable carriers has truly achieved an all-round coverage of the trajectory contact points in people's life circles. If you own multiple scooter advertising trailers, these scooter advertising trailers can cover multiple communities, go to places where cars and trucks are not allowed, and can also be scattered to different corners of the street. Its novel appearance can also attract hobbies The photography crowd came to take pictures and check in.

Advertisers can use multiple scooter advertising trailers to replace the high price of fixed outdoor large screen advertising. This promotion mode also indicates the development trend of the global low-carbon economy in the future, and provides a new development direction of outdoor advertising media in the future. It makes up for the high-quality outdoor advertising resources in the market with the characteristics of convenience and low cost, reduces the regret of the scarcity of outdoor large screen, and gives customers a new media choice.

One of the advantages of using scooter advertising trailers to promote publicity is that it can display diversified information in public places, broadcast information in crowded places, maximize the dissemination of advertising information, and make the advertisement move up. At the same time, the scooter advertising trailer can cooperate with the company, advertisers to conduct flexible transfer, according to the current situation of promotion, flexible replacement of promotion arrangements.

Scooter advertising trailer covers your life circle in all aspects, it makes up for the high-quality outdoor advertising resources in the market with the characteristics of convenience and low cost, it can carry out two-way picture and sound publicity, to ensure the publicity effect, to ensure the quality of publicity. Scooter advertising trailer let people have a new point of advertising, it is no longer confined to the previous form, with the scooter advertising trailer with you, what do you worry about? Get a look at this new type of advertising equipment.

Parameters

SCOOTER ADVERTISING TRAILER

MODEL:SAT4

Specification

Trailer appearance

Trailer size

1500×1250×2050mm

Tire

4.80-8 4-114.3

Torsion shaft

500KG 4-114.3,1 pce

Connector

50mm ball head, 4 hole Australian impact connector, wire brake

Max speed

100Km/h

Axle

Single axle/Torsional axle

LED Screen

Dimension

960mm*1440mm*double-sided+Rear side 640*1440mm

Module Size

320mm(W)*160mm(H)

light brand

hongzheng Gold wire light

Dot Pitch

4 mm

Brightness

≥5500cd/㎡

Lifespan

100,000hours

Average Power Consumption

150w/㎡

Max Power Consumption

450w/㎡

Drive IC

ICN2153

Fresh rate

3840

Power Supply

Xingxiu

Receiving card

NOVA MRV416

Cabinet size

2560*1280mm

system support

Windows XP,WIN 7,

Cabinet material

Iron

Cabinet weight

Iron 50kg/m2

Maintenance mode

Rear service

Pixel structure

1R1G1B

LED packaging method

SMD1921

Operating Voltage

DC 4.2、3.8V

Module power

5W

scanning method

1/8

HUB

HUB75

Pixel density

62500 Dots/㎡

Module resolution

80*40Dots

Frame rate/ Grayscale, color

60Hz,13bit

Viewing angle, screen flatness, module  clearance

H:100°V:100°、<0.5mm、<0.5mm

Operating temperature

-20~50℃

The battery

Dimension

522*240*223mm

Battery specification

12V200AH*2Pcs,4.8KWH

Control system

Player

Nova TB2-4G

receiving card

NOVA MRV416

Luminance sensor

NOVA NS060
