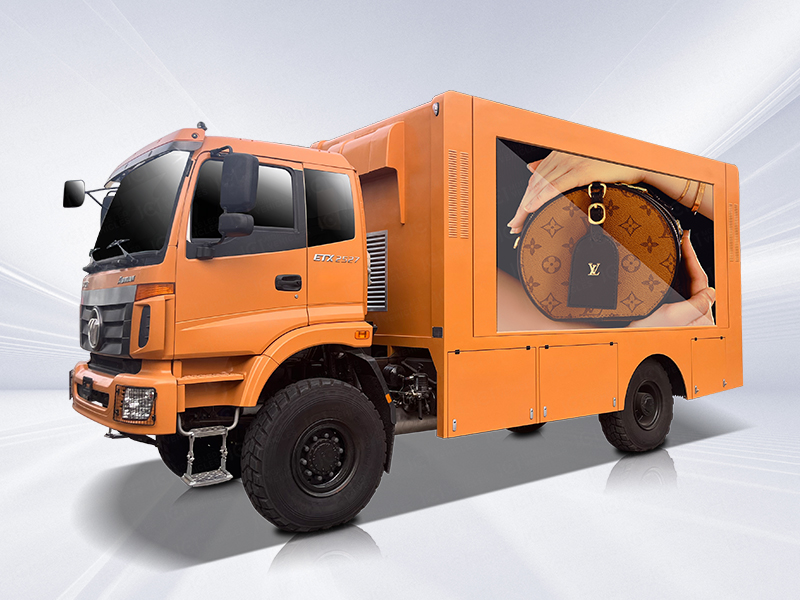

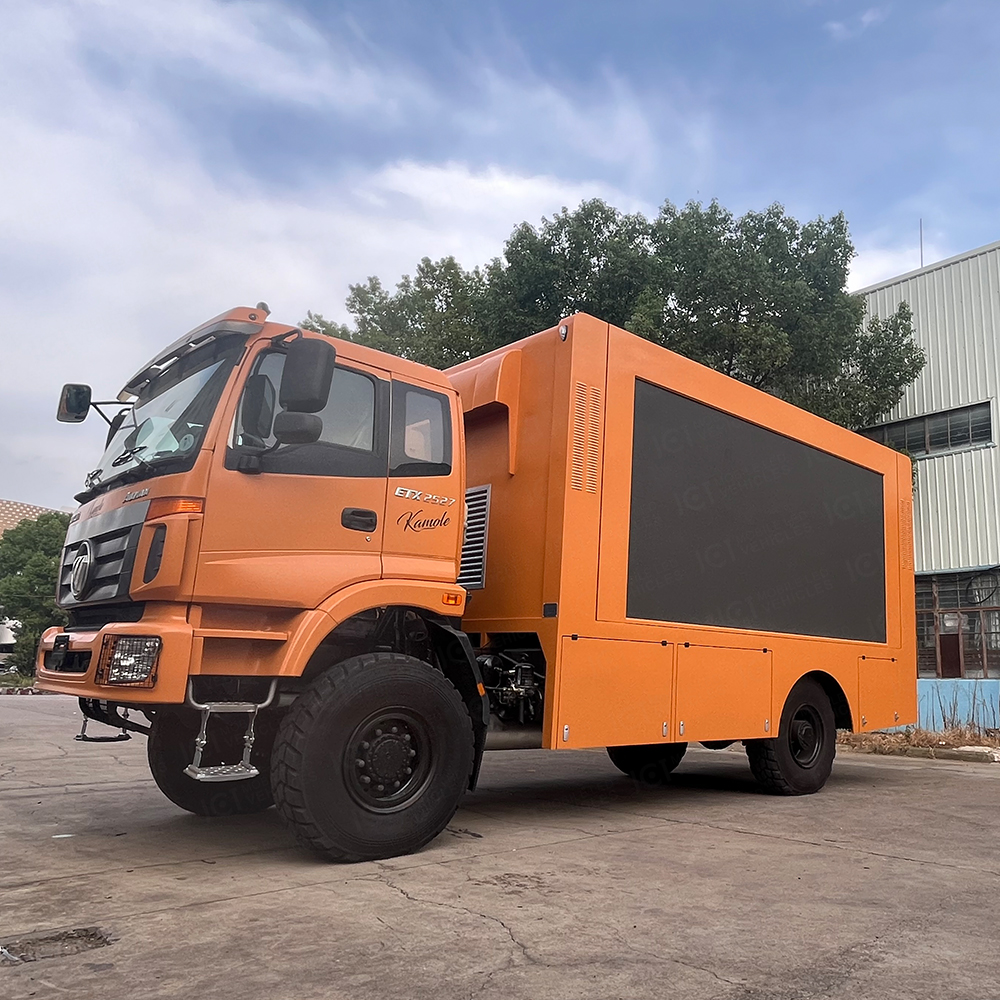

HW4600 model of mobile advertising truck: 4WD off-road truck with 4*4m screen for muddy road conditions
With the rapid development of modern society, the publicity and promotion of products have become particularly critical. In such a fierce competitive environment, the HW4600 type of mobile advertising car came into being, with its unique charm and practicality, to help your brand and products stand out.

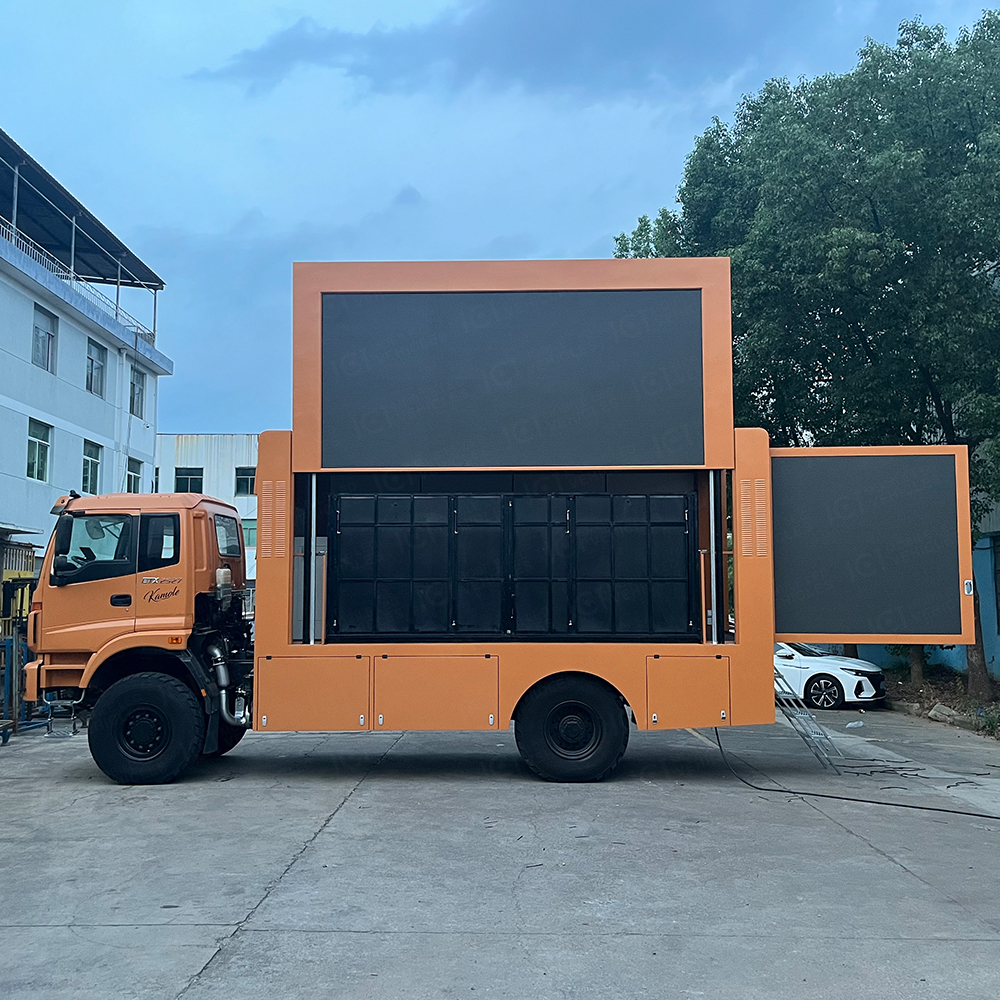

Large full color led display with lifting

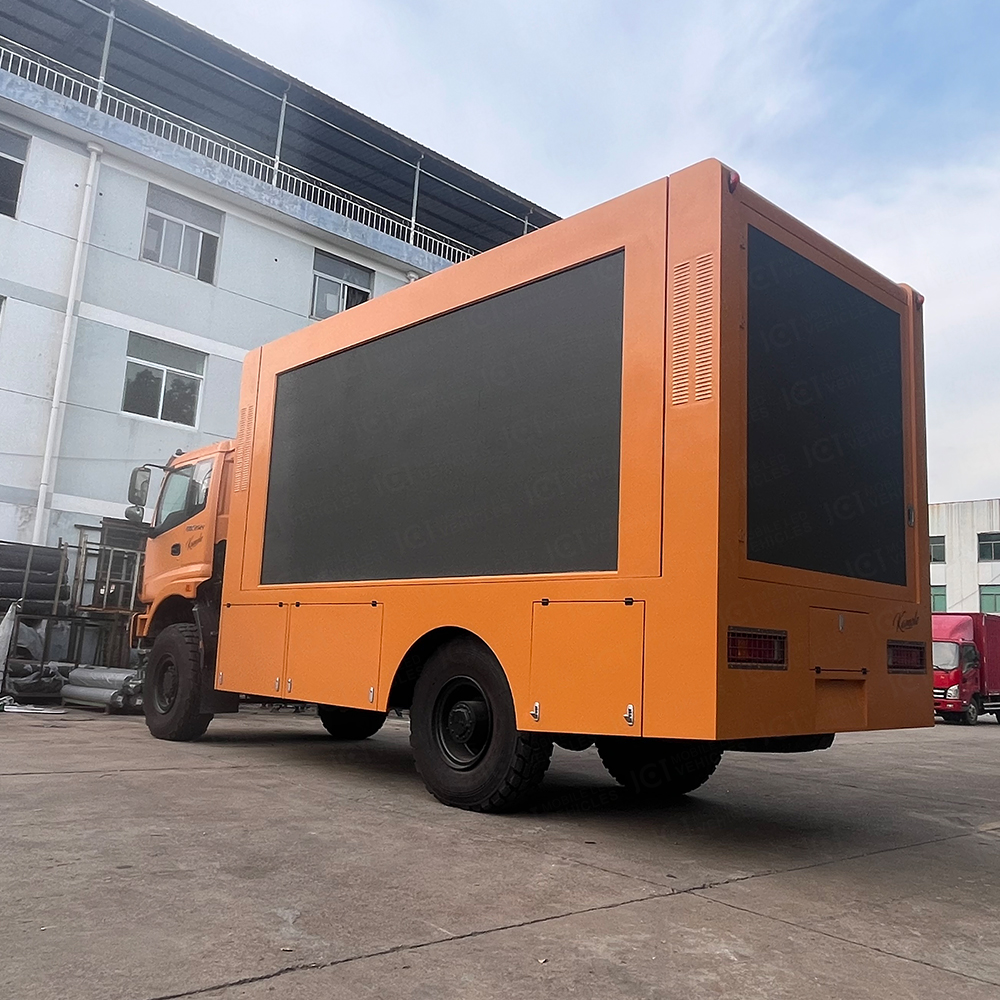

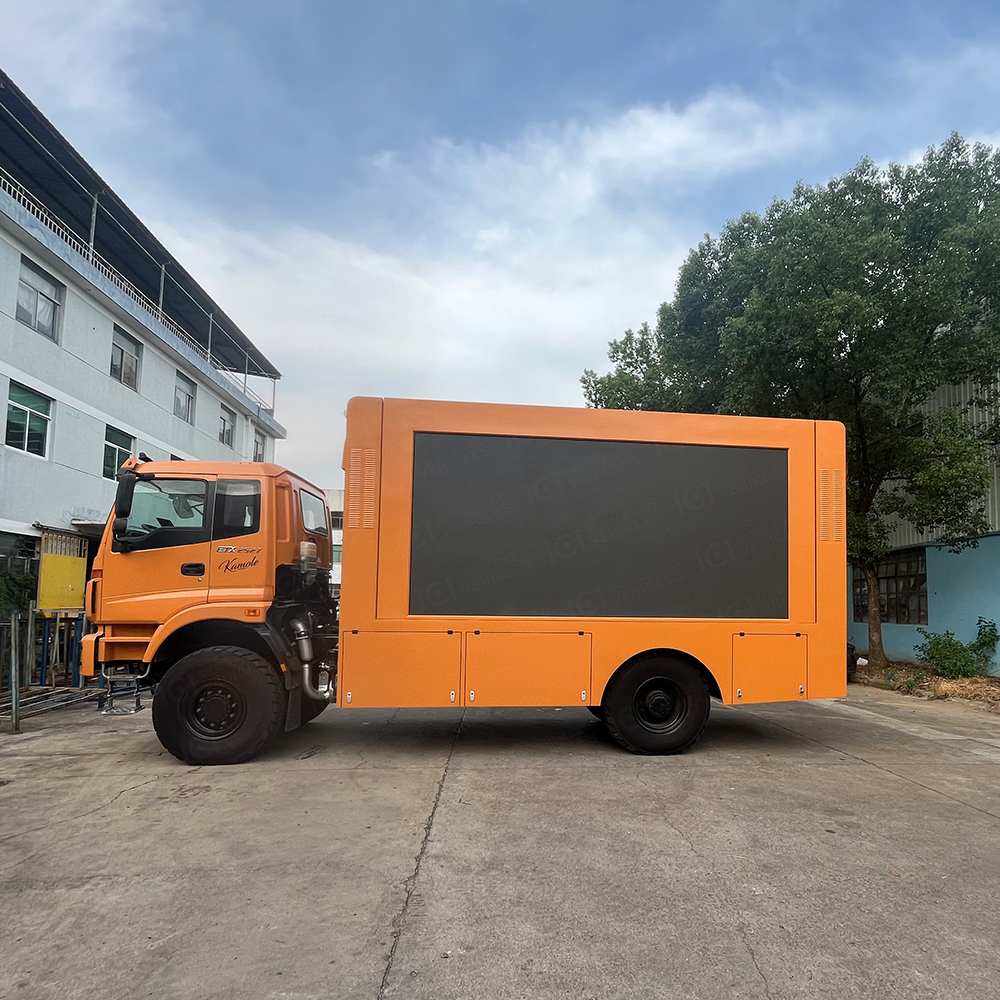

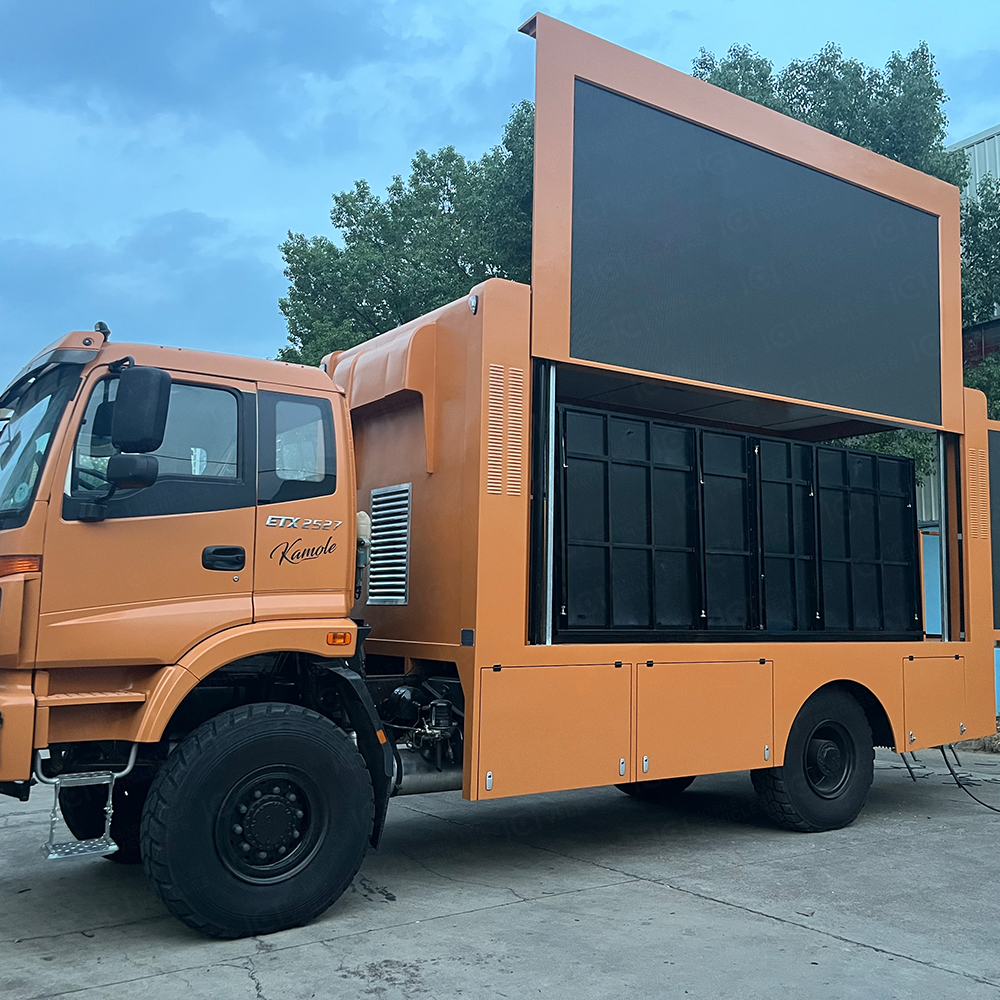

HW4600 The truck size is 7200 * 2400 * 3240mm. It is equipped with a large outdoor LED full-color display on the left side of the truck with the size of 4160mm * 1920; the size of 1920mm * 1920mm is also installed in the rear of the advertising truck. The main screen on the left side is equipped with a hydraulic lifting system, and the lifting stroke can reach 1700mm. This innovative design not only provides a larger and wider display space for the advertising content, but also improves the perspective of ensuring the clarity of the picture quality and the fullness of color, and brings shocking visual effect to your advertising content.

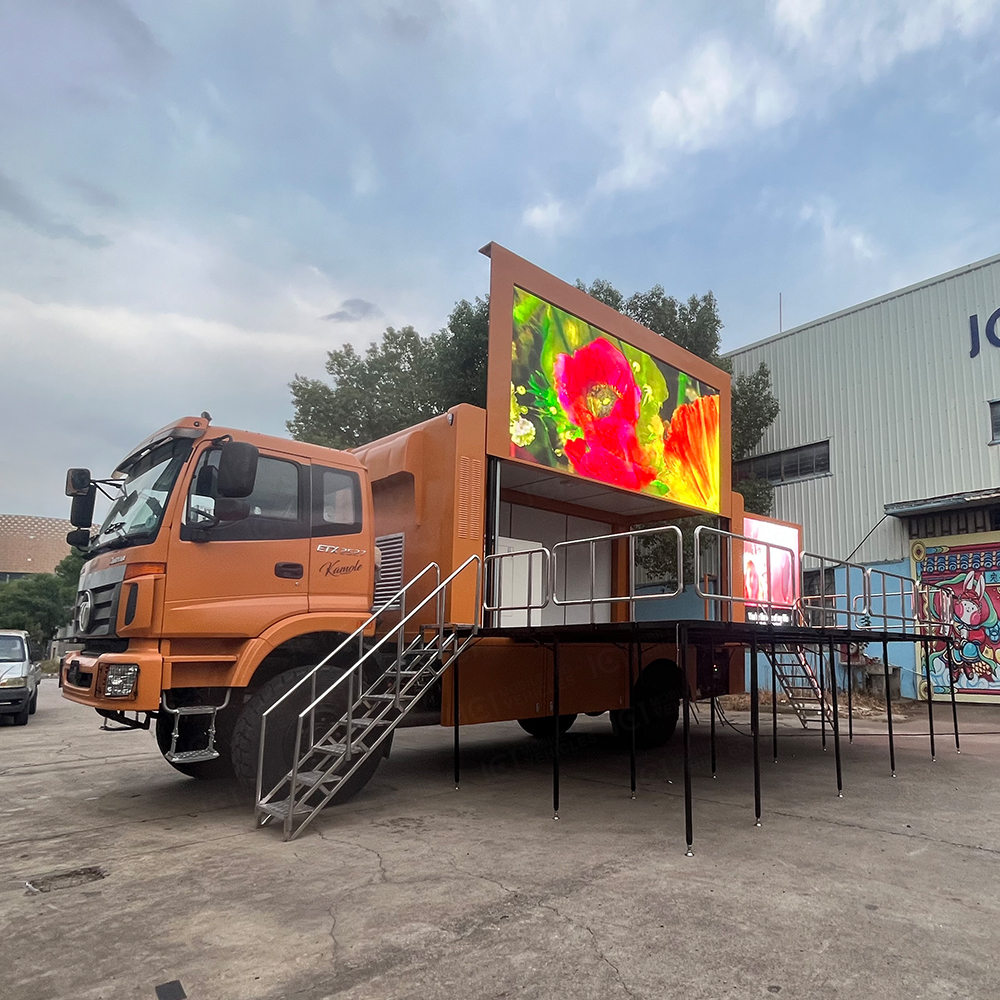

Multi-function hydraulic stage system

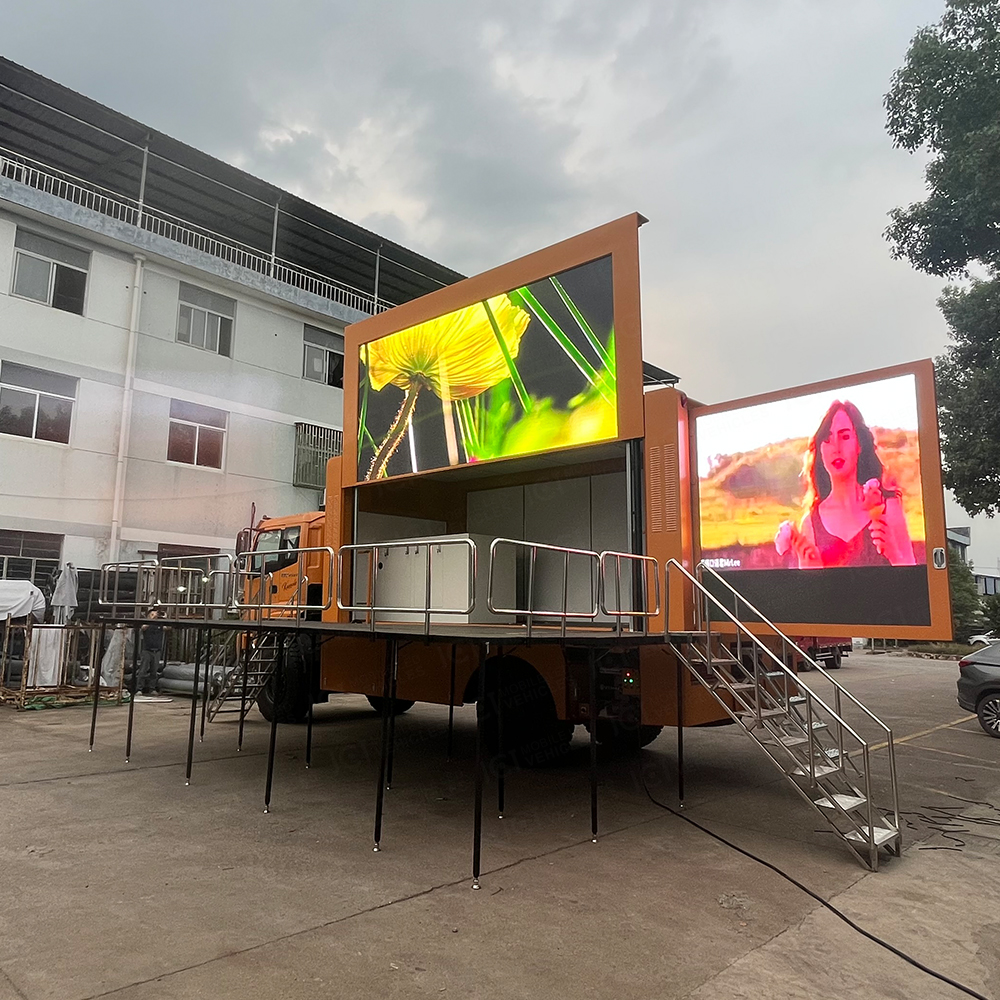

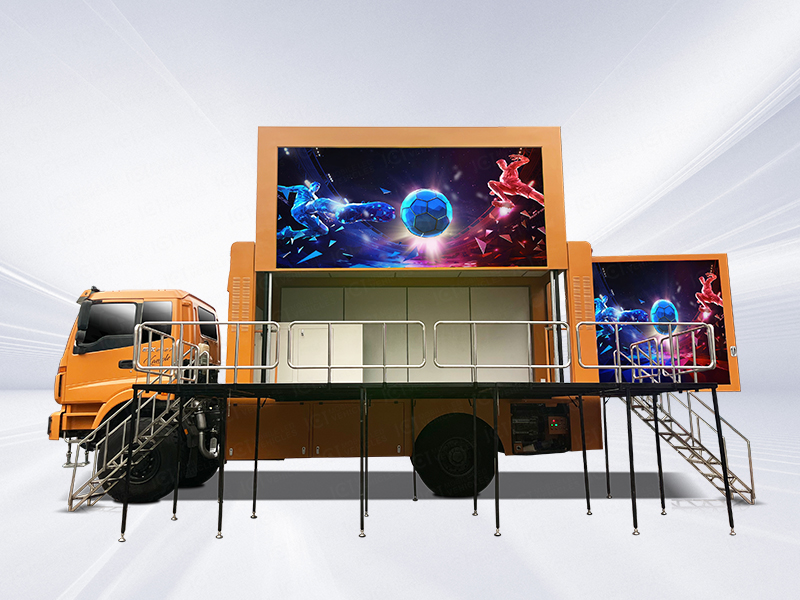

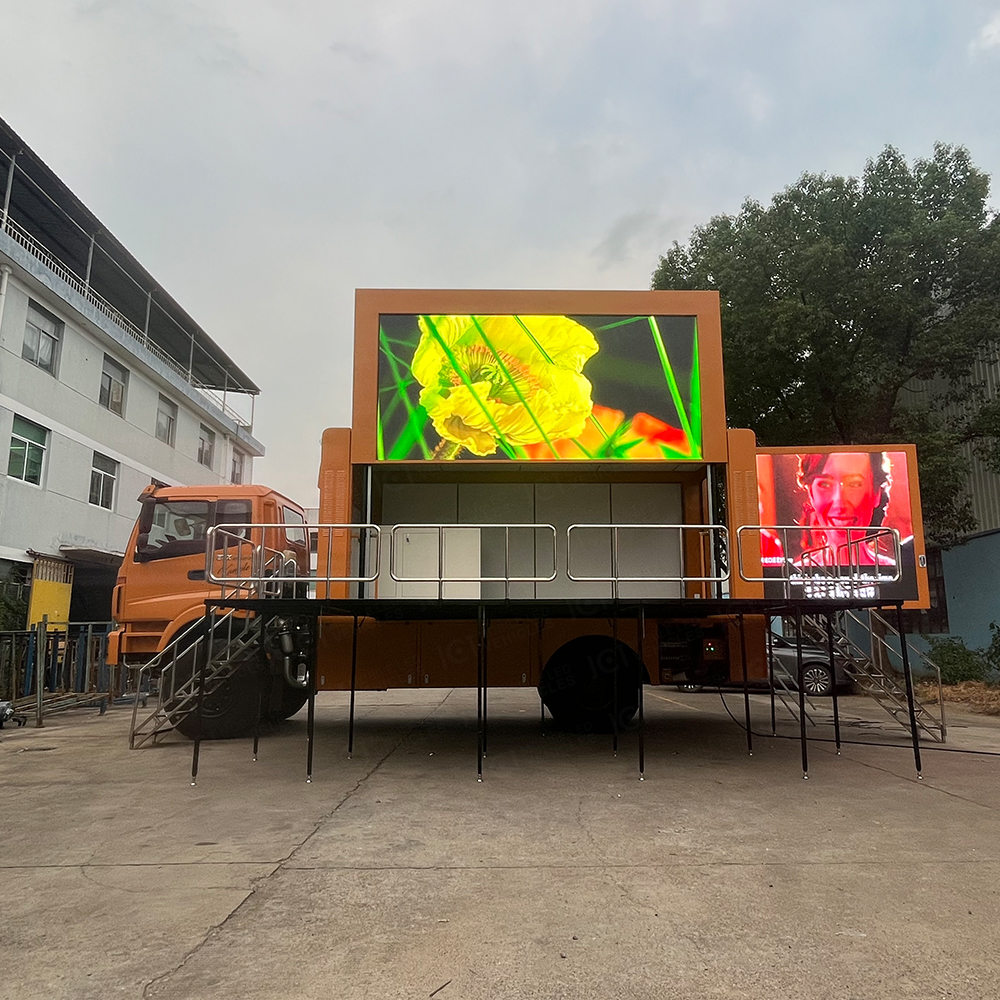

The advertising truck is equipped with 6000 * 2600mm size automatic hydraulic stage, launched immediately become a mobile stage truck. Whether it's product launches, branding events, or talent shows, sports events, and concerts, this stage system can add more color and energy to your event.
3 D video animation and real-time information display
HW4600 model of advertising truck can not only display the traditional graphic information, but also inject vitality into your advertising content in the form of three-dimensional video animation. At the same time, the real-time information display function, to ensure that your advertising content always keeps pace with The Times, to attract the audience's attention.
Extensive range of publicity and efficient interaction
The design of this advertising truck is designed to achieve the maximum range of advertising communication effect. Whether it is the streets of the city, or the fields of the countryside, the HW4600 advertising truck can easily deal with it, to ensure that your advertising information is deeply rooted in the hearts of the people. At the same time, on-site display, communication and interaction functions enable you to connect more directly with potential customers and strengthen the interaction between the brand and consumers.
Diversified application scenarios
Whether it is used for product promotion, brand promotion, or as a talent show, sales live display, sports events and concert support equipment, HW4600 advertising truck can perfectly adapt to meet your diversified needs.
To sum up, the HW4600-model mobile advertising truck, with its innovative design, rich functions and a wide range of application scenarios, has become a major tool in the modern advertising industry. Choose HW4600 model advertising truck, let your brand and products stand out in this advertising war, to win more attention and recognition!
|
HW4600 single side screen |
|||
|
Specification |
|||
|
Chassis |
|||
|
Brand |
Sino-Trunk |
Dimension |
7200x2400x3240mm |
|
Power |
Weichai engine 300 HP,4*4 drive |
Total mass |
16000KG |
|
Wheelbase |
4600mm |
Unladen mass |
9500KG |
|
Emission standard |
National standard III |
Seat |
2 |
|
Silent generator group |
|||
|
Dimension |
1850*920*1140mm |
Power |
12KW diesel generator set |
|
Voltage and frequency |
220V/50HZ |
Engine: |
AGG, engine model: AF2270 |
|
Motor |
GPI184ES |
Noise |
Super silent box |
|
Others |
electronic speed regulation |
|
|
|
LED full color screen (Left side) |
|||
|
Dimension |
4160mm*1920mm |
Module Size |
320mm(W)*160mm(H) |
|
Light brand |
Nationstar light |
Dot Pitch |
5mm |
|
Brightness |
6000cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
G-energy |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV416 |
Fresh rate |
3840 |
|
Cabinet material |
iron |
Cabinet weight |
50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
40000 Dots/㎡ |
|
Module resolution |
64*32Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
system support |
Windows XP,WIN 7， |
|
|
|
Outdoor full color screen (Rear side) |
|||
|
Dimension |
1920mm*1920mm |
Module Size |
320mm(W)*160mm(H) |
|
Light brand |
Nationstar light |
Dot Pitch |
5mm |
|
Brightness |
6000cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
G-energy |
DRIVE IC |
ICN2153 |
|
Power parameter (external prower supply) |
|||
|
Input voltage |
Single phase 220V |
Output voltage |
220V |
|
Inrush current |
25A |
Average power consumption |
0.3kwh/㎡ |
|
Control system |
|||
|
Video processor |
NOVA |
Model |
TB50 |
|
Speaker |
CDK 100W,2 pcs |
Power amplifier |
CDK 250W |
|
hydraulic lifting |
|||
|
distance of travel |
1700 mm |
|
|
|
Hydraulic stage |
|||
|
Size |
6000 mm*2600 mm |
stairs |
2 Pcs |
|
guardrail |
1 set |
|
|
|
|
|
|
|
