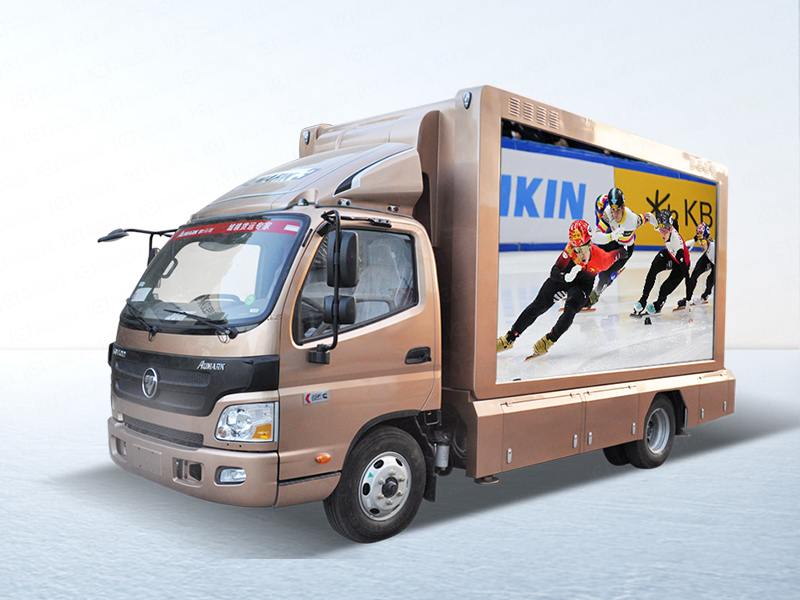

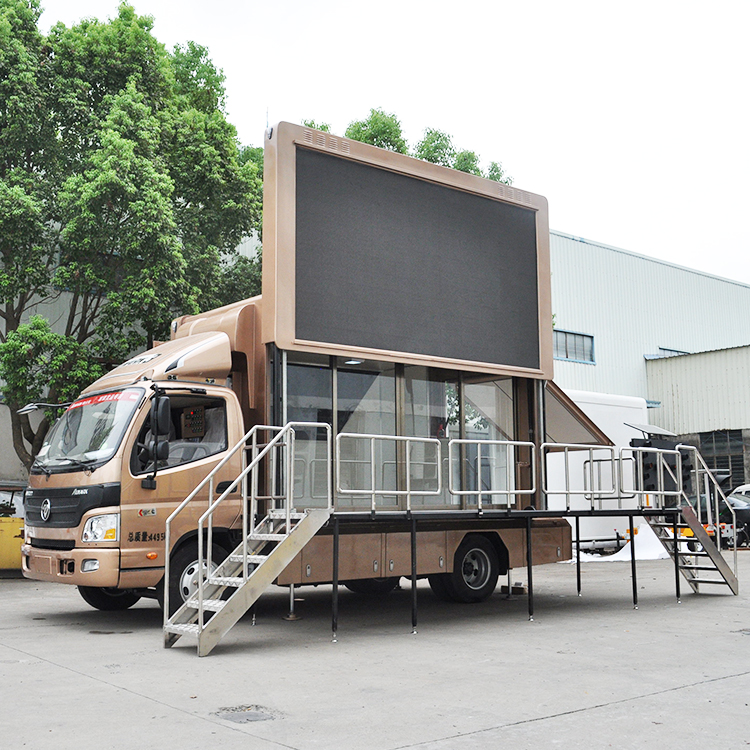

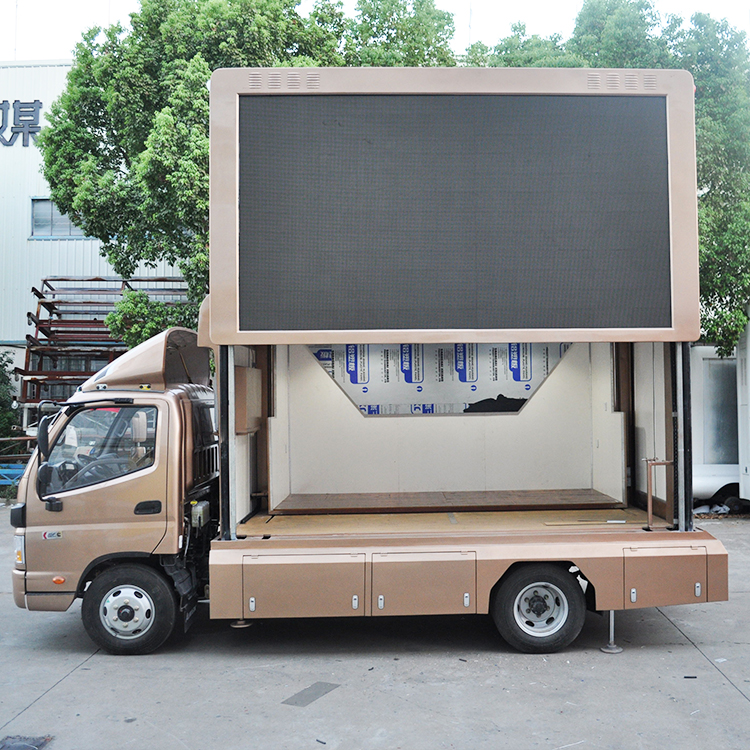

EW3360 LED mobile show truck: your new choice for mobile promotion and display
In the current fast-paced, highly liquid business environment, how to effectively carry out brand promotion and product display has become the key to the success of an enterprise. JCT understands this well, and has launched a new fully automatic EW3360 LED mobile show truck. This mobile show truck is not only your right-hand man for outdoor activities, but also a powerful display platform for your brand image.
Equipped with high-end mobile chassis, for the escort of the activities
The original design intention of this EW3360 LED mobile show truck is to provide customers with a brand experience platform that can change on demand and move easily. It breaks through the tradition and is no longer limited to a fixed display space, but can change the location at any time and quickly change the display information. Think of where the display, to where, truly realize the value of "mobile". Our LED mobile show truck uses Foton Ouma as the mobile chassis. This movement not only has excellent driving performance and stable driving quality, but also is equipped with Cummins super power to ensure easy handling in all kinds of road conditions, providing a solid mobile guarantee for your activities.
Add the hydraulic expansion box, fully enjoy the spacious space

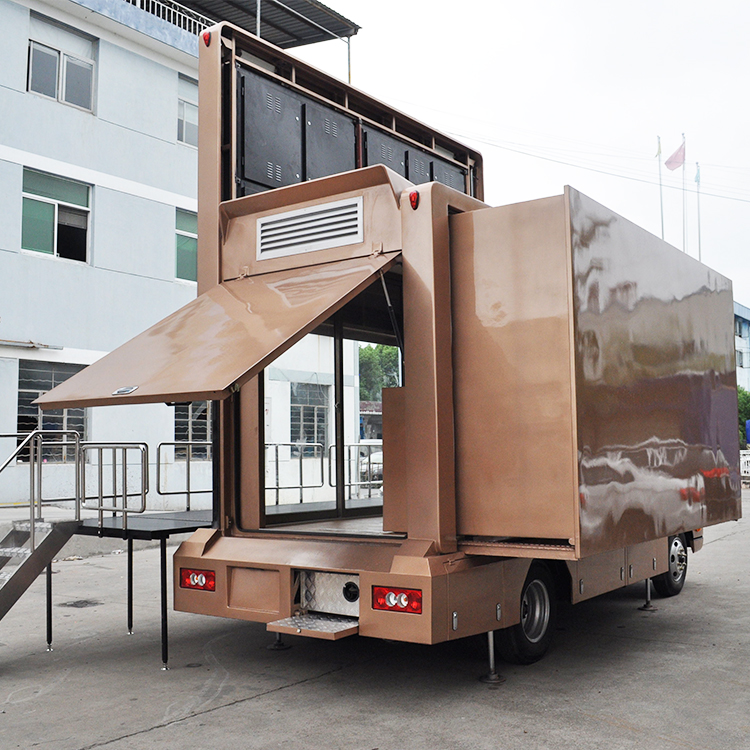

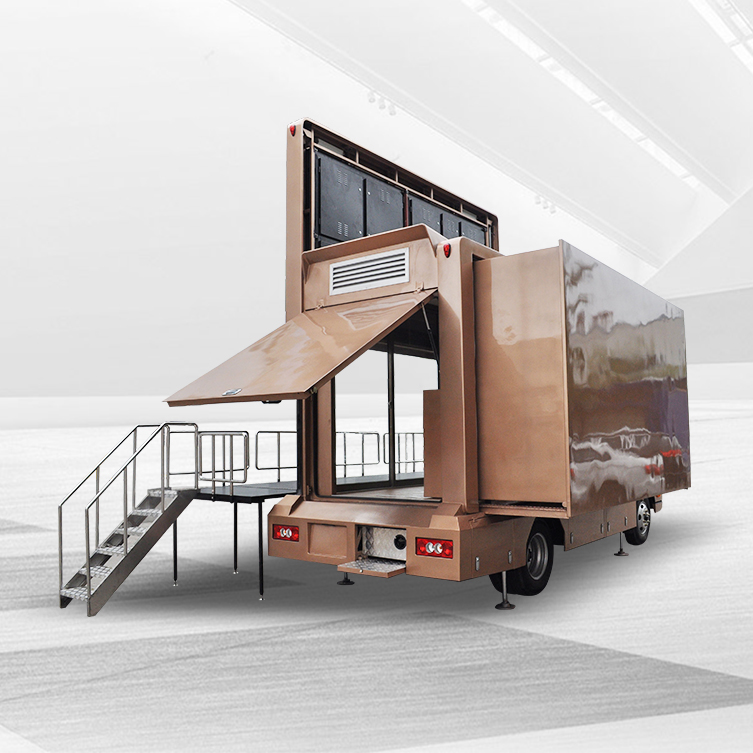

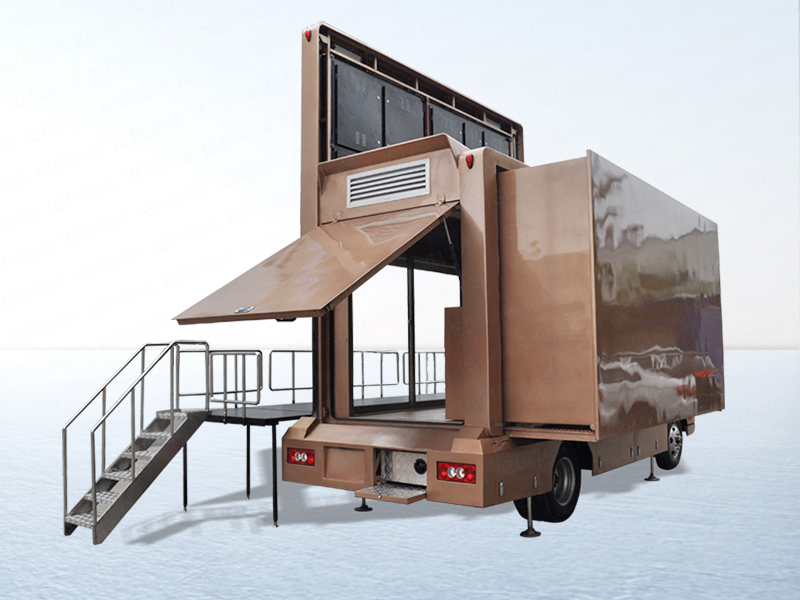

In terms of carriage design, this LED mobile show truck adopts an open unfolding structure, which can be used as a mobile experience store, but also a car stage. The new hydraulic expansion box, so that the display space instantly doubled. The spacious interior space and open vision not only make your display content more attractive, but also allow your customers to enjoy a more comfortable experience when visiting.
Multi-functional display platform, a one-stop solution to the promotion needs

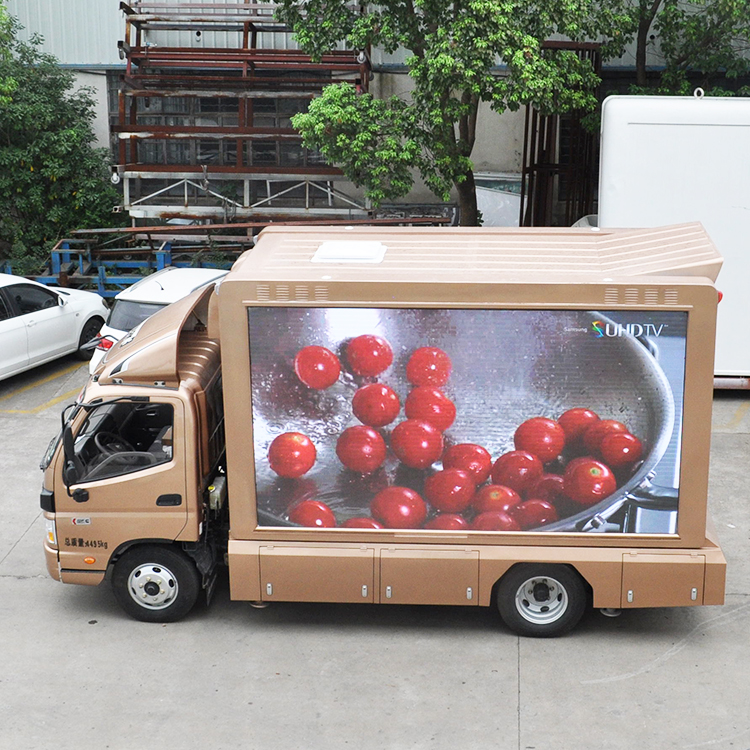

This mobile show truck not only has the automatic opening function, but also carries the 3520mm * 1920mm full color LED background, providing a one-stop solution for your commodity display, artistic performance, mobile roadshow, brand promotion, on-site promotion and other outdoor activities. Whether you want to launch a new product, or want to promote the brand, the fully automatic LED mobile display car can meet your needs.
Brand display truck: the mobile store experience of the new revolution

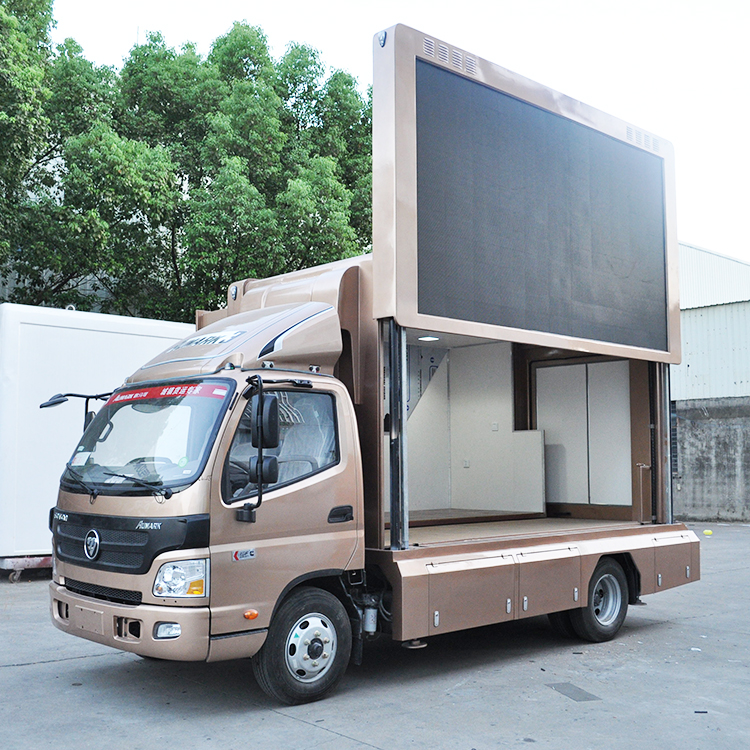

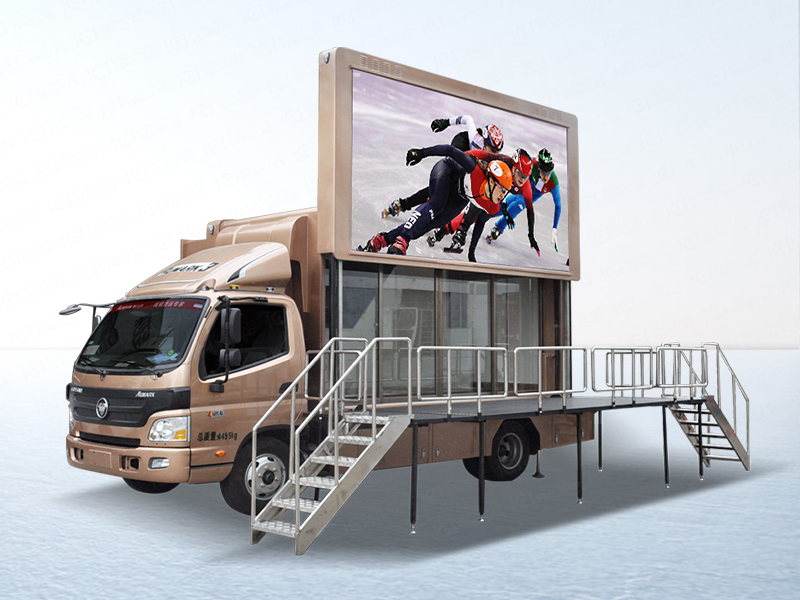

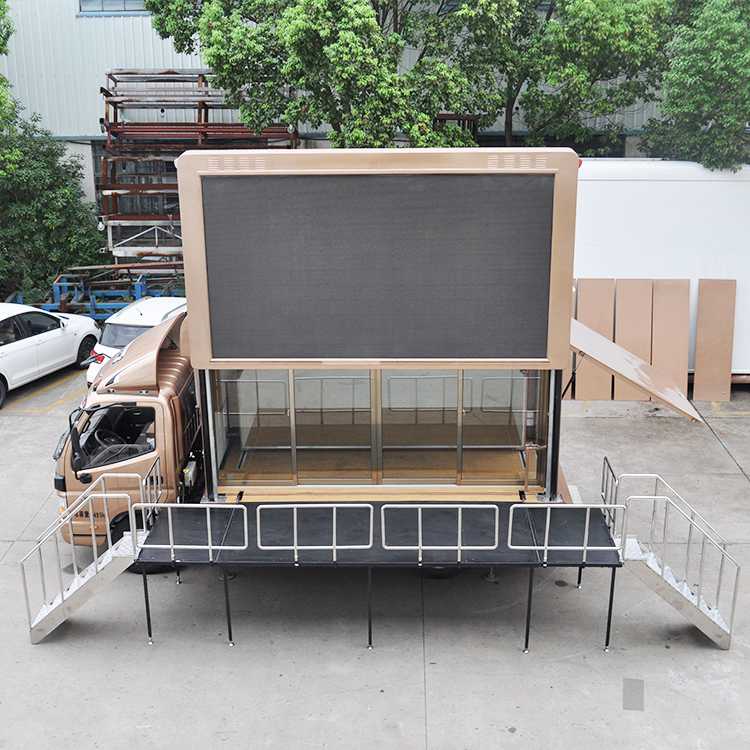

At the same time, this LED mobile show truck, with its unique hydraulic lifting design, even breaks the traditional concept of interior decoration. When the display car rises to 1700cm, the design of the push-pull glass door makes your display space more transparent, and also convenient for customers to get in and out. The spacious interior space, comfortable seats, and well-designed display area are designed to provide customers with a comfortable and pleasant visiting environment, and strive to bring the best experience for every customer.
The EW3360 LED mobile show truck is not only the right-hand man for your outdoor activities, but also an effective display platform for your brand image. Whether you need to show goods, brand promotion, or hope to carry out artistic performance, on-site promotion, this mobile show truck can provide you with a full range of support. Choose JCT's LED mobile show truck to make your every event a successful brand journey.
EW3360 show truck |
|||
Specification |
|||
chassis |
|||
Chassis brand |
Foton Allin |
Dimension |
5995x2190x3300mm |
Generator model |
4J28TC3 |
Capacity |
2.8 L |
Wheelbase |
3360mm |
Fuel type |
diesel |
Emissions |
Euro 5 |
Total mass |
4495kg |
LED full color screen |
|||
Dimension |
3520mm*1920mm |
Module Size |
320mm(W)*160mm(H) |
Light brand |
Kinglight |
Dot Pitch |
4mm |
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
Module power |
18W |
scanning method |
1/8 |
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
Module resolution |
80*40Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Operating temperature |
-20~50℃ |
system support |
Windows XP,WIN 7, |
|
|
Power supply system |
|||
Dc generator |
28V 240AH |
Coulometer |
300A |
Battery |
12V/200AH 4PCS |
Inverter |
3000W |
Driving charger |
2000W |
Accessories and wires |
1set |
Hydraulic Stage |
|||
Dimension |
5200*1440mm |
Stage guardrail |
1 set |
Aluminium alloy stage ladder |
2 pcs |
The paint |
Car paint |
The hydraulic system |
|||
LED display hydraulic lifting cylinder |
2 hydraulic cylinders, 2 guide column sleeves, stroke: 1700mm |
||
Expansion box expansion hydraulic cylinder |
customized |
2 |
|
Expansion box expansion guide rail |
customized |
2 |
|
Stage hydraulic cylinder |
customized |
2 |
|
Hydraulic lock for expansion box |
customized |
2 |
|
Hydraulic support feet |
customized |
4 |
|
Hydraulic pump station and control system |
DECO |
1 |
|
Multimedia system |
|||
Video processor |
NOVA |
Model |
TB50 |
The speaker |
CDK 2PCS |
Power amplifier |
CDK 1PCS |
Notebook computer |
Lenovo |
|
|
Power parameter |
|||
Input Voltage |
220V |
Output Voltage |
24V |
Current |
100A |
Average power consumption |
300wh/㎡ |
