E-YWK3300 multifunctional LED truck: your all-round partner for business and publicity

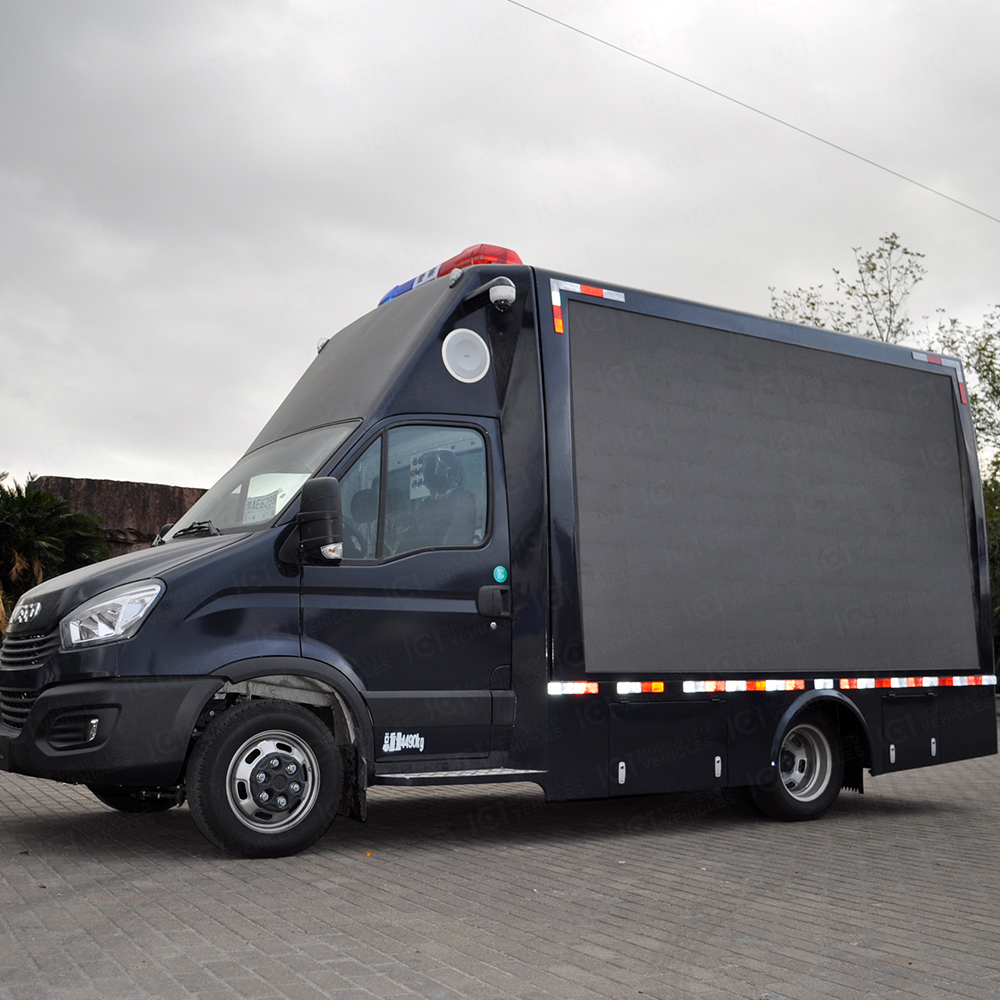

With the continuous evolution of modern business models, a mobile platform that can simultaneously meet the needs of business reception, theme flash mob, image publicity, stage performance and outdoor publicity has become a new choice for many enterprises. The JCT company launched the E-YWK3300 LED truck, which is such a multi-functional LED truck. Its body size is 5995 * 2160 * 3200mm, and the chassis wheelbase is 3300mm, which not only ensures the stability of driving, but also provides sufficient space for the internal multi-functional configuration.
Rich internal configuration: show comfort and practical
In the busy business activities, a comfortable and decent reception environment is crucial. The interior design of the E-YWK3300 multifunctional LED truck fully considers this point. It can be modified in the interior design of the car according to the needs of customers, such as the installation of rest sofa, negotiating tables and chairs, air conditioning, TV, touch screen and so on, providing users with a spacious and comfortable rest and business talk environment. The combination of fire proof board and decorative pattern aluminum floor, ensures safety already, promoted overall texture again.
Stage performance: flexible and changeable

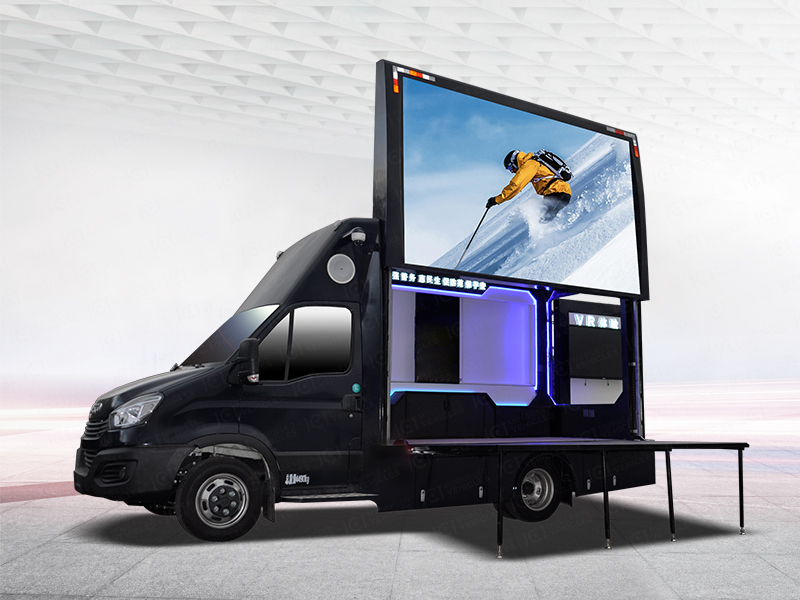

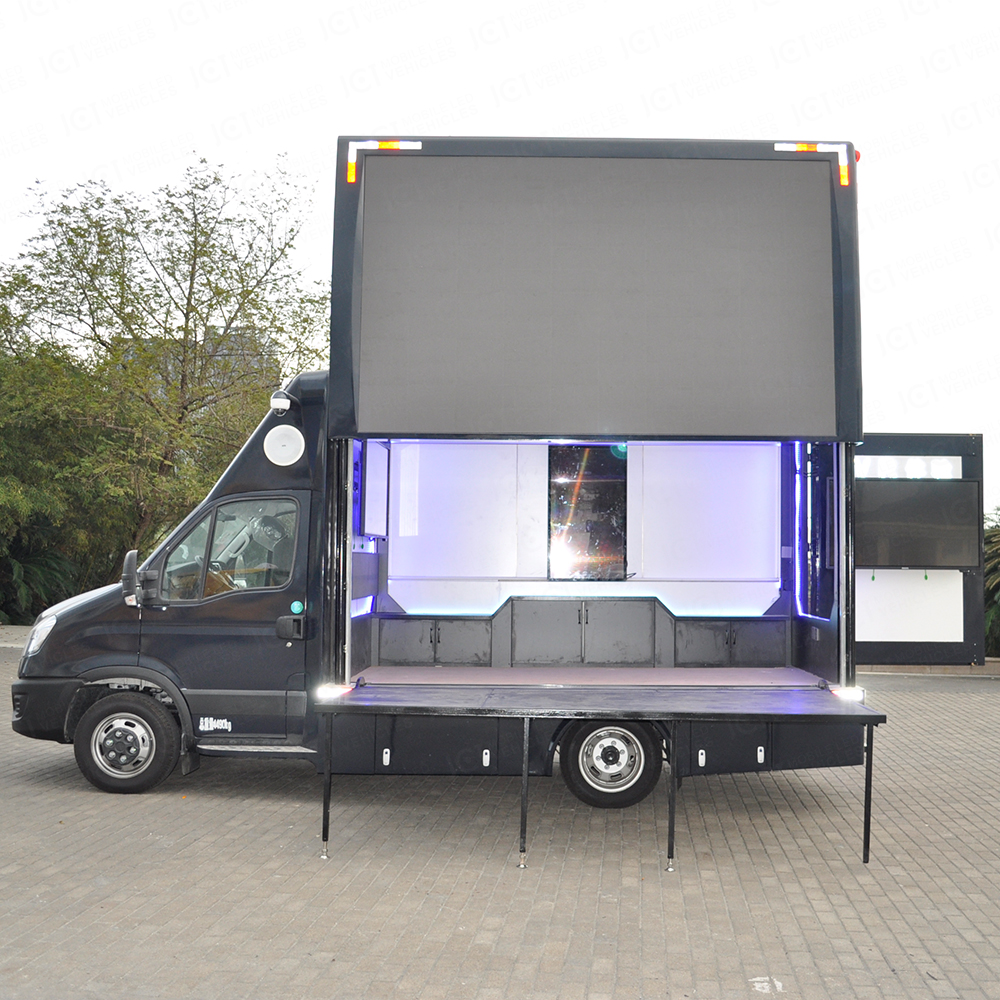

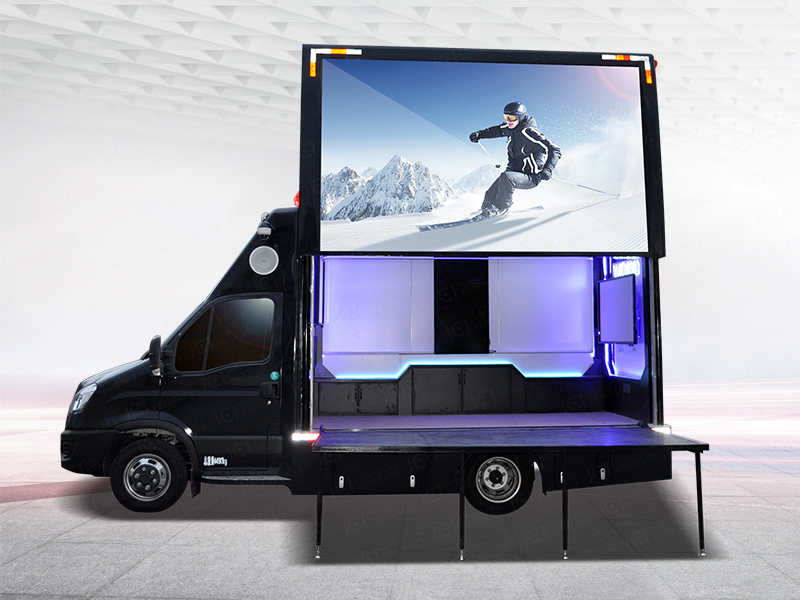

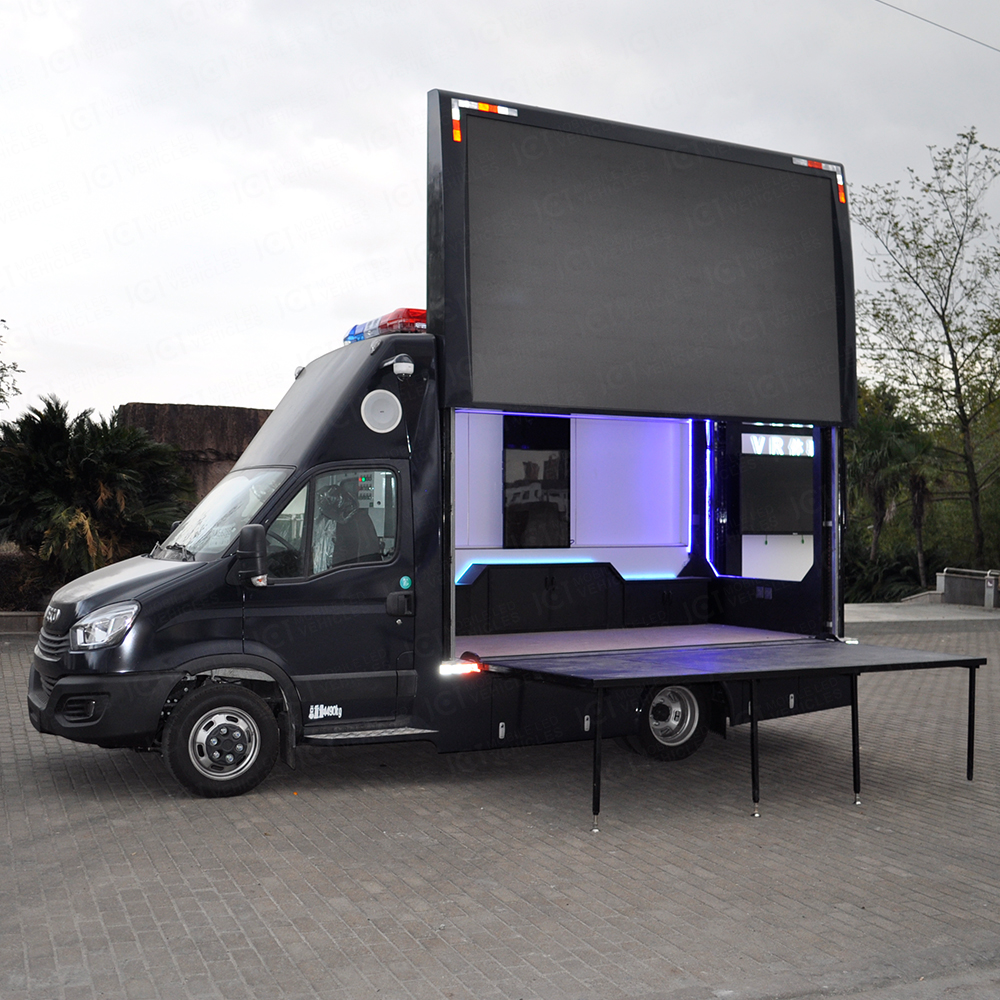

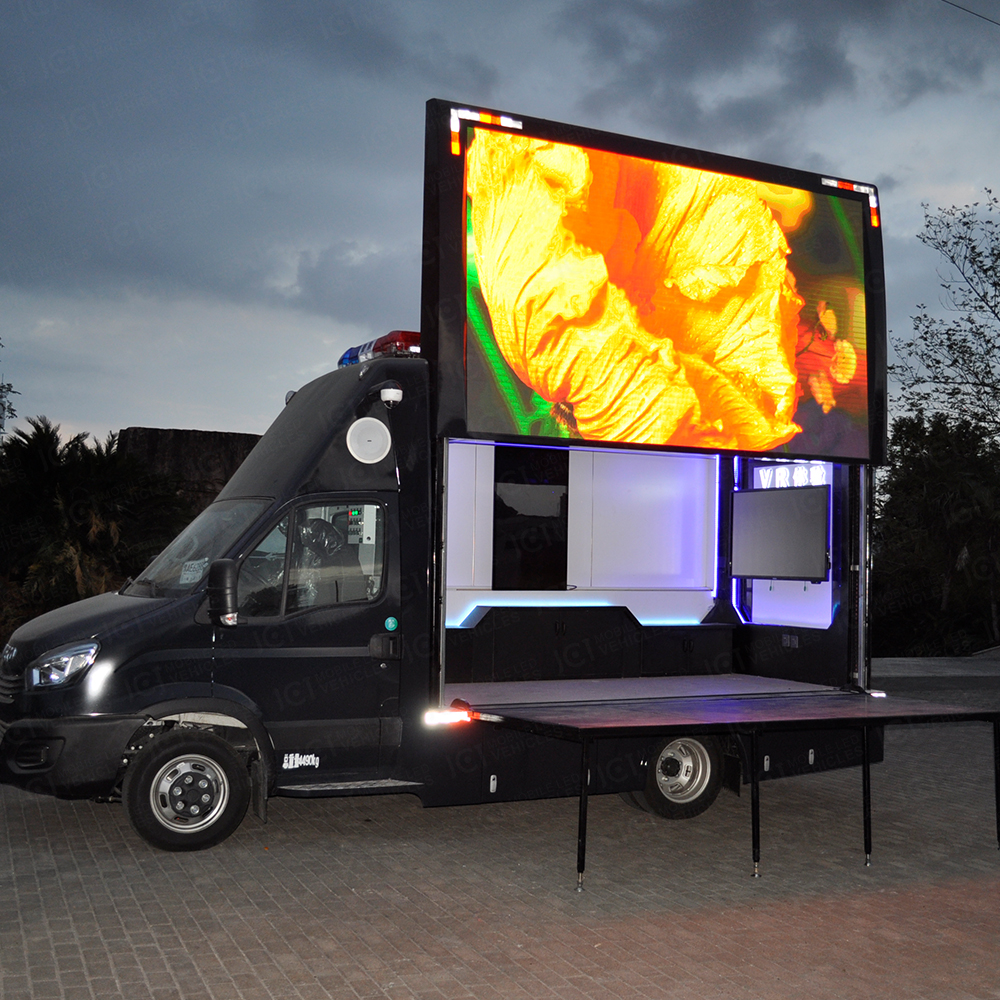

The E-YWK3300 multifunctional led truck has a built-in automatic hydraulic stage, which immediately turns into a mobile stage car. This design allows the car to easily cope with a variety of outdoor promotions, such as product launches, music festivals, exhibitions and more. At the same time, the customized stage design enables it to be flexibly adjusted according to different promotion needs, truly realizing the design concept of "multi-purpose, multi-function and multi-configuration".
Personalized transformation: intimate and professional

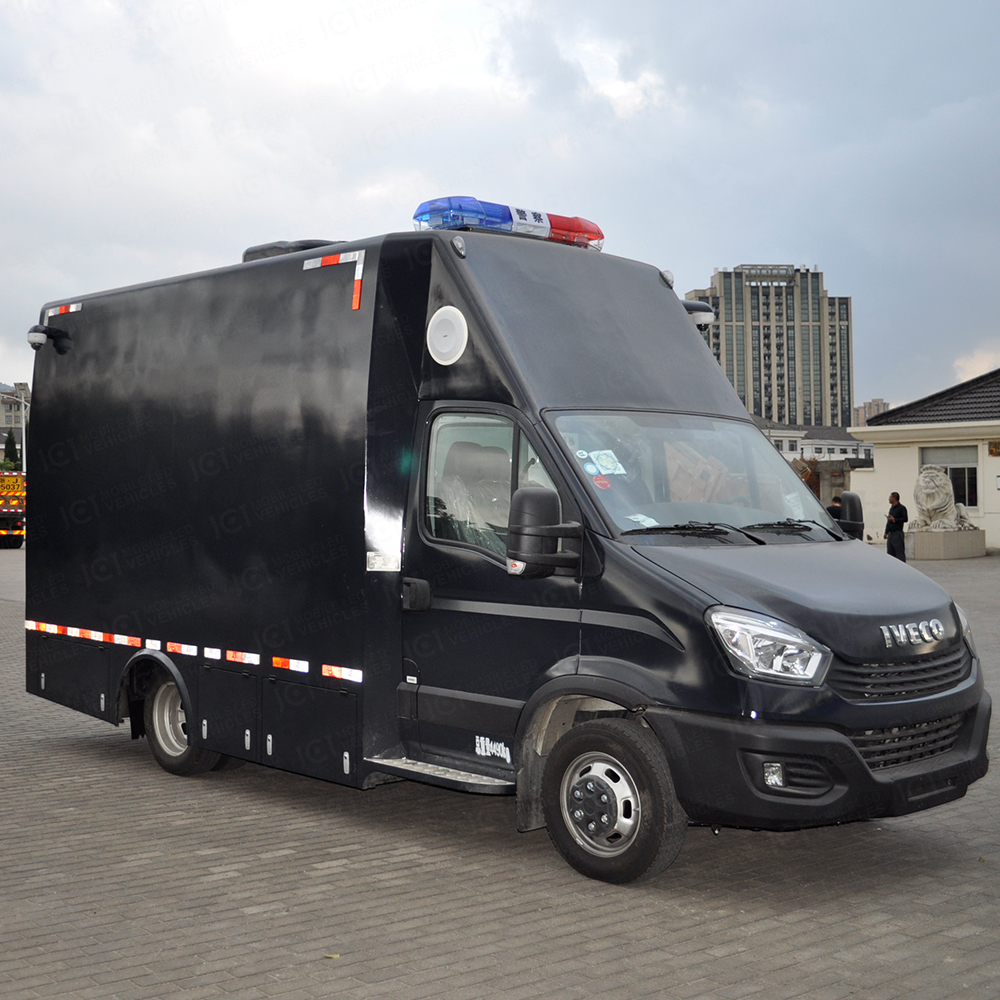

To meet the needs of different customers, the E-YWK3300 multifunctional LED truck also offers personalized modifications and body painting services. The exterior of the body can be designed with striking brand logo so that it can attract the attention of passers-by no matter where it drives in the city. It can also become the theme tour car through the appearance decoration, such as becoming a police propaganda vehicle, police information, etc., can also configure a variety of equipment, such as interactive experience touch screen, game projects, etc., can easily spread brand information and enhance brand awareness. Whether it is for specific promotion activities, or in order to fit the promotion theme, professional customized modification can be carried out to ensure that every travel can perfectly show the customer's brand image.
Hd outdoor display screen, open a new mode of publicity

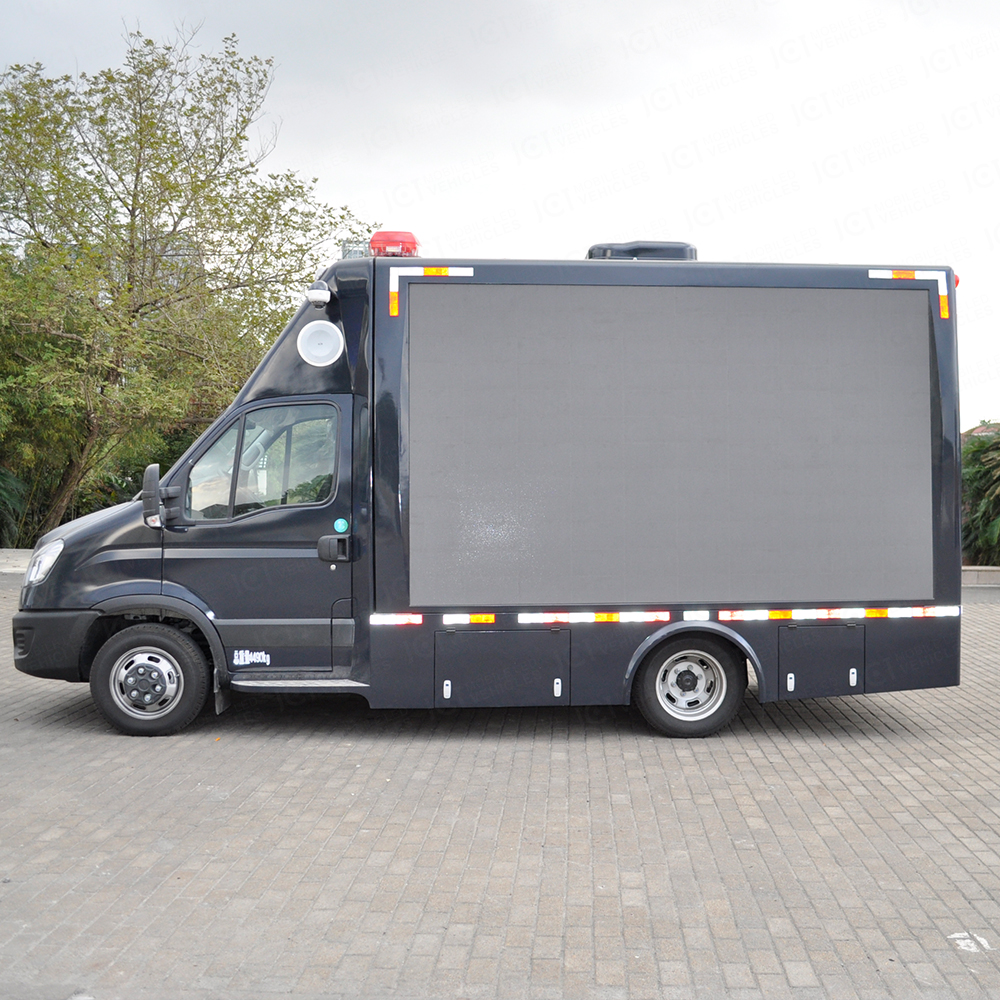

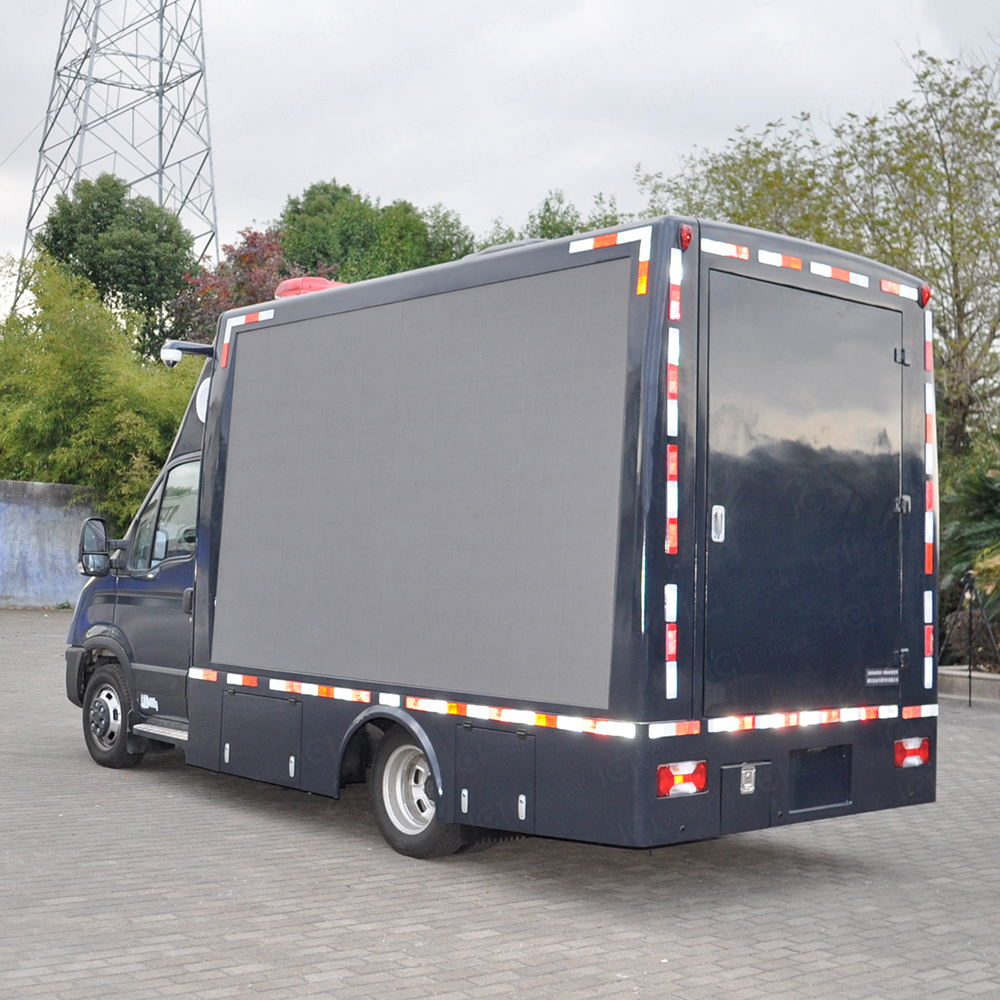

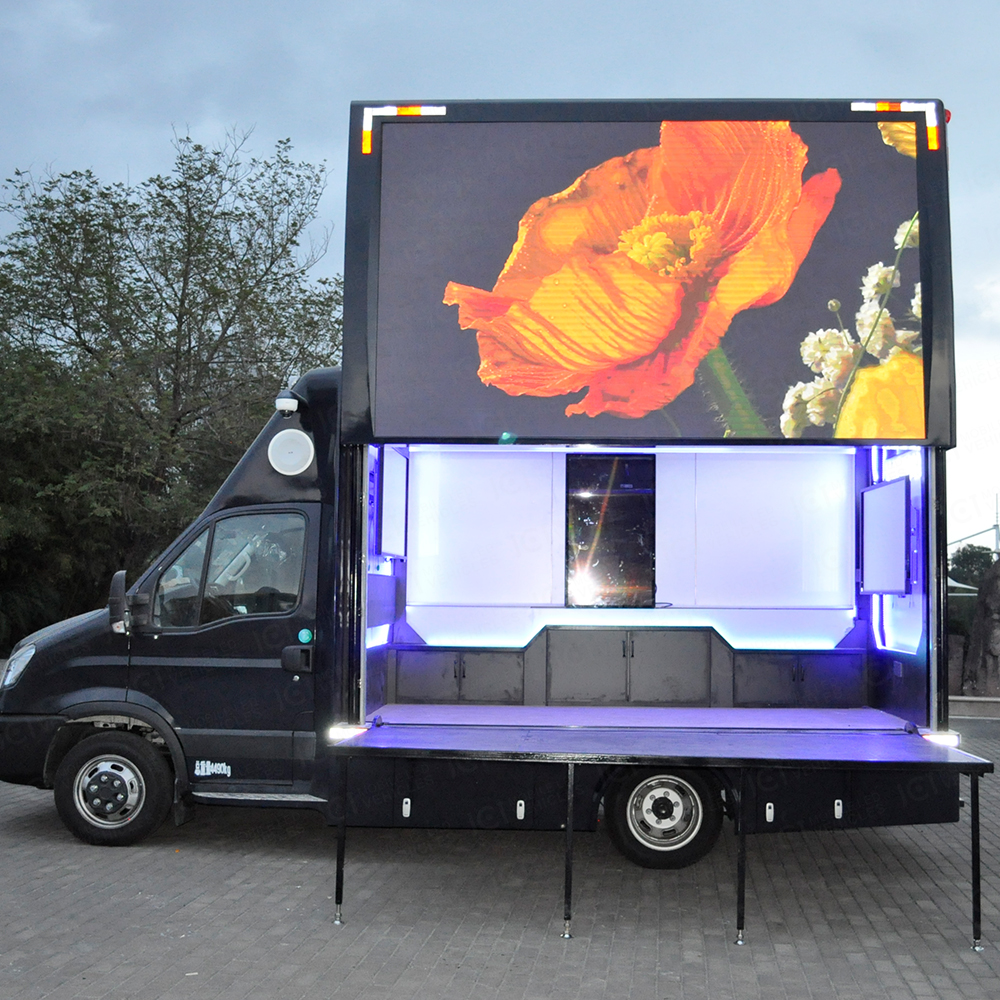

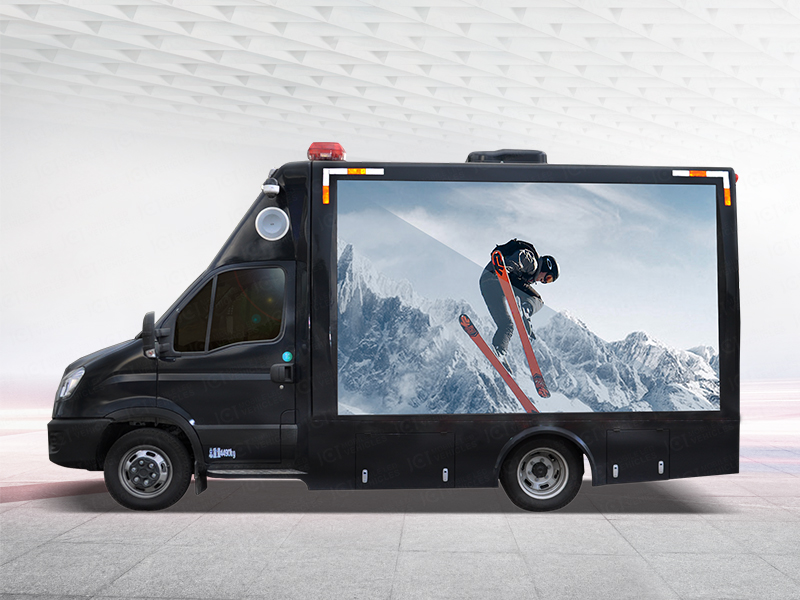

And the most anticipated, is undoubtedly this advertising car equipped with high-definition outdoor waterproof LED full-color display.3200 * 1920mm large screens are installed on the left and right sides of the truck; 1280 * 1600mm HD display is also installed at the rear of the vehicle. These displays can not only clearly display all kinds of propaganda during the day, but also shine brightly even at night, adding a bright color to the city's product promotion.
With its unique design of commercial reception, stage performance and outdoor publicity, the E-YWK3300 multifunctional led truck has become the right-hand man in modern commercial activities. It not only meets the needs of enterprises in different occasions, but also provides a new and efficient platform for brand promotion. Choose JCT company, make your business and publicity activities more outstanding, for your brand or activities to add infinite charm!
E-YWK3300 |
|||
Specification |
|||
Chassis |
|||
Brand |
IVECO |
Dimension |
5995*2160*3200mm |
Power |
SOFIM8140.43S5 |
Total mass |
4495 KG |
Axle base |
3300mm |
Unladen mass |
4300 KG |
Emission standard |
National standard III and IV |
Seat |
3 |
Silent generator group |
|||
Dimension |
1350mm x 800mm x 688mm |
Power |
12KW |
Brand |
OUMA |
Number of cylinders |
Water-cooled inline 4 |
Displacement |
1.197L |
Bore x stroke |
84mm x 90mm |
LED full color screen (Left and right) |
|||
Dimension |
3200mm(W)*1920mm(H) |
Module size |
320mm(W) x 160mm(H) |
Light brand |
Kinglight light |
Dot pitch |
4mm |
Module resolution |
80 x40 Pixel |
Lifespan |
100,000 hours |
Average Power Consumption |
250w/㎡ |
Brightness |
≥6500cd/㎡ |
Power Supply |
Meanwell |
Max Power Consumption |
750w/㎡ |
Receiving card |
Nova MRV316 |
DRIVE IC |
ICN2153 |
Cabinet material |
Iron |
Fresh rate |
3840 |
Maintenance mode |
Rear service |
Cabinet weight |
Iron 50kg |
LED packaging method |
SMD2727 |
Pixel structure |
1R1G1B |
Module power |
18W |
Operating Voltage |
DC5V |
HUB |
HUB75 |
scanning method |
1/8 |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Pixel density |
62500 Dots/㎡ |
system support |
Windows XP,WIN 7, |
Frame rate/ Grayscale, color |
60Hz,13bit |
Operating temperature |
-20~50℃ |
|
|
LED full color screen (rear side) |
|||
Dimension(rear side) |
1280mm*1600mm |
Dot pitch |
4mm |
life span |
100000 Hours |
Brightness |
≧6000cd/㎡ |
Pixel density |
62500 Dots/㎡ |
Maximum power |
≦700w/㎡ |
Power parameter (external prower supply) |
|||
Input voltage |
single-phase 220V |
Output voltage |
220V |
Inrush current |
35A |
Average power consumption |
0.3kwh/㎡ |
Multimedia control system |
|||
Video processor |
Nova |
Model |
VX600 |
Power amplifier |
100W,4 pcs |
Speaker |
500W |
Hydraulic lifting |
|||
distance of travel |
1700 mm |
|
|
Hydraulic stage |
|||
Size |
5200 mm*1400 mm |
stairs |
2 pecs |
guardrail |
1 set |
|
|
