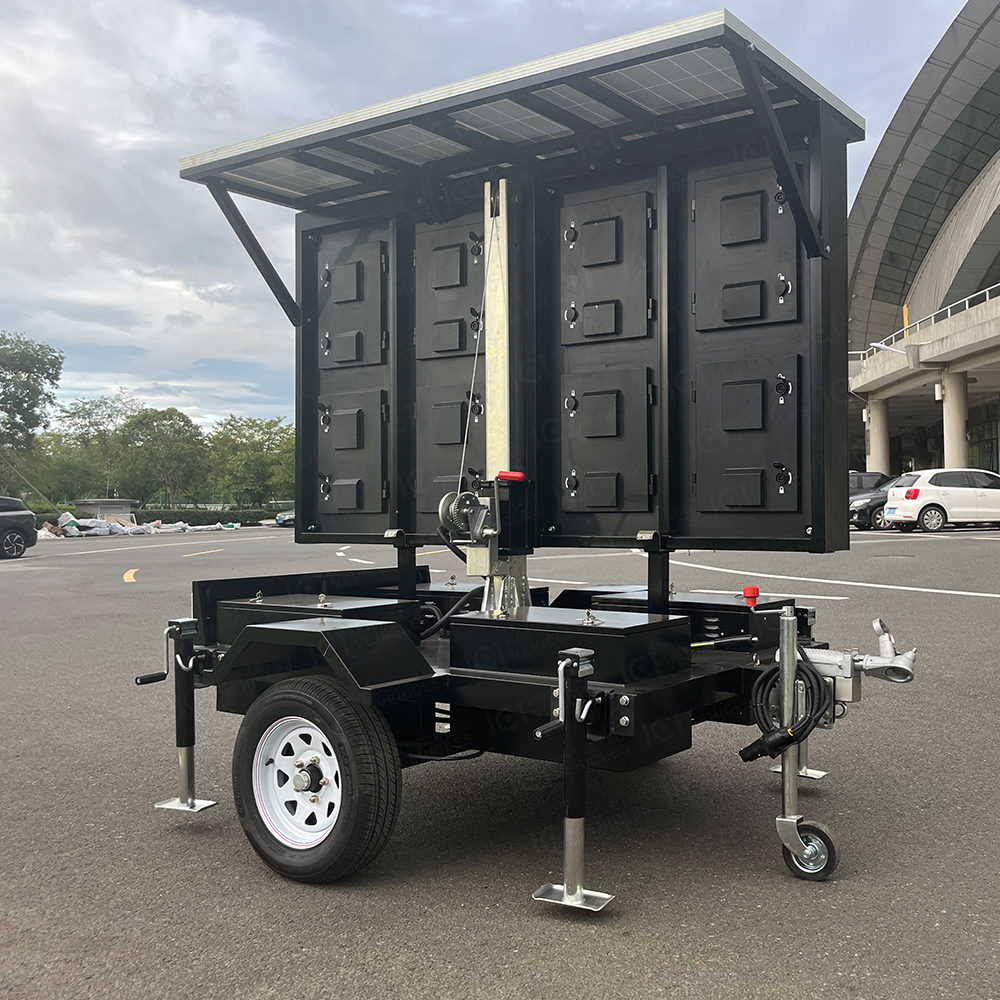

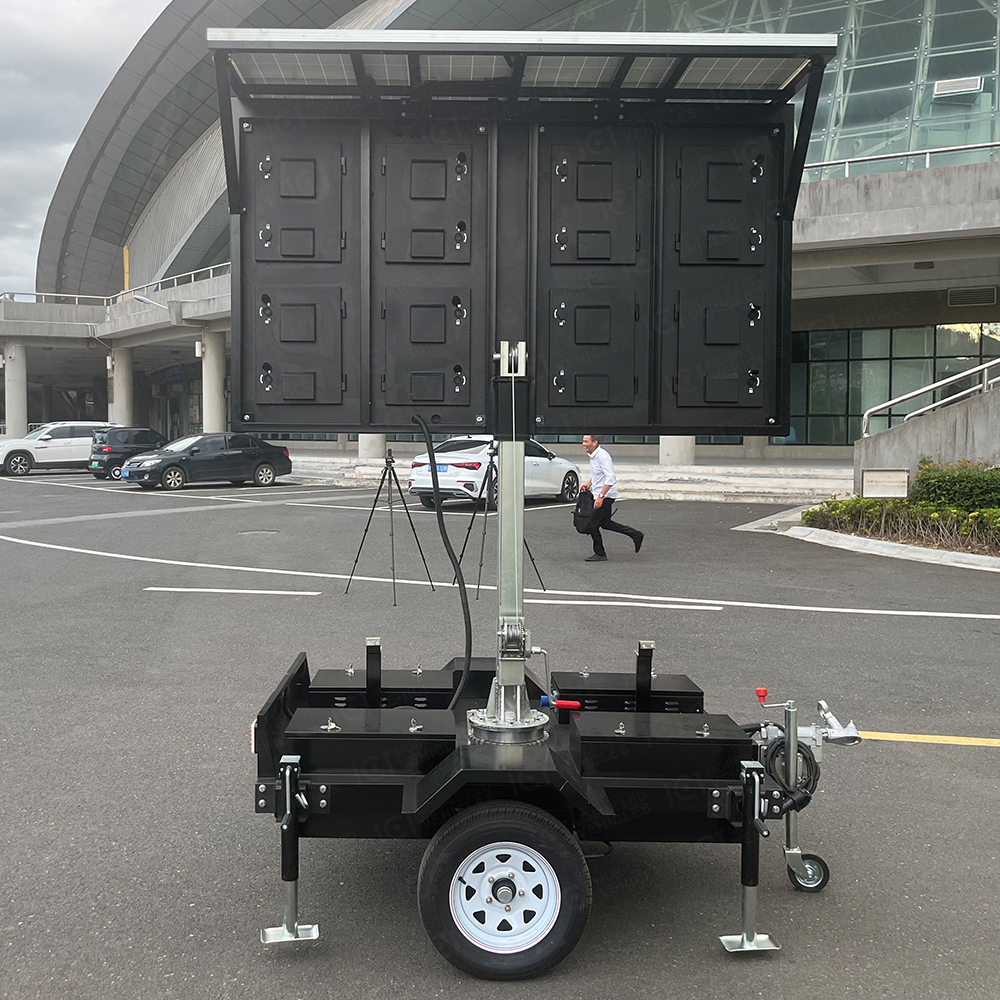

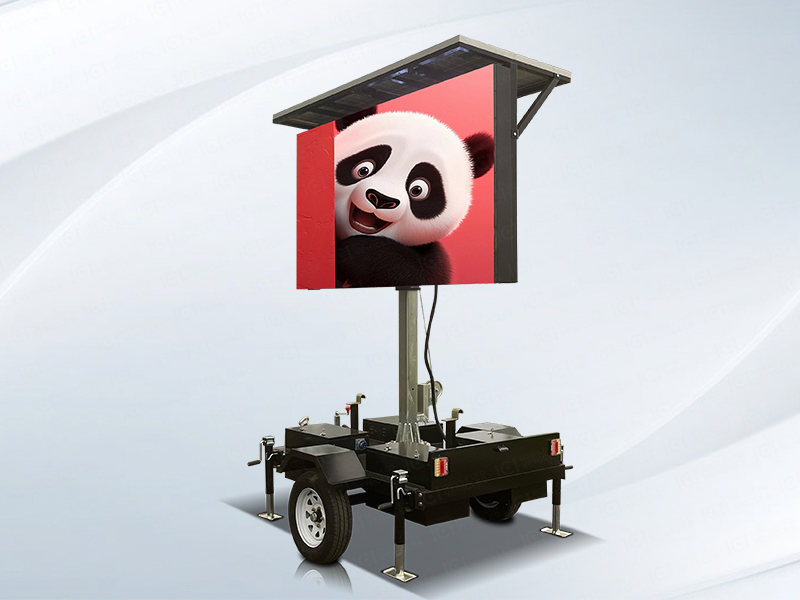

With the progress of technology and the demand of the market, the forms of outdoor advertising and information release are also constantly innovating. ST3S Solar power energy-saving LED trailer is the leader in this wave of innovation, it integrates high-definition energy-saving screen, solar panel power supply, affordable hand lifting and 330 degree manual rotation and other functions, and has become a new tool for outdoor advertising promotion and information release.

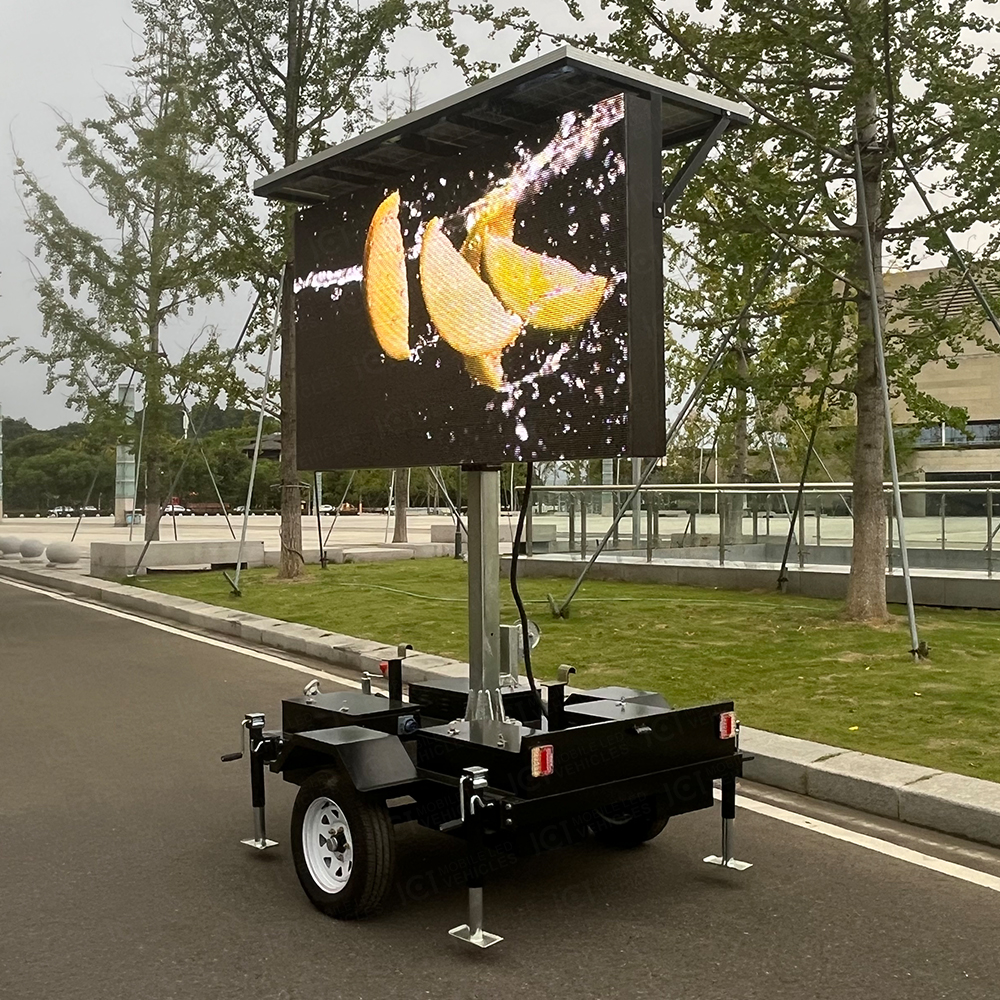

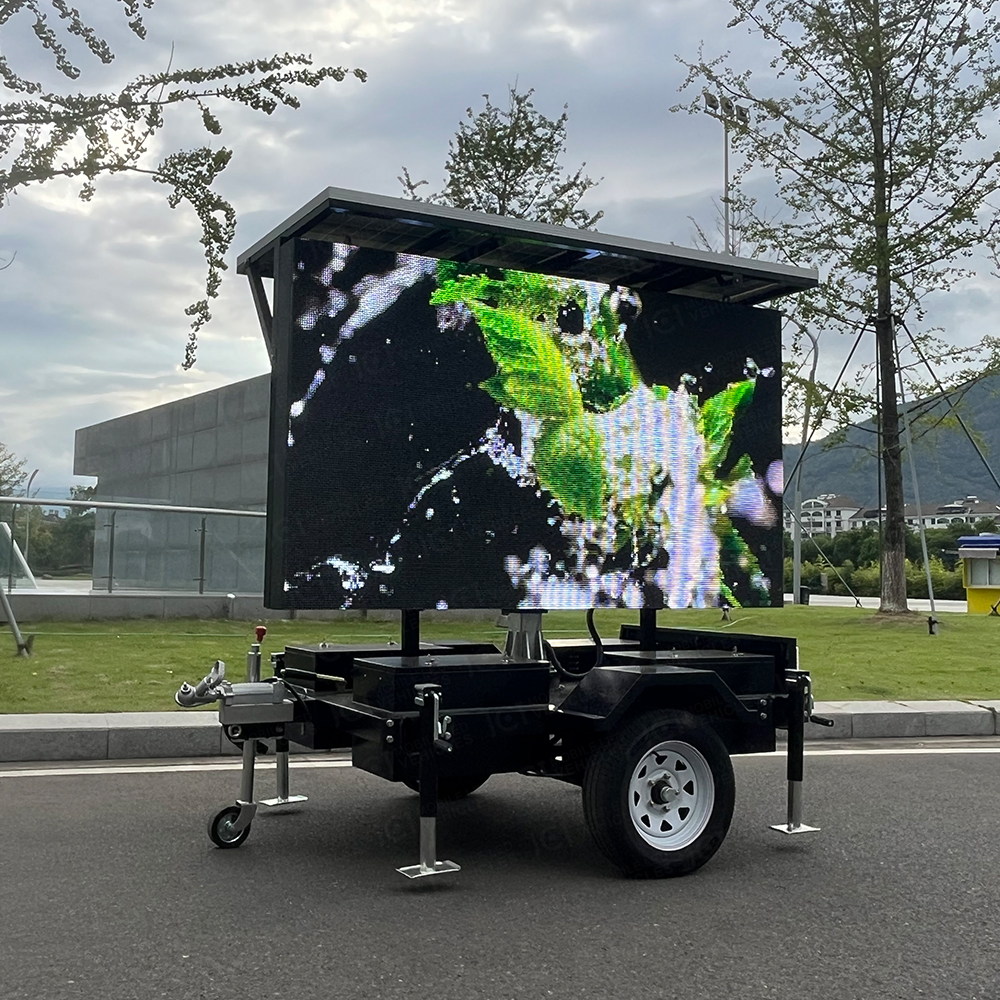

Outdoor HD energy-saving screen

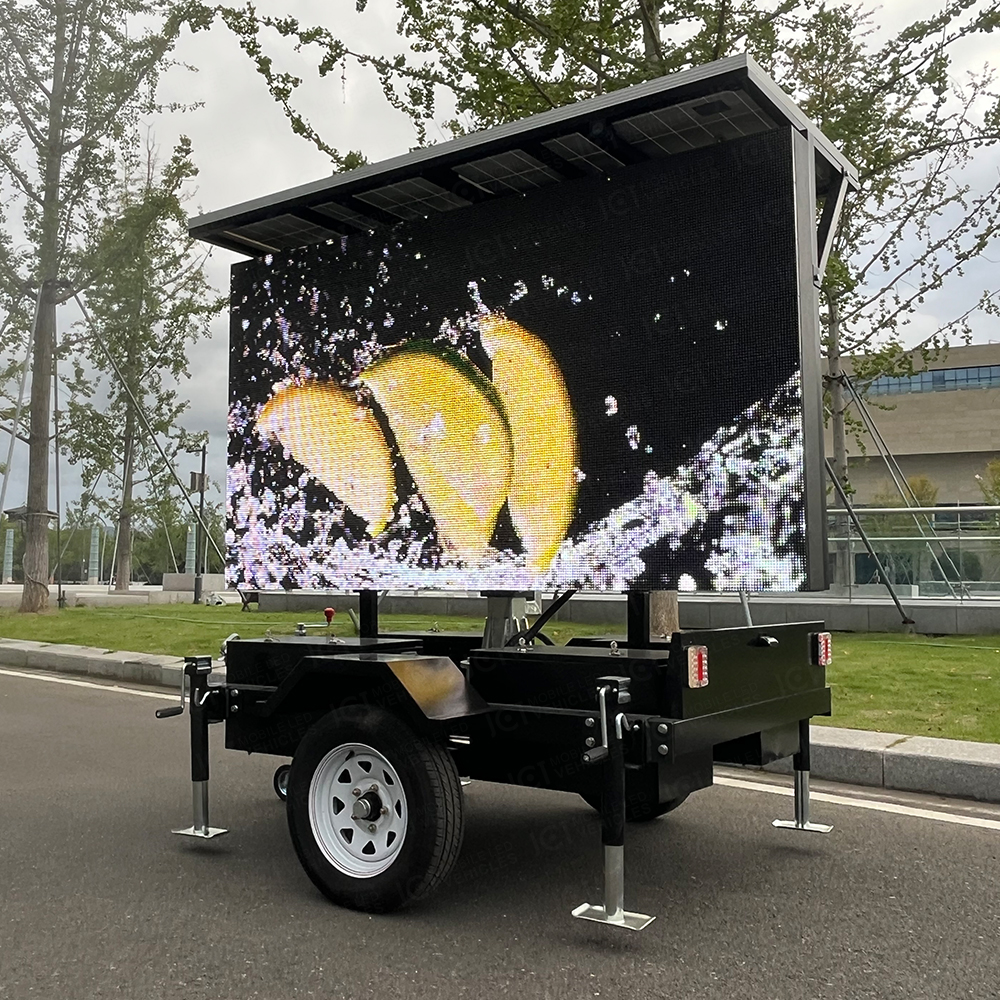

The 3㎡solar power energy-saving led trailer is equipped with a size of: 2240 * 1280mm HD energy-saving screen, using advanced display technology and energy-saving materials, effectively reduce energy consumption, reduce the impact on the environment. These screens are easy to install and maintain, specially designed, waterproof, dustproof, ultraviolet protection and other characteristics, can resist the harsh outdoor environment, to ensure long-term stable operation. At the same time, the solar power supply mode further enhances its environmental protection characteristics and reduces the dependence on traditional power sources. The screen is not only clear, bright colors, but also has excellent energy saving performance. Both in the sun and at night, ensuring that ads and messages quickly capture the attention of the audience.
24 / 7 all-weather solar panel energy-saving power supply mode
In order to get rid of the dependence on traditional power supply, ST3S Solar LED trailer adopts the solar panel power supply mode. This power supply mode is not only environmentally friendly and pollution-free, but also can ensure the continuous and stable operation of the equipment, ensuring that the normal operation of 24 / 7 without external power supply. This design fully considers the diversity of the outdoor environment, so that users do not need to worry about power problems, easy to deal with various advertising and information release needs.

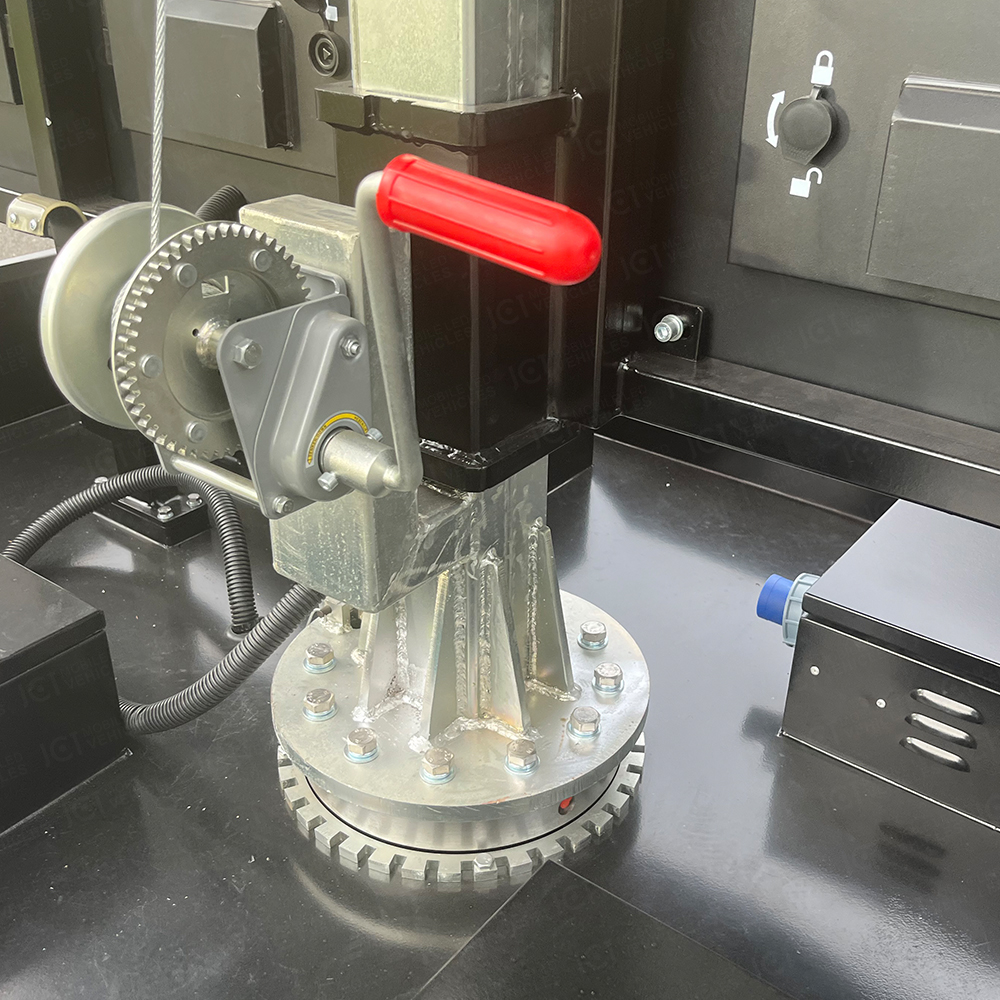

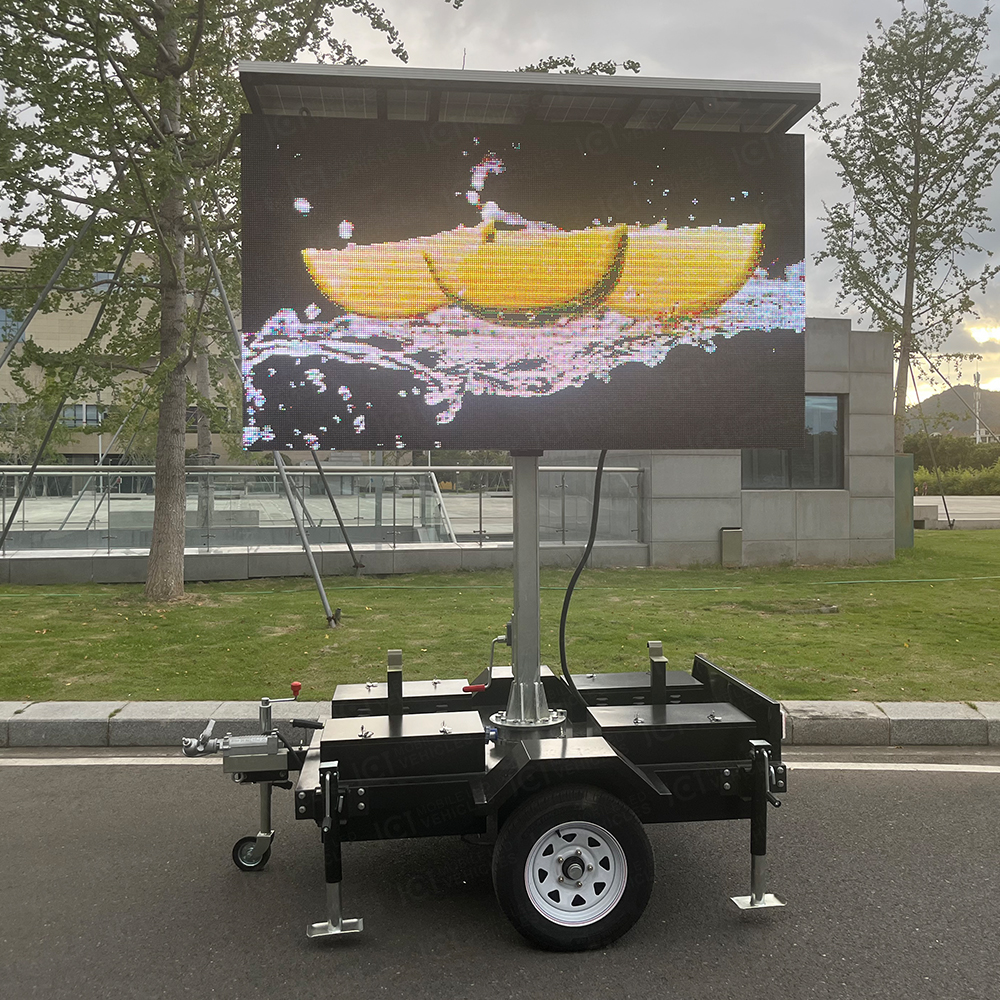

Manual lifting and 330 degrees manual rotation function
To facilitate the user to operate and adjust the equipment, the solar LED trailer is specially designed with a manual lift and a 330-degree manual rotation function. Users can easily operate with just one person, adjusting the height and Angle of the screen according to actual needs to ensure that ads and information are optimally presented to the audience. The advantage of hand lift with 330 degree manual rotation function is its simple and reliable structure. By not relying on external power sources, it reduces the possibility of failure and improves the stability and reliability of the equipments. This means that in outdoor environments, users need not worry about the lifting system failure due to power problems or other technical failures.
In addition, the maintenance costs of the manual lifting and manual rotation functions are also relatively low. In the absence of complex electrical components and hydraulic systems, the maintenance of the hand lift system is simpler, requiring only regular inspection and lubrication of the relevant components. This saves the user a lot of maintenance costs and time.
To sum up, ST3S Solar power energy-saving LED trailer with its high-definition energy-saving screen, solar panel power supply, hand lifting and 330 degree manual rotation functions, has become a new tool for outdoor advertising promotion and information release. It not only improves the effect of advertising and information release, but also provides users with a more convenient and environmentally friendly solution. Whether it is commercial brand promotion, government public welfare activities or other types of outdoor information release, this 3 ㎡solar power energy - saving led trailer will be your right-hand man.
|
ST3S solar led trailer |
|||
|
Trailer appearance |
|||
|
Trailer size |
2382×1800×2074mm |
Supporting leg |
440~700 load 1.5 tons，4 PCS |
|
Total weight |
629KG |
Tre |
165/70R13 |
|
Max speed |
120Km/h |
Connector |
50mm ball head, 4 hole Australian impact connector |
|
Breaking |
Hand brake |
Axle |
Single axle |
|
LED Screen |
|||
|
Dimension |
2240mm*1280mm |
Module Size |
320mm(W)*160mm(H) |
|
light brand |
Hongzheng Gold wire light |
Dot Pitch |
10/8/6.6mm |
|
Brightness |
≥5500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
30w/㎡ |
Max Power Consumption |
100w/㎡ |
|
Drive IC |
ICN2069 |
Fresh rate |
3840 |
|
Power Supply |
HuaYun |
Receiving card |
NOVA MRV416 |
|
Cabinet size |
2240*1280mm |
system support |
Windows XP,WIN 7， |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg/m2 |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
HZ-4535RGB4MEX-M00 |
Operating Voltage |
DC 4.2、3.8V |
|
Module power |
5W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
15625 Dots/㎡ |
|
Module resolution |
40*20Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：100°V：100°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
Power parameter (external prower supply) |
|||
|
Input voltage |
Single phase 220V |
Output voltage |
24V |
|
Inrush current |
10A |
Average power consumption |
50wh/㎡ |
|
Control system |
|||
|
Player |
Nova TB30-4G |
receiving card |
Nova-MRV316 |
|
Luminance sensor |
NOVA NS060 |
|
|
|
Hydraulic lifting |
|||
|
Hydraulic lifting: |
1000mm |
Manual rotation |
330 degrees |
|
Solar panel |
|||
|
Dimension |
1000mm*2000 mm*1pcs |
Power |
410W*1=410W |
|
Solar controller（Tracer3210AN/Tracer4210AN） |
|||
|
input voltage |
9-36V |
Output voltage |
24V |
|
Rated charging power |
780W/24V |
Maximum power of photovoltaic array |
1170W/24V |
|
The battery |
|||
|
Dimension |
510×210x200mm |
Battery specification |
12V200AH*4Pcs，9.6 KWH |
|
Advantages: |
|||
|
1, can lift 1000MM, can rotate 360 degrees. |
|||
|
2, equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen. |
|||
|
3, with brake device! |
|||
|
4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. |
|||
|
5, with 7 core signal connection head! |
|||
|
6, with tow hook and telescopic rod! |
|||
|
7. two tire fenders |
|||
|
8, 10mm safety chain, 80 grade rated ring |
|||
|
9, reflector, 2 white front, 4 yellow sides, 2 red tail |
|||
|
10, the whole vehicle galvanized process |
|||
|
11, brightness control card, automatically adjust brightness. |
|||
|
12，VMS can be controlled wirelessly or wirelessly! |
|||
|
13. Users can remotely control LED SIGN by sending SMS messages. |
|||
|
14, equipped with GPS module, can remotely monitor the position of VMS. |
|||
