Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
With the continuous expansion of the global market and the continuous development of LED technology, large container LED publicity trucks have become an important tool for the government, enterprises and other units. This publicity truck can not only attract people's attention, but also provide flexible promotion in different occasions and locations. JCT therefore promotes the 12m long super large Mobile led truck (model:EBL9600)to provide convenient and innovative solutions for a variety of outdoor promotional activities.

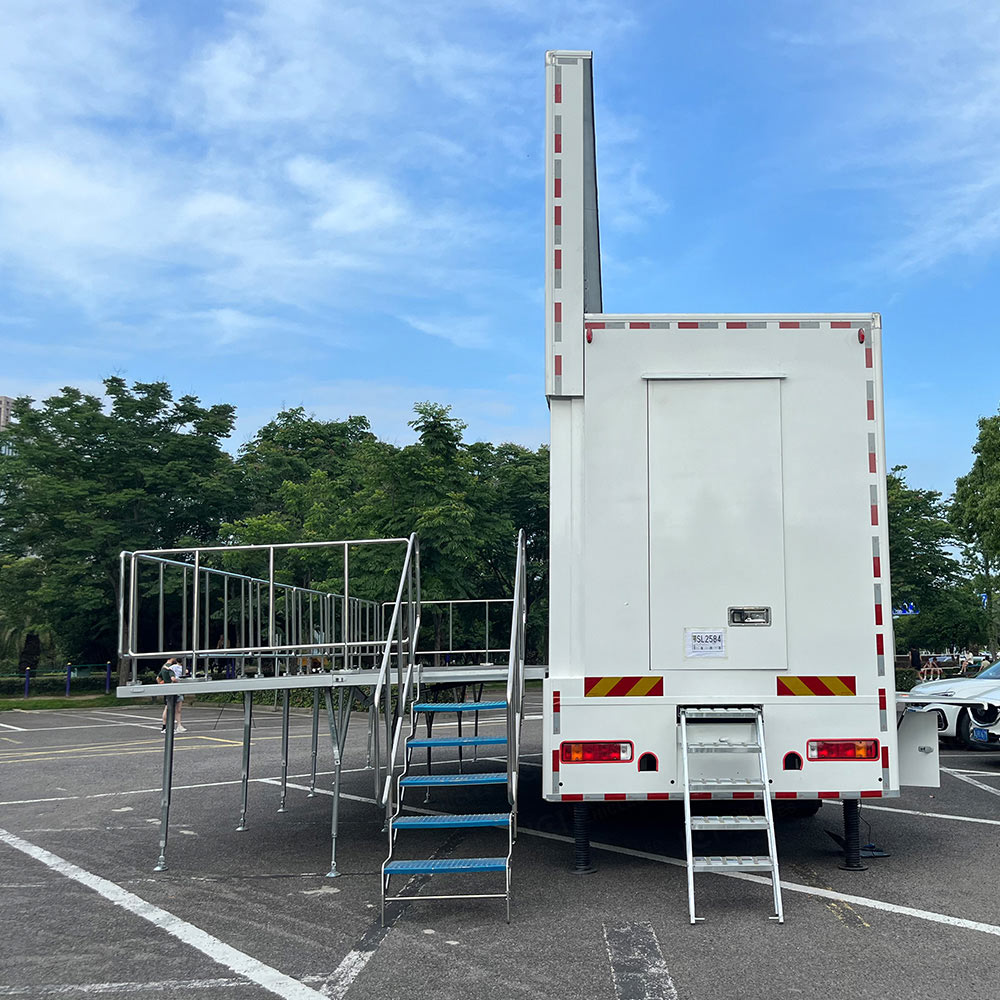

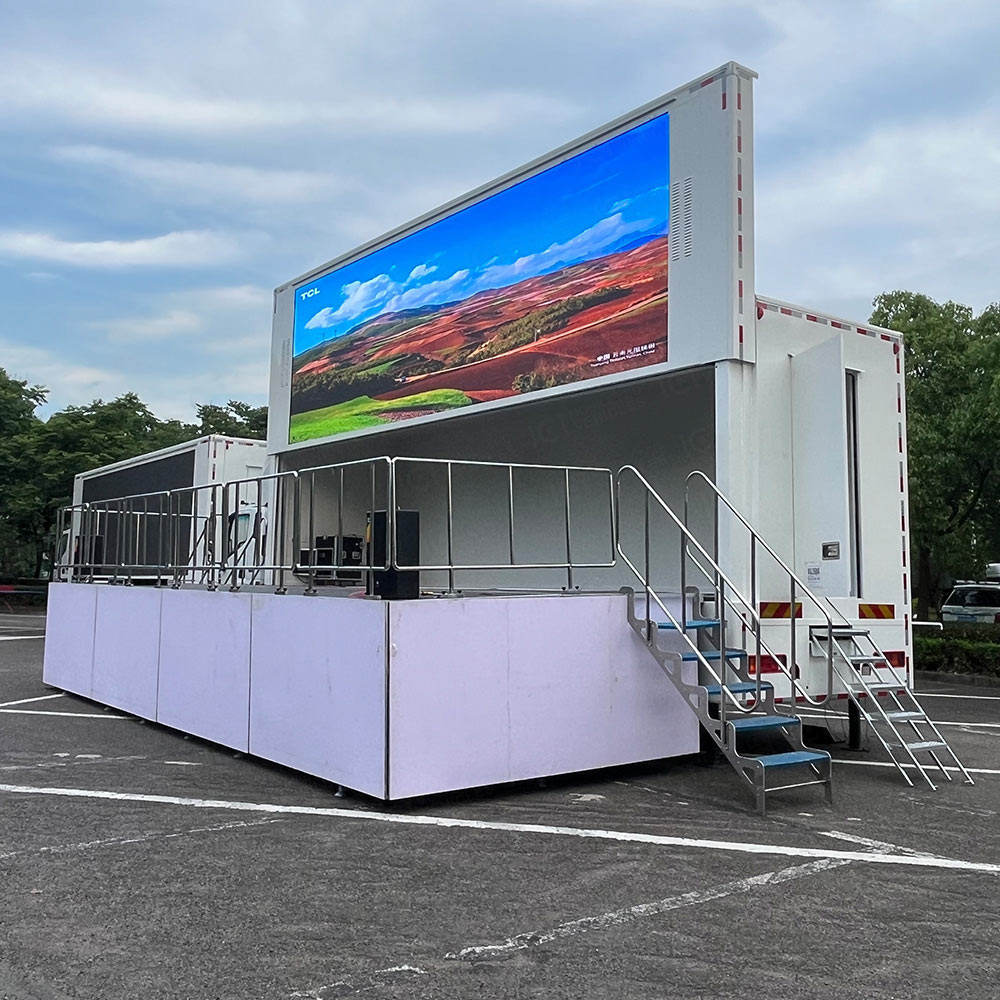

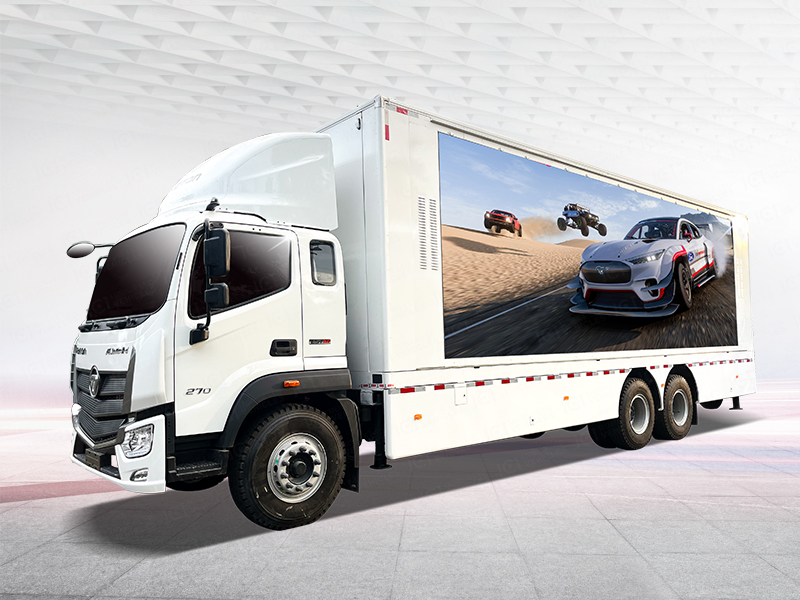

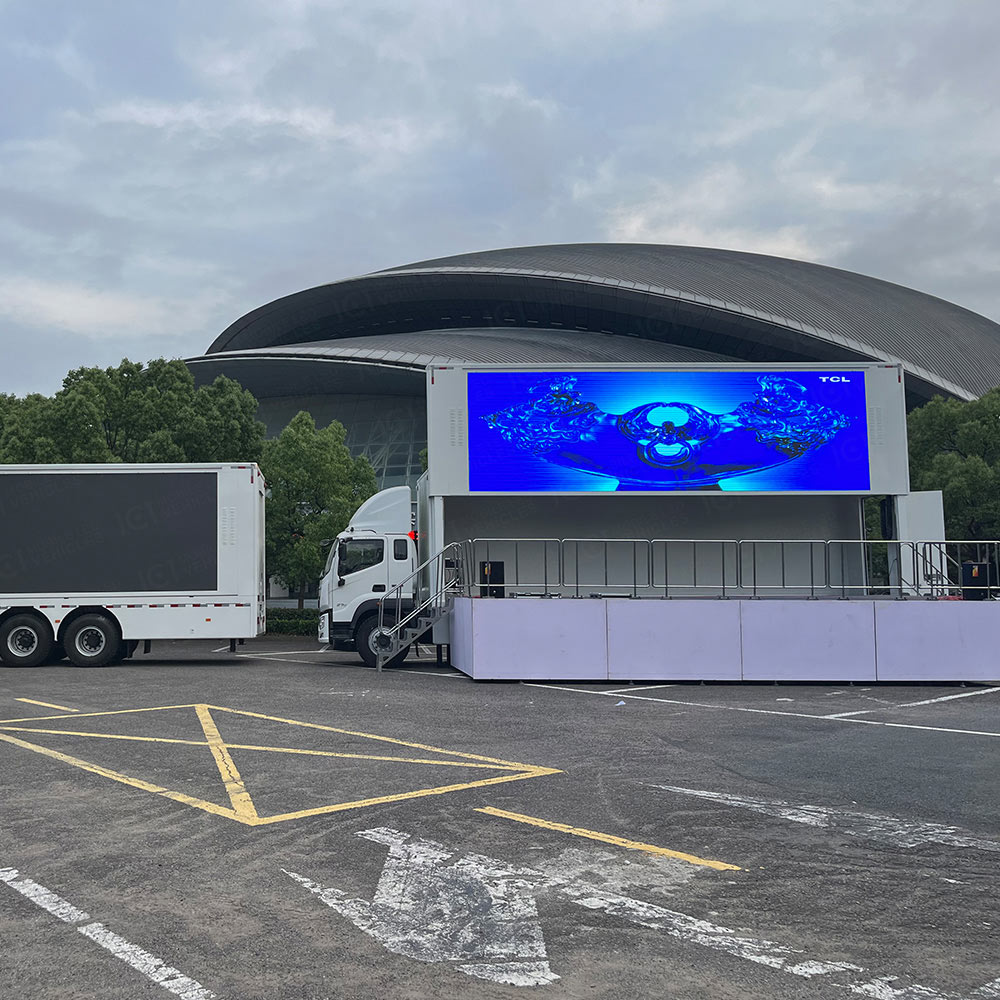

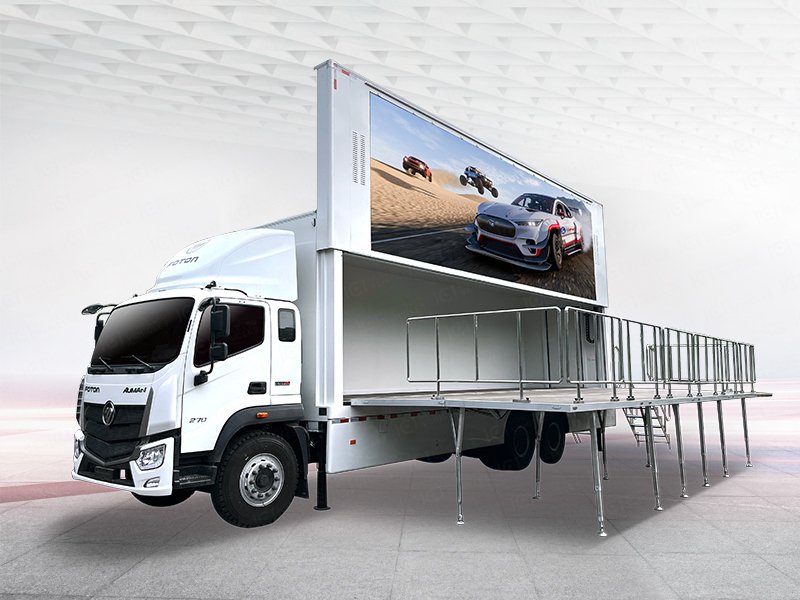

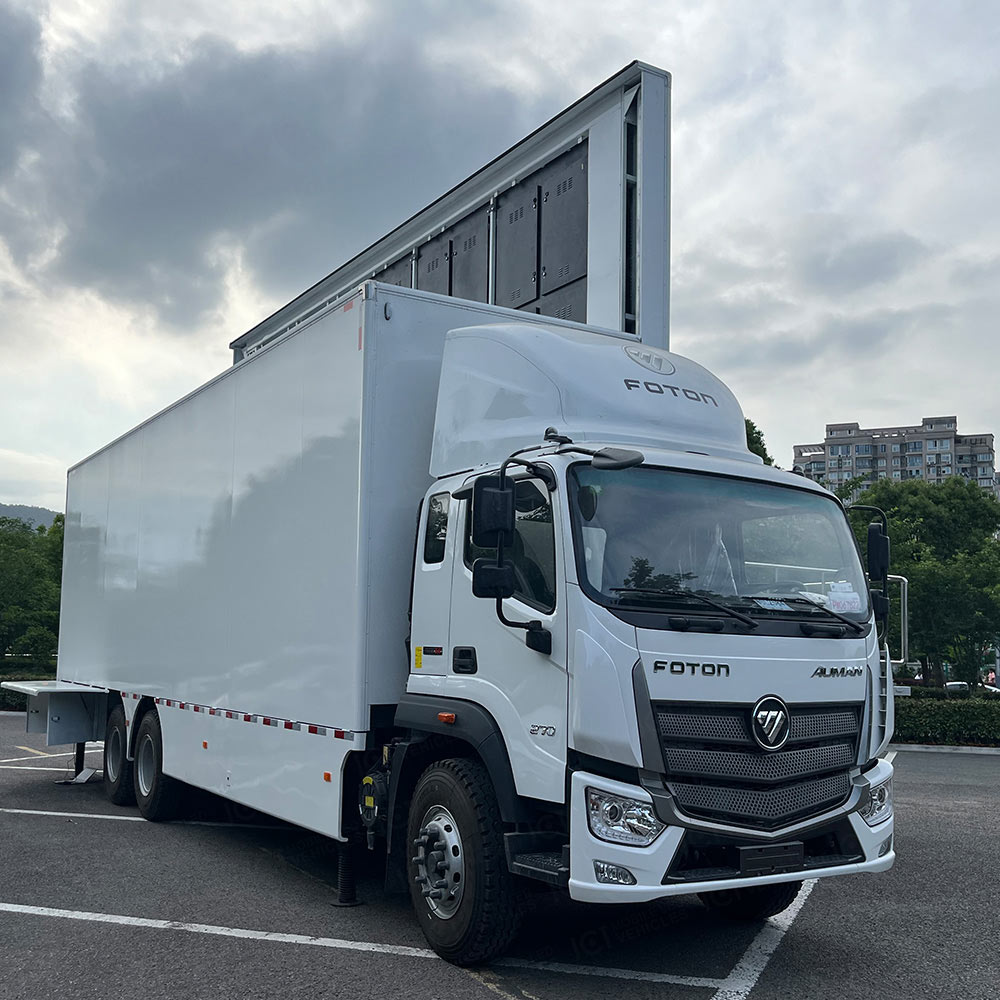

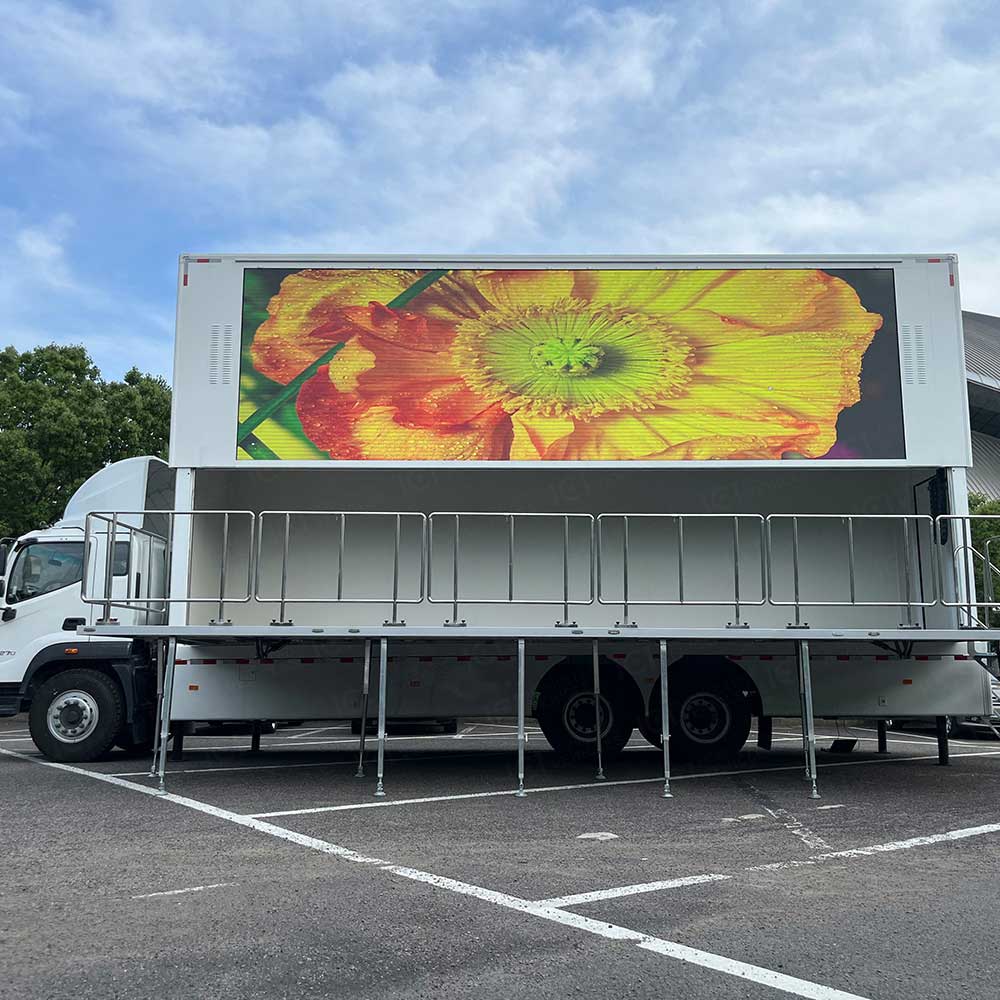

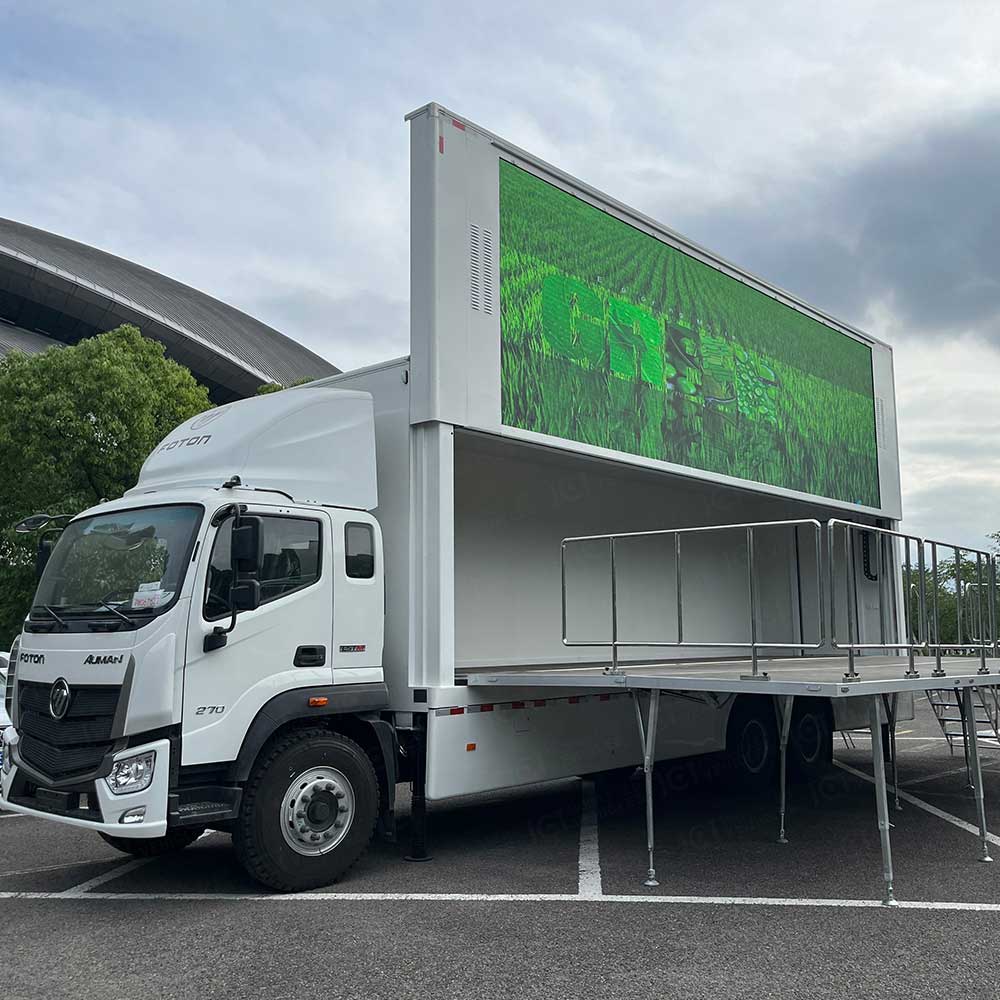

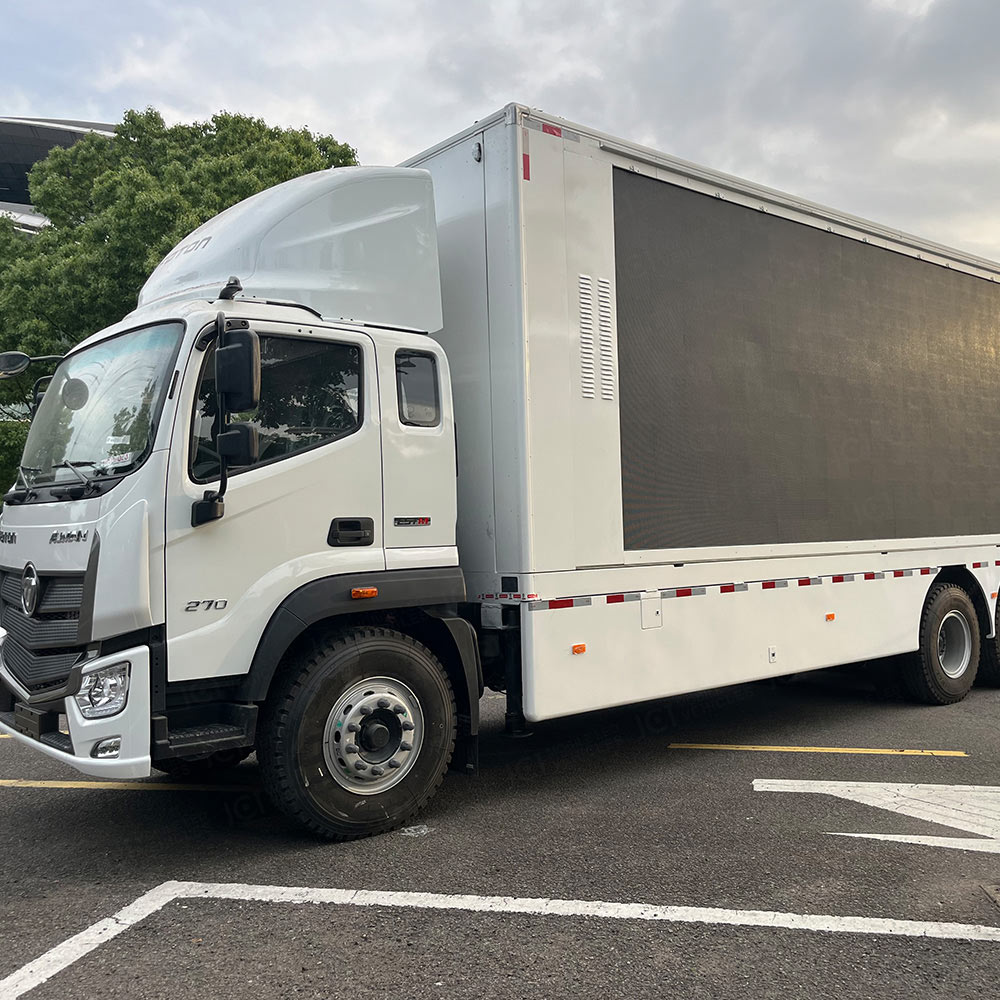

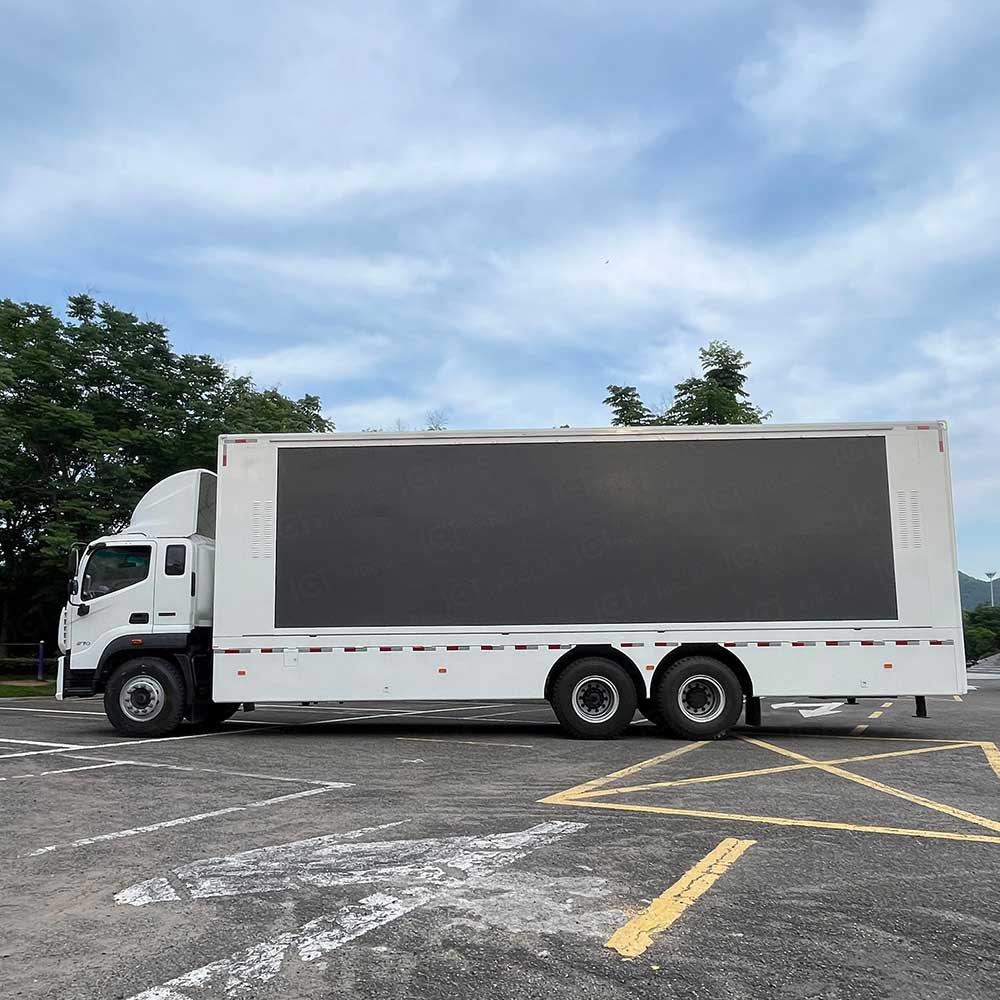

This EBL9600 Mobile led truck is a promotional tool that integrates the LED screen, audio equipment, display space and mobile platform. Its appearance design is fashionable and unique, which can attract people's attention. The size of the carriage is 11335 * 2350 * 3720mm, equipped with 8000 * 2000mm HD outdoor display, LED screen can lift, hydraulic remote control operation, lift stroke up to 2000mm. At the same time, in order to facilitate all kinds of performance tour, the truck is installed (8000mm + 2000mm) * 3000mm large double folding hydraulic stage, which can achieve various types of display and publicity.
The 12m long super large Mobile led truck uses high quality heavy truck power, taking advantage of the space, all exhibits and display methods are pre-installed in the vehicle area. When moving at a designated place, a simple operation. Various types of exhibitions can be completed: large-scale terminal promotion, large-scale art tour exhibition, mobile exhibition, mobile cinema, etc. Whatever is limited by the time and place, everything is possible.
EBL9600 large container type LED promotional truck is also an innovative mobile stage truck, providing convenience and flexibility for various activities. Its unique design and functionality make it ideal for various occasions. Whether it is a large terminal promotion event or a mobile art exhibition, this LED large container type stage truck can meet your needs.
The 12m long super large Mobile led truck can also be used as a mobile cinema to bring shocking audio-visual experience to the audience. Its large LED display and quality sound system bring the audience an immersive movie viewing experience. Without a fixed space or complex construction, this LED large container-type publicity truck can bring the audience an unforgettable movie journey.
In addition, the container-type LED publicity truck can also be used to hold election speeches, performances and other activities. Its spacious space and flexible display mode make the election speeches in different locations to attract the attention of the audience. Whether in the city square or a rural town, LED promotional truck can provide users with a new platform for speech performance.
In short, the 12m long super large Mobile led truck is a powerful, flexible and diverse mobile stage truck, providing convenient and innovative solutions for various activities. Whether it is a large terminal promotion, or a presentation, LED large container publicity truck can meet your needs. Its mobility and flexibility make it ideal for various occasions, adding highlights to the event and bringing a whole new experience to the audience.
EBL9600 show truck 参数 |
|||
Specification |
|||
Truck chassis |
|||
Brand |
FOTON,BJ1256VMPHH-RA Right hand |
Dimension |
11335*3720*2350mm |
Engine |
YC6A260-33 |
Cargo box dimension |
9600x2400x2500mm |
Emissions |
Euro 5 |
Driver |
6*4 |
Total mass |
25000KG |
Chassis kerb weight(kg) |
8140KG |
Fuel injection system |
Common rail |
Body Type |
H5-2200 one bed |
Gearbox |
Fast 8JS118TC-B |
Rear axle |
440/4.625 speed ratio |
Tyre |
11.00R20-18RP,10+1 |
Others |
Original factory air conditioning, electric doors and Windows, air bag seats, central control lock, 600L aluminum alloy fuel tank |
LED Screen |
|||
Dimension |
8000mm*2400mm |
Module Size |
320mm(W)*160mm(H) |
Light brand |
Nationstar light |
Dot Pitch |
4mm |
Brightness |
6000cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
Module power |
18W |
scanning method |
1/8 |
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
Module resolution |
80*40 Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Operating temperature |
-20~50℃ |
system support |
Windows XP,WIN 7, |
|
|
Silent generator group |
|||
Dimension |
2060*920*1157mm |
Power |
24KW diesel generator set |
Voltage and frequency |
380V/50HZ |
Engine: |
AGG, engine model: AF2540 |
Motor |
GPI184ES |
Noise |
Super silent box |
Others |
electronic speed regulation |
|
|
Player system |
|||
Video processor |
NOVA |
Model |
VX400 |
Luminance sensor |
NOVA |
Multi-function card |
NOVA |
Sound system |
|||
Power amplifier |
1000 W |
Speaker |
2 *200 W |
mixer |
YAMAHA |
Wireless microphone |
One wireless receiver, two wireless microphones |
Power parameter |
|||
Input Voltage |
380V |
Output Voltage |
220V |
Current |
30A |
|
|
Electrical system |
|||
Circuit control and electrical appliances |
National standard |
|
|
The hydraulic system |
|||
LED screen hydraulic lift |
2 pcs travel 2000mm |
Hydraulic leg |
4 pcs |
First stage hydraulic cylinder |
2 pcs |
Second stage hydraulic cylinder |
2 pcs |
Hydraulic control system |
1 set |
Remote control |
1 set |
Stage and guardrail |
|||
Stage size(Double fold stage) |
(8000MM+2000MM)*3000mm |
The ladder(with Stainless steel handrail) |
1000 mm wide*2 pcs |
Stainless steel guardrail |
(3000mm+10000+1500mm)*2 sets,The stainless steel circular tube has a diameter of 32mm and a thickness of 1.5mm |
Stage structure(Double fold stage) |
All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board |
