Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

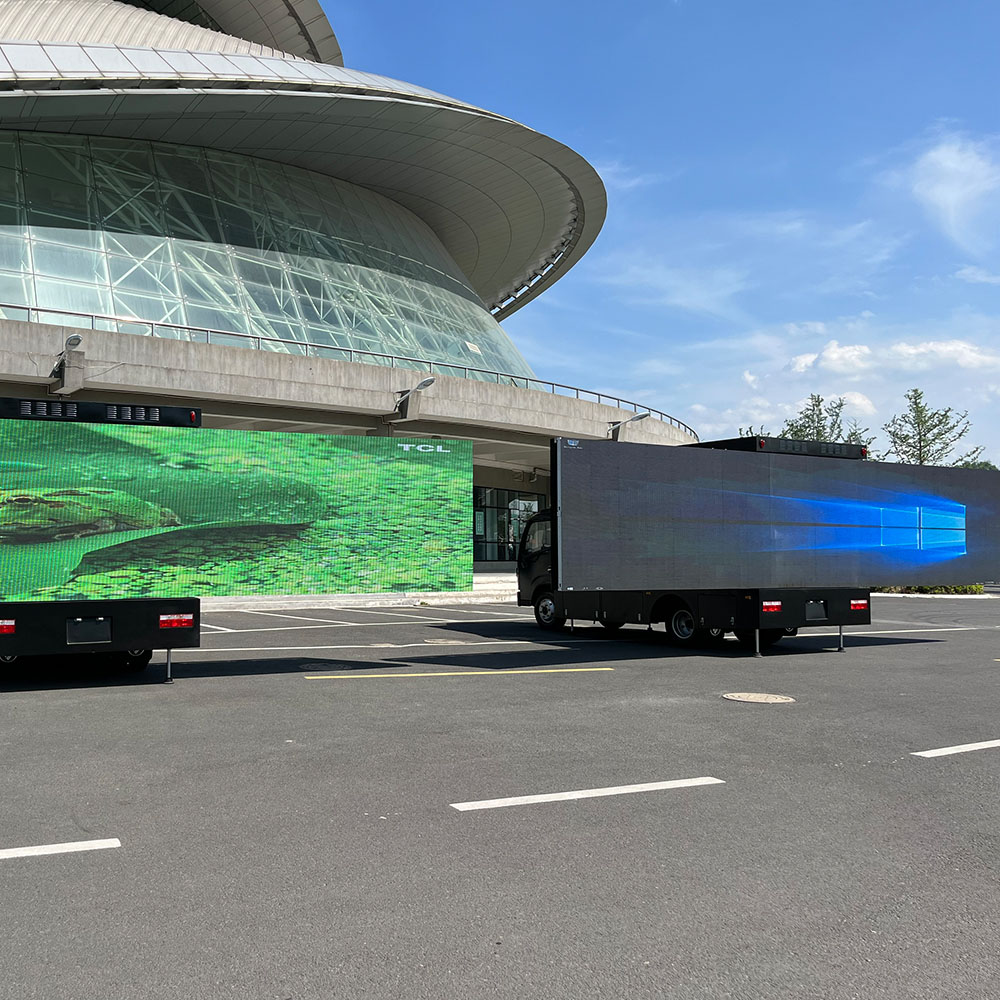

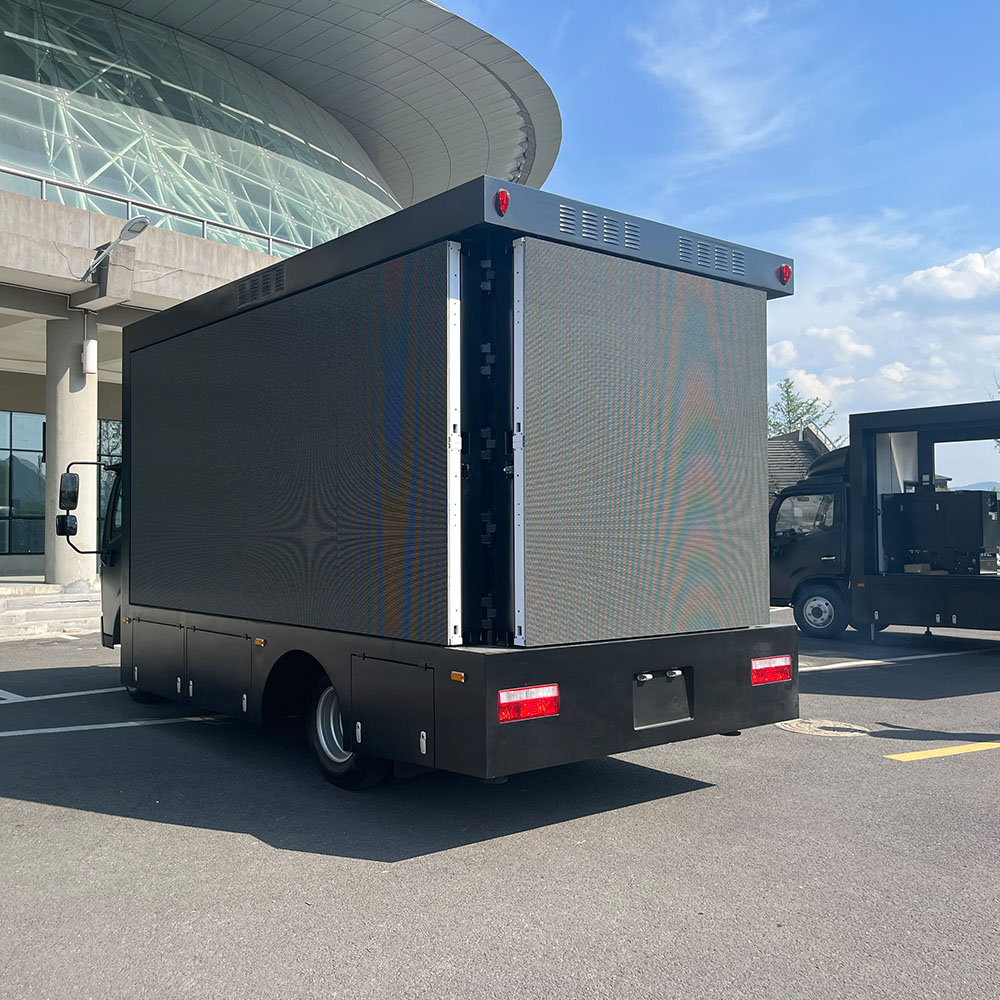

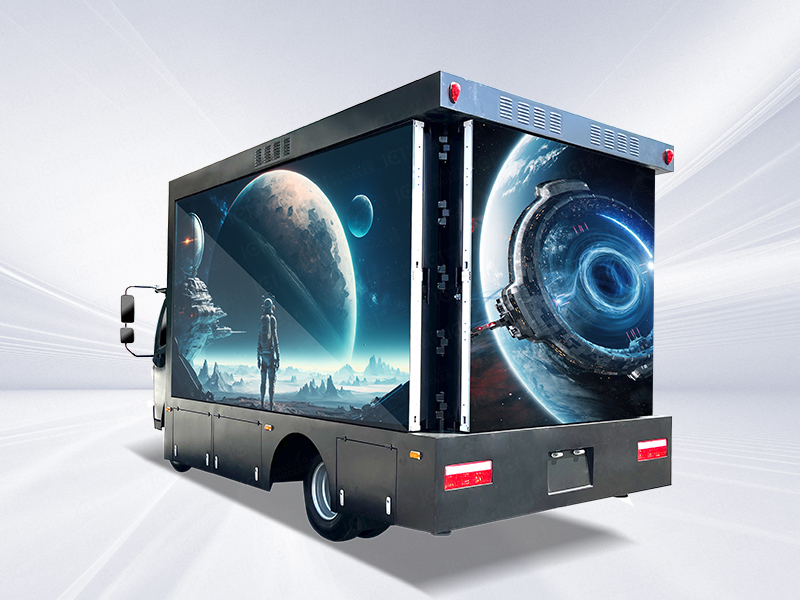

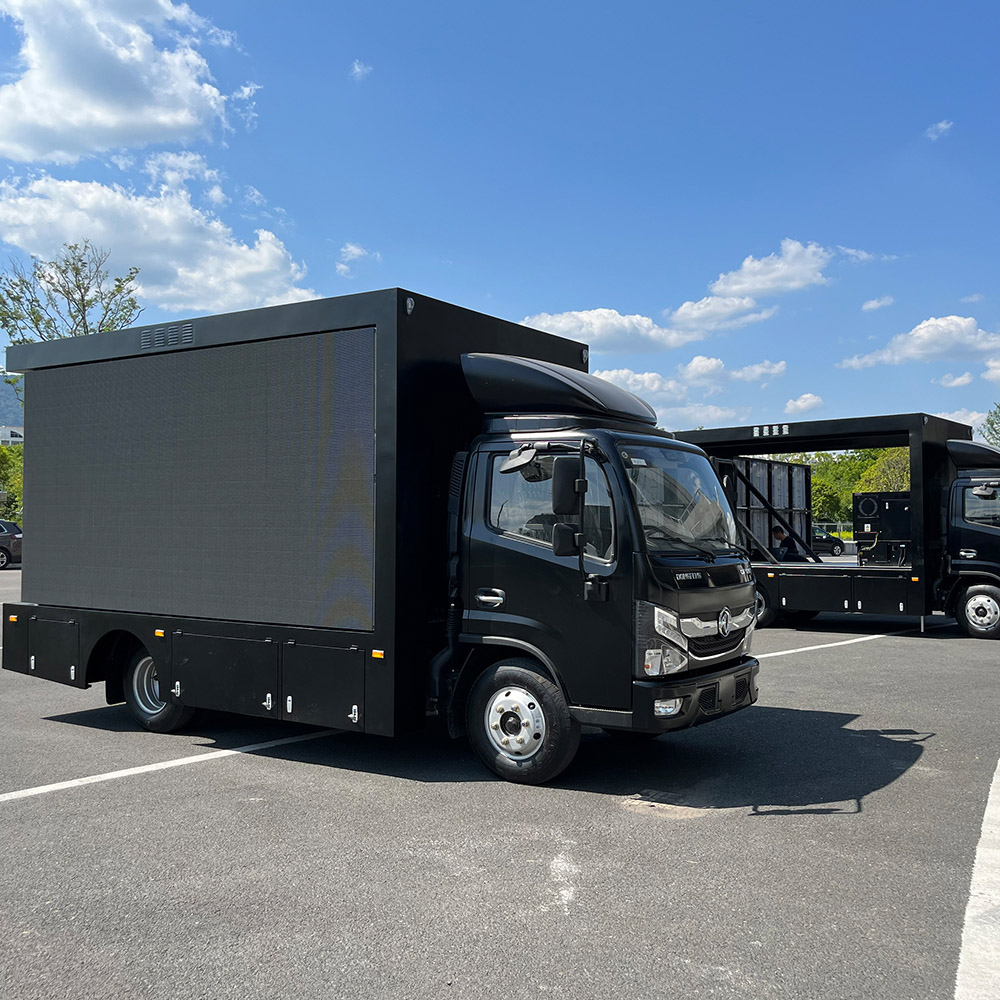

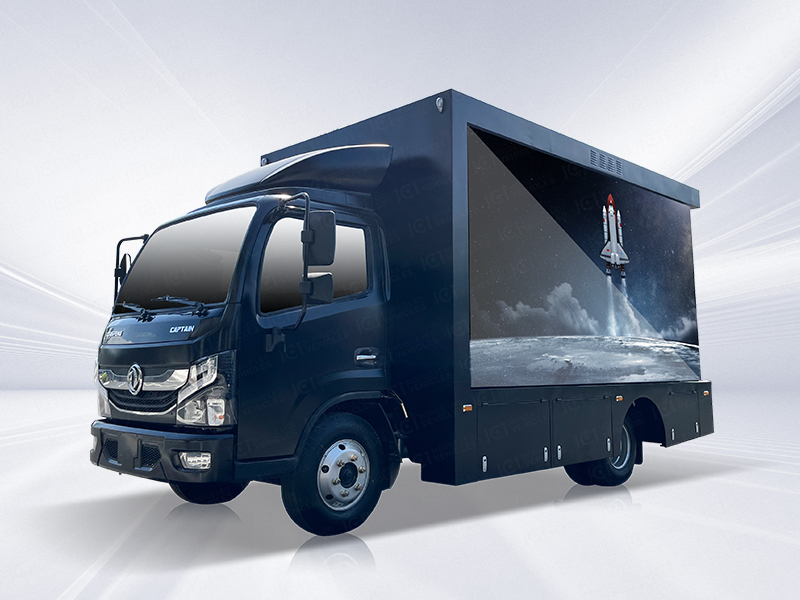

JCT E-3SF18 LED advertising vehicle has undergone new upgrades in the previous product functions. An outdoor high-definition LED screen with a size of 3840mm*1920mm is installed on both sides of the advertising vehicle compartment, and the screen size is 1920mm*1920mm at the rear of the compartment. ,The screens on both sides of the compartment adopt the one-button control side expansion mode. After the side expansion, they are perfectly spliced together with the rear screen of the compartment to form a whole large screen with a size of 9600mm*1920mm. The ultra-wide screen viewing angle makes the color gamut wider , the picture is more realistic. The whole E-3SF18 LED advertising vehicle is composed of four parts: truck mobile chassis, large screen system, power supply system and operating system. It is widely used in publicity, product promotion and concerts of enterprises and institutions. And various outdoor promotional activities, etc., are known as the magic weapon of modern advertising marketing and saving money.
Button one-button remote control, more convenient operation

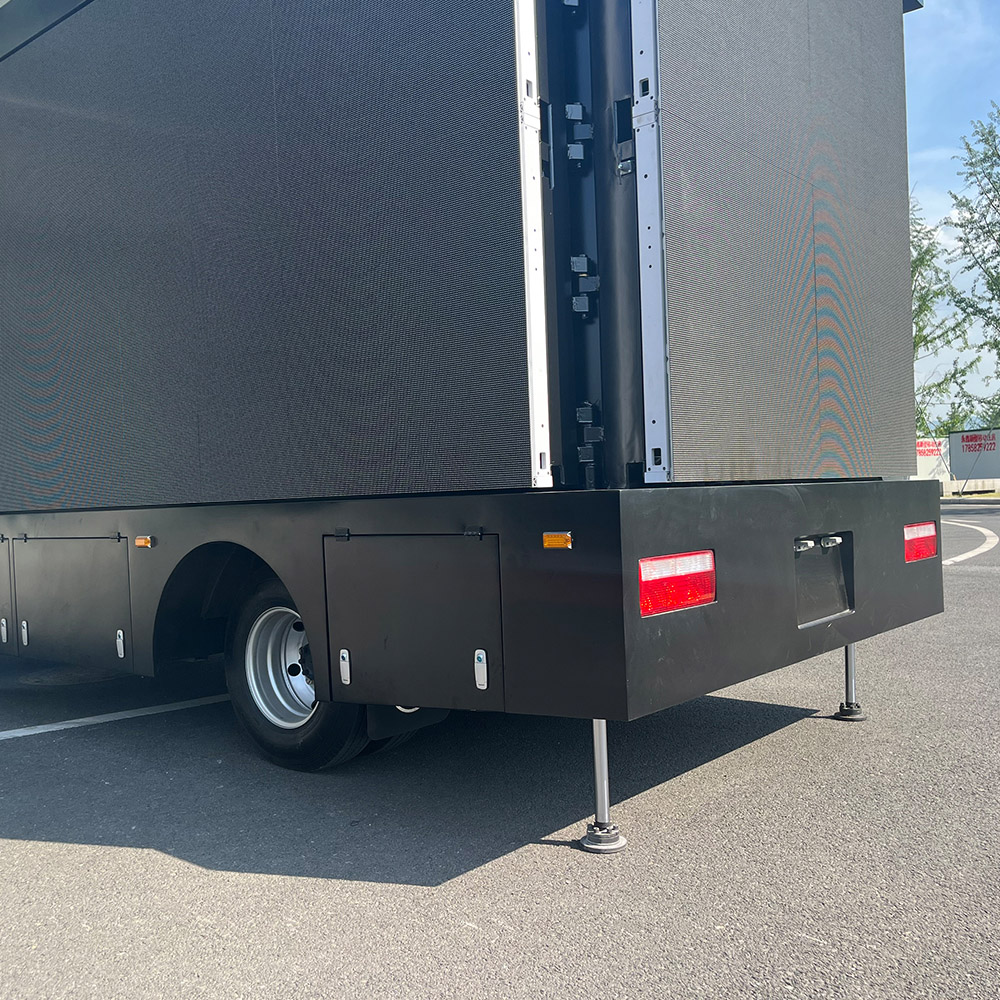

The operating system of the E-3SF18 LED advertising vehicle is operated by a one-button remote control button. After the advertising vehicle is parked, the operator only needs to stand on the side of the advertising vehicle and use the remote control to easily complete the lifting and lowering of the four supporting legs of the vehicle. The functions of unfolding and retracting the screens on both sides, and turning on and off the screens on the three sides make the advertising vehicle safe and convenient to use, and the operation is simple and clear.

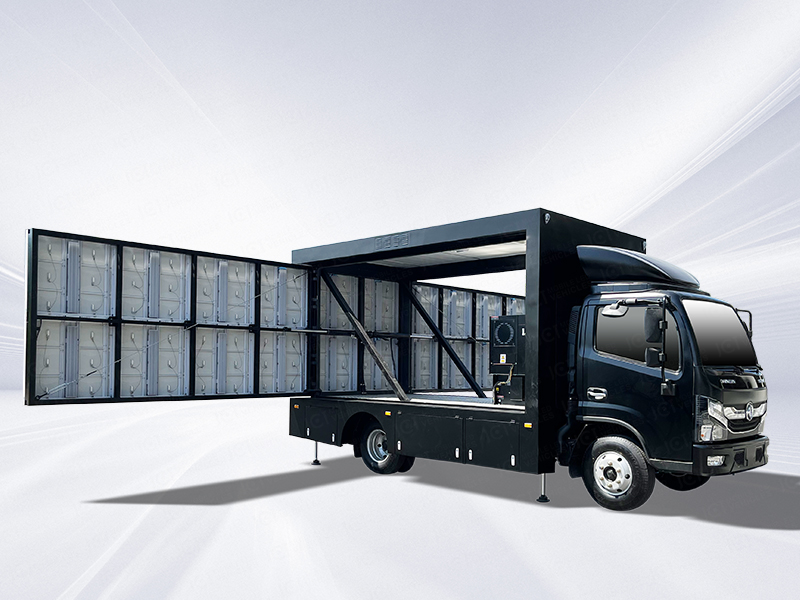

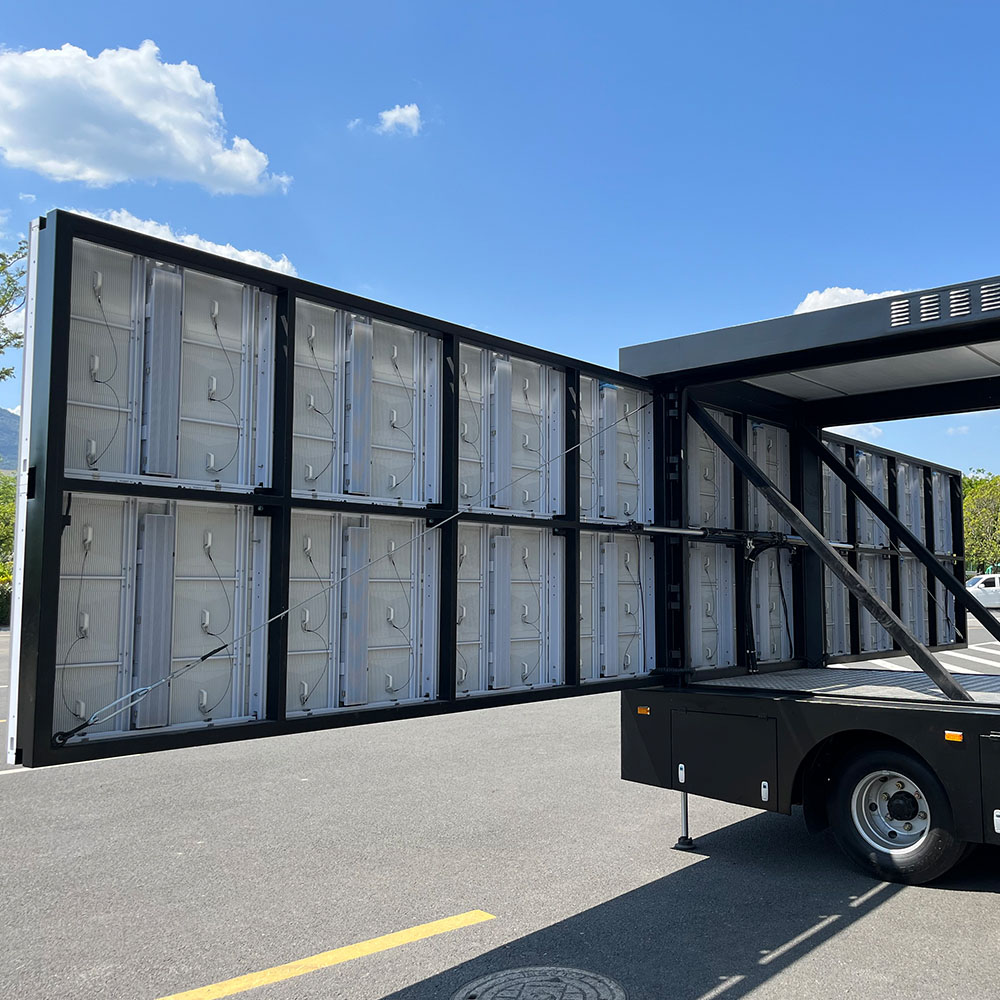

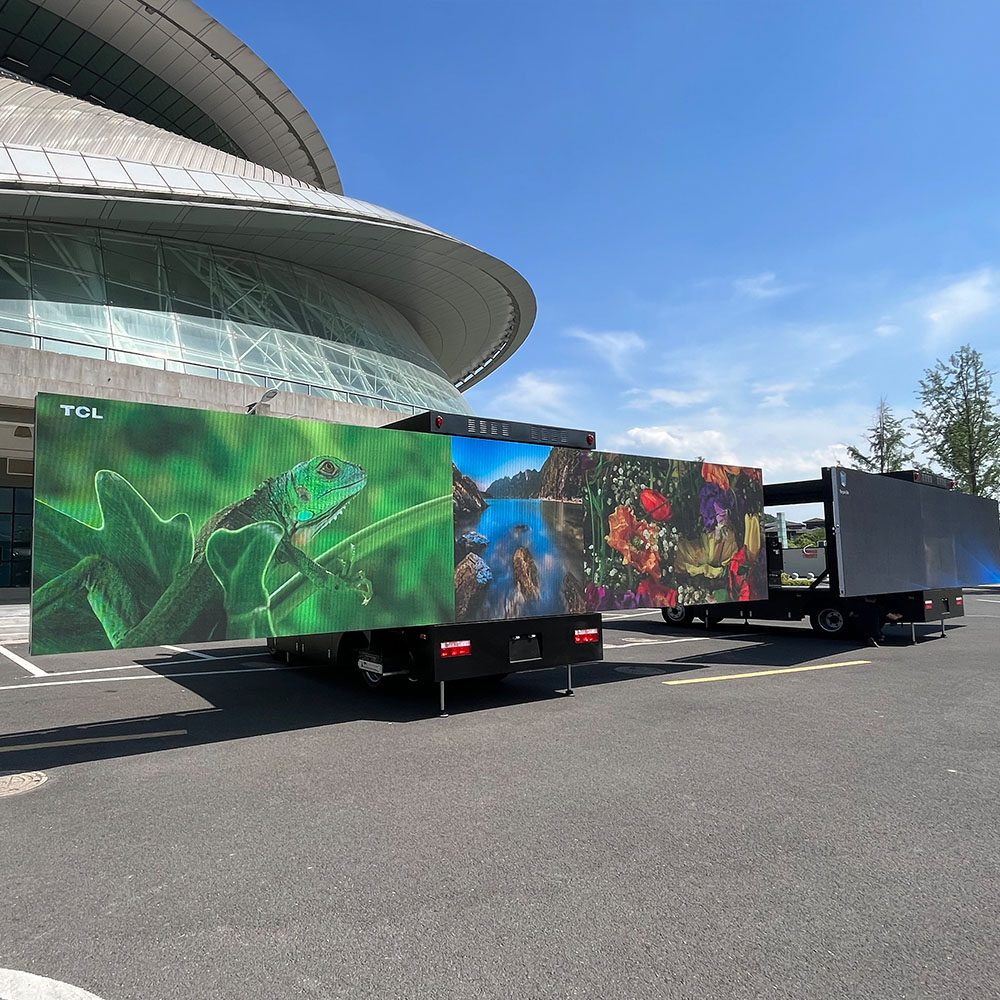

The seamless splicing of the screen side is reliable

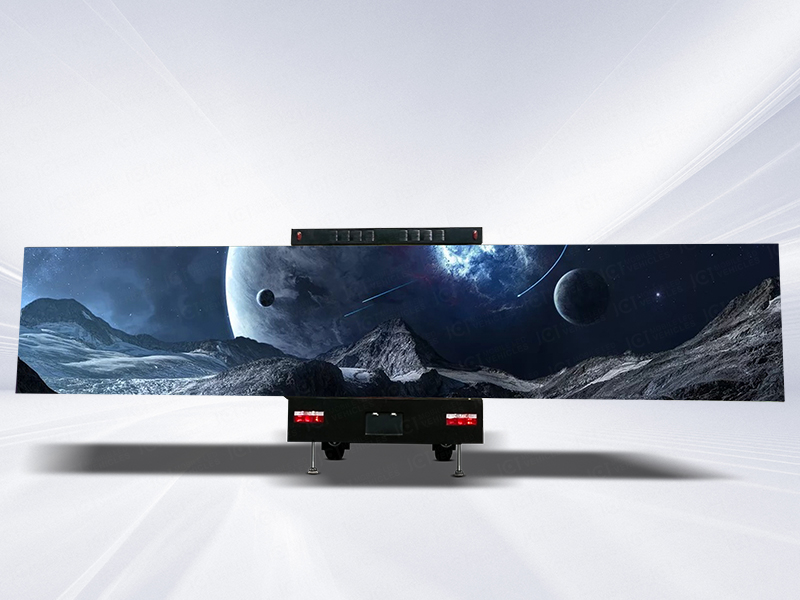

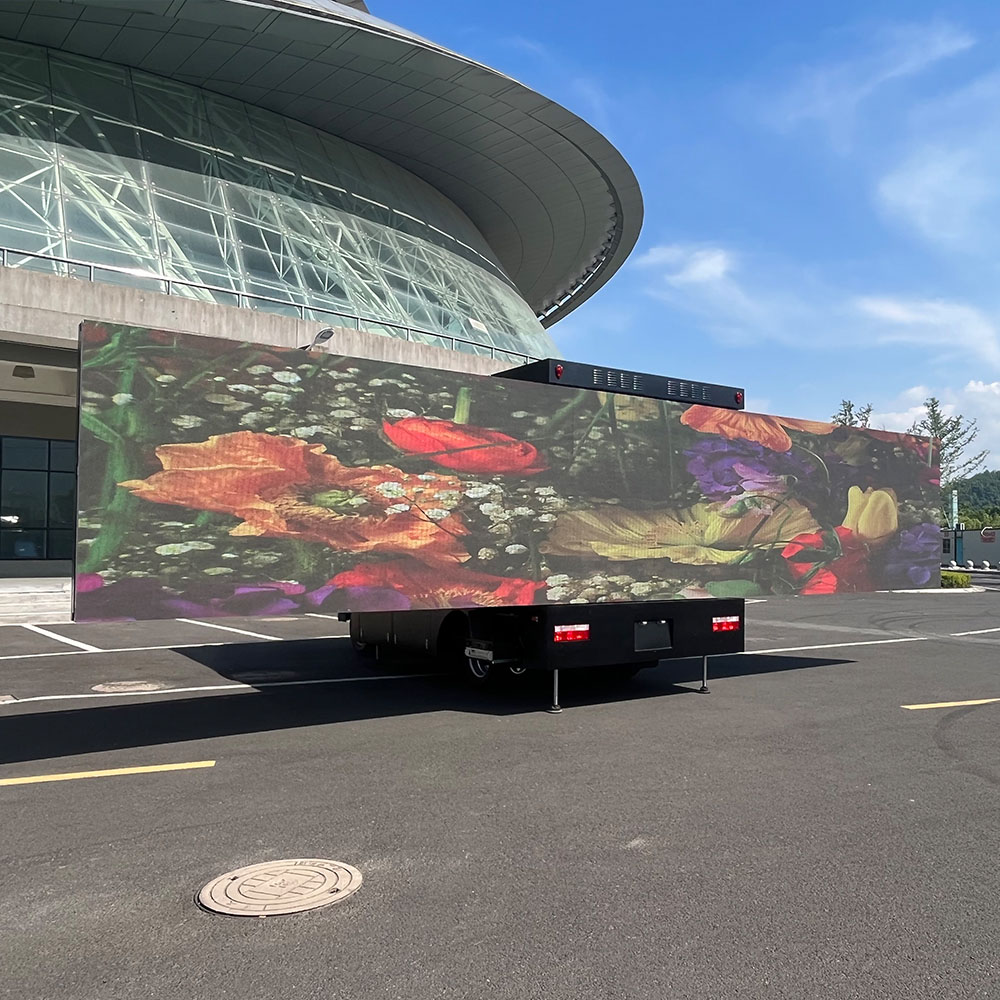

The 1920mm*1920mm screens on both sides of the advertising car compartment can be unfolded sideways and spliced with the 1920mm*1920mm tail screen of the compartment to form a whole 9600mm*1920mm super large screen. The seamless splicing process eliminates visual gap interference and the screen display is complete and coherent; the screen adopts high-performance control System, the three screens can not only play the same content audio synchronously, but also play different content audio in split screens. The performance is reliable, and the playback content can be switched at will, as you like.

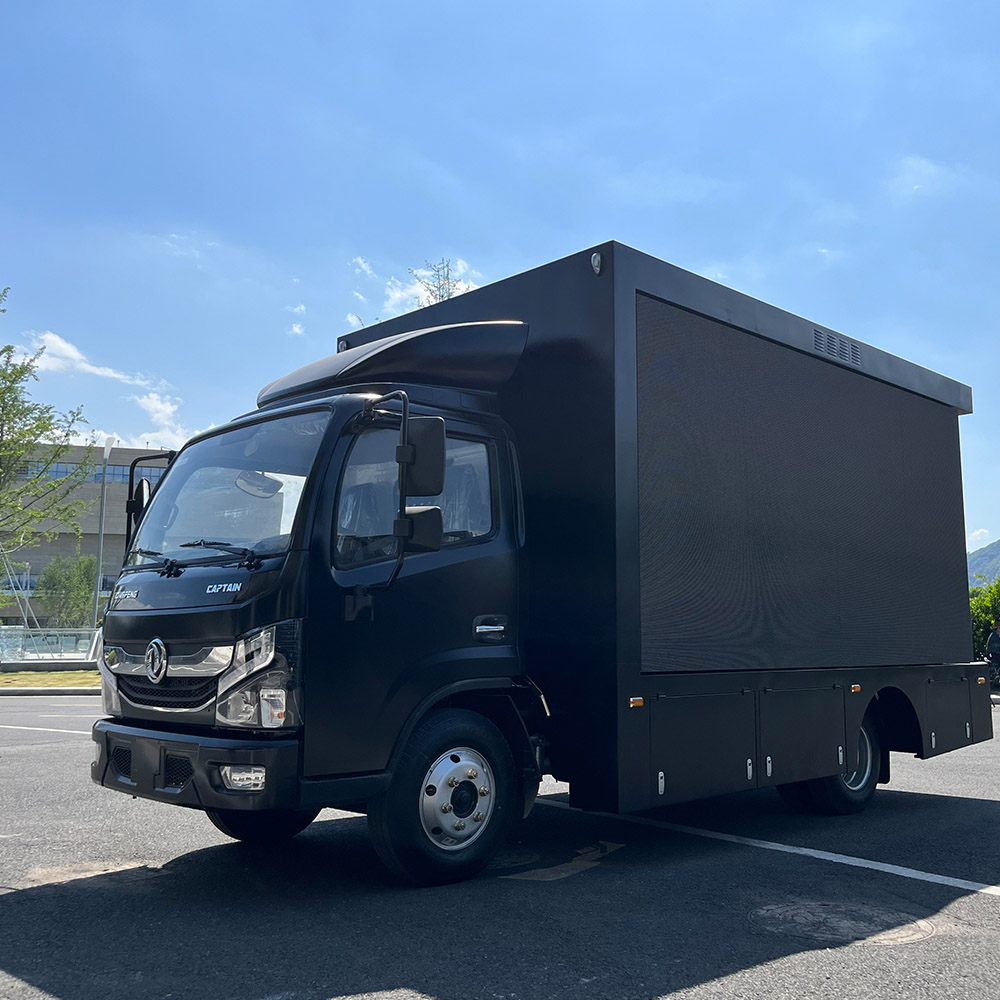

Smart led exhibition truck, wide and open
Equipped with high-end brand DF Auto as a mobile chassis, with a new body design, a spacious driving space and a wide field of vision, free control of the room temperature: ● Spacious cab ● Noise reduction, sound insulation and vibration reduction design ● Comfortable driving experience ● Audio-visual and temperature control functions improved
Mobile and convenient, environmental protection and energy saving
E-3SF18 LED advertising vehicle optimizes and improves the deficiencies of traditional publicity methods. It has strong fluidity, three-dimensional and realistic images, and a spacious screen. It will surely become a leader in outdoor advertising and an "environmental protection ambassador". The brand power displayed by the enterprise through the advertising vehicle will become stronger and stronger, and the enterprise energy it conveys will not be underestimated, so as to finally achieve the goal of the enterprise to win orders and realize the development of the enterprise.
The E-3SF18 LED advertising vehicle manufactured by JCT has brought new breakthroughs to the advertising industry with its unique design and excellent functions. It will bring unprecedented publicity effects to your brand and activities and will be your right-hand man in the fierce market competition.
|
E - 3SF18 |
|||
|
Specification |
|||
|
Truck chassis |
|||
|
Brand |
DF Auto |
Dimension |
5990x2450x3200mm |
|
Engine: |
Isuzu JE493ZLQ3A (75KW/240NM), Euro II |
Model: |
EM97-101-902J (Type 2 chassis) |
|
Seat |
Single row |
Total mass |
4500kg |
|
Wheelbase: |
3308MM, plate spring: 6/6+5 |
Axle base |
3308mm |
|
Tyres: |
7.00R16, rear twin |
Axle: |
Bangle 2.2/ Jiangling 3.5T |
|
Other configuration: |
right rudder/air conditioning /190mm frame/liquid brake/power rotation /76L fuel tank /12V |
|
|
|
Hydraulic Lifting and Supporting System |
|||
|
Led screen 90 degree hydraulic turnover cylinder |
|
2pcs |
|
|
Supporting legs |
Stretching distance 300mm |
4pcs |
|
|
Hydraulic lifting |
Lefting 0-2000mm |
|
|
|
Silent generator group |
|||
|
Dimension |
2060*920*1157mm |
Power |
24KW diesel generator set |
|
Voltage and frequency |
380V/50HZ |
Engine: |
AGG, engine model: AF2540 |
|
Motor |
GPI184ES |
Noise |
Super silent box |
|
Others |
electronic speed regulation |
|
|
|
LED Screen |
|||
|
Dimension |
3840mm*1920mm*2sides+1920*1920mm*1pcs |
Module Size |
320mm(W)*320mm(H) |
|
Light brand |
Kinglight |
Dot Pitch |
4mm |
|
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Die cast aluminum |
Cabinet weight |
aluminum 30kg |
|
Maintenance mode |
Front service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
|
Module resolution |
80*404Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
system support |
Windows XP,WIN 7， |
|
|
|
Power parameter |
|||
|
Input voltage |
Three phases five wires 380V |
Output voltage |
220V |
|
Inrush current |
40A |
Power |
0.3kwh/㎡ |
|
Multimedia Control System |
|||
|
Video processor |
NOVA |
Model |
VX400 |
|
Luminance sensor |
NOVA |
|
|
|
Sound System |
|||
|
Power amplifier |
Power output:350W |
Speaker |
Max power consumption:100W*4 |
