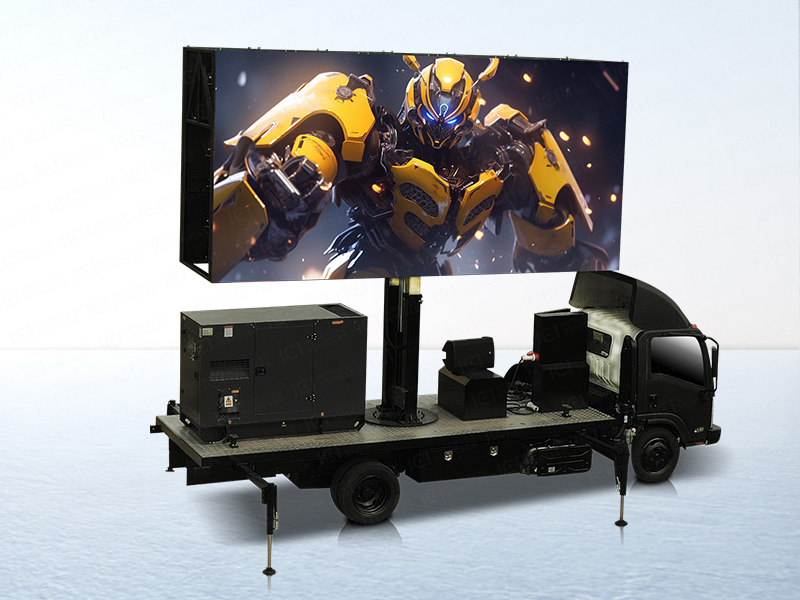

EYZD33 Double-sided LED mobile platform truck —— city new focus, unlimited business opportunities!
In the rapid development of the advertising industry, JCT company led the trend again with profound industry accumulation and technical research and development strength, and launched 33 ㎡ double-sided LED mobile platform truck ——EYZD33. This product not only integrates advanced hydraulic lifting and rotation system, but also has a strong load-bearing ability and excellent wind protection performance, can operate steadily in a variety of environments, to provide customers with unparalleled advertising display experience, it will be the new focus of the future city, to bring unlimited business opportunities to users!
Leading technology, to achieve a new height of advertising display

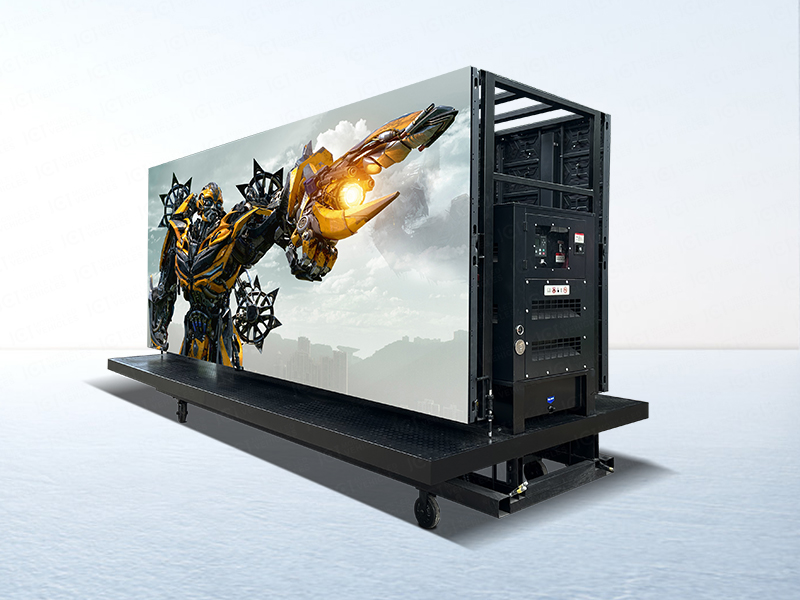

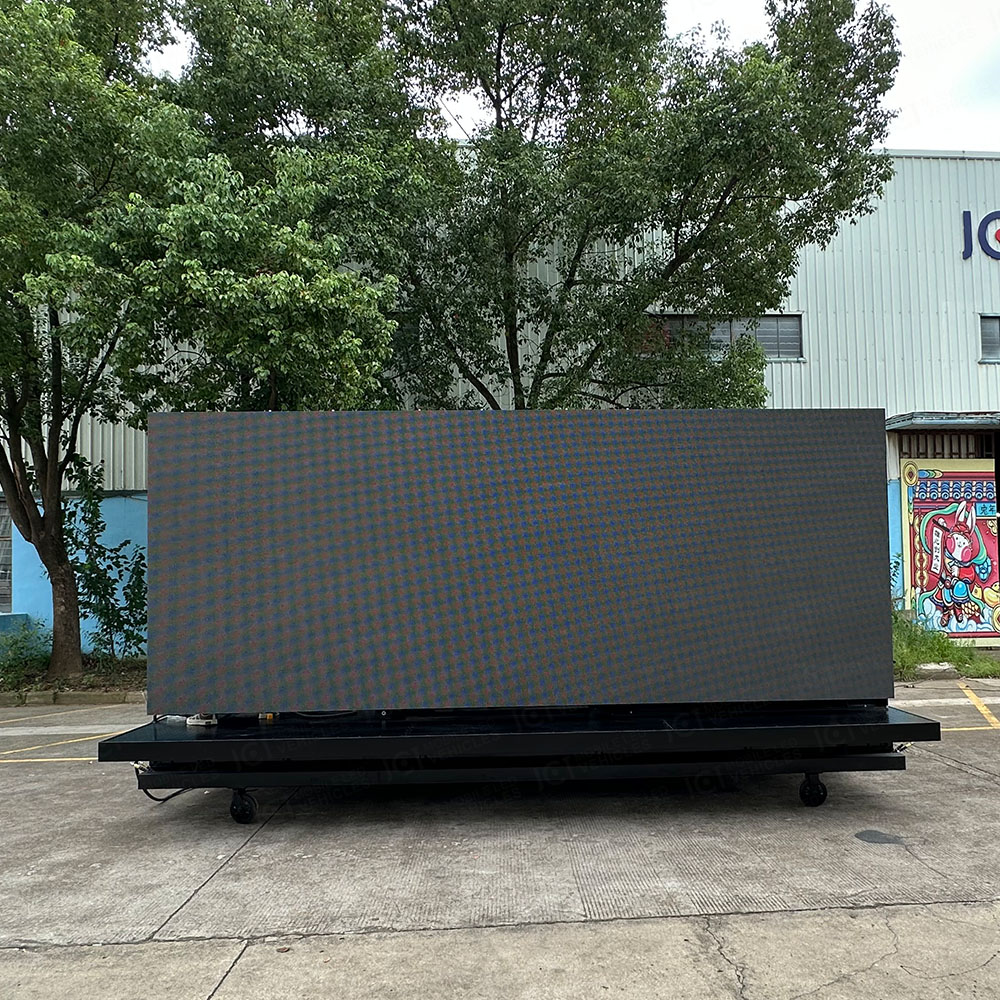

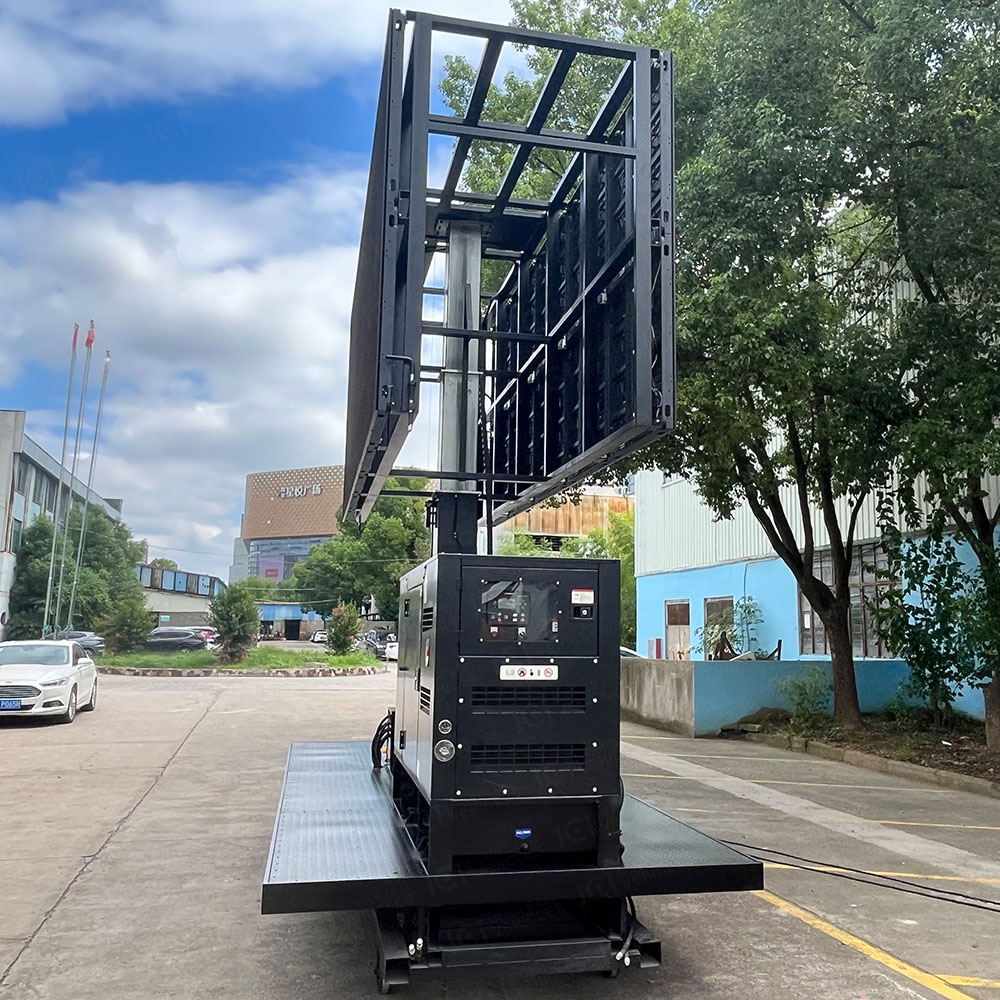

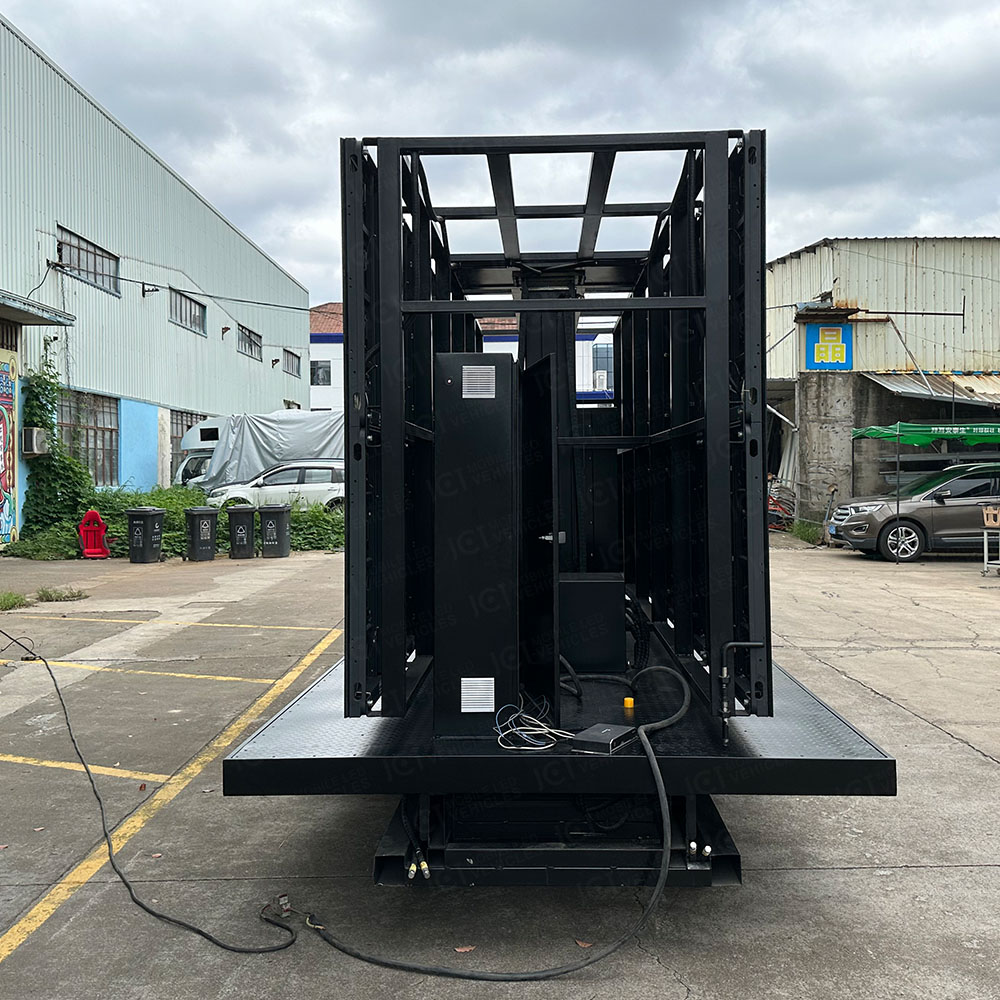

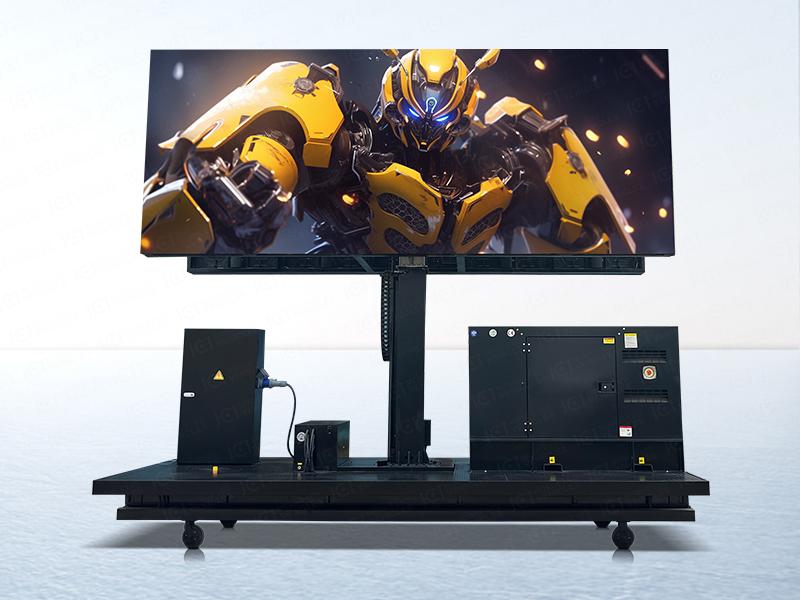

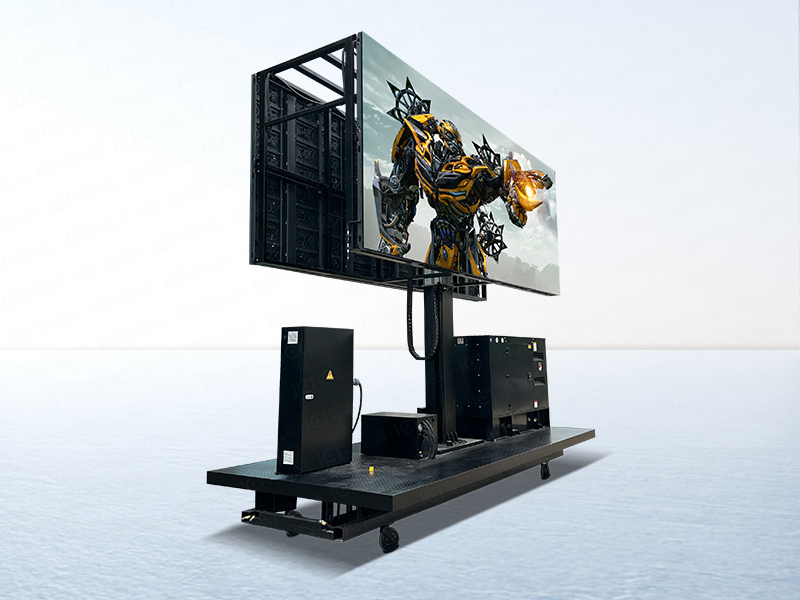

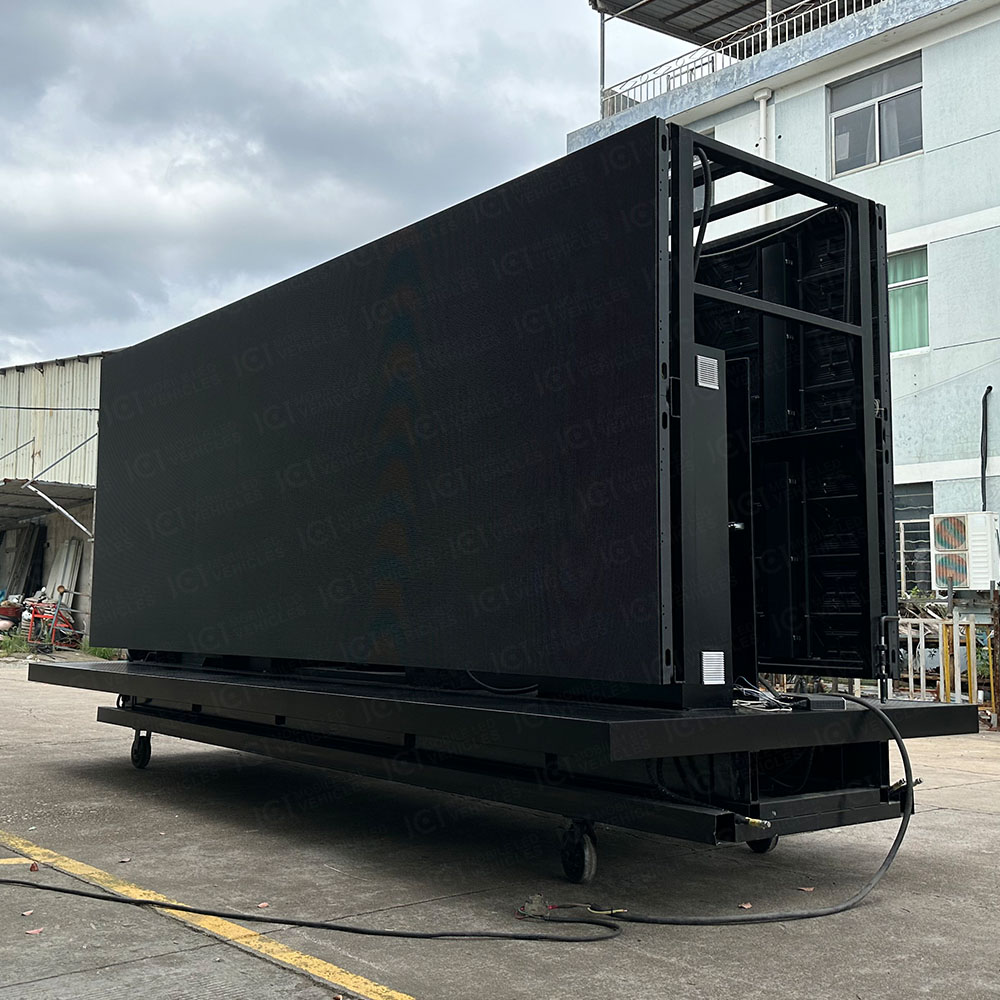

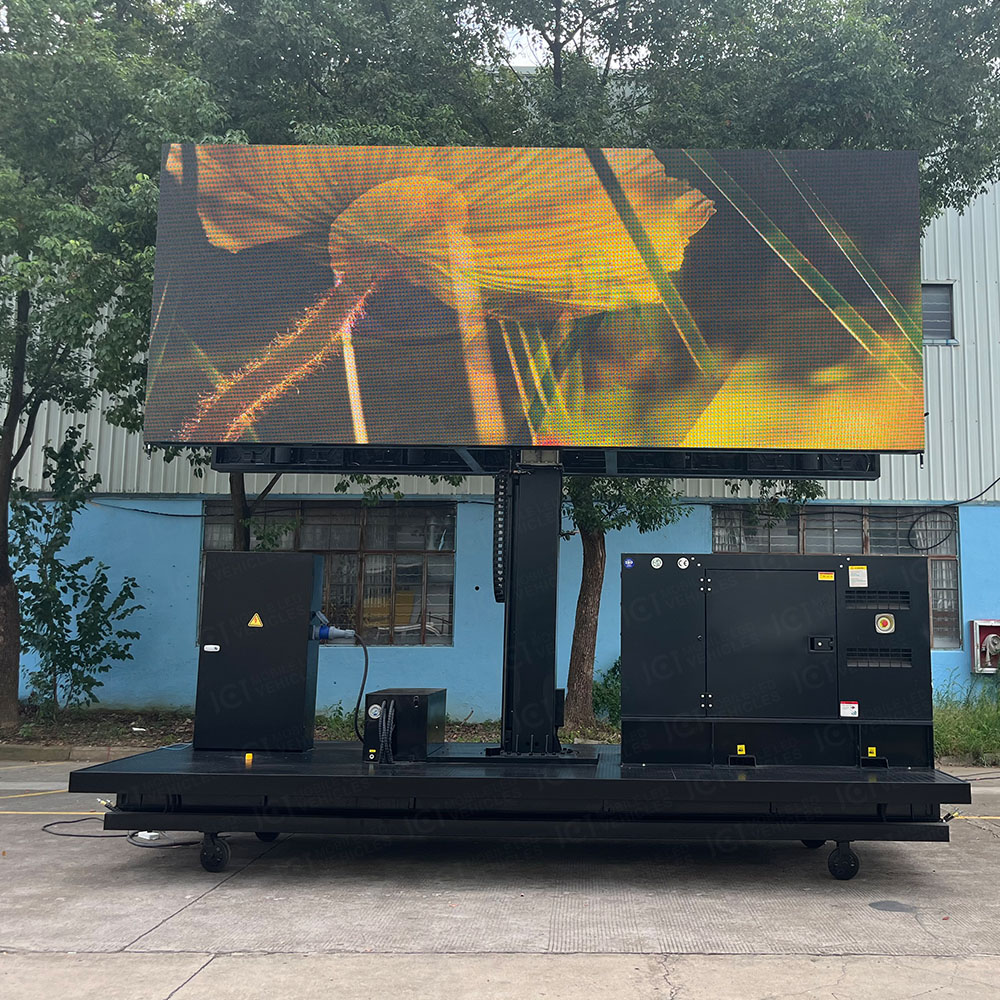

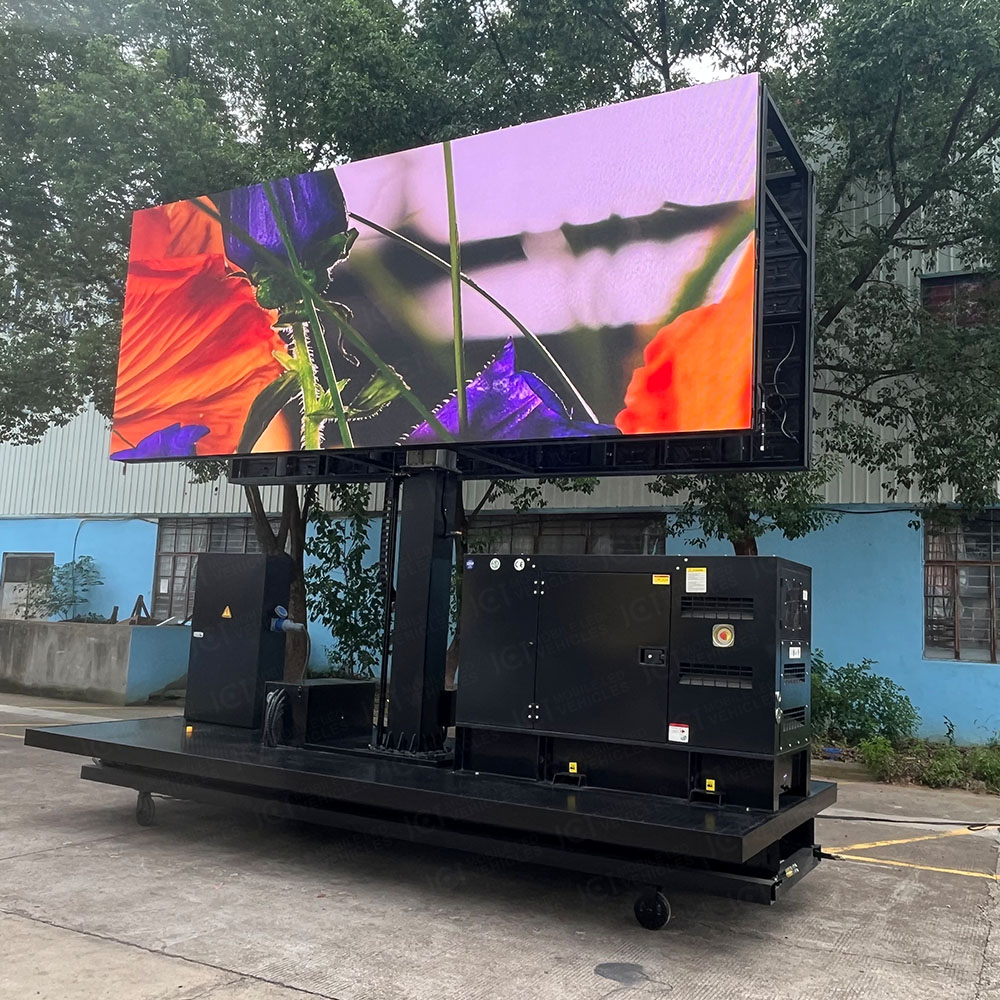

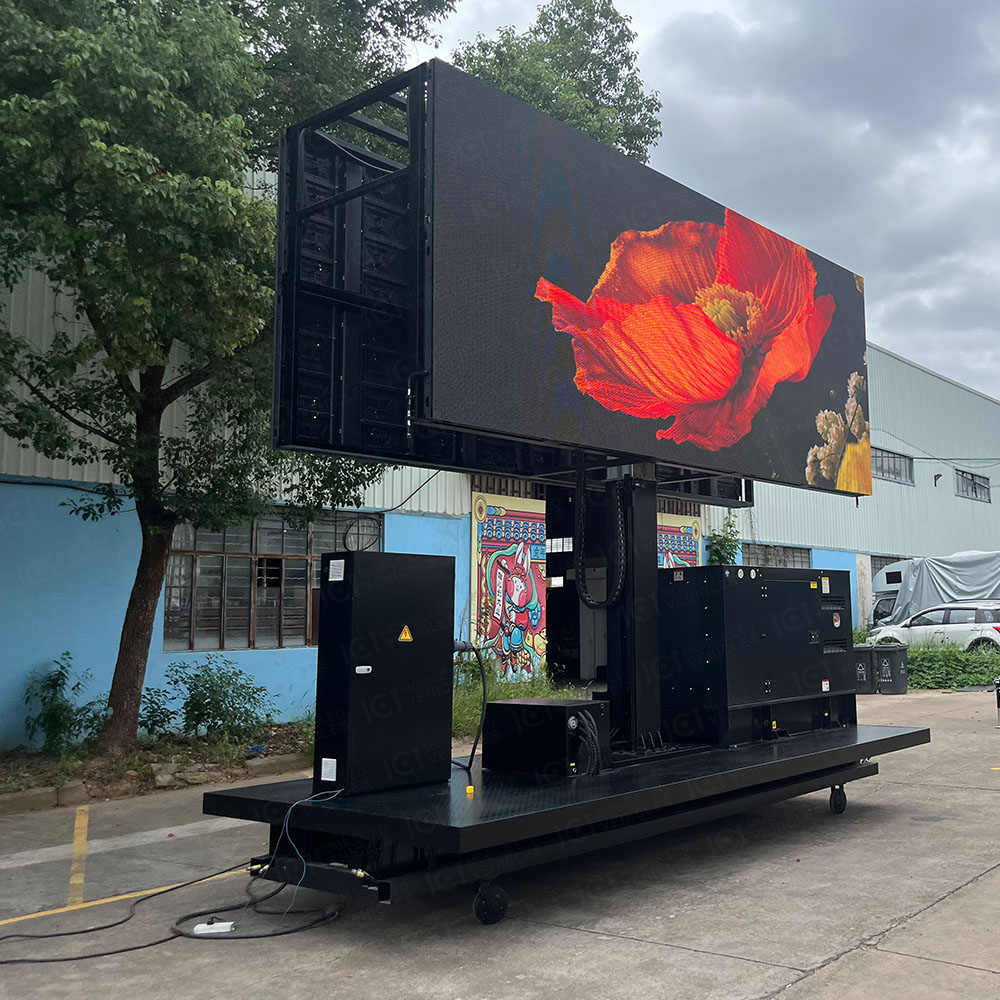

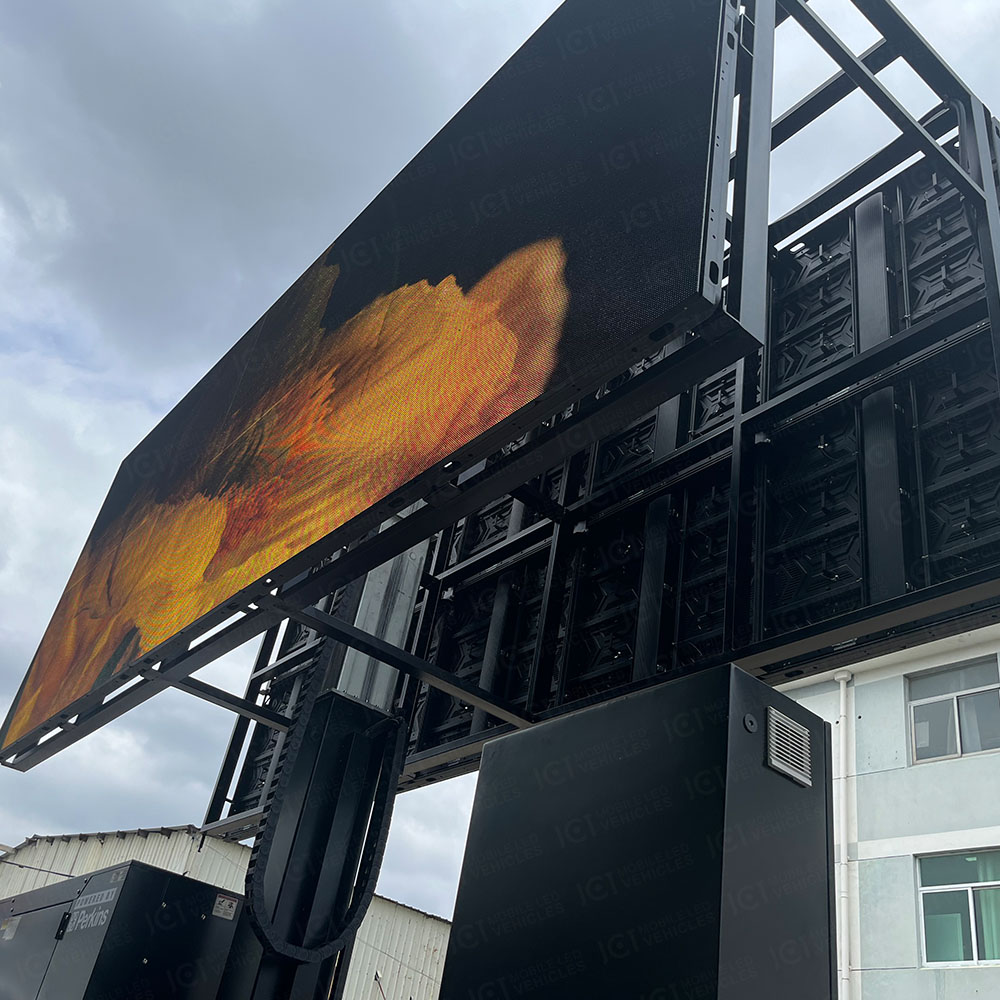

E-YZD 33 LED mobile platform truck breaks the technical bottleneck of the traditional advertising truck, the double-sided LED display is directly installed on the structural frame, the appearance display is more intuitive, stronger visual impact. The single-side screen area is up to 5760mm * 2880mm, and the double-sided superposition screen area is an amazing 33 ㎡, ensuring the maximum display of advertising information. In addition, the advertising car is also equipped with advanced hydraulic lifting and 360 degree rotation system, lifting range up to 2000mm, can realize the height adjustment and all-round rotation of the screen, whether the city streets, outdoor activities or sports venues, can flexibly respond, to provide advertisers with the best display angle and effect.
Bearing and stability, responding to various challenges
In addition to the excellent technical performance, the E-YZD 33 LED mobile platform truck also has a strong load-bearing capacity and excellent windproof performance. Whether in busy city streets or open outdoor activities, advertising vehicles can operate steadily to ensure the continuity and stability of advertising display. This feature makes the E-YZD 33 LED mobile platform truck a powerful assistant for brand promotion, which can help advertisers to achieve efficient information transmission and accurate reach of target audiences in various environments.
Highly customized experience, a one-stop solution
JCT company's integrated design of media module is not only the embodiment of technological innovation, but also a profound change to the advertising car industry. By integrating key components, simplifying the installation process and improving customization, this design concept will help the advertising vehicle industry move toward a new era of greater efficiency, convenience and personalization. This integrated design makes the installation simple and quick, greatly shortening the time from production to use. International customers can choose to purchase only the independent truck loading part according to their own needs, and then purchase the suitable truck chassis locally for installation. This flexibility makes advertising vehicles more adaptable to the market environment and regulatory requirements of different countries and regions. Through the integrated design of media modules, JCT company provides customers with a more personalized and customized experience. Customers can choose the appropriate LED screen size, color and resolution, as well as the corresponding support up and down system, media control and electrical control system configuration. This highly customized design ensures that the advertising car can maximize the publicity effect in a variety of application scenarios.
Broad prospects, leading the new trend of the advertising industry
JCT's 33 ㎡ LED mobile platform truck —— E-YZD 33 not only meets the market's demand for the versatility and efficiency of advertising vehicles, but also leads the new trend in the advertising industry with its innovative design and excellent performance. With the continuous development and change of the advertising market, E-YZD 33 LED mobile platform truck will become an indispensable promotion tool for advertisers with its unique advantages, opening up new boundaries for brand promotion.
JCT will continue to adhere to the core values of innovation, quality and service, constantly improve the product technology and service level, and provide better advertising display solutions for customers around the world. Let's look forward to the E-YZD 33 LED mobile platform truck in the global advertising market to write a new brilliant chapter!
EYZD33 double sides |
|||
Specification |
|||
Truck Chassis |
|||
Model |
2020 Capt C, CM96-401-202J |
Engine: |
Cummins B140 33 (103KW/ 502N.m), Euro II |
Transmission |
Faust 6 speed |
Bridge: |
Dana 3.9/6.8T (main minus 5.125) |
Wheelbase |
4700 mm |
Plate spring: |
8/10 + 7 |
Tyre: |
245/70R19.5 14PR vacuum tyre |
Vehicle size: |
8350×2330×2550 |
Other configuration: |
left rudder/air conditioning /232mm frame/air brake/rear transverse stabilizer bar/power rotation /205L fuel tank/power window/central lock |
Manufacturer: |
Dongfeng Motor Co. LTD |
Hydraulic Lifting and Supporting System |
|||
Hydraulic lifting system |
Lifting Range 2000mm, bearing 5000kgs |
||
Hydraulic rotating system |
Screen can rotate 360 degrees |
||
Wind-against level |
Against level 8 wind when screen is lift up 2m |
||
Supporting legs |
Stretching distance 300mm |
||
Silent generator group |
|||
Dimension |
2200x900x12000mm |
Power |
30KW |
Brand |
Perkins |
Number of cylinders |
Water-cooled inline 4 |
Displacement |
1.197L |
Bore x stroke |
84mm x 90mm |
LED Screen |
|||
Dimension |
5760mm*2880mm*2 sides |
Module Size |
320mm(W)*160mm(H) |
Light brand |
kinglight |
Dot Pitch |
5mm |
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
700w/㎡ |
Power Supply |
Meanwell |
DRIVE IC |
MBI5124 |
Receiving card |
Nova MRV316 |
Fresh rate |
1920 |
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
Module power |
18W |
scanning method |
1/8 |
HUB |
HUB75 |
Pixel density |
40000 Dots/㎡ |
Module resolution |
64*32Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Operating temperature |
-20~50℃ |
system support |
Windows XP,WIN 7, |
|
|
Power parameter |
|||
Input voltage |
Three phases five wires 380V |
Output voltage |
220V |
Inrush current |
40A |
Power |
0.3kwh/㎡ |
Player system |
|||
Video processor |
NOVA |
Model |
VX600 |
Sound system |
|||
Power amplifier |
Power output:1500W |
Speaker |
200W*4 |
