Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

5-color variable induction screen:

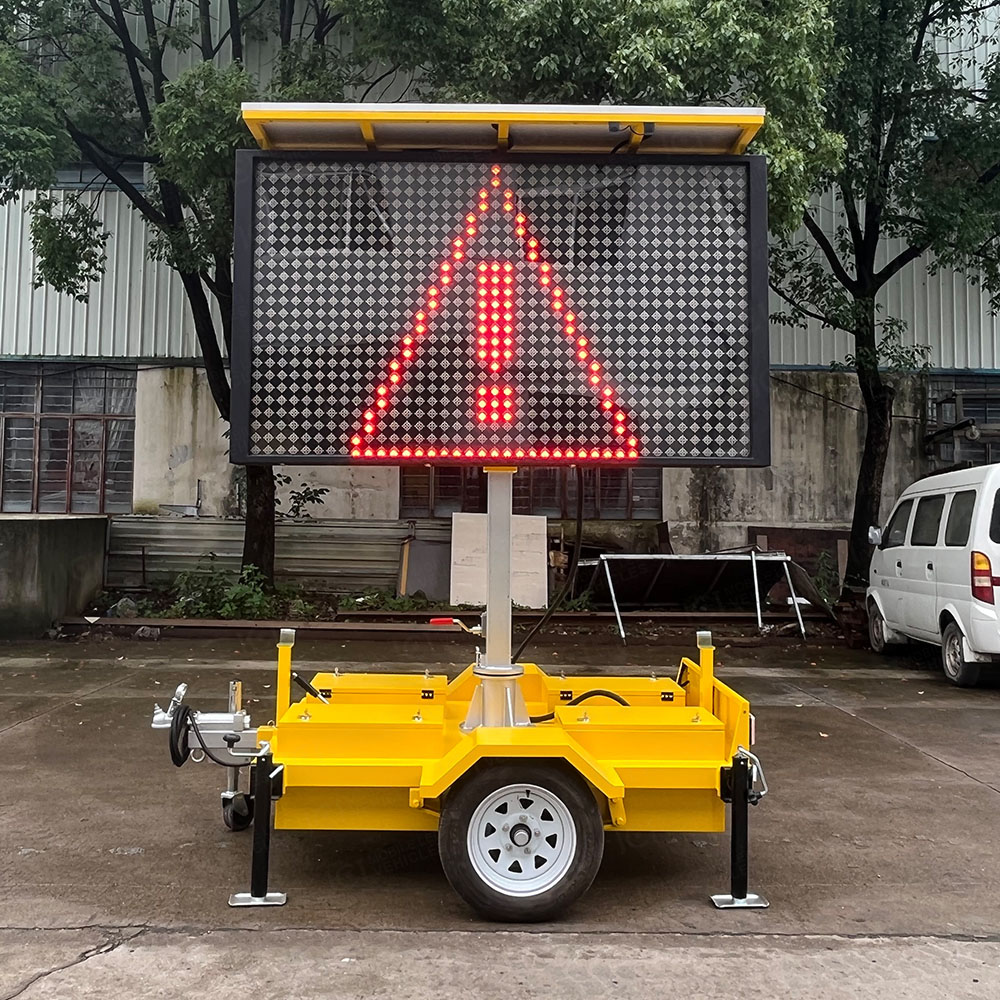

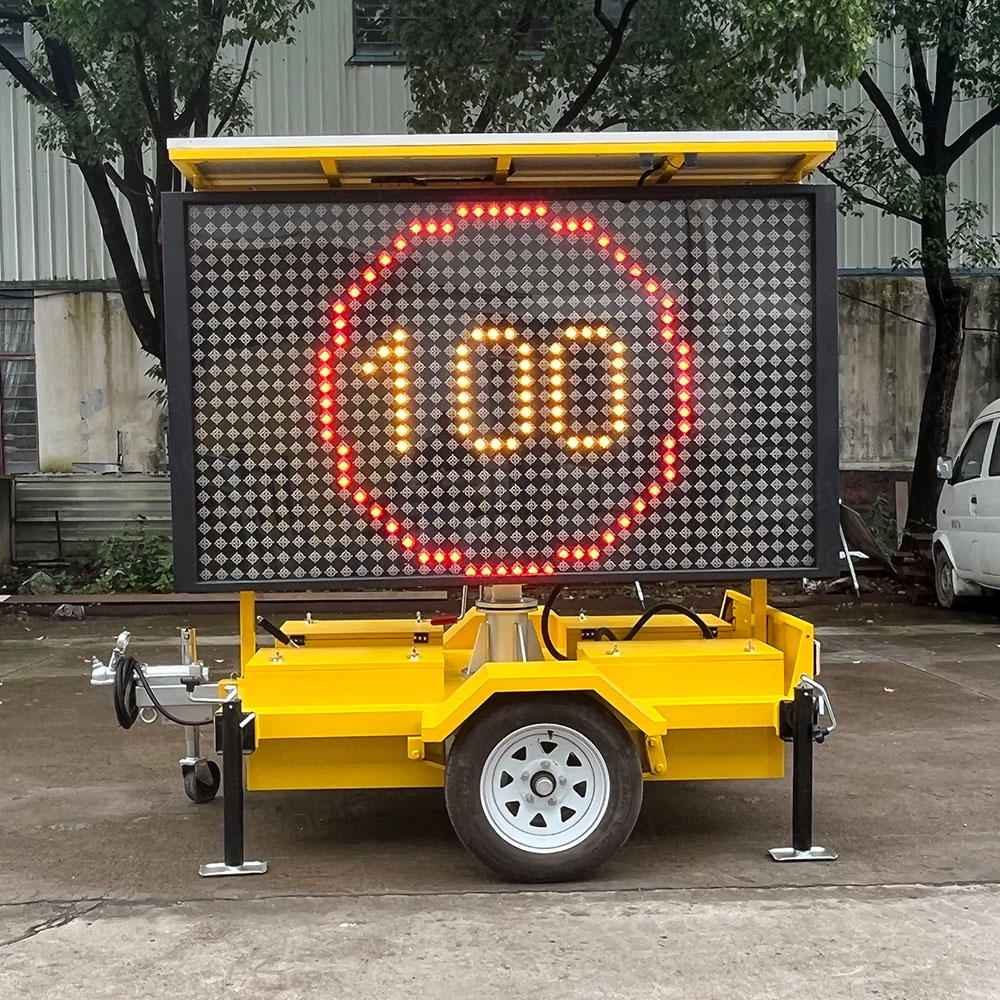

Traditional traffic information screens are often limited to one-color or two-color displays, while 5 color variable sensor screens greatly expand the range of colors. This means that the screen can display many colors like red, yellow, green, blue, and white, or any combination of these colors. The diversity of colors not only increases the attractiveness of information, but also can be color coded according to different traffic conditions or urgency, such as red for danger or stop, green passage, etc. This feature enables the traffic information screen to flexibly display multiple colors of text and images according to different needs and scenes. This colorful display not only increases the richness of information, but also can better attract the attention of drivers and improve the efficiency of information transmission.


330 degrees of rotation and free lifting, to create a full range of information display

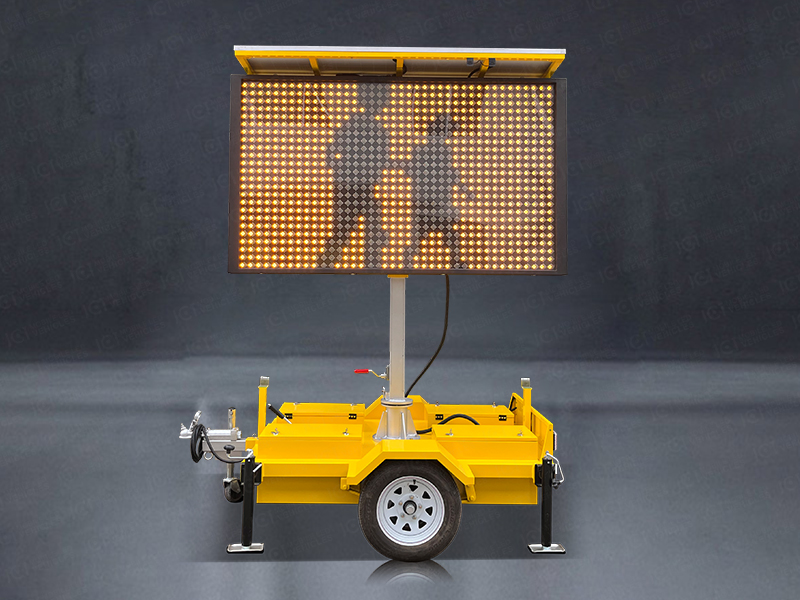

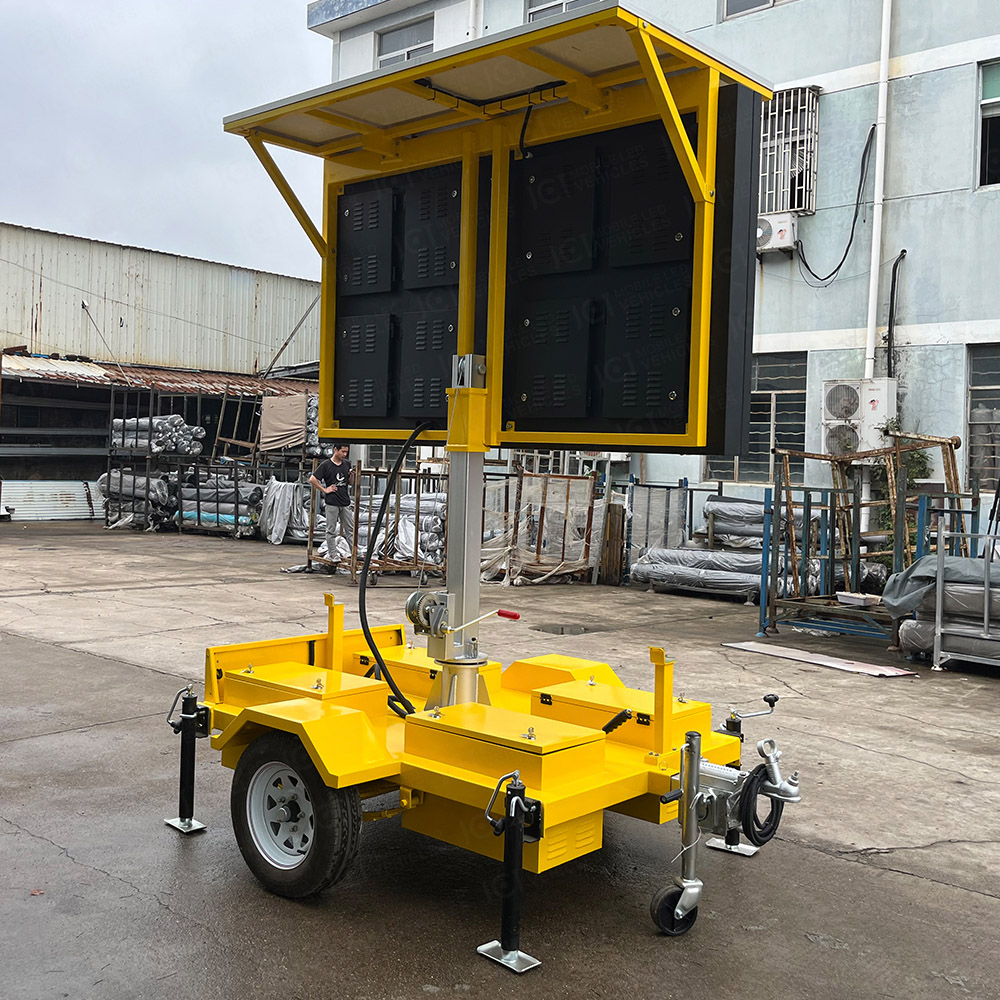

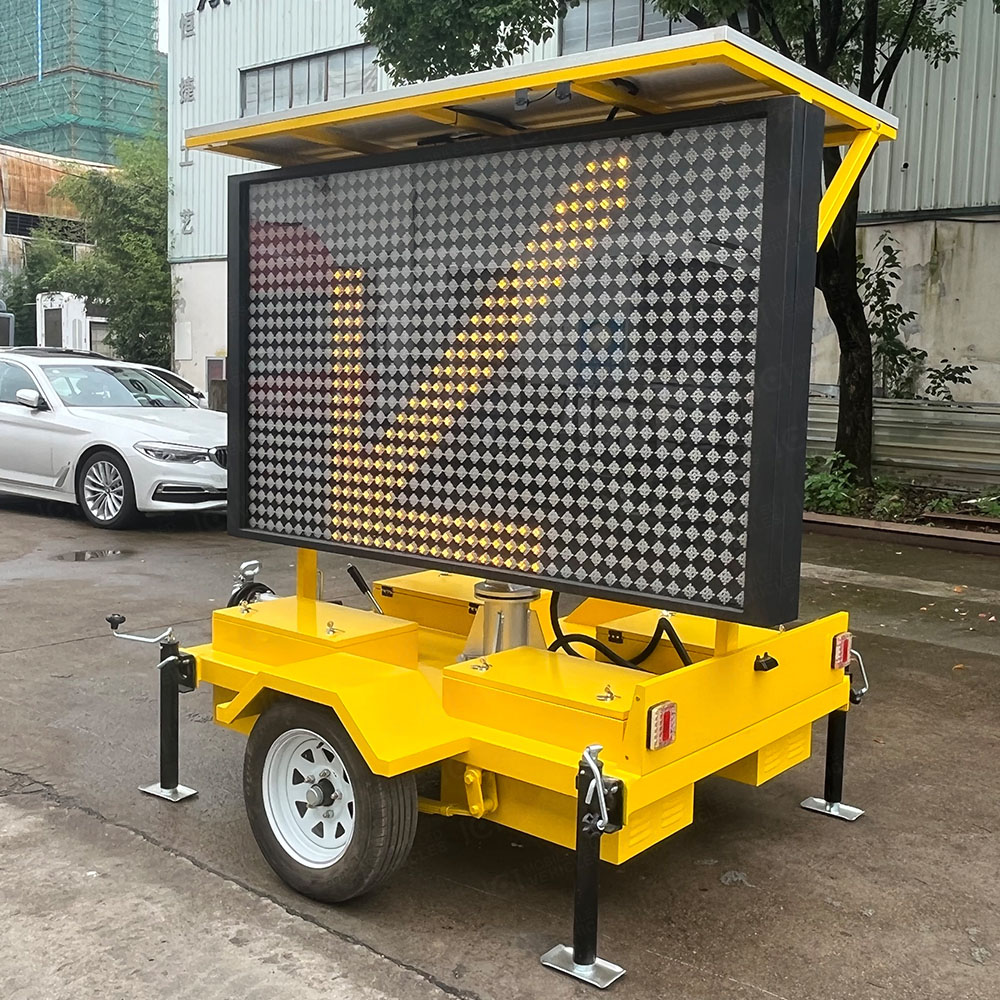

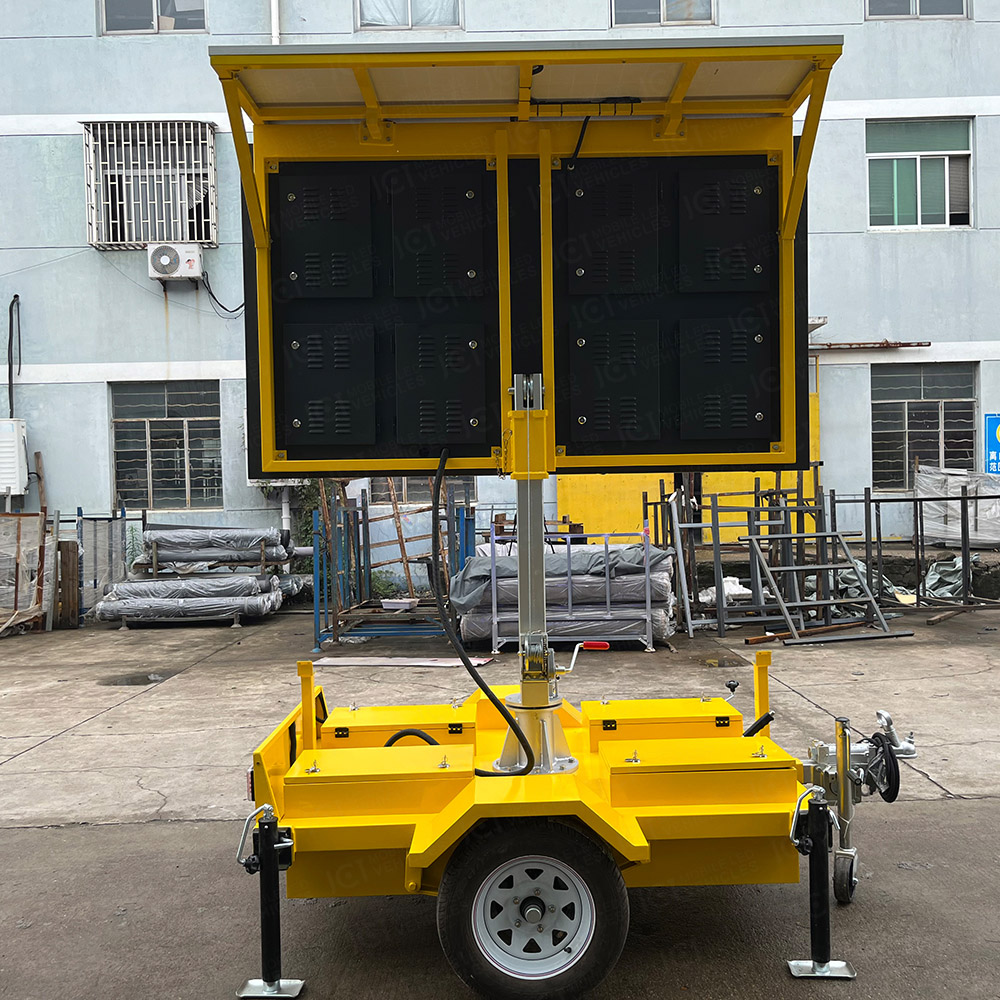

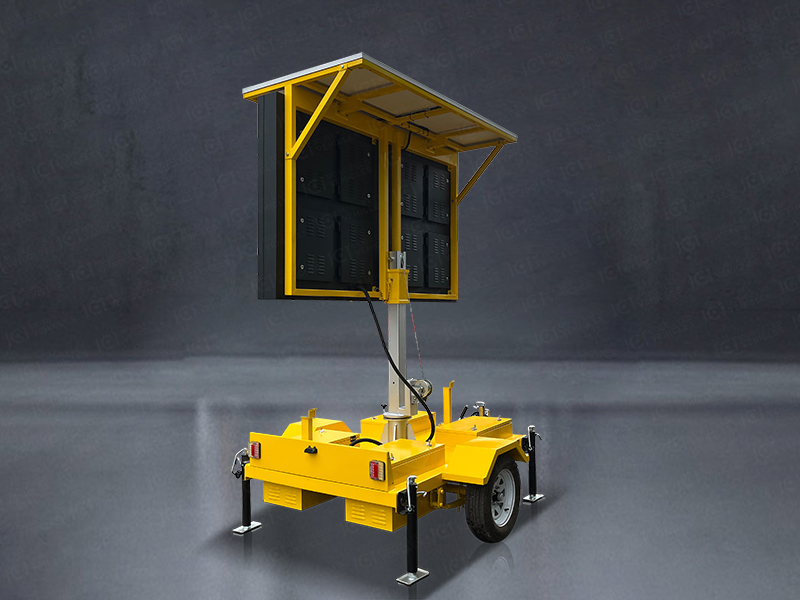

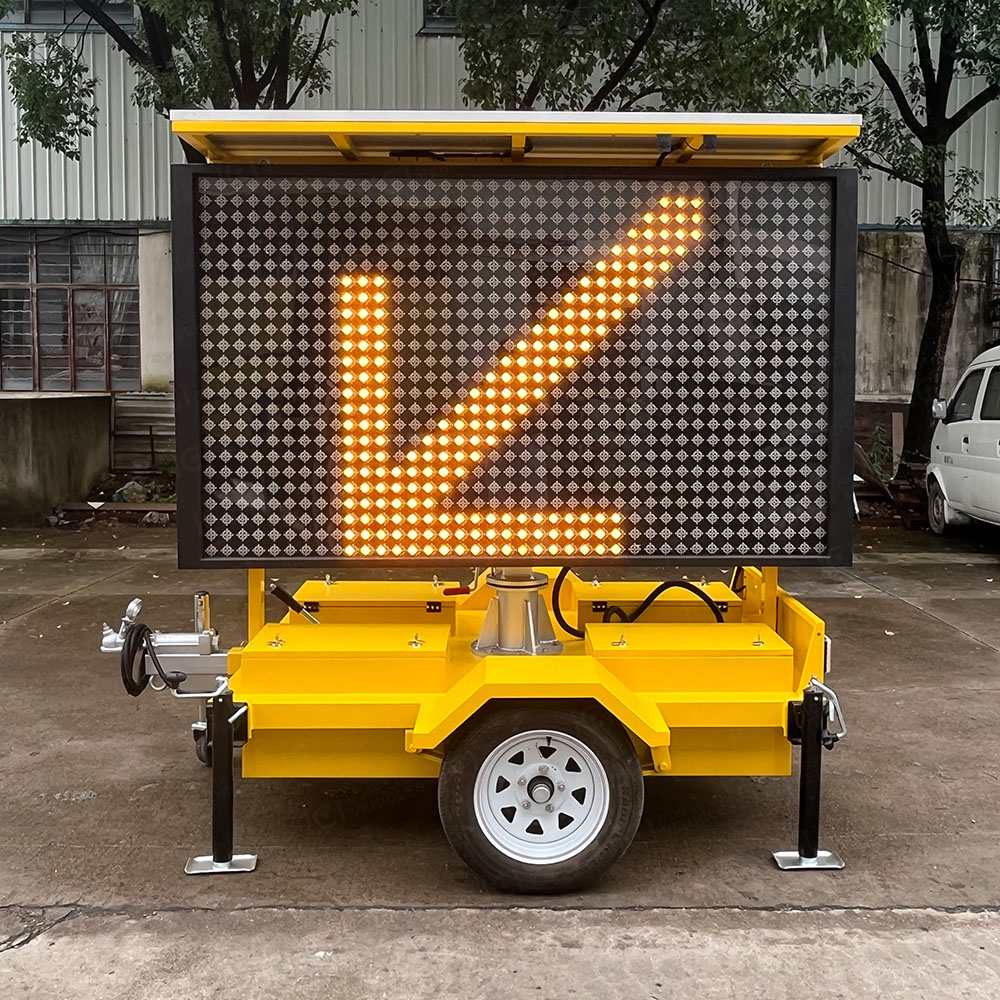

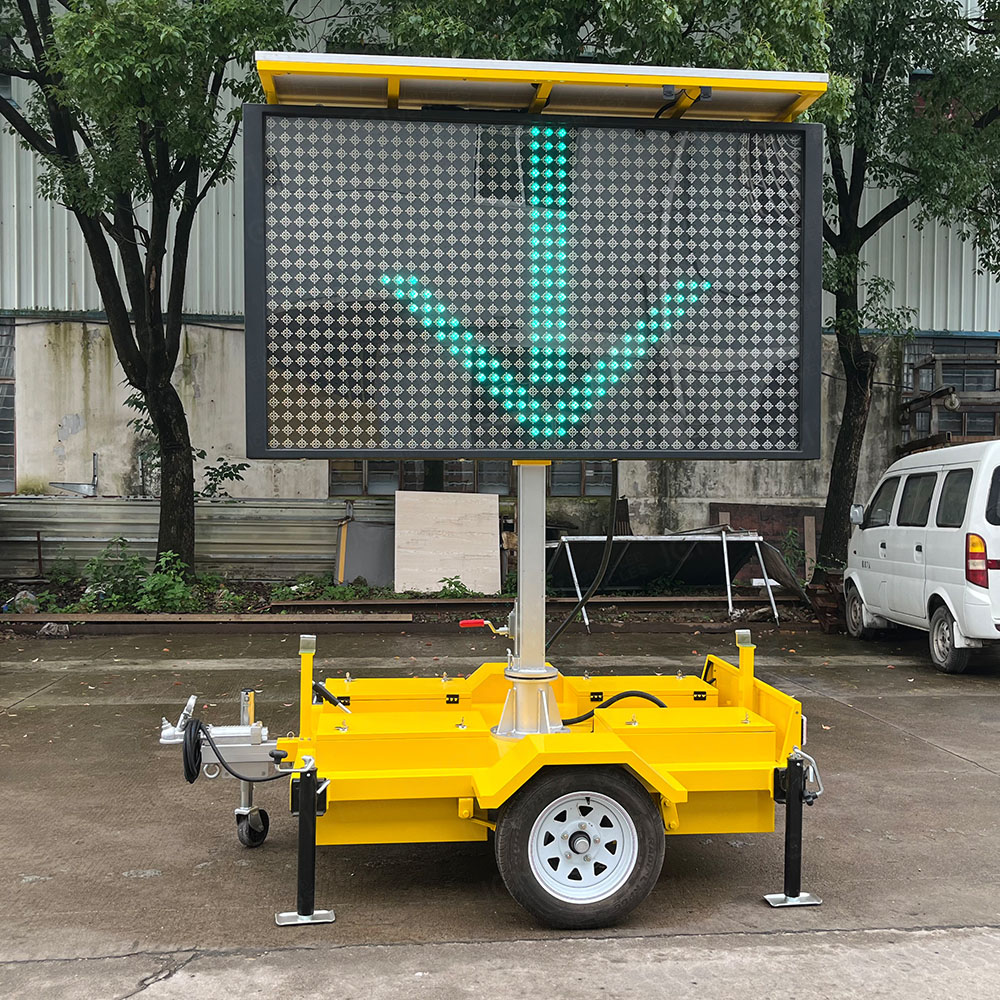

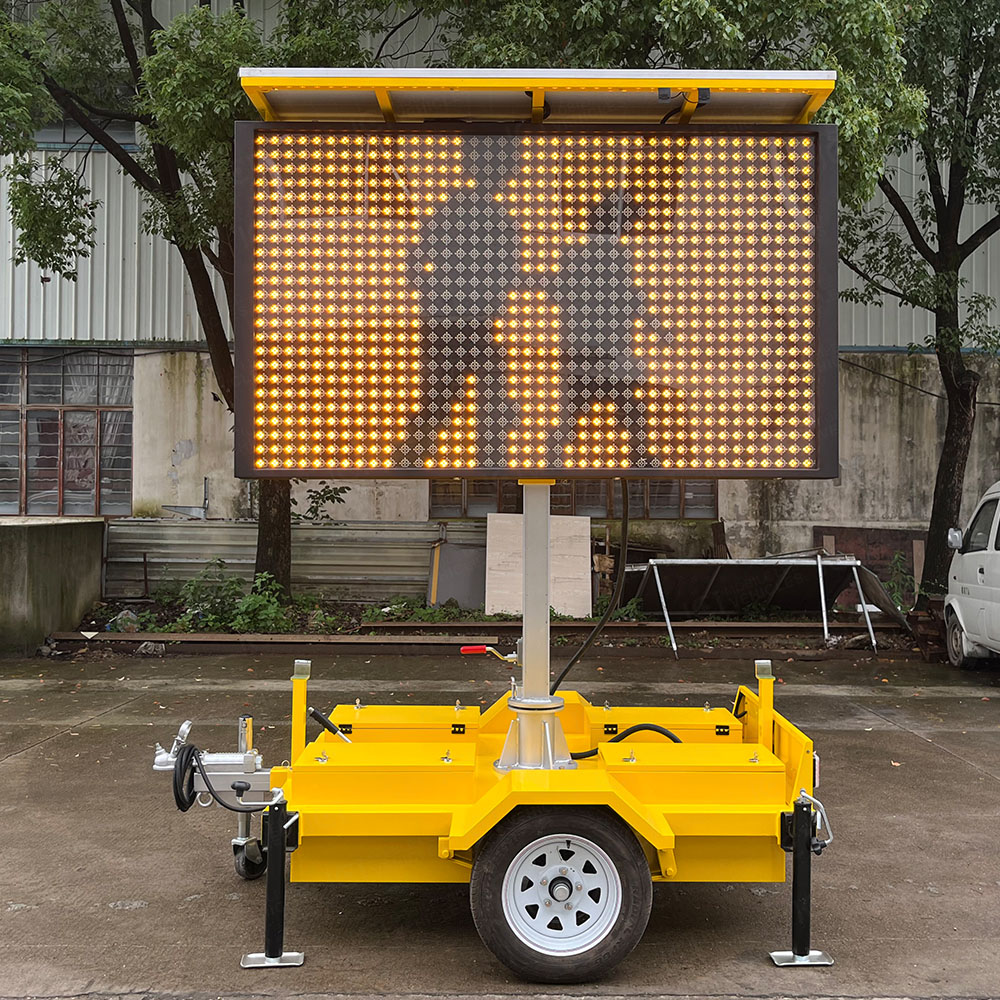

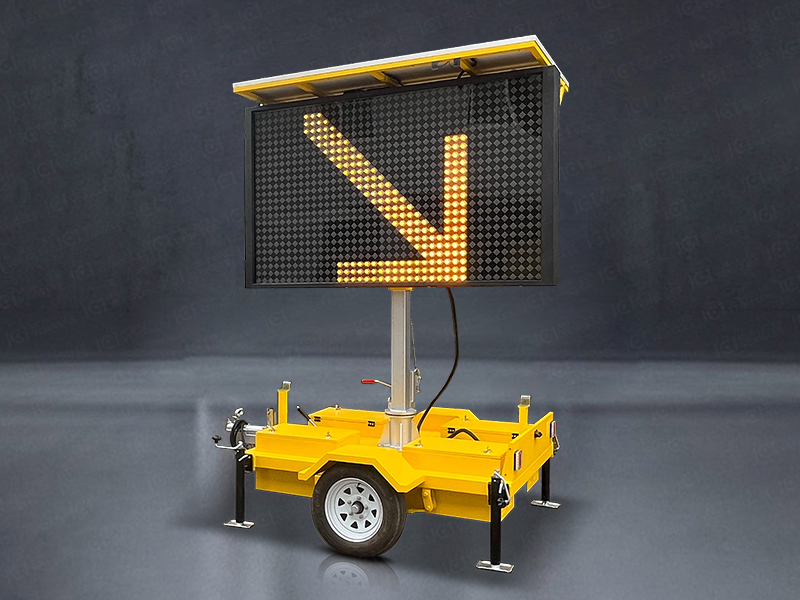

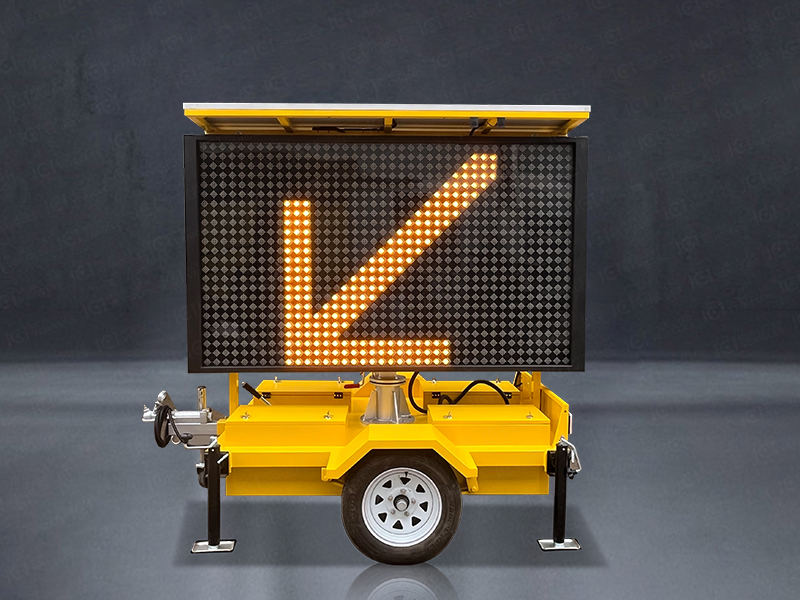

VMS300 P50 five color indicator VMS trailer LED screen size is 2000 * 1200mm, not only has high definition, high brightness and high contrast, but also can manually rotate 330 degrees, easy to deal with the information display needs of different scenes and angles. Whether horizontal, vertical, or any other perspective, simple adjustments can be made to ensure that information is presented to the audience in the best way. This flexibility not only increases the diversity of information display, but also improves the effect of information transmission.

At the same time, the manual lift function makes the trailer easy to handle at different heights and terrain conditions. Whether on flat city roads or in rugged mountain areas, you can adjust the height of the screen to ensure the visibility and clarity of information. This high degree of adjustable not only improves the efficiency of information release, but also makes advertising and information transmission more comprehensive and efficient.


Strong energy backing

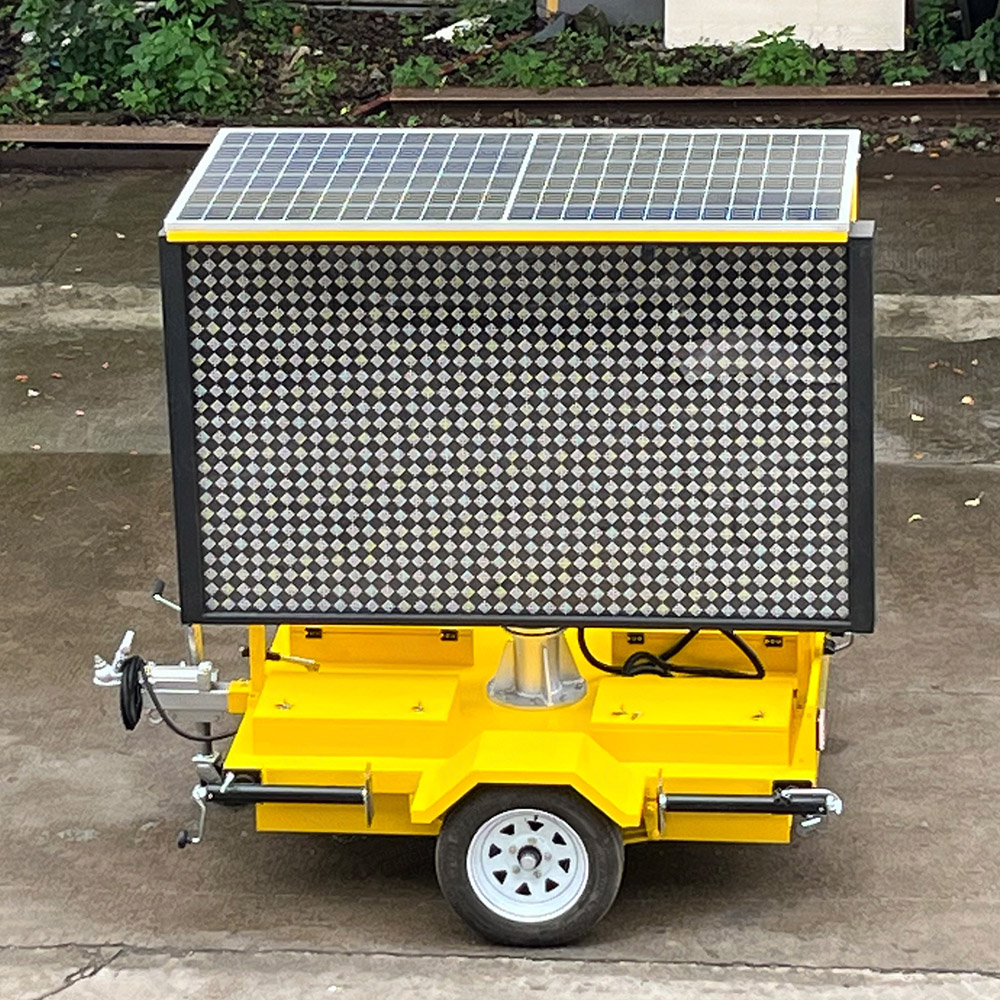

The trailer is equipped with solar panels and high-efficiency converters, and it also has a 7,200 AH super-large capacity battery that ensures a continuous power supply to the device. Whether it is a sunny summer or a cold winter, VMS300 P50 five color indicator VMS trailer can steadily display information content to users, to ensure that information transmission is not affected by any. Even in remote areas or where there is no stable power supply, the normal operation of equipment and uninterrupted display of information.


A wide range of application scenarios

VMS300 P50 five color indicator VMS trailer, because of its unique advantages, is widely used in various occasions:

Traffic management: It can be quickly deployed at busy traffic intersections or emergency sites to provide instant traffic information and guidance for drivers and pedestrians.

Urban events and celebrations: During festivals, celebrations or large-scale events, VMS trailers can become the focus of attention, providing activity information and map guidance for citizens and tourists.

Municipal publicity: to promote urban construction and display urban style, VMS trailer, with its high definition and extensive coverage, has become the right-hand man of municipal publicity.

Commercial advertising: For businesses, it is a mobile billboard that can bring high exposure rate to brands and products in shopping malls, events and other places.

Emergency response: In emergency cases, VMS trailers can be quickly deployed, to provide emergency notification and guidance to the public to ensure the safety of personnel.


Whether in the bustling business district of the city center, or in the crowded gathering, outdoor sports events and other places, the VMS300 P50 five color indicator VMS trailer can bring unprecedented use experience for users with its excellent performance and flexible functions. It is not only an efficient traffic information display tool, but also an intelligent device that can be adaptively adjusted according to different needs and environments.

Parameters

VMS300 P50 solar led trailer

Specification

Trailer appearance

Trailer size

2382×1800×2074mm

Supporting leg

440~700 load 1 tons,4 PCS

Total weight

629KG

Connector

50mm ball head, 4 hole Australian impact connector,

torsion shaft

750KG 5-114.3,1 pce

Tire

185R12C 5-114.3,2 pcs

Max speed

120Km/h

Axle

Single axle

Breaking

Hand brake

RIM

SIZE:12*5.5、PCD:5*114.3、CB:84、ET:0

led parameter

Product name

5 colors variable induction screen

Product type

D50-20A

LED screen size:

2000*1200mm

Input voltage

DC12-24V

Cabinet size

2140*1260mm

Cabinet material

aluminum and Transparent acrylic board

Average power consumption /
Maximum power consumption

20W/㎡
50W/㎡

Whole screen power consumption

20W

Dot pitch

P50

Pixel density

400P/M2

Led Model

510.00

Module Size

400mm*200mm

Control mode

asynchronous

Maintenance method

Front maintenance

Led brightness

>8000

Protection grade

IP65

Power parameter (external prower supply)

Input voltage

9-36V

Output voltage

24V

Inrush current

8A





Multimedia control system

receiving card

2pcs

STM32 with 4G module

1 pc

Luminance sensor

1pc





Manual lifting

manual lifting:

800mm

Manual rotation

330 degrees

solar panel

Size

2000*1000MM,1 PCS

power

410W/pcs;Total 410W/h

Solar controller(Tracer3210AN/Tracer4210AN)

input voltage

9-36V

Output voltage

24V

Rated charging power

780W/24V

Maximum power of photovoltaic array

1170W/24V

The battery

Dimension

510×210x200mm

Battery specification

12V150AH*4 pcs,7.2 KWH

Advantages:

1, can lift 800MM, can rotate 330 degrees.

2, equipped with solar panels and converters and 7200AH battery, can achieve 365 days a year continuous power supply LED screen.

3, with brake device!

4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights.

5, with 7 core signal connection head!

6, with tow hook and telescopic rod!

7. 2 tire fenders

8, 10mm safety chain, 80 grade rated ring

9, reflector, 2 white front, 4 yellow sides, 2 red tail

10, the whole vehicle galvanized process

11, brightness control card, automatically adjust brightness.

12,VMS can be controlled wirelessly or wirelessly!

13. Users can remotely control LED SIGN by sending SMS messages.

14, equipped with GPS module, can remotely monitor the position of VMS.
