Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

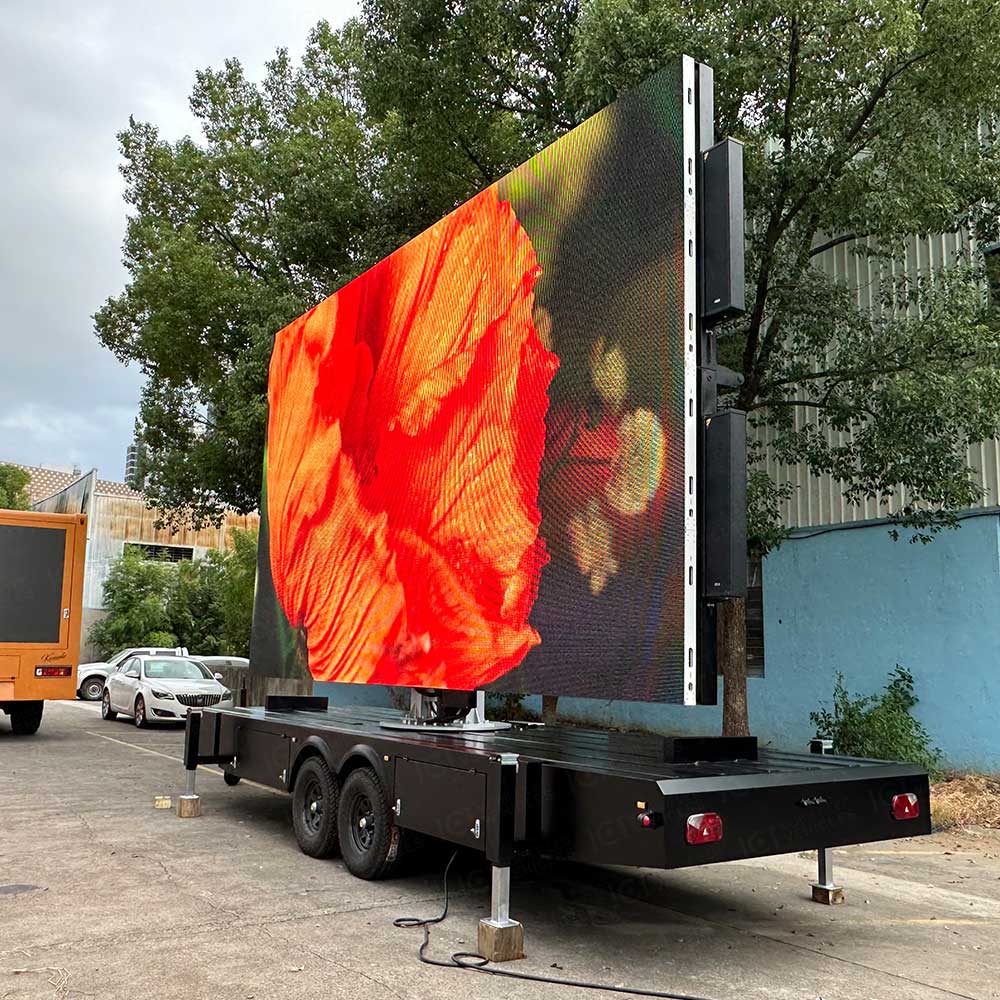

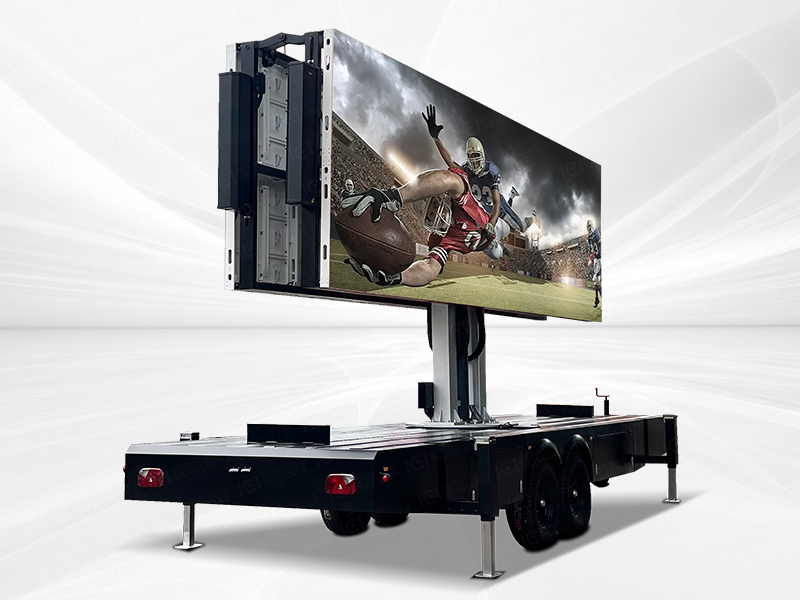

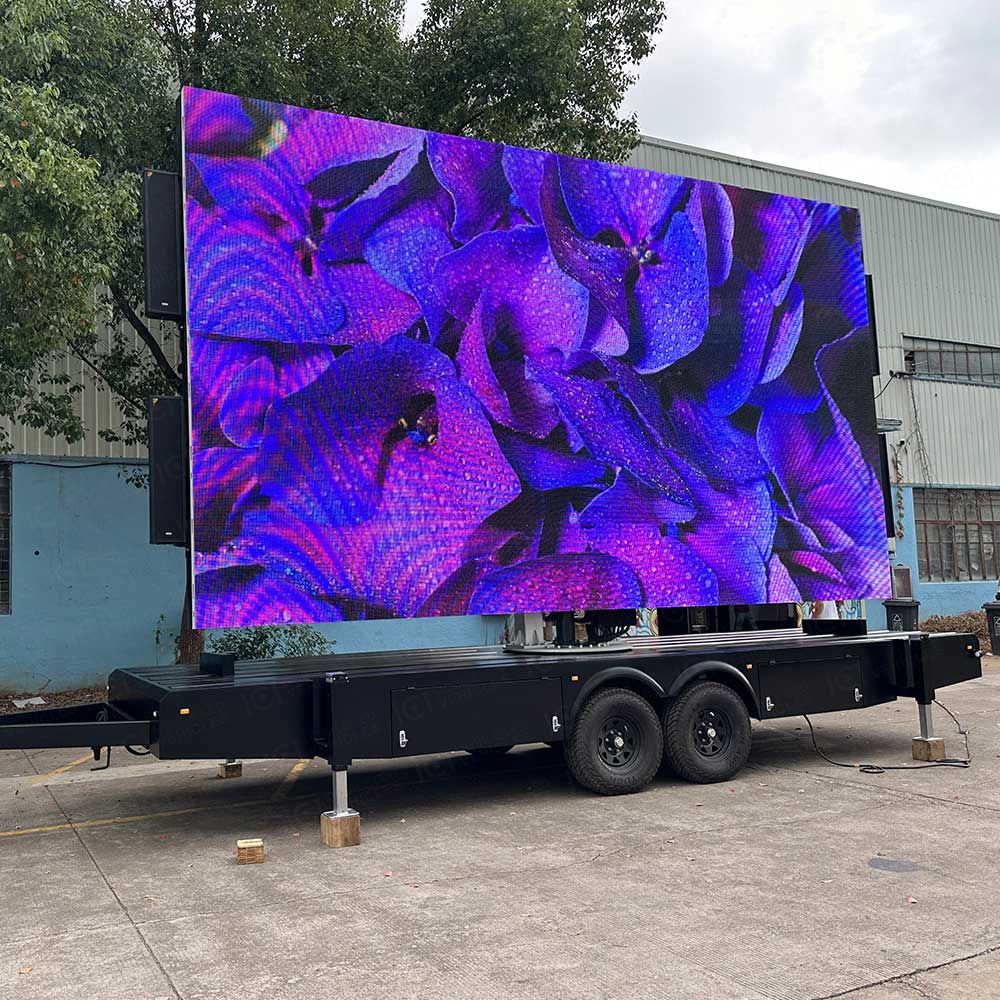

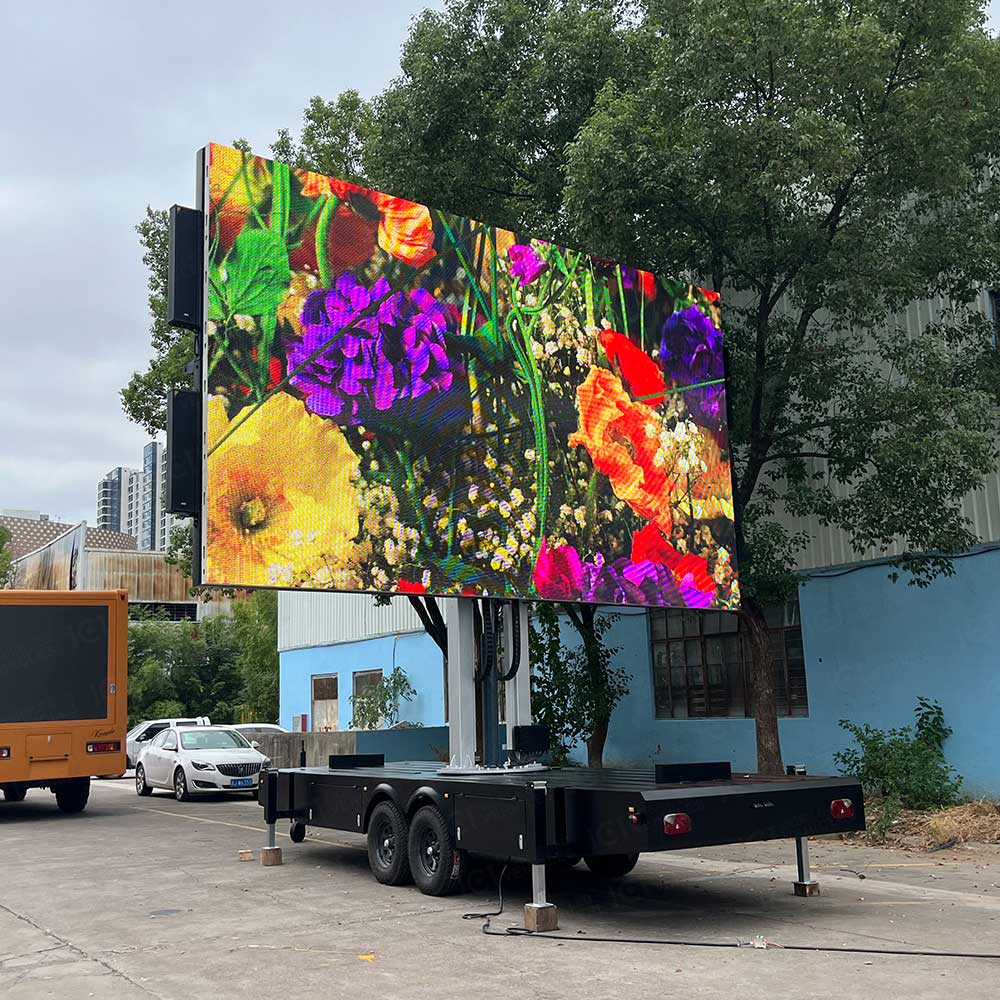

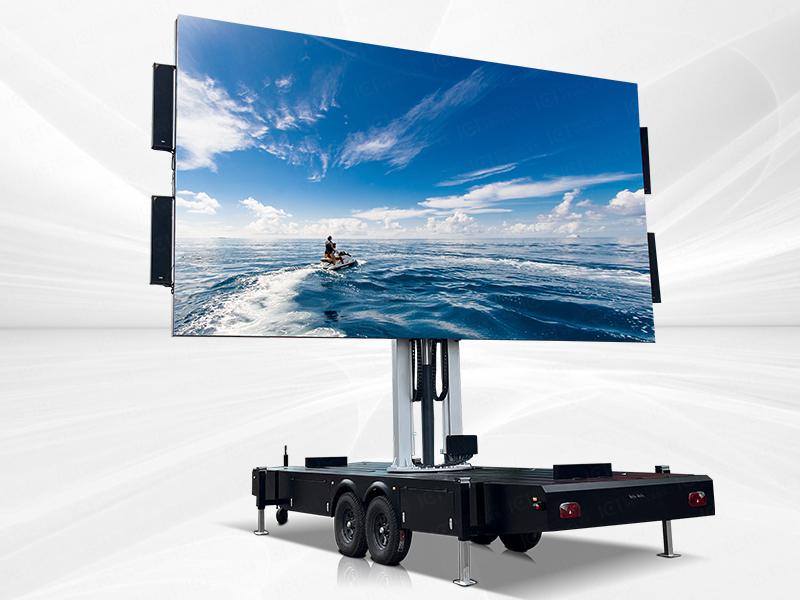

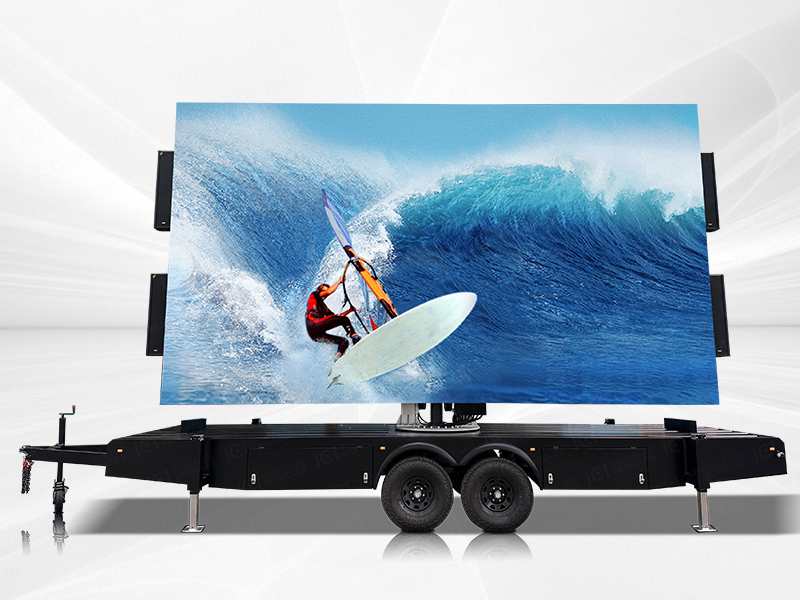

In the current era of pursuing personalization and technology, the E-F26 mobile LED trailer has become the focus of many activities with its unique design and excellent functions. This high-definition outdoor LED large screen with the size of 6500mm* 4000mm, and its neat lines, angular frameless design, but also the sense of technology and modern show incisively and vividly.
26 ㎡ foldable mobile LED trailer : the perfect combination of technology and beauty
The EF26 mobile LED trailer is not only outstanding in appearance, but also in its practicality is impeccable. Equipped with movable chassis can be moved at any time, easy to adapt to various occasions. Whether it's a fashion show, a fashion show or a new car launch, the LED trailer can quickly arrive and display its high-definition picture quality when needed.

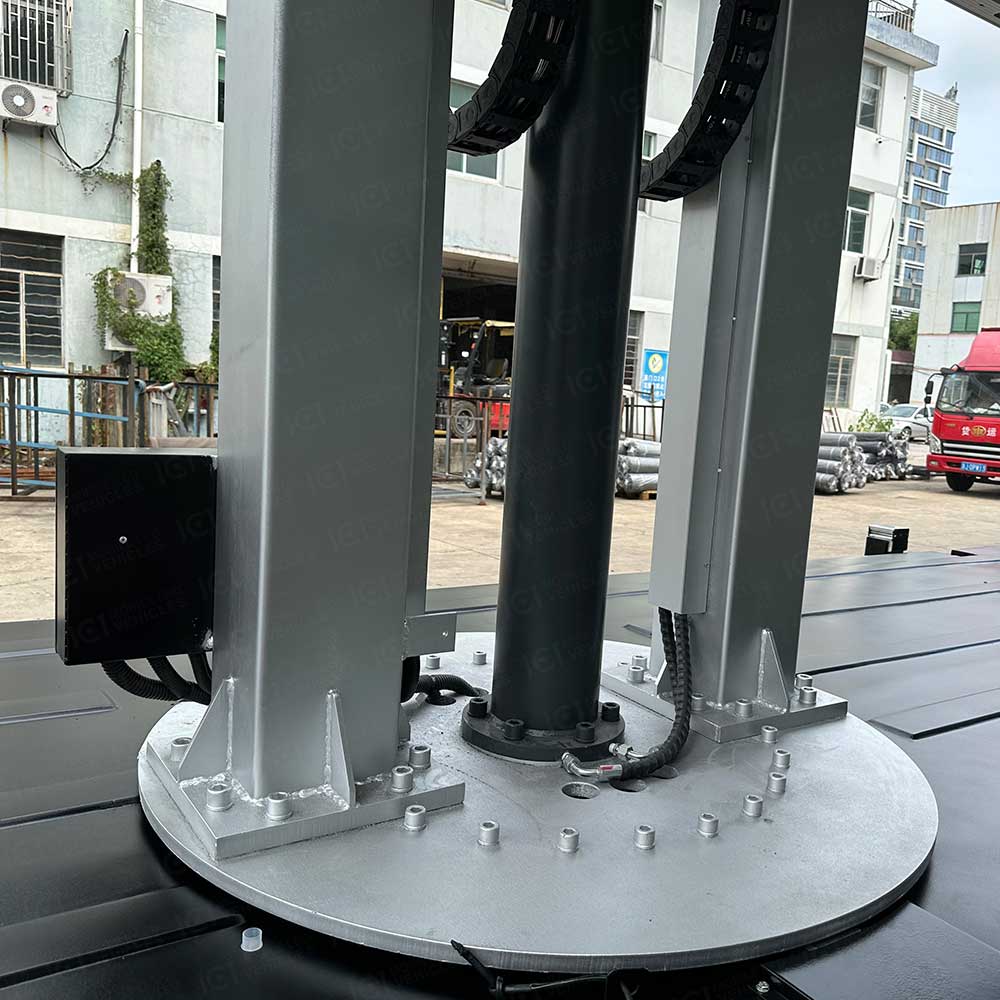

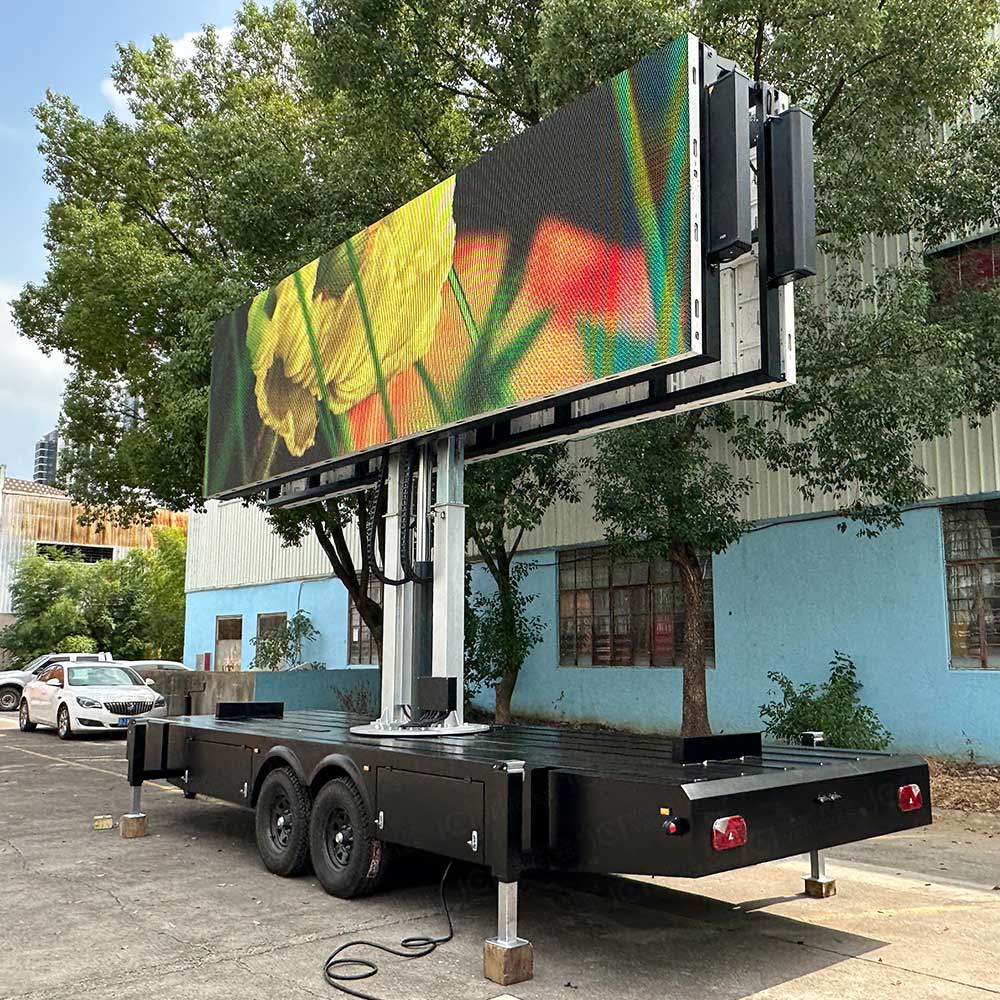

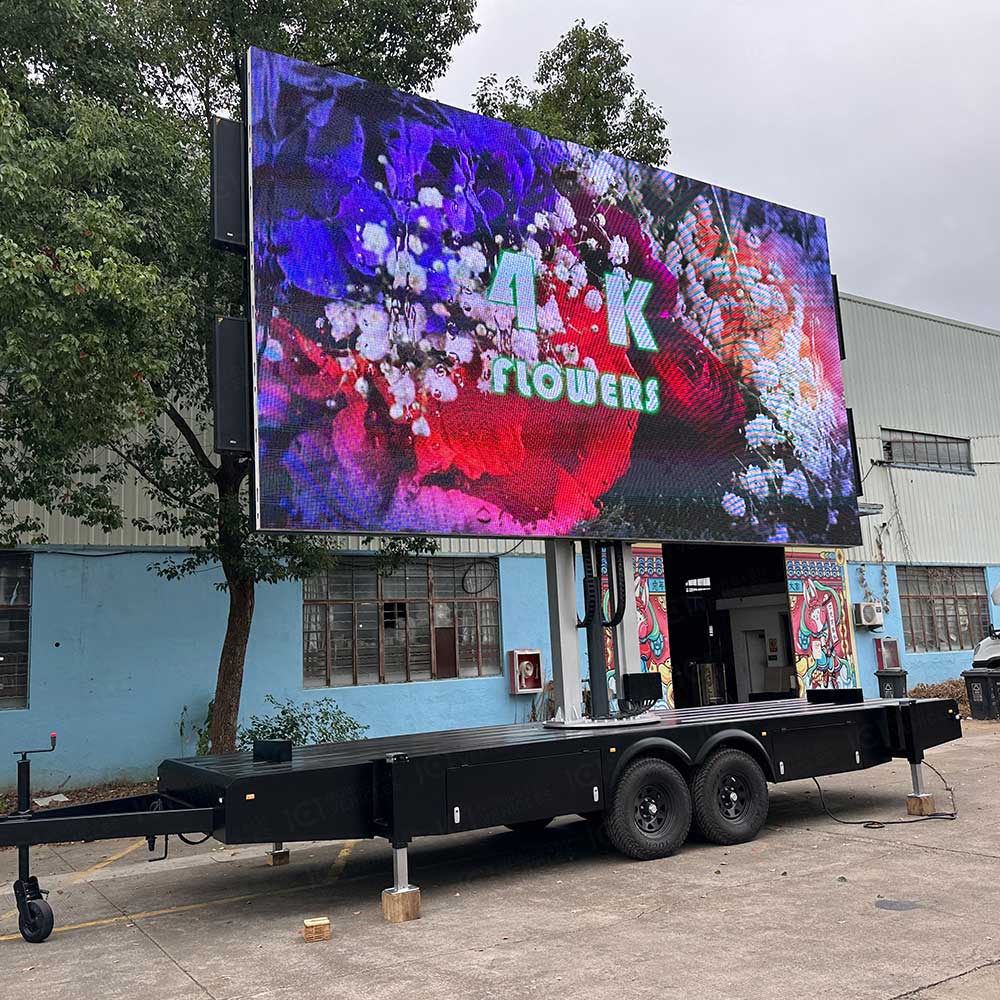

But the highlight of the 26 ㎡ mobile LED trailer goes far beyond that. Its built-in hydraulic guide column allows the LED screen to easily increase by 2 meters with just one click of the operation to meet the needs of different heights. The 360-degree rotation allows you to adjust the Angle of the screen according to the position and Angle of the audience, ensuring that every audience can get the best viewing experience.

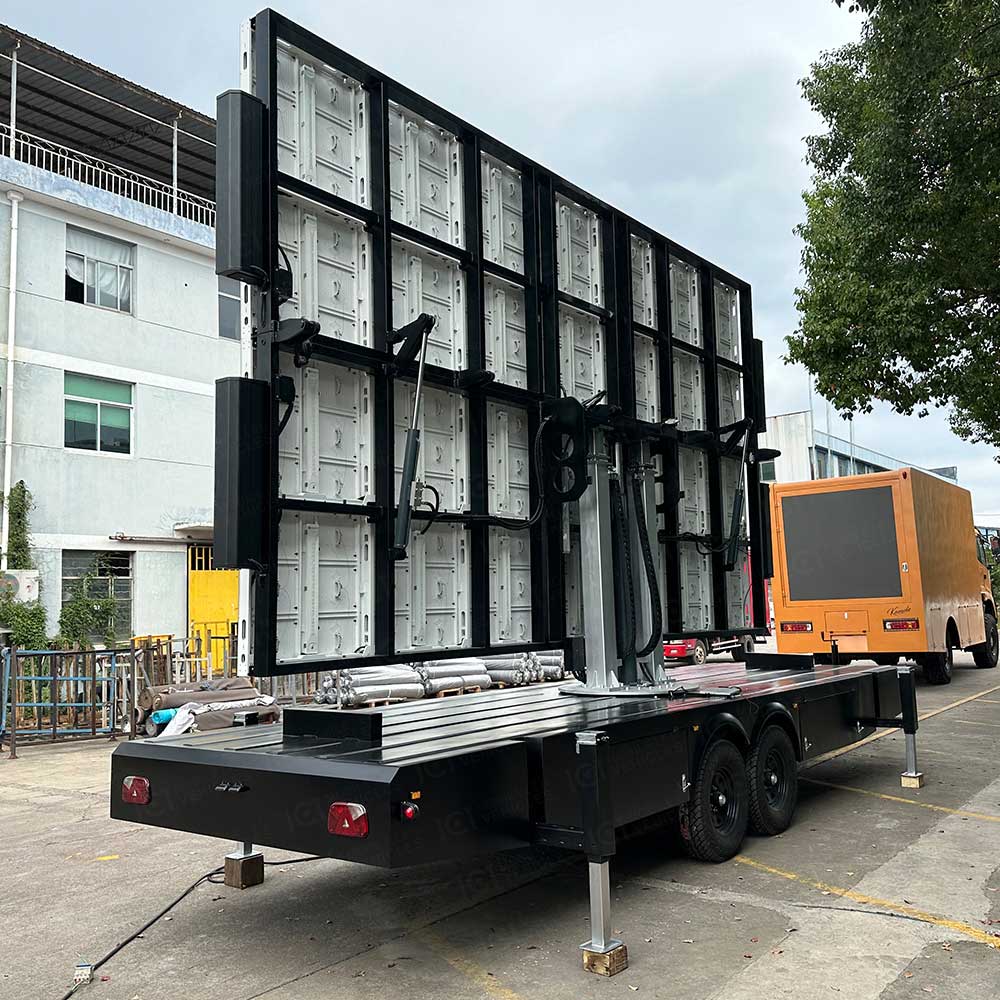

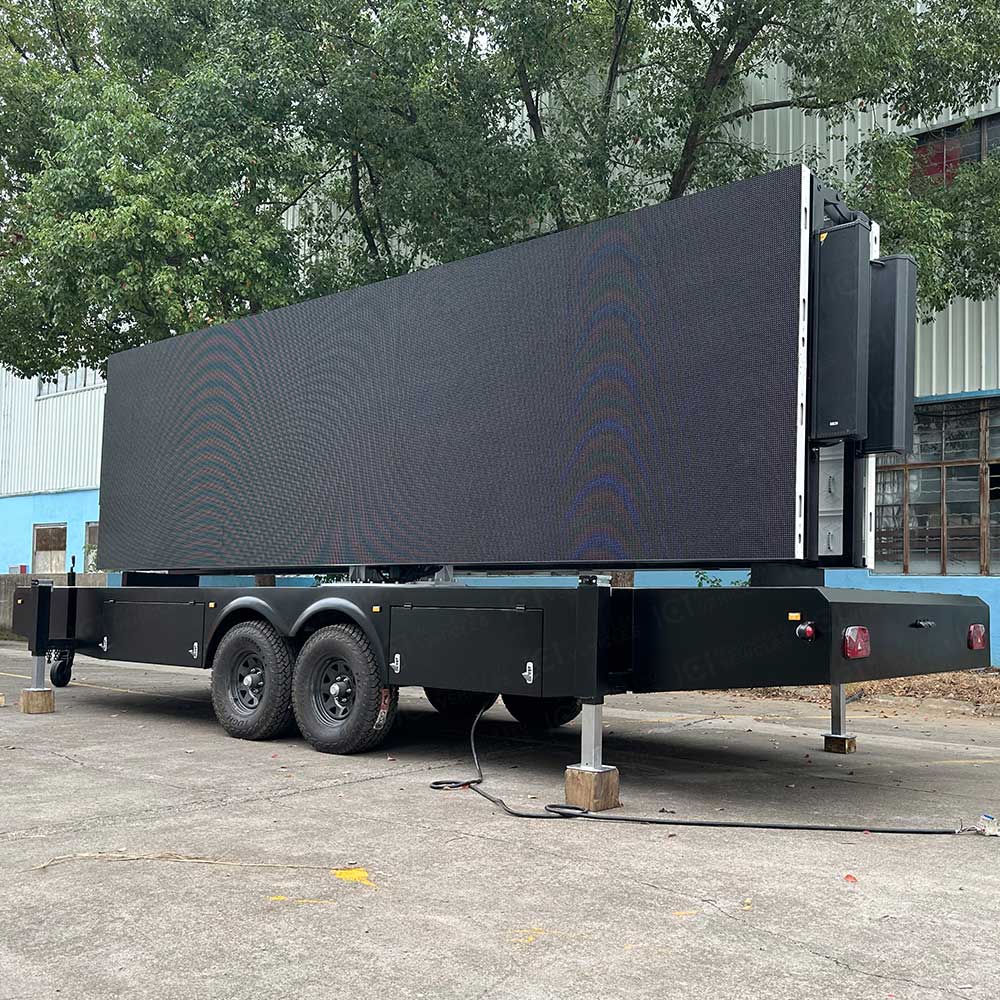

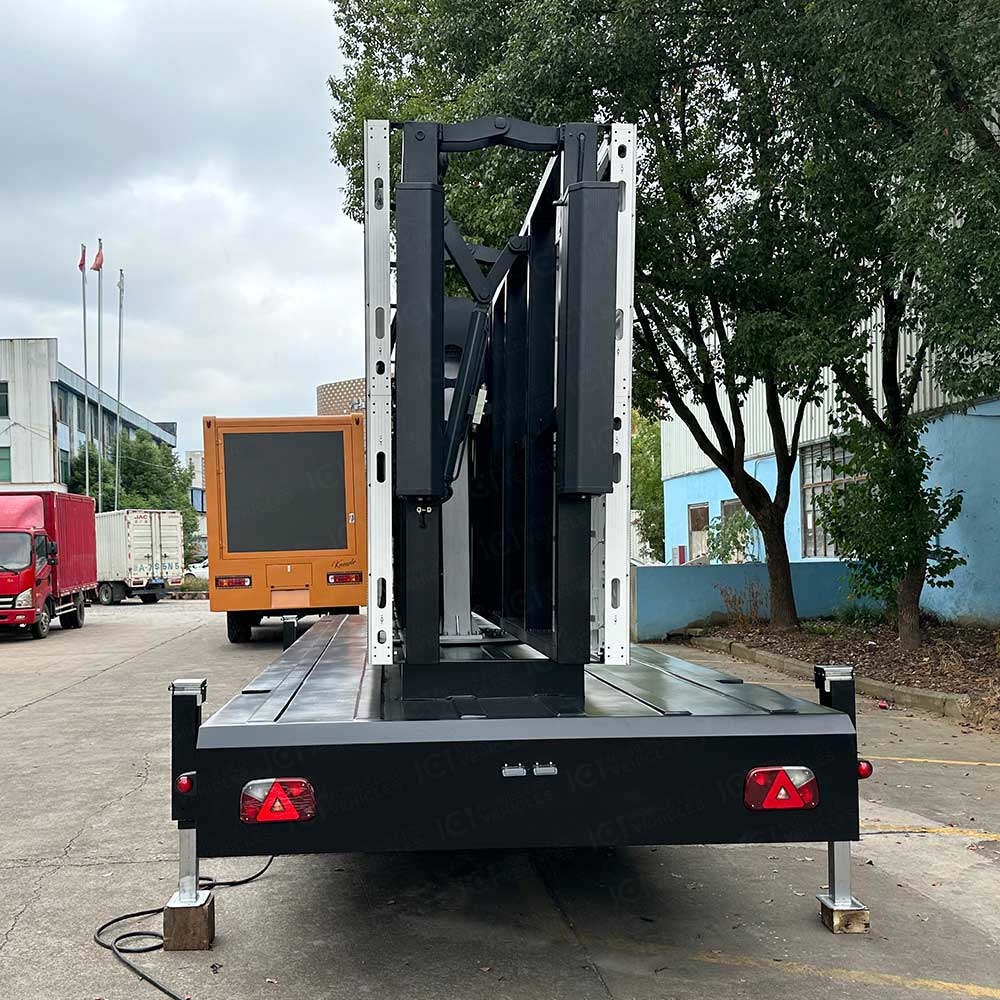

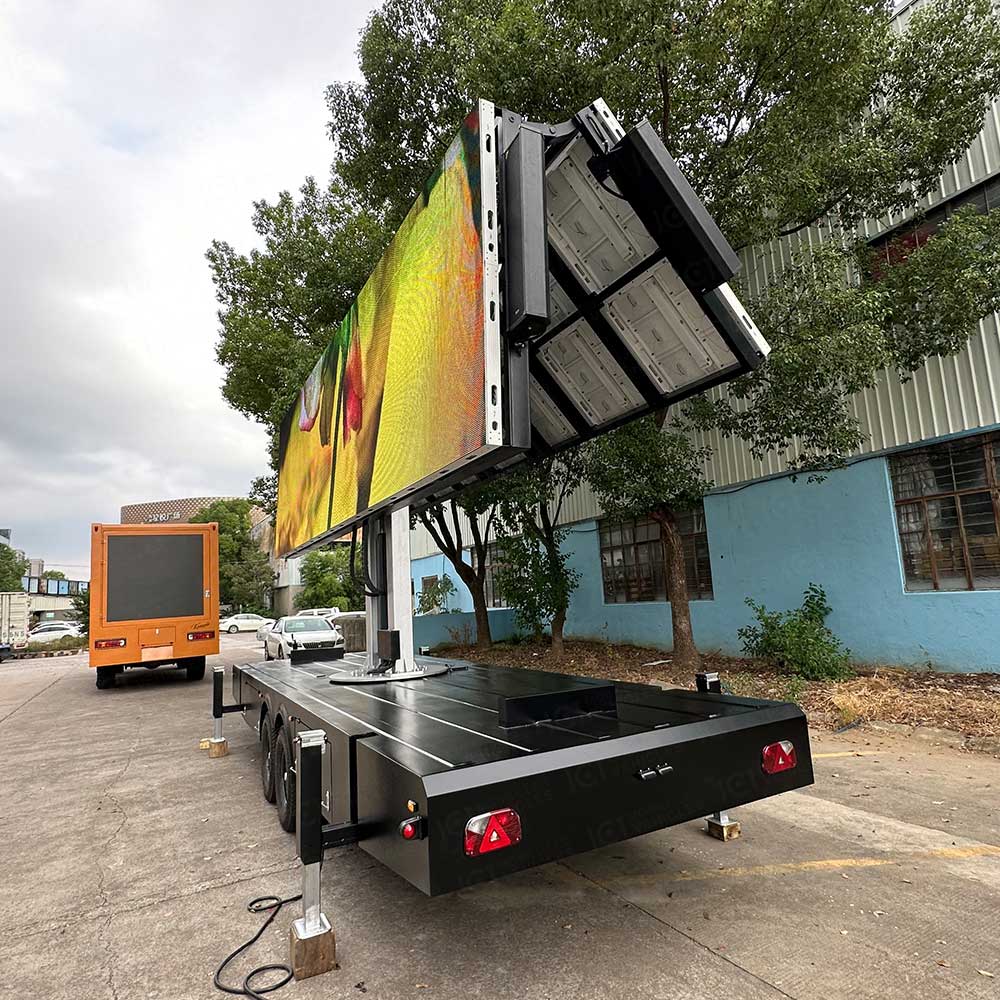

Most noteworthy, the screen of E-F26 can be flipped and folded 180 degrees when required to move or face high limitations. This design has changed the size of the entire LED trailer to 8500*2100*2955mm, greatly reducing the difficulty of transportation and storage. Such a design not only considers the practicality, but also reflects the deep understanding and care of users' needs. Imagine an LED screen that can play and fold at the same time. It brings you not only a stunning visual experience, but also a complete disruption of traditional display technology. This 26-square-meter mobile LED trailer, with its unique foldable screen technology, provides a 360-degree accessible visual coverage, allowing you to get clear and vivid pictures no matter what Angle you stand at.
Infinite possibilities, expand the scope of publicity
This 26 ㎡ mobile LED trailer can not only bring you the ultimate visual enjoyment, but also show its powerful practicality in practical applications. It can effectively reduce the transportation restrictions and easily meet the scheduling and resettlement requirements of special areas. Whether in remote areas, narrow streets, or busy city centers, it can be quickly deployed to provide timely and efficient visual support for all kinds of activities or news reports.
Optional power supply, arbitrary
This mobile LED trailer offers flexible power options, including a chassis powertrain and manual move dual braking. The smart remote control feature makes you more comfortable operating, while solid rubber tires made of 16 manganese steel ensure stability and safety. Whether it is the power supply selection or the operation mode, it can be customized according to your actual needs.
Appearance and function, the perfect combination
In addition to the excellent technical performance, the exterior design of this mobile LED trailer is also remarkable. The frameless design with neat lines and sharp edges fully shows the sense of science and technology and modernization, making it an ideal choice for fashion shows, fashion shows, new car launches and other occasions.
Personalize it to meet your needs
We also offer a customized service with LED screen sizes, and no matter how large the screen you need, we can meet your needs. In addition, there are other types of mobile LED trailers available, such as EF16 (16 square meters) and EF22 (22 square meters). We are committed to providing you with the solution that best fits your needs.
To sum up, this 26 ㎡ foldable mobile LED trailer not only brings you a stunning visual experience, but also shows its powerful practicality and flexibility in practical applications. It is the perfect combination of technology and art, and it is your right-hand man for holding various activities.
Specification | |||
Trailer appearance | |||
Gross weight | 4000kg | Dimension (screen up) | 8500×2100×2955mm |
Chassis | German-Made AIKO,Bearing 5000KG | Max speed | 120Km/h |
Breaking | Electric brake | Axle | 2 axles,5000kg |
LED Screen | |||
Dimension | 6500mm*4000mm | Module Size | 250mm(W)*250mm(H) |
Light brand | Nationstar | Dot Pitch | 4.81mm |
Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours |
Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
Power Supply | Meanwell | DRIVE IC | ICN2503 |
Receiving card | Nova MRV316 | Fresh rate | 3840 |
Cabinet material | Die casting aluminum | Cabinet weight | Aluminum 30kg |
Maintenance mode | Rear service | Pixel structure | 1R1G1B |
LED packaging method | SMD2727 | Operating Voltage | DC5V |
Module power | 18W | scanning method | 1/8 |
HUB | HUB75 | Pixel density | 43222 Dots/㎡ |
Module resolution | 64*32Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
Viewing angle, screen flatness, module clearance | H:120°V:120°、<0.5mm、<0.5mm | Operating temperature | -20~50℃ |
system support | Windows XP,WIN 7, | ||
Power parameter | |||
Input voltage | Three phases five wires 415V | Output voltage | 240V |
Inrush current | 30A | Average power consumption | 0.25kwh/㎡ |
Multimedia Control System | |||
Video processor | NOVA | Model | TB8-4G |
Luminance sensor | NOVA | Multi-function card | NOVA |
Power amplifier | Output power:1500W | Speaker | power:200W*4 |
Hydraulic System | |||
Wind-proof level | Level 8 | Supporting legs | Stretching distance 300mm |
hydraulic rotation | 360 degrees | Hydraulic Lifting and folding system | Lifting Range 2000mm, bearing 5000kg, hydraulic screen folding system |
