In this fast-paced era, every second is precious, especially in outdoor advertising. JCT company knows your needs, for you to build the 28㎡ Platform Mobile Mobile Led Trailer, so that your publicity activities become more efficient, shocking, save time and effort!
One-key operation, easy to control

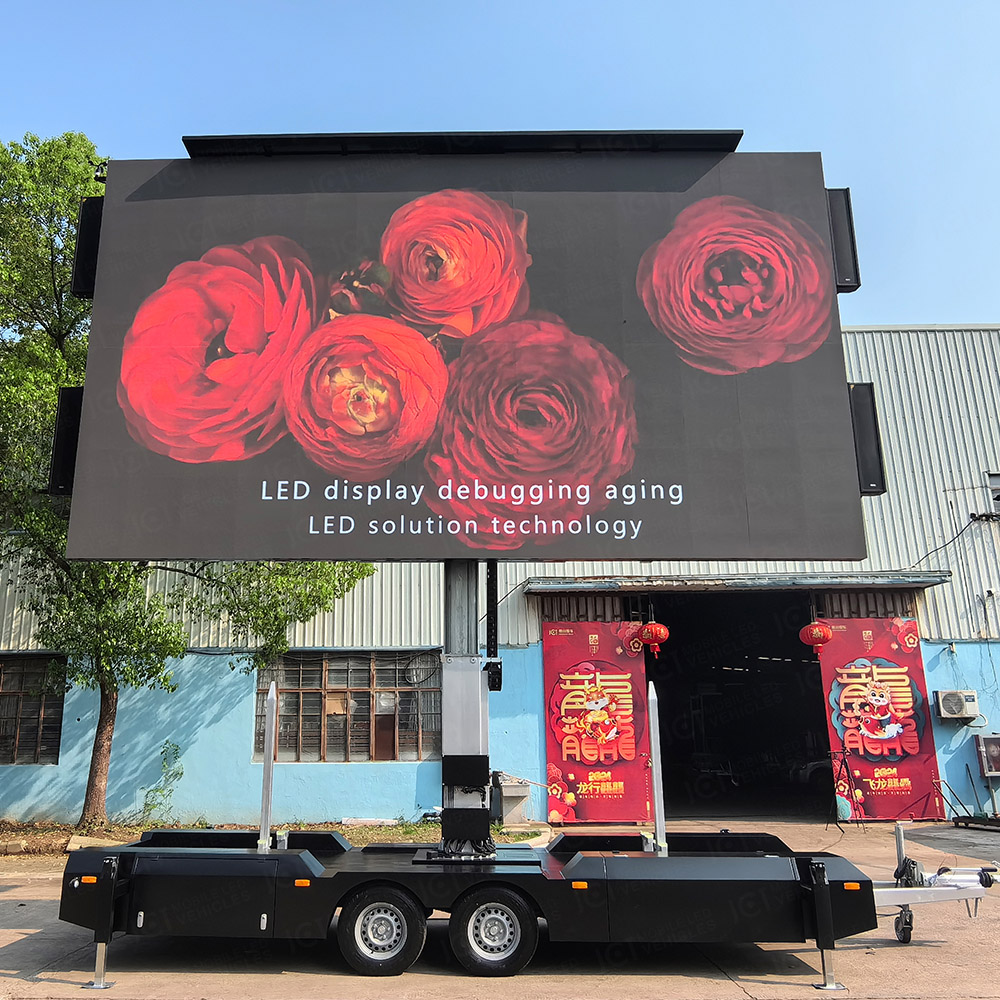

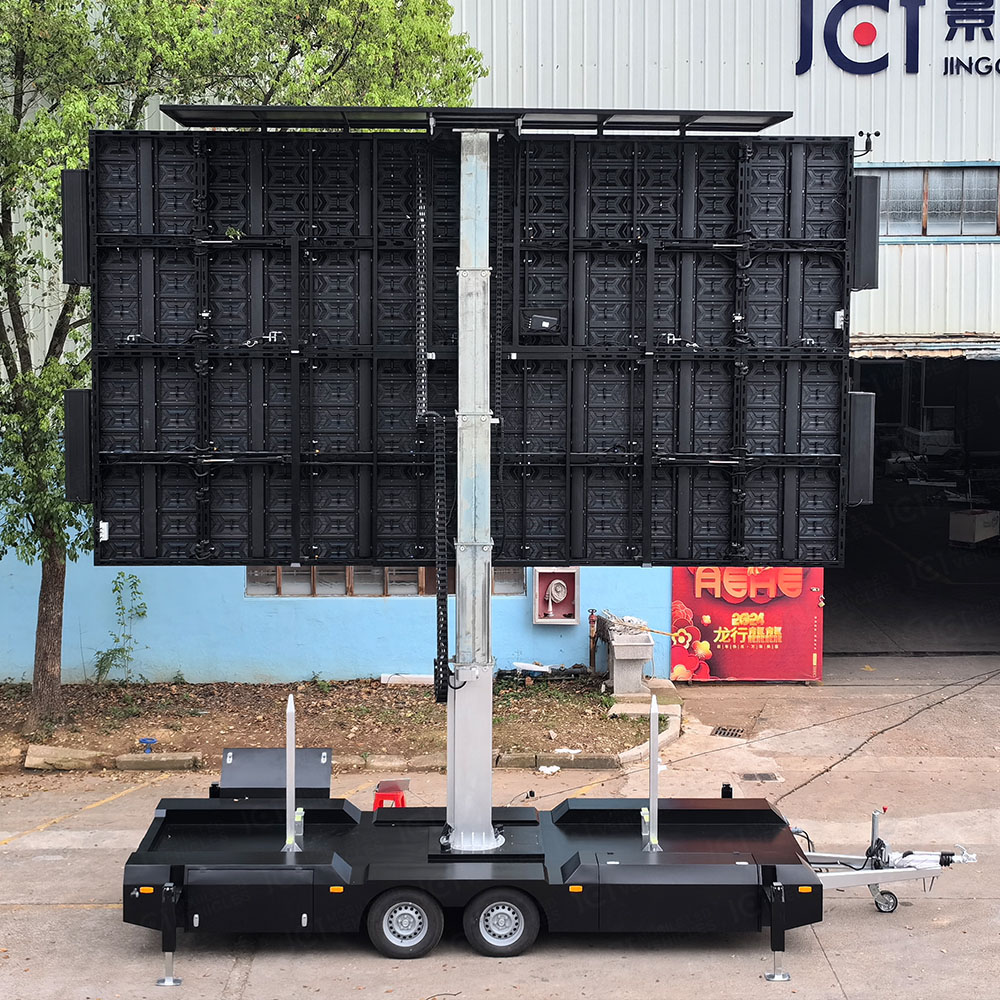

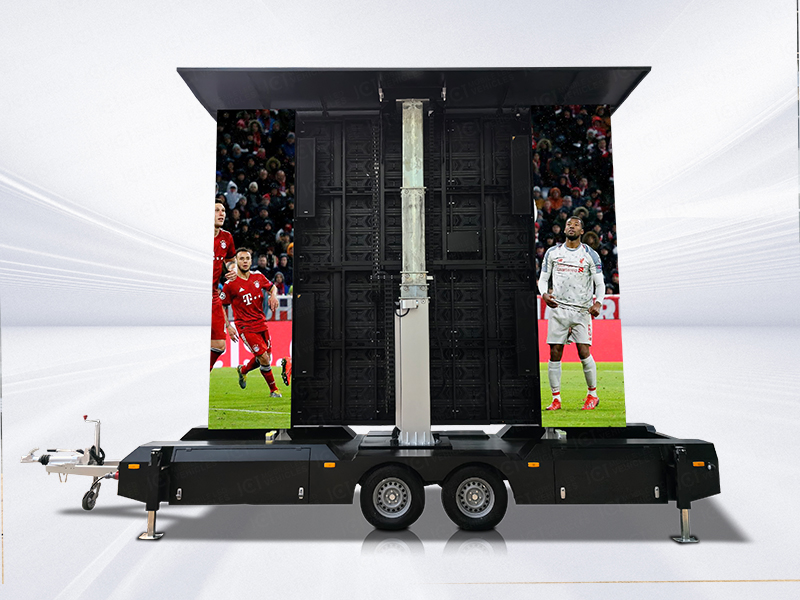

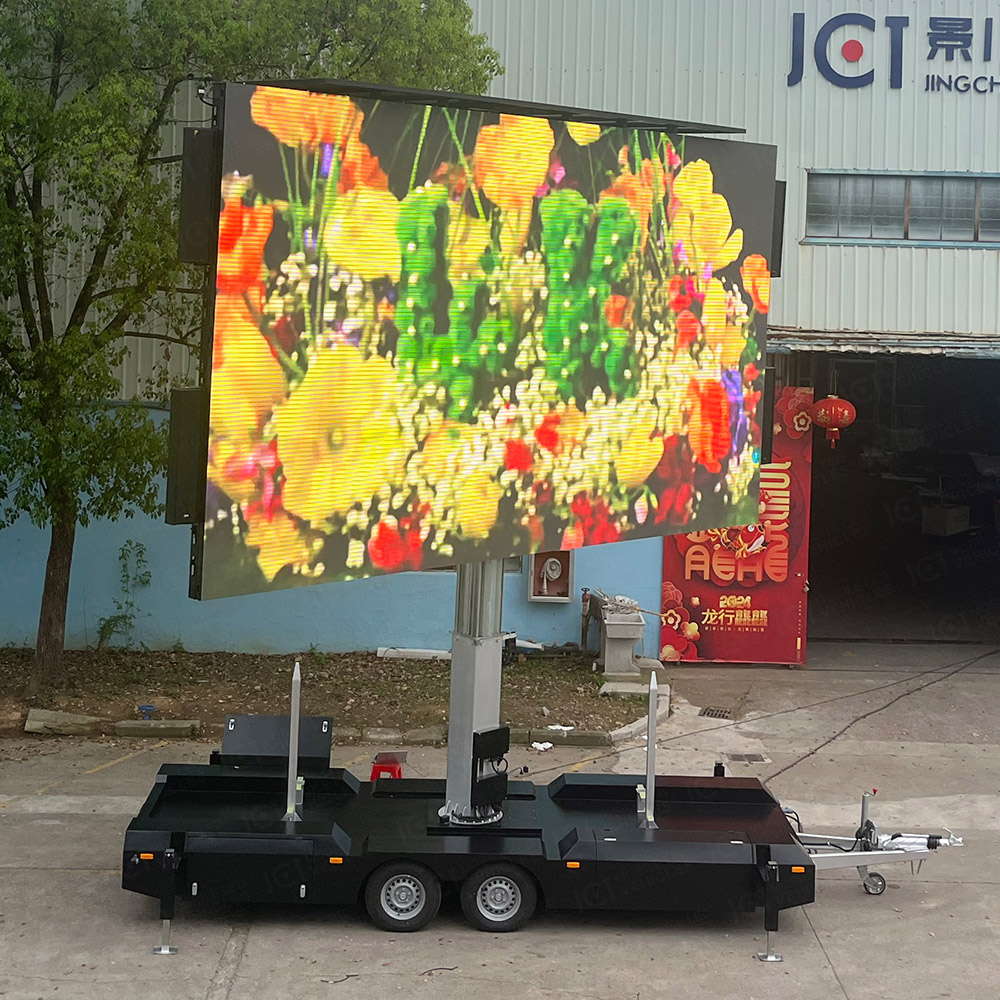

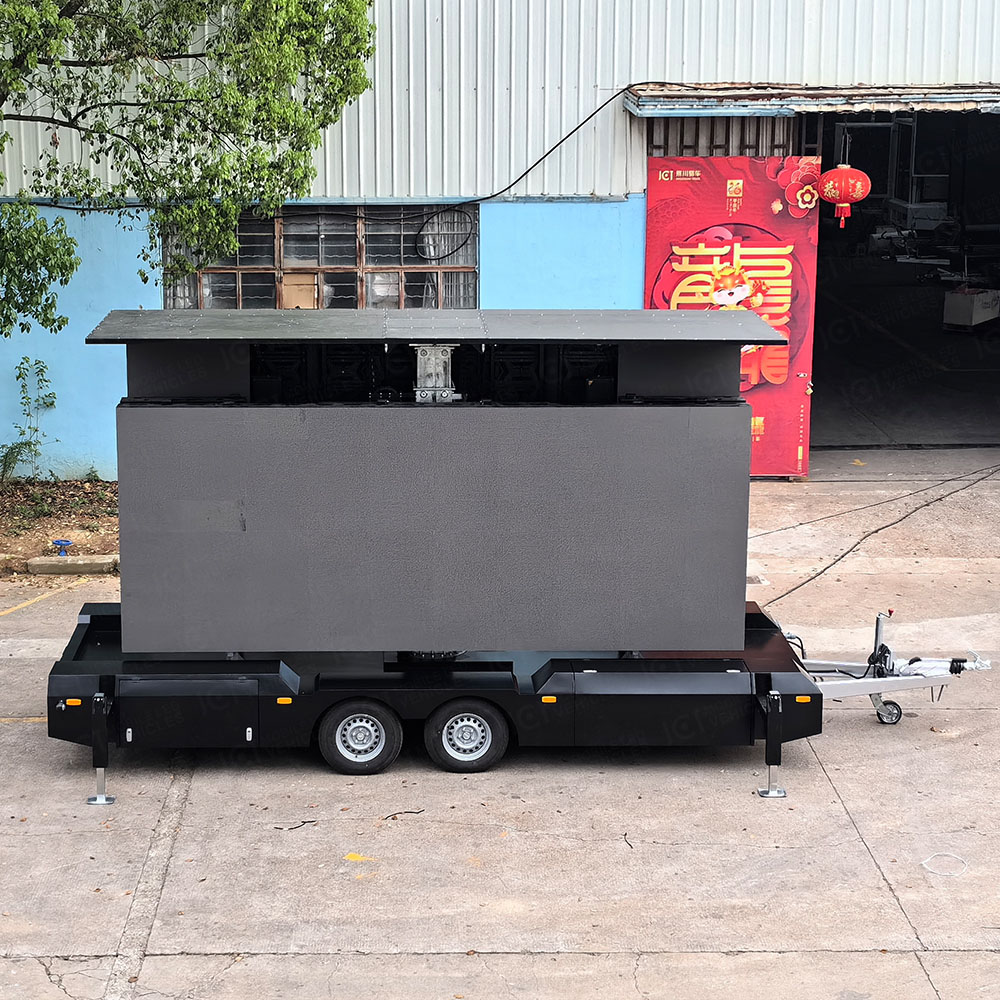

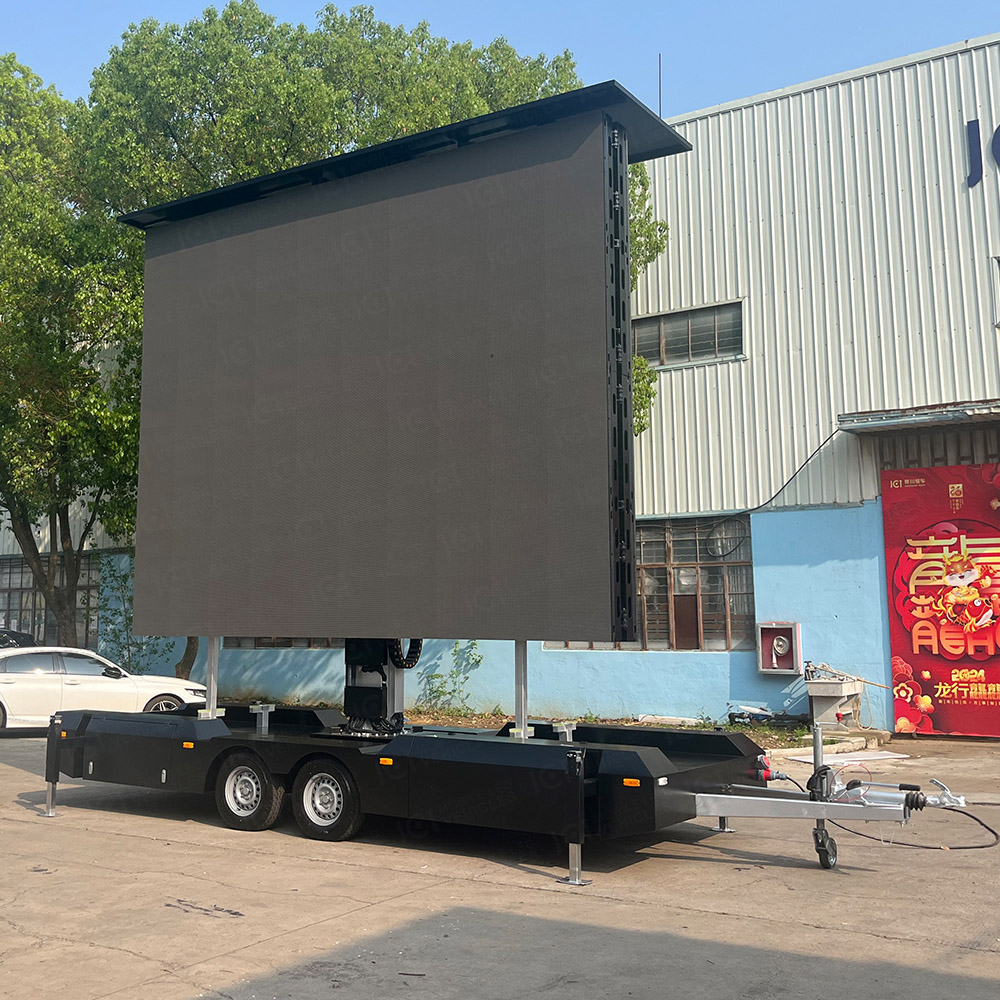

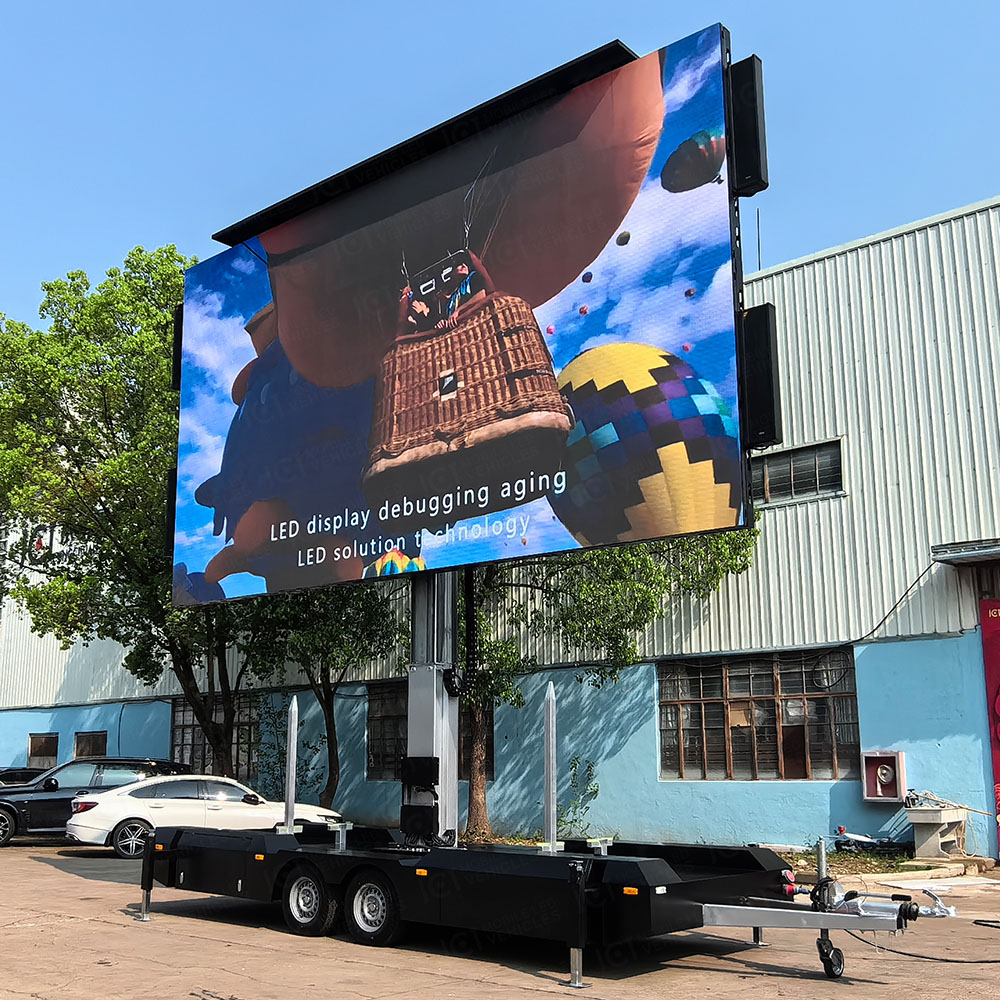

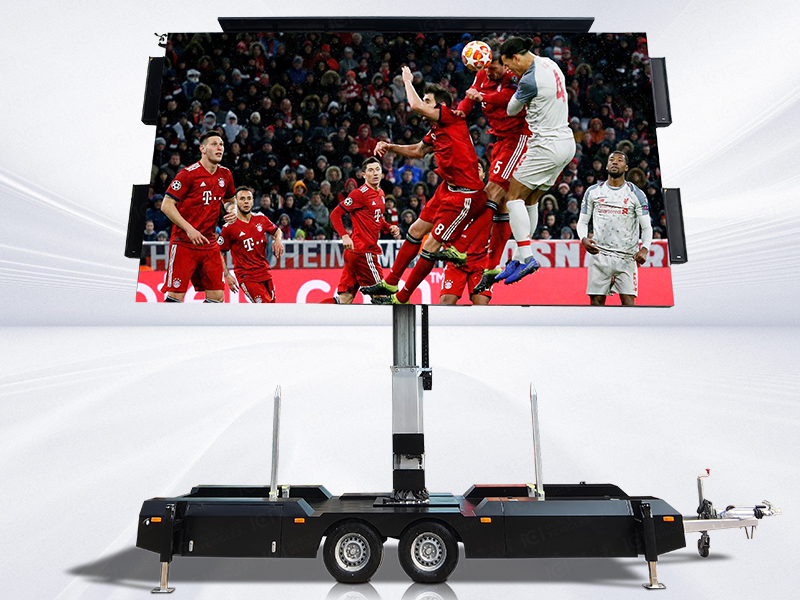

MBD-28S Platform Mobile Led Trailer has no complicated operation steps and tedious debugging, just press the remote control, MBD-28S Platform will show you its charm. The main screen automatically rises, and after rotating 180 degrees, it automatically locks the lower screen, which perfectly integrates with the LED screen below, plus the two sides of the screen folding display, giving you a large display of 7000 * 4000mm.
Visual feast, shocking
As the screen slowly unfolds and rises, a large LED screen emerges. High definition, bright colors and smooth playback effect, ensure that your information can be accurately conveyed to every audience. Whether you want to show your product, play a video, or hold an event, the 28㎡ Platform Mobile Mobile Led Trailer will bring you an unparalleled visual experience that makes the audience shine and linger
360 Rotation, whatever you want

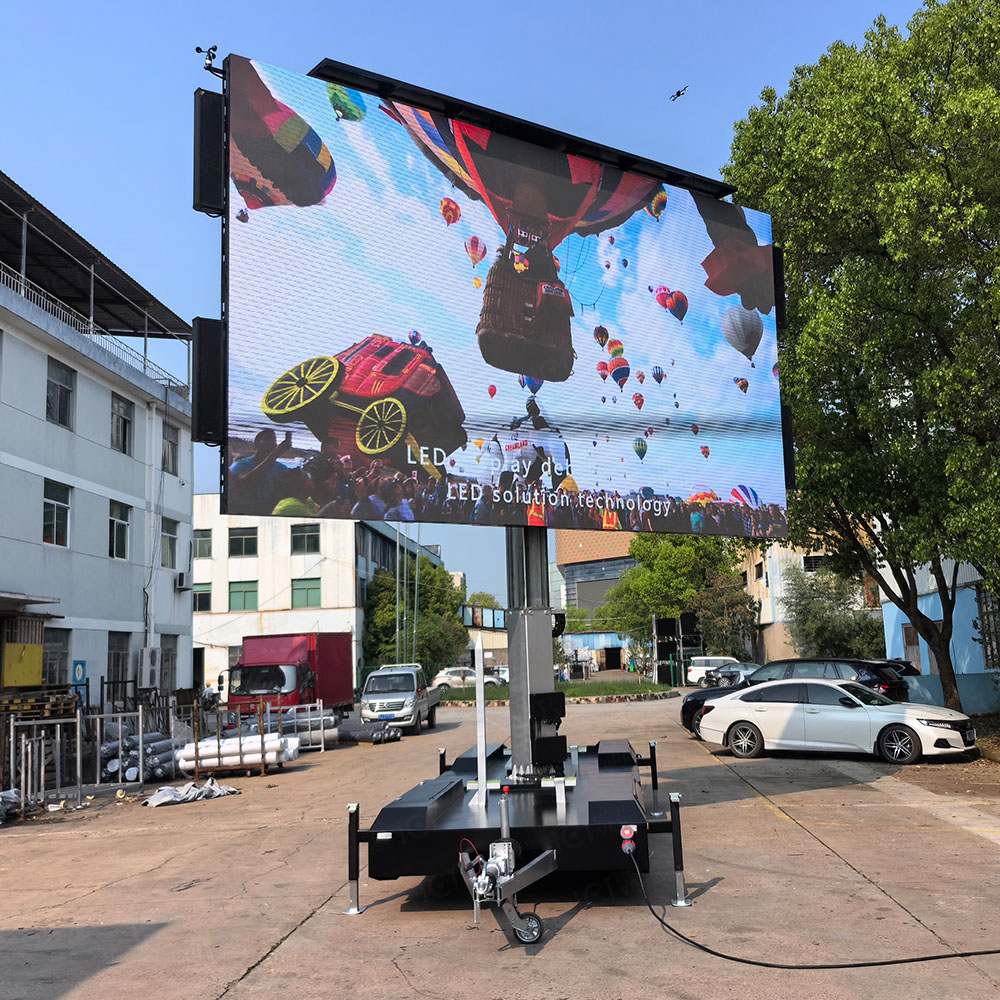

Regardless of where you park the Mobile Led Trailer, the MBD-28S Platform rotates 360 degrees to ensure that the screen is always in the best visual position. Let your publicity effect multiply, attract more potential households.
Save time and effort, be efficient and convenient
The whole operation process takes only 15 minutes, and the MBD-28 type S Platform Mobile Led Trailer can be quickly deployed and put into use. For you to save precious time and money, let you more at ease, rest assured.
Widely applicable, a car of multi-purpose
The 28㎡ Platform Mobile Mobile Led Trailer is not only suitable for outdoor advertising, but also for various events, such as exhibitions, celebrations, concerts, etc. With its large display and excellent performance, this Mobile Led Trailer will be your right hand for all kinds of activities
JCT's new model MBD-28S Platform Mobile Led Trailer that will revolutionize your outdoor advertising campaign. Take immediate action to make your campaign look new, attract more attention, and win more business opportunities!
|
MBD-28S Platform |
|||
|
Specification |
|||
|
Trailer appearance |
|||
|
Gross weight |
3400kg |
Dimension (screen up) |
7500×2100×2900mm |
|
Chassis |
German-Made AIKO |
Max speed |
100Km/h |
|
Breaking |
Hydraulic breaking |
Axle |
2 axles，Bearing 3500kg |
|
LED Screen |
|||
|
Dimension |
7000mm(W)*4000mm(H) |
Module Size |
250mm(W)*250mm(H) |
|
Light brand |
Kinglight |
Dot Pitch |
3.91mm |
|
Brightness |
5000cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
200w/㎡ |
Max Power Consumption |
600w/㎡ |
|
Power Supply |
G-Engergy |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Die-casting aluminum |
Cabinet size/weight |
500*500mm/7.5KG |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
65410 Dots/㎡ |
|
Module resolution |
64*64Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
Power parameter |
|||
|
Input voltage |
Three phases five wires 380V |
Output voltage |
220V |
|
Inrush current |
30A |
Average power consumption |
250wh/㎡ |
|
Multimedia Control System |
|||
|
Video processor |
NOVA |
Model |
VX400 |
|
Luminance sensor |
NOVA |
Multi-function card |
NOVA |
|
Power amplifier |
Unilateral power output:500W |
Speaker |
Max power consumption:200W*2 |
|
Hydraulic System |
|||
|
Wind-proof level |
Level 8 |
Supporting legs |
Stretching distance 300mm |
|
Hydraulic Lifting and folding system |
Lifting Range 4000mm, bearing 3000kg |

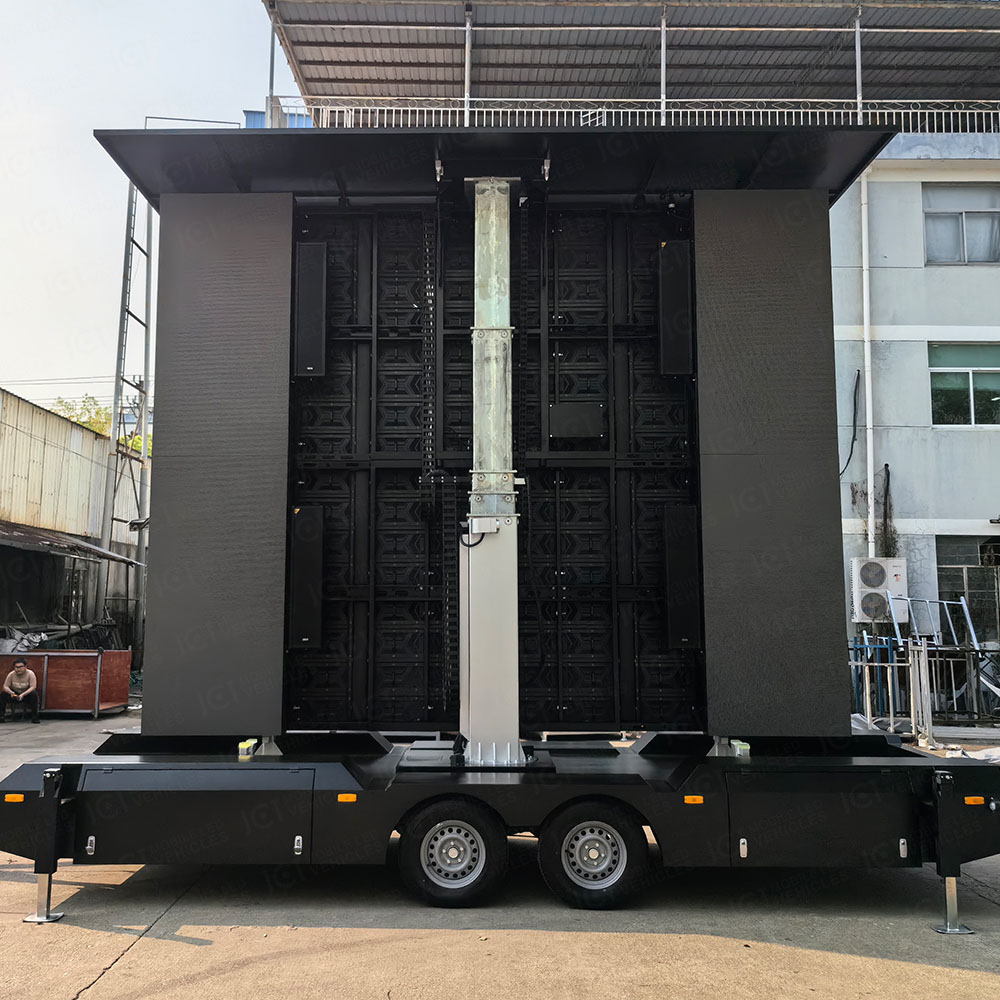

Fold the ear screens on both sides |
4pcs electric pushrods folded |
|
Rotation |
Electric rotation 360 degrees |
|
|
|
Others |
|||
|
Wind speed sensor |
Alarm with mobile APP |
|
|
|
|
|||
|
Maximum trailer weight ：3500 kg |
|||
|
Trailer width ：2.1 m |
|||
|
Maximum Screen height (top)：7.5 m |
|||
|
Galvanized chassis made according to DIN EN 13814 and DIN EN 13782 |
|||
|
Anti slip and waterproof floor |
|||
|
Hydraulic, galvanized and powder coated telescopic mast with automatic mechanicalsafety locks |
|||
|
Hydraulic pump with manual control (knobs) to lift LED screen up，3 phase |
|||
|
360o screen manual rotation with mechanical lock |
|||
|
Auxilary emergency manual control - handpump - screen folding without power according to DIN EN 13814 |
|||
|
4 x manually adjustable sliding outriggers，For very large screens it may be necessary to put out the outriggers for transport (you can take it to the car pulling the trailer). |
|||
