Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

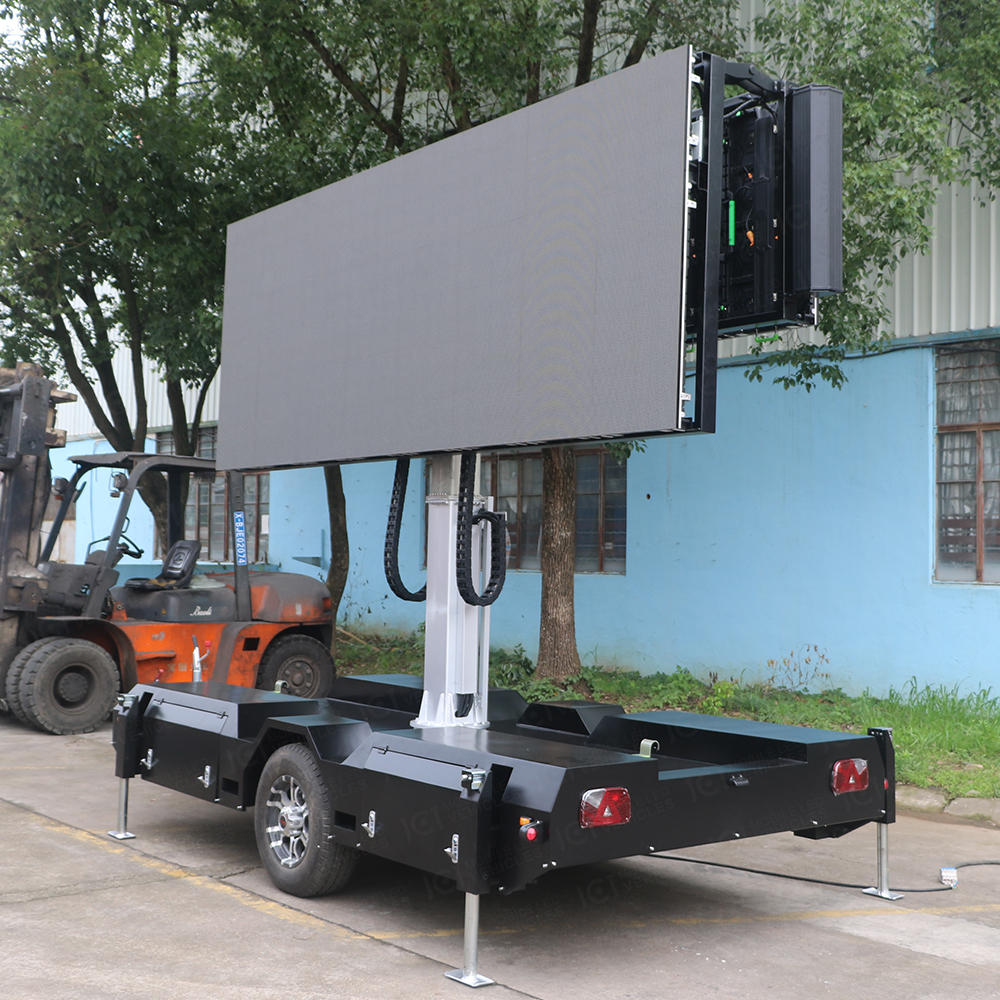

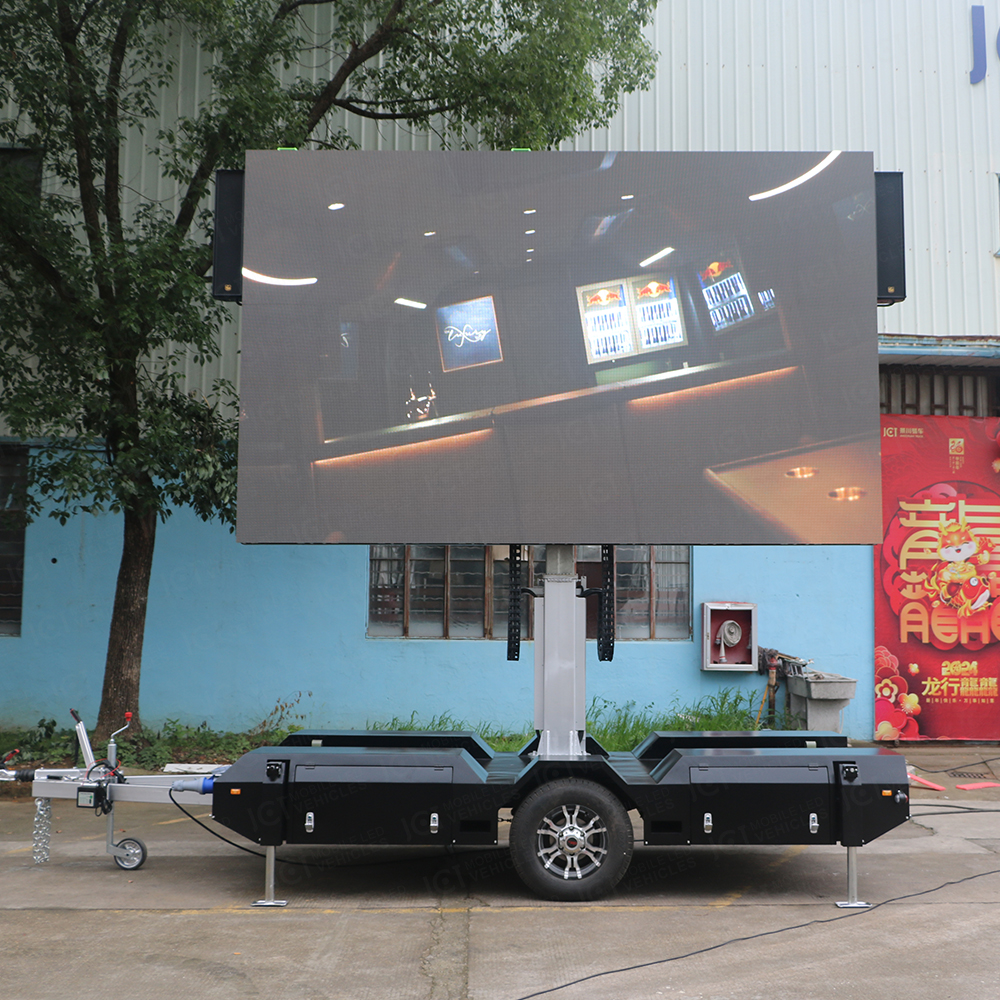

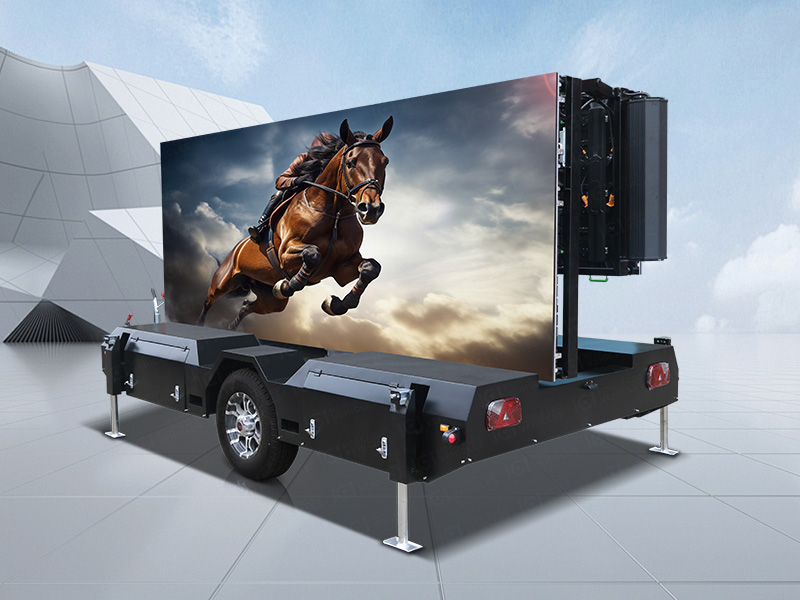

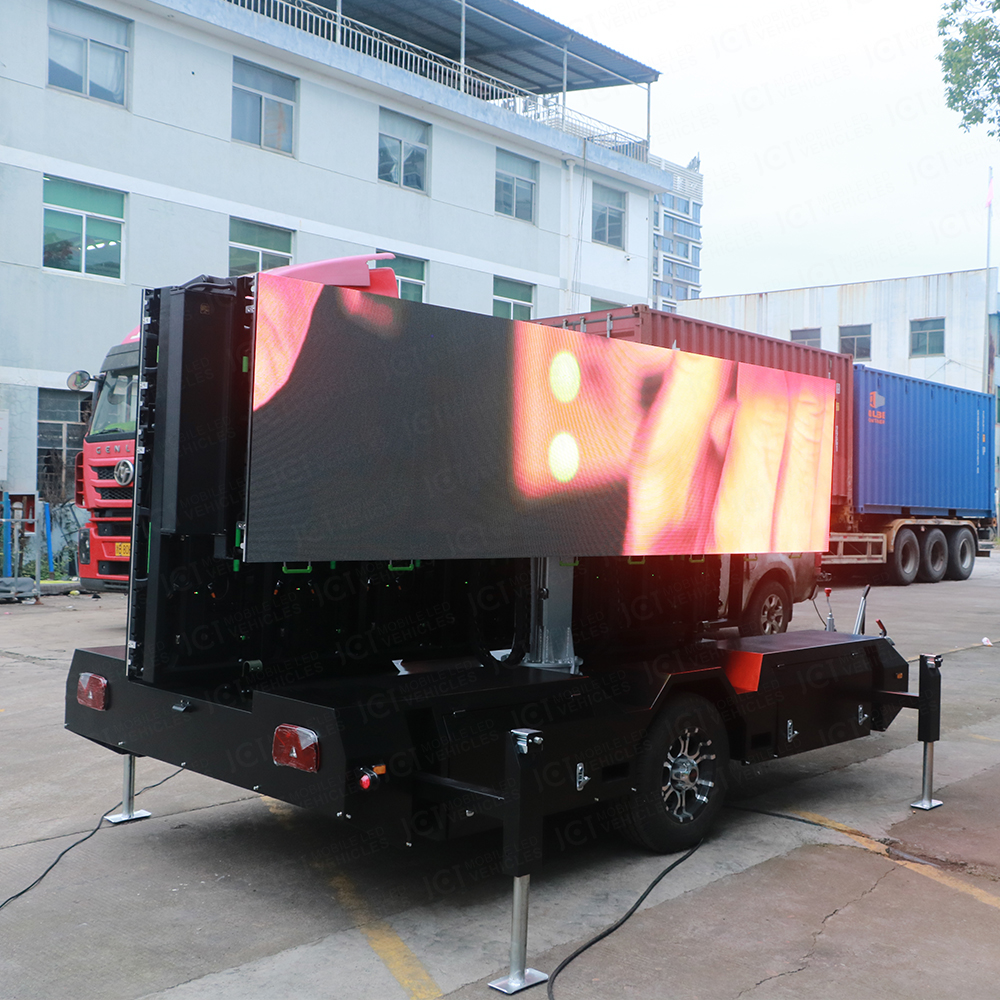

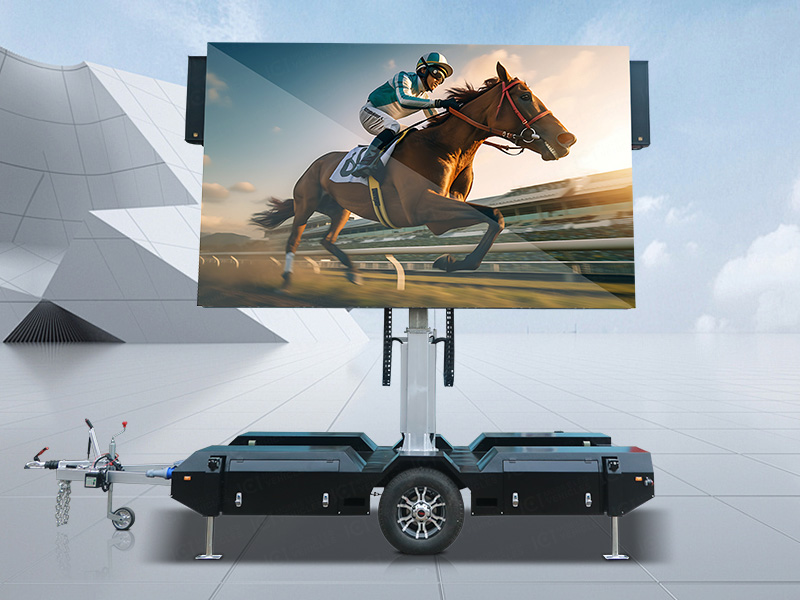

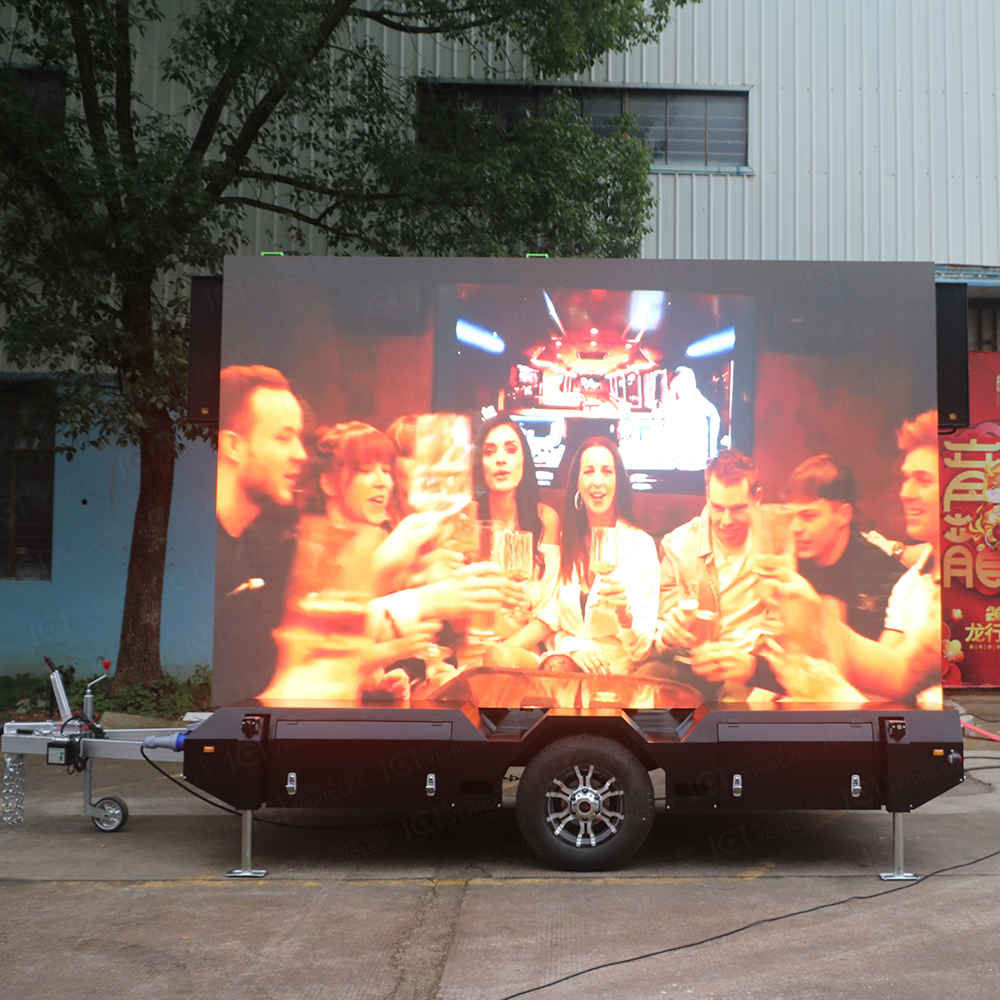

EF10 LED screen trailer adopts the outdoor display screen of P3.91 HD technology screen, the screen size is 4000mm * 2500mm, high pixel density ensures the exquisite and clear picture, even in the strong sunshine, it can maintain the bright color and rich levels, so that every video, every picture can be vividly presented, catch the eyes of the audience. The configuration of the outdoor HD screen not only improves the viewing experience, but also optimizes the power consumption and heat dissipation to ensure the stable operation for a long time.

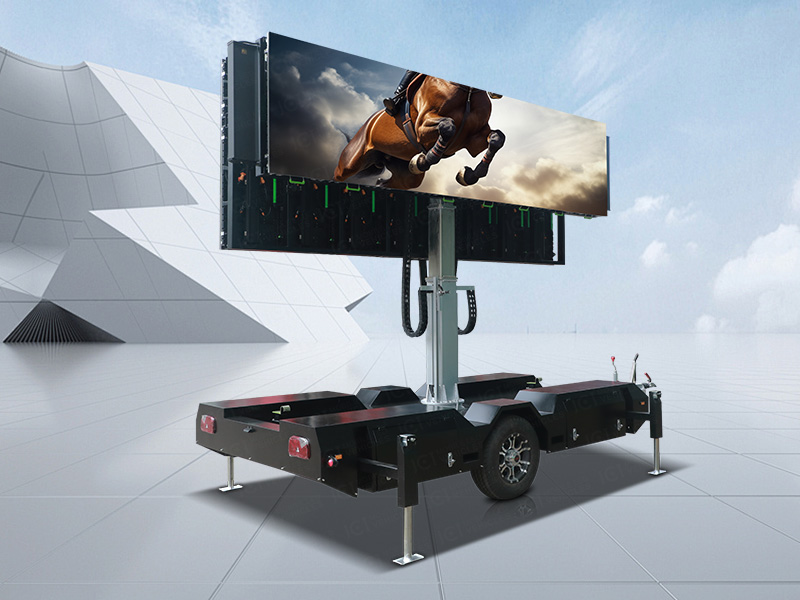

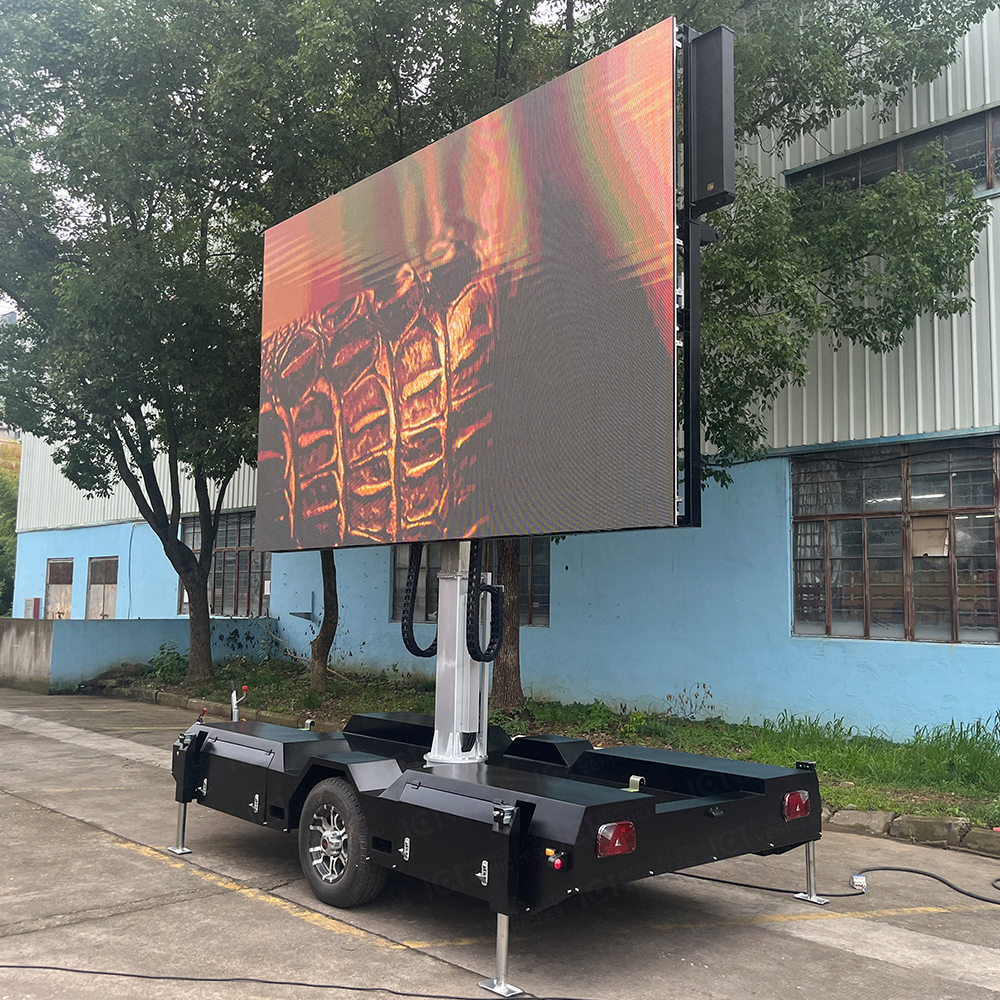

It is worth mentioning that the EF10 LED screen trailer is equipped with the ALKO removable towing chassis, this configuration gives the equipment humanized mobility and flexibility. Users can easily migrate and deploy the screen according to their needs, whether in quick response to temporary exhibitions, or long-distance transportation to different locations. What is more remarkable is the first key lifting function, the lifting travel up to 1300mm, which not only facilitates the installation and disassembly of the equipment, but also can flexibly adjust the screen height according to the field environment, so as to achieve the appropriate visual effect and viewing Angle.

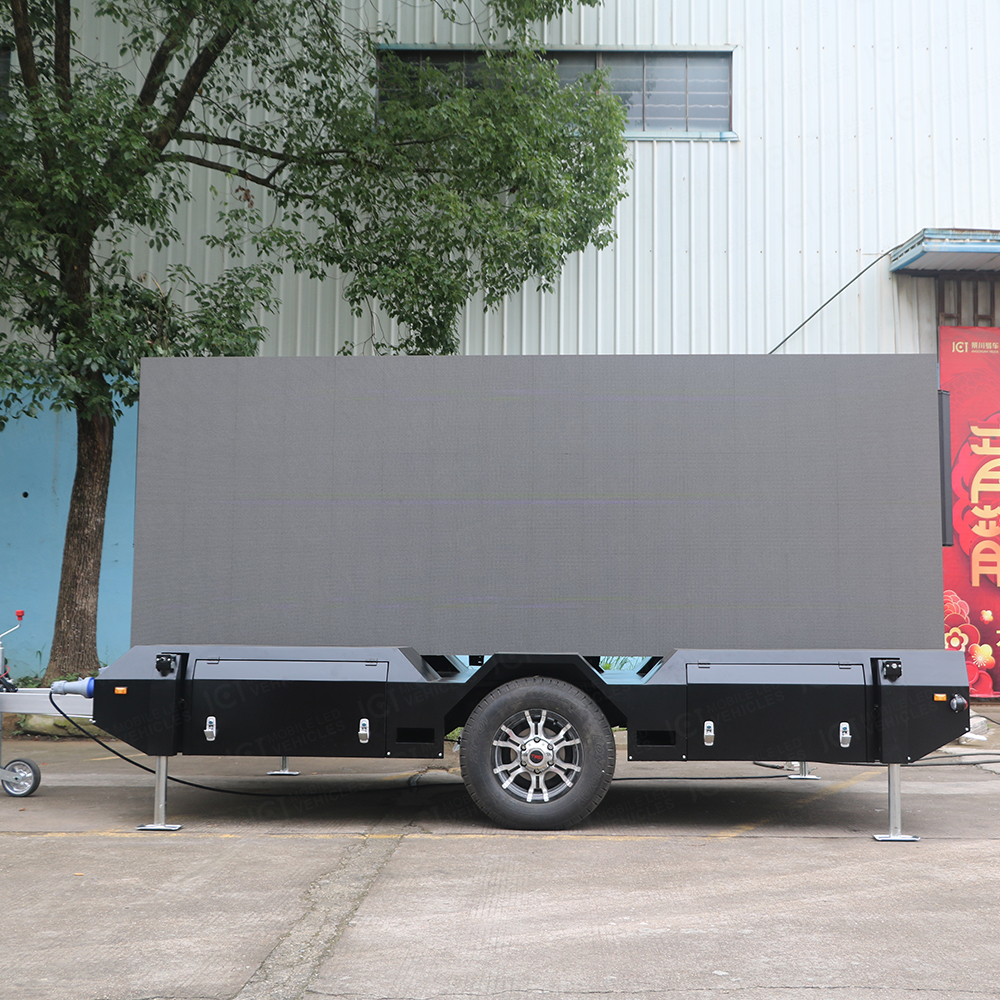

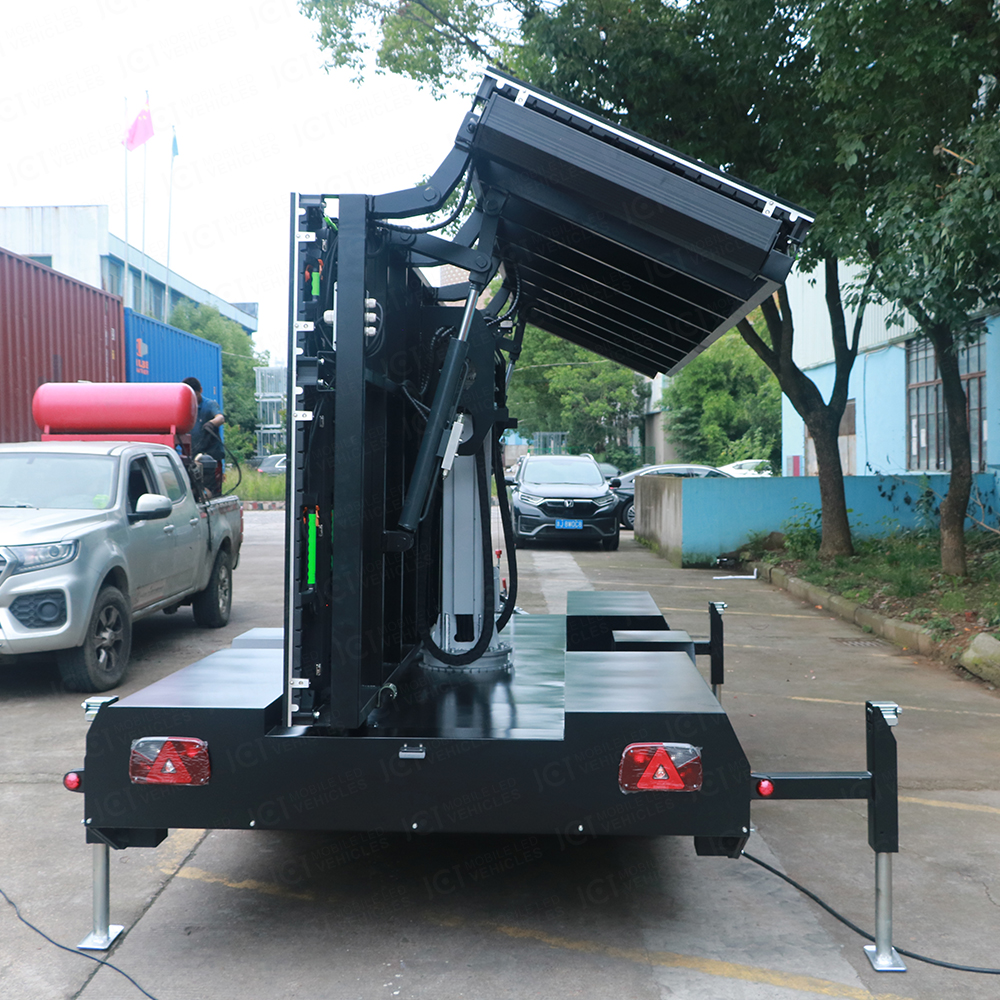

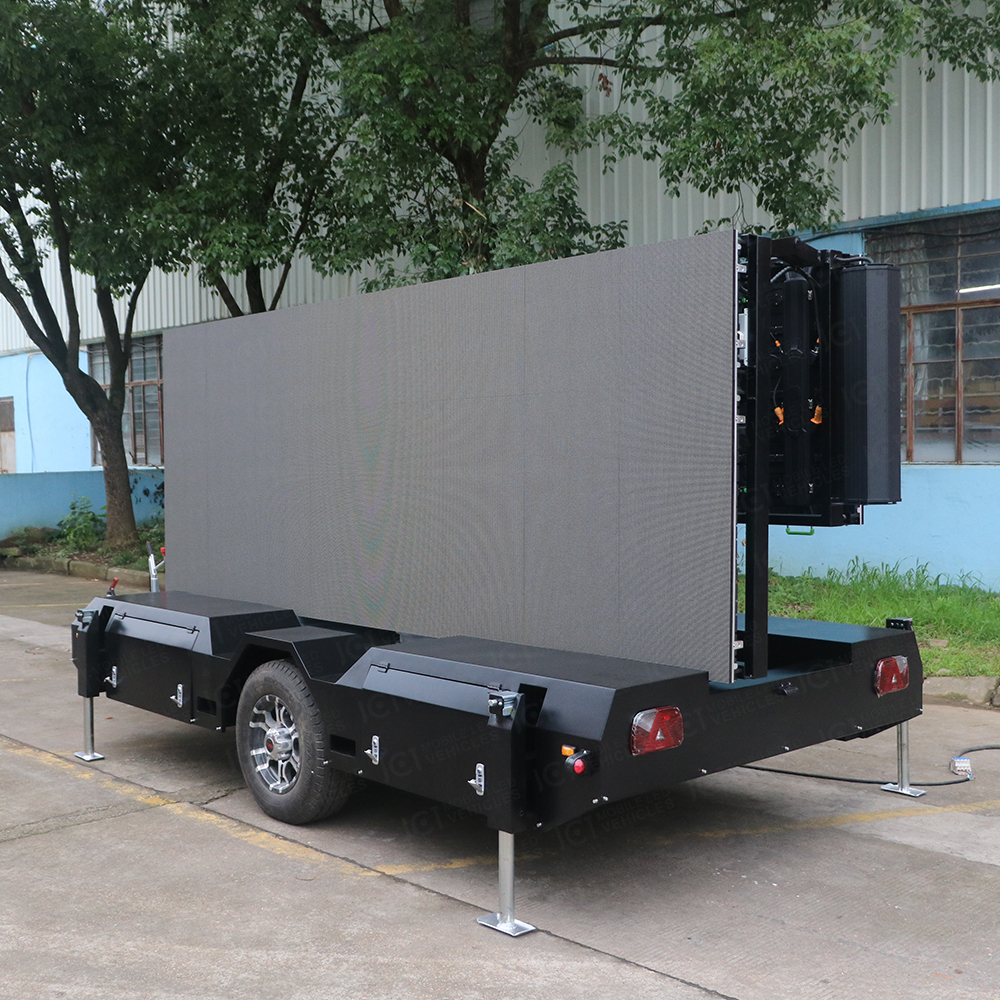

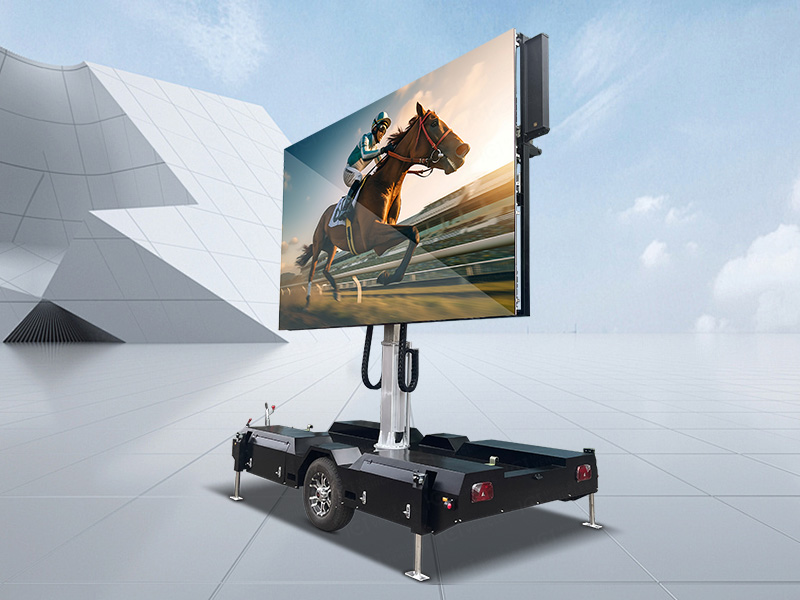

In addition to the lifting function, the EF10 LED screen trailer also incorporates a 180-degree screen folding design, which allows the screen to significantly reduce space when not in use, facilitating storage and transportation. The 330-degree manual rotation function of the screen further broadens the boundary of the application scenario. Users can flexibly adjust the screen orientation according to the site conditions or creative needs, so as to realize the visual coverage of all directions and angles, so that there is no dead corner in information transmission.

To sum up, EF10 LED screen trailer has become a bright star in the field of outdoor advertising and information communication with its reasonable size configuration, high-definition picture quality, flexible mobility and diversified function configuration. It not only meets the market's demand for excellent, convenient and high-quality display, but also highlights the new trend of outdoor display technology with its humanized design concept and technology application. Whether it is commercial promotion, cultural communication, or public information display, EF10 LED screen trailer will be a new choice for outdoor advertising.


Parameters

E-F10
Specification
Trailer appearance
Total weight 1600kg Dimension 5070mm*1900mm*2042mm
Max speed 120Km/h Axle Load weight 1800KG
Breaking Hand brake
LED Screen
Dimension 4000mm*2500mm Module Size 250mm(W)*250mm(H)
Light brand kinglight Dot Pitch 3.9 mm
Brightness 5000cd/㎡ Lifespan 100,000hours
Average Power Consumption 230w/㎡ Max Power Consumption 680w/㎡
Power Supply Meanwell DRIVE IC ICN2153
Receiving card Nova MRV316 Fresh rate 3840
Cabinet material Die casting aluminum Cabinet weight aluminum 7.5kg

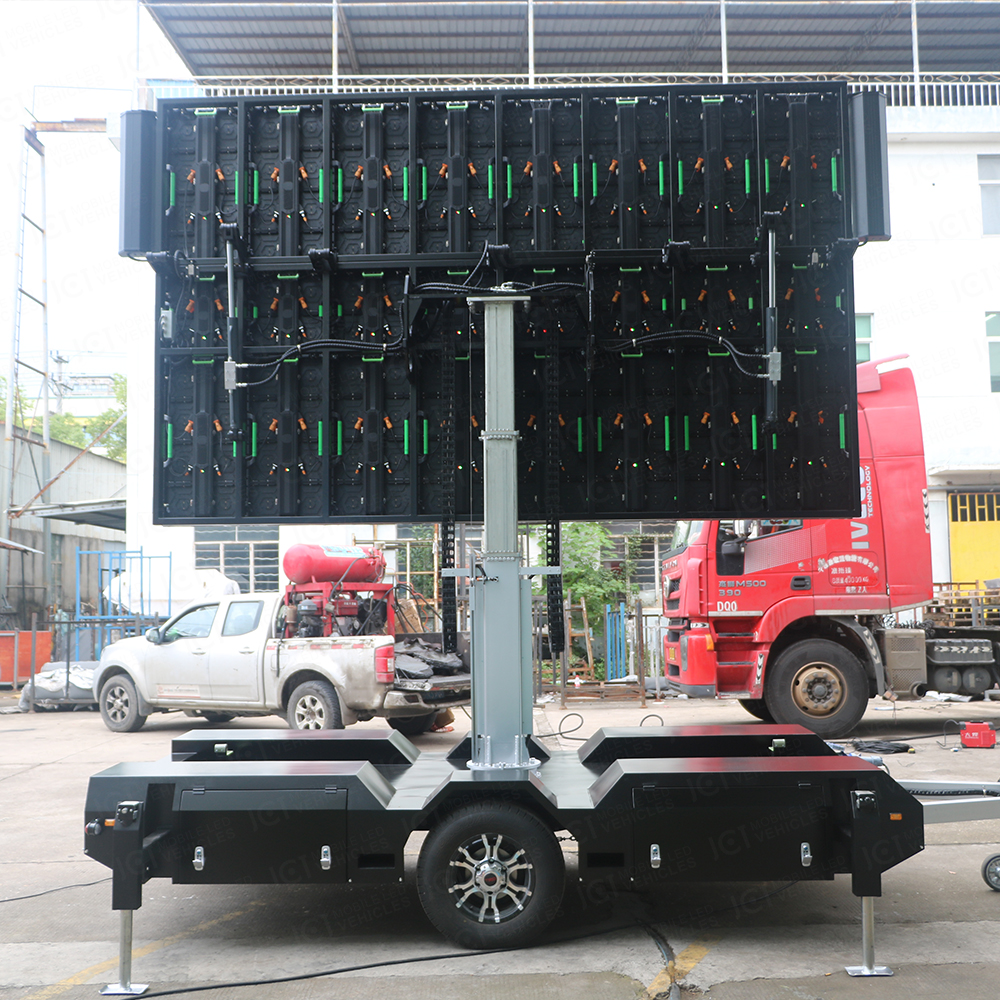

Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method SMD1921 Operating Voltage DC5V
Module power 18W scanning method 1/8
HUB HUB75 Pixel density 65410 Dots/㎡
Module resolution 64*64Dots Frame rate/ Grayscale, color 60Hz,13bit
Viewing angle, screen flatness, module  clearance H:120°V:120°、<0.5mm、<0.5mm Operating temperature -20~50℃
system support Windows XP,WIN 7,
Power parameter
Input voltage Single phase 220V Output voltage 220V
Inrush current 28A Average power consumption 230wh/㎡
Player System
Player NOVA Modle TB50-4G
Luminance sensor NOVA
Sound System
Power amplifier Unilateral power output:250W Speaker Max power consumption:50W*2
Hydraulic System
Wind-proof level Level 8 Supporting legs 4 pcs
Hydraulic lifting: 1300mm Fold LED screen 1000mm
