Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

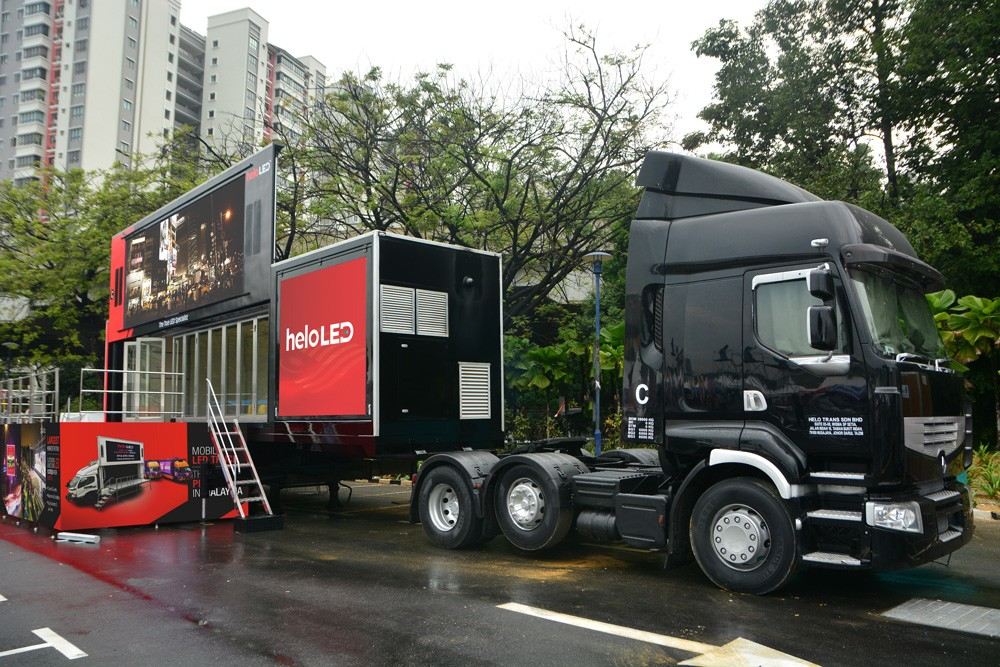

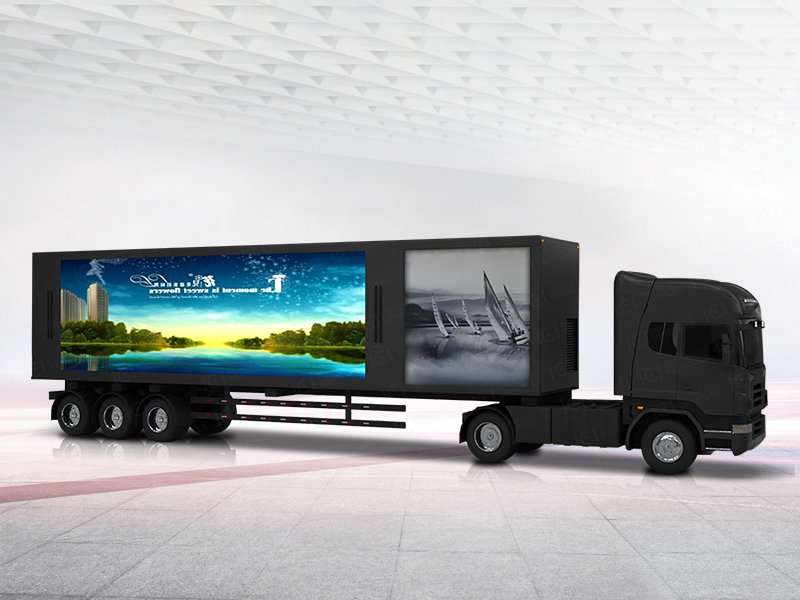

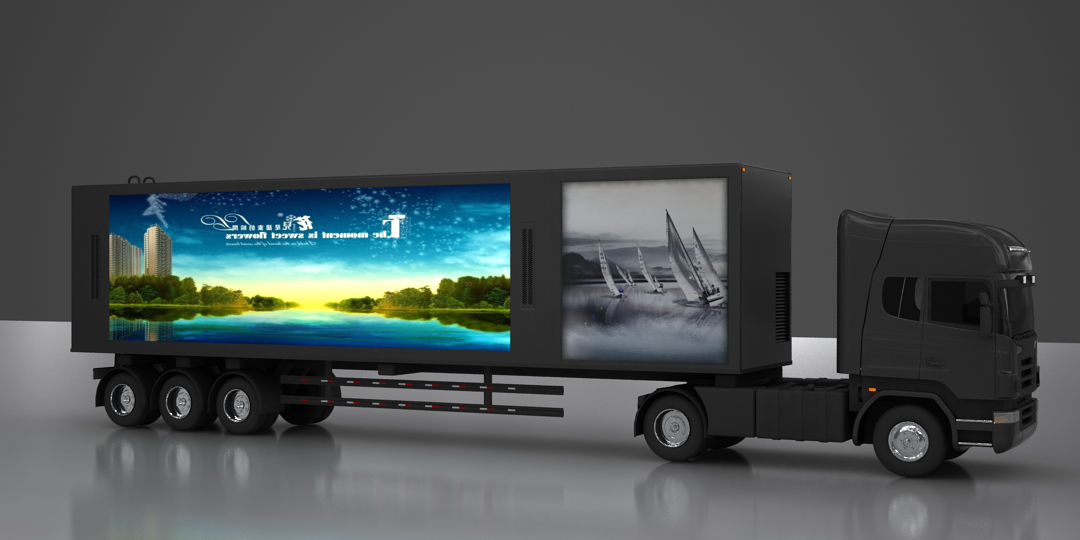

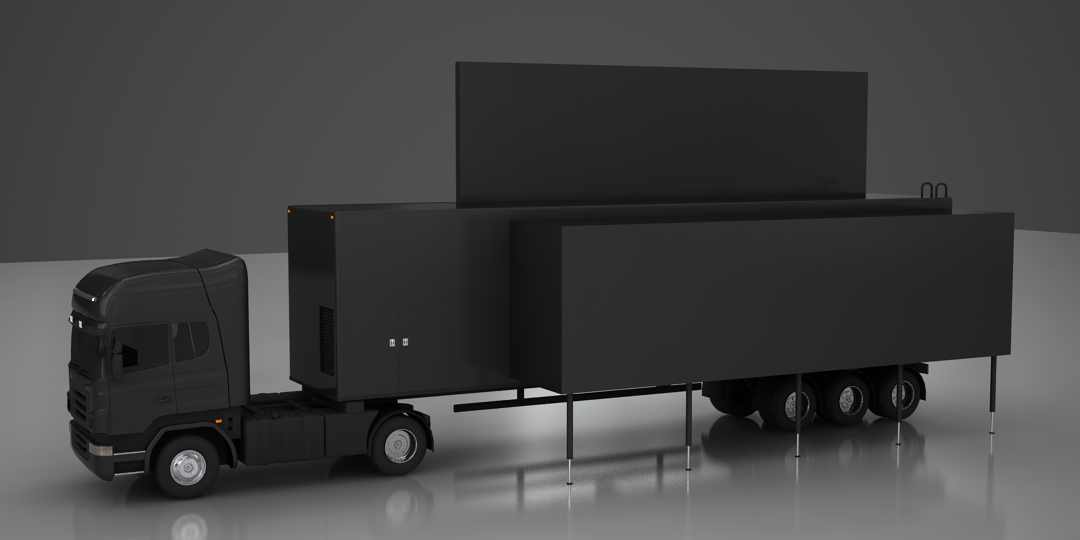

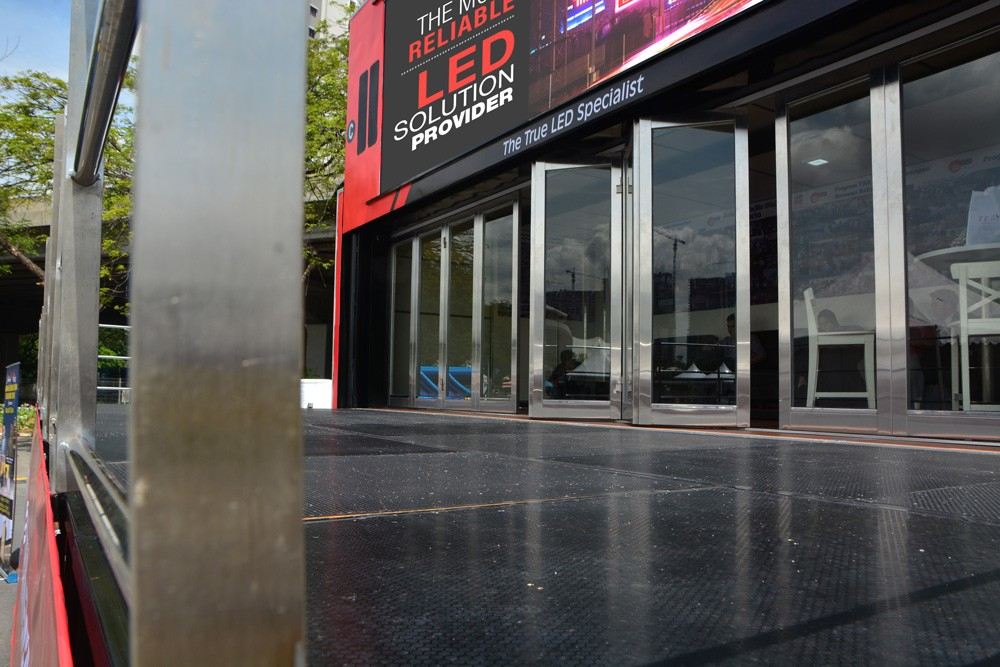

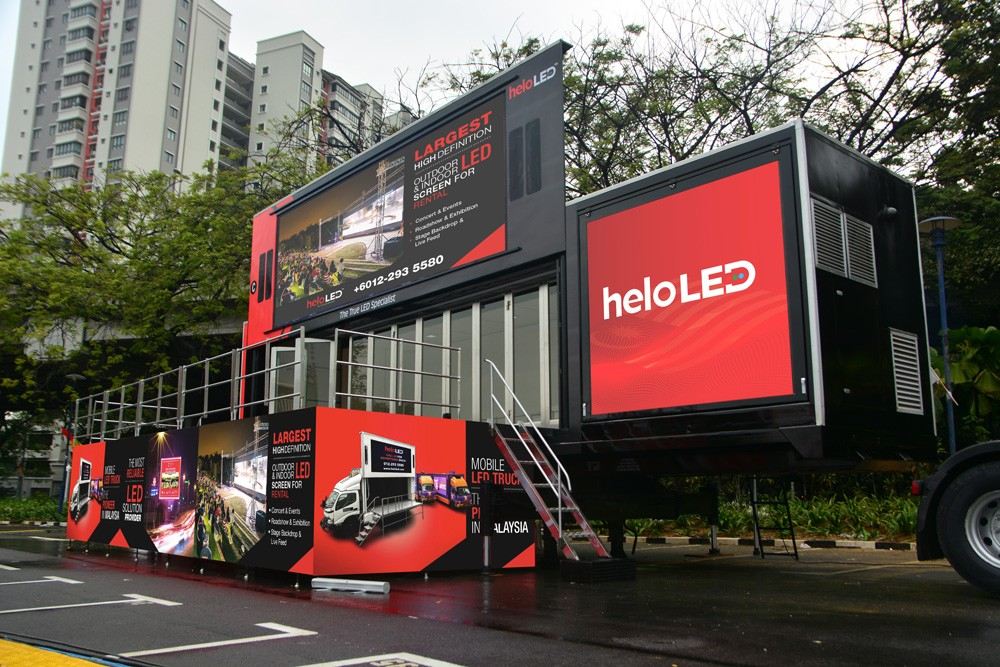

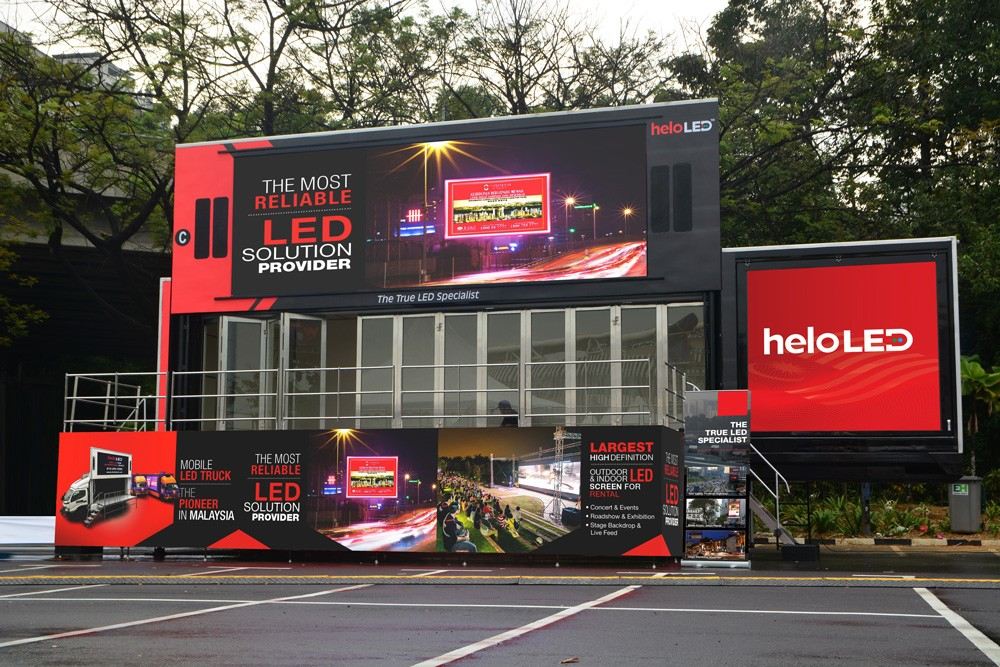

The 12.5 m outdoor LED Show Container (model: MLST-12.5M Show Container) is manufactured by JCT. This special semi-trailer is not only easy to move, but also can be unfolded into a performance stage. The LED stage car is equipped with an outdoor large LED screen, a fully automatic hydraulic stage, professional sound and lighting, and all the stage performance forms are pre-installed on the car. The interior area can be modified according to the characteristics of the activity to optimize the interior space. It is free of the time-consuming and labor-intensive defects of traditional stage construction and disassembly. It is more efficient and fast, and can be closely combined with other marketing methods of communication, to achieve functional derivative.

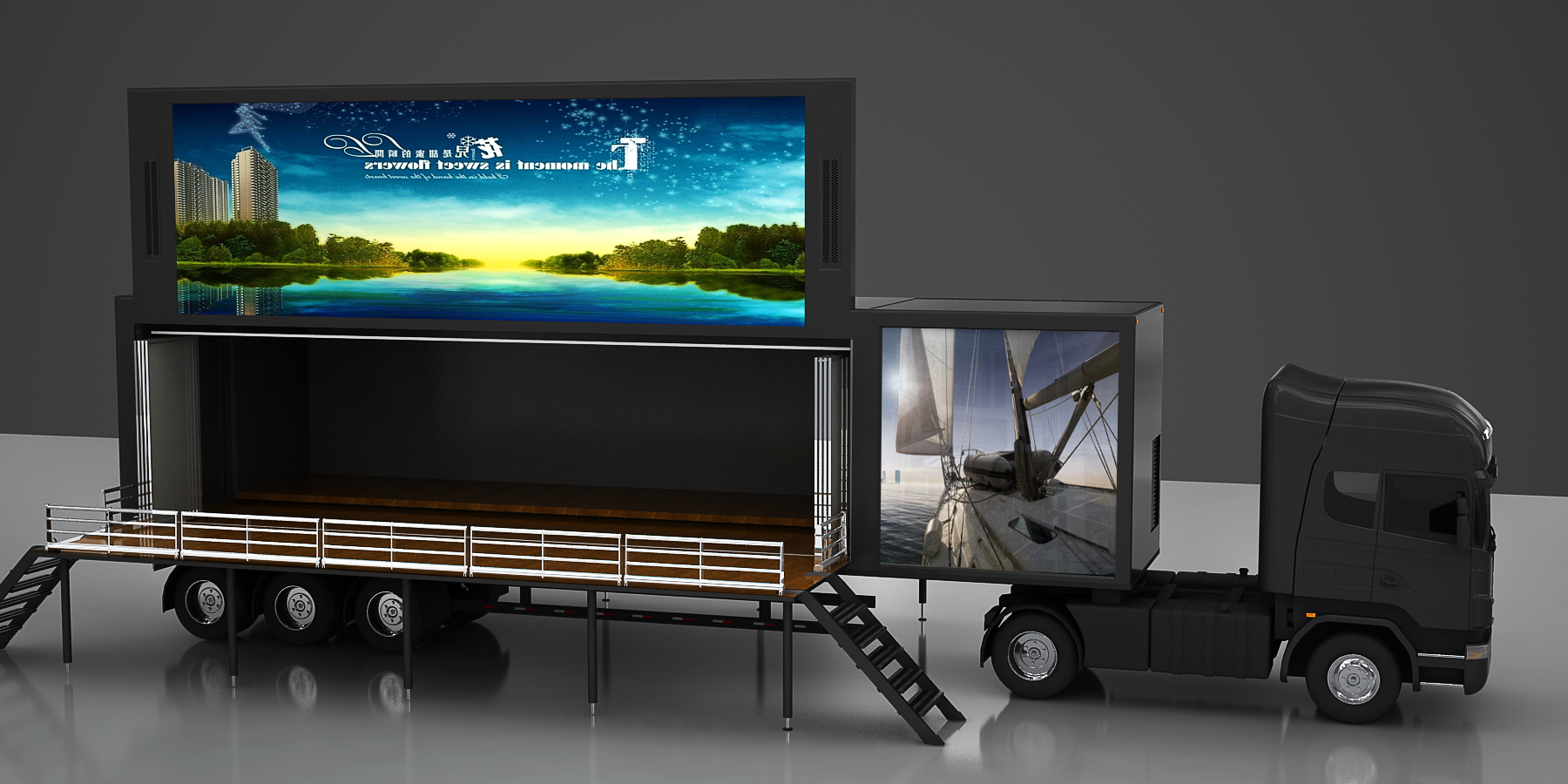

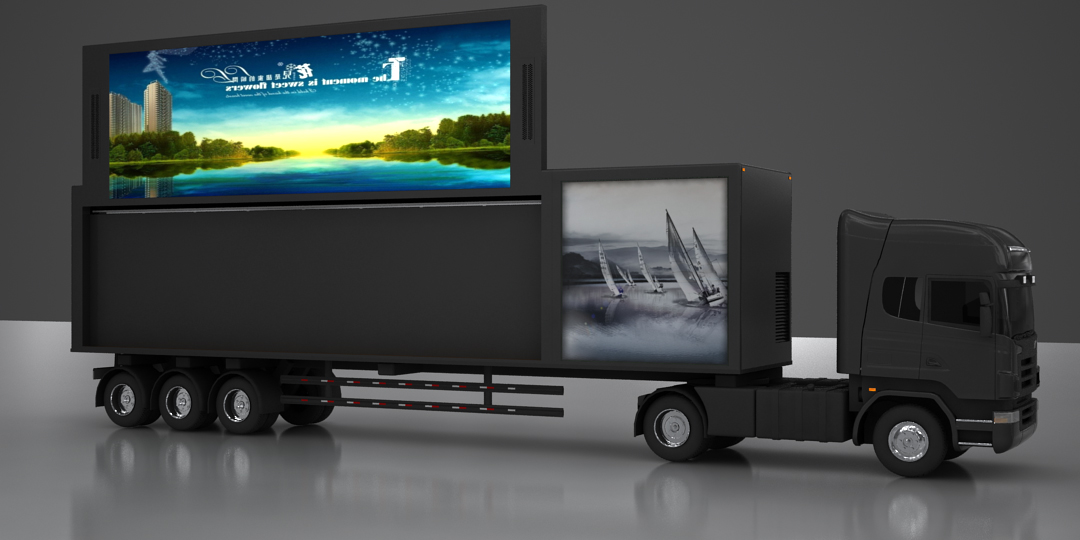

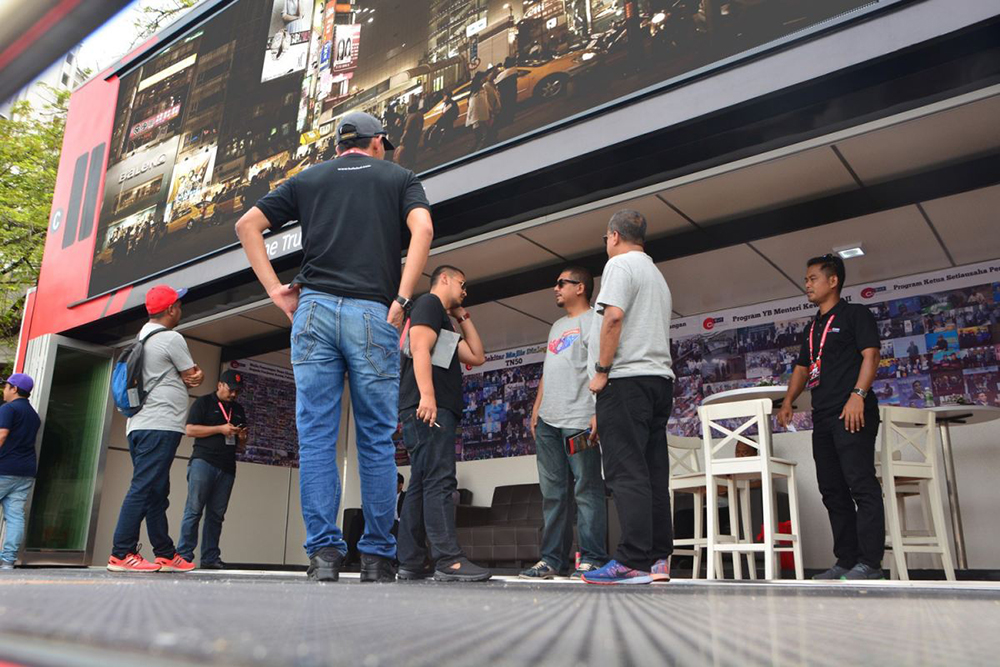

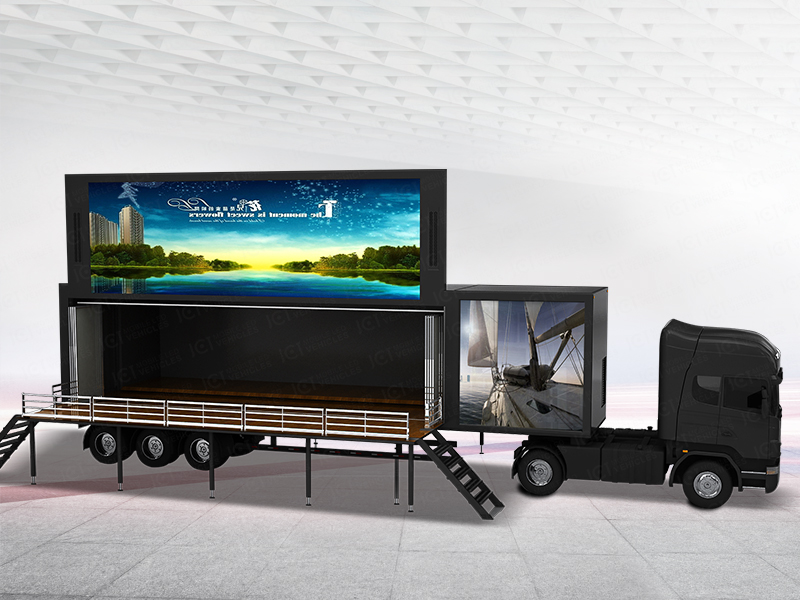

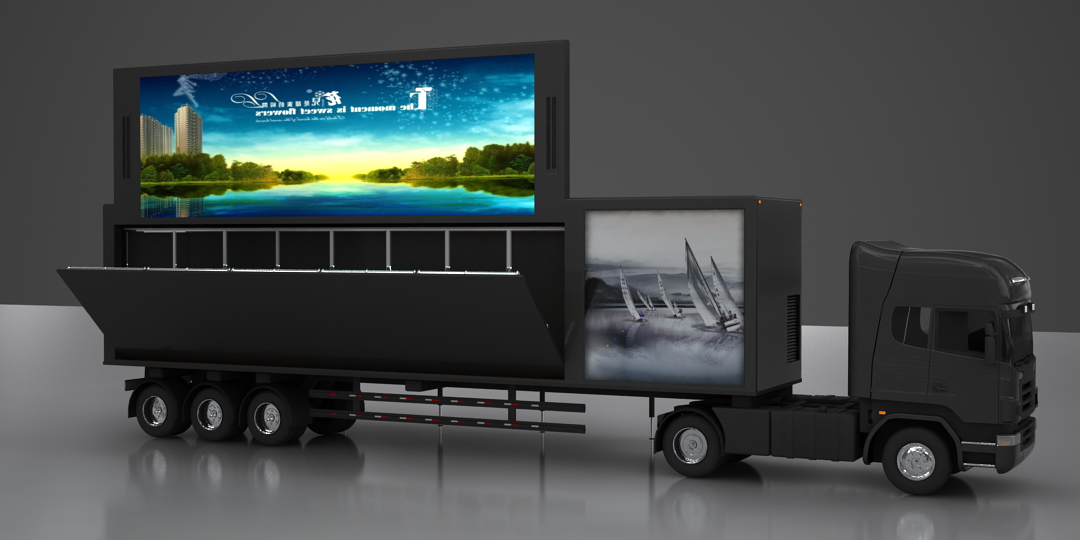

The LED Show Container is 12.5 meters long, Equipped with an outdoor HD P4 LED full-color screen, Dimensions of 9600mm * 2400mm, With the nova (NOVA) control system; LED large screen can be lifted, Using a one-click hydraulic control, Lift stroke of 2,000 mm; The performance stage car is equipped with two power supply modes, One provides power for an external power supply, The other is a generator, 2 Vehicle was installed with a 24KW silent generator, Can ensure the safety of electricity consumption for activities; The performance stage is a hydraulic unfolding stage, Dimensions of 11000 * 3000mm, Also in the hydraulic one-click operation mode, In only about 5-10 minutes, You can open the stage, Put into use.
The LED Show Container uses special container vehicles, with power and space advantages, and all the stage performances are pre-installed in the vehicle area. When conducting activities in designated places, only a simple operation is needed to complete various exhibitions: large-scale terminal promotion, large-scale cultural and art tour, mobile exhibition, mobile theater, etc., regardless of the time and place restrictions, everything is possible.
Our LED Show Container is an innovative mobile performance solution that perfectly combines traditional stages with modern technology to provide a convenient performance venue for various events. Whether it's a big concert, a product launch, or a street art performance, the LED Show Container can meet your needs.
The outdoor large LED screen of the LED Show Container can provide clear and vivid visual effects to attract the attention of the audience. The fully automatic hydraulic stage can unfold rapidly, providing a stable and safe stage space for the performers. Professional sound and lighting systems can add atmosphere to the performance and immerse the audience in the wonderful performance.

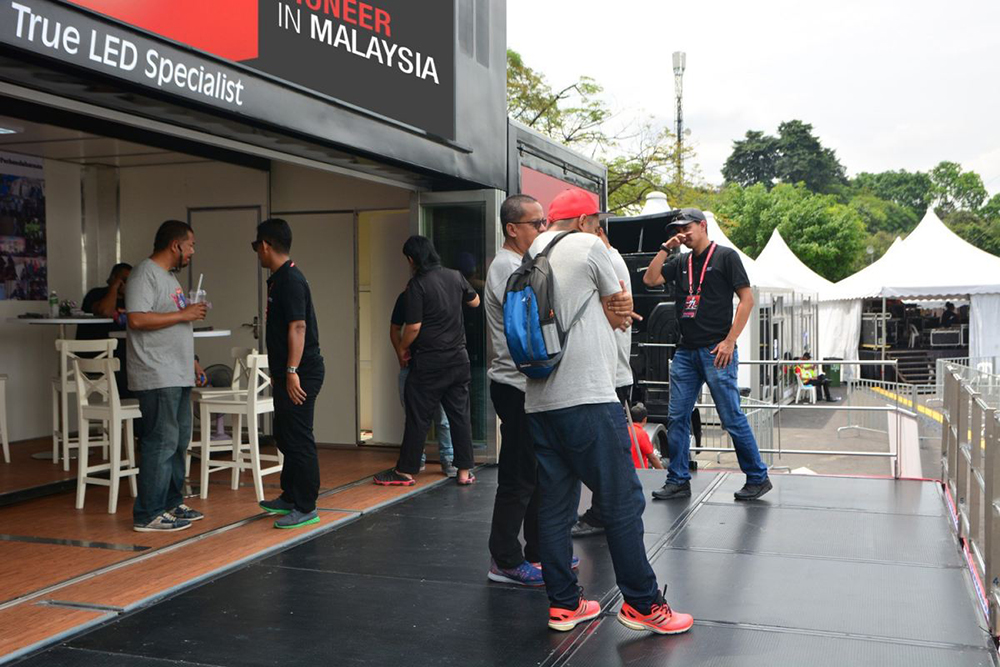

In addition, the interior space of the LED stage car can be flexibly modified according to the characteristics of the activity to meet different performance needs. Whether it is holding large-scale terminal promotion activities, or cultural and artistic tour, LED stage car can be easily competent. It eliminates the tedious process of traditional stage construction and disassembly, saves time and labor costs, and makes the event planning more efficient.
The LED Show Container can also be closely combined with other marketing and communication methods to achieve functional derivative. By combining with social media, online live broadcast and other channels, the event will be broadcast live to attract more audiences to participate in it and enhance the influence of the event. At the same time, the LED Show Container can also be used as a mobile advertising display platform, providing more possibilities for brand marketing.
In short, the LED Show Container is a multi-functional and convenient mobile performance solution, which will bring a brand new experience and effect to your activities. Whether you hold a commercial event, a cultural performance, or a special event, the LED Show Container will be your right-hand man to add highlights and attractions to the event.
|
MLST-12.5M Show Container |
|||
|
Specification |
|||
|
Heavy truck head |
|||
|
Brand |
Auman |
Generator |
Cummins |
|
Semi-Trailer chassis |
|||
|
Brand |
JINGDA |
Dimension |
12500mm×2550 mm×1600 mm |
|
Total mass |
4000KG |
Truck body |
12500*2500*2900mm |
|
CONTAINER BODY |
|||
|
Main box structure |
Steel keel 12500*2500*2900 |
Box finish and interior decoration |
The exterior decoration of the bee-worm board and the interior decoration of the aluminum-plastic board |
|
LED Screen |
|||
|
Dimension |
9600mm*2400mm |
Module Size |
320mm(W)*160mm(H) |
|
Light brand |
kinglight |
Dot Pitch |
4mm |
|
Brightness |
≥6000CD/M2 |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
700w/㎡ |
|
Power Supply |
G-energy |
DRIVE IC |
ICN2513 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
|
Module resolution |
80*40Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
Power supply system |
|||
|
Dimension |
1850mm x 900mm x 1200mm |
Power |
24KW |
|
Brand |
Global Power |
Number of cylinders |
Water-cooled inline 4 |
|
Displacement |
1.197L |
Bore x stroke |
84mm x 90mm |
|
Multimedia system |
|||
|
Video processor |
NOVA |
Model |
VX400 |
|
Luminance sensor |
NOVA |
Multi-function card |
NOVA |
|
Sound system |
|||
|
The power amplifier |
1000 W |
Speaker |
4 *200 W |
|
Power parameter |
|||
|
Input Voltage |
380V |
Output Voltage |
220V |
|
Current |
30A |
|
|
|
Electrical system |
|||
|
Circuit control and electrical appliances |
National standard |
|
|
|
The hydraulic system |
|||
|
LED display hydraulic lifting cylinder and steel sleeve |
2 hydraulic cylinders, 2 steel sleeves, stroke: 2200mm |
Stage hydraulic cylinder and oil pipe, stage support and other accessories |
1 set |
|
Expansion box hydraulic cylinder |
2 pcs |
Main compartment hydraulic support leg |
4 pcs |
|
Expansion box guide rail |
6 pcs |
Hydraulic support for lateral expansion |
4 pcs |
|
Capacity expansion box lock oil cylinder |
2 pcs |
Expansion box hydraulic support foot |
2 pcs |
|
Hydraulic pump station and control system |
1 pcs |
Hydraulic remote control |
1 pce |
|
Stage and guardrail |
|||
|
Left stage size（Double fold stage） |
11000*3000mm |
The ladder（with Stainless steel handrail) |
1000 mm wide*2 pcs |
|
Stage structure（Double fold stage） |
All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board |
|
|
