Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

Key features: Works well in various outdoor settings

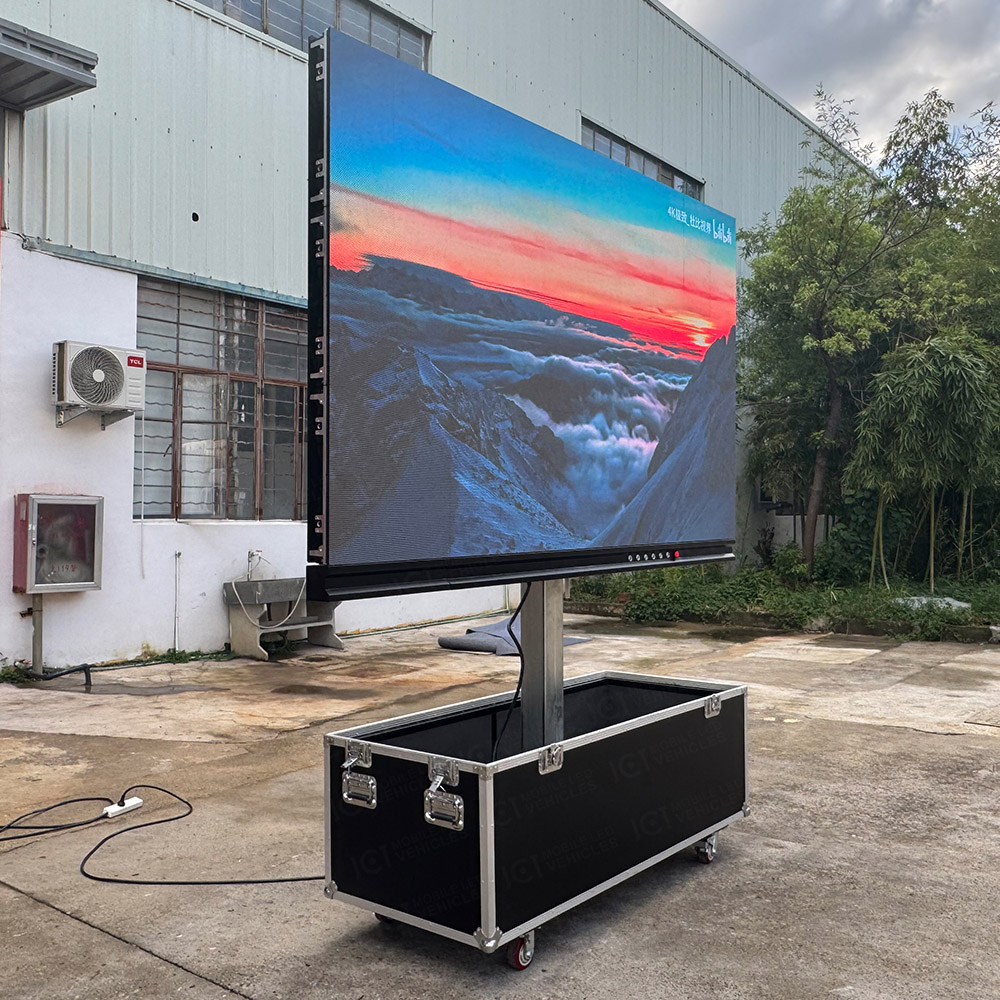

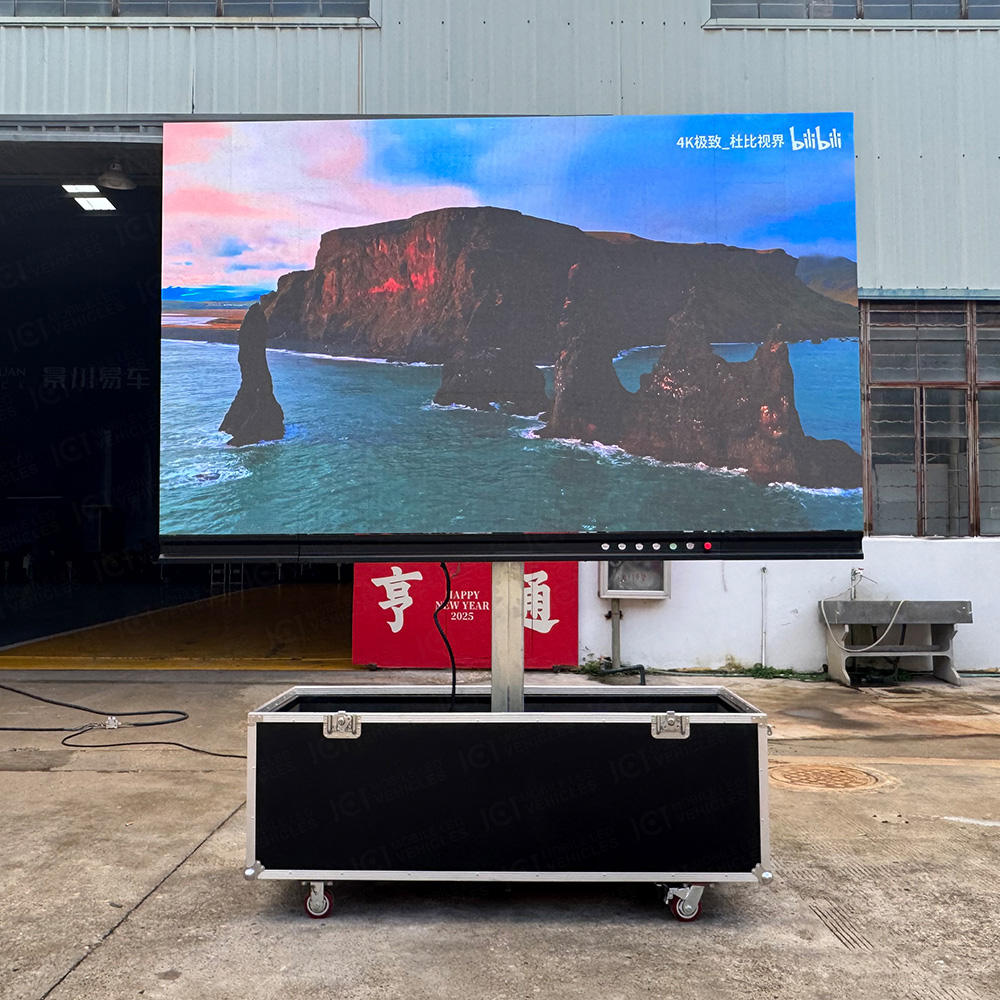

1.Unfazed by intense sunlight, the display delivers crystal-clear HD visuals. Featuring a professional outdoor HD module (P3.91/P2.97 optional), each 250×250mm module boasts ultra-fine pixel density for razor-sharp imaging with exceptional contrast. It maintains perfect detail visibility from 3-10 meters outdoors. The 2500×1500mm (115-inch) screen ensures flawless presentation of promotional videos, live events, and announcements even under direct sunlight, creating a visually stunning experience.

2.Versatile and adaptable to various outdoor settings

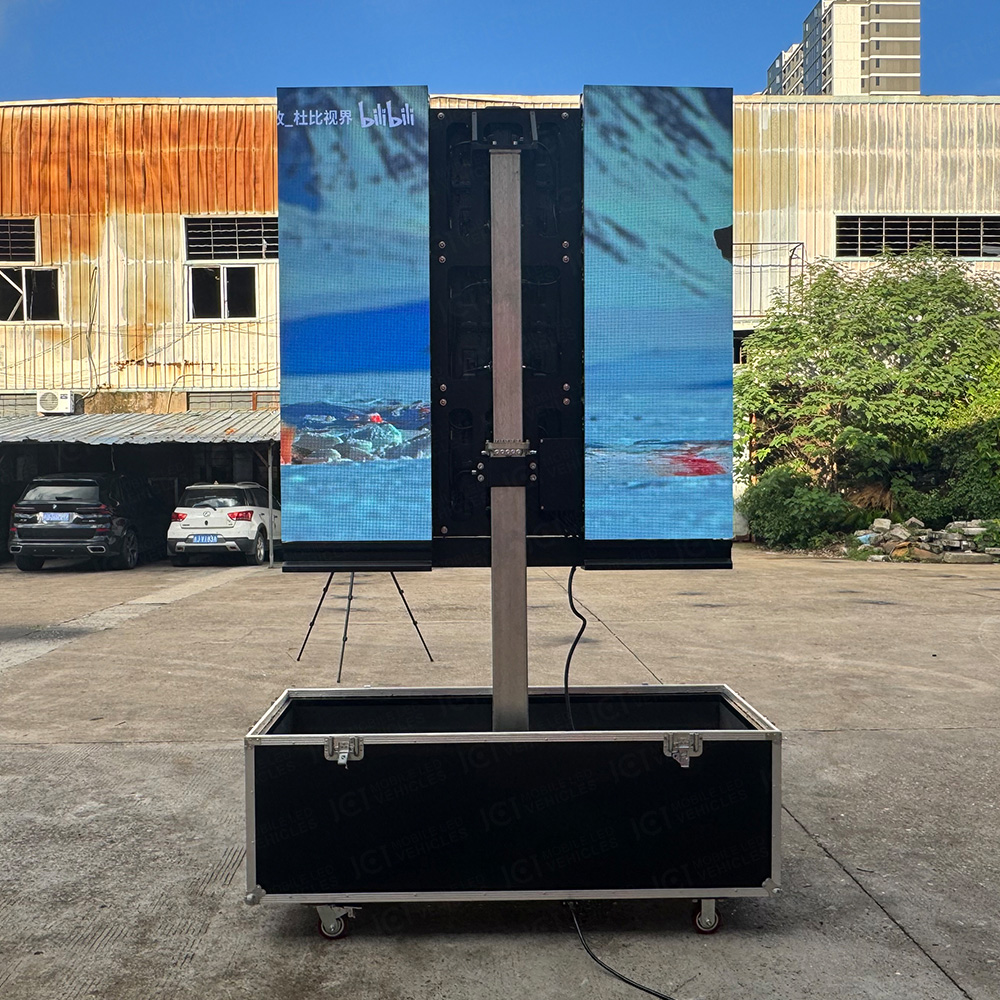

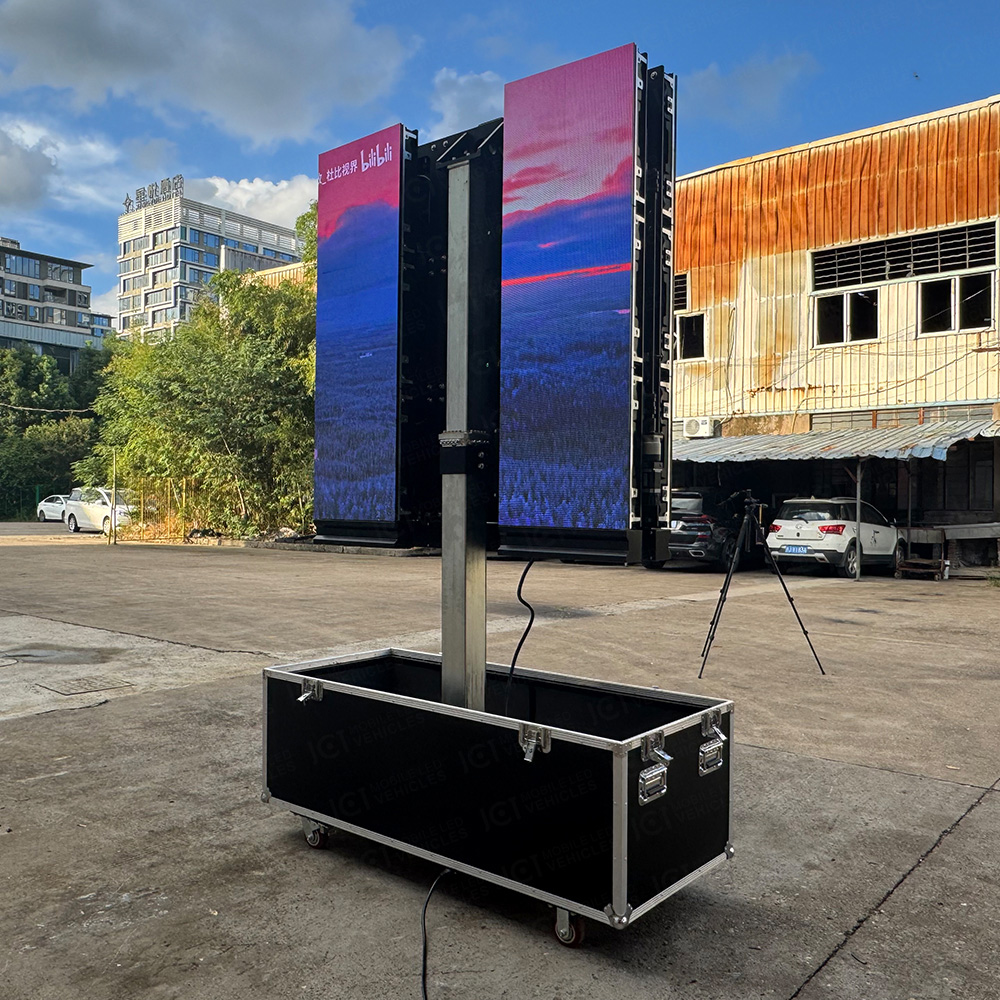

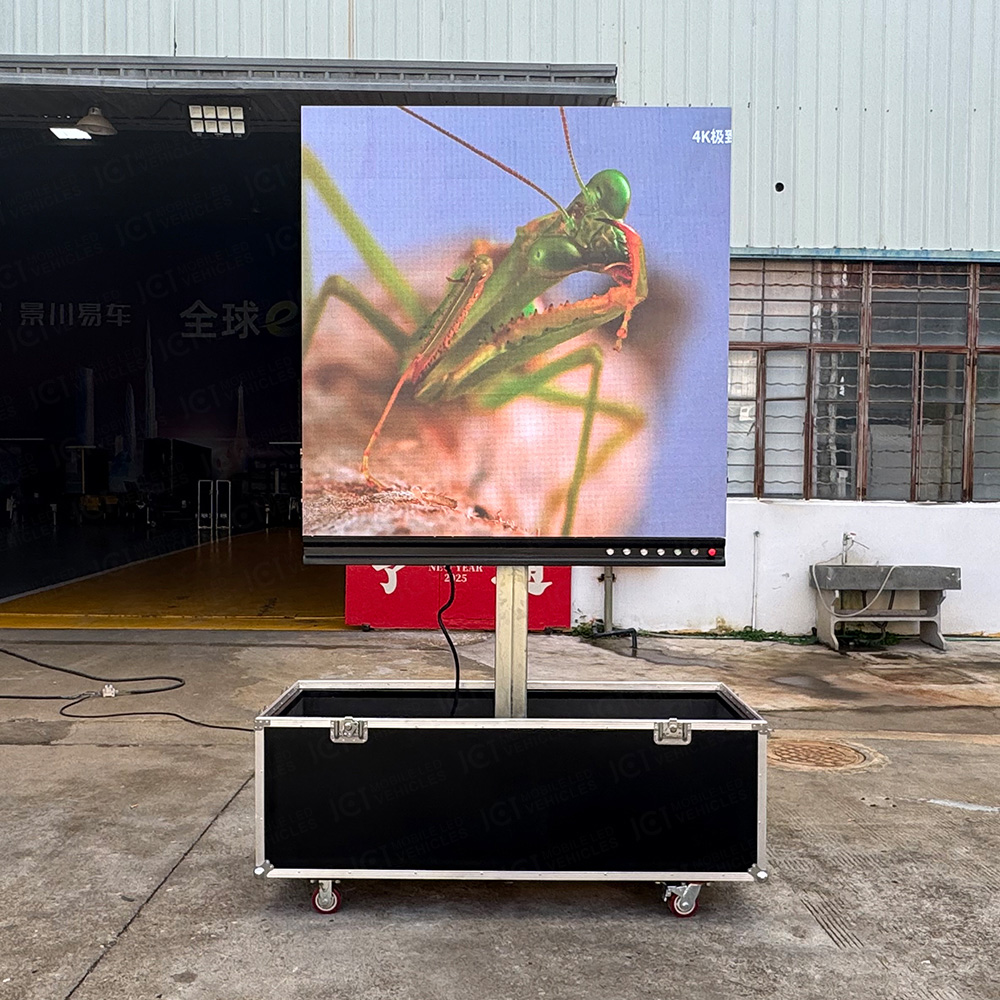

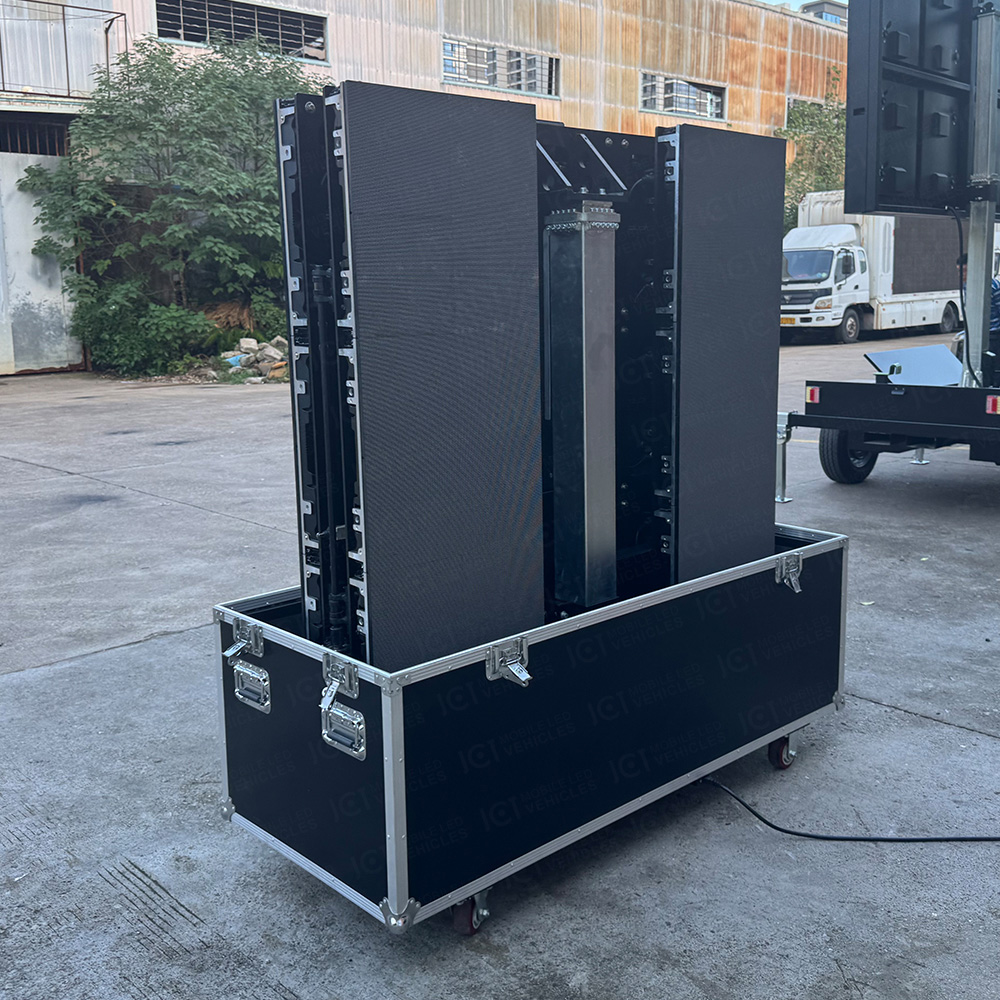

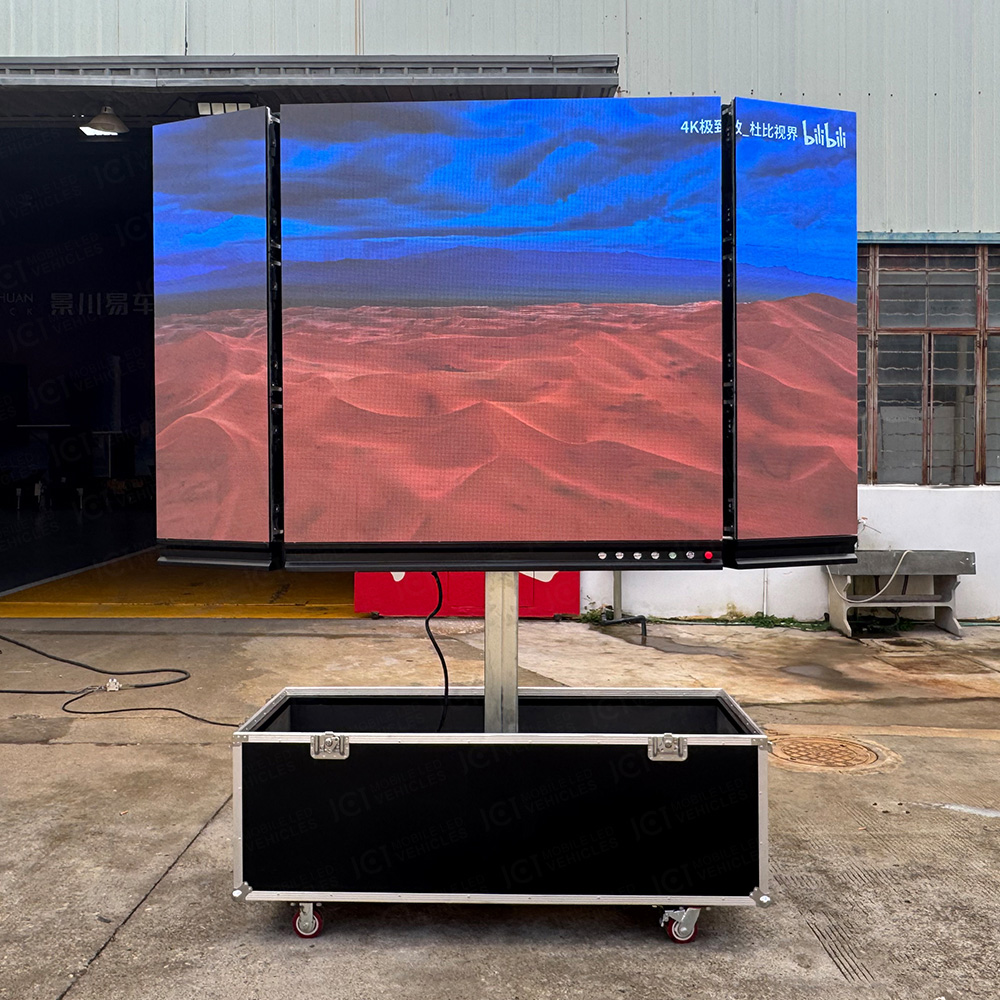

3.180 degrees Folding Design: The dual screens fold 180 degrees freely, offering a wide-angle coverage with no blind spots when fully extended. They can be swiftly folded into an flight case, significantly saving storage and transportation space while enhancing flexibility in venue adaptation. 1000mm Height Adjustment: The screens support 1000mm vertical movement, allowing precise height adjustment for any scenario — whether for standing spectators at outdoor concerts or seated attendees at open-air forums, they provide optimal viewing angles to prevent visual obstruction and enhance the overall experience.

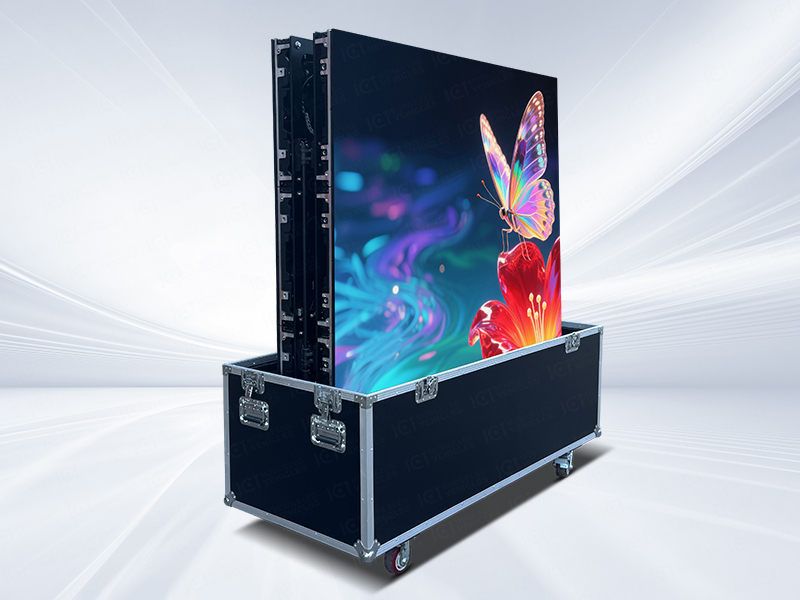

4.Flight case protection, portable and durable with bidirectional online monitoring

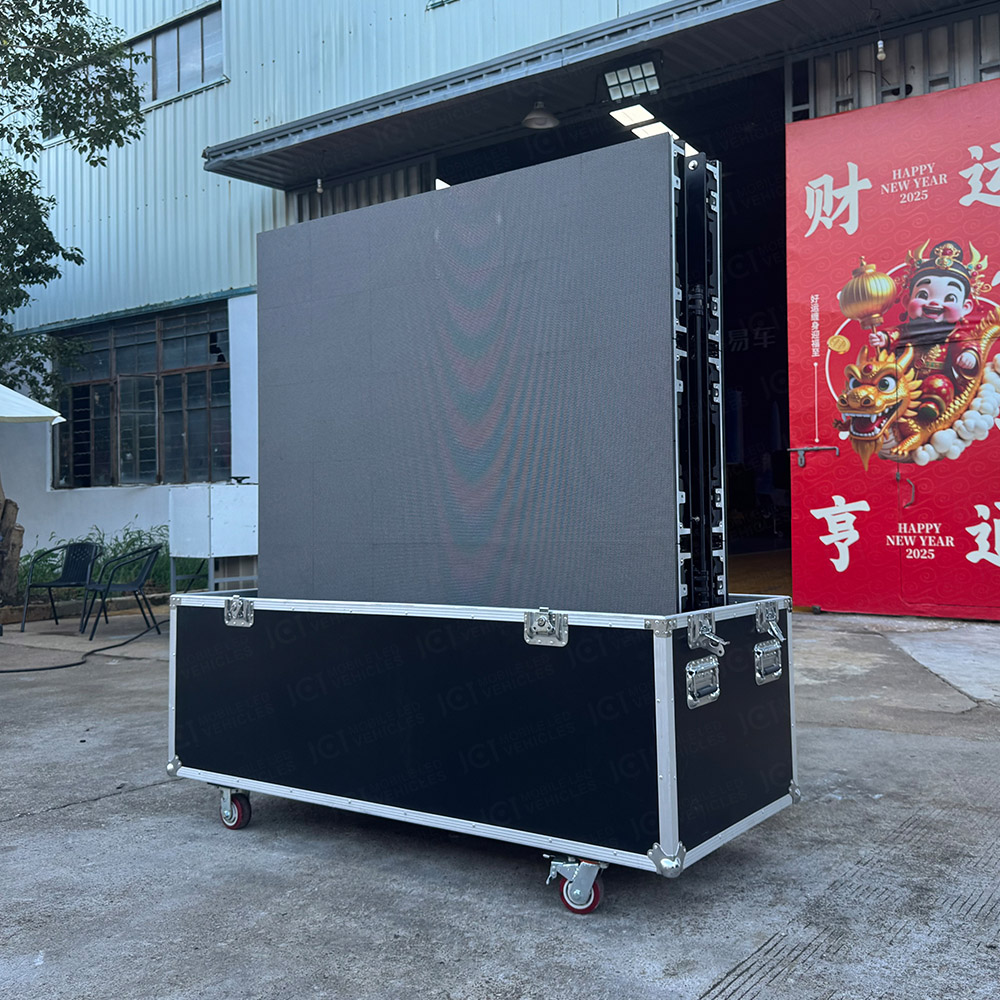

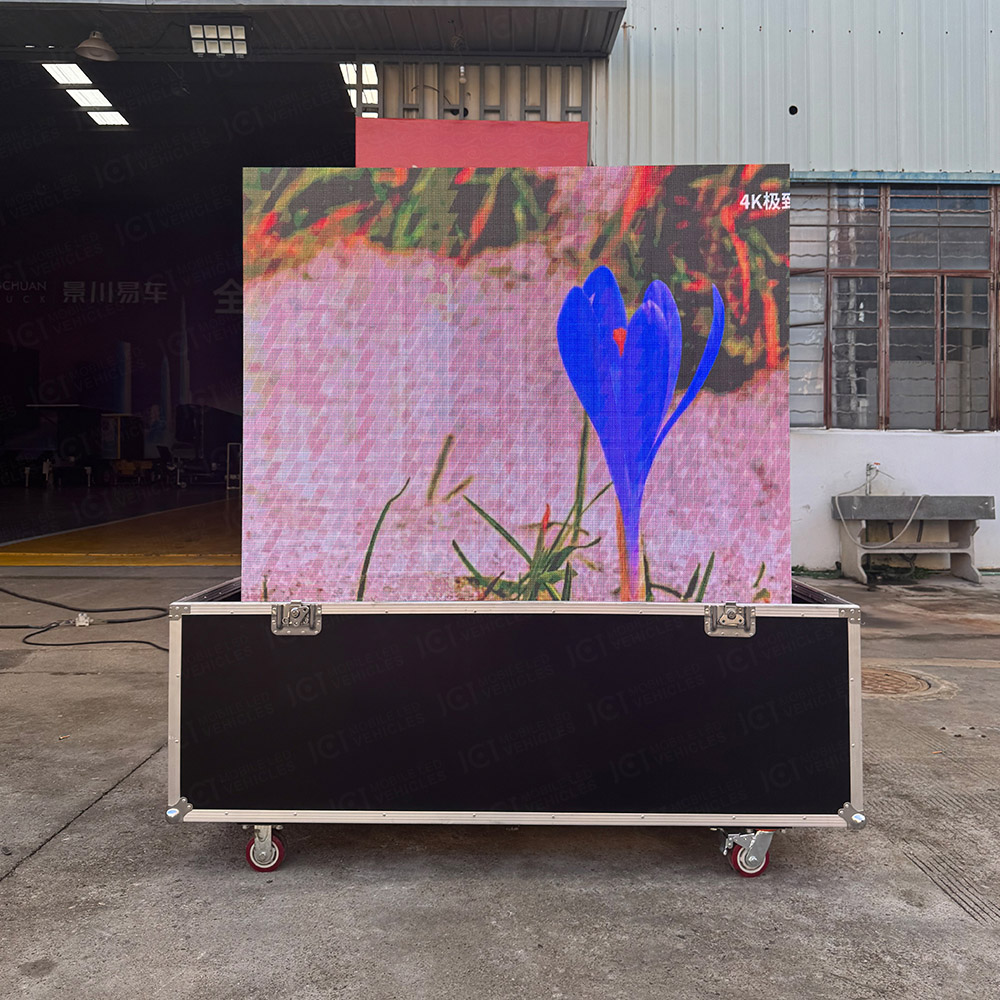

Engineered with a professional air cargo container structure, this compact unit measures just 1610×930×1870mm, fitting seamlessly into most commercial vehicles like vans and trucks for hassle-free cross-site transportation. Built with high-strength materials and IP65-rated waterproof/dustproof performance, it withstands transportation jolts while handling harsh outdoor conditions like sandstorms and rain. Multiple protective layers safeguard the screen and internal components. Weighing 340kg with underfoot swivel wheels, it can be easily pushed by 1-2 people, dramatically reducing deployment and mobility labor costs.

5.Stable and reliable, with maximum outdoor durability.

The robust structural design provides strong support for the screen, ensuring continuous stable operation even in harsh outdoor conditions. No need to worry about shaking or malfunctions, offering long-lasting and reliable display performance for various outdoor scenarios.


Detailed Parameters

Parameter category Specifications
Led module P3.91/P2.97 outdoor module, module size: 250×250mm
Screen size 2500×1500mm(About 115 inches)
Cabinet 500×500mm × 15 pcs
Screen lift 1000mm
Folding angle of both screens 180°
Flight case size 1610×930×1870mm
N.W. 340KG
Core Features Outdoor display screen with IP65 waterproof, dustproof, and heat-resistant rating



Multi-scenario adaptation unlocks new possibilities for outdoor displays

Temporary Events: Outdoor product launches, open-air concerts, live sports broadcasts, and information displays – quickly set up custom visual stage backdrops; Commercial Promotions: Street marketing campaigns, mall outdoor promotions, mobile exhibition vehicles – creating dynamic visual highlights to boost brand visibility; Emergency & Public Services: Disaster prevention awareness, temporary medical guidance, community emergency alerts – delivering critical information promptly; Outdoor Venues: Tourist attraction interpretation, campsite entertainment, construction site safety training – adaptable to diverse needs and enhancing practicality.

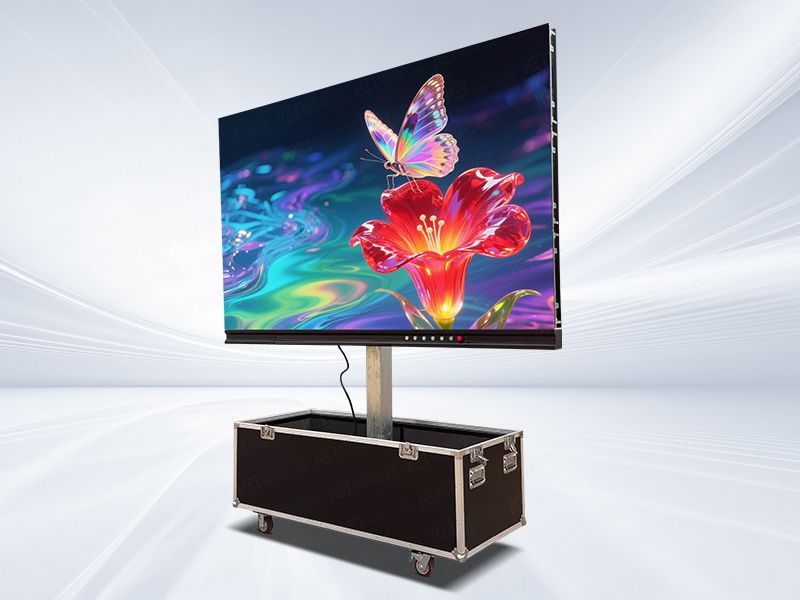

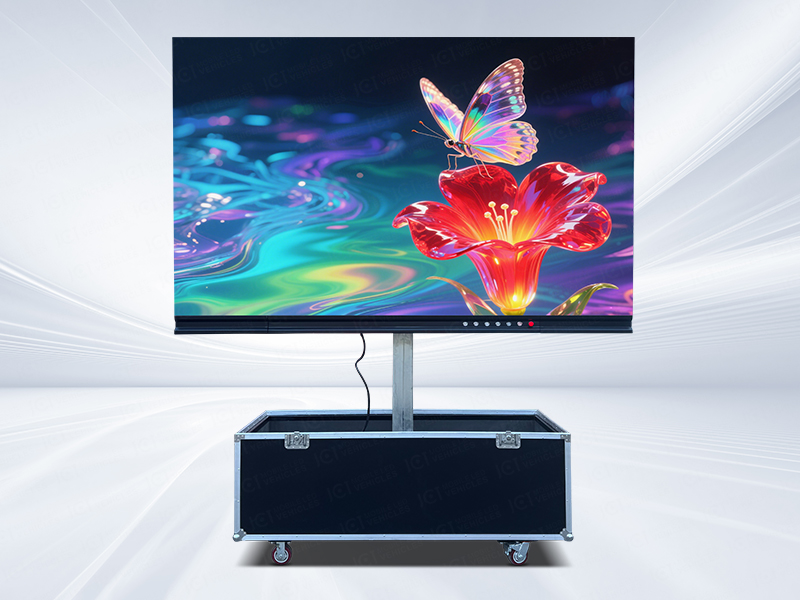

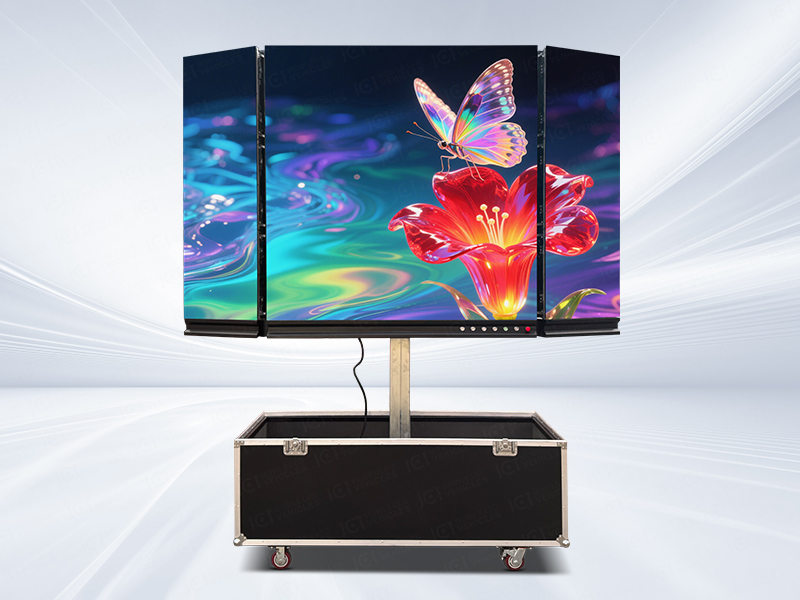

The PFC-115 ODTV portable flight case outdoor TV breaks the limitations of traditional fixed screens. It solves mobility and deployment challenges with portability while ensuring picture quality and stability through high performance. Whether you need to quickly set up a display area or reuse it across multiple locations, it delivers clear, stable, and flexible visual solutions, making outdoor displays more efficient and hassle-free!


Parameters

PFC-115 ODTV Portable Folding led screen
PFC-115 ODTV
Specification
Flight case appearance
Flight casesize 1610×930×1870mm Universal wheel 500kg,7PCS
Total weight 342KG Flight case parameter 1, 2mm Aluminum
2, 5mmEYA/30mmEVA
3, 8 round draw hands
4, 6 (4 "blue 36-width lemon wheel, diagonal brake)
5, 15MM wheel plate
Six, six locks
7. Fully open the cover
8. Install small pieces of galvanized iron plate at the bottom
LED Screen
Dimension 2500mm*1500mm Module Size 250mm(W)*250mm(H)
Light brand Kinglight Dot Pitch 3.91/2.97mm
Brightness 5000cd/㎡ Lifespan 100,000hours
Average Power Consumption 200w/㎡ Max Power Consumption 600w/㎡
Power Supply E-energy DRIVE IC ICN2153
Receiving card Nova MRV208 Fresh rate 3840
Cabinet material Die casting aluminum Cabinet weight aluminum 7.5kg
Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method SMD1921 Operating Voltage DC5V
Module power 18W scanning method 1/52
HUB HUB75 Pixel density 65410Dots/㎡
Module resolution 64*64Dots Frame rate/ Grayscale, color 60Hz,13bit
Viewing angle, screen flatness, module  clearance H:120°V:120°、<0.5mm、<0.5mm Operating temperature -20~50℃
system support Windows XP,WIN 7,
Power parameter (external prower supply)
Input voltage Single phase 220V Output voltage 220V
Inrush current 8A
Control system
receiving card 2pcs NOVA TB50 1 pcs

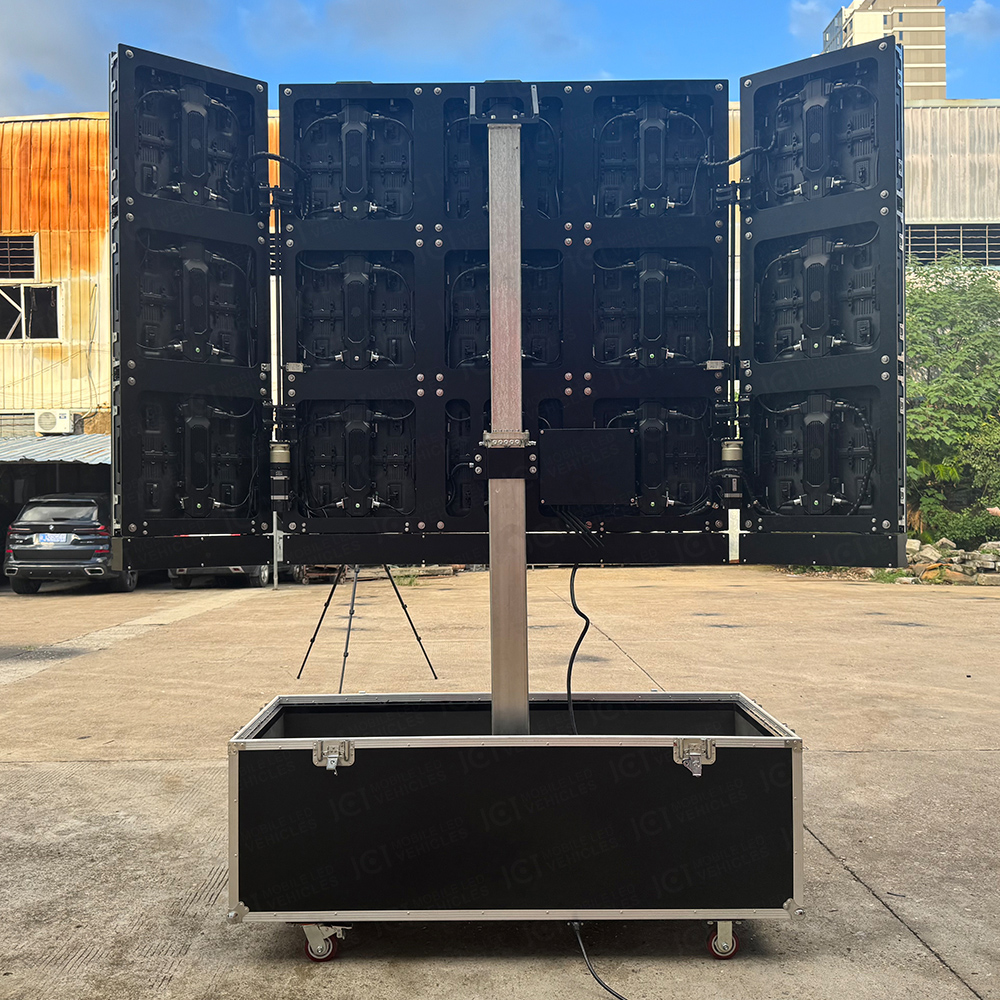

Hydraulic lifting
Lifting: 1000mm
