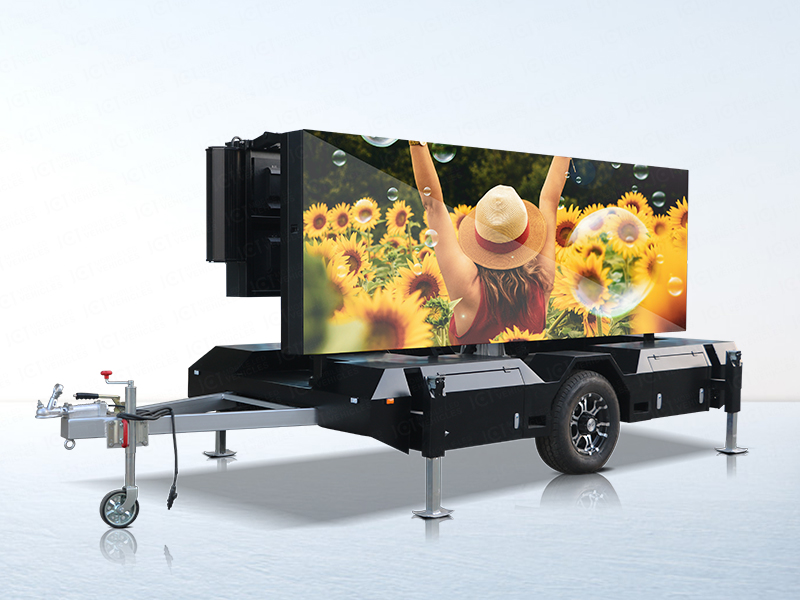

JCT Battery Power Billboard Trailer (Model:EF8NE) makes its debut, equipped with new energy batteries, and its innovative design brings more returns to customers!
We are so excited to introduce our newest product to you , the Battery Power Billboard Trailer (E-F8NE)! This product is the achievement of our careful research and development. It is specially designed for outdoor activities and advertising promotion, aiming to bring customers a more convenient usage mode and higher revenue returns.

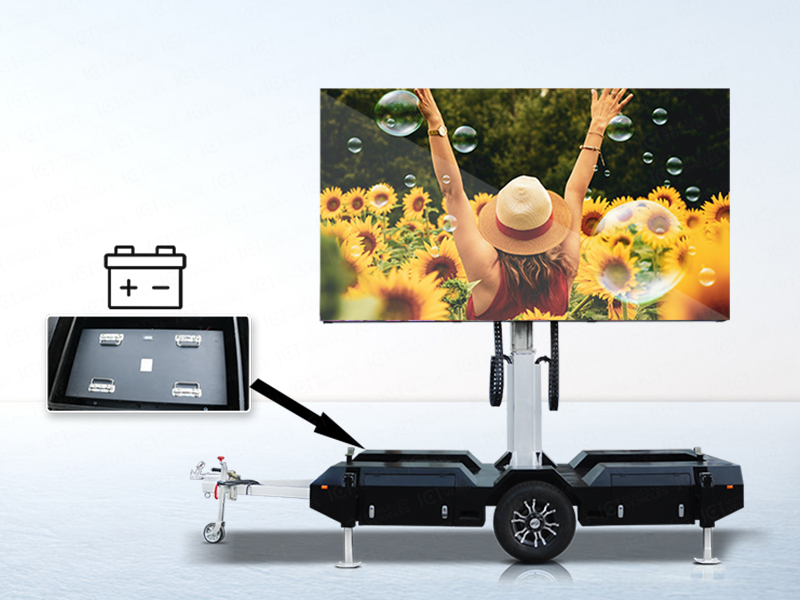

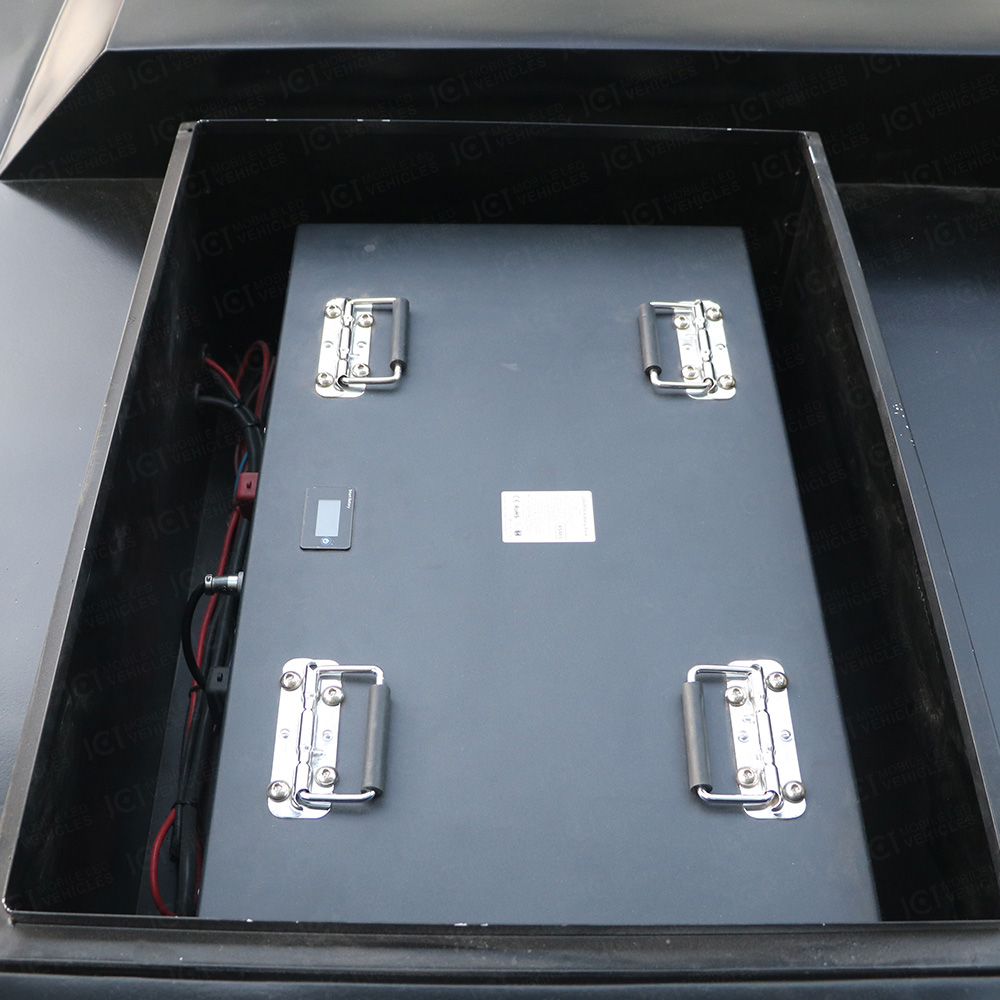

Equipped with a high-quality battery pack, which can keep working for 30 hours on a full charge.
Currently, most LED trailers in the world use an external power supply or install a separate generator to power the LED screen: the former external power supply mode may encounter difficulties in finding a power source during outdoor promotion activities. The supply point is embarrassing, and the latter uses the generator power supply mode, which not only consumes a lot of gasoline and increases the cost of use, but also makes noise during the use of the generator. It will interfere with the sound effects of the advertising video. Our JCT Battery Power Billboard Trailer (E-F8NE) is equipped with a 51.2V300AH high-quality battery pack, which can last for 30 hours on a full charge. It greatly improves the convenience of ground promotion activities and does not require complicated power connections. There is no need for customers to choose the voltage and power, and wide-voltage charging makes it as convenient for customers as using a smartphone! At the same time, new energy batteries are safe, efficient, environmentally friendly and energy-saving, which reduce the usage costs meanwhile bring higher profits.

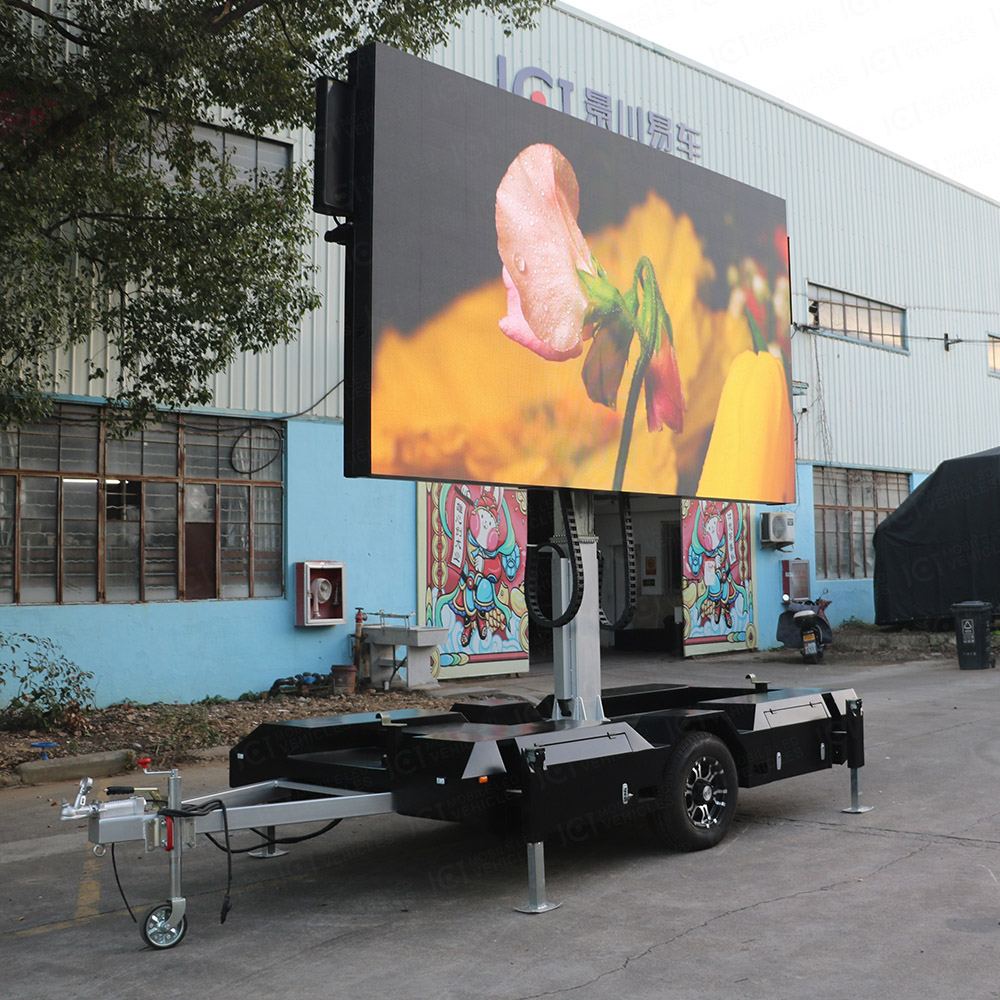

Equipped with 8.8㎡ high-definition outdoor energy-saving screen

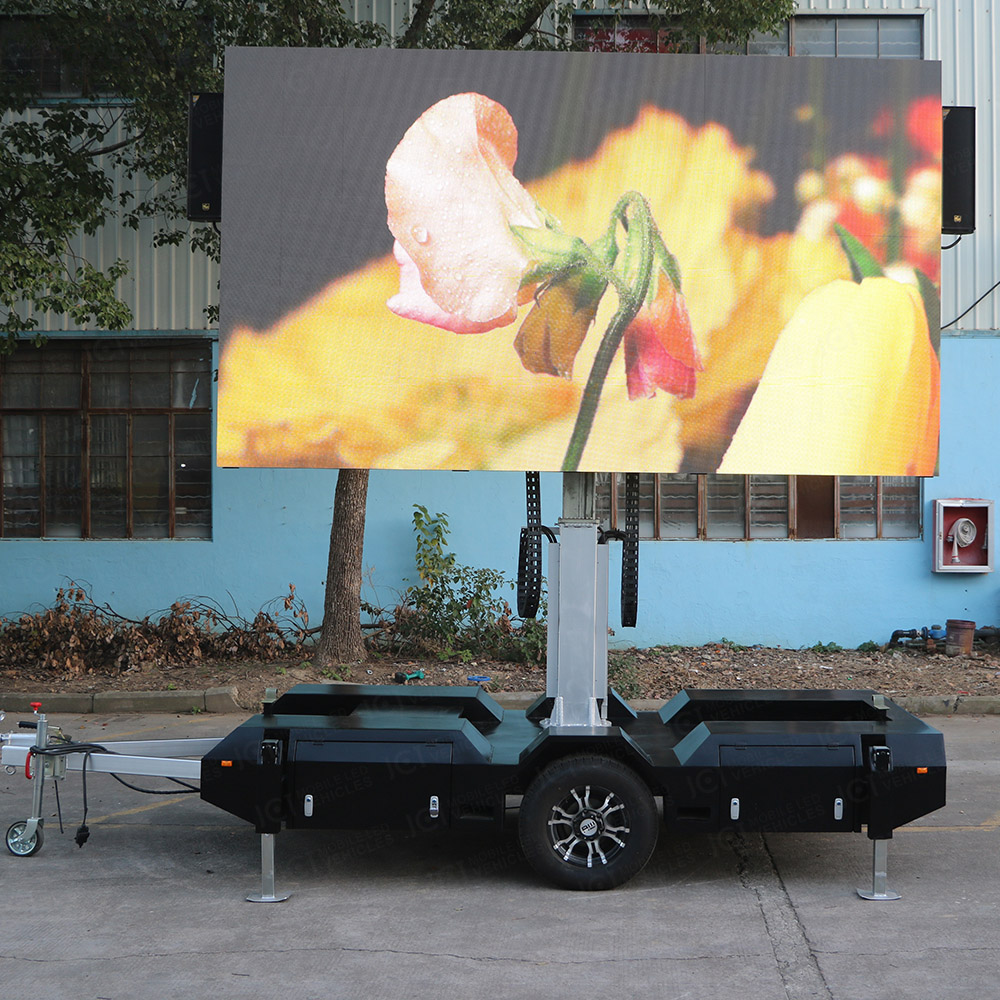

For the screen configuration of this product, we chose the most popular outdoor LED energy-saving screen on the market currently . The screen size is 3840*2240mm, which is equipped with energy-saving driver IC. It saves about 25%-36% more energy than ordinary outdoor LED screens. Its average energy consumption is 60W/㎡and full screen power consumption is 520W. Module kit is fully enclosed with a waterproof ring behind, which is super waterproof, prevents water vapor from entering, and improves the service life of electronic components.

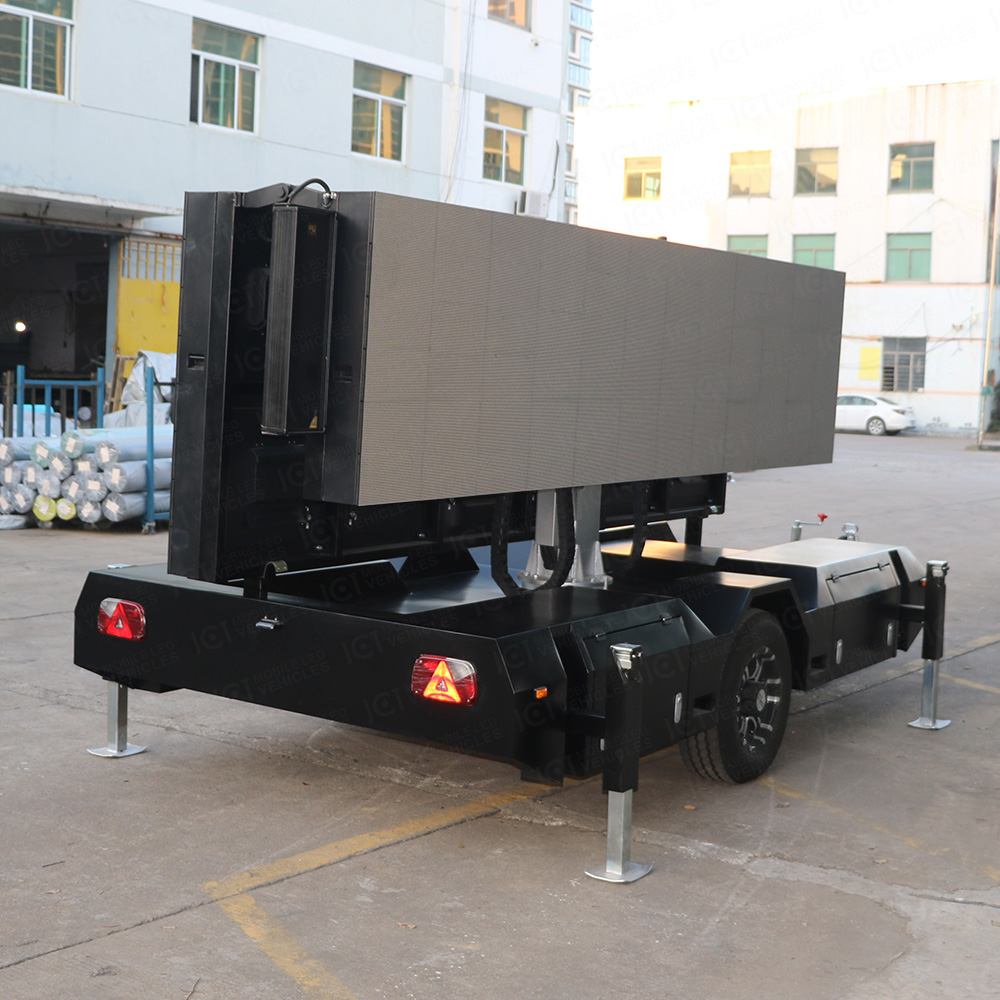

Integrating LED screen lifting, folding and rotating functions into one, creating a new media for outdoor advertising

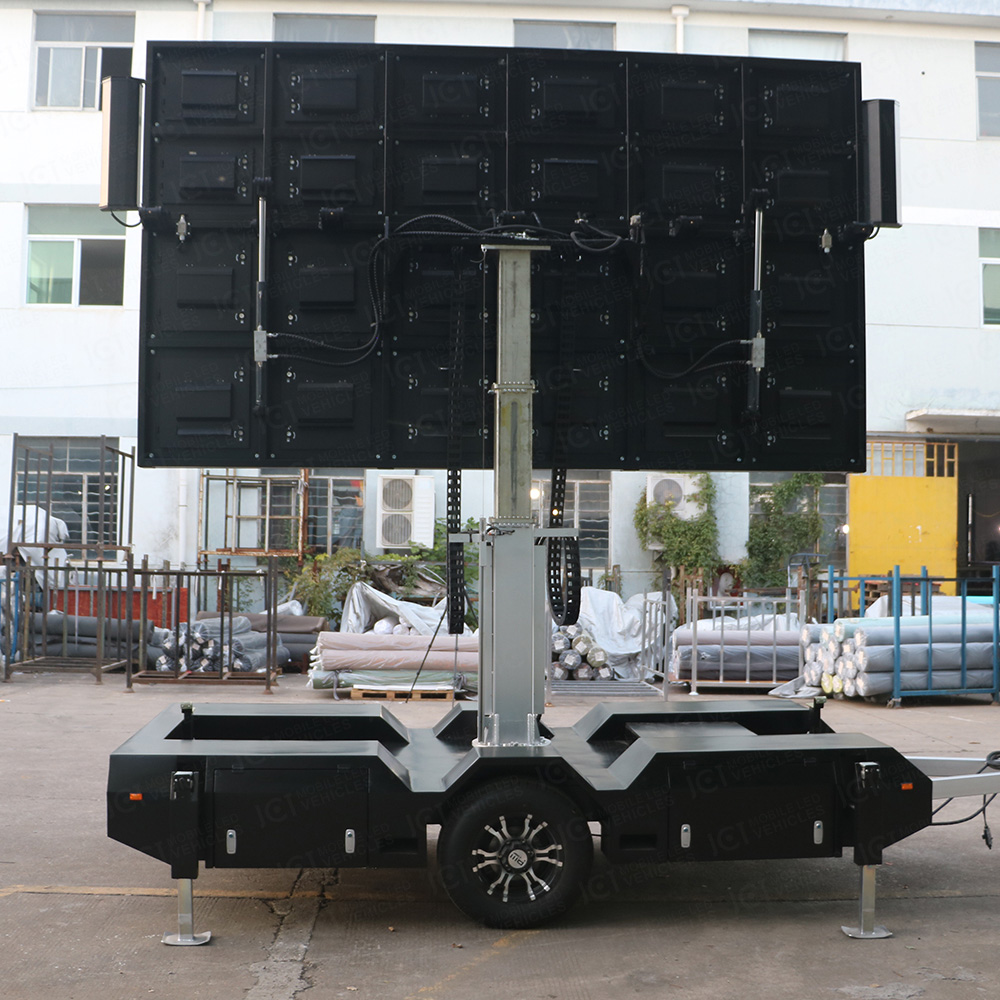

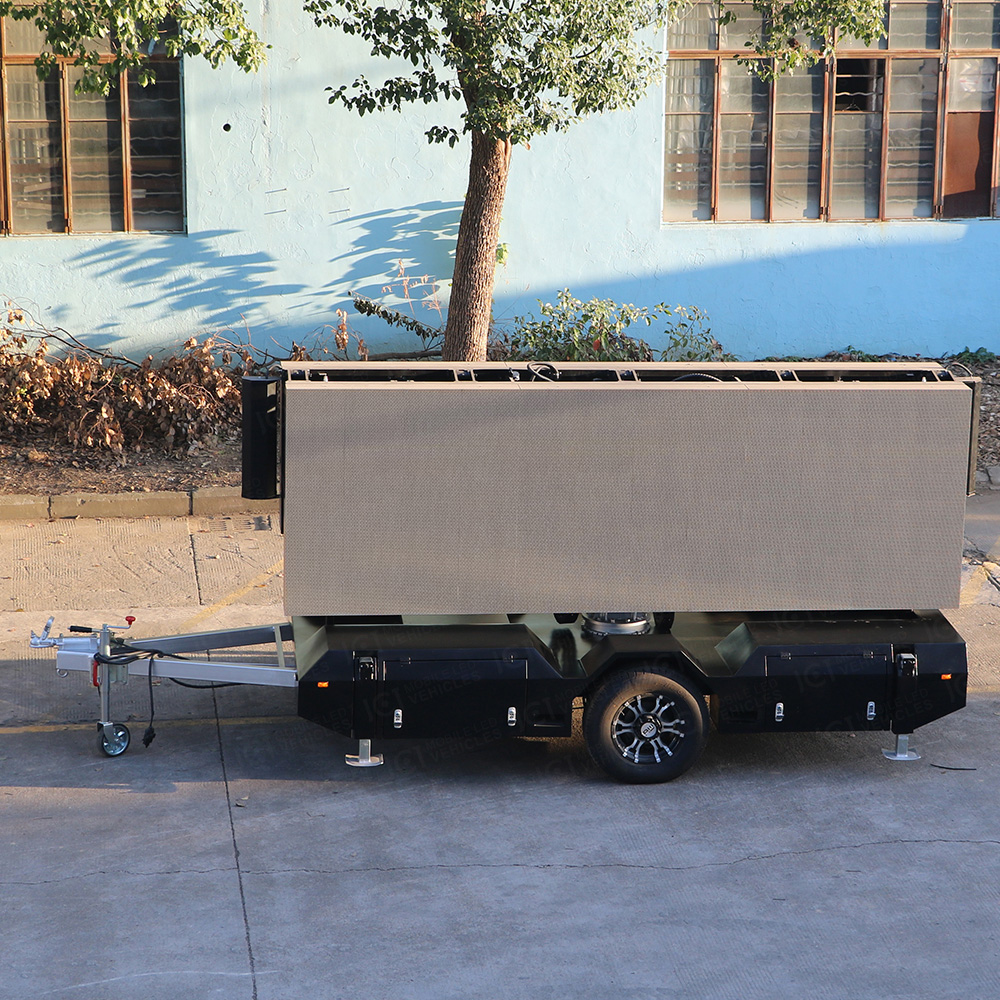

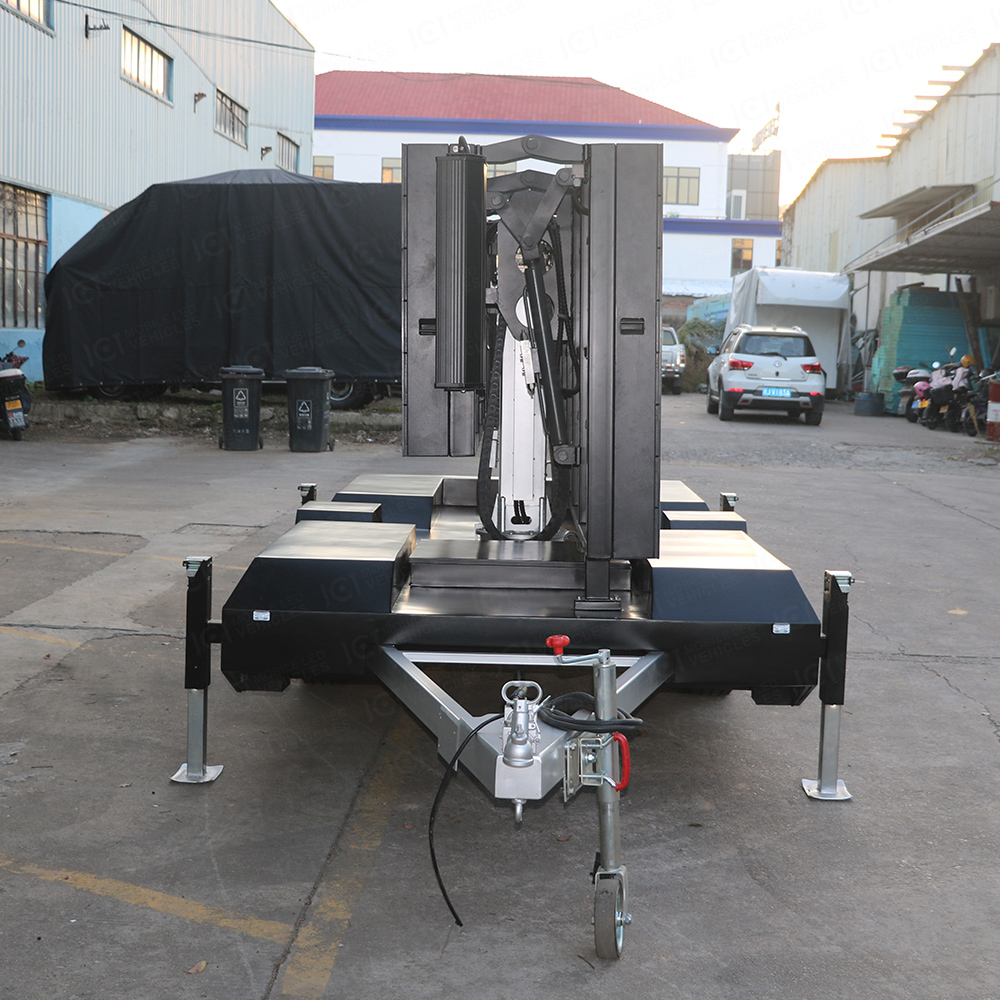

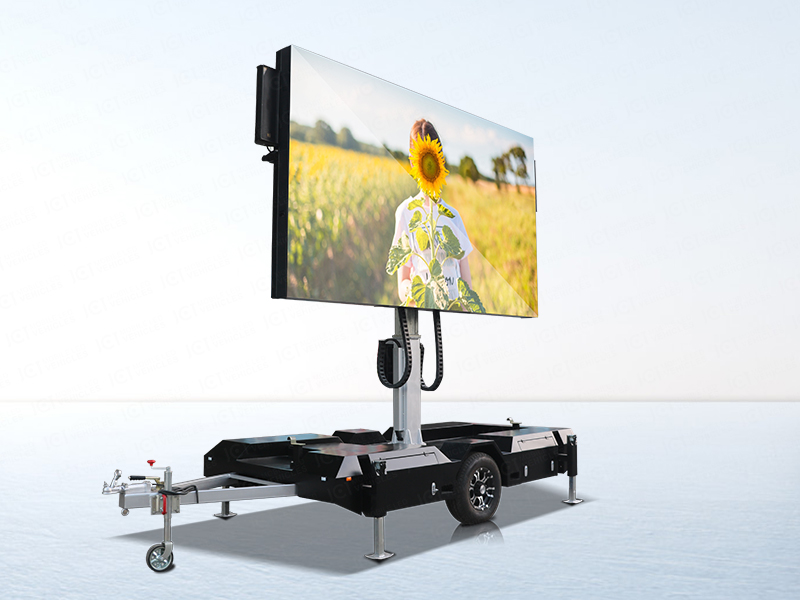

Battery Power Billboard Trailer (E-F8NE) integrates the functions of lifting (1300mm stroke), folding (180° up and down), and rotating (330° manual rotation) together. It can adjust the height and angle of the LED screen according to the needs of the on-site environment,which ensures that the audience can get the best viewing angle and further improving the communication effect. It is especially suitable for use in crowded places such as downtown, gatherings, and outdoor sports events.
Our products adopt advanced manufacturing processes and production equipment to ensure the stability and reliability of product quality and performance. At the same time, JCT pays attention to details and quality control. Every product undergoes strict testing and inspection before leaving the factory to ensure that users have access to high-quality products and services. If you are an advertising company, or you need to promote your advertising outdoors, please don’t miss this product from JCT! We believe that this Battery Power Billboard Trailer (E-F8NE) has the potential to bring you excellent returns!
E-F8NE |
|||
Trailer appearance |
|||
Total weight |
1500kg |
Dimension |
5070mmx1900mmx2042mm |
Max speed |
120Km/h |
Axle |
Load weight 1500KG |
Breaking |
Hand brake |
|
|
LED Screen |
|||
Dimension |
3840mm*2240mm |
Module Size |
320mm(W)*160mm(H) |
Light brand |
Gold wire light |
Dot Pitch |
5 mm |
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
50w/㎡ |
Max Power Consumption |
200w/㎡ |
Power Supply |
Xingxiu 24V |
DRIVE IC |
ICN2153 |
Receiving card |
Nova MRV416 |
Fresh rate |
3840 |
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
LED packaging method |
DIP 570 |
Operating Voltage |
DC5V |
Module power |
18W |
scanning method |
1/8 |
HUB |
HUB75 |
Pixel density |
40000 Dots/㎡ |
Module resolution |
64*32Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Operating temperature |
-20~50℃ |
system support |
Windows XP,WIN 7, |
|
|
The battery |
|||
Dimension |
730mm*430mm*237mm |
Battery specification |
51.2V 300Ah |
Electric charging machine |
|||
Model |
NPB-1200 |
Dimension |
250*158*67mm |
Power parameter |
|||
Input voltage |
90 ~ 264VAC |
Output voltage |
48V |
Inrush current |
28A |
Average power consumption |
50wh/㎡ |
Player System |
|||
Player |
NOVA |
Modle |
TB50-4G |
Luminance sensor |
NOVA |
|
|
Sound System |
|||
Power amplifier |
Unilateral power output:250W |
Speaker |
Max power consumption:50W*2 |
Hydraulic System |
|||
Wind-proof level |
Level 8 |
Supporting legs |
4 pcs |
Hydraulic lifting: |
1300mm |
Fold LED screen |
960mm |
