Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

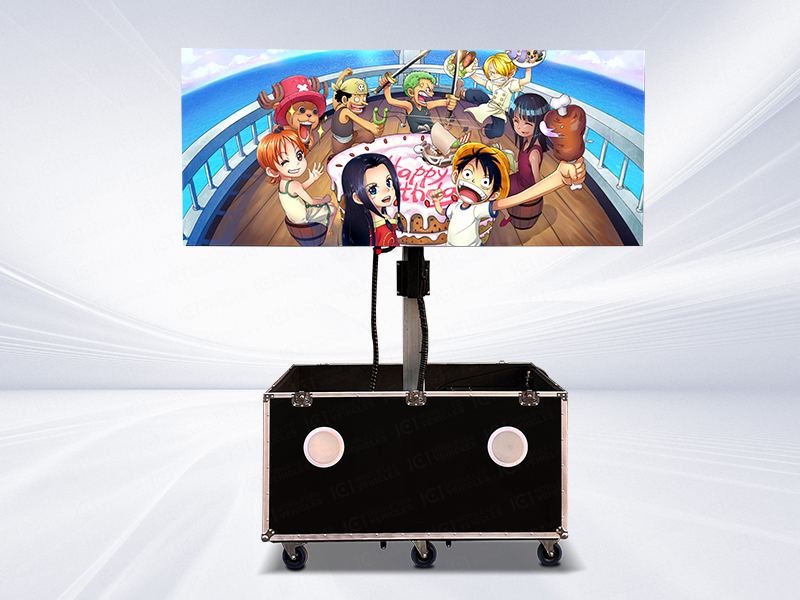

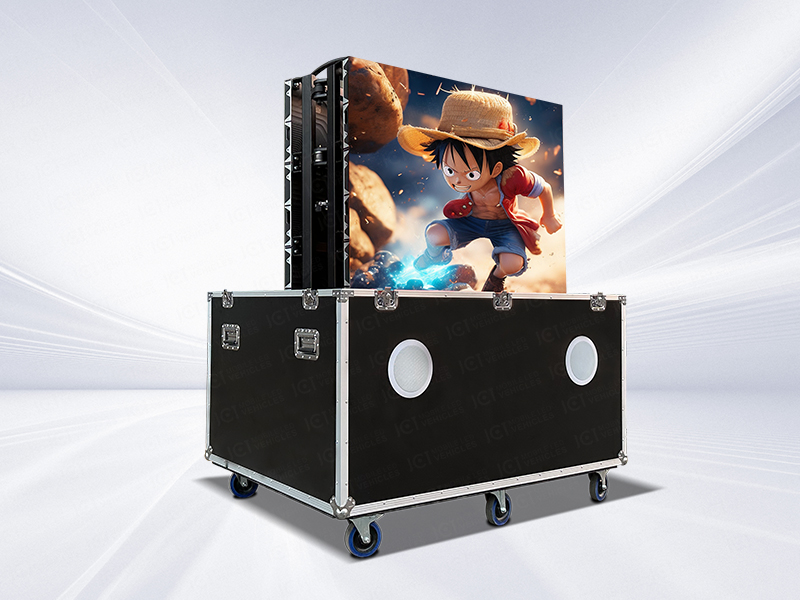

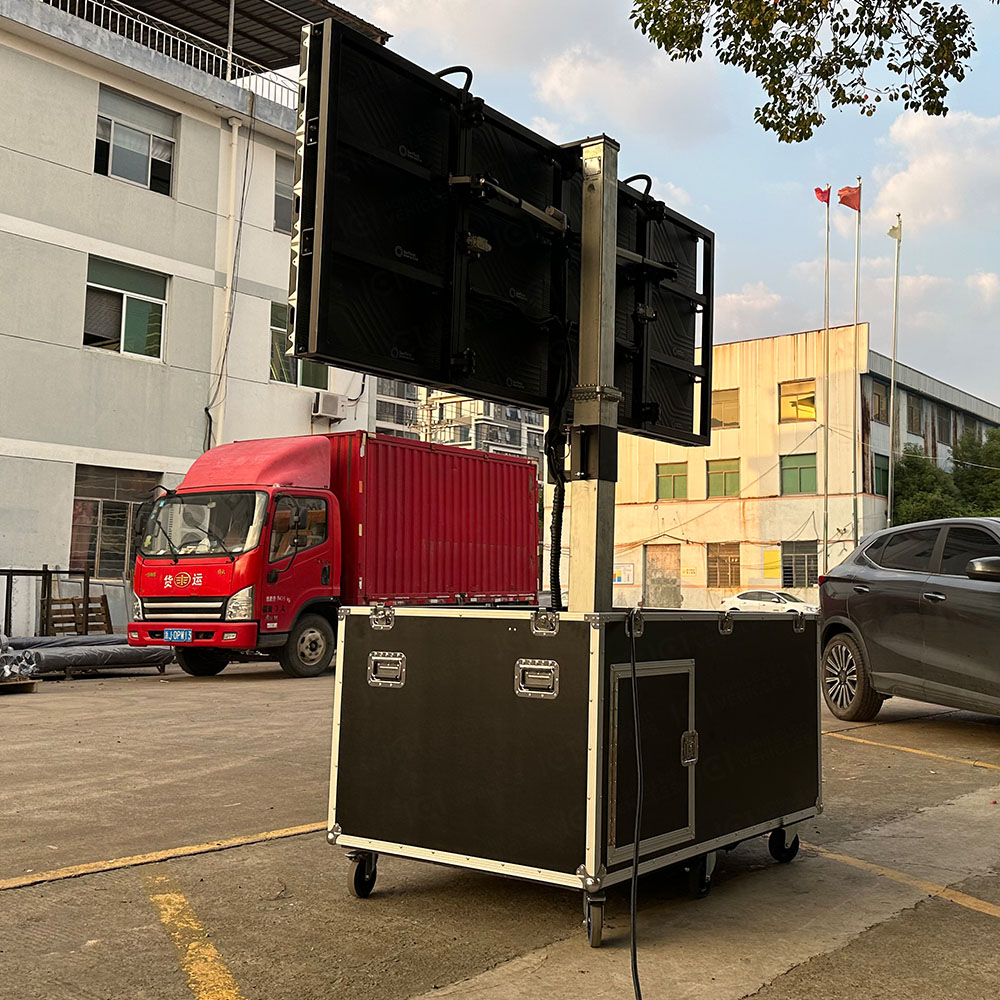

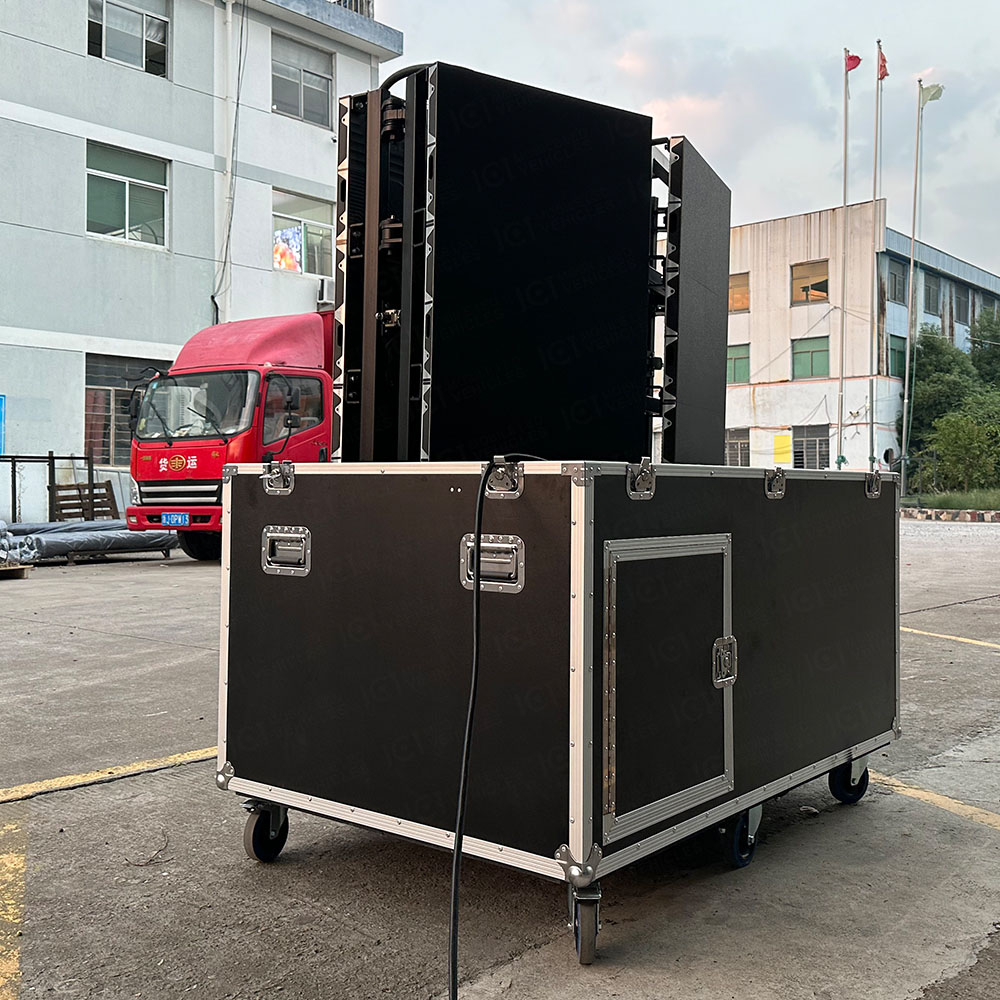

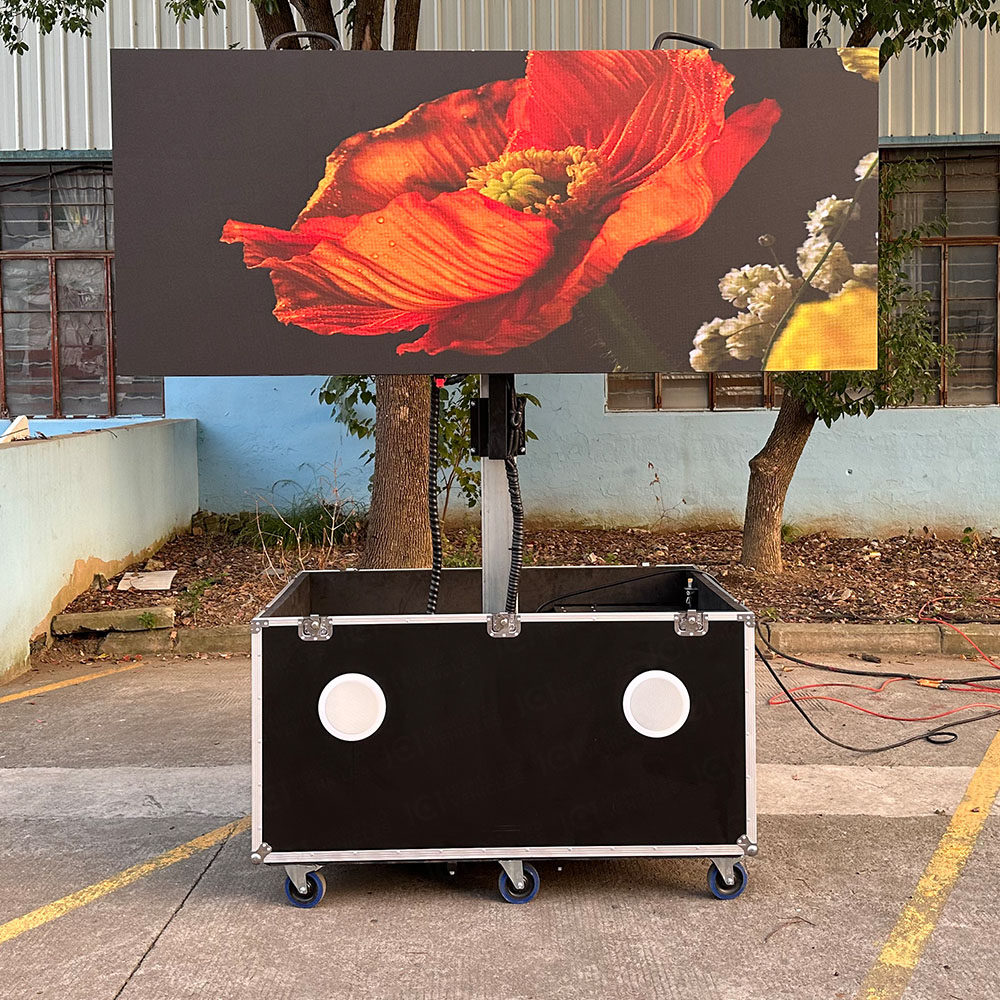

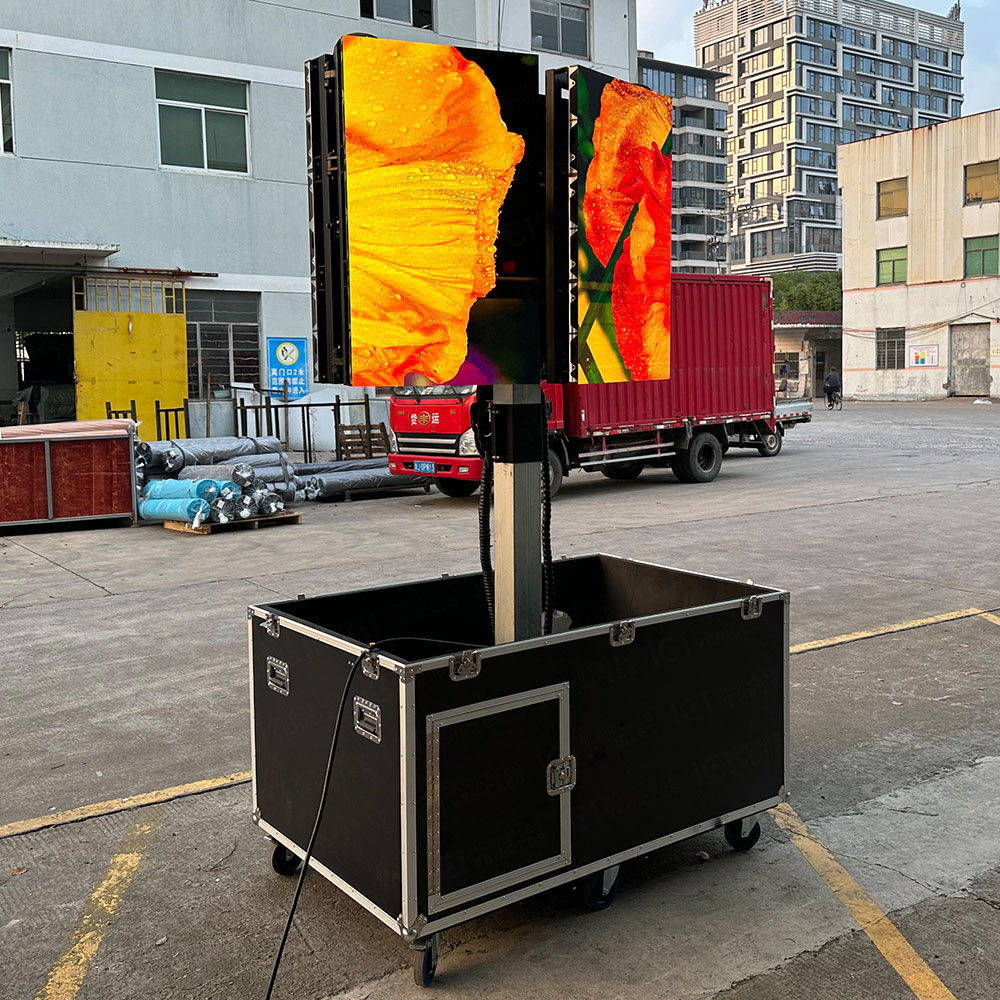

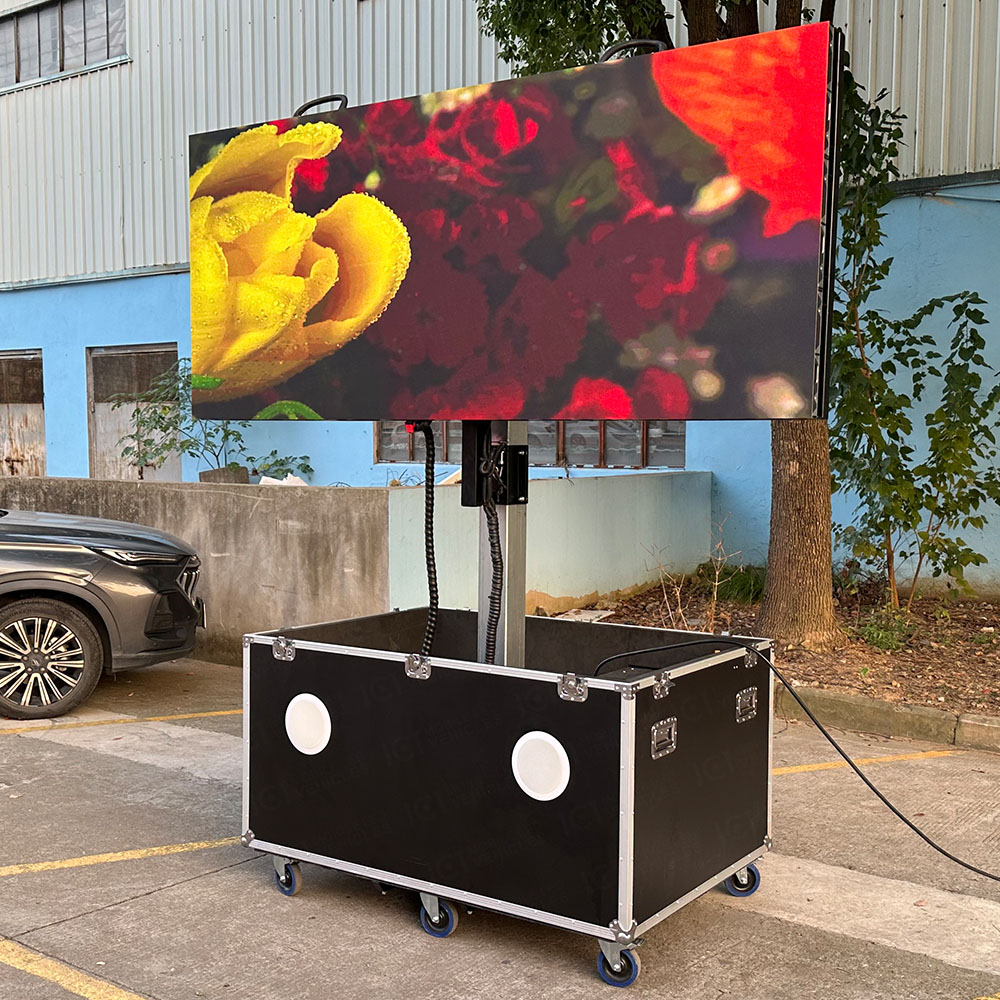

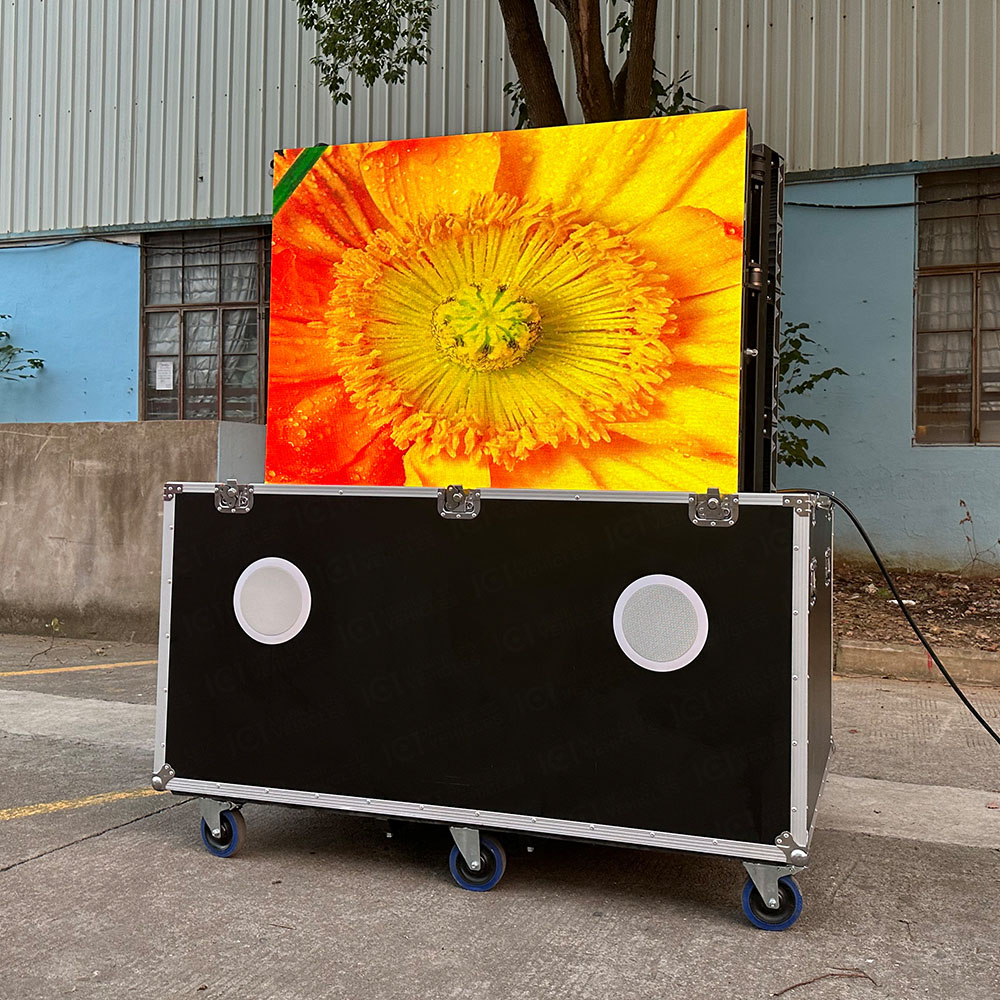

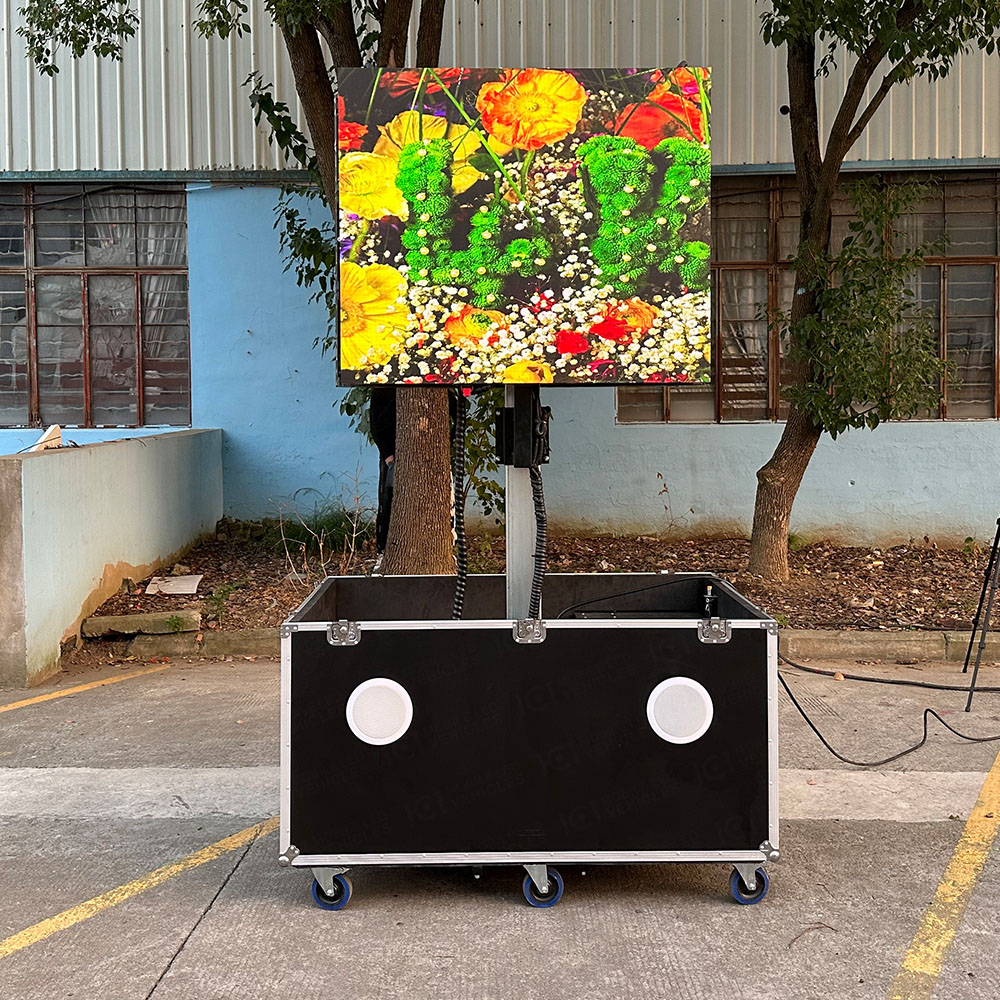

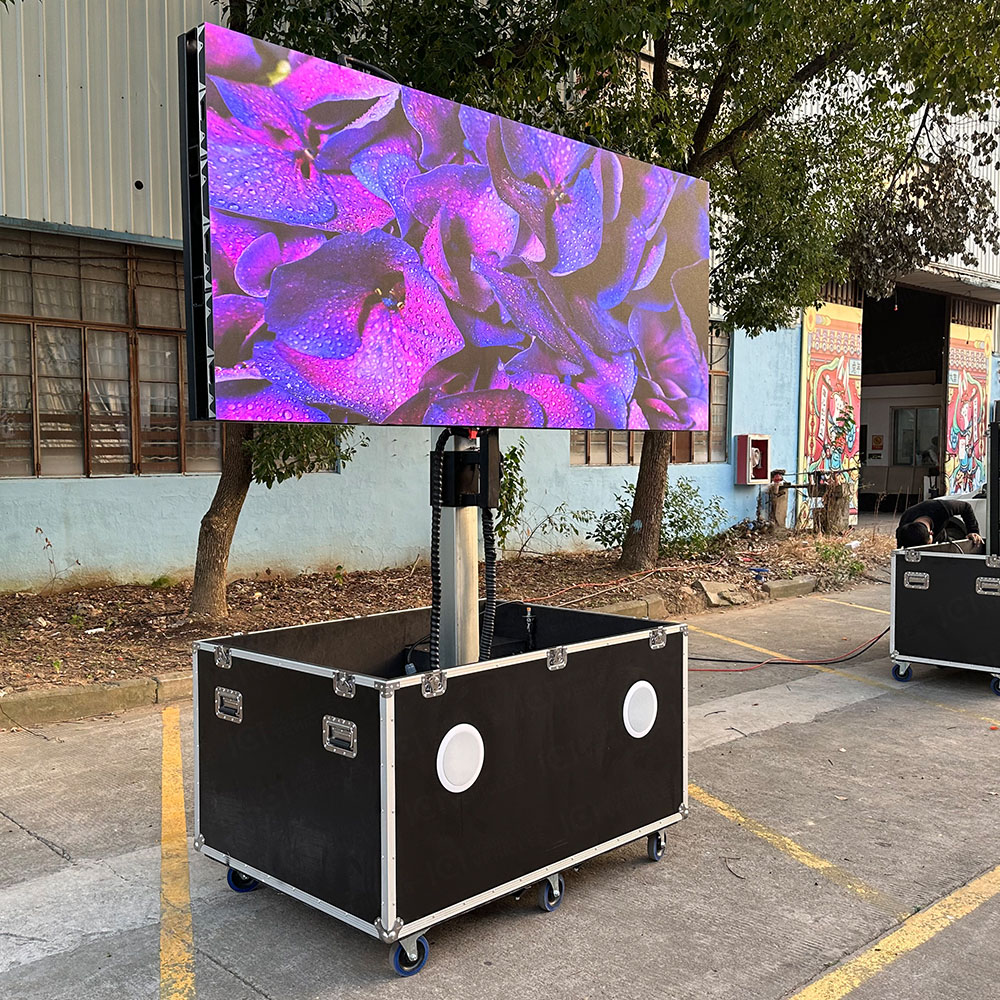

The design concept of portable Flight  case led screen  is to provide users with the best practical value. The overall size is 1610 * 930 * 1870mm, with a total weight of only 340KG. Its portable design makes the construction and disassembly process more convenient and efficient, saving users time and energy. The LED screen adopts a P1.53 high-definition display screen, which can be raised and lowered, with a total height of up to 100 centimeters; The screen is divided into three parts. The two screens on the left and right sides are equipped with hydraulic folding systems. When needed, the two screens can be unfolded with just one button, forming a large screen of 2560 * 1440mm; These operations can be completed in just 35-50 seconds, allowing users to complete layout and display work more quickly.

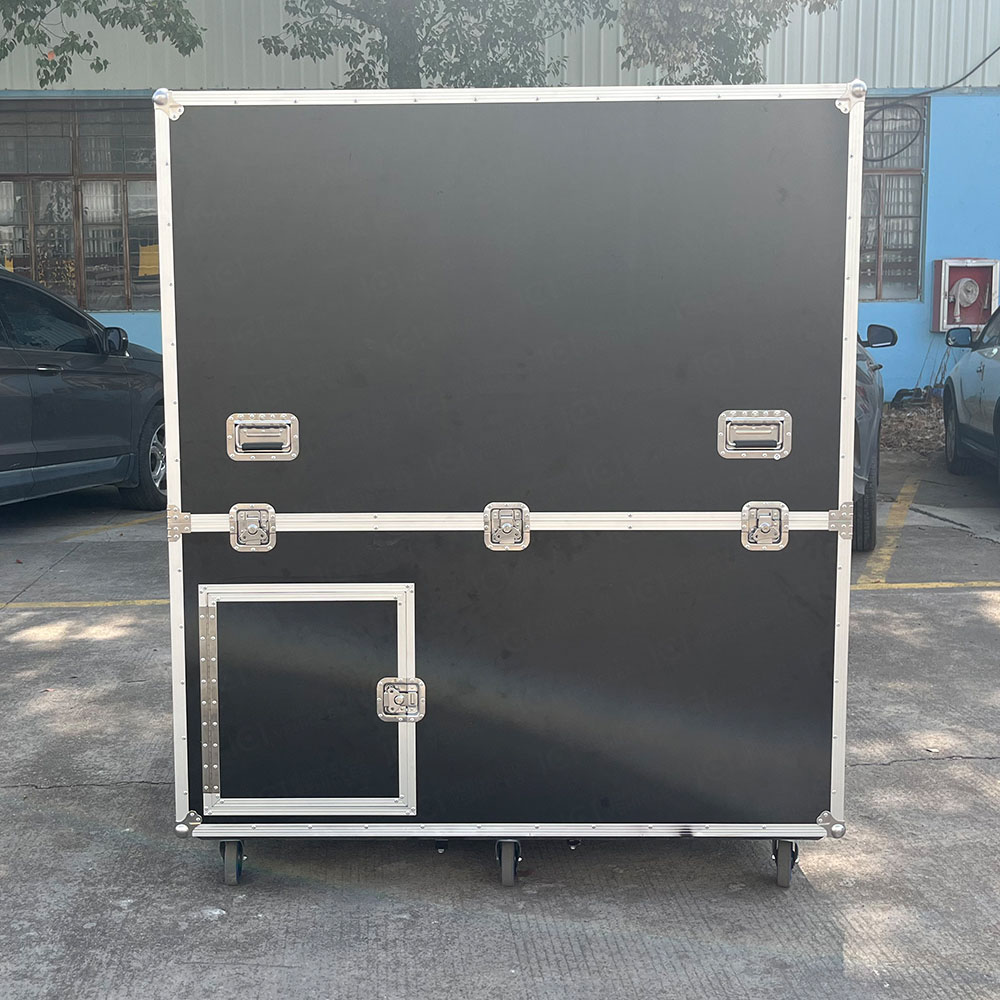

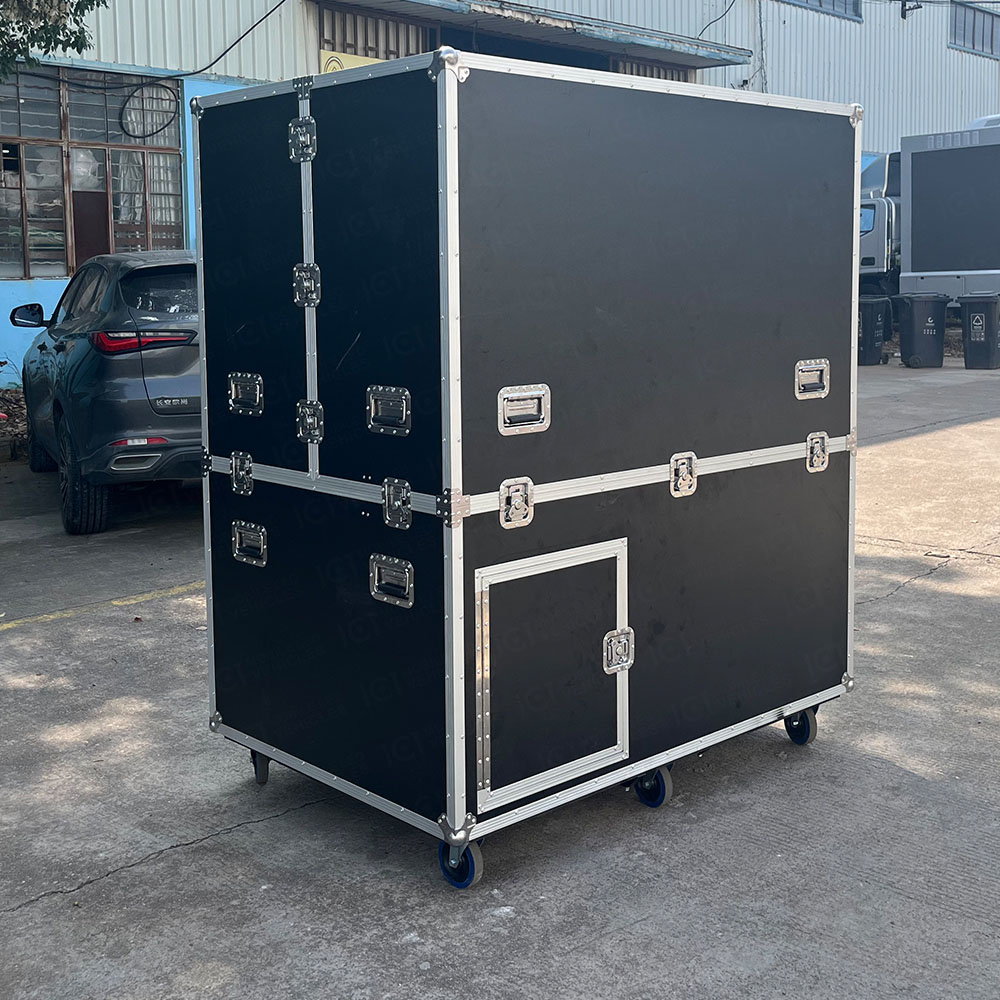

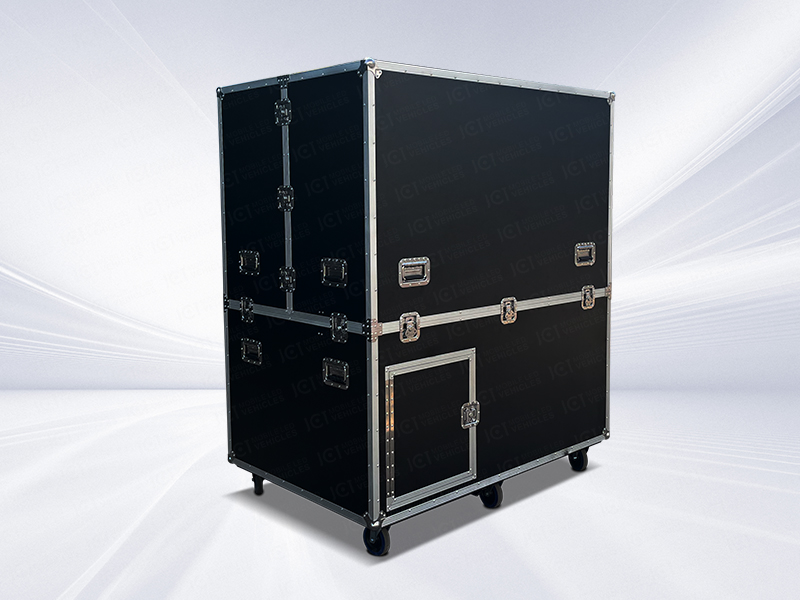

This portable Flight case led screen uses a customized high-quality aviation box as the carrier. The increase in the value of high-tech products determines that the carrier of the product, the aviation box, has higher protection functions. The external structure of the aviation box is made of harder multi-layer plywood with ABS fireproof boards nailed to the wooden box. The sides of the wooden box are made of aluminum alloy profiles with a certain thickness and strength. Each corner of the box is fixed with high-strength metal spherical corners and alloy aluminum edges and plywood. The bottom of the box is composed of PU wheels with strong load-bearing and wear-resistant capabilities, which are safer and more stable in movement, providing longer service life and stronger support for LED screens. Whether in harsh outdoor environments or indoor activities, it can stably and reliably display high-definition images, bringing users a more stunning visual experience.

In addition, portable Flight case led screen also has excellent audio-visual effects and multimedia functions. The high-definition image quality and high-quality sound effects enable users to enjoy an immersive audio-visual feast in various occasions. Moreover, the product also supports playback in multiple media formats, meeting the diverse entertainment and display needs of users.

Overall, Portable Flight case led screen is a powerful, stable, and convenient mobile multimedia and outdoor advertising promotion new medium. Whether it is commercial exhibitions, outdoor activities, or entertainment performances, they can all bring excellent audio-visual experiences to users. Its customized heavy-duty hardware and portable design make it easier for users to build and showcase excellent audiovisual effects. Let's enjoy the audio-visual feast brought by the portable aviation box LED display screen together!

Parameters

Portable Flight  case led screen

Specification

Flight case appearance

Flight casesize

1610×930×1870mm

Universal wheel

500kg

7PCS

Total weight

342KG

Flight case parameter

1, 12mm plywood with black fireproof board
2, 5mmEYA/30mmEVA
3, 8 round draw hands
4, 6 (4 "blue 36-width lemon wheel, diagonal brake)
5, 15MM wheel plate
Six, six locks
7. Fully open the cover
8. Install small pieces of galvanized iron plate at the bottom

LED Screen

Dimension

2560mm*1440mm

Module Size

320mm(W)*160mm(H)

Light brand

Kinglight

Dot Pitch

1.538 mm



Brightness

1000cd/㎡

Lifespan

100,000hours



Average Power Consumption

130w/㎡

Max Power Consumption

400w/㎡



Power Supply

E-energy

DRIVE IC

ICN2153



Receiving card

Nova MRV316

Fresh rate

3840



Cabinet material

Die casting aluminum

Cabinet weight

aluminum 9kg



Maintenance mode

Rear service

Pixel structure

1R1G1B

LED packaging method

SMD1212

Operating Voltage

DC5V



Module power

18W

scanning method

1/52



HUB

HUB75

Pixel density

422500 Dots/㎡



Module resolution

208*104Dots

Frame rate/ Grayscale, color

60Hz,13bit



Viewing angle, screen flatness, module  clearance

H:120°V:120°、
<0.5mm、<0.5mm

Operating temperature

-20~50℃



system support

Windows XP,WIN 7,



Power parameter (external prower supply)

Input voltage

Single phase 120V

Output voltage

120V



Inrush current

15A





Control system

receiving card

2pcs

NOVA TB50

1 pcs



Hydraulic lifting

Lifting:

1000mm
