Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

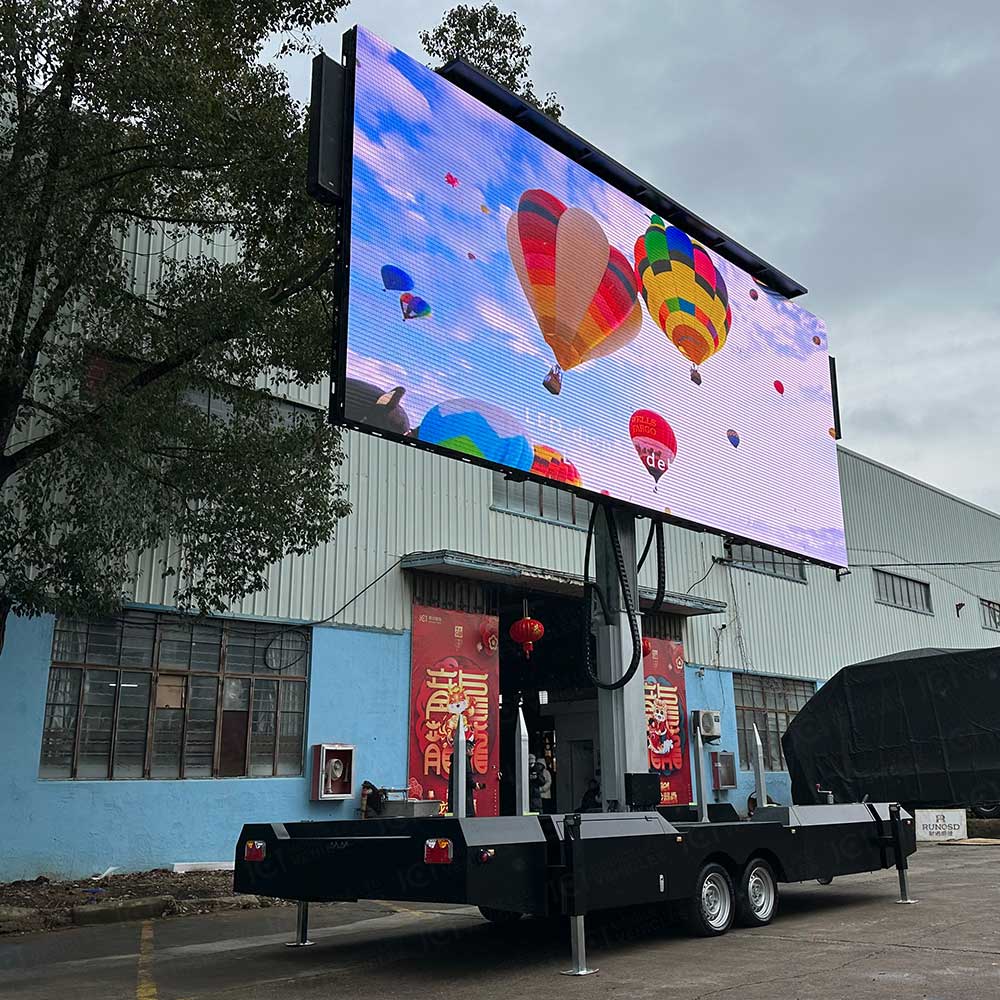

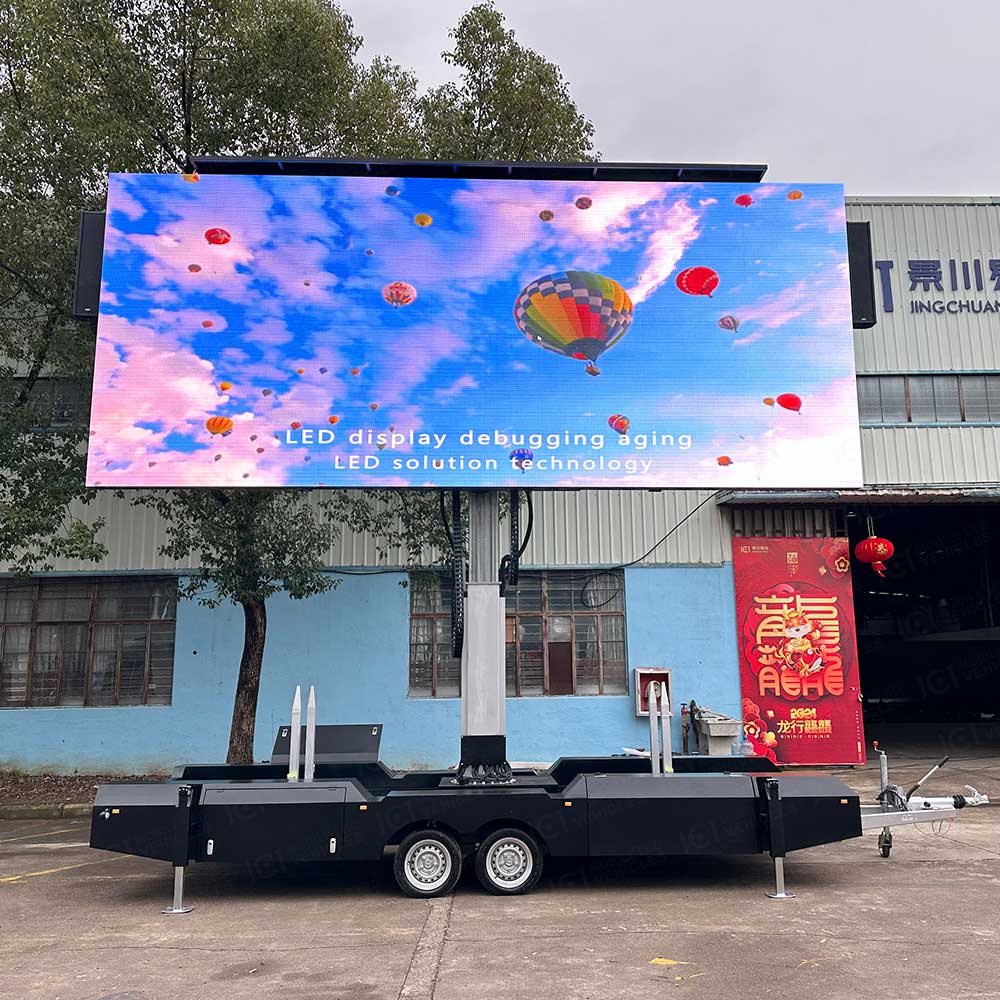

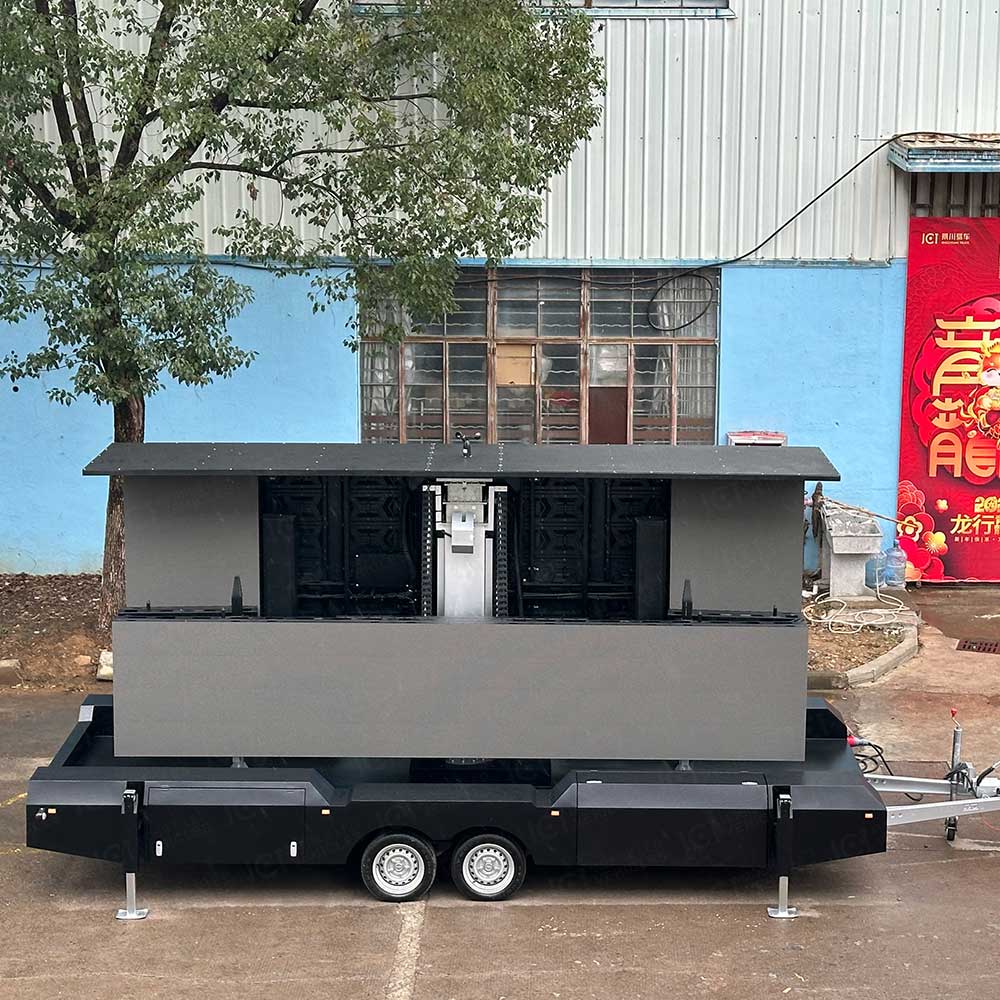

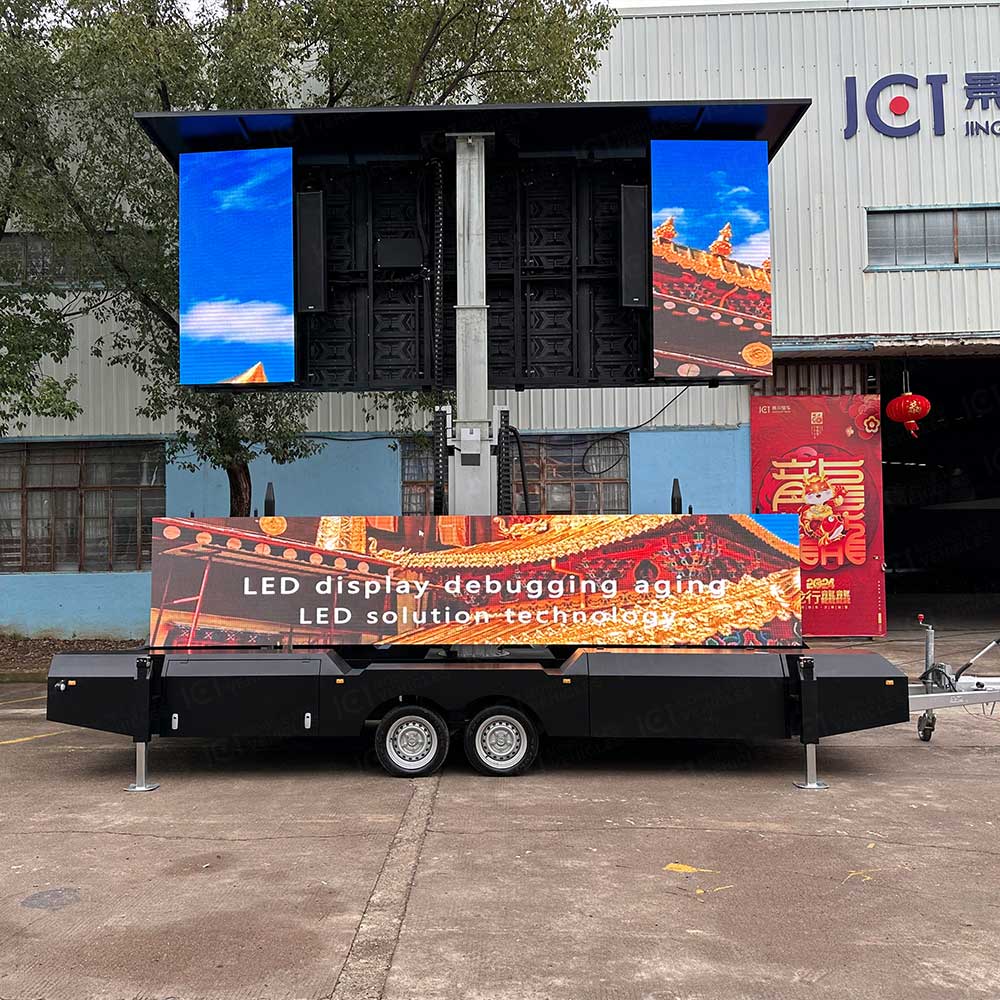

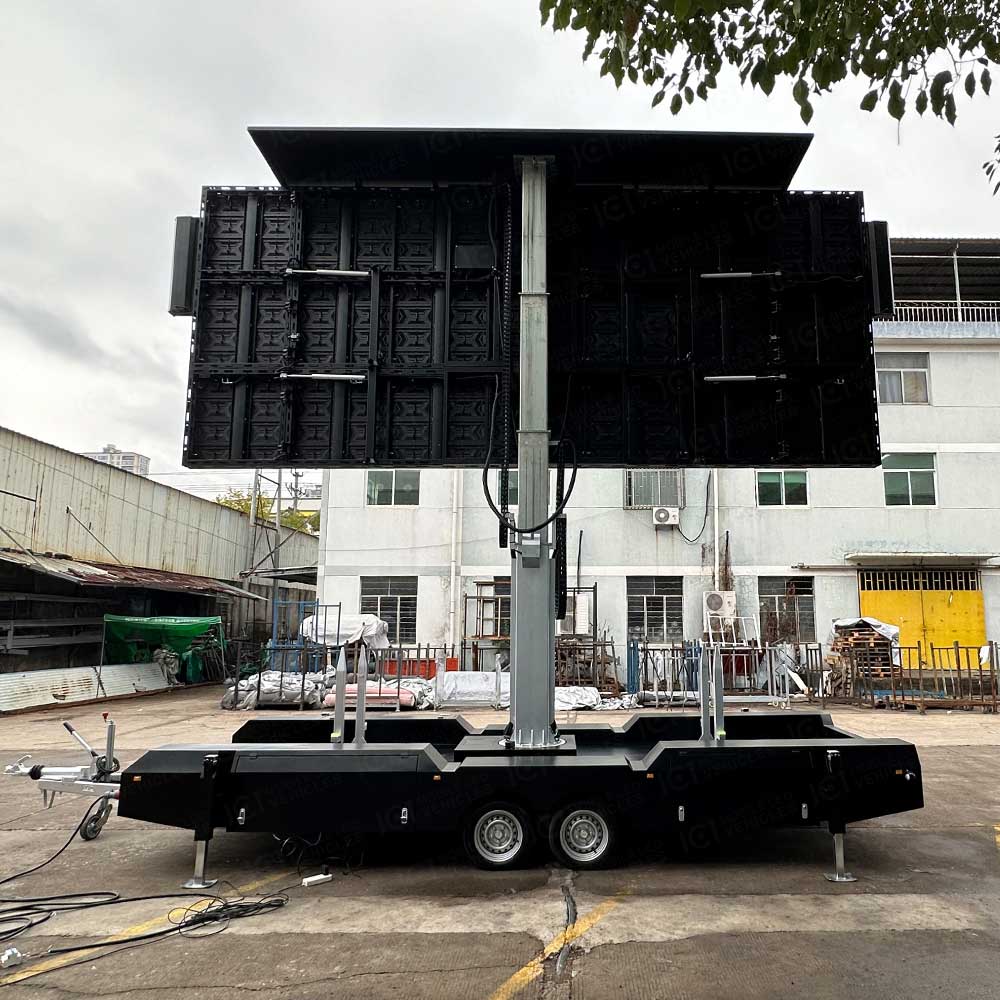

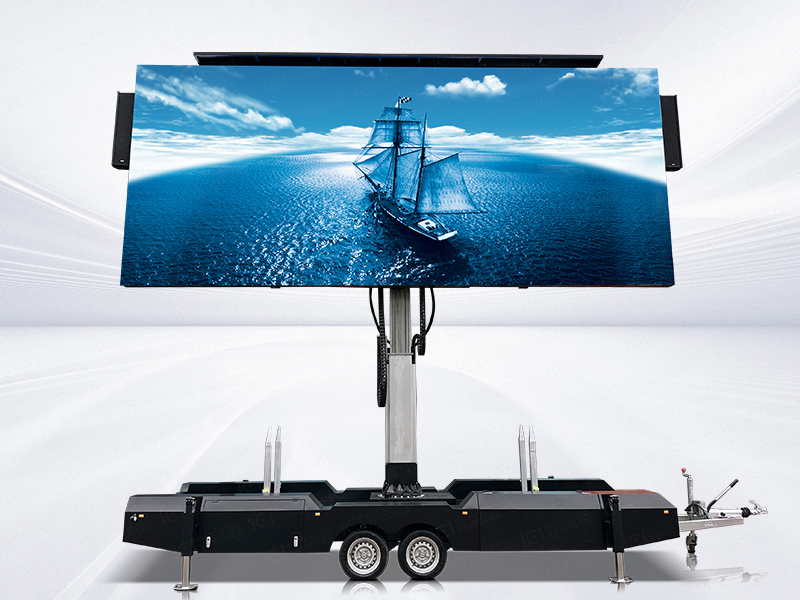

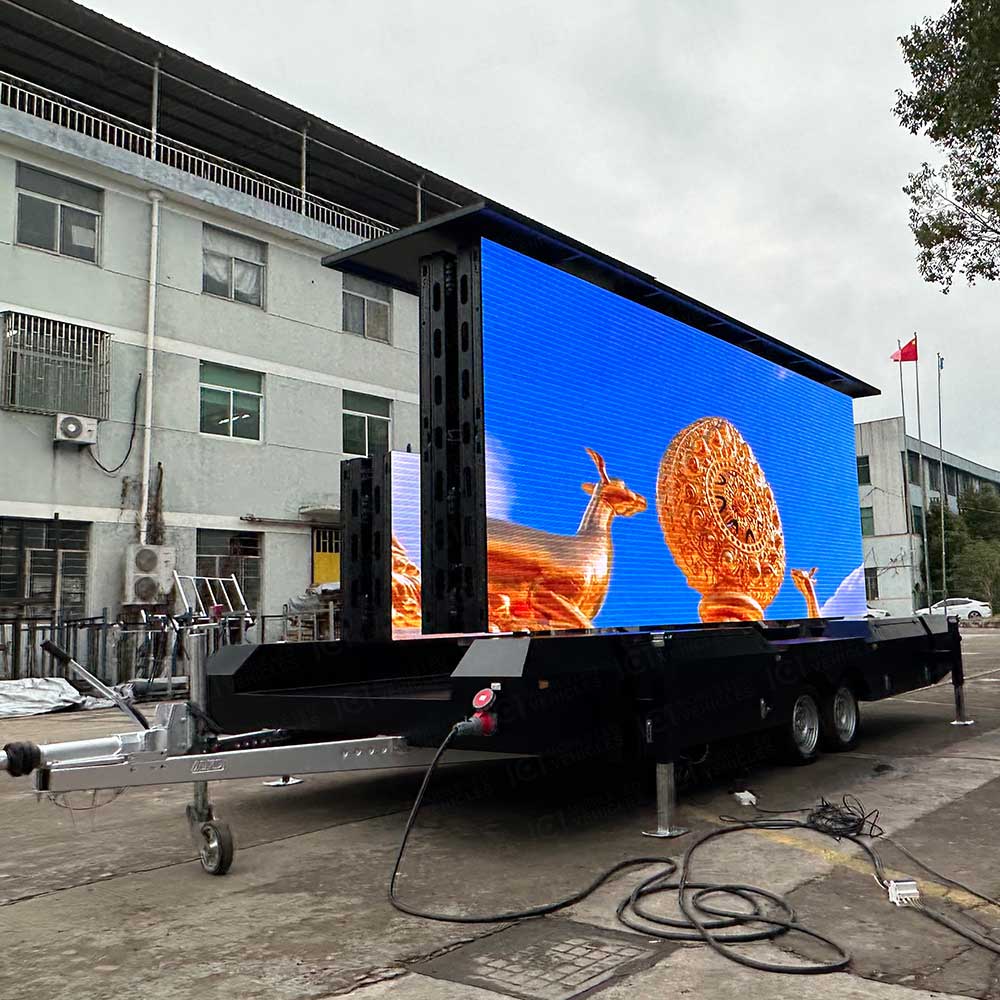

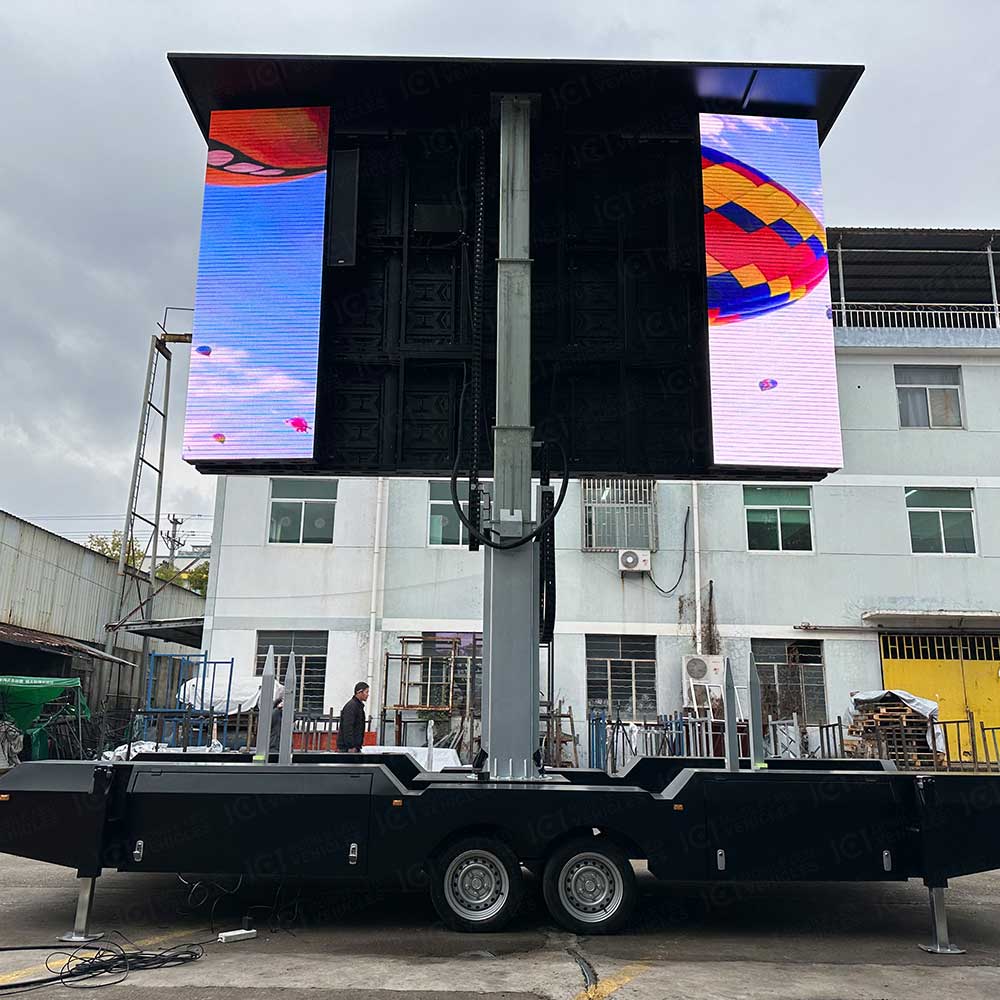

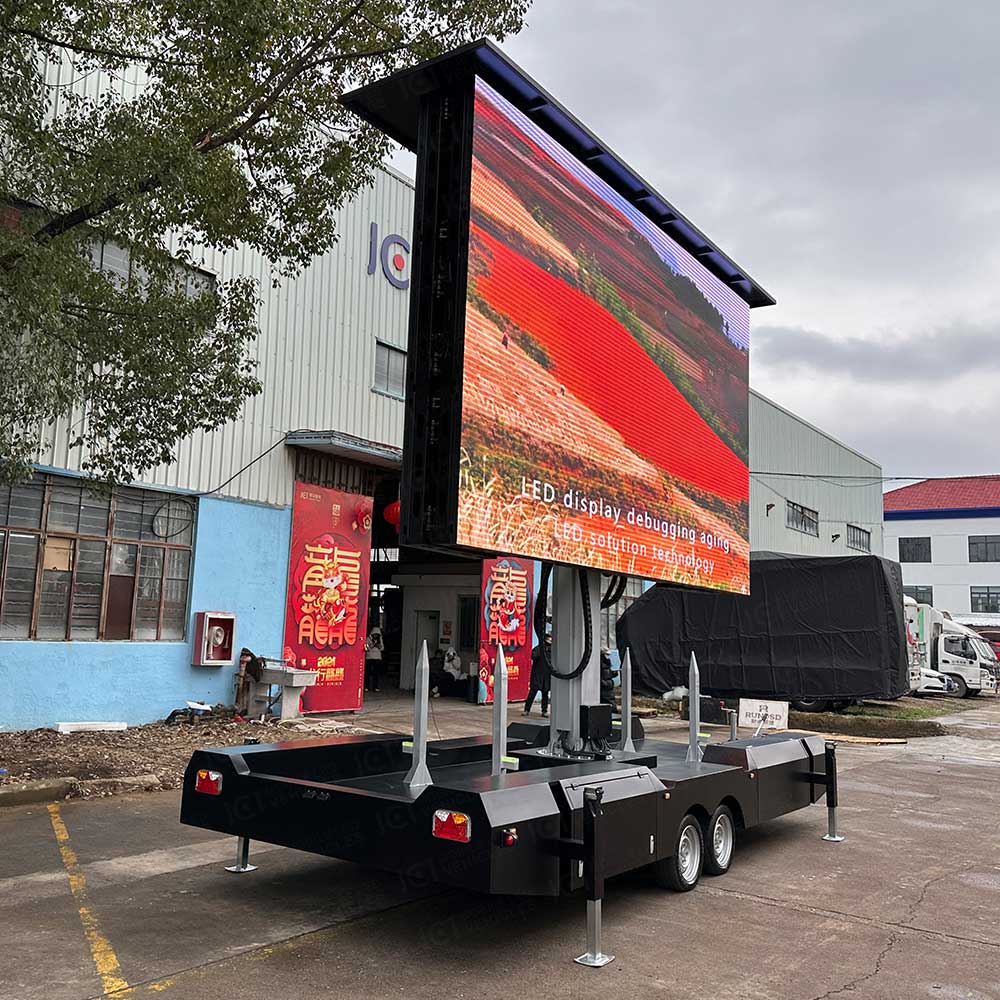

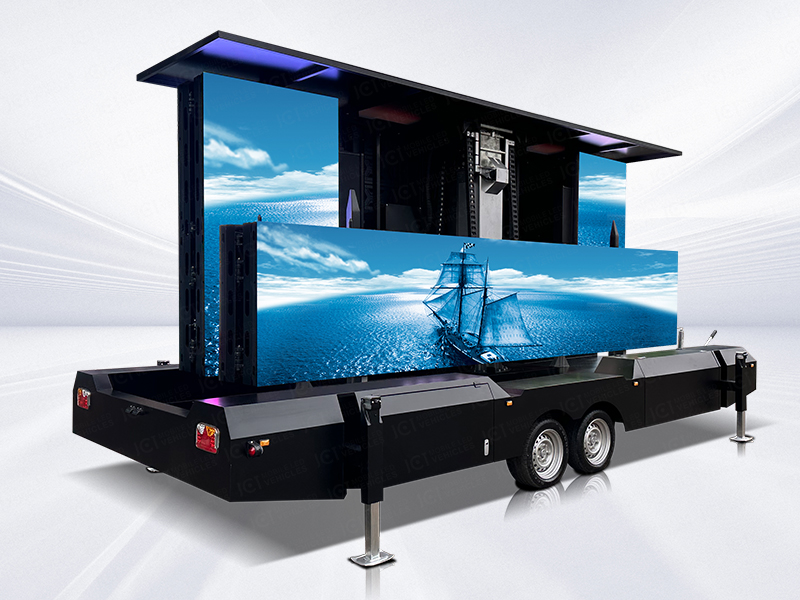

MBD-21S Platform LED trailer is a new product created by JCT in 2024. It is designed for remote control with one-button operation for customer convenience. Customer simply gently presses the start button, The home screen automatically lifts up, The screen will automatically rotate the lock screen after rising to the height set by the program, Lock up another large LED screen below, Hydraulic drive upward rise; nay, After the screen rises to the specified height again, Folding screens on the left and right sides unfold, Turn the screen into a large overall size display of 7000 * 3000mm, Bring the audience a super-shocking visual experience, Greatly enhance the publicity effect of businesses; LED screen can also be operated hydraulically by, Make a 360 rotation, No matter where the product is parked, Can adjust the height and rotation angle through the remote control button, Put it in the optimal visual position. The whole operation only takes 15 minutes, and the whole LED trailer can be put into use, saving users time and money, and making users feel at ease.

In addition, the 21㎡ Platform Mobile Led Trailer structure is rugged and durable, adaptable to a variety of complex outdoor environments and climatic conditions, ensuring the stability and reliability of the equipment. Moreover, its rapid deployment and mobile design enable users to complete the use and evacuation of the equipment in a short period of time, greatly improving the efficiency of use and flexibility.


This MBD-21S Platform LED trailer has several key features, including:

Hd LED display: equipped with high resolution LED display, to ensure that in a variety of light conditions can present a high quality visual effect;

Light and flexible: light structure, easy to build, suitable for a variety of places and activities.

Remote control: support remote control system, facilitate you to update and manage the display content anytime and anywhere.

Multiple connection modes: support a variety of input signals, such as HDMI, DVI, VGA, etc., to meet the connection requirements of different devices.

The 21㎡ Platform Mobile Led Trailer is suitable for a variety of scenarios and purposes, whether in outdoor activities, exhibitions, sports or other large-scale activities, mobile LED trailer can attract people's attention, through LED trailer display product information and advertising content, attract more attention of target customers, bring more exposure and publicity effect.

In short, the MBD-21S Platform LED trailer is a powerful, convenient, and effective outdoor mobile advertising display device, bringing new possibilities and opportunities for the promotion activities of businesses. Whether it is brand promotion, product promotion or event on-site interaction, mobile LED trailer can become the right-hand man of businesses, to bring more attention and success.

Parameters

MBD-21S Platform

Trailer appearance

Gross weight

3200kg

Dimension  (screen up)

7500×2100×2800mm

Chassis

German-Made AIKO

Max speed

100Km/h

Breaking

Hydraulic breaking

Axle

2 axles,Bearing 3500kg

LED Screen

Dimension

7000mm(W)*3000mm(H)

Module Size

250mm(W)*250mm(H)

Light brand

Nationstar

Dot Pitch

3.91mm

Brightness

5000cd/㎡

Lifespan

100,000hours

Average Power Consumption

200w/㎡

Max Power Consumption

600w/㎡

Power Supply

G-energy

DRIVE IC

ICN2153

Receiving card

Nova MRV316

Fresh rate

3840

Cabinet material

Die-casting aluminum

Cabinet size/weight

500*500mm/7.5KG

Maintenance mode

Rear service

Pixel structure

1R1G1B

LED packaging method

SMD1921

Operating Voltage

DC5V

Module power

18W

scanning method

1/8

HUB

HUB75

Pixel density

65410 Dots/㎡

Module resolution

64*64Dots

Frame rate/ Grayscale, color

60Hz,13bit

Viewing angle, screen flatness, module  clearance

H:120°V:120°、<0.5mm、<0.5mm

Operating temperature

-20~50℃

Power parameter

Input voltage

Three phases five wires 415V

Output voltage

220V

Inrush current

30A

Average power consumption

250wh/㎡

Play Control System

Video processor

NOVA

Model

VX600

Luminance sensor

NOVA

Multi-function card

NOVA

Sound Control System

Power amplifier

1000W

Speaker

200W*4

Hydraulic System

Wind-proof level

Level 8

Supporting legs

Stretching distance 300mm

Hydraulic Lifting and folding system

Lifting Range 2000mm, bearing 3000kg,
hydraulic screen folding system



Notes

Maximum trailer weight :3500 kg

Trailer width:2.1m

Maximum Screen height (top):7.5m

Galvanized chassis made according to DIN EN 13814 and DIN EN 13782

Anti slip and waterproof floor

Hydraulic, galvanized and powder coated telescopic mast with automatic mechanical safety locks

Hydraulic pump with manual control (knobs) to lift LED screen up:3 phase

360o screen manual rotation with mechanical lock

Auxilary emergency manual control - handpump - screen folding without power according to DIN EN 13814

4 x manually adjustable sliding outriggers,For very large screens it may be necessary to put out the outriggers for transport (you can take it to the car pulling the trailer).
