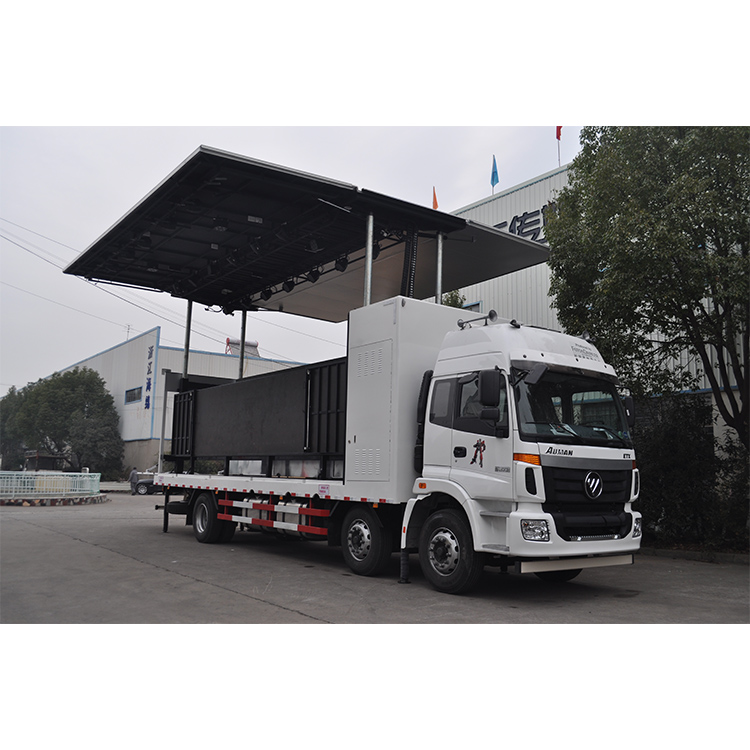

E-WT9600 12 m led stage truck: mobile performance art
In modern society, activities and performances require a high degree of flexibility and efficiency, and JCT's E-WT9600 12m led stage truck was born to meet this demand. This custom stage car is not only a convenient transportation tool, but also an all-round platform that can be quickly developed into a professional stage.
1. Multi-functional and integrated design

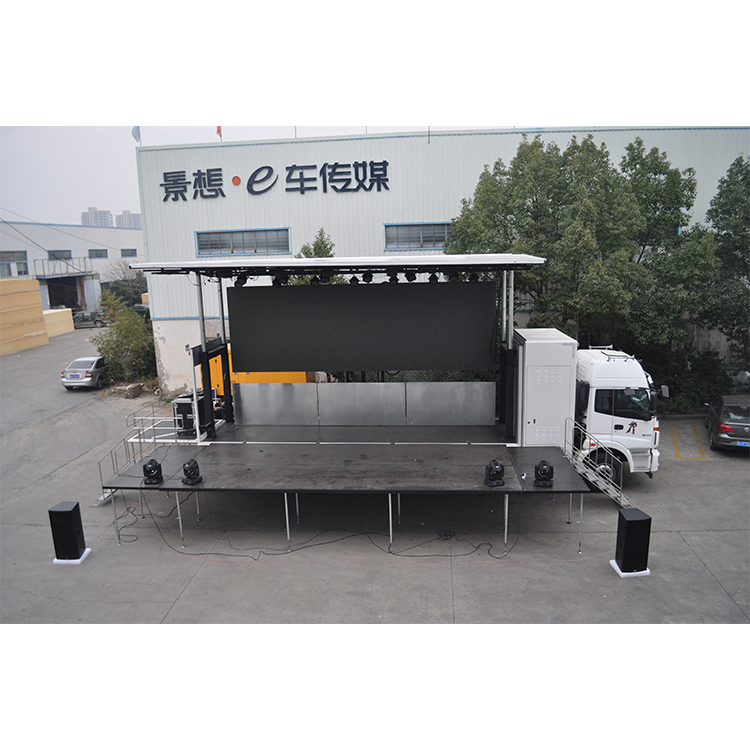

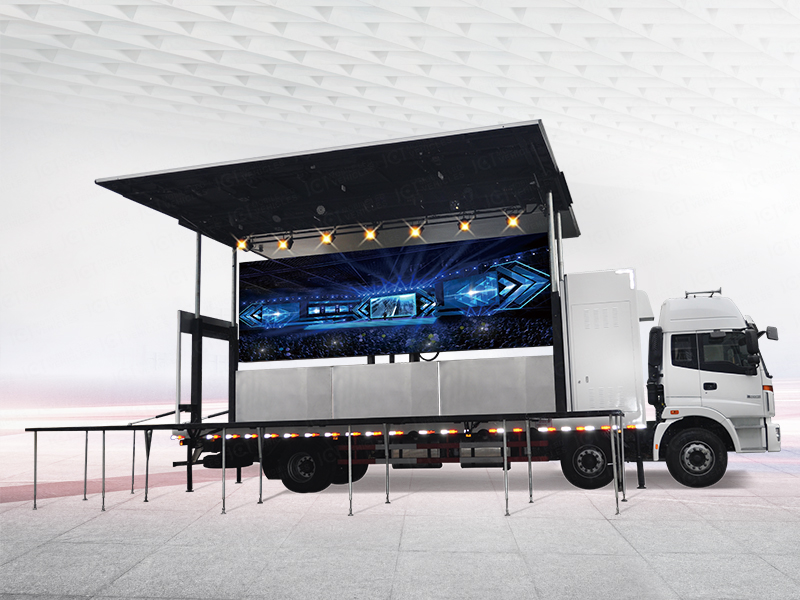

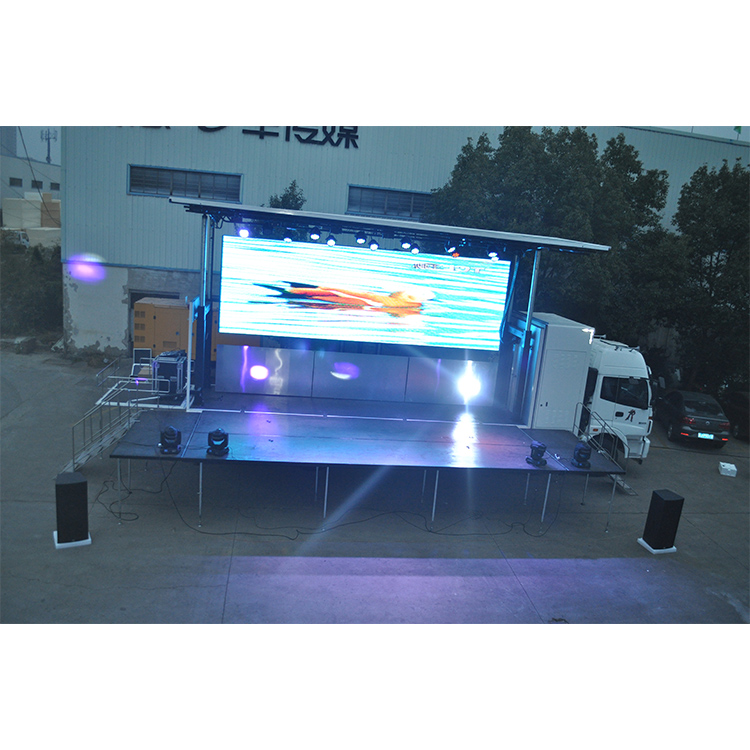

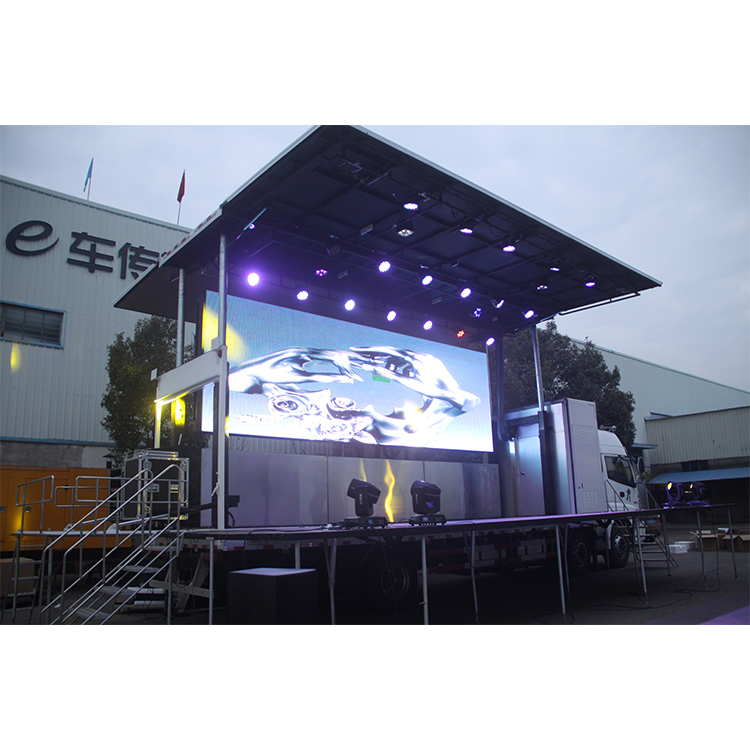

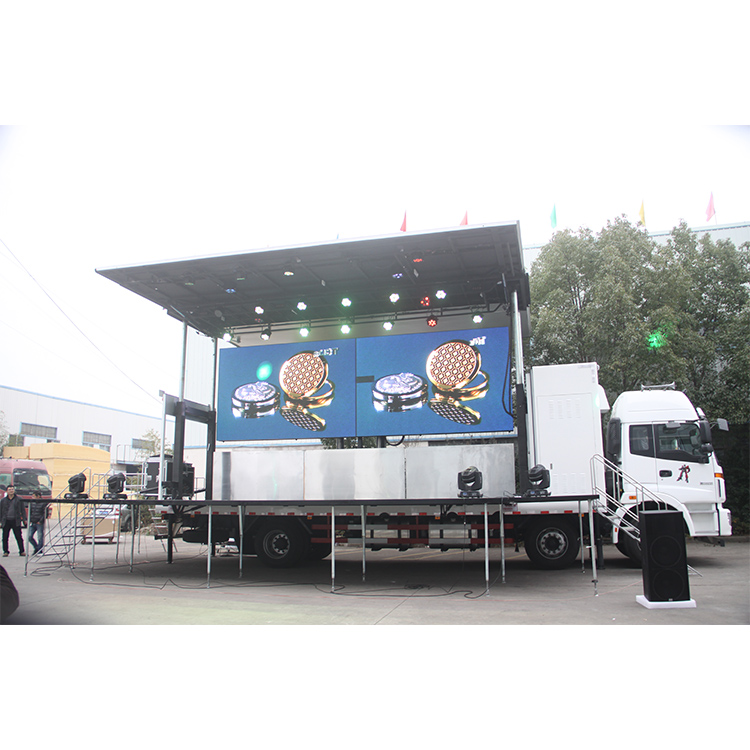

The E-WT9600 led stage truck has a unique design, which integrates the stage, sound, lighting and other functions in one. The truck size is: 11995 x 2550 x 3870mm, the truck is equipped with outdoor LED screen: 7360 x 2400mm, not only excellent display effect, but also very suitable for a variety of outdoor performances and activities.10000 x 2400mm large automatic hydraulic stage can be quickly deployed in a short time, forming a smooth and stable performance platform. At the same time, professional level sound and lighting equipment, to ensure that every performance has the best results.
2. Spatial optimization and flexibility
The design concept of the mobile stage car emphasizes the optimization and flexibility of the space. Through in-depth modification and adjustment, the internal space has been used to the greatest extent, not only to ensure the complete equipment, but also to ensure the convenience of operation. This allows the E-WT9600 led stage truck to adapt to a variety of different event features, whether it is a music festival, exhibition, product launch or other forms of activities, it can quickly adapt and provide the right stage performance space.
3. High efficiency and economy
Compared with the traditional stage construction, the advantage of the E-WT9600 led stage truck lies in its high efficiency and economy. Do not need a long time to build and dismantle, also does not need a lot of manpower and material resources input, everything is pre-installed and configured in the car. This not only greatly saves the time cost, but also reduces the consumption of manpower and material resources, bringing more convenience and economic benefits to the event organizers.
4. Closely combined with marketing and communication
In modern marketing, stage performance is often closely linked with brand communication. The E-WT9600 led stage truck is not only a performance platform, but also an effective tool to interact with the audience and display the brand image. It can be closely combined with various marketing and communication means, such as brand display, product promotion, interactive experience, etc., to help brands achieve more extensive and more in-depth communication effect.
The E-WT9600 12m led stage truck brings a brand new experience for modern events and performances with its unique design and excellent functions. It is not only a mobile performance platform, but also an efficient, flexible and multi-functional marketing tool. In the future, with the continuous innovation and development of performances and activities, the E-WT9600 led stage truck will continue to play its unique advantages to bring surprises and value to more activities and organizers.
|
9.6 m stage truck |
|||
|
Specification |
|||
|
Truck chassis |
|||
|
Brand |
Auman |
Dimension |
11995x2550x3870mm |
|
Horsepower |
220 Cummins |
Cargo box dimension |
9600x2400x2500mm |
|
Emissions |
Euro 5 |
Driver |
4 * 2 |
|
Fuel injection system |
Common rail |
Body |
ETX high roof standard floor cab |
|
Gearbox |
Fast 8 |
Rear axle |
440/4.625 speed ratio |
|
Tyre |
12R22.5 vacuum tyre |
Others |
Original factory air conditioning, electric doors and Windows, air bag seats, central control lock, 600L aluminum alloy fuel tank |
|
LED Screen |
|||
|
Dimension |
7040mm*2400mm |
Module Size |
320mm(W)*160mm(H) |
|
Light brand |
kinglight |
Dot Pitch |
5 mm |
|
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
Meanwell |
DRIVE IC |
ICN2053 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
40000 Dots/㎡ |
|
Module resolution |
64*32Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
system support |
Windows XP,WIN 7， |
|
|
|
Silent generator group |
|||
|
Dimension |
2200mm x 1000mm x1200mm |
Power |
24KW diesel generator set |
|
Voltage and frequency |
380V/50HZ |
Engine: |
Yang Dong, engine model: Y4105D |
|
Motor |
Wellpower |
Noise |
Super silent box |
|
Others |
electronic speed regulation |
|
|
|
Player system |
|||
|
Video processor |
NOVA |
Model |
VX2U |
|
Luminance sensor |
NOVA |
Multi-function card |
NOVA |
|
Sound system |
|||
|
The power amplifier |
800 W |
Speaker |
2 *400 W |
|
mixer |
YAMAHA |
Wireless microphone |
One wireless receiver, two wireless microphones |
|
Power parameter |
|||
|
Input Voltage |
380V |
Output Voltage |
220V |
|
Current |
30A |
|
|
|
Electrical system |
|||
|
Circuit control and electrical appliances |
National standard |
|
|
|
The hydraulic system |
|||
|
Roof lift hydraulic cylinder |
4 pcs travel 2000mm |
Wingspan side flap |
4 pcs |
|
Hydraulic leg |
4 pcs |
Tail door turns cylinder |
2 pcs |
|
Stage 1 flip cylinder |
2 pcs 90 - degree flip |
Stage 2 flip cylinder |
2 pcs 90 - degree flip |
|
Led background screen lifting cylinder |
2 pcs travel 1600mm |
Remote control |
1 set |
|
Hydraulic control system |
1 set |
|
|
|
Stage and guardrail |
|||
|
Left stage size（Double fold stage） |
10000*3000mm |
The ladder（with Stainless steel handrail) |
1000 mm wide*2 pcs |
|
Stainless steel guardrail |
(3000mm+10000+1500mm)*2 sets，The stainless steel circular tube has a diameter of 32mm and a thickness of 1.5mm |
Stage structure（Double fold stage） |
All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board |
