Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

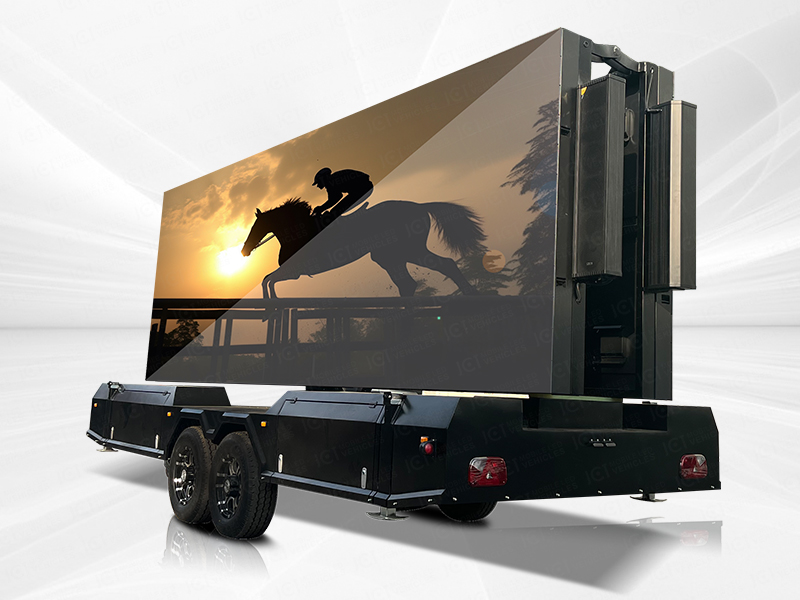

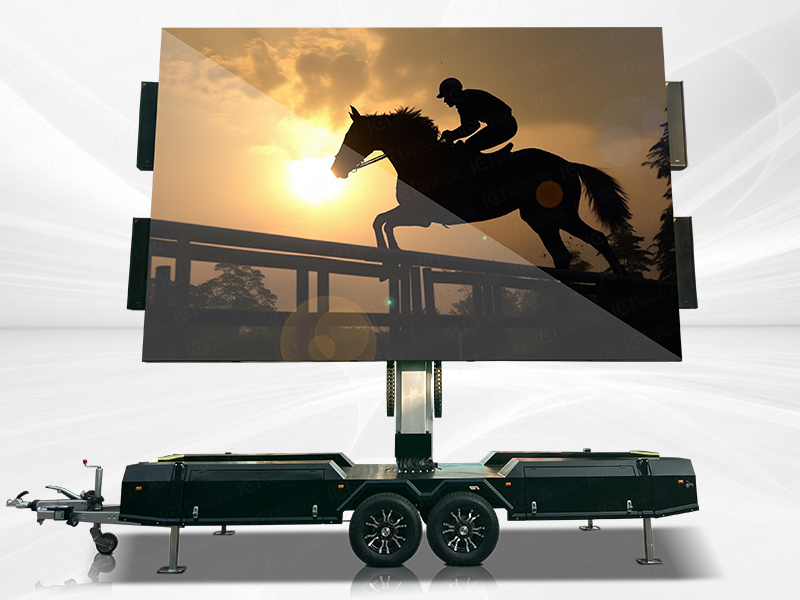

EF22 LED Trailer is not only a display equipment, but also an outdoor media promotion platform integrating multiple advanced technologies. The overall size is 7980 * 2100 * 2618mm, equipped with 5760mm * 3840mm high-definition large screen, can adapt to all kinds of application scenarios, whether it is commercial advertising, brand publicity, or artistic performance, sports events, can be perfectly displayed through this LED trailer, to provide users with unprecedented convenient operation and visual enjoyment.
Safety and stability: double guarantee
Through multiple rigorous testing and verification, the vehicle structure of the EF22 LED trailer demonstrated excellent safety and stability. This means that it can provide stable and reliable display services for users in a variety of complex environments and conditions.
Flexible lifting, dealing with changeable venues

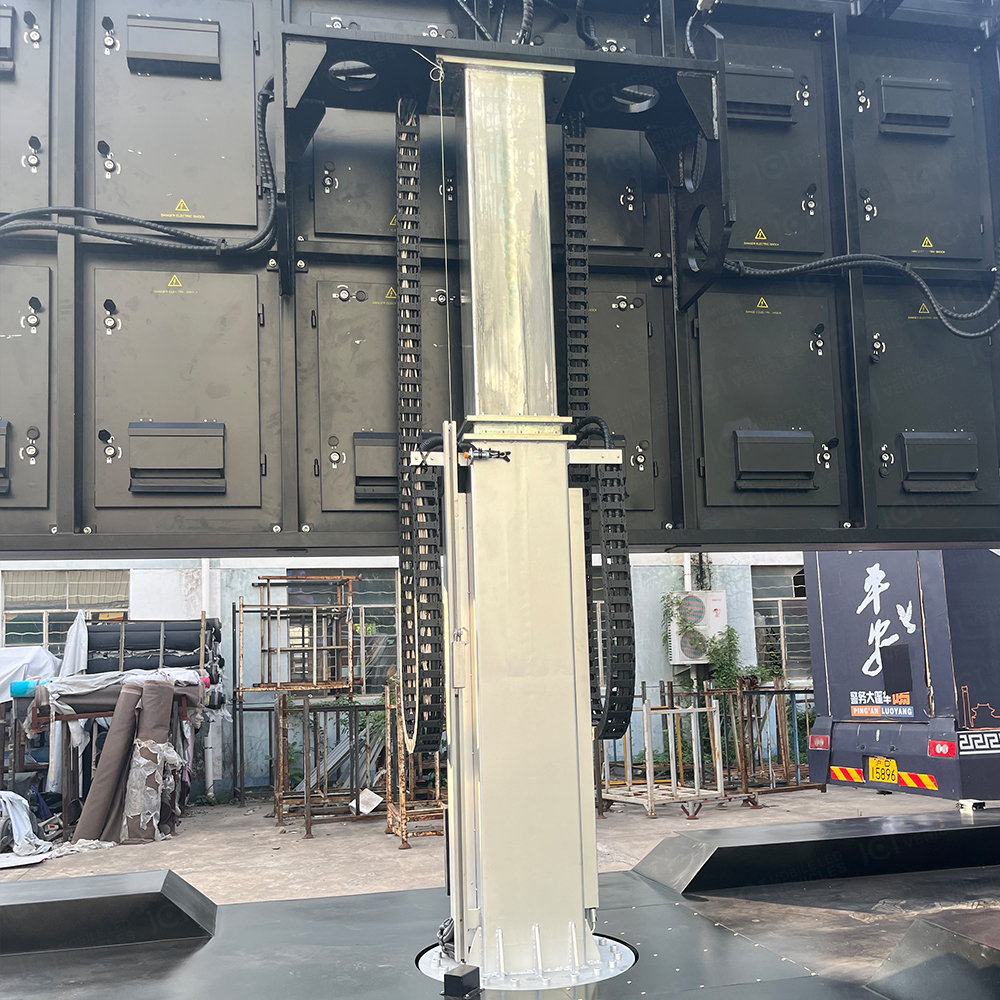

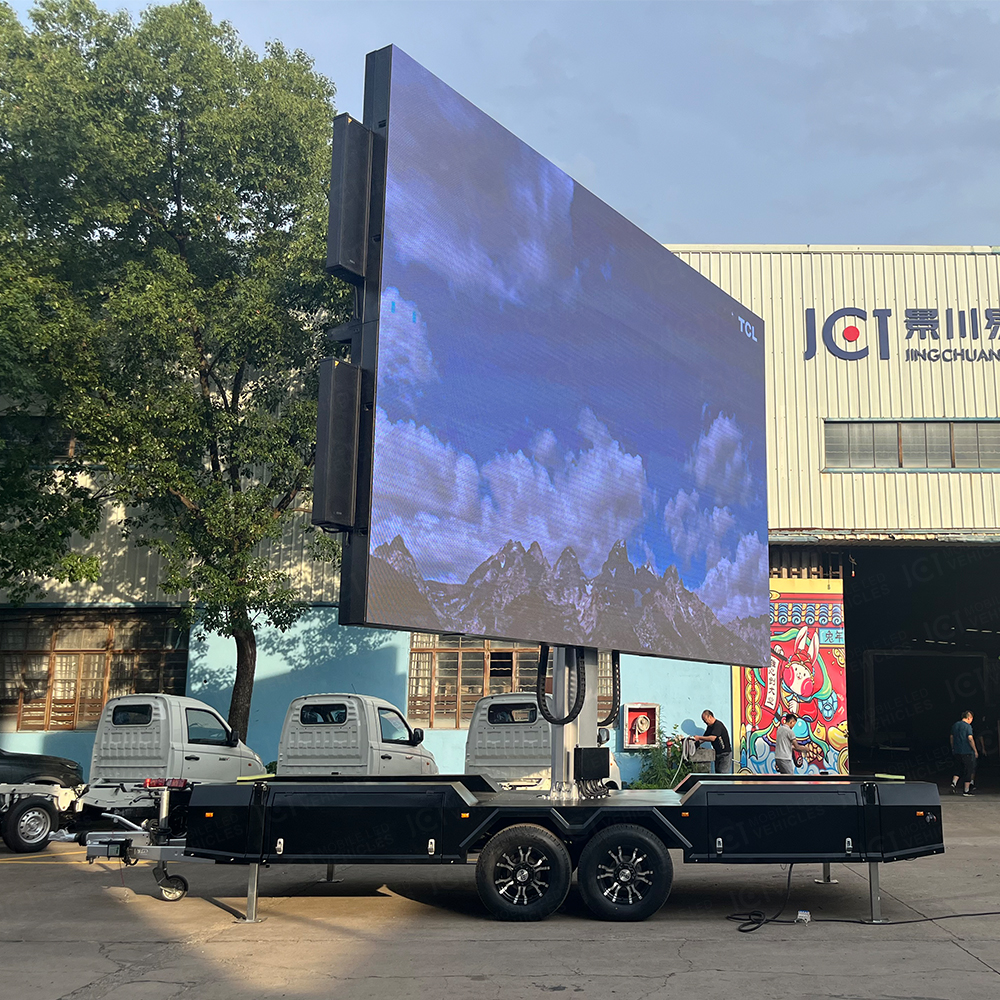

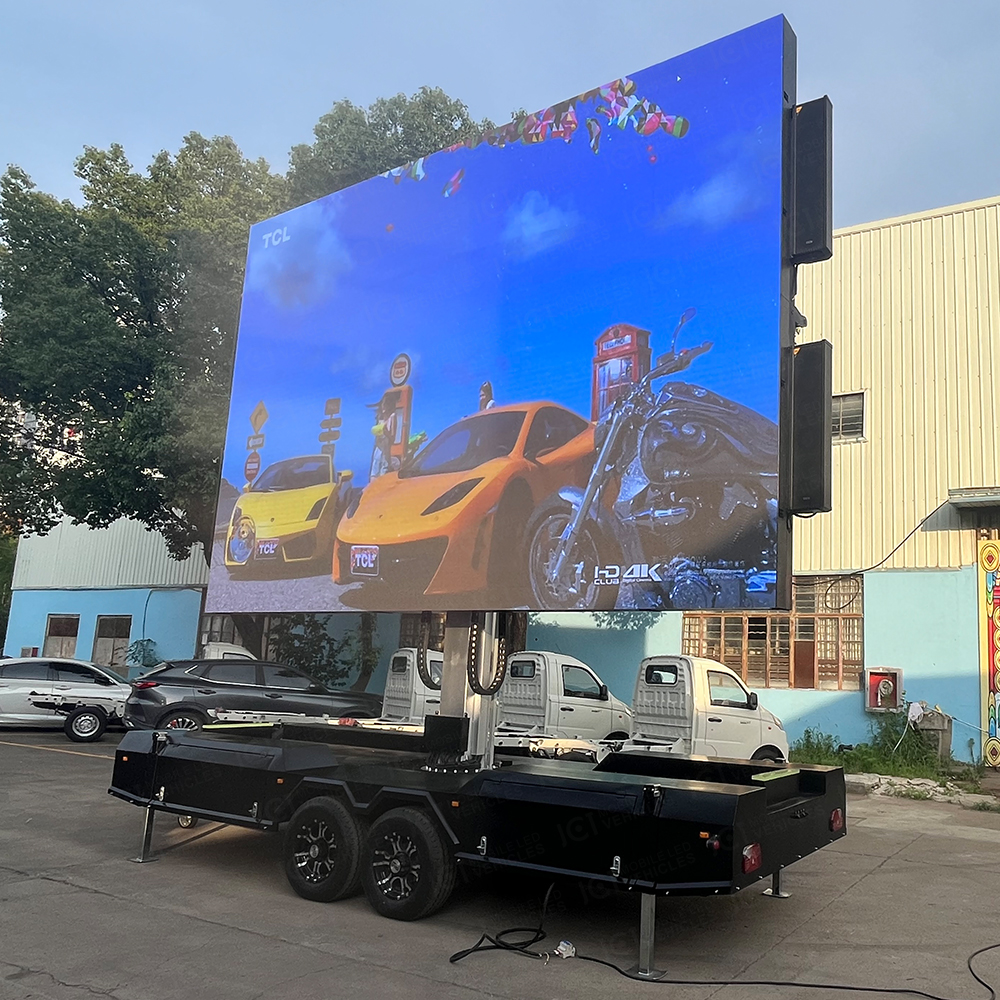

The 22 ㎡ rotatable LED trailer allows the LED screen to move up and down freely, with a lift stroke of up to 2,000 mm. This feature allows the EF22 LED trailer to easily cope with different heights, with the best display, both indoor and outdoor.
360 degrees rotation for optimal viewing angle

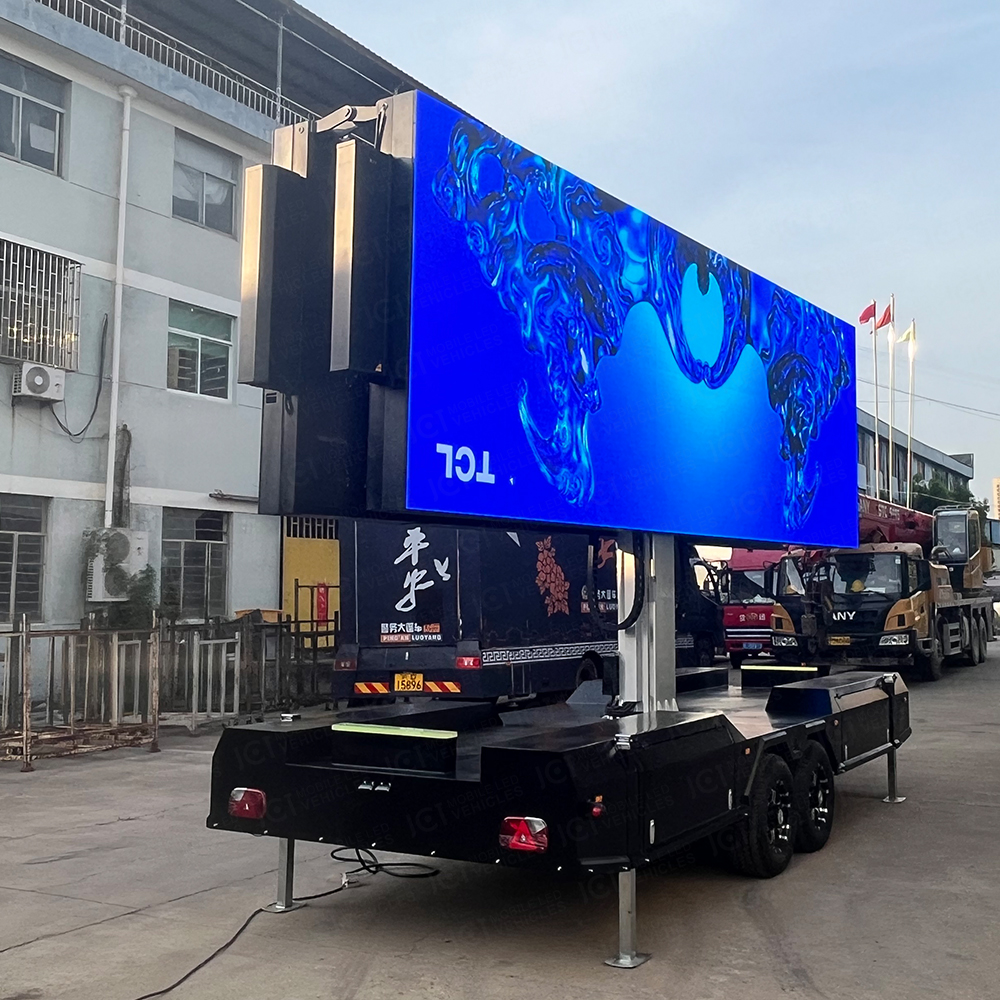

The LED trailer screen has a 360-degree rotation function, which can flexibly adjust the viewing Angle according to the changes of the audience position and the scene environment. This design ensures that every audience can get the best viewing experience and enjoy an unparalleled visual feast.
Folding design to save space and improve transportation safety

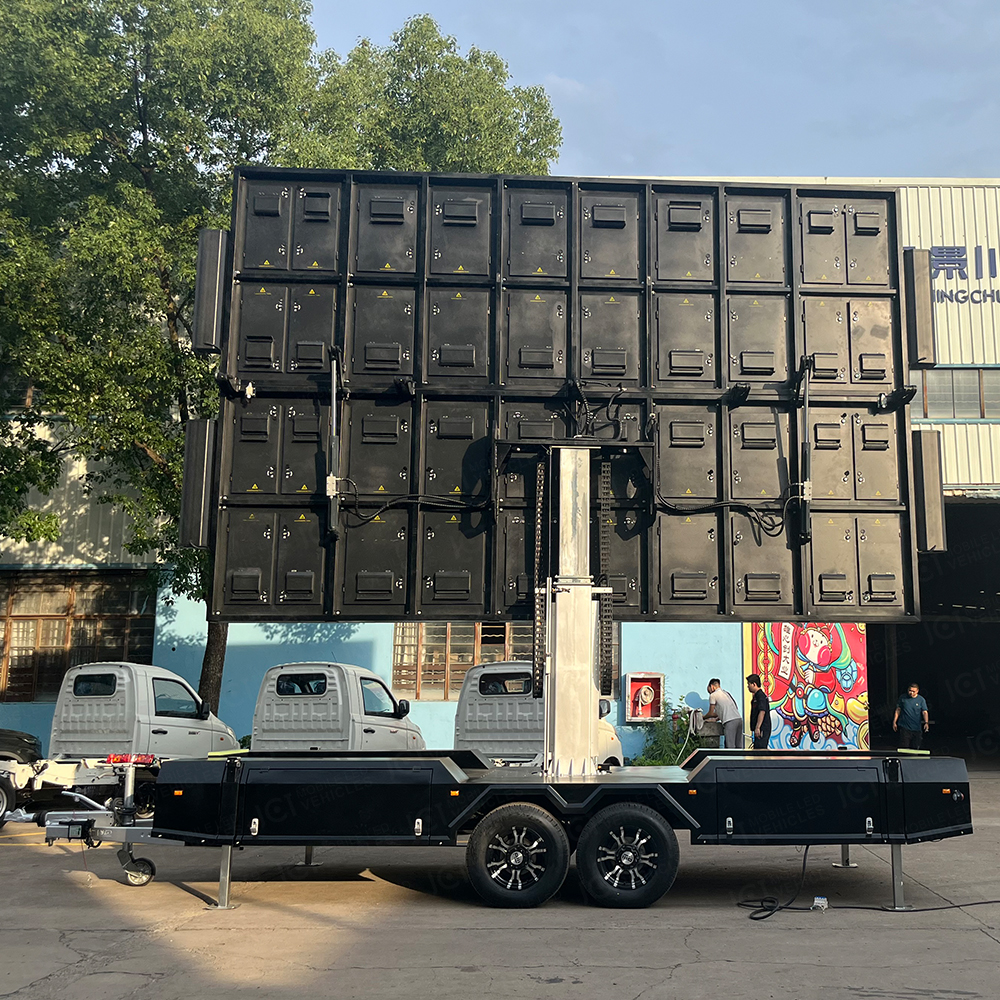

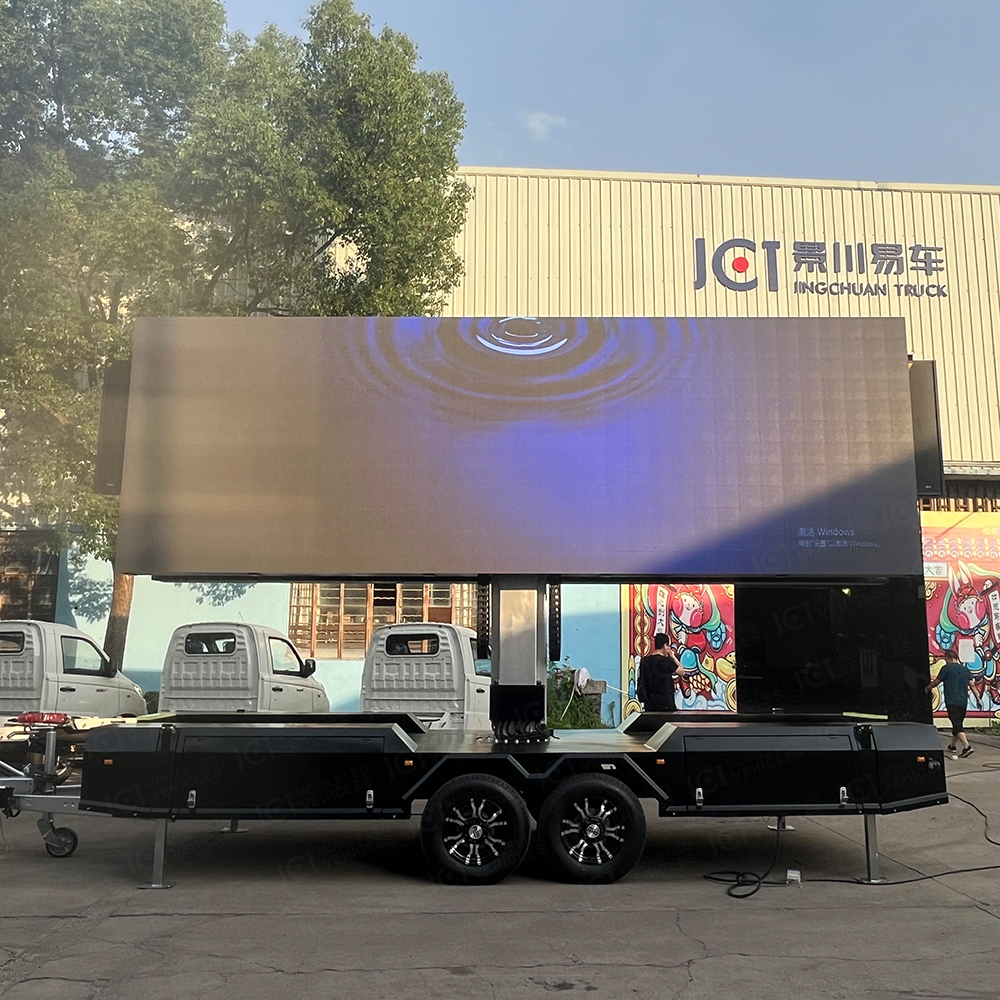

The 22 ㎡ rotatable LED trailer is composed of two screens, using a simple button operation, the screen can be folded up and another screen, bring stunning visual experience; when not in use, the LED screen can be easily flipped down, not only saves valuable space, but also greatly improve the stability and safety of the transportation process. This innovative design makes the EF22 LED trailer ideal for occasions such as commercial shows, outdoor events and indoor exhibitions.
Adapt to changeable, one machine is multi-purpose
Whether it's commercial, outdoor or indoor exhibitions, EF22 LED trailers can add unlimited charm to the event with its excellent performance and flexible design. It is not just a display device, but also a right-hand man that can add highlight and attraction to various activities.
Lead the future, create infinite possibilities
As an LED trailer with multiple advanced technologies, EF22 not only provides excellent display effect and stable performance, but also brings unprecedented convenience and visual enjoyment to users with its unique design and innovative technology. In any occasion, the EF22 can add unlimited charm and appeal to the event with its superior performance and flexible design. Choosing EF22 is choosing a person who can add highlights and appeal to your activity.
EF22 | |||
Specification | |||
Trailer appearance | |||
Gross weight | 3480kg | Dimension (screen down) | 7980×2100×2618mm |

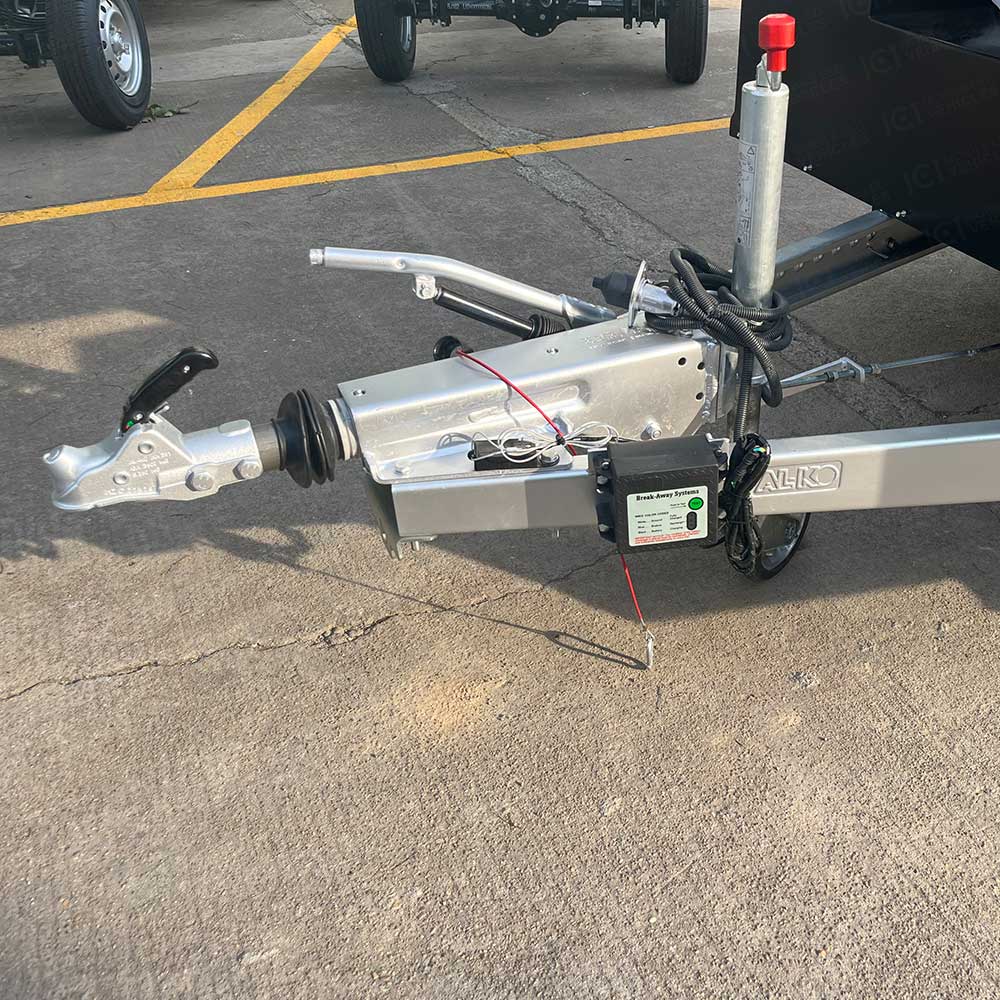

Chassis | German-Made AIKO,Bearing 5000KG | Max speed | 120Km/h |
Breaking | electric brake | Axle | 2 axles,5000kg |
LED Screen | |||
Dimension | 5760mm*3840mm | Module Size | 320mm(W)*160mm(H) |
Light brand | kinglight | Dot Pitch | 4mm |
Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours |
Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
Power Supply | Meanwell | DRIVE IC | ICN2153 |
Receiving card | Nova MRV316 | Fresh rate | 3840 |
Cabinet material | Iron | Cabinet weight | Iron 50kg |
Maintenance mode | Rear service | Pixel structure | 1R1G1B |
LED packaging method | SMD1921 | Operating Voltage | DC5V |
Module power | 18W | scanning method | 1/8 |
HUB | HUB75 | Pixel density | 62500 Dots/㎡ |
Module resolution | 80*40Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
Viewing angle, screen flatness, module clearance | H:120°V:120°、<0.5mm、<0.5mm | Operating temperature | -20~50℃ |
system support | Windows XP,WIN 7, | ||
Power parameter | |||
Input voltage | Three phases five wires 380V | Output voltage | 220V |
Inrush current | 30A | Average power consumption | 0.25kwh/㎡ |
Control System | |||
Video processor | NOVA | Model | VX400 |
Luminance sensor | NOVA | ||
Sound System | |||
Power amplifier | Output power:1000W | Speaker | power:200W*4 |
Hydraulic System | |||
Wind-proof level | Level 8 | Supporting legs | Stretching distance 300mm |
hydraulic rotation | 360 degrees | ||
Hydraulic Lifting and folding system | Lifting Range 2000mm, bearing 3000kg, hydraulic screen folding system |
