Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

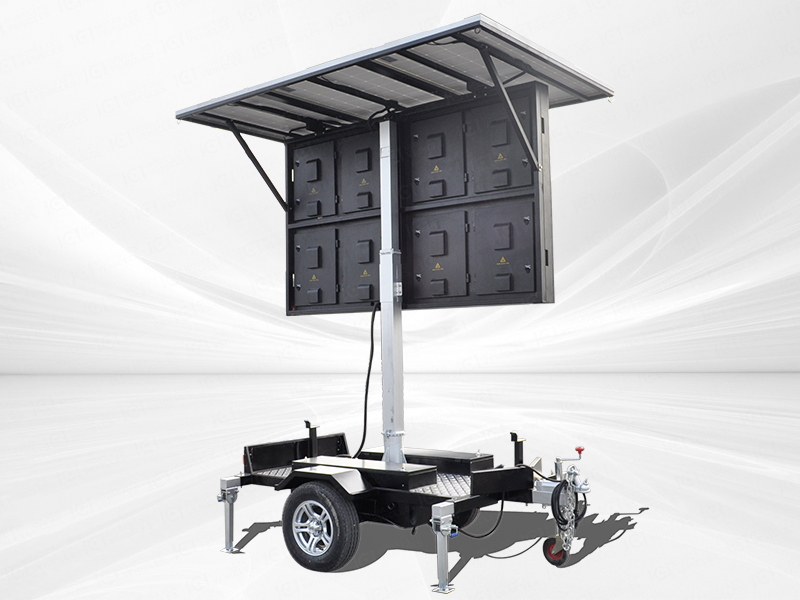

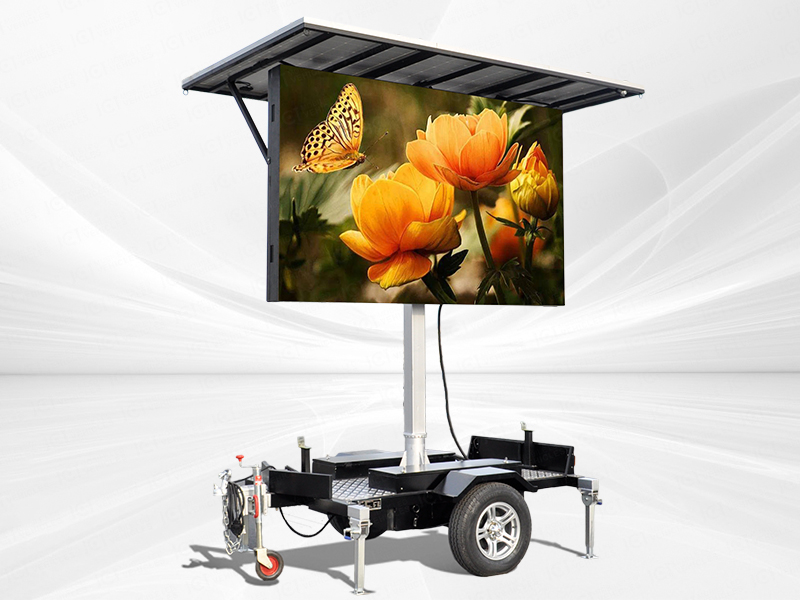

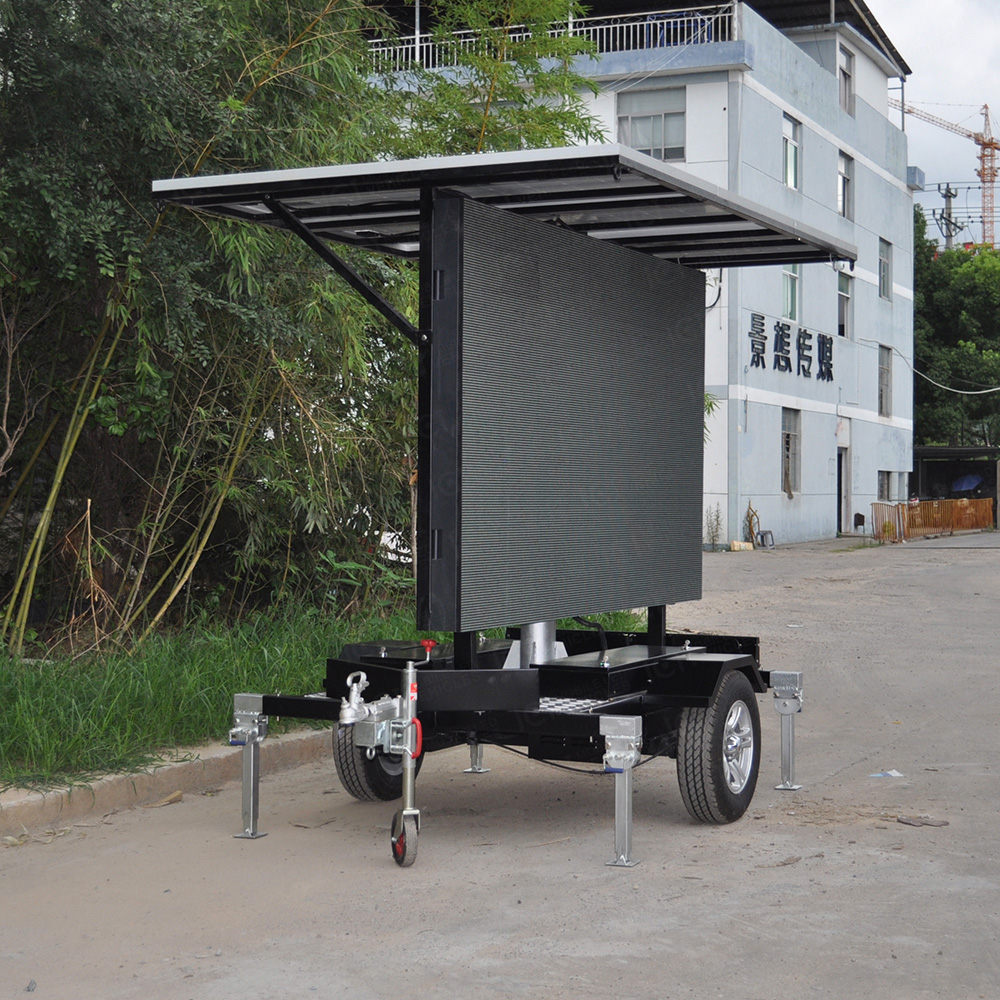

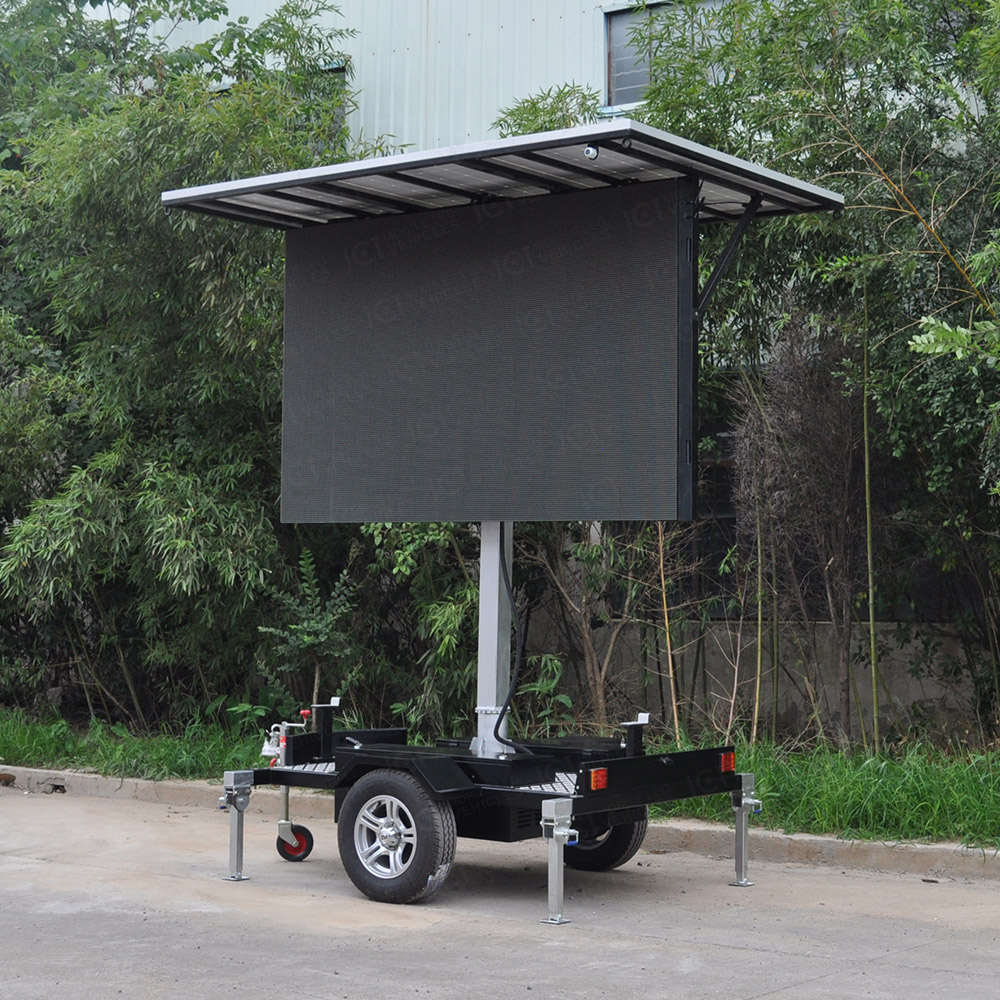

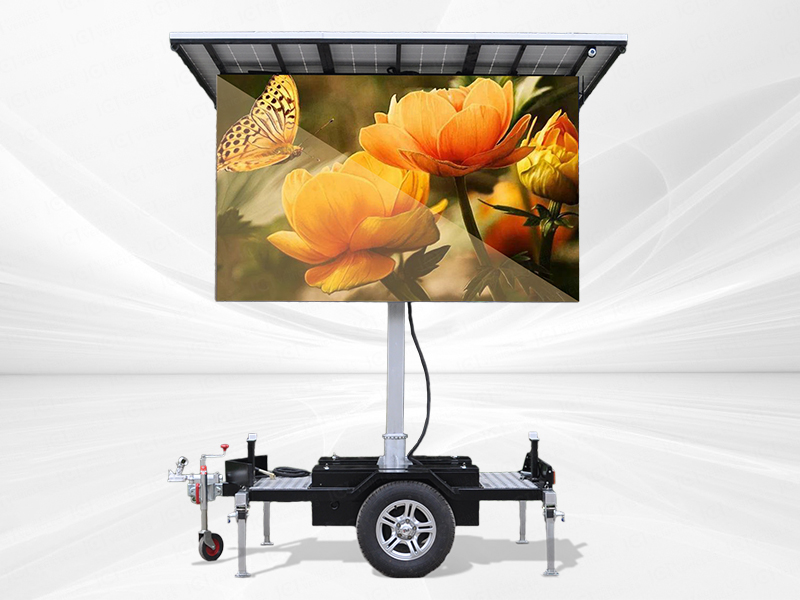

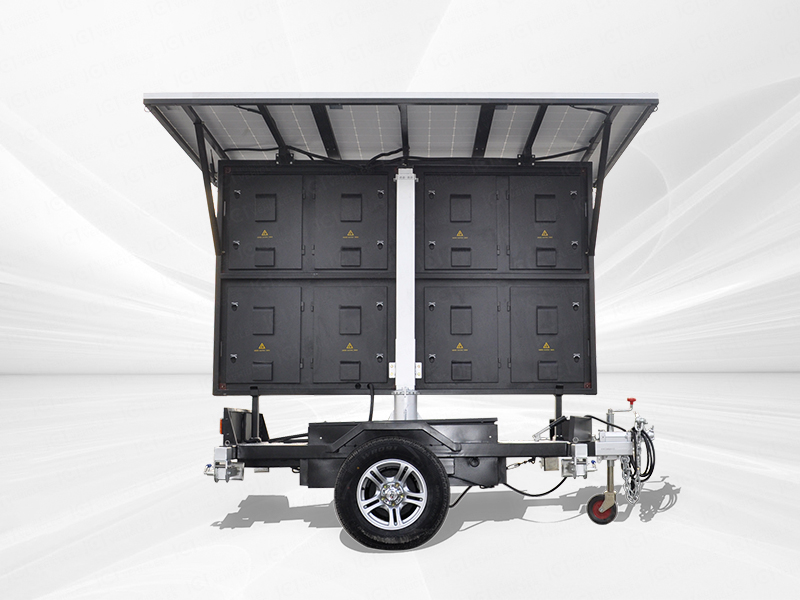

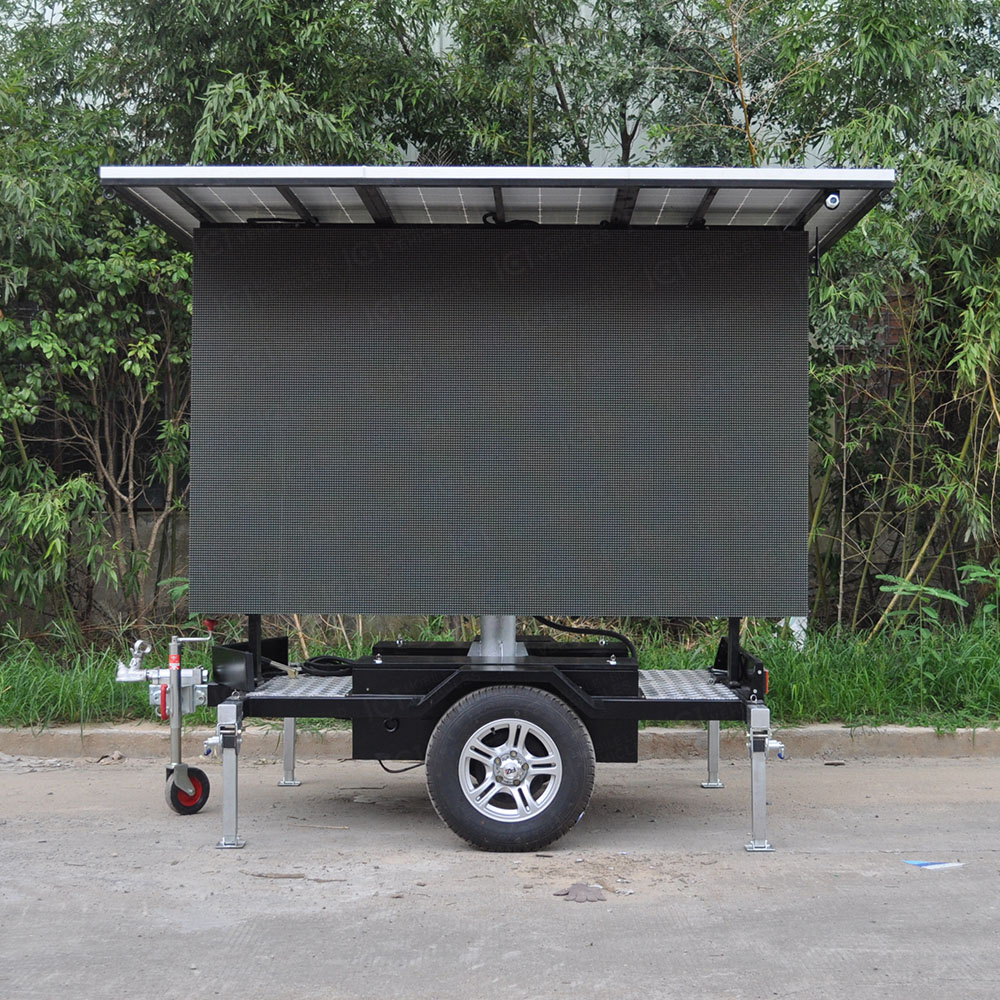

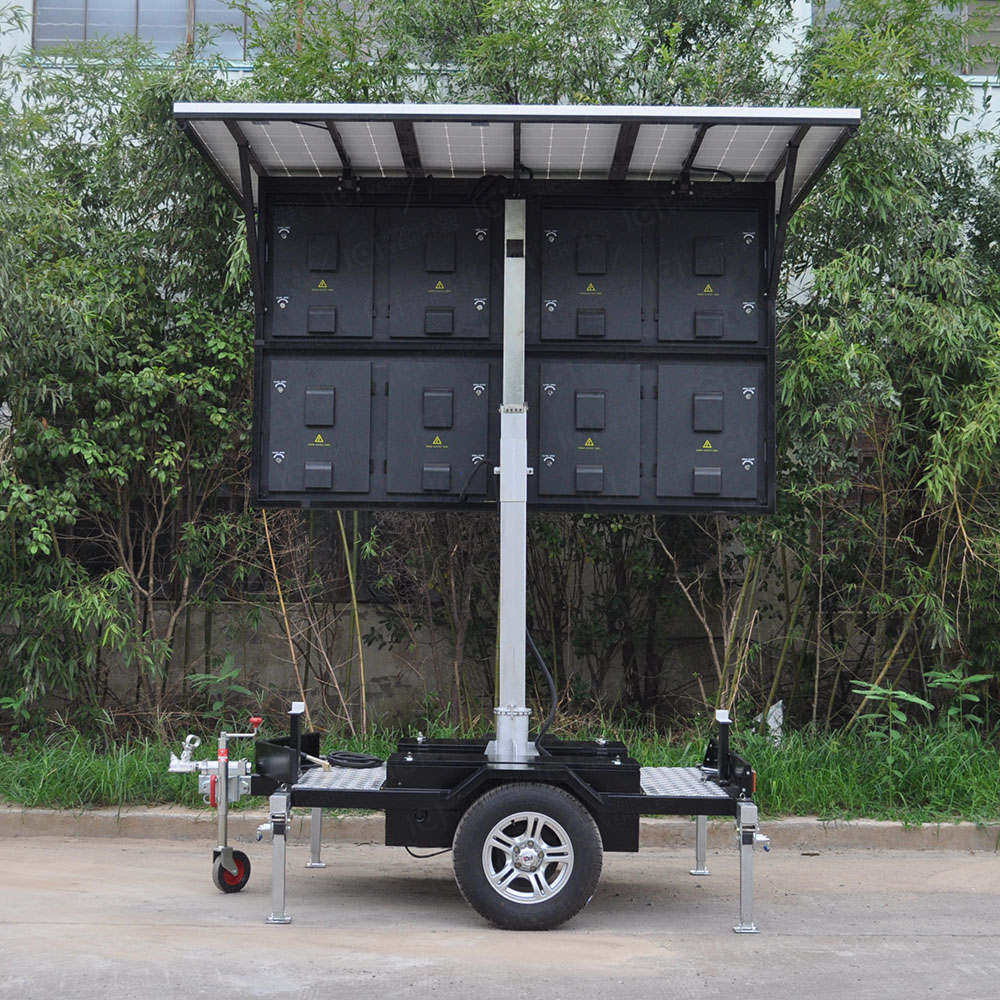

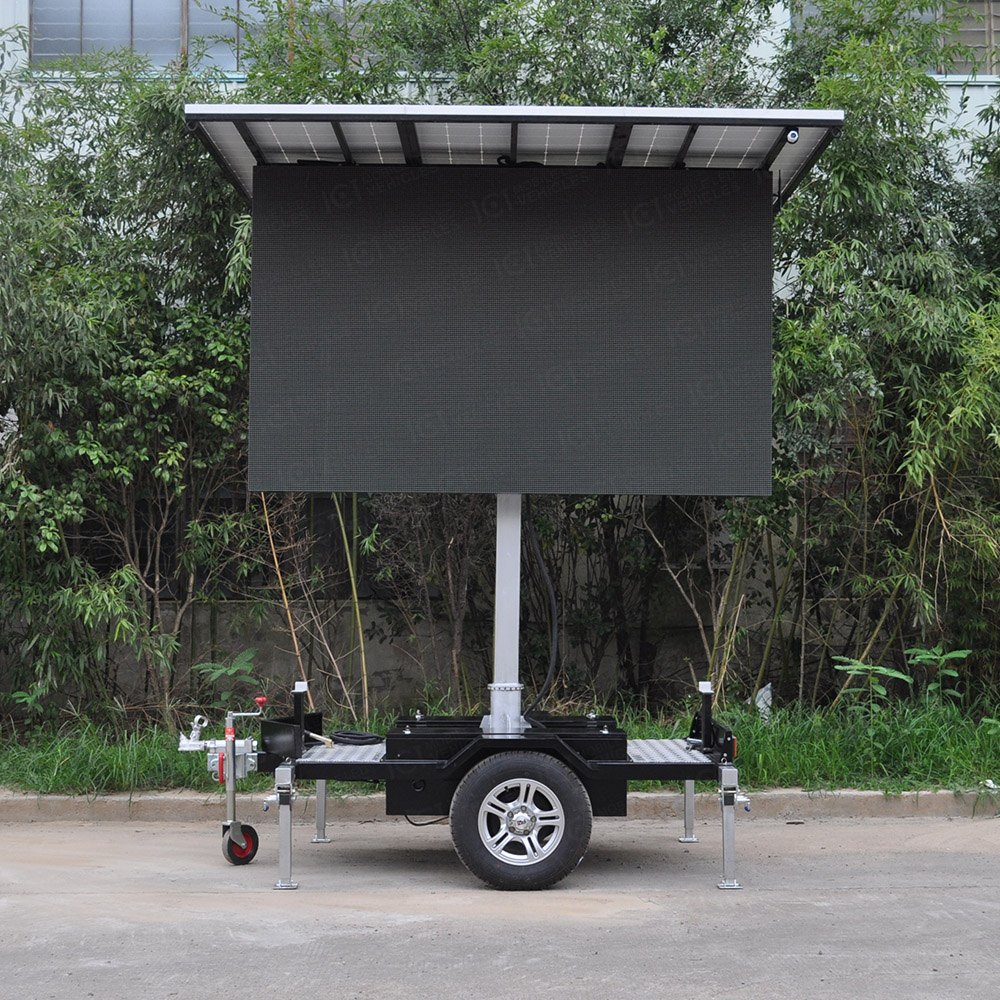

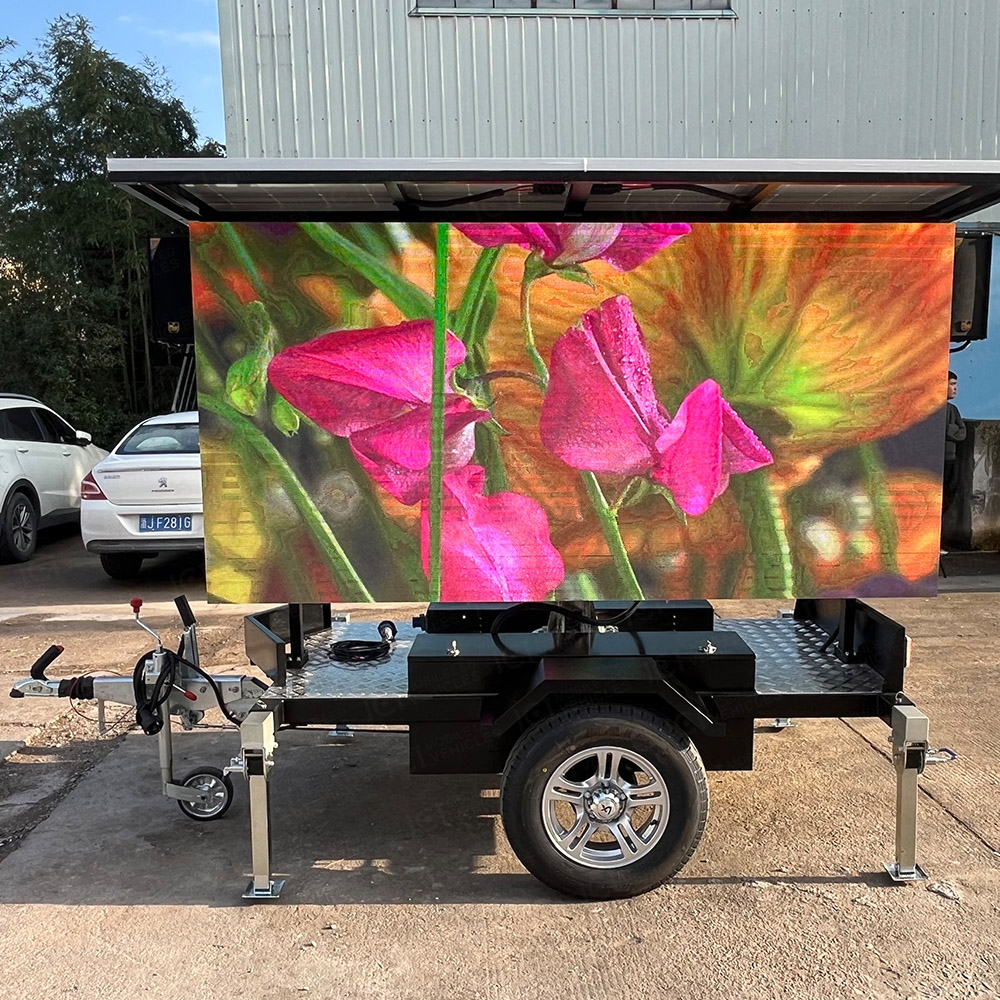

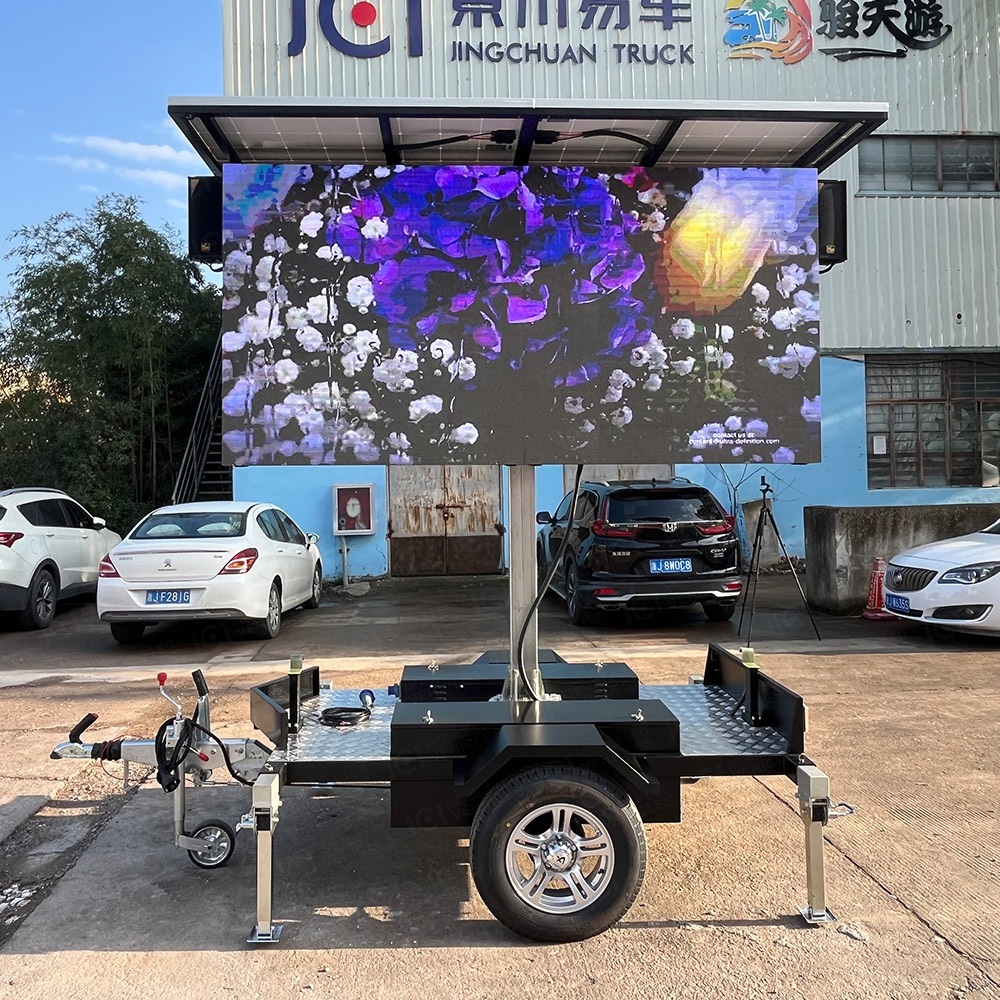

The EF4S 4-square-meter solar LED mobile trailer launched by JCT company is a perfect combination of cutting-edge energy-saving technology and advertising promotion.

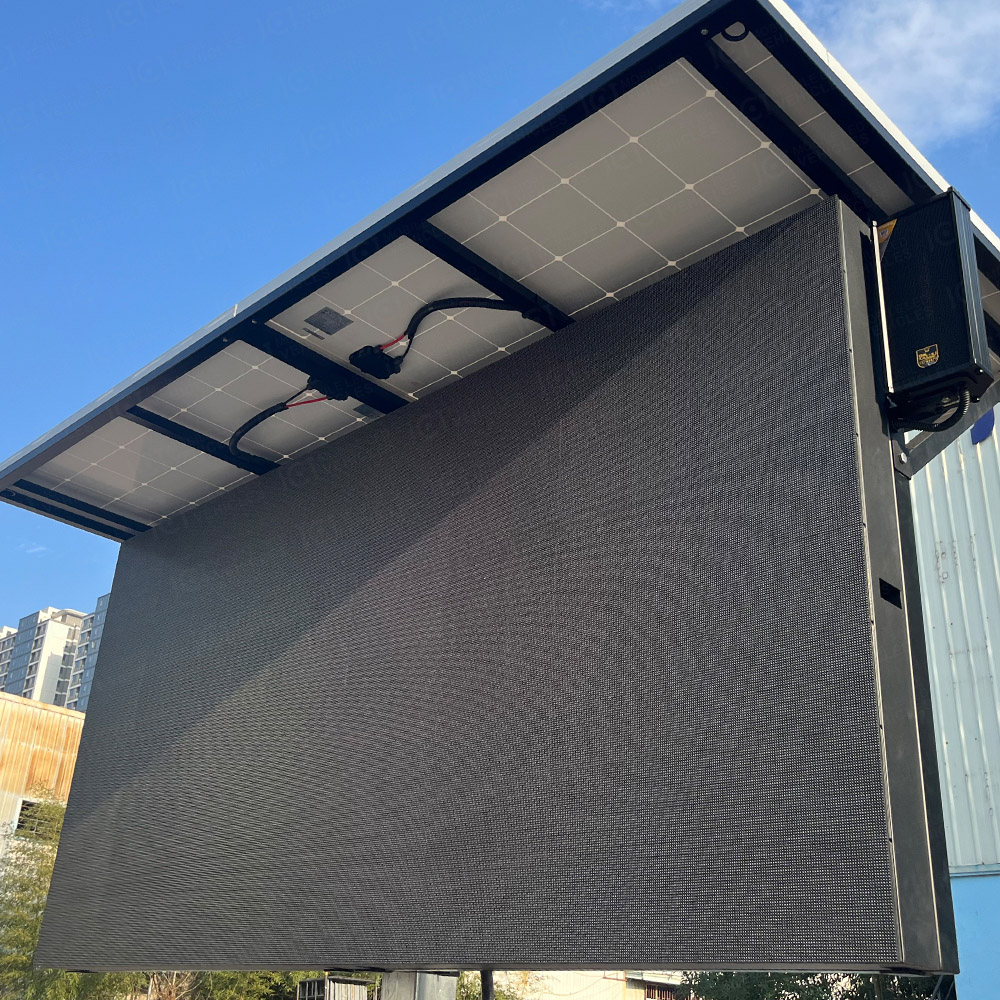

Solar panel power supply, environmental protection of the choice
Traditional LED mobile trailers often need to rely on external power supplies or generators for power supply, which greatly limits their ease of use. And JCT company launched EF4S 4 square meters solar LED mobile advertising trailer, break through the traditional, the solar panel independent power supply mode, it carries the high performance solar panels, configuration outdoor high-definition energy-saving screen, can realize 24 hours uninterrupted power supply, not only meet the demand of the advertising car, more we provide a energy saving and environmental protection energy choice. This innovative measure is not only in line with the current energy energy saving concept, but also a kind of protection of the earth's environment.
The inlet hydraulic lifting is safe and stable
To ensure the stability of the LED screen in different environments and the best viewing experience for the audience, the EF4S 4 square meter solar LED mobile trailer is equipped with an imported hydraulic lifting system. This system is not only safe and stable, but also travels up to 1,000 mm. Through simple operation, the height of the LED screen can be easily adjusted, to ensure that the audience can get clear and shocking visual effects in different occasions and under different angles.
Movable traction bar configuration
Another highlight of this 4-square-meter solar LED mobile trailer is the mobile traction rod design. The design incorporates an inertial device and a handbrake, allowing the entire AD trailer to be easily towed through the power car. Whether it is a busy city, a lively gathering or a remote outdoor venue, the JCT E-F4 can arrive quickly whenever needed, providing efficient and convenient promotion services for all kinds of activities and brands. In addition, the use of mechanical structure manual support legs also makes the operation more convenient and fast, saving users a lot of time and energy.
330 Rotate LED screen, visual feast
In terms of advertising display, the 4-square-meter solar LED mobile trailer also performed well. It comes with a manual 330 rotating feature, which means that the ads can be seen clearly from whatever Angle the viewers are at. This design not only increases the exposure rate of the advertising, but also enables the advertising content to better interact with the audience and improve the communication effect. Especially in some crowded places, such as downtown, assembly or outdoor sports events, EF4S Solar can become the focus and attract a lot of attention.
Fashionable appearance, show technology and dynamic
In addition to technological breakthroughs, the EF4S 4-square-meter solar LED mobile trailer has also made a bold innovation in the appearance design. It abandons the traditional streamline style, using a frameless design, clean lines, angular, giving people a strong sense of science and technology and modern sense. This design makes it stand out among many advertising cars and become a perfect combination of fashion trends and cutting-edge technology. Whether it's a traffic conductor, a popular show, a hipster show, or a new electronic car launch, EF4S Solar can be the best promotional media to add more charm to the brand or event.
EF4S 4 square meter solar LED mobile trailer, with its environmentally friendly solar power supply, 330 rotating LED screen and mobile convenient design, has become a clear stream in the advertising industry. It not only solves the problem of difficult power supply for traditional advertising trailers, but also provides new possibilities for advertising display and brand promotion. In this era full of change and innovation, the EF4S 4 square meter solar LED mobile advertising trailer undoubtedly shows us a new form of advertising and the charm of future technology.
|
EF4S SOLAR SCREEN TRAILER |
|||
|
Specification |
|||
|
Trailer appearance |
|||
|
Trailer size |
2700×1800×2280mm |
LED screen size: |
2560*1280MM |
|
Torsion shaft |
1 ton 5-114.3，1 pce |
Tire |
185R14C 5-114.3，2 pcs |
|
Supporting leg |
440~700 load 1.5 tons，4 PCS |
Connector |
50mm ball head, 4 hole Australian impact connector, wire brake |
|
Max speed |
100Km/h |
Axle |
Single axle/Torsional axle |
|
Breaking |
Hand brake |
RIM |
SIZE:14*5.5、PCD:5*114.3、CB:84、ET:0 |
|
LED Screen |
|||
|
Dimension |
2560mm*1280mm |
Module Size |
320mm(W)*160mm(H) |
|
light brand |
hongzheng Gold wire light |
Dot Pitch |
10/8/6.6mm |
|
Brightness |
≥5500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
30w/㎡ |
Max Power Consumption |
100w/㎡ |
|
Drive IC |
ICN2069 |
Fresh rate |
3840 |
|
Power Supply |
HuaYun |
Receiving card |
NOVA MRV416 |
|
Cabinet size |
2560*1280mm |
system support |
Windows XP,WIN 7， |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg/m2 |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
HZ-4535RGB4MEX-M00 |
Operating Voltage |
DC 4.2、3.8V |
|
Module power |
5W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
10000 Dots/㎡ |
|
Module resolution |
32*16Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：100°V：100°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
Solar panel |
|||
|
Dimension |
1380mm*700mm*4PCS |
Power |
200W*4=800W |
|
Solar controller（Tracer3210AN/Tracer4210AN） |
|||
|
input voltage |
9-36V |
Output voltage |
24V |
|
Rated charging power |
780W/24V |
Maximum power of photovoltaic array |
1170W/24V |
|
The battery |
|||
|
Dimension |
181mm*192mm*356mm |
Battery specification |
2V400AH*12Pcs，9.6KWH |
|
Electric charging machine |
|||
|
Model |
NPB-7 5 0/Meanwell |
Dimension |
230*158*67mm |
|
input voltage |
90 ~ 264VAC |
|
|
|
Multimedia control system |
|||
|
Player |
Nova TB50-4G |
receiving card |
NOVA MRV416 |
|
Luminance sensor |
NOVA NS060 |
|
|
|
Hydraulic lifting |
|||
|
Hydraulic lifting: |
1000mm |
Manual rotation |
330 degrees |
|
Advantages: |
|||
|
1, can lift 1000MM, can rotate 360 degrees. |
|||
|
2, equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen. |
|||
|
3, with brake device! |
|||
|
4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. |
|||
|
5, with 7 core signal connection head! |
|||
|
6, with tow hook and telescopic rod! |
|||
|
7. two tire fenders |
|||
|
8, 10mm safety chain, 80 grade rated ring |
|||
|
9, reflector, 2 white front, 4 yellow sides, 2 red tail |
|||
|
10, the whole vehicle galvanized process |
|||
|
11, brightness control card, automatically adjust brightness. |
|||
|
12，VMS can be controlled wirelessly or wirelessly! |
|||
|
13. Users can remotely control LED SIGN by sending SMS messages. |
|||
|
14, equipped with GPS module, can remotely monitor the position of VMS. |
|||
