Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

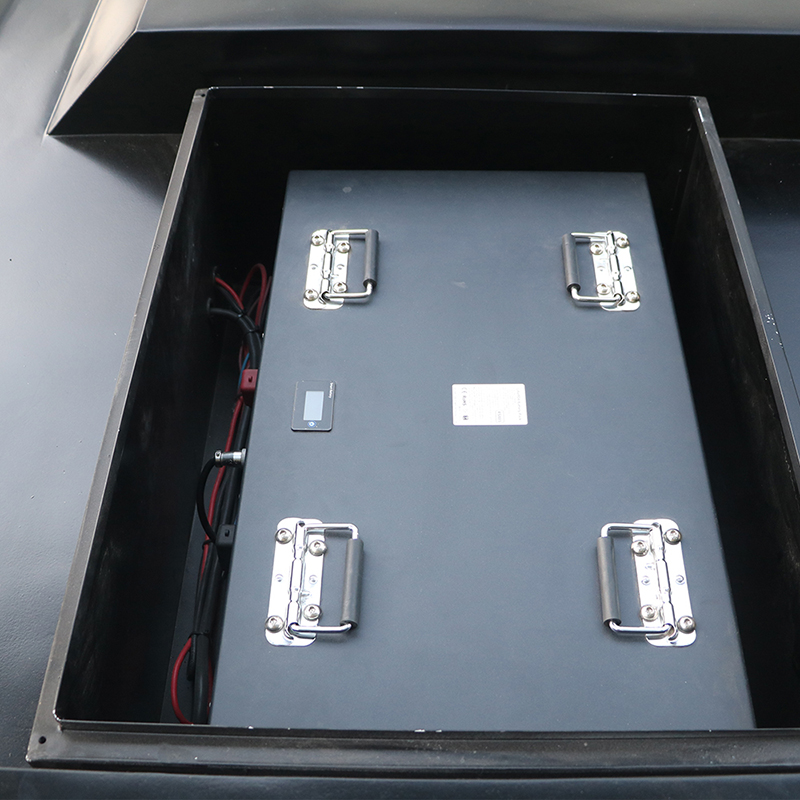

Equipped with a high-quality battery pack, which can keep working for 30 hours on a full charge.

Currently, most LED trailers in the world use an external power supply or install a separate generator to power the LED screen: the former external power supply mode may encounter difficulties in finding a power source during outdoor promotion activities. The supply point is embarrassing, and the latter uses the generator power supply mode, which not only consumes a lot of gasoline and increases the cost of use, but also makes noise during the use of the generator. It will interfere with the sound effects of the advertising video. Our JCT New Energy Billboard Trailer (E-F8NE) is equipped with a 51.2V300AH high-quality battery pack, which can last for 30 hours on a full charge. It greatly improves the convenience of ground promotion activities and does not require complicated power connections. There is no need for customers to choose the voltage and power, and wide-voltage charging makes it as convenient for customers as using a smartphone! At the same time, new energy batteries are safe, efficient, environmentally friendly and energy-saving, which reduce the usage costs meanwhile bring higher profits.


Equipped with 8.8㎡ high-definition outdoor energy-saving screen

For the screen configuration of this product, we chose the most popular outdoor LED energy-saving screen on the market currently . The screen size is 3840*2240mm, which is equipped with energy-saving driver IC. It saves about 25%-36% more energy than ordinary outdoor LED screens. Its average energy consumption is 60W/㎡and full screen power consumption is 520W. Module kit is fully enclosed with a waterproof ring behind, which is super waterproof, prevents water vapor from entering, and improves the service life of electronic components.

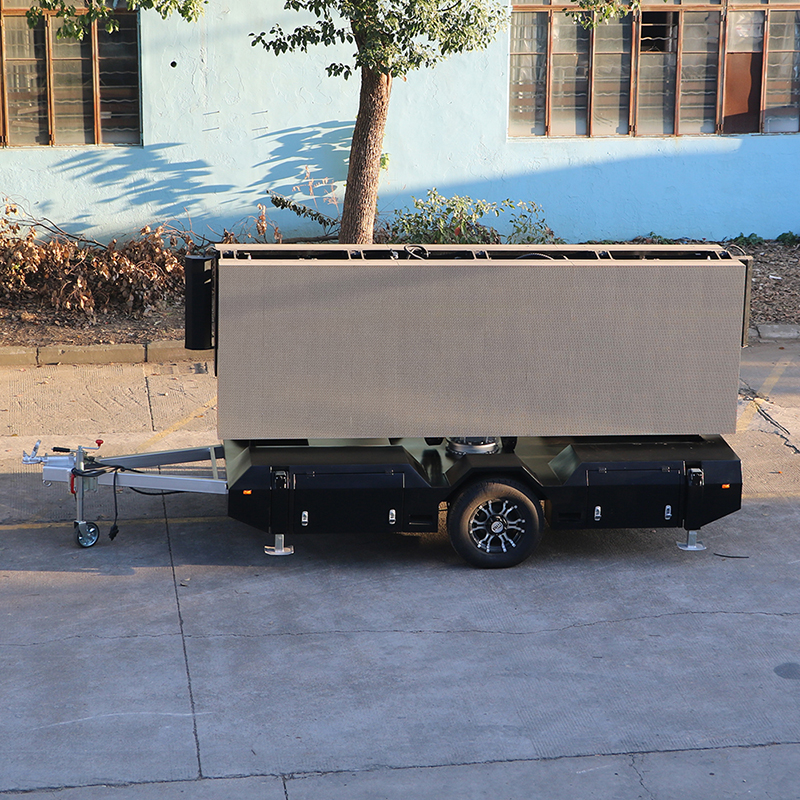

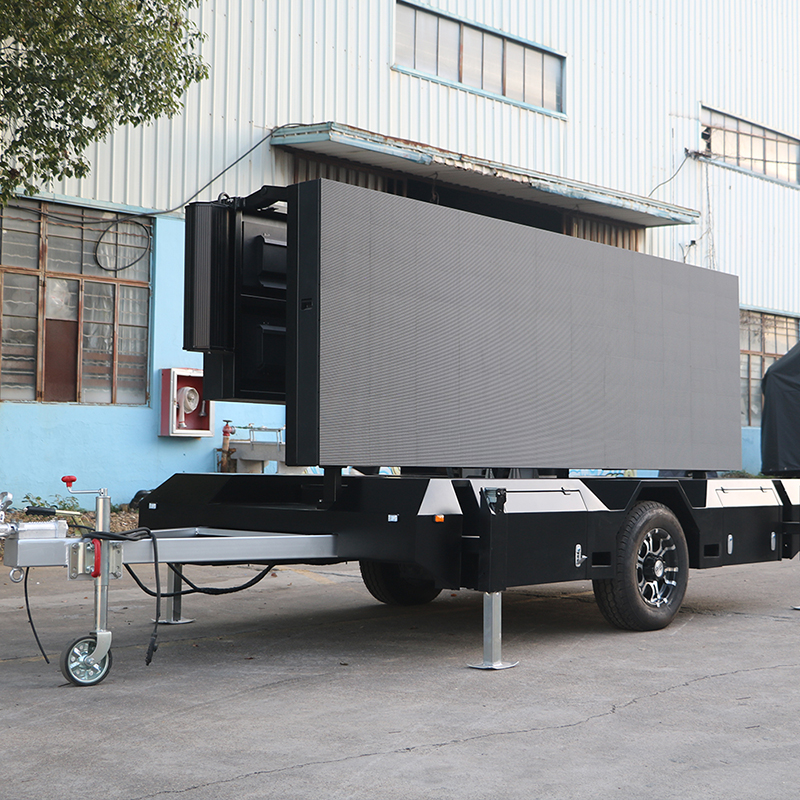

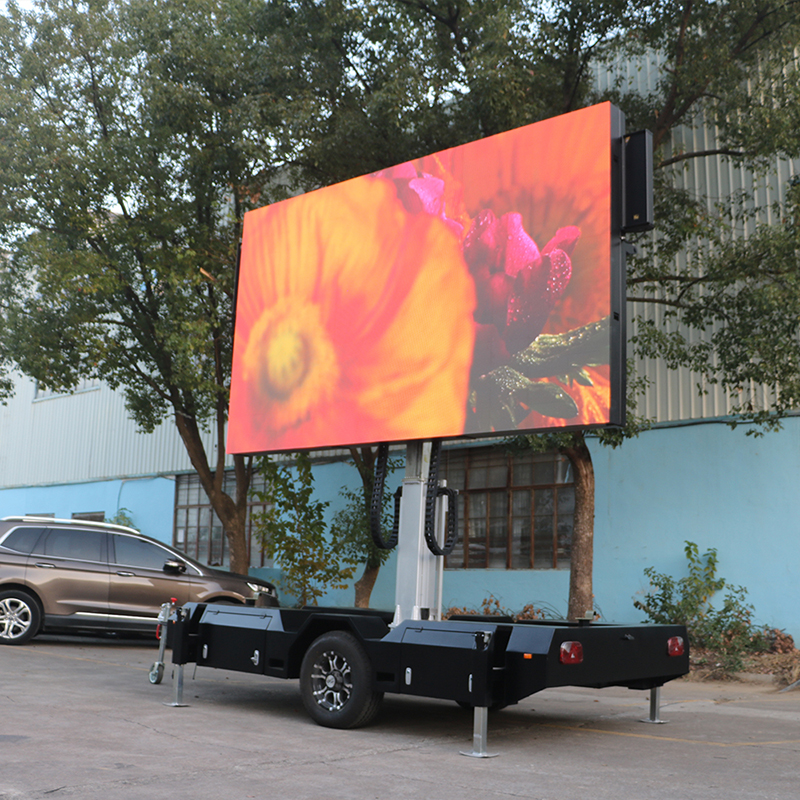

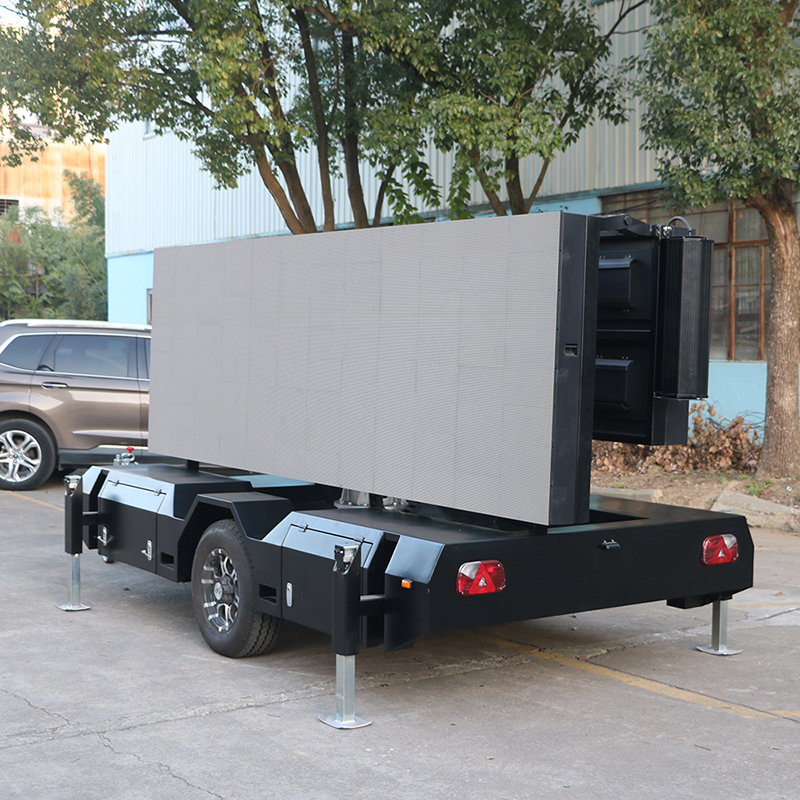

Integrating LED screen lifting, folding and rotating functions into one, creating a new media for outdoor advertising

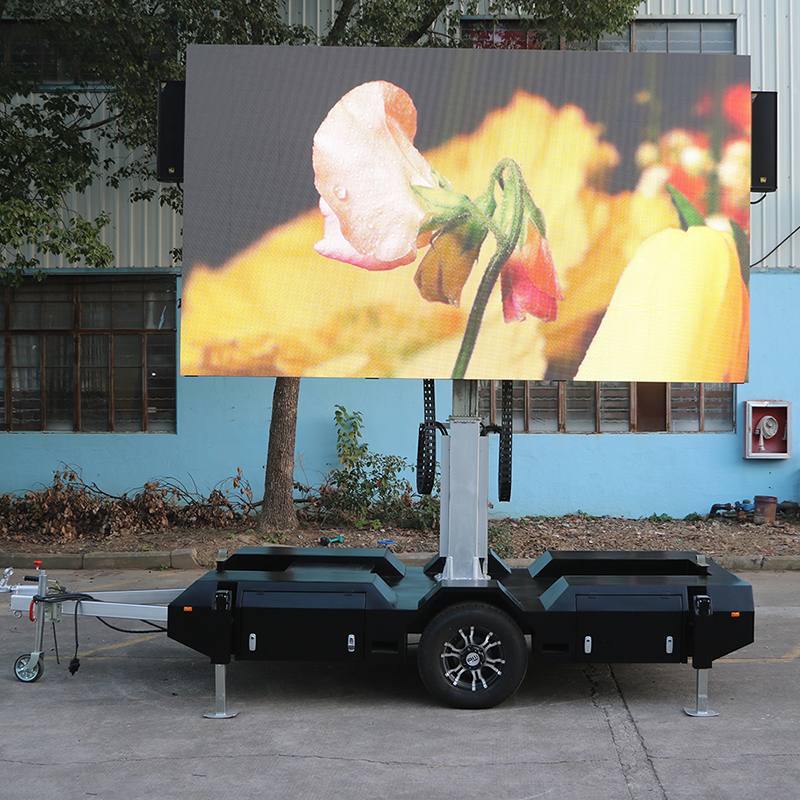

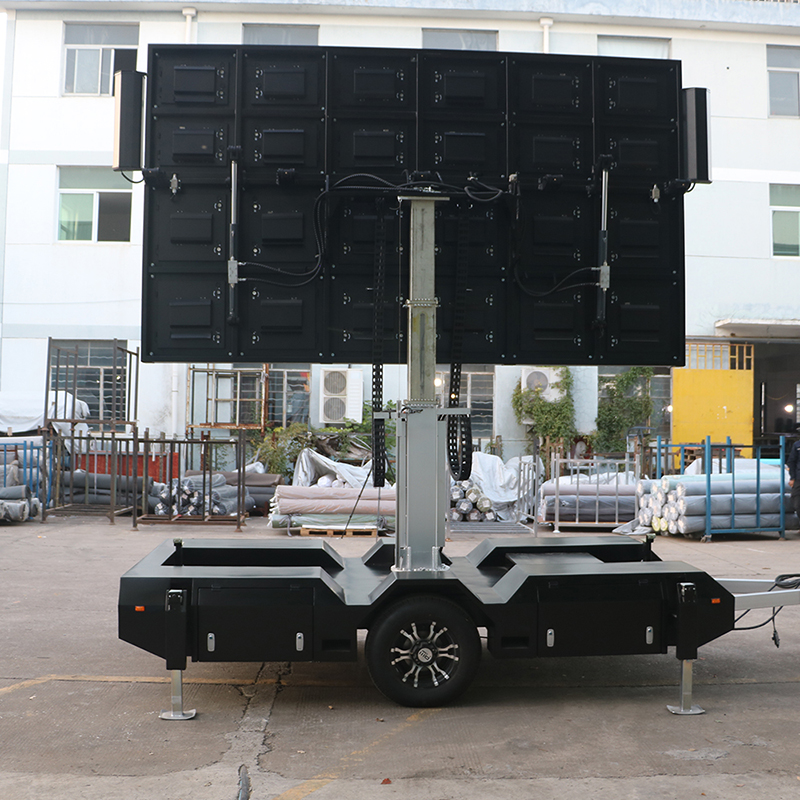

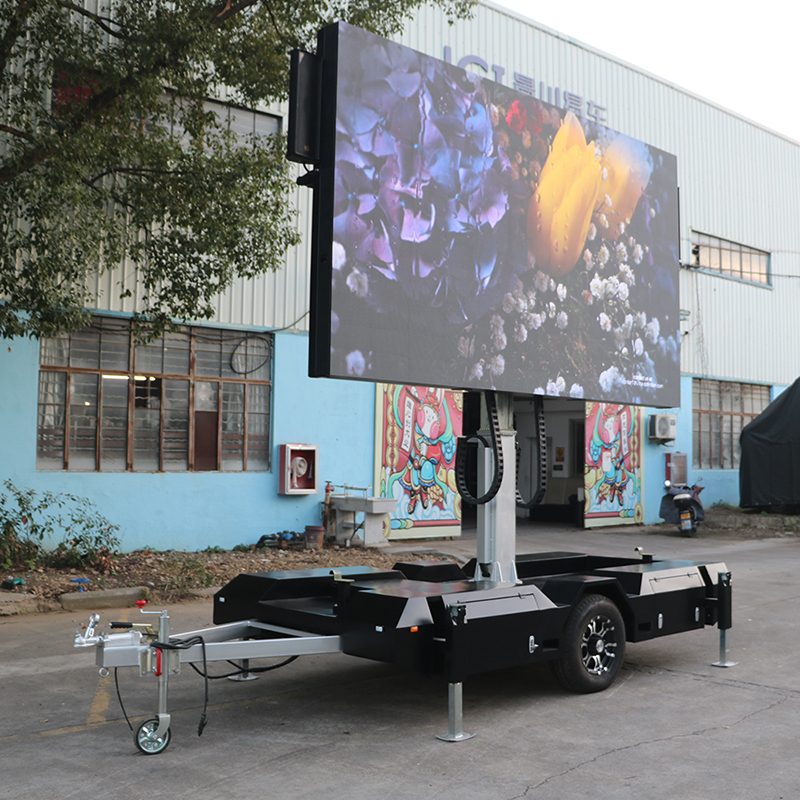

New Energy Billboard Trailer (E-F8NE) integrates the functions of lifting (1300mm stroke), folding (180° up and down), and rotating (330° manual rotation) together. It can adjust the height and angle of the LED screen according to the needs of the on-site environment,which ensures that the audience can get the best viewing angle and further improving the communication effect. It is especially suitable for use in crowded places such as downtown, gatherings, and outdoor sports events.


Our products adopt advanced manufacturing processes and production equipment to ensure the stability and reliability of product quality and performance. At the same time, JCT pays attention to details and quality control. Every product undergoes strict testing and inspection before leaving the factory to ensure that users have access to high-quality products and services. If you are an advertising company, or you need to promote your advertising outdoors, please don’t miss this product from JCT! We believe that this New Energy Billboard Trailer (E-F8NE) has the potential to bring you excellent returns!

Parameters

E-F8NE
Trailer appearance
Total weight 1500kg Dimension 5070mmx1900mmx2042mm
Max speed 120Km/h Axle Load weight 1500KG
Breaking Hand brake
LED Screen
Dimension 3840mm*2240mm Module Size 320mm(W)*160mm(H)
Light brand Gold wire light Dot Pitch 5 mm
Brightness ≥6500cd/㎡ Lifespan 100,000hours
Average Power Consumption 50w/㎡ Max Power Consumption 200w/㎡
Power Supply Xingxiu 24V DRIVE IC ICN2153
Receiving card Nova MRV416 Fresh rate 3840
Cabinet material Iron Cabinet weight Iron 50kg
Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method DIP 570 Operating Voltage DC5V
Module power 18W scanning method 1/8
HUB HUB75 Pixel density 40000 Dots/㎡
Module resolution 64*32Dots Frame rate/ Grayscale, color 60Hz,13bit
Viewing angle, screen flatness, module  clearance H:120°V:120°、<0.5mm、<0.5mm Operating temperature -20~50℃
system support Windows XP,WIN 7,
The battery
Dimension 730mm*430mm*237mm Battery specification 51.2V 300Ah
Electric charging machine
Model NPB-1200 Dimension 250*158*67mm
Power parameter
Input voltage 90 ~ 264VAC Output voltage 48V
Inrush current 28A Average power consumption 50wh/㎡
Player System
Player NOVA Modle TB50-4G
Luminance sensor NOVA
Sound System
Power amplifier Unilateral power output:250W Speaker Max power consumption:50W*2
Hydraulic System
Wind-proof level Level 8 Supporting legs 4 pcs
Hydraulic lifting: 1300mm Fold LED screen 960mm
