Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

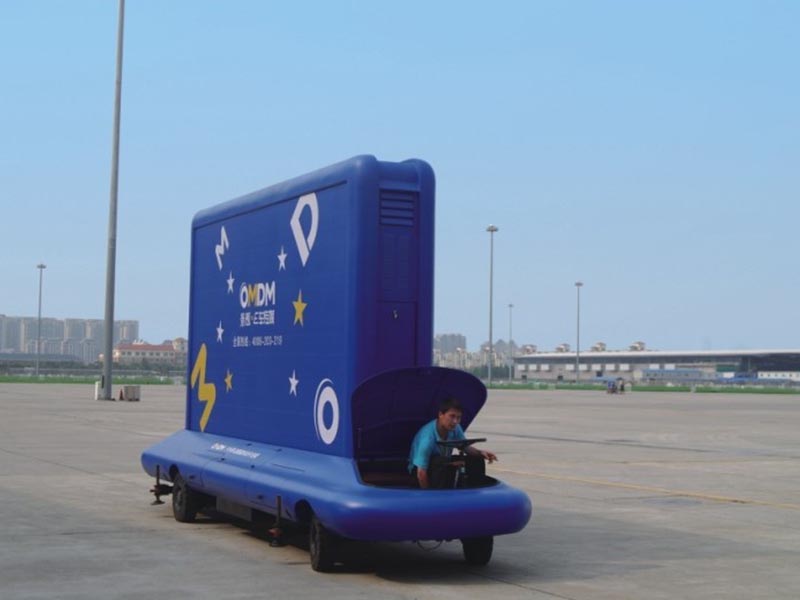

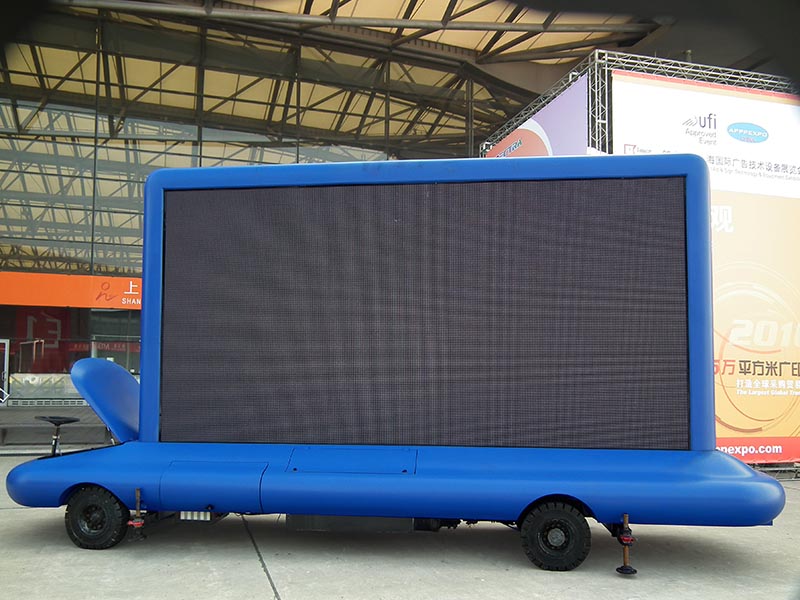

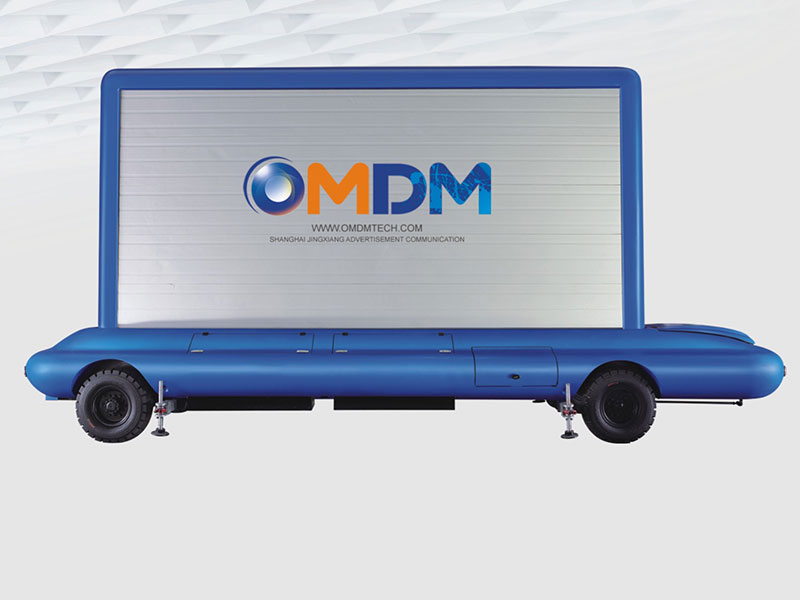

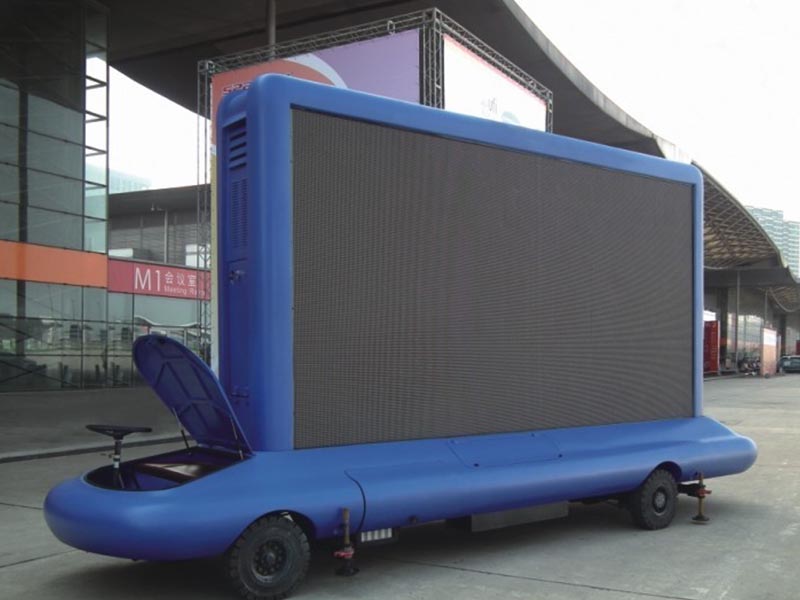

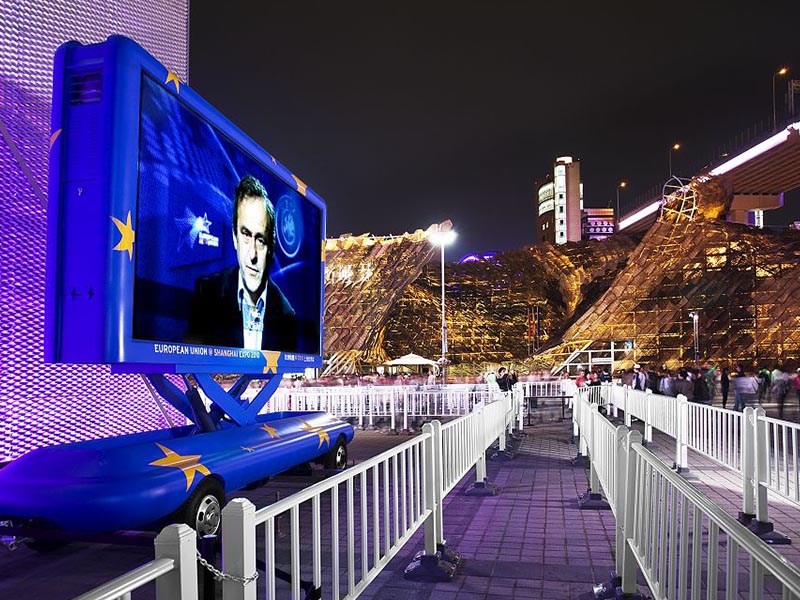

E - P7100 mobile led trailer series also known as the beatles LED vehicle, the vehicle to implement low carbon, autonomous mobile, humanized driving system are very popular with users .JCT beetles LED vehicle driving the spacious space of ascension for driving comfort, easy-to-install manipulation of the system is easy to learn, and turn into perfect product design, the vehicle to two or morethings and beautiful and safety!
| Model | E-P7100 | ||
| Chassis | |||
| Brand | JCT | External Dimension | 7100mm×1820mm×3550mm |
| Tire | Solid rubber tires | Total Weight | 5000KG |

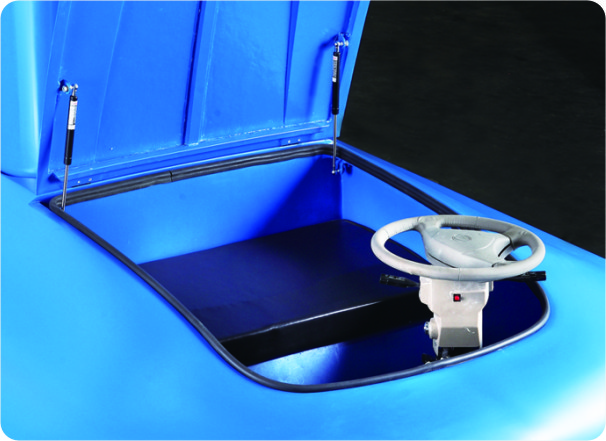

| Power | battery drive, steering wheel, brake oil, The journey can be 70 km | ||
| LED Screen | |||
| Screen Size | 4800mm(W)*2400mm(H) | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| Hydraulic Lifting and Supporting System | |||

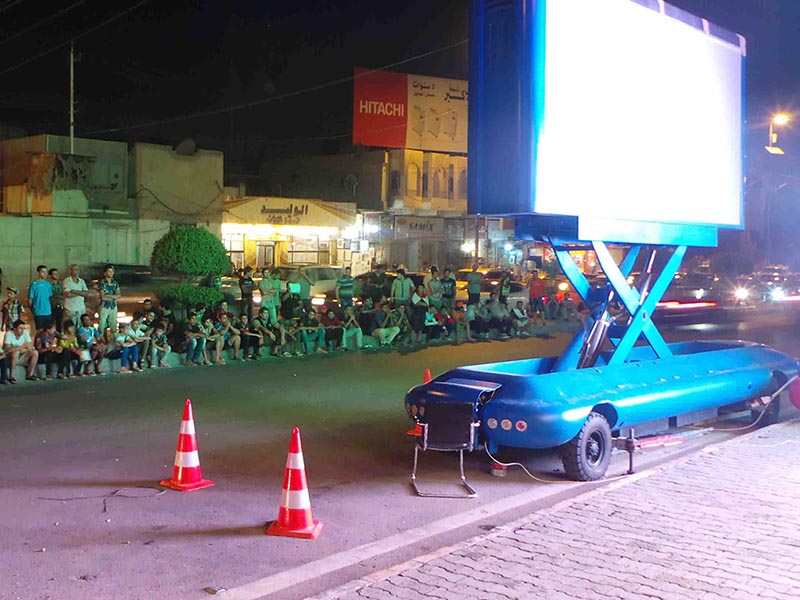

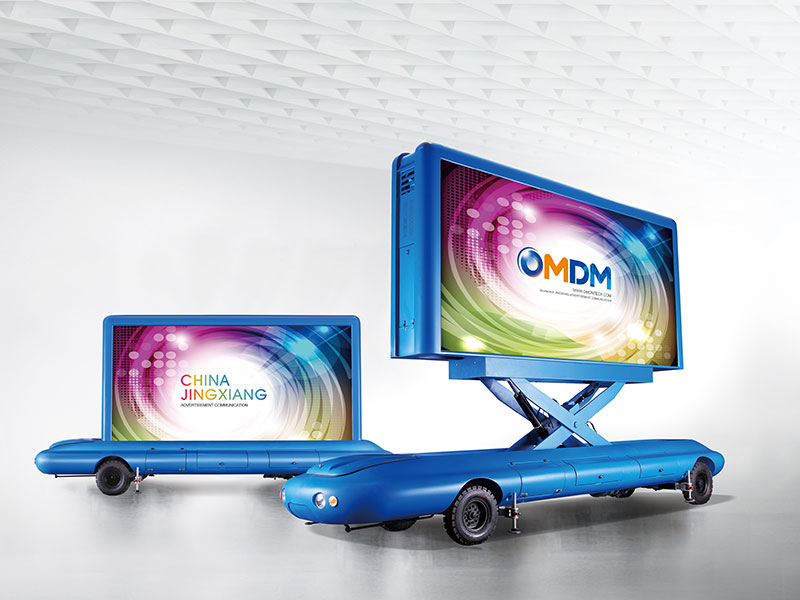

| Hydraulic Lifting System | Lifting Range 2000mm,bearing 3T | ||
| Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||
| Supporting leg | Stretch distance 300mm | ||
| Power parameter | |||
| Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V |
| Current | 30A | Average power consumption | 0.5kwh/㎡ |

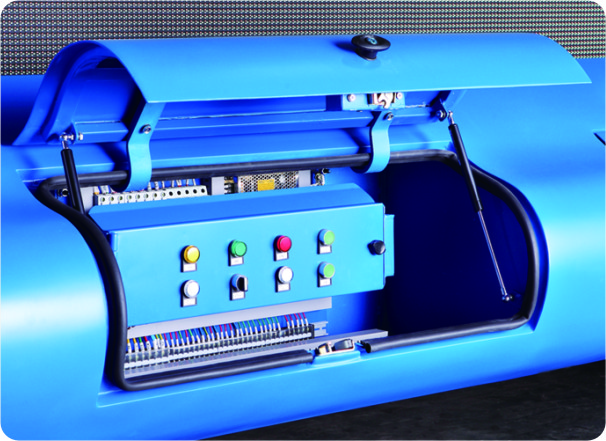

| Multimedia Control System | |||
| Monitor | Support 8-way signal input | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 120W | Speaker | 200W |
