Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

It is big and mobile

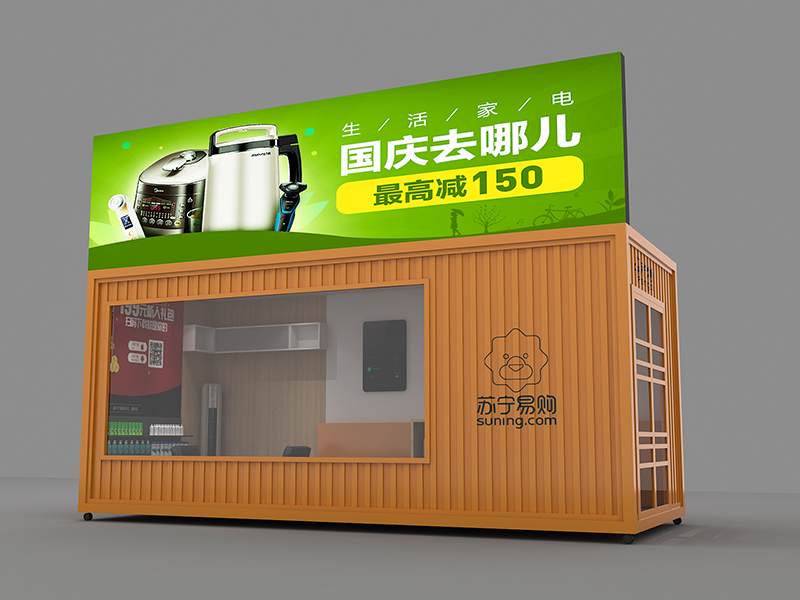

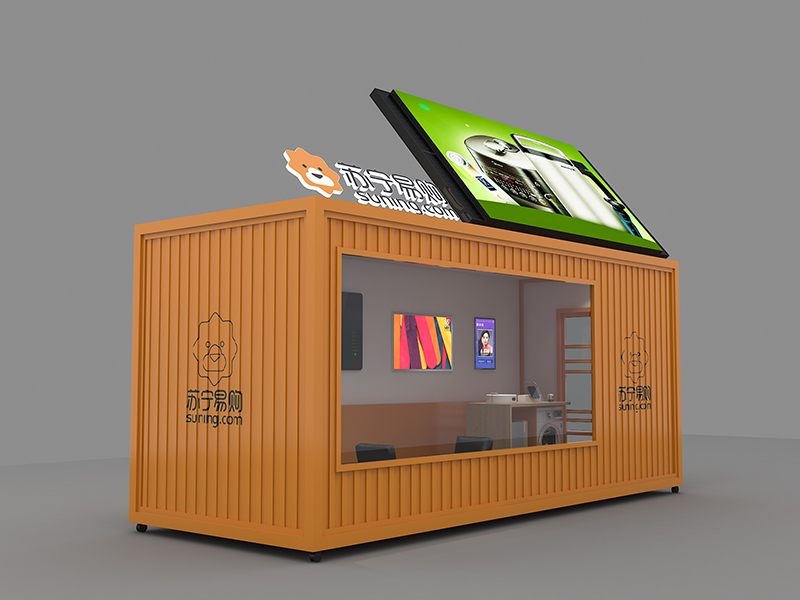

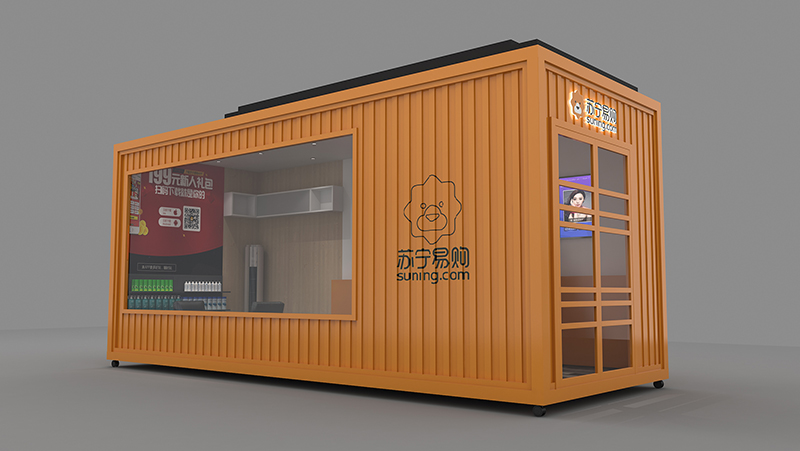

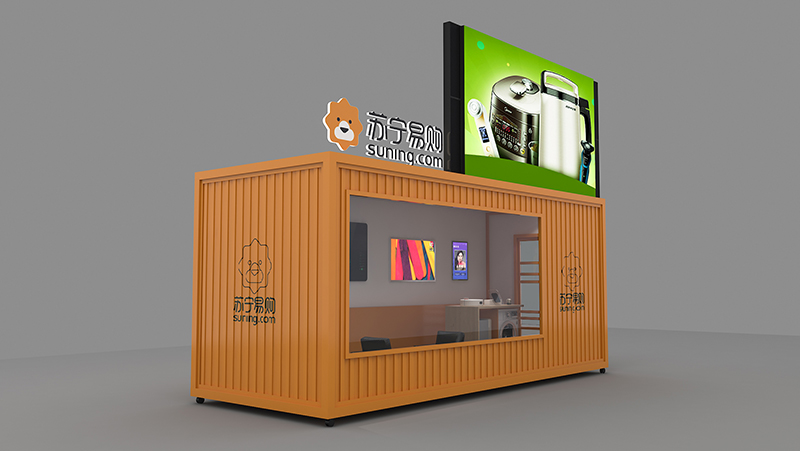

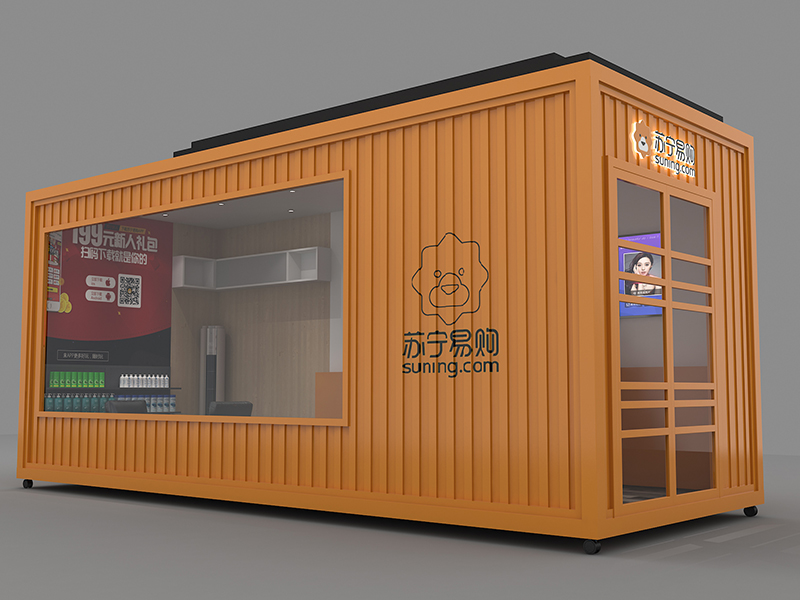

Jingchuan 20 foot container mobile display car can move quickly and have bigger space. It will form all of the brand image stores pre-installed in the region of the car. It is easy to operation and display all kinds of activities at the specified location. large terminal sales promotion, brand image promotion, large cultural tour, mobile exhibition, mobile cinema. Overcoming the time and location limit to make everything is possible.


Sophisticated integration and efficient execution

The new cutting-edge integrated design concept is no longer satisfied with a single media broadcast, nor is it simply loaded, but according to the characteristics of the activity through modification, internal space optimization, no traditional stage construction and disassembly time consuming defects, more effective and faster.And other marketing communication means can be closely combined to achieve functional derivatives, professional TV editing equipment on-site studio car, equipped with professional entertainment equipment mobile carnival, mobile KTV, or according to the needs of brand customers can be modified into a brand theme store.

Parameters

Model

20ft Container mobile led truck

Chassis

Total mass

35000kg

Dimension

6000*2380*2450mm

Hydraulic Lifting and Supporting System

Hydraulic Lifting System

Lifting and folded, bearing 3000KGS

LED display hydraulic tilting cylinder

2

Hydraulic pump station and control system

1

The steel structure

LED screen fixed steel structure

Custom type

The paint

Car paint, 80% black

LED Outdoor Screen (P6)

Screen dimension

4480×1920mm

Module size

320mm(W) x 320mm(H)

Chip brand

RGB: Epistar

Dot pitch

10 mm

Brightness

6500cd/㎡--8000cd/㎡

Max power consumption

700 w/㎡

Lifespan

100,000 hours

Average power consumption

300w/㎡

Multimedia system

Video processor

1

The square USES a full frequency speaker

2

The square USES full frequency amplifier

1

Power parameter

Input Voltage

Three phases five wires 220V

Output Voltage

220V

Current

100A

Average power consumption

0.3kwh/㎡

Generator (Optioanal)

Silence generator; 20KW





Air conditioning

Haier KFR-72GW/05NHA12 3P

1
