Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

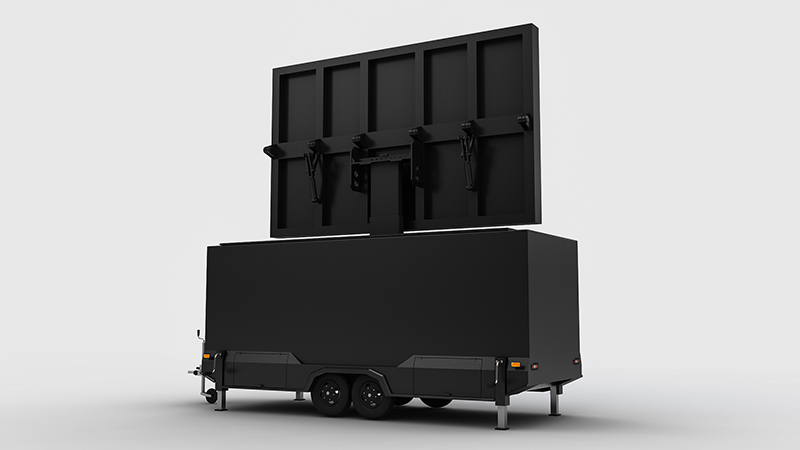

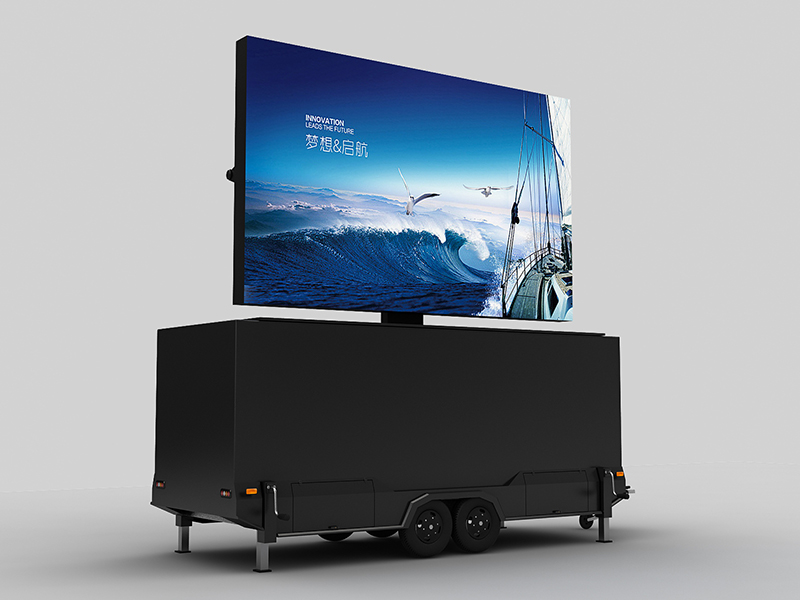

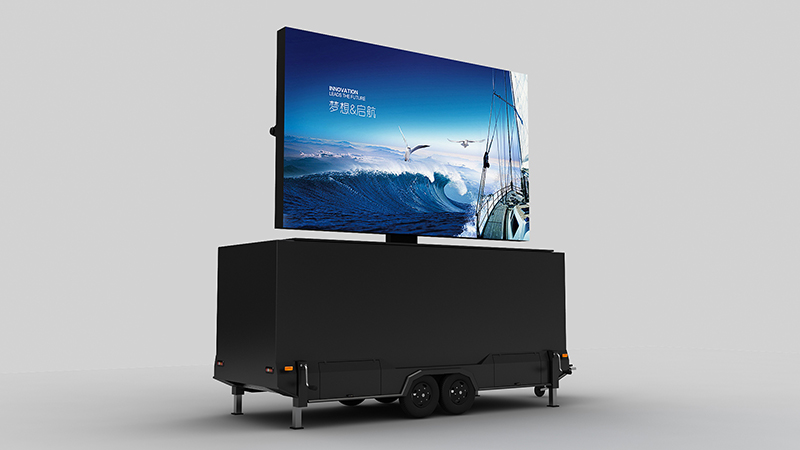

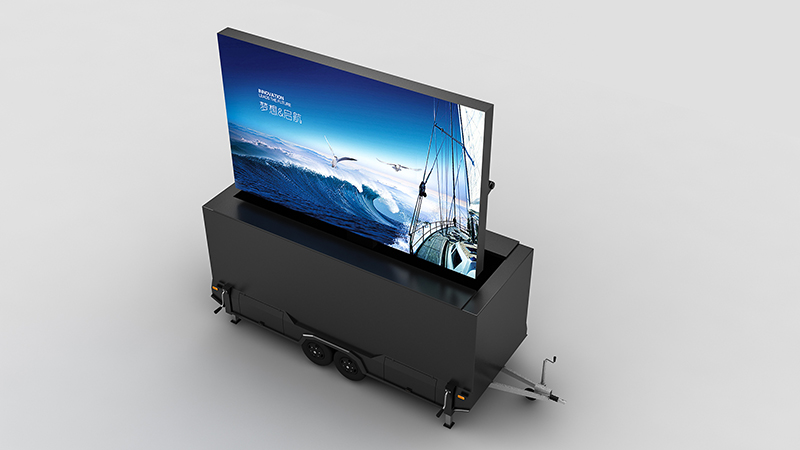

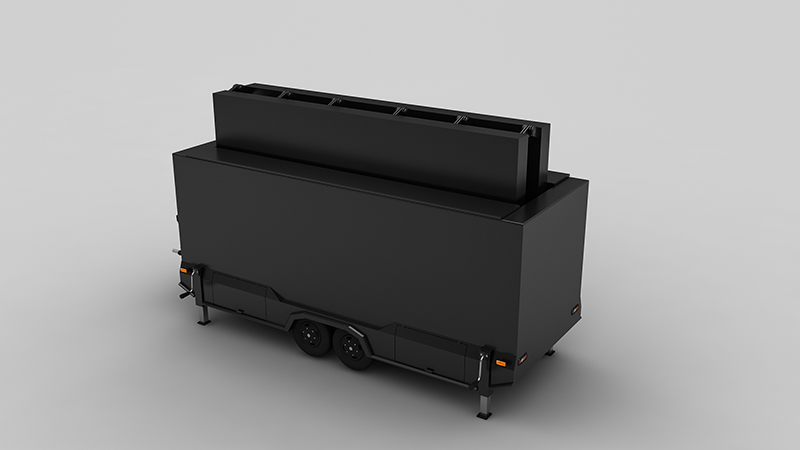

Jingchuan EF16T mobile LED advertising trailers were added some new design philosophy in original foundation by Jingchuan company. E-F16T is a new customized product lunched in 2019,and which is positioning in overseas markets. EF16T mobile LED advertising trailer not only with the conventional double folding, hydraulic lift, 360 ° rotation, and other functions,but also added a container body concept, the full integration of all the equipment in a body. The advantage of this design is that guarantee the safety of the parking equipment and transportation convenience.Humanized design bring a new user experience.
Double visual by one screen

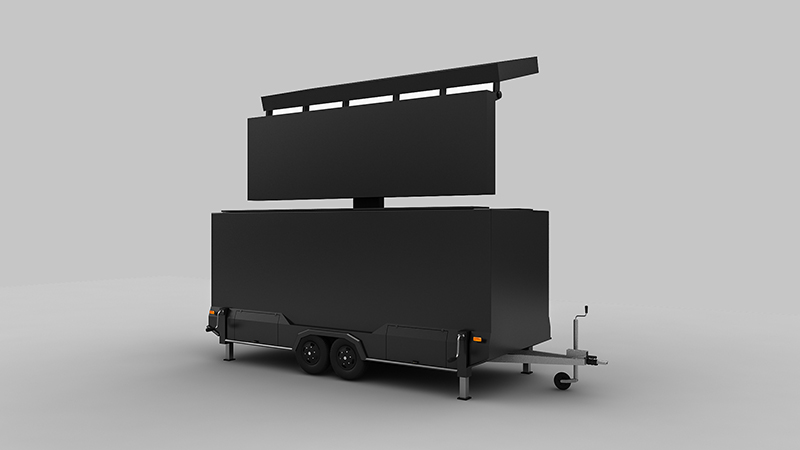

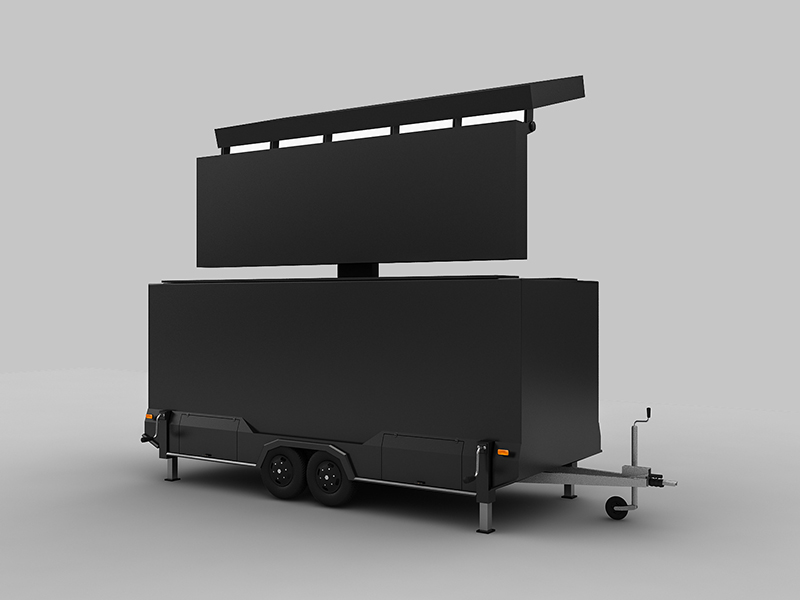

Unique LED foldable technology, shock and changeable visual experience: when folded double play at the same time, achieve 360 ° barrier-free visual coverage;On the screen can be up to 16 ㎡, visual effect is improved.At the same time, due to the effective reduction of the transport limit, it can meet the special regional transport and resettlement, and expand the coverage of the extended media.
Traction movement is safe and convenient

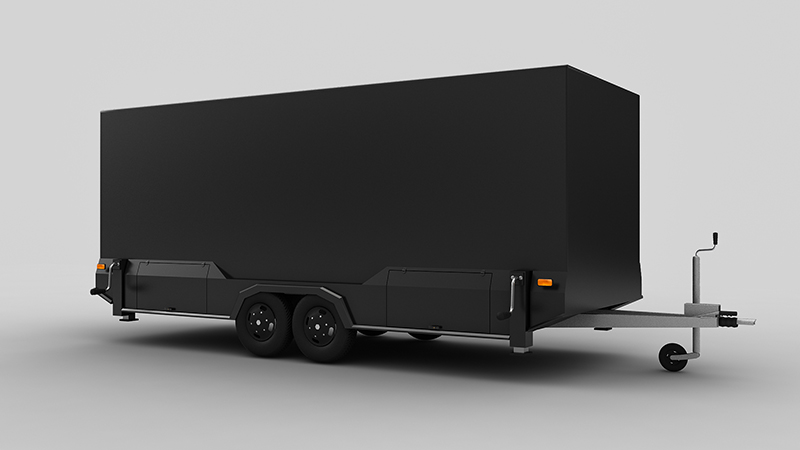

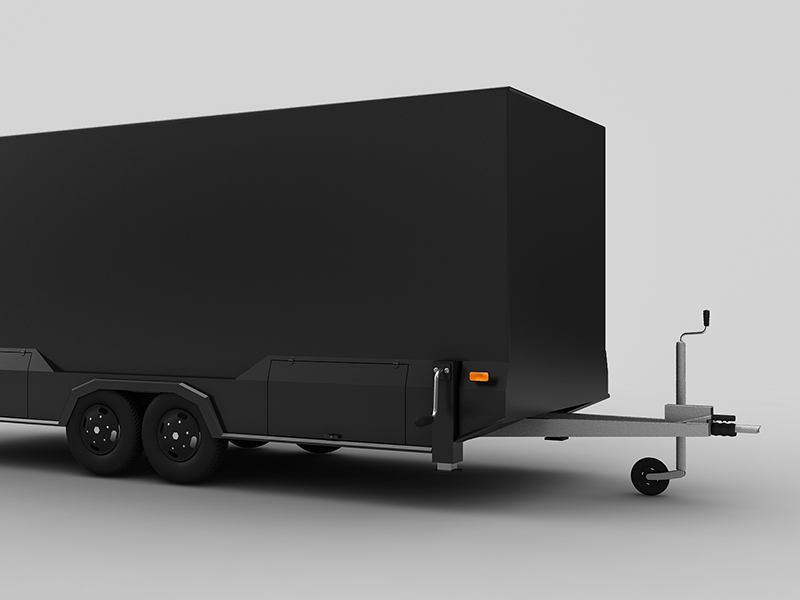

Ef16T mobile LED advertising trailer is connected behind the tractor with connectors and hooks. After arriving at the destination, it can be separated from the tractor. It can be stably parked through the front foot of the advertising trailer, while the tractor can move normally with convenient operation to ensure transportation safety.
Fashionable appearance, dynamic technology
Change the streamline style of previous products, the body adopts frameless design, clean and neat lines, sharp edges and corners, echo with the folding function, fully reflect the sense of science and technology and modern sense.It is especially suitable for pop performance, fashion show, electronic automobile new product release and so on.
Model |
E-F16T mobile led advertising trailer |
||
Trailer appearance |
|||
Gross weight |
3500kg |
Dimension (screen up) |
7020×2100×2458mm |
Chassis |
German-Made AIKO |
Max speed |
100Km/h |
Breaking |
Hydraulic breaking |
Axle |
2 axles |
LED Screen |
|||
Dimension |
5120mm*3200mm |
Module Size |
320mm(W)*320mm(H) |
Chip brand |
3-in-1 DIP |
Dot Pitch |
6mm |
Brightness |
≥8000cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
500w/㎡ |
Max Power Consumption |
1000w/㎡ |
Hydraulic System |
|||
Wind-proof level |
Level 8 |
||
Supporting legs |
Stretching distance 300mm |
||
Hydraulic Lifting and folding system |
Lifting Range 1800mm, bearing 3000kg, hydraulic screen folding system |
||
Power parameter |
|||
Input voltage |
Three phases five wires 380V |
Output Voltage |
220V |
Inrush current |
30A |
Average power consumption |
0.5kwh/㎡ |
Multimedia Control System |
|||
Video processor and DMB player |
Support flash card play, remote play,timing play, insert play,loop play, and support remote volume control, time switch etc.support external expansion input module, optional DVI, HDMI, SDI module |
||
Power amplifier |
Unilateral power output:100W |
||
USB flash disk |
64G |
Speaker |
120W |
Silent generator group |
|||
Dimension |
1350mm x 800mm x 688mm |
||
Brand |
OUMA |
Number of cylinders |
Water-cooled inline 4 |
Displacement |
1.197L |
Bore x stroke |
84mm x 90mm |
