Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

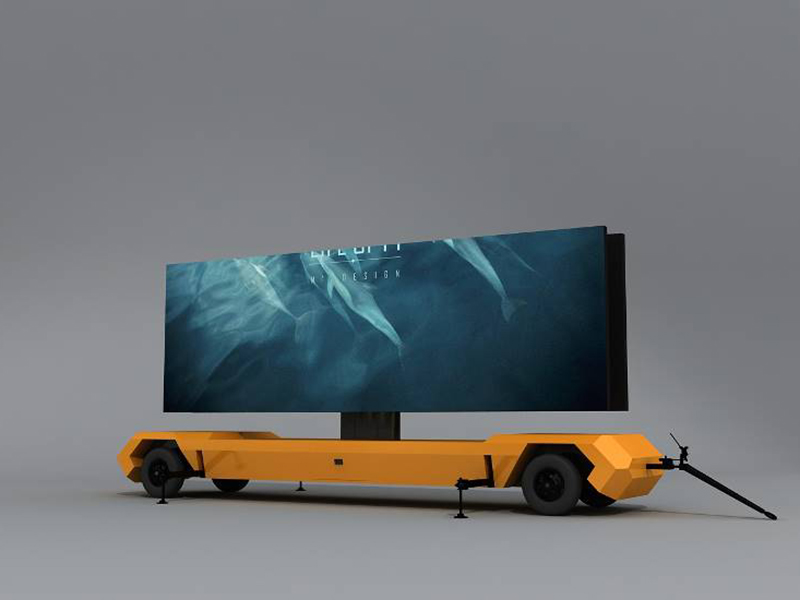

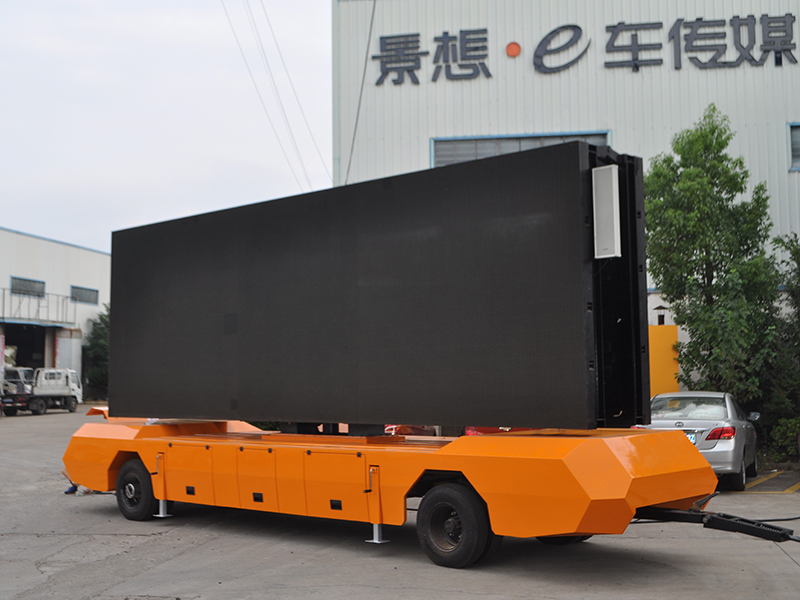

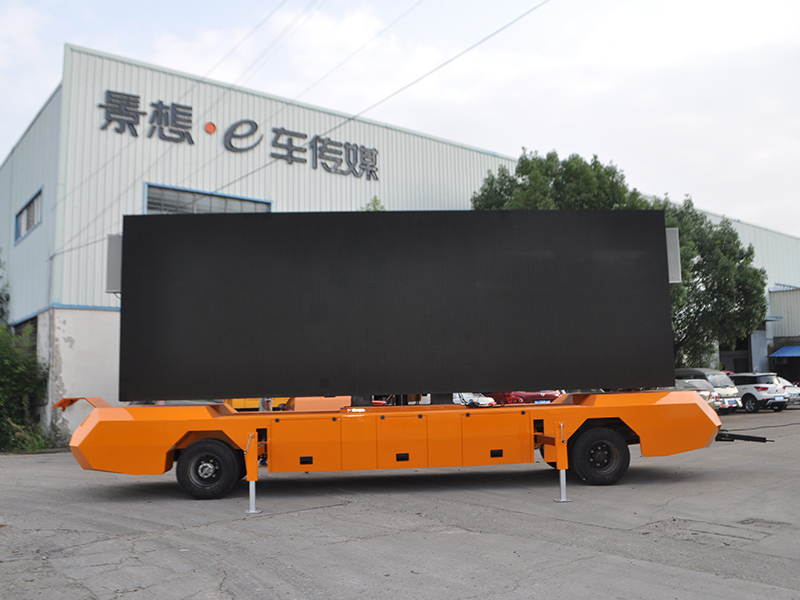

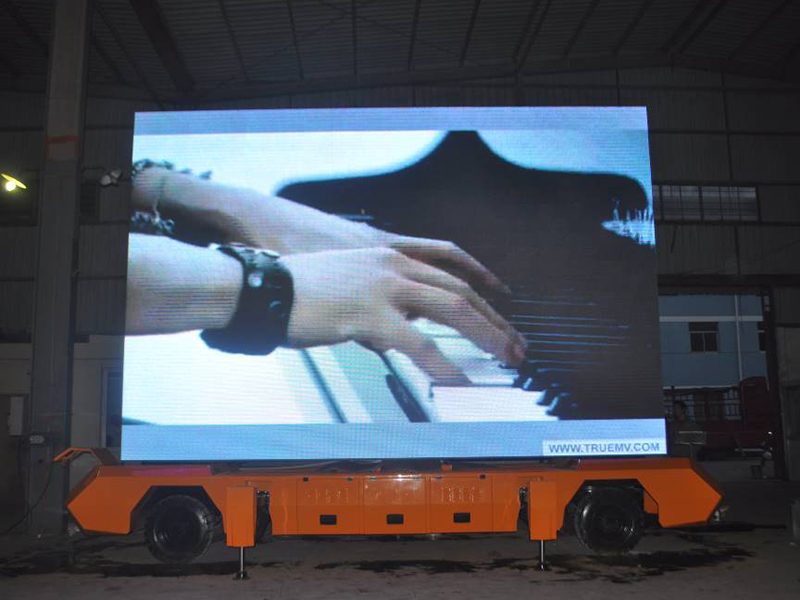

The design inspiration of the JCT e-f40 LED LED mobile trailer comes from the bumblebee in the movie transformers. With bright yellow appearance, the trailer chassis is very wide and full of domine.V-shaped design, no redundant decoration, simple but full impact;Whole appearance is quite full, line is clean and agile, angular trenchness, give a person a kind of massiness safe sense.In the jingchuan trailer series, this car is also called "bumblebee".Compared with the other trailer series products, E - making the hornets have one more distinctive features, its trailer chassis can choose whether configuration power system according to the needs of customers, such as choosing power chassis, intelligent remote control handle, can make the vehicle to travel short distances, without too much human or move to traction force.
Double visual by one screen

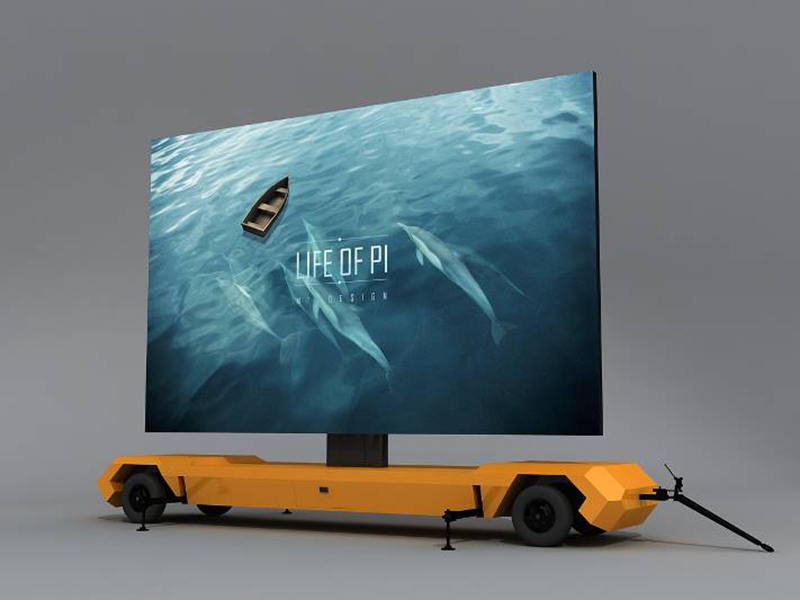

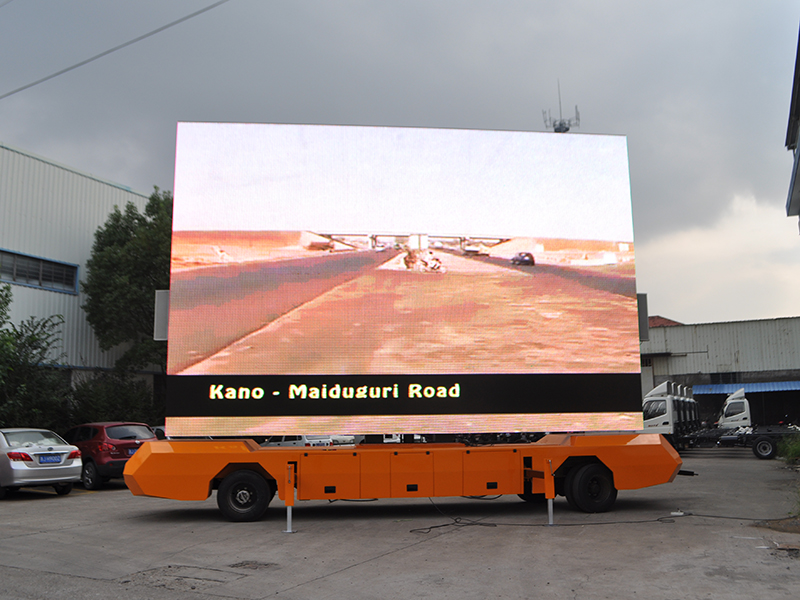

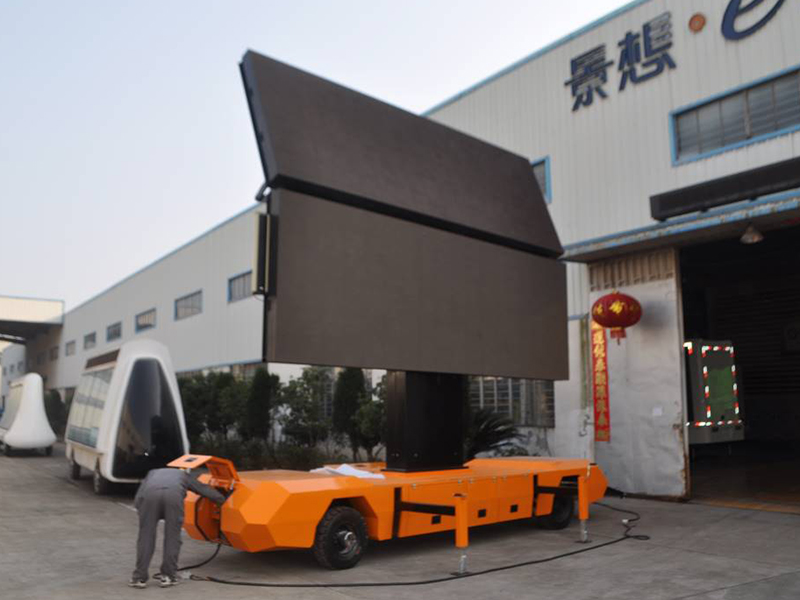

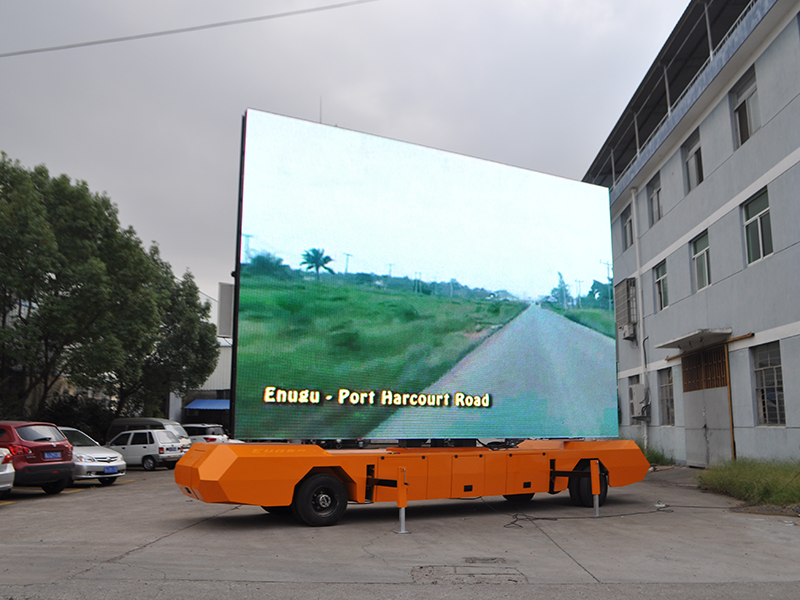

Unique LED foldable technology, shock and changeable visual experience: when folded double play at the same time, achieve 360 ° barrier-free visual coverage;On the screen can be up to 40 ㎡, visual effect is improved.At the same time, due to the effective reduction of the transport limit, it can meet the special regional transport and resettlement, and expand the coverage of the extended media.
Optional power, remote control
E-F40mobile LED advertising trailer can be optional with chassis power system, using manual and mobile dual braking, selective intelligent remote control flexible mobility;Solid rubber tire made of 16 manganese steel is safe and reliable.
Fashionable appearance, dynamic technology
Change the streamline style of previous products, the body adopts frameless design, clean and neat lines, sharp edges and corners, echo with the folding function, fully reflect the sense of science and technology and modern sense.It is especially suitable for pop performance, fashion show, electronic automobile new product release and so on.
The model according to the customer request custom LED screen area, another type of E - F16 (screen size 16㎡), E-F22 (screen size 22 ㎡) to choose from.
Product technical parameters
1. Overall dimension: 10000×2000×3760mm;
2. LED outdoor full-color display screen (P6) size:8000×5120mm;

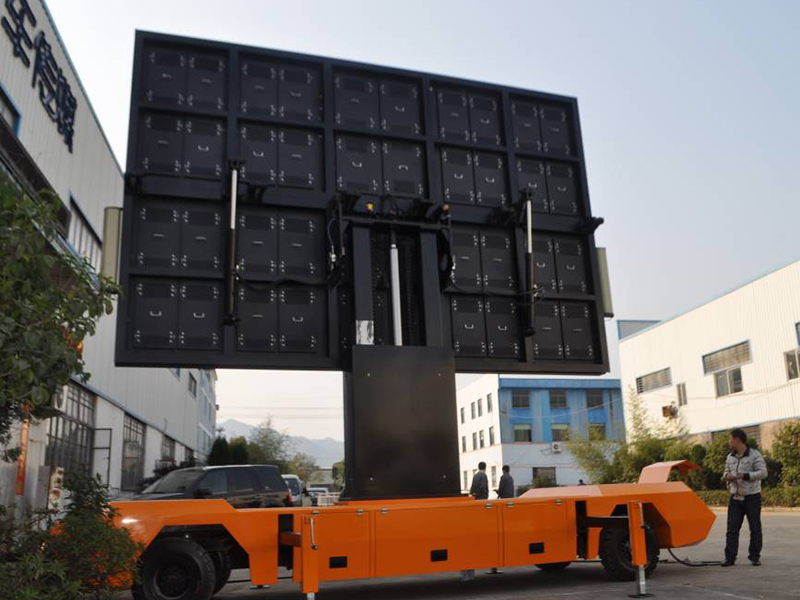

3. Lifting system: hydraulic cylinder imported from Italy with a stroke of 3000mm;
4. Turning mechanism: hydraulic assistant of turning mechanism, bearing capacity: 4000KG;
5. Power consumption (average consumption) : 0.5 / m/H, total average consumption;
6. Equipped with front-end video processing system for live broadcast or retransmission of programs and ball games, there are 8 channels, and the screen can be switched at will;
7. The intelligent timing power on system can turn on or off the LED screen regularly;
8. can be equipped with light control system, according to the light intensity can automatically adjust the brightness of LED display;
9. equipped with multimedia playback system, support U disk playback, support mainstream video format, support circular playback, interstitials, timing playback and other functions;
10.Input voltage 380V, starting current 50A;
Model |
E-F40 |
||
Chassis |
|||
Brand |
JCT |
External Dimension |
10000×2000×3760mm |
Brake |
Handle/Hydraulic |
Total Weight |
10000KG |
Minimum turnin diameter |
≥16m |
Tire |
Solid rubber tires |
LED Screen |
|||
Screen SIZE |
8000mm(W)*5120mm(H) |
Dot Pitch |
6mm |
Module Size |
320mm(W)*320mm(H) |
Brightness |
≥7500cd/ m² |
Max Power Consumption |
680w/㎡ |
Average Power Consumption |
288w/㎡ |
Lifespan |
100,000hours |
|
|
Hydraulic lifting System |
|||
Lifting System |
Reach3000mm |
||
Supporting system |
Reach300mm |
||
Folding System |
180 degree |
||
Power parameter |
|||
Input Voltage |
Three-phase five-wire 380V |
Output Voltage |
380V |
Current |
50A |
Average power consumption |
0.5kwh/㎡ |
Multimedia Control System |
|||
Monitor |
Support 8-way signal input |
||
Media player |
with various kinds of common used video connector, be available for PC, camera and etc. |
||
Sound |
200W |
Speaker |
1500W |
Optional configuration |
LED Screen& Battery power & mechanical transmission is optional |
