Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

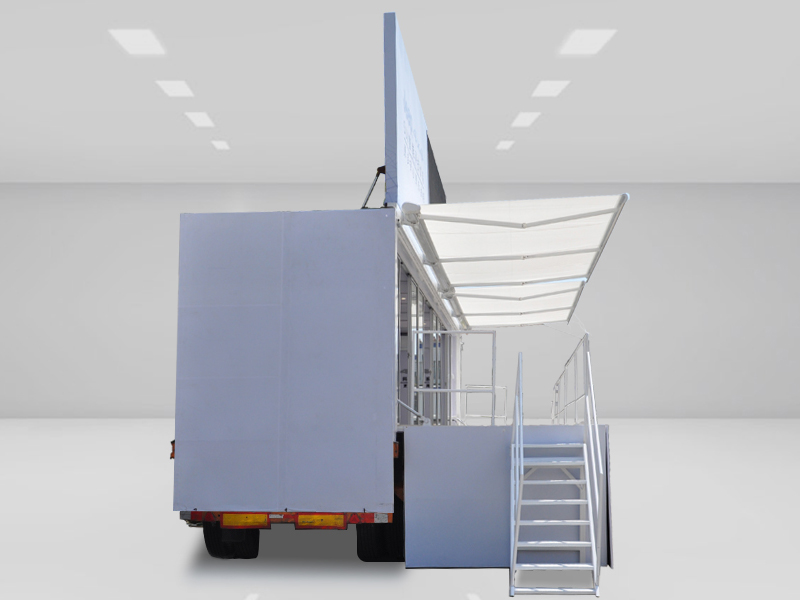

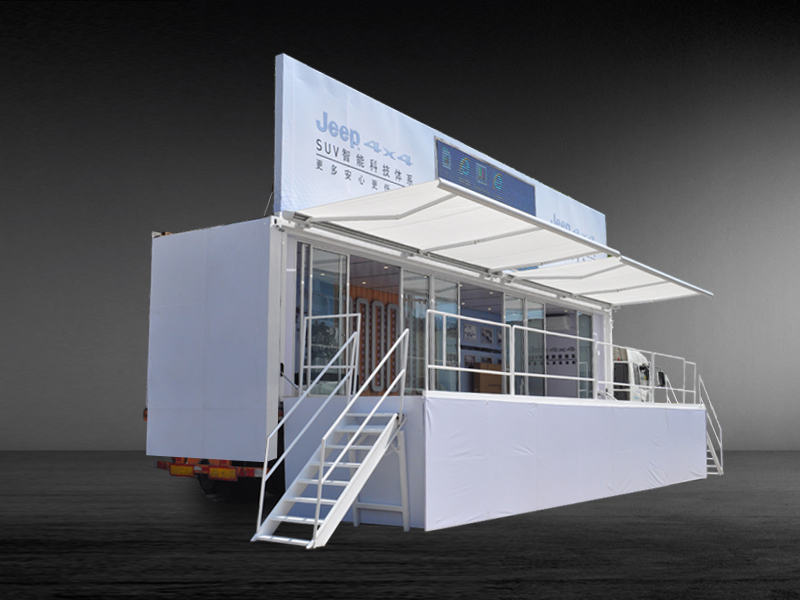

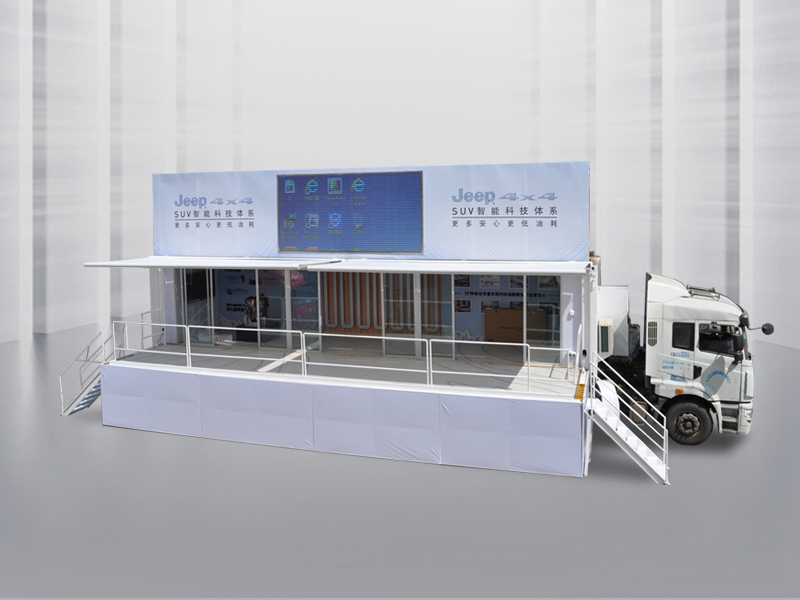

JingChuan 40ft Container mobile STAGE TRUCK is a convenient flow stage, and can become the stage of special car, the car is equipped with outdoor LED, fully automatic hydraulic stage, professional audio lighting, the stage of all forms pre-installed in the region of the car, but by modified based on the characteristics of activities, optimize the internal space, without the traditional stage structures, remove the time-consuming defect, the more quickly and more effectively and can and other closely integrated marketing communication means, and realization of function is derived.
It is big and mobile
Collection card drive and space superiority, will form pre-installed in the car all the stage area, at the specified location for activities simply operation, can complete all kinds of display: large terminal promotion, large cultural tour, mobile exhibition, mobile cinema, such as ignoring the time limit to make everything is possible.
Sophisticated integration and efficient execution
The new cutting-edge integrated design concept is no longer satisfied with a single media broadcast, nor is it simply loaded, but according to the characteristics of the activity through modification, internal space optimization, no traditional stage construction and disassembly time consuming defects, more effective and faster.And other marketing communication means can be closely combined to achieve functional derivatives, professional TV editing equipment on-site studio car, equipped with professional entertainment equipment mobile carnival, mobile KTV, or according to the needs of brand customers can be modified into a brand theme store.
|
Model |
40ft Container mobile stage truck |
||
|
Chassis |
|||
|
Brand |
FOTON |
Dimension |
12200*2500*2500mm |
|
Total mass |
10000kg |
Emission Standard |
EuroⅤ |
|
Hydraulic Lifting and Supporting System |
|||
|
Hydraulic Lifting System |
Lifting range 5000mm, bearing 12000KGS |
||
|
LED display hydraulic tilting cylinder |
2 |
||
|
Stage hydraulic cylinder and oil pipe, stage bracket and other accessories |
1 |
||
|
Hydraulic pump station and control system |
1 |
||
|
Hydraulic remote control |
1 |
||
|
The steel structure |
|||
|
LED screen fixed steel structure |
Custom type |
The paint |
Car paint, 80% black |
|
LED Outdoor Screen (P6) |
|||
|
Screen dimension |
4480×1920mm |
Module size |
320mm(W) x 320mm(H) |
|
Chip brand |
RGB: Epistar |
Dot pitch |
10 mm |
|
Brightness |
6500cd/㎡--8000cd/㎡ |
Max power consumption |
700 w/㎡ |
|
Lifespan |
100,000 hours |
Average power consumption |
300w/㎡ |
|
Multimedia system |
|||
|
Video processor |
1 |
||
|
The square USES a full frequency speaker |
2 |
||
|
The square USES full frequency amplifier |
1 |
||
|
Power parameter |
|||
|
Input Voltage |
380V |
Output Voltage |
220V |
|
Current |
30A |
Average power consumption |
0.3kwh/㎡ |
|
Air conditioning |
|||
|
Haier KFR-72GW/05NHA12 3P |
1 |
||
