Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

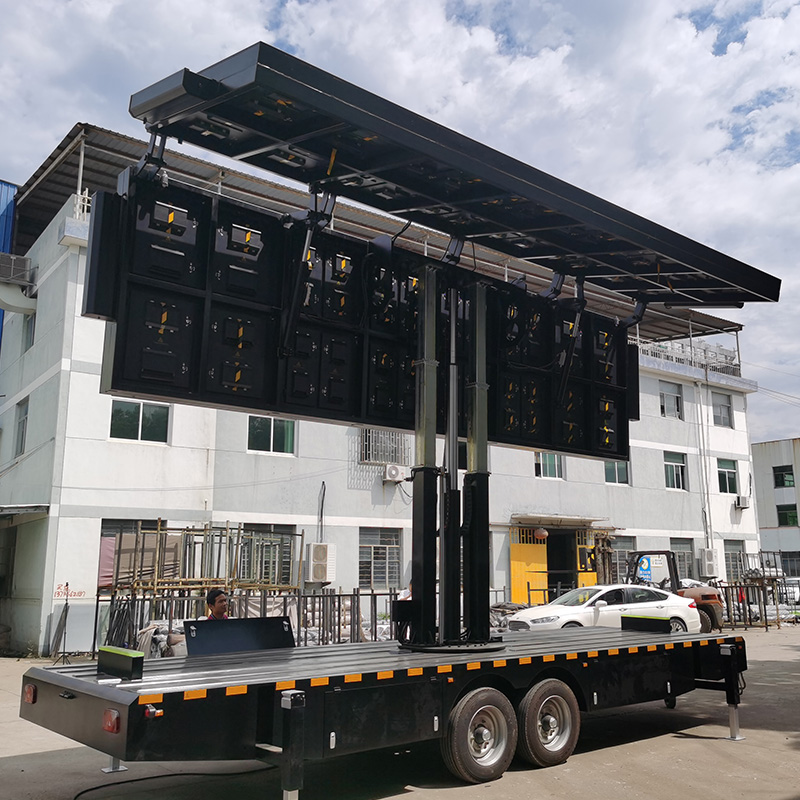

Foldable screen

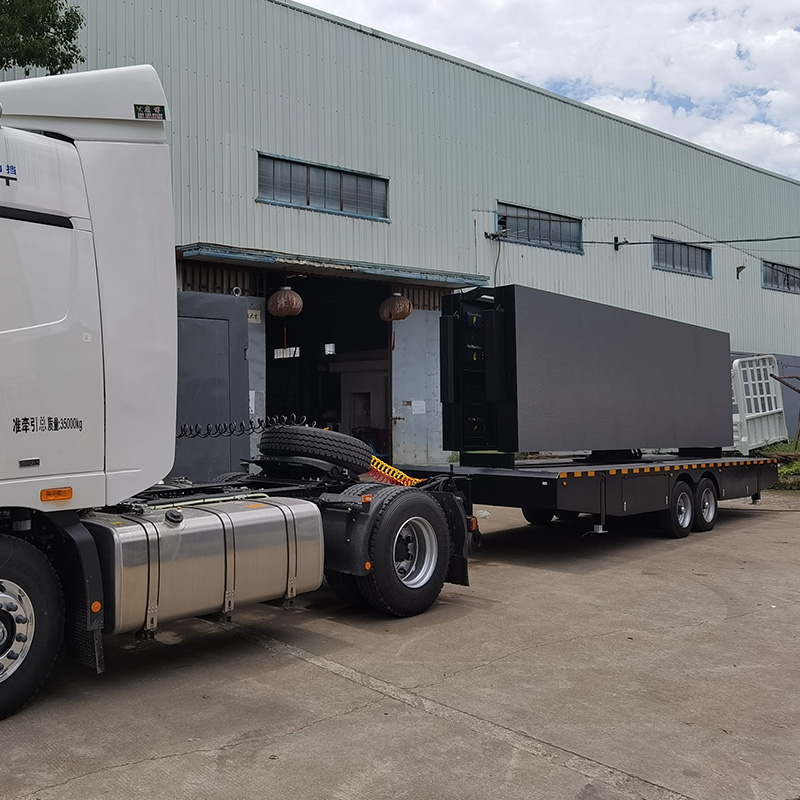

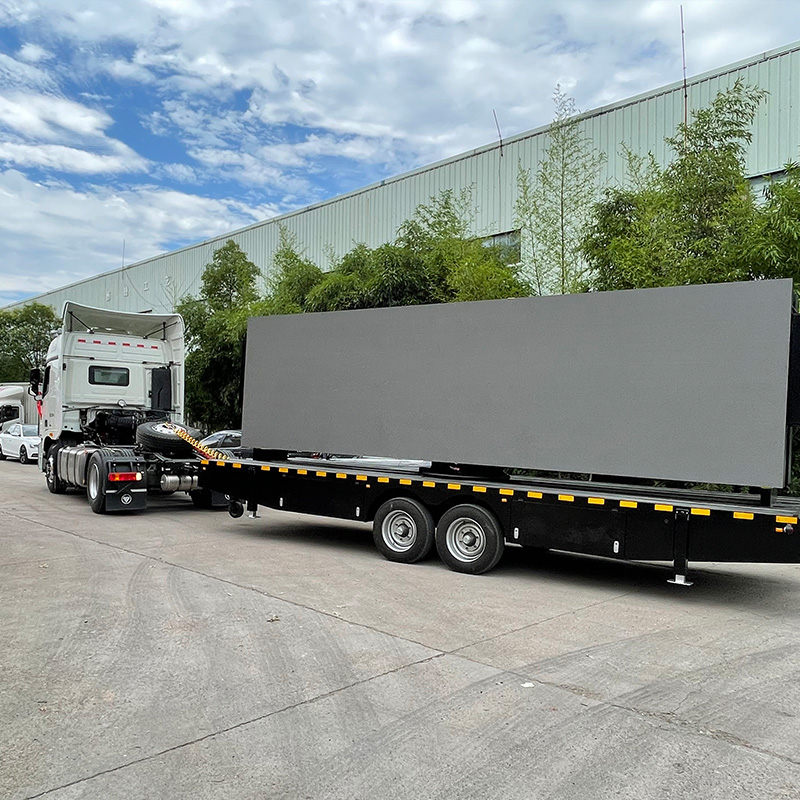

Unique LED foldable screen technology brings customers a shocking and changeable visual experiences. Screen can play and fold at the same time. 360 degree barrier-free visual coverage and 28m2 screen improve the visual effect. Meanwhile, as it effectively reduces the limits of transportation, it can meet the requirements of special regional dispatching and resettlement to  expand the media coverage.

Optional power, remote control

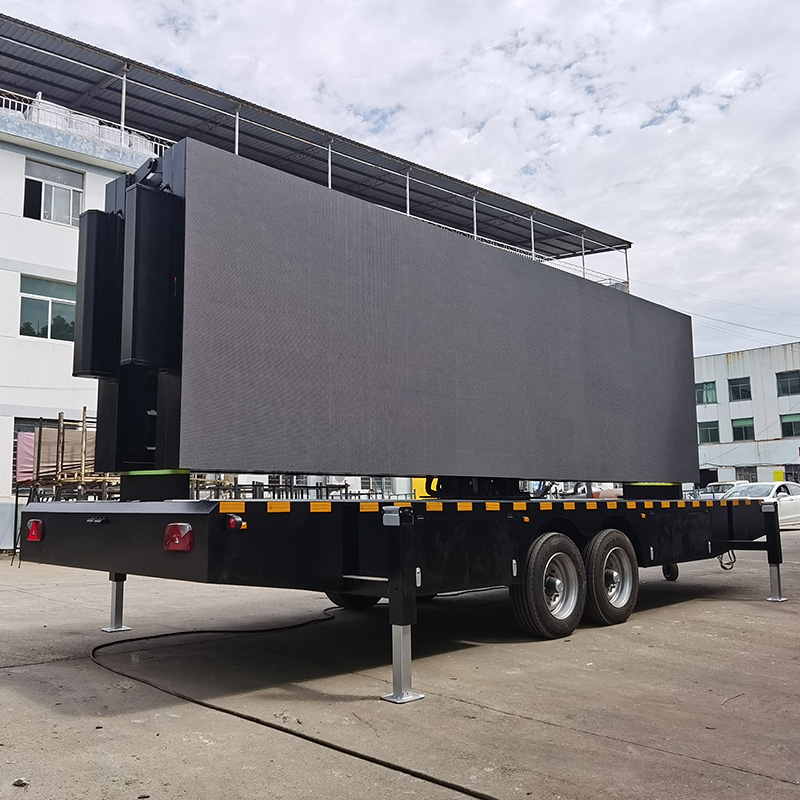

The 28m2 mobile LED trailer is optional with chassis power system and using manual and mobile dual braking. Intelligent remote control makes it more flexible. Solid rubber tire made of 16 manganese steel is safe and reliable.

Fashionable appearance, dynamic technology

The 28m2 mobile LED trailer changed the traditional streamline design of previous products to a frameless design with clean and neat lines and sharp edges, fully reflecting the sense of science,  technology and modernization. It is especially suitable for pop show, fashion show, automobile new product release and so on.

Customized design

LED screen size can be customized according to customer requests, other types like E-F16 (screen size 16m2) and E-F40 (screen size 40m2) are available.

Product technical parameters

  1. Overall dimension: 9126×2100×2955mm.
  2. LED outdoor full-color display screen (P4) size: 7000mm*4000mm.

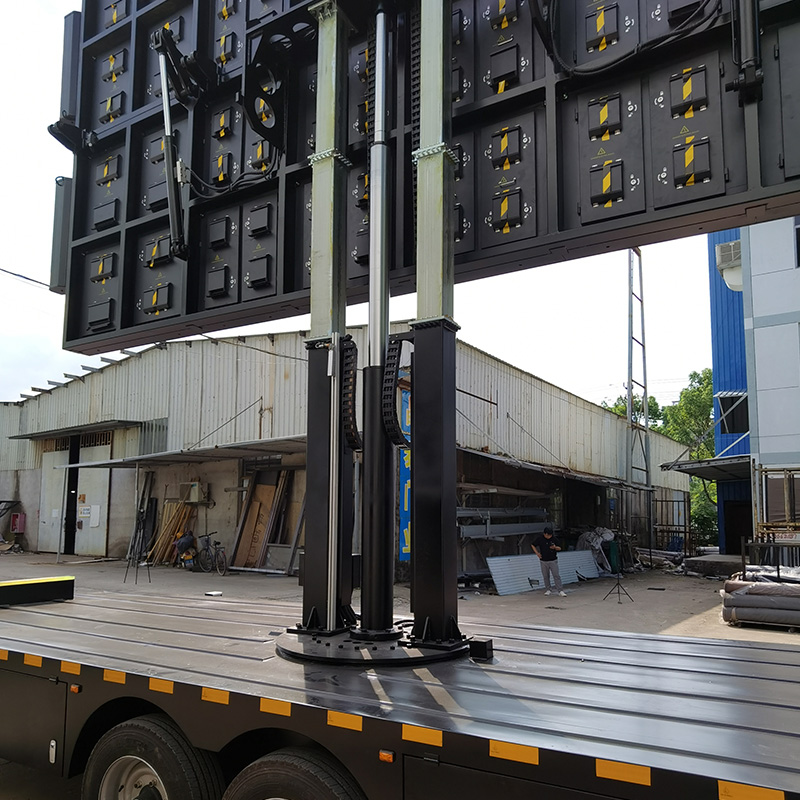

  3. Lifting system: hydraulic cylinder imported from Italy with a stroke of 2000mm.
  4. Power consumption (average consumption) : 0.3/m2/H, total average consumption.
  5. Equipped with front-end video processing system for live broadcast or retransmission of programs and ball games, there are 8 channels, and the screen can be switched at will.
  6. The intelligent timing power on system can turn on or off the LED screen regularly.
  7. can be equipped with light control system to automatically adjust the brightness of LED display according to the light intensity.
  8. equipped with multimedia playback system, support U disk playback, support mainstream video format, support circular playback, interstitials, timing playback and other functions. Input voltage 380V, starting current 30A.

Parameters

Model

E-F28(28m2 LED TRAILER

Trailer appearance

Brand

JCT

Dimension                       (screen up)

9126×2100×2955mm

Chassis

German-Made AIKO

Gross weight

4800kg

Breaking

Gas brake,Need to use gas brake truck traction

Max speed

120Km/h

LED Screen

Screen Size

7000mm*4000mm

Dot Pitch

P3/P4/P5/P6

Lifespan

100,000hours



Hydraulic lifting System

Lifting System

Lifting Range 2000mm, bearing 3000kg, hydraulic screen folding system

Supporting legs

Stretching distance 300mm

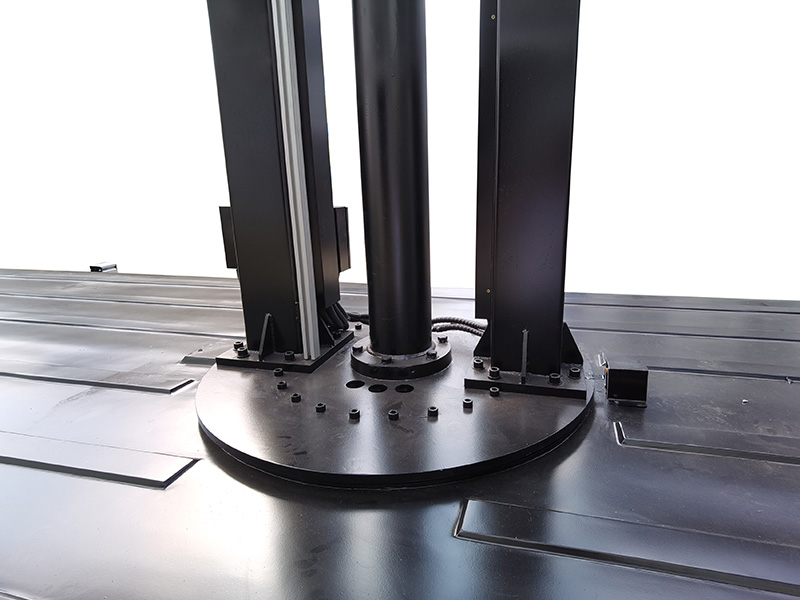

hydraulic rotation

360 degrees

Power parameter

Input voltage

Three phases five wires 380V

Output voltage

220V

Inrush current

30A

Average power consumption

0.25kwh/㎡

Multimedia Control System

Video processor

NOVA

Model

TB6-4G

Luminance sensor

NOVA

Multi-function card

NOVA

Power amplifier

Output power:250W

Speaker

power:100W*4
