Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

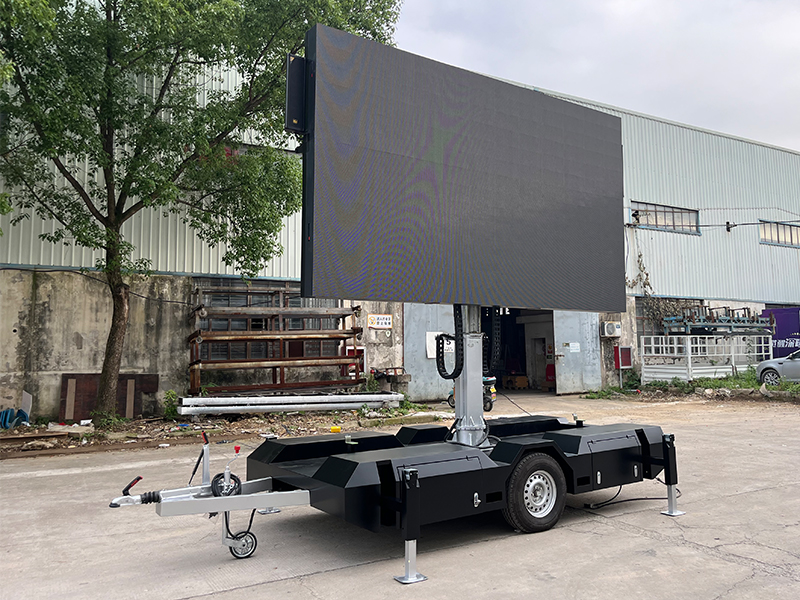

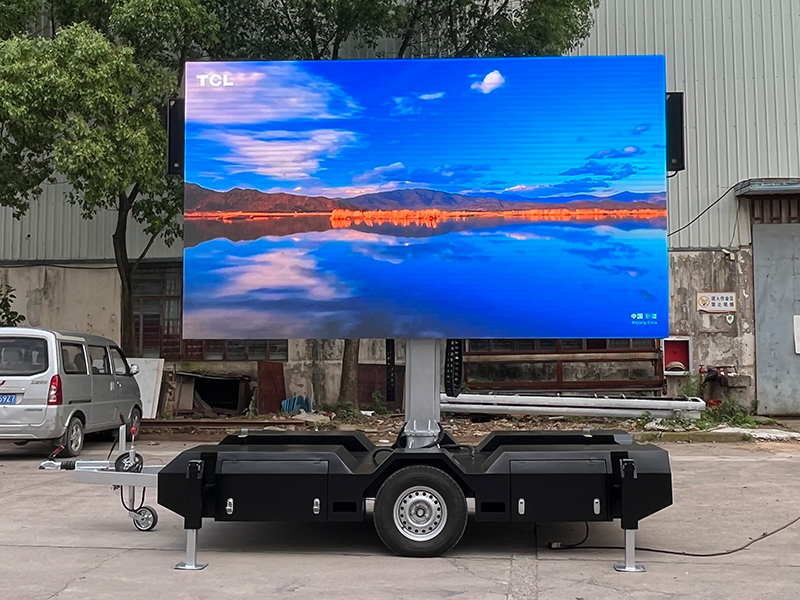

LED screen can be rotated 360°

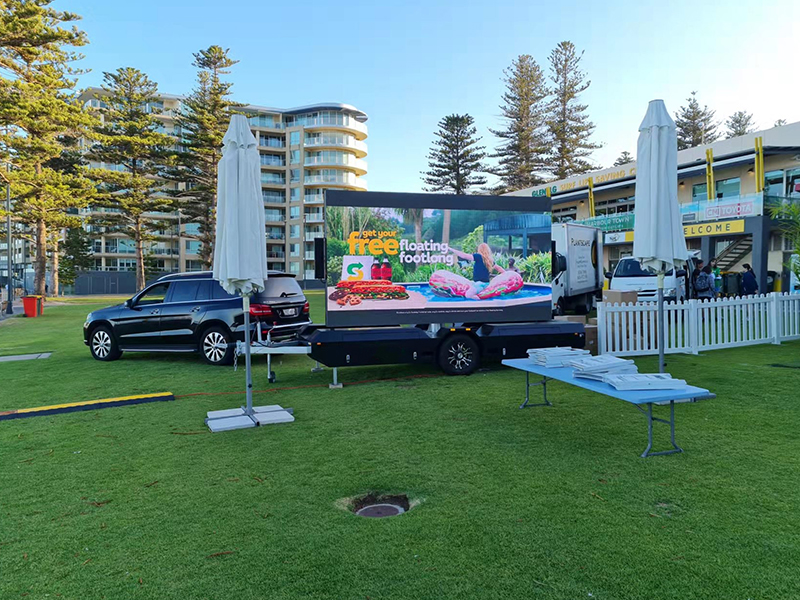

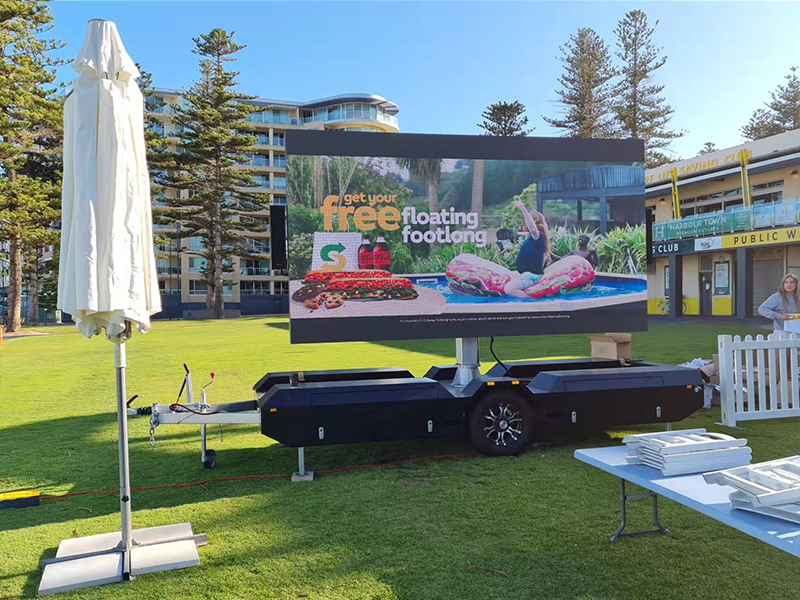

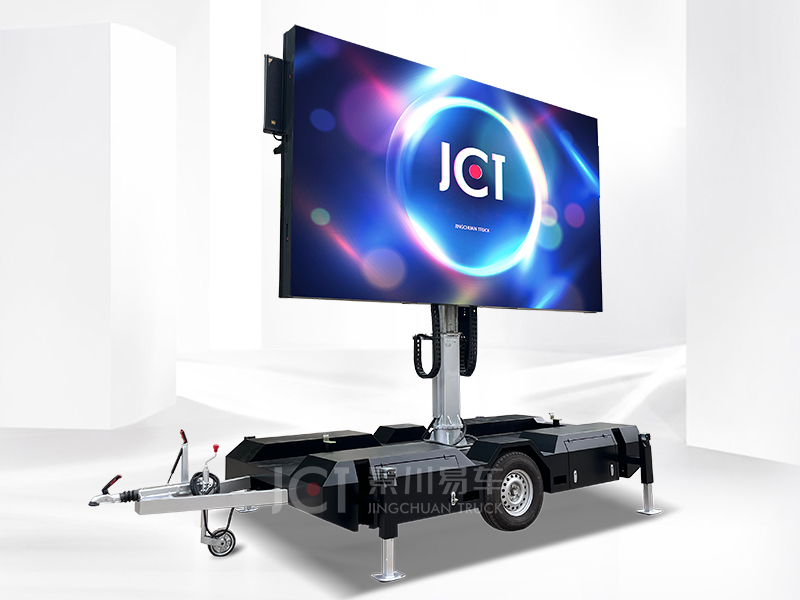

E-F8 mobile LED propaganda trailer is a new system with integrated support, hydraulic lifting, and rotating functions. The rotating guide column independently developed by Jingchuan can achieve a 360° viewing range of the LED screen without dead ends, further improving the communication effect. It can be used in crowded places such as gatherings and outdoor sports events.

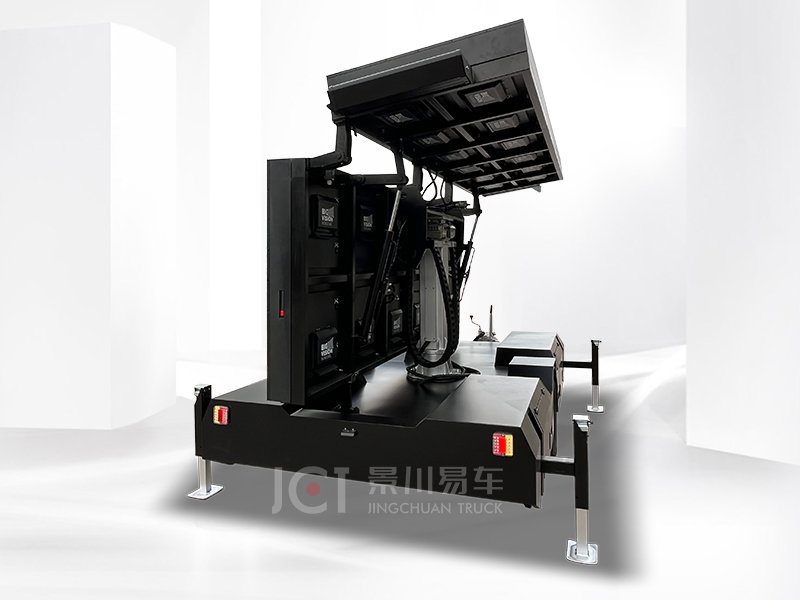

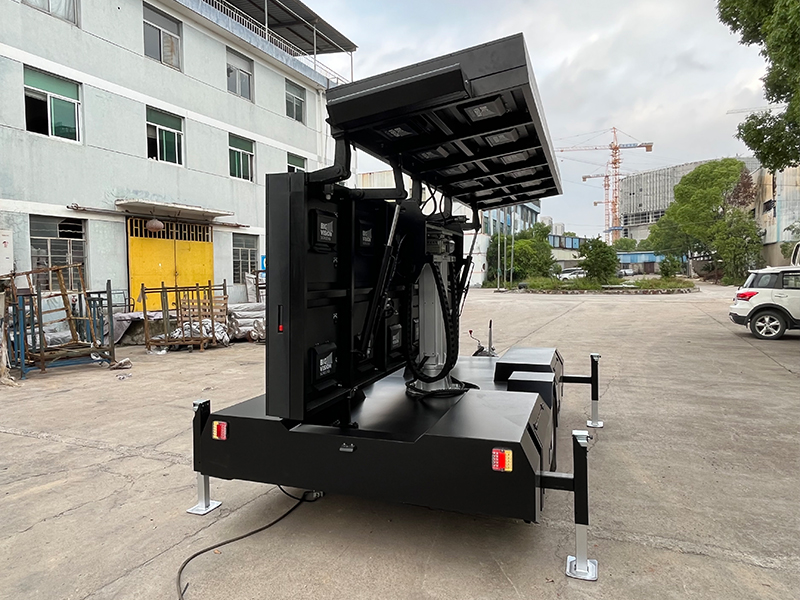

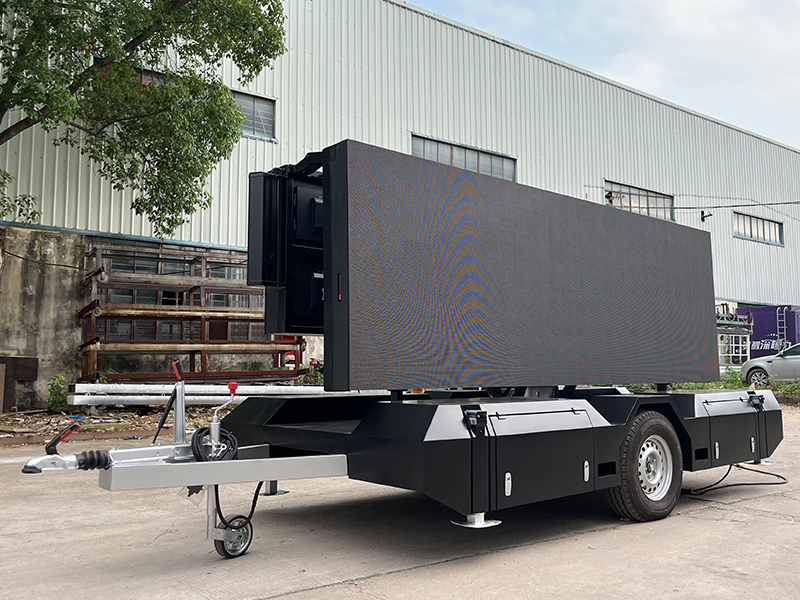

Folded "Double-Sided King Kong"

The unique LED large-screen folded technology brings a shocking and changeable visual experience; when folded, it can be played on both sides at the same time, achieving 360° barrier-free visual coverage, and the unfolded screen can reach 8.6 square meters, greatly improving the visual effect. The transportation height is limited, which can meet the transportation and placement in special areas and expand the coverage of extended media.

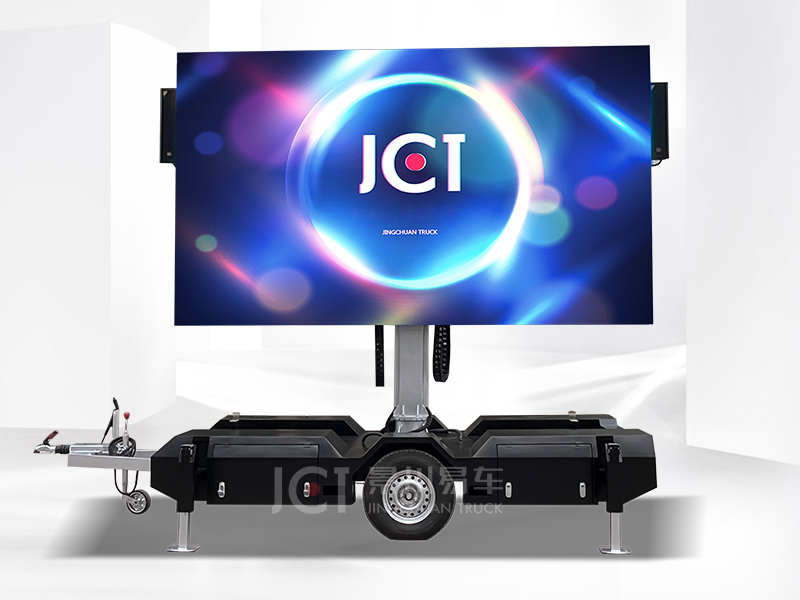

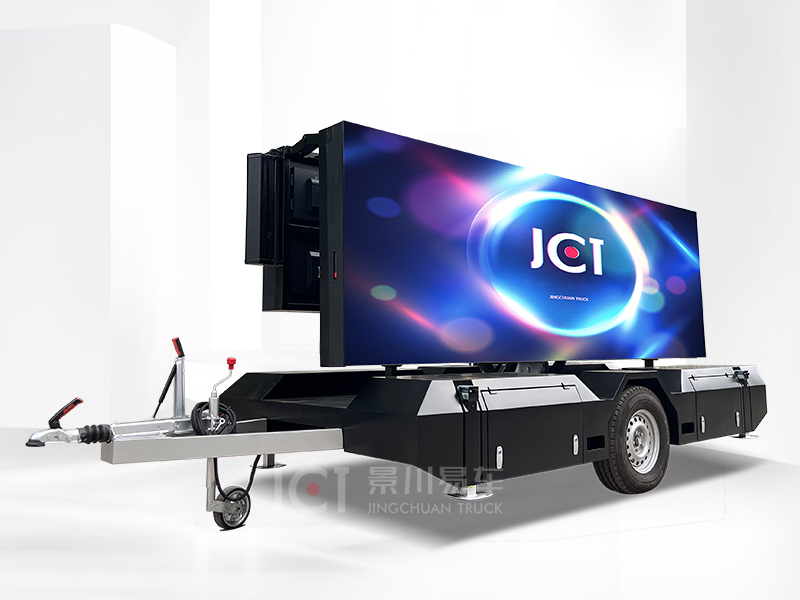

Fashion Appearance Technology Dynamic

The streamlined style of previous products has been changed, and the body adopts a design without frame, with clean lines and sharp edges and corners, fully reflecting the sense of technology and modernity. The whole rack of the multimedia operation box adopts a chute-type design, which can be pulled out for maintenance and connection; the two-layer empty plywood can hold a laptop computer and a DVD player; the multimedia playback system supports U-disk playback, and supports mainstream video and picture formats; expandable Realize remote playback, realize timing, insert, loop and other playback modes.

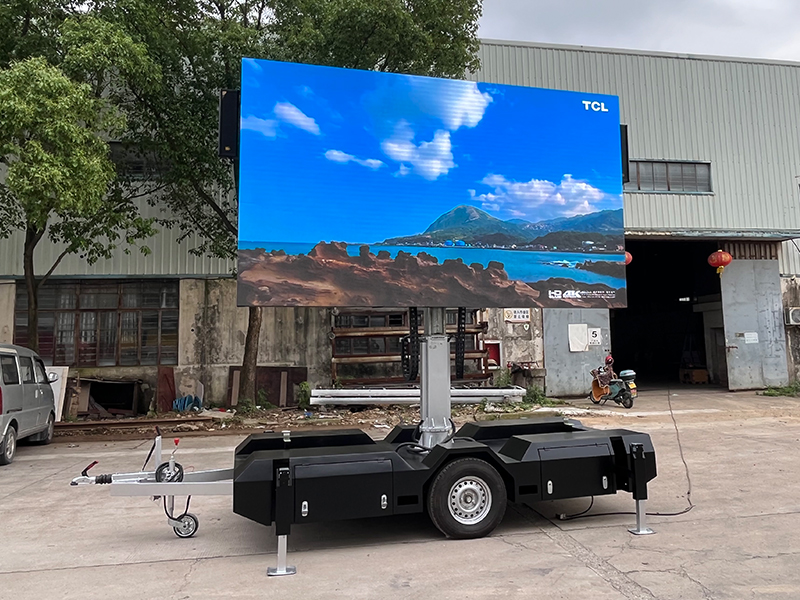

Imported hydraulic lift, safe and stable

The imported hydraulic lifting system is safe and stable, and the stroke can reach 1300mm; the height of the LED screen can be adjusted according to the needs of the environment to ensure that the audience gets the best viewing angle.

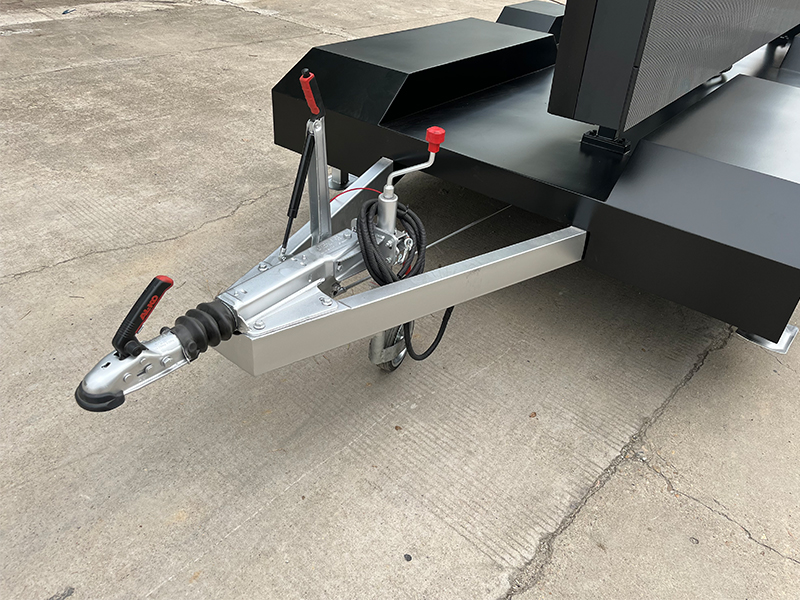

Unique traction design

Equipped with inertial device and handbrake, it can be towed and moved by using a power car. Where there are many people, it can be broadcast and publicized, and where to go; manual support legs of mechanical structure are used, which is convenient and quick to operate;

Parameters

Specification
Trailer appearance
Total weight 1300kg Dimension 5765×1800×1980mm
Max speed 120Km/h Axle Load weight 1500KG
Breaking Hand brake
LED Screen (left and right)
Dimension 3840mm*2240mm Module Size 320mm(W)*160mm(H)
Light brand kinglight Dot Pitch 4/3 mm
Brightness ≥6500cd/㎡ Lifespan 100,000hours
Average Power Consumption 250w/㎡ Max Power Consumption 750w/㎡
Power Supply Meanwell DRIVE IC MBI5124
Receiving card Nova MRV316 Fresh rate 3840
Cabinet material Iron Cabinet weight Iron 50kg
Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method SMD2727 Operating Voltage DC5V
Module power 18W scanning method 1/8
HUB HUB75 Pixel density 62500Dots/㎡
Module resolution 80*40Dots Frame rate/ Grayscale, color 60Hz,13bit
system support Windows XP,WIN 7,
Power parameter
Input voltage Single phase 220V Output voltage 220V
Inrush current 28A Average power consumption 0.3kwh/㎡
Player System
Player NOVA Modle TB50-4G
Luminance sensor NOVA
Sound System
Power amplifier Unilateral power output:250W Speaker Max power consumption:50W*2
Hydraulic System
Wind-proof level Level 8 Supporting legs 4 pcs
Hydraulic lifting: 1300mm Fold LED screen 960mm
