Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

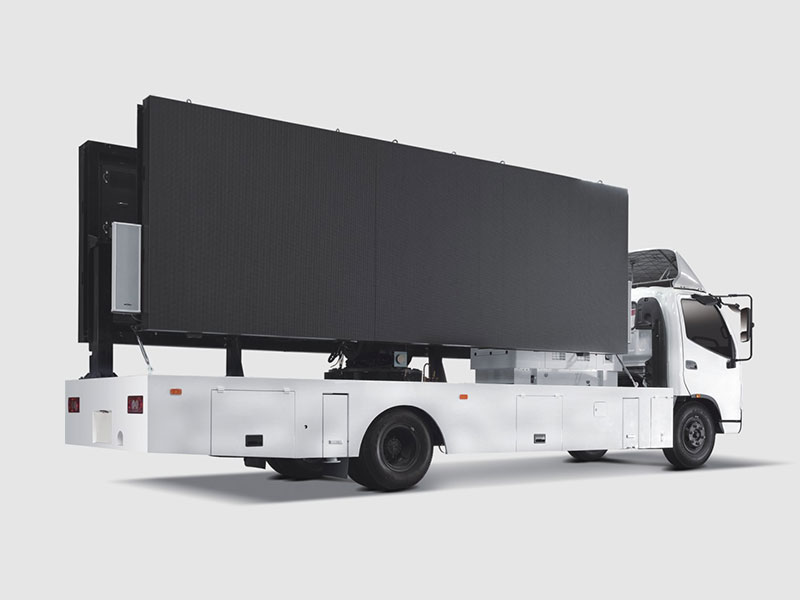

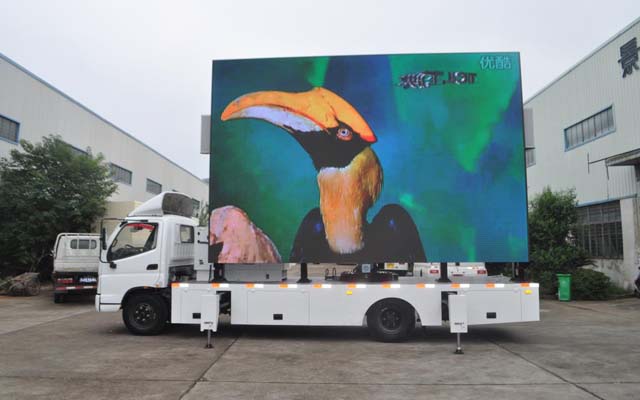

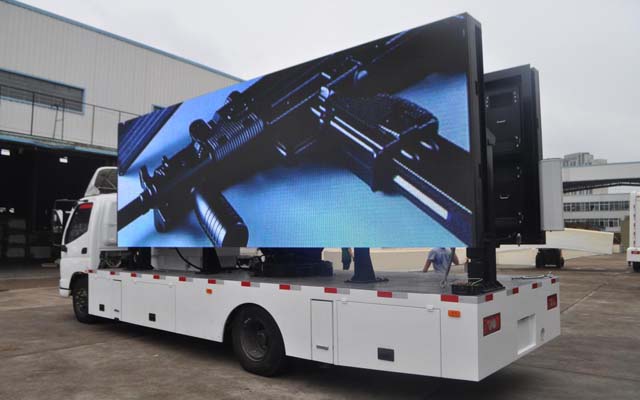

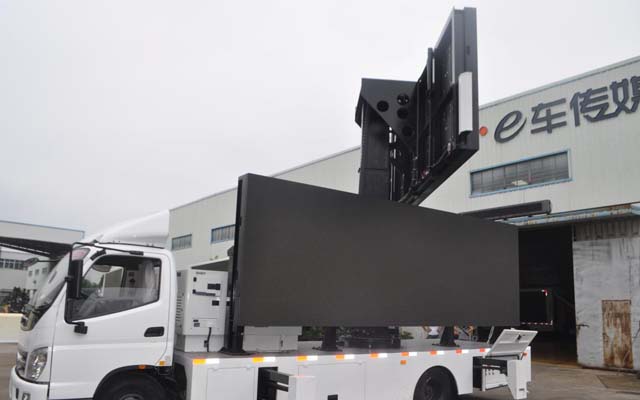

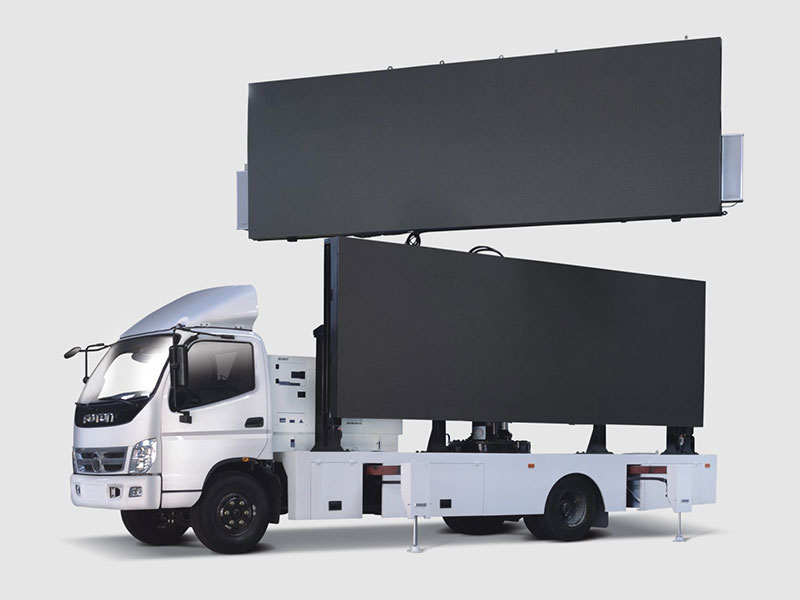

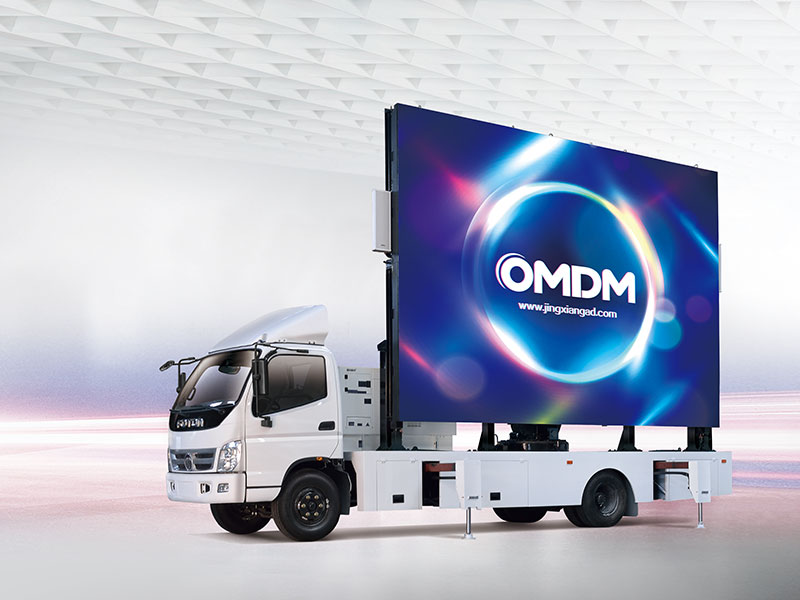

The first design in China which the screen is 360° rotated and folded

Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.The technology applied successfully for the first time in the domestic car LED media industry.


The media module integration

The first time bring in module integration concept, introduced to the LED screen, supporting lift system, media control, electrical control system integration, realize the modular installation, customers can choose to buy separate screen part from the chassis to install.


Comprehensive customized for customer

Broke traditional van models choosing size on the limitations of the equipment, customers in the generator model, on the choice of LED screen size and related configuration can realize autonomous selection, achieve full customization, unique.


Parameters

E-YZD22 Technical Parameters
Model E-YZD22
Chassis
Brand Isuzu External Dimension 8370mm×2290mm×3440mm
Power Isuzu Total Weight 10000KG
Emission Standard EuroⅤ Curb weight 9700KG
Wheel base 4475mm Seat Single row 3seats
Hydraulic Lifting and Supporting System
Hydraulic Lifting System Lifting Range 2000mm,bearing 5T
Hydraulic Rotating System Screen can rotate 360degrees
Wing-against Level Against Level 8wind after screen lift up 2000mm
Supporting leg Stretch distance 300mm
Silent Generator Group
Power 24KW
Number of cylinders Water-cooled inline 4-cylinder
LED Screen
Screen Size 5760×3840mm Dot Pitch 6 mm
Module Size 320mm(W)*320mm(H) Brightness ≥7500cd/ m²
Max Power Consumption 680w/㎡ Average Power Consumption 288w/㎡
Lifespan 100,000hours
Power parameter
Input Voltage Three-phase five-wire 380V Output Voltage 220V
Current 40A Average power consumption 0.5kwh/㎡
Multimedia Control System
Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.
Sound 120W Speaker 200W
