Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

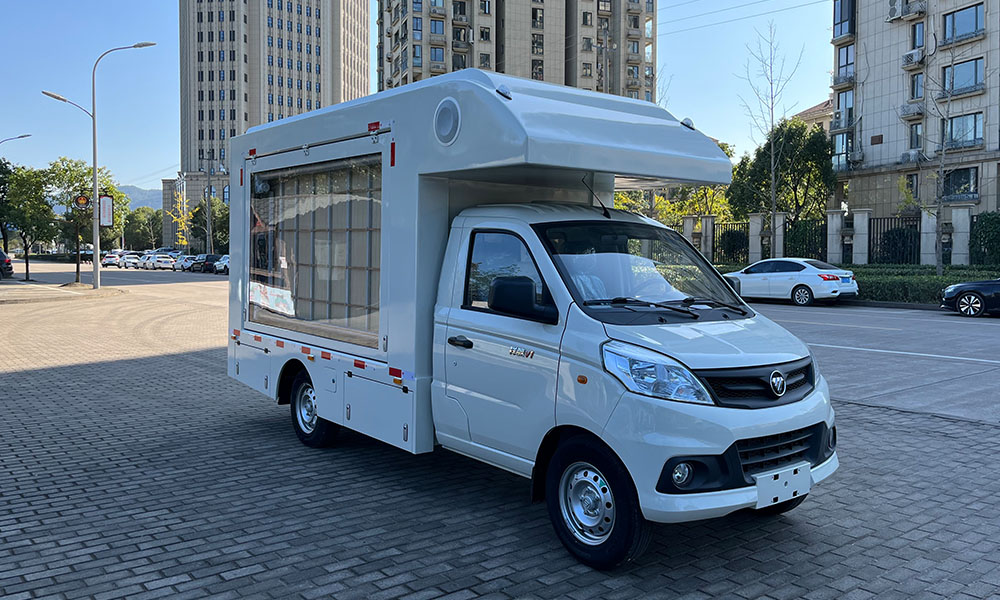

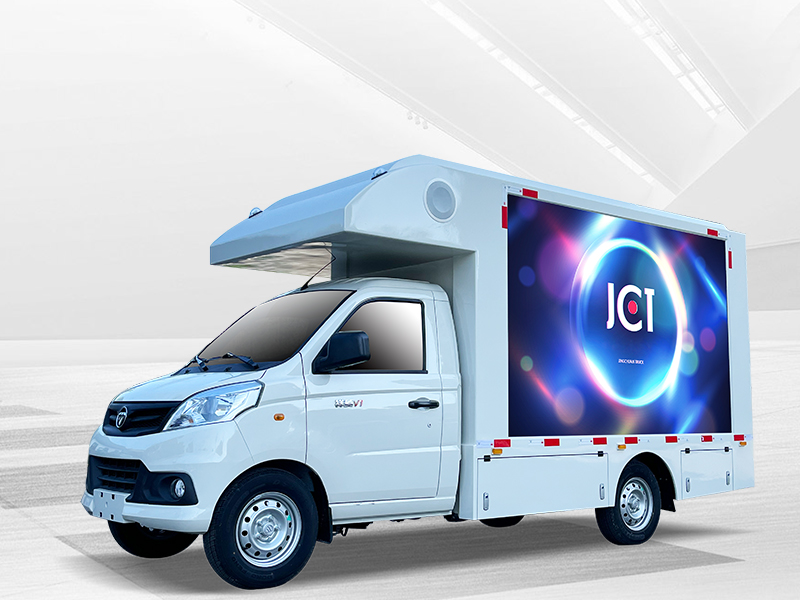

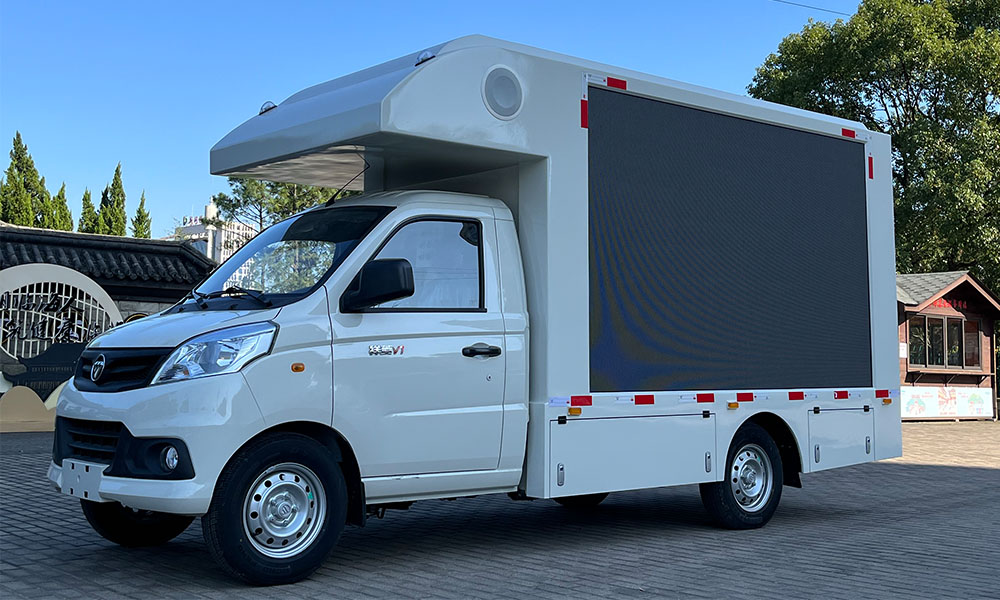

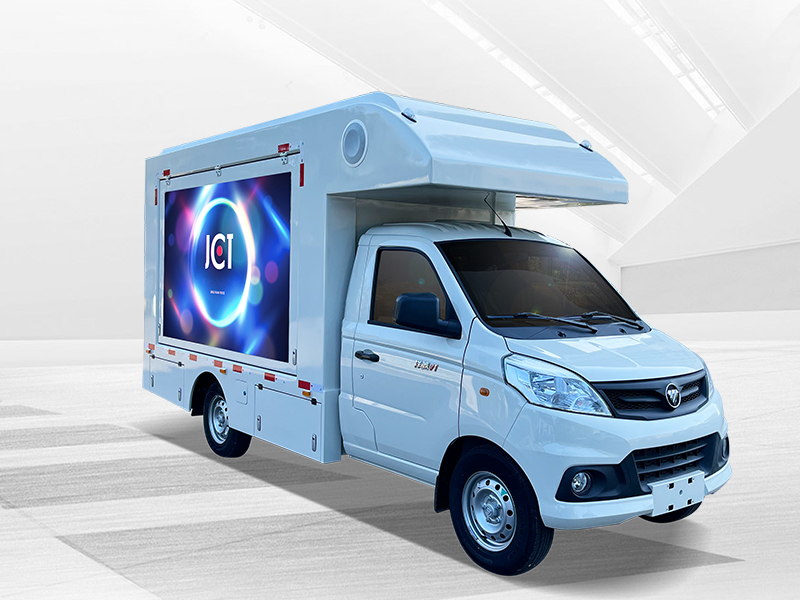

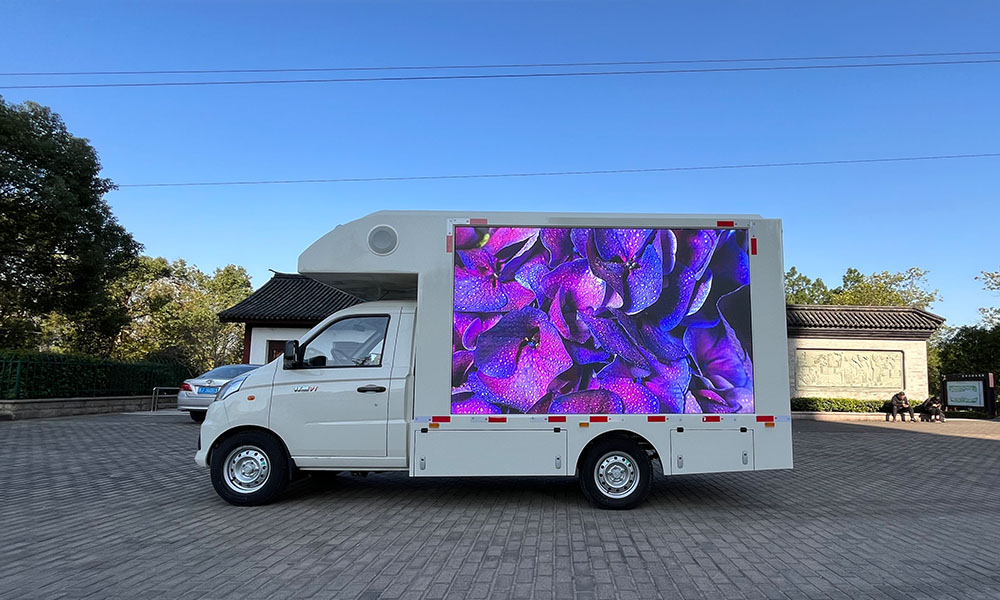

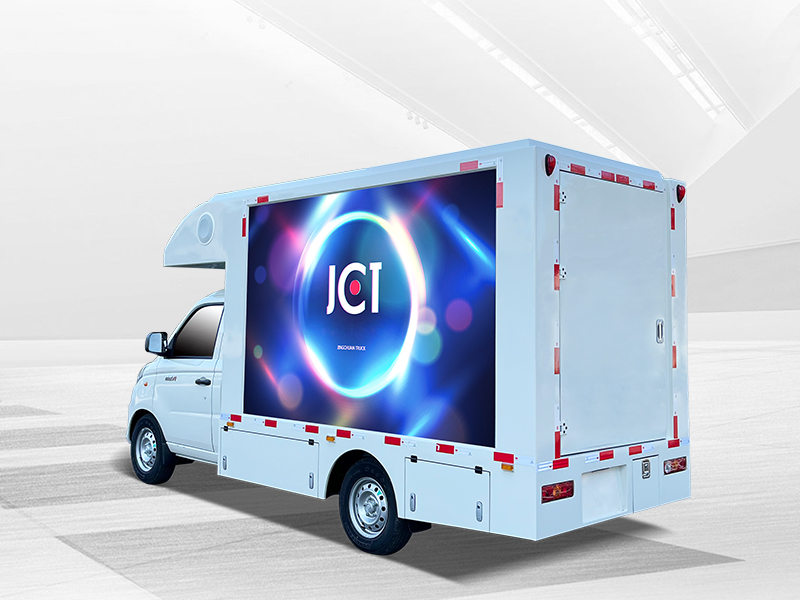

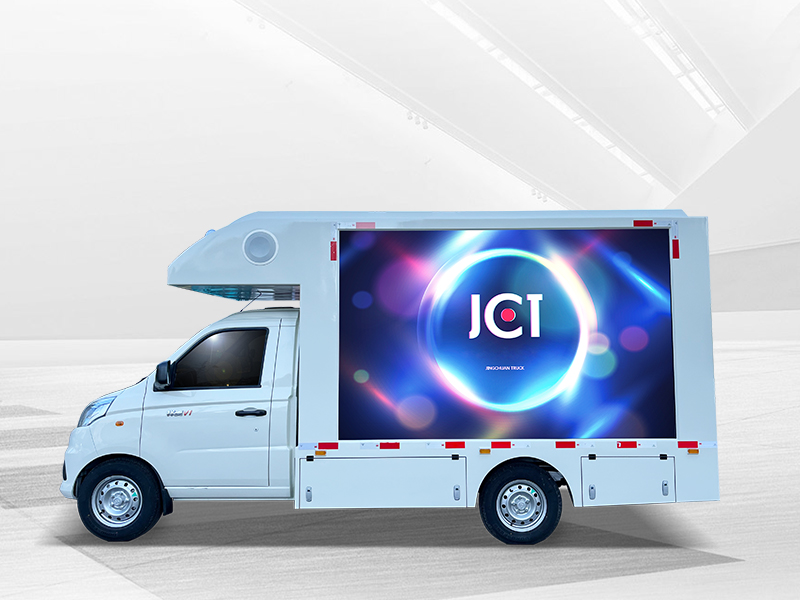

Jingchuan launched a new E-XL3070 advertising officially on the market, this small advertising led truck uses Foton Shixiang LING V to do the chassis, 3070mm wheelbase to make the whole body more compact, smooth, national sixth emission standards, in line with the national vehicle requirements announcement. E-XL3070 advertising led truck is equipped with locomotive power generator inside the truck, and can also be connected to 220V external power supply. There are two power supply modes, no matter how long the operation time is, there is no fear; Tailored, according to customer requirements, customized production of single-screen advertising led truck or three-screen advertising led truck, a variety of choices to meet diverse needs.
Groundbreaking cab integration design
E-XL3070 advertising integrates media and electrical terminals into the cab of the vehicle to further optimize the operating experience so that all operations can be done from the cab.
Unique configuration for cruise
Fully optimize the playback effect and energy consumption ratio, control the LED screen at a reasonable size, can effectively prolong the working hours; And optional protective cover, further protect the product in outdoor and severe weather conditions of normal use.
Break through restricted city use
The chassis design of small models enables it to move freely in the city after registration and registration, without the negative impact of road hijacking and blocking. The real implementation of advertising with broadcast, deep into every corner of the city.
Eu standards low carbon environmental protection
In line with international standards, the unified adoption of car chassis in line with national six emission standards, energy saving and emission reduction, environmental protection and green, reduce activity environment restrictions.
Parameter Description (Standard configuration)
1, overall size: 5180x1710x2640mm

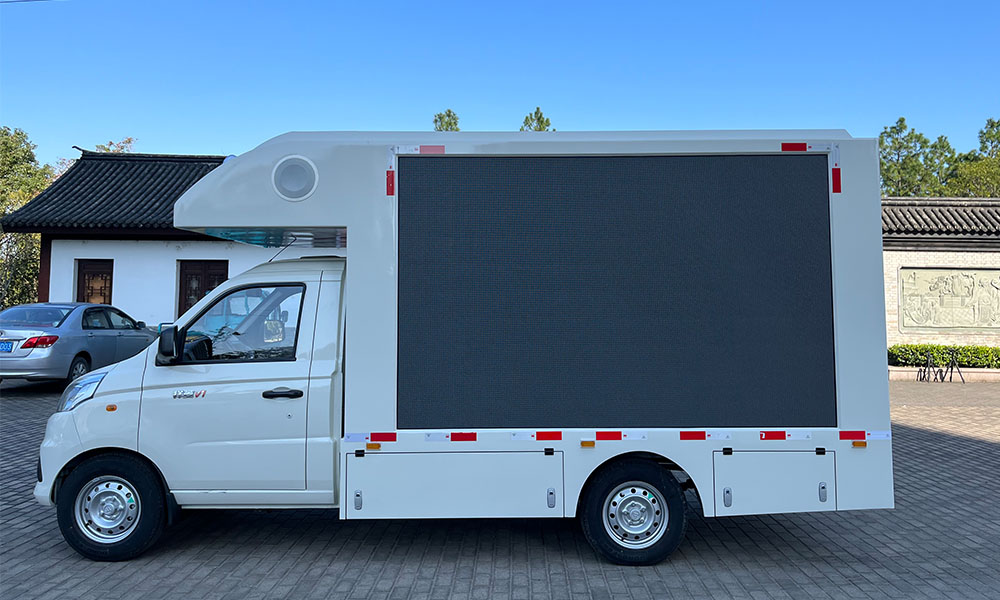

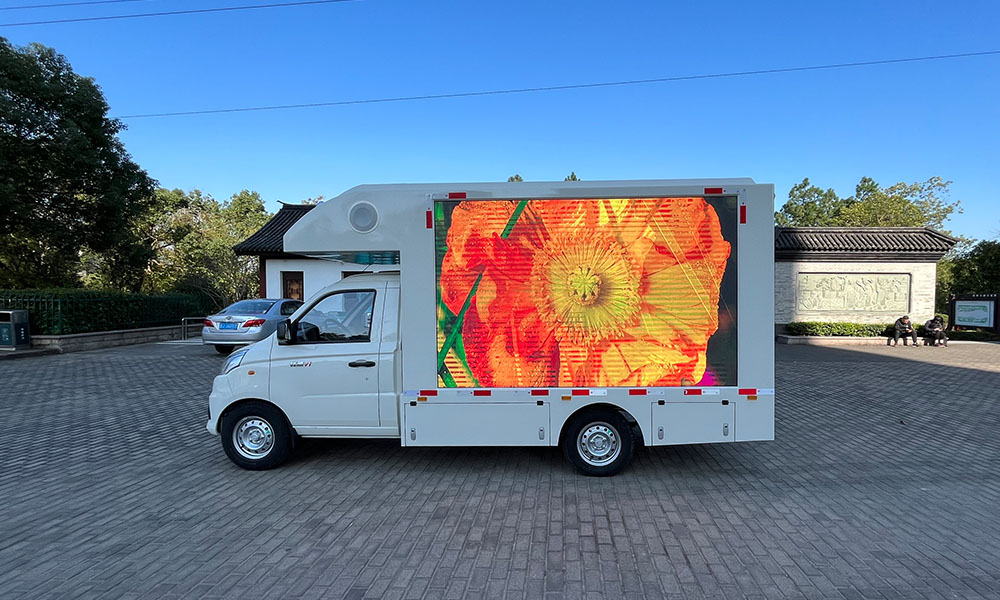

2. Double-sided LED outdoor full-color display (P5) Size: 2560x1600mm

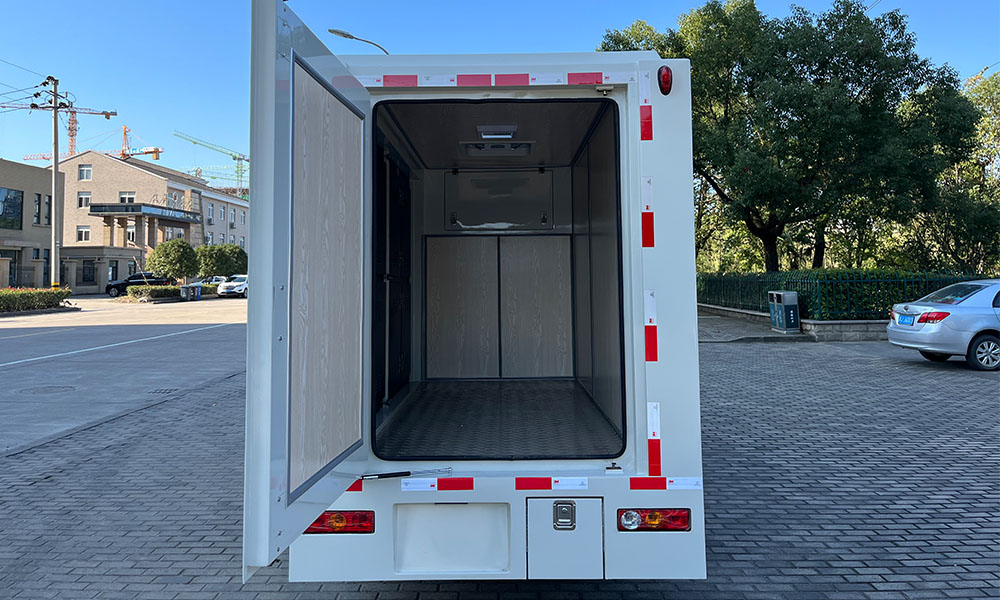

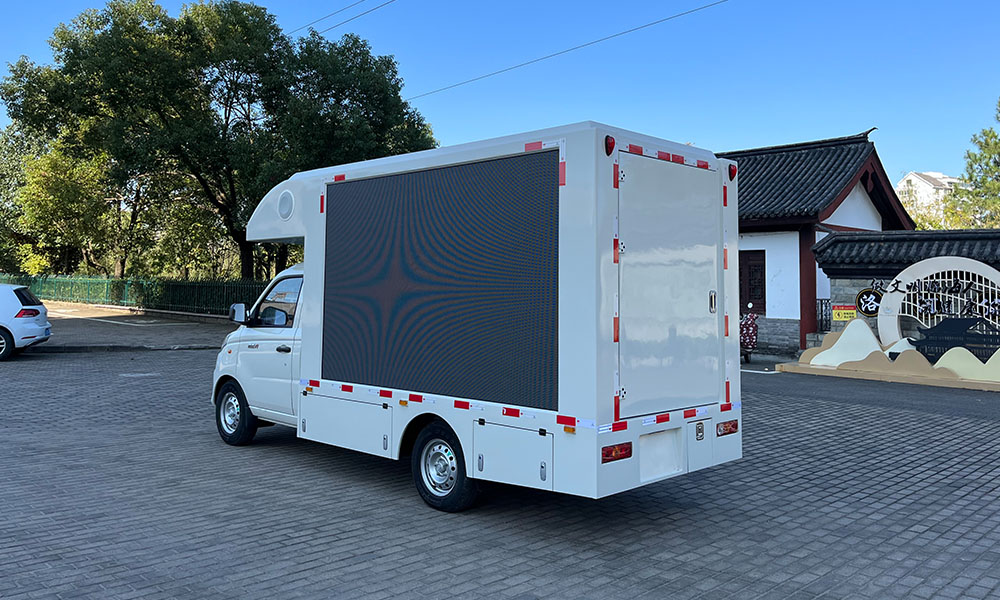

3. Rear outdoor full-color display (P5) Size: 960x1440mm
4, power consumption (average consumption) : 0.3 degree/m² / H, total consumption.
5, equipped with multimedia player system, support U disk play, support mainstream video format, mobile phone synchronous play.
Equipped with 28V150AH generator, 2 12V250AH batteries
6, input voltage 220V, starting current 15A.
| Model | E-XL3070 advertising led truck | ||
| Special truck chassis | |||
| brand | Foton Times Xiangling V | Overall dimension | 5180×1710mm×2640mm |
| engine type | DAM15KR | curb weight | 2415KG |
| emission standard | national six | total mass | 2545KG |
| seat | Single row 3 | wheel base | 3070mm |
| Mute generator set | |||
| power | 5KW | number of cylinders | Inline 4 cylinder water cooled |
| LED full-color display on the right side | |||
| size | 2560×1600mm | dot pitch | P3/P4/P5/P6 |
| Rear LED single red display | |||
| size | 960×1440mm | dot pitch | 10 mm |

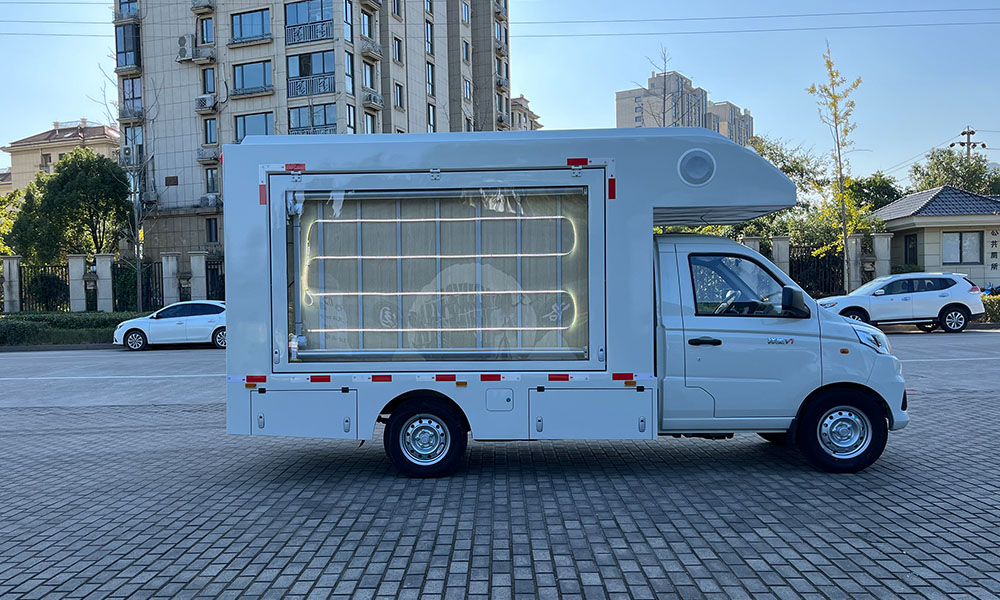

| Roller canvas | |||
| The canvas number | 4-6pcs | size | 2500×1500mm |
| motor power | ≥60W | control mode | Intelligent remote control |
| powersupply | |||
| input voltage | 220V | output voltage | 220V |
| current | 15A | power dissipation | average current drain：0.3wh/m² |
| Multimedia Player System (optional) | |||
| video processor | 8 channels video signal input, 4 channels output, video seamless switching | ||
| multimedia player | Usb flash drive to play, support mainstream video, picture format. It Can be extended to achieve remote playback, timing, interstition, circulation and other playback modes. And supports remote control volume, timing switch and other functions. | ||
| Outdoor stereo | 80W | Amplifier | 250W |
