Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

Media optimization,better performance

Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation, the equipment running more stable, media show more outstanding.


Self-provided power, fully support

Built-in import silent diesel generator can support media more than 20 hours, thoroughly get rid of the dependence on external power, ensure that users in the site restrictions can still run smoothly under the condition of all kinds of parade, road shows, promotional activities.


Qualification certification,safety and reliability

with well-known brands joint development special chassis and motivation system, adopts the euro Ⅴ emission standard, by the state on the road after the certification of registration, to ensure driving safety and reliable, no trouble back at home.


Accessories is optional ,personality modification

For different activities configuration stage, shelves, and other special equipment installation, or for promotion project provides personalized modification, car body painting service, can make it more joint promotion theme, perfect.



Parameters

E-WT7600 Technical Parameters
Model E-WT7600
Chassis
Brand Fonton Ollin External Dimension 9995mm×2550mm×3860mm
Power Isuzu Wheel base 5600mm
Emission Standard EuroⅤ Seat Single row 3seats
Carriages size 7600×2220×2350mm
Silent Generator Group
Power 12KW Number of cylinders Water-cooled inline 4-cylinder
LED Screen
Screen Size 5760mm×2112mm Dot Pitch 6 mm
Module Size 320mm(W)*320mm(H) Brightness ≥7500cd/ m²
Max Power Consumption 680w/㎡ Average Power Consumption 288w/㎡
Lifespan 100,000hours
Hydraulic Lifting and Supporting System
LED Screen Hydraulic Lifting System Lifting Range 1500mm
The car plate Hydraulic Lifting System customized
Hydraulic Light support customized
Stage, bracket etc customized
Power parameter
Input Voltage Three-phase five-wire 380V Output Voltage 220V
Current 25A Average power consumption 0.5kwh/㎡
Multimedia Control System
Notebook PC Dual Core CPU,1G Graphics card,500G Hard disk
Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.
Sound 400W Speaker 600W

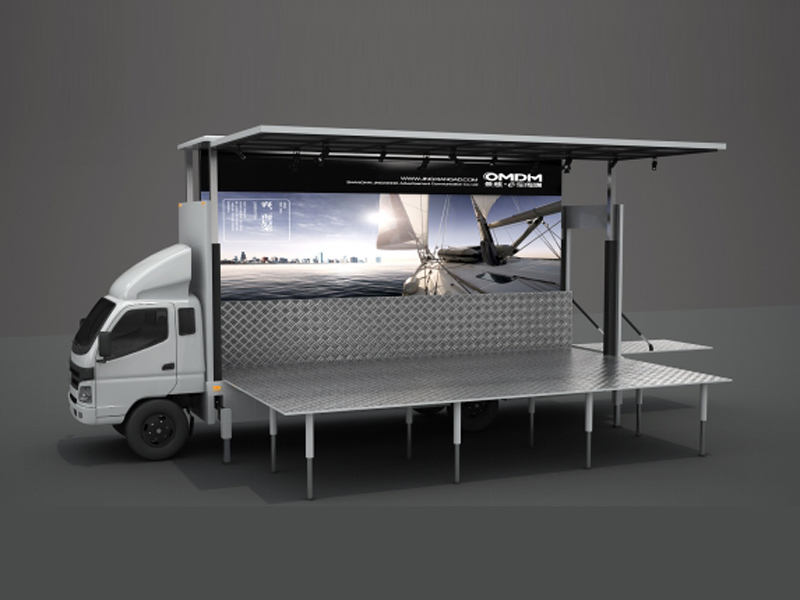

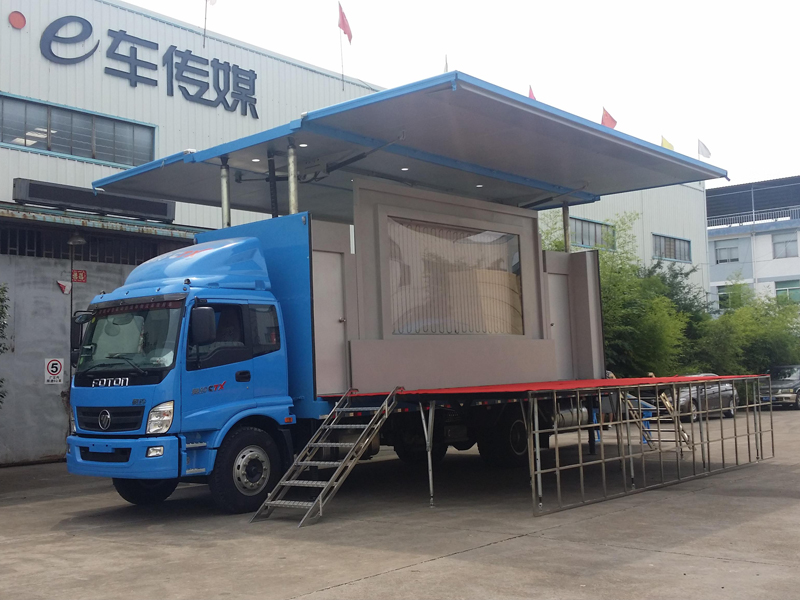

Stage
Dimension (6000+2000)×3000mm
Type Combined outdoor stage,can piacing in the container after folding
Remark: the multimedia hardware can choose optional effect accessories, microphone, dimming machine, mixer, karaoke jukebox, foaming agent, subwoofer, spray, air box, lighting, floor decoration etc.
