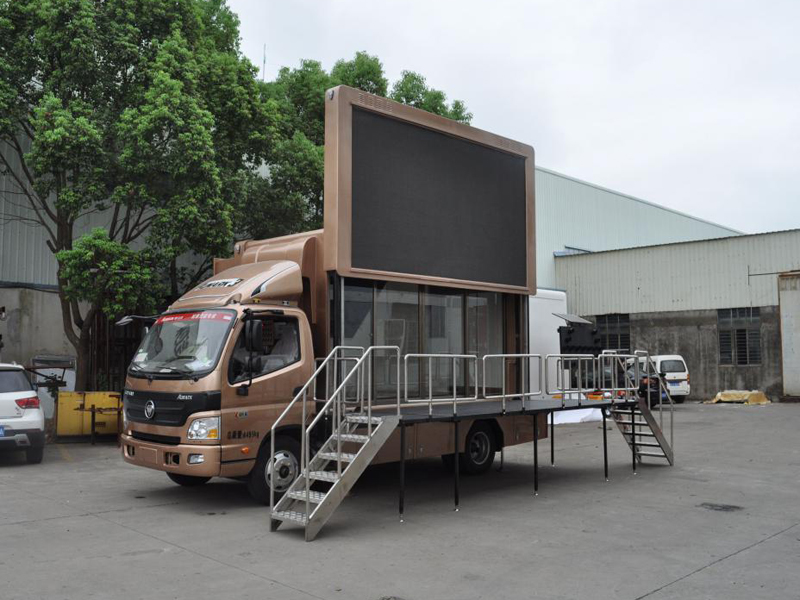

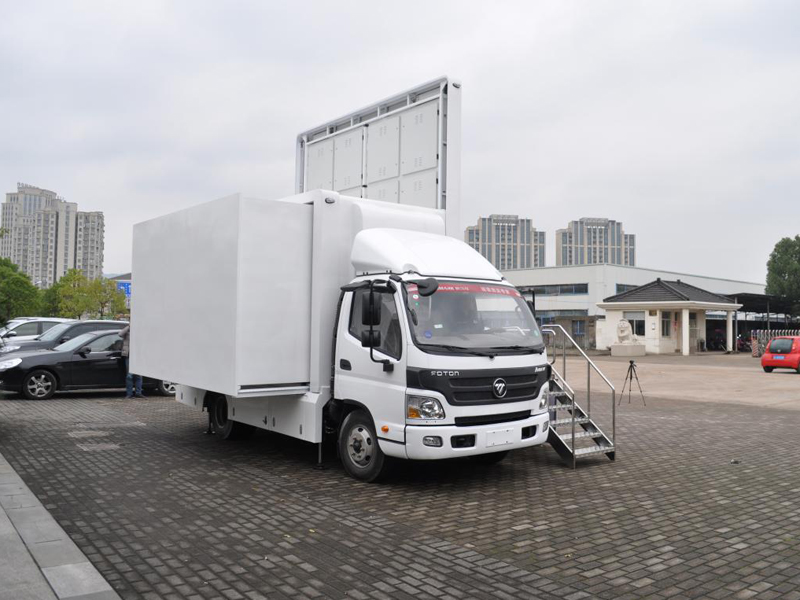

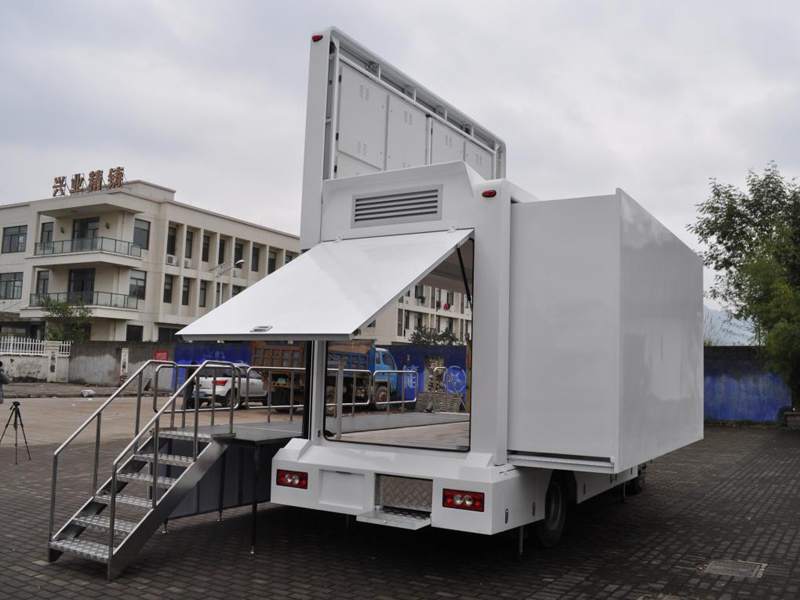

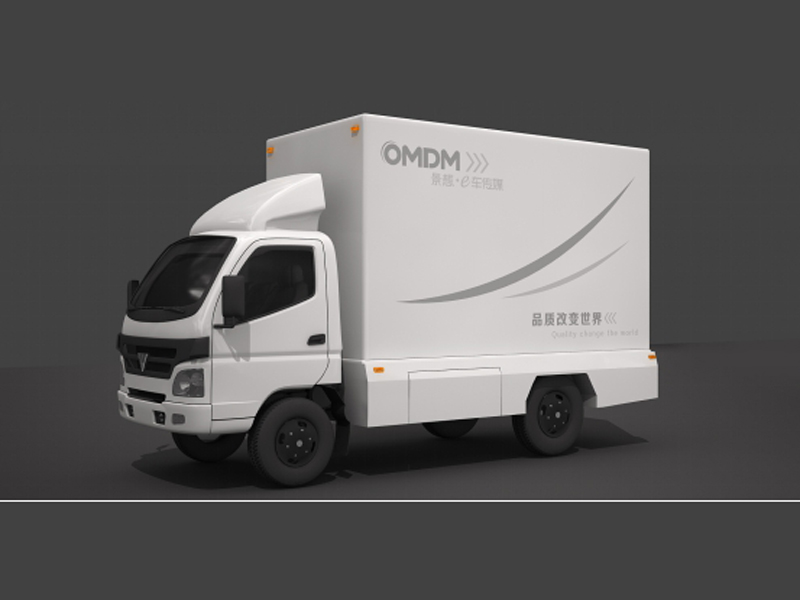

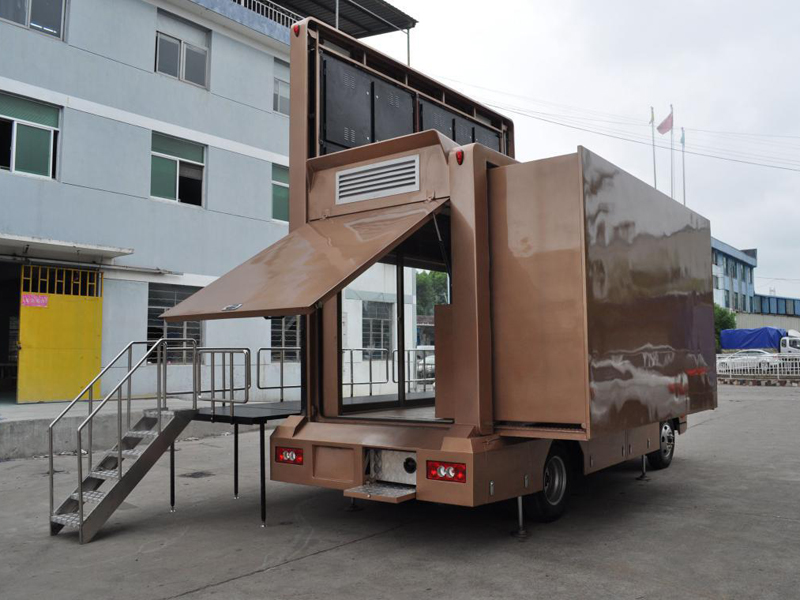

Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
Pioneering integrated cab design
Uniquely combined the media and electrical terminal operation together,, further optimize operation experience, make all operating in the cab.
Original creation for cruise
Fully optimized broadcast effect and the energy consumption ratio, to control the LED screen 6.2 ㎡, which can effectively extend the working hours;And assembling shield, further assurance products in normal use outdoor and harsh weather conditions.
Pioneering integrated cab design
Uniquely combined the media and electrical terminal operation together,, further optimize operation experience, make all operating in the cab.
Original creation for cruise
Fully optimized broadcast effect and the energy consumption ratio, to control the LED screen 6.2 ㎡, which can effectively extend the working hours;And assembling shield, further assurance products in normal use outdoor and harsh weather conditions.
Can be applied to any corner of the city
Can move freely in the city, also don't have the negative impact of roadway taking-up, blocking roads.Truly achieve advertising accompanying with seeding, into all corners of the city.
Eu standards, environmental protection
Unified the euro Ⅴ emission standards in line with international standards of automobile chassis, energy conservation and emission reduction, green environmental protection, reduce environmental restrictions on their activities.
| Model | E-WT4200 | |||
| Chassis | ||||
| Brand | Fonton Ollin | External Dimension | 5995mm×2090mm×3260mm | |
| Power | Isuzu | Wheel base | 3360mm | |
| Emission Standard | EuroⅤ | Seat | Single row 3seats | |
| Carriages size | 4200x2090x2260mm | |||
| Silent Generator Group | ||||
| Power | 8KW | Number of cylinders | Water-cooled inline 4-cylinder | |
| LED Screen | ||||
| Screen Size | 3520×1920mm | Dot Pitch | 6 mm | |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² | |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ | |
| Lifespan | 100,000hours | |||
| Hydraulic Lifting and Supporting System | ||||
| LED Screen Hydraulic Lifting System | Lifting Range 1500mm | |||
| The car plate Hydraulic Lifting System | customized | |||
| Hydraulic Light support | customized | |||
| Stage, bracket etc | customized | |||
| Power parameter | ||||
| Input Voltage | 220V | Output Voltage | 220V | |
| Current | 15A | Average power consumption | 0.5kwh/㎡ | |
| Multimedia Control System | ||||
| Monitor | Support 8-way signal input | |||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | |||
| Sound | 120W | Speaker | 200W | |

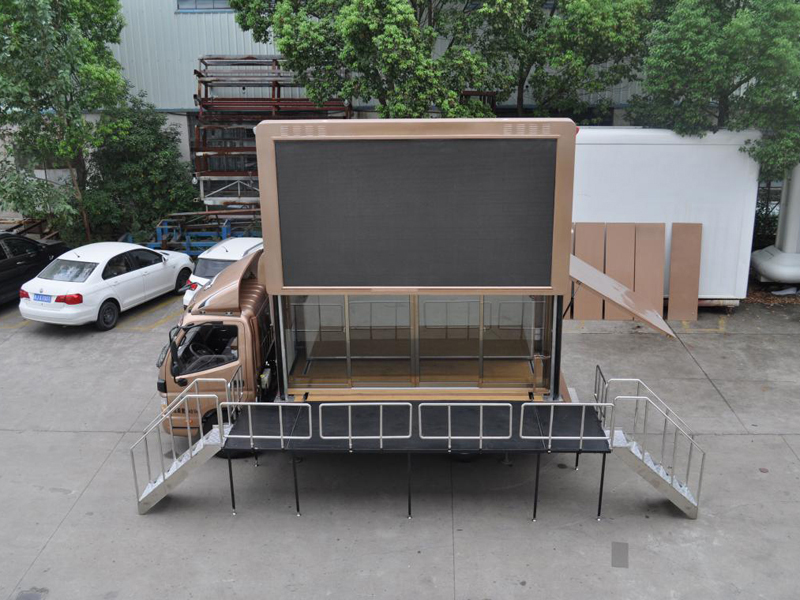

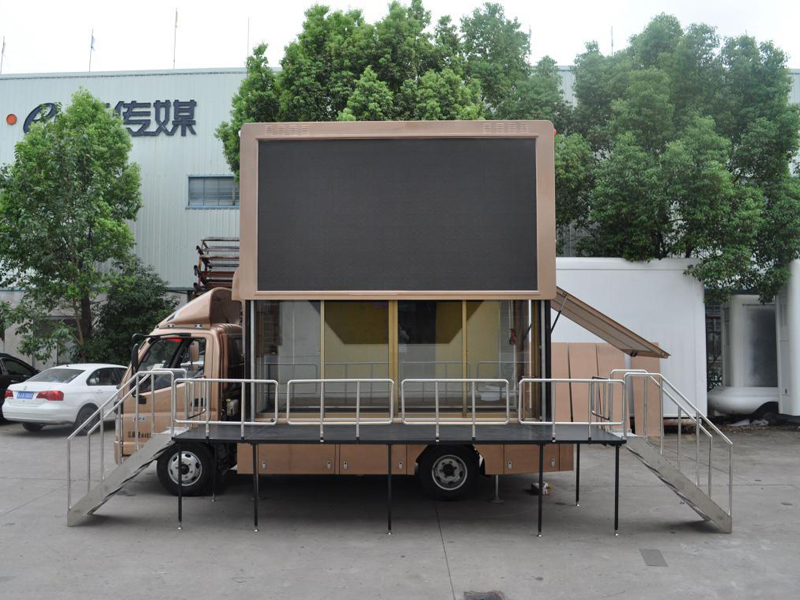

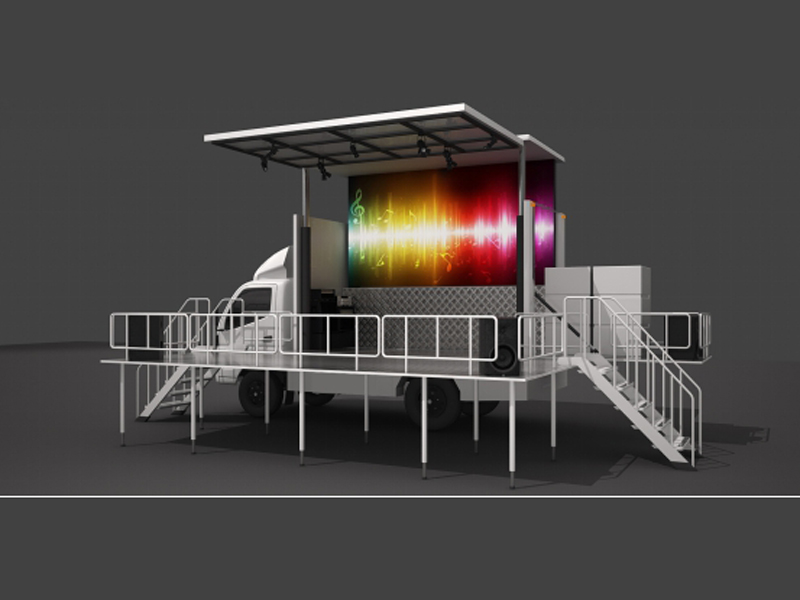

| Stage | ||||
| Dimension | 5200mmx3000mm | |||
| Type | Combined outdoor stage,can piacing in the container after folding | |||
| Remark: the multimedia hardware can choose optional effect accessories, microphone, dimming machine, mixer, karaoke jukebox, foaming agent, subwoofer, spray, air box, lighting, floor decoration etc. | ||||
