Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
Media optimization，better performance
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation, the equipment running more stable, media show more outstanding.
Media optimization，better performance
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation, the equipment running more stable, media show more outstanding.
Self-provided power, fully support
Built-in import silent diesel generator can support media more than 20 hours, thoroughly get rid of the dependence on external power, ensure that users in the site restrictions can still run smoothly under the condition of all kinds of parade, road shows, promotional activities.
Qualification certification,safety and reliability
with well-known brands joint development special chassis and motivation system, adopts the euro Ⅴ emission standard, by the state on the road after the certification of registration, to ensure driving safety and reliable, no trouble back at home.
Accessories is optional ,personality modification
For different activities configuration stage, shelves, and other special equipment installation, or for promotion project provides personalized modification, car body painting service, can make it more joint promotion theme, perfect.

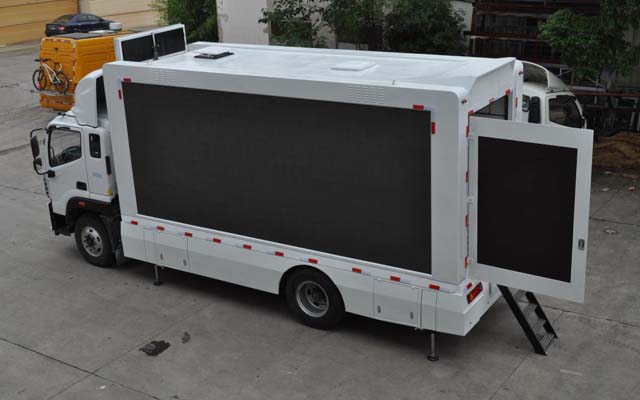

| Model | E-W4800 | ||
| Chassis | |||
| Brand | Fonton Aumark | External Dimension | 8730mm*2370mm*3990mm |
| Power | Cummins | Total Weight | 11695KG |
| Emission Standard | EuroⅤ | Curb weight | 10700KG |
| Wheel base | 4800mm | Seat | Single row 3seats |
| LED Screen | |||
| Screen Size | 5440mm(W)*2240mm(H) | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| LED bar screen | |||
| Side led Screen Size | 5440mm*480mm | Rear led Screen Size | 1280mm*1760mm |
| Dot Pitch | 10 mm | Brightness | ≥5000cd/ m² |
| Lifespan | 100,000hours | ||
| Roller light box | |||
| Canvas size | 4700mm*1600mm | Roller Diameter | 100 mm |
| Motor Power | ≥80W | Control modes | Intelligent remote |
| Silent Generator Group | |||
| Power | 12KW | ||
| Number of cylinders | Water-cooled inline 4-cylinder | ||
| Power parameter | |||
| Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V |
| Current | 35A | Average power consumption | 0.5kwh/㎡ |
| Multimedia Control System | |||
| Video Processor | Support 8-way signal input,4output,fluent video source switching | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 120W | Speaker | 200W |
| Stage | |||
| Dimension | 7000mm*1760mm*1200mm | ||
| Type | Combined outdoor stage,can piacing in the container after folding | ||
