Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
Smaller but more perfect!

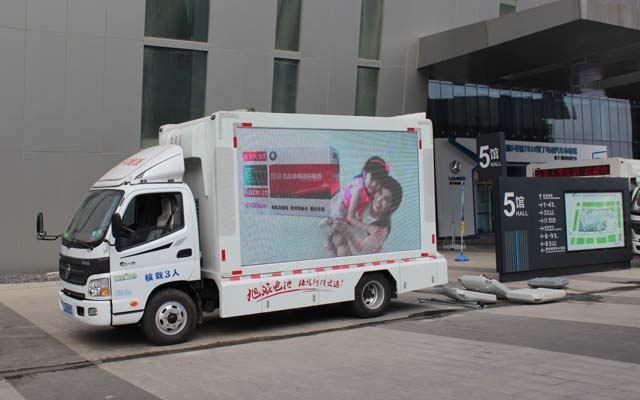

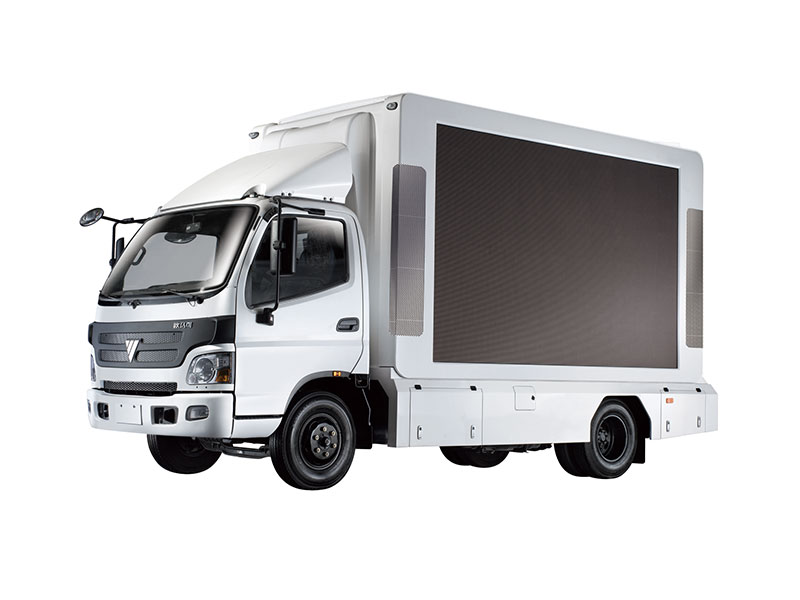

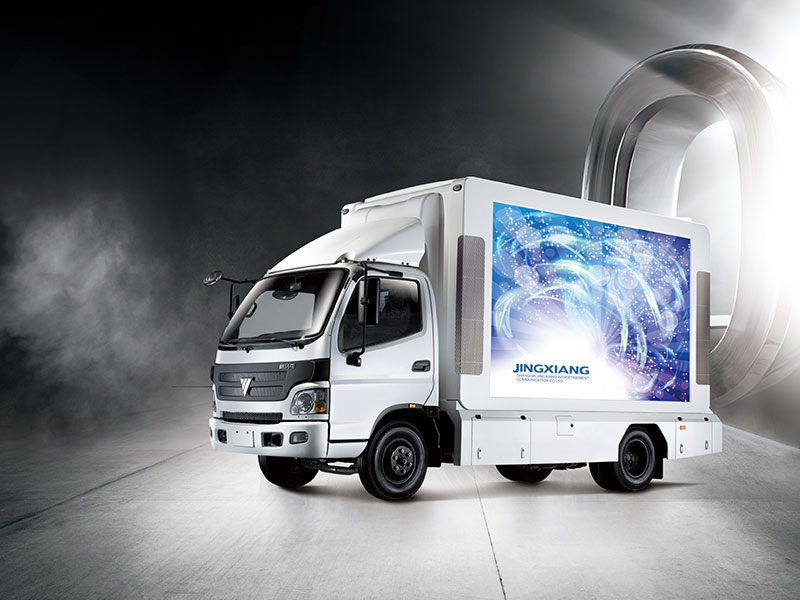

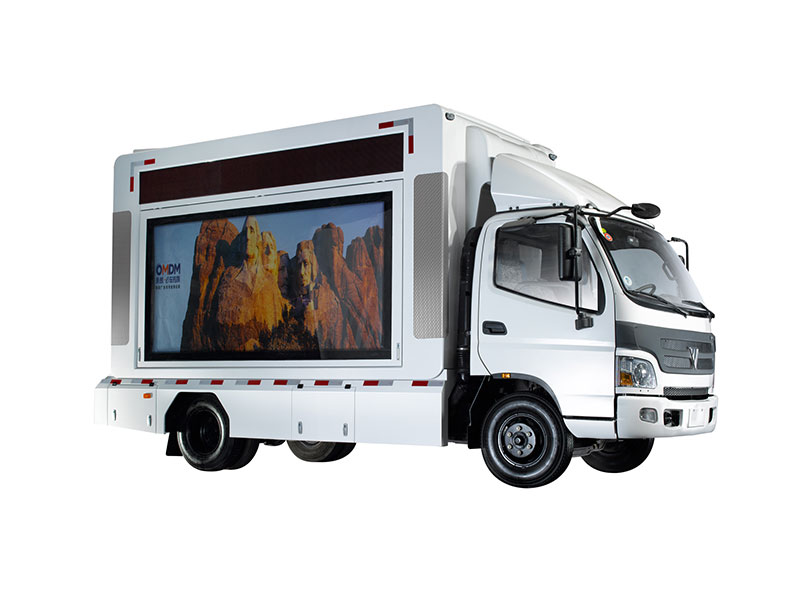

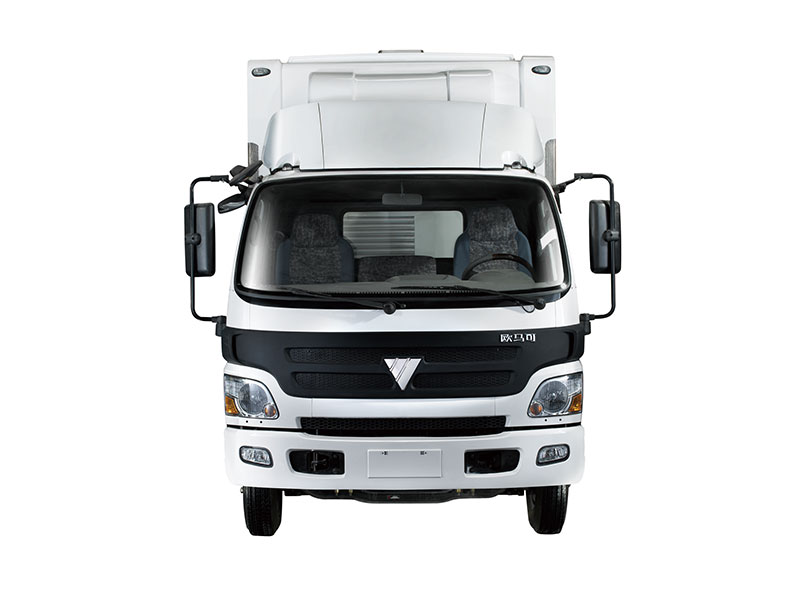

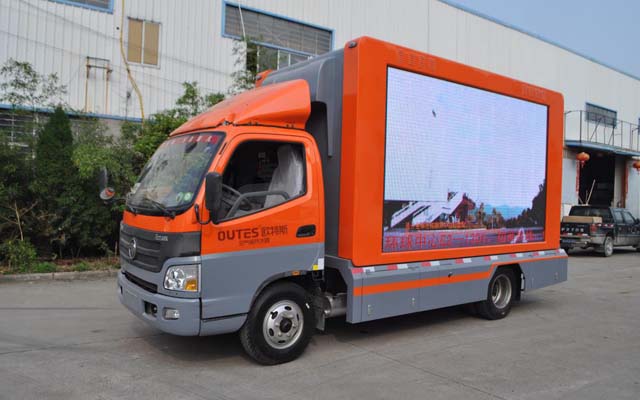

Although a more compact small truck chassis, but 100% inheritance models have all media platforms: 6.2 ㎡ LED full color, the single red screen, roller box, flexible and convenient.
Smaller but more perfect!
Although a more compact small truck chassis, but 100% inheritance models have all media platforms: 6.2 ㎡ LED full color, the single red screen, roller box, flexible and convenient.
Function optimization,more convenient
Adopt new built-in media optimization control system, more convenient maintenance and operation;Double open side doors, activity ladder, humanization design, plus the electrical system layout optimization, make it more reasonable safety, ease for use.
Can be applied to any corner of the city
Can move freely in the city, also don't have the negative impact of roadway taking-up, blocking roads.Truly achieve advertising accompanying with seeding, into all corners of the city.
Eu standards, environmental protection
Unified the euro Ⅴ emission standards in line with international standards of automobile chassis, energy conservation and emission reduction, green environmental protection, reduce environmental restrictions on their activities.
| Model | E-W3360 | ||
| Chassis | |||
| Brand | Fonton Aumark | External Dimension | 5995mm*2190mm*3300mm |
| Power | Cummins | Total Weight | 4495KG |
| Emission Standard | EuroⅤ | Curb weight | 4250KG |
| Wheel base | 3360mm | Seat | Single row 3seats |
| LED Screen | |||
| Screen Size | 3200mm(W)*1920mm(H) | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| LED bar screen | |||
| Side led Screen Size | 3200mm*320mm | Rear led Screen Size | 1280mm*1440mm |
| Dot Pitch | 10 mm | Brightness | ≥5000cd/ m² |
| Lifespan | 100,000hours | ||
| Roller light box | |||
| Canvas size | 3100mm*1500mm | Roller Diameter | 75 mm |
| Motor Power | ≥60W | Control modes | Intelligent remote |
| Silent Generator Group | |||
| Power | 8KW | ||
| Number of cylinders | Water-cooled inline 4-cylinder | ||
| Power parameter | |||
| Input Voltage | 220V | Output Voltage | 220V |
| Current | 30A | Average power consumption | 0.5kwh/㎡ |
| Multimedia Control System | |||
| Monitor | Support 8-way signal input | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 120W | Speaker | 200W |
