Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
FOUR SCREENS AND 360° ROTATING

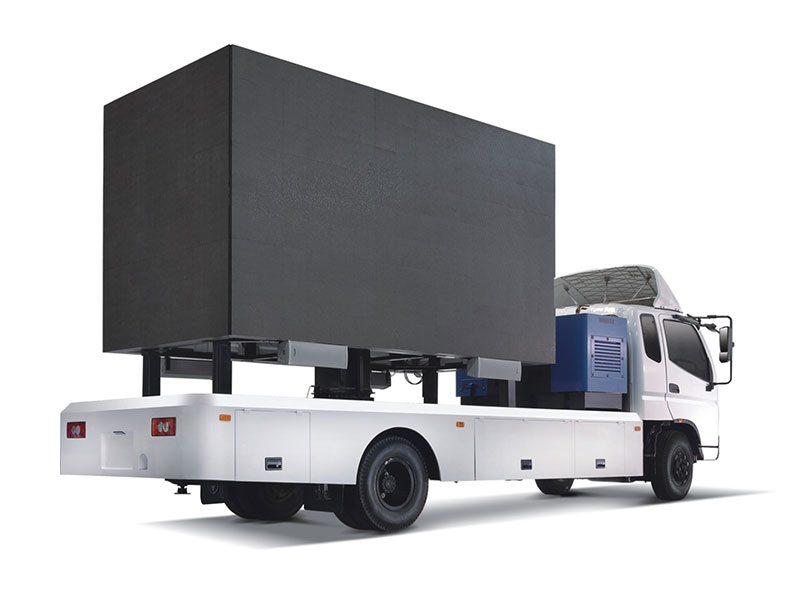

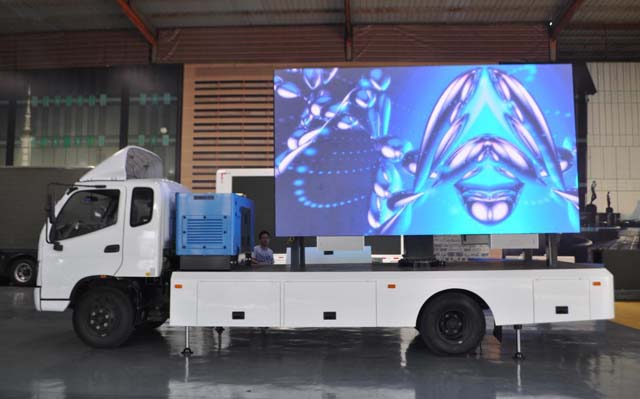

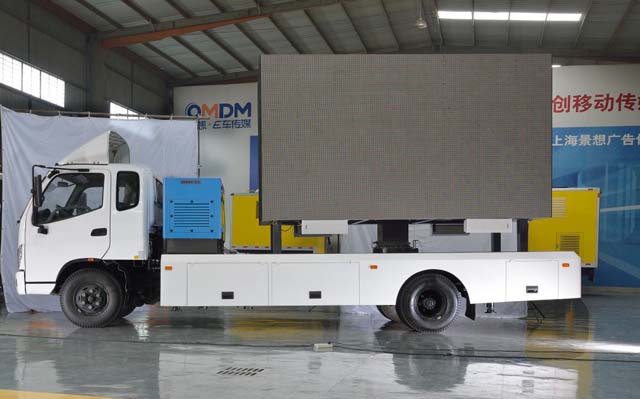

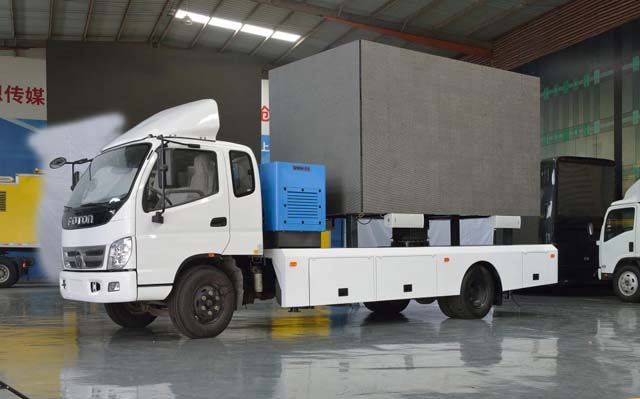

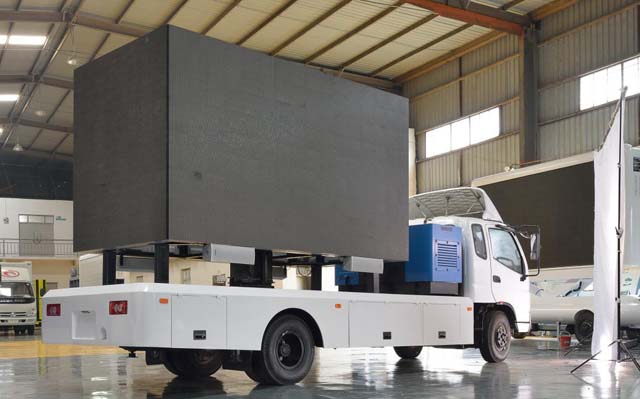

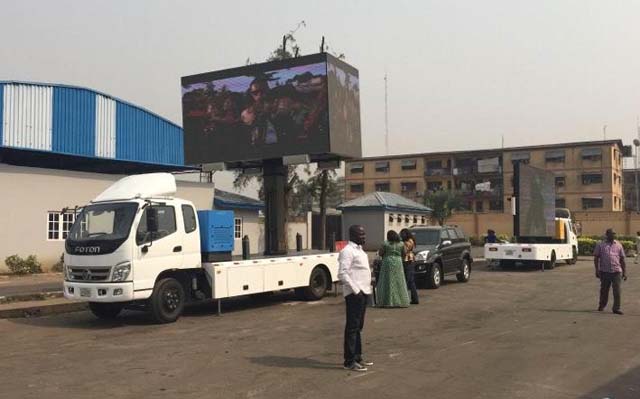

E-FS360 Rotating Mobile Led Vehicle is made as all around full screen design, can be 360 ° rotating LED screen, visual range, no blind Angle, break the defects of the traditional single screen, communication effect can be doubled.Fit in the busy streets, assembly, crowded occasion applications such as outdoor sports field, is a sign of JCT customized advertising truck products.
FOUR SCREENS AND 360° ROTATING
E-FS360 Rotating Mobile Led Vehicle is made as all around full screen design, can be 360 ° rotating LED screen, visual range, no blind Angle, break the defects of the traditional single screen, communication effect can be doubled.Fit in the busy streets, assembly, crowded occasion applications such as outdoor sports field, is a sign of JCT customized advertising truck products.
E-FS360 Technical Parameters
Model | E-FS360 | ||
Chassis | |||
Brand | Fonton Ollin | External Dimension | 8000mm×2400mm×3770mm |
Power | Chao chai | Curb weight | 9000KG |
Emission Standard | EuroⅤ | Total Weight | 9995KG |
Seat | Single row 3seats | Wheel base | 4700mm |
Hydraulic Lifting and Supporting System | |||

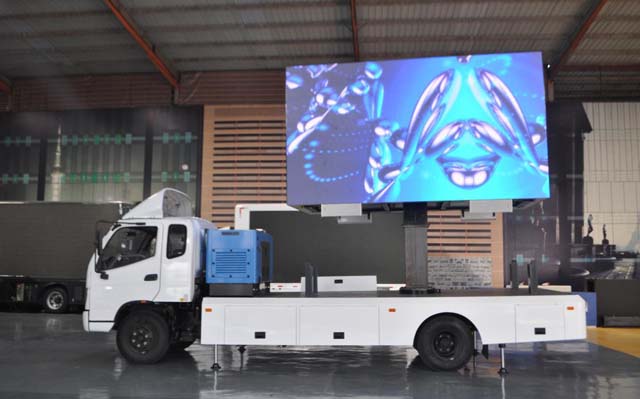

Hydraulic Lifting System | Lifting Range 2000mm,bearing 5T | ||
Hydraulic Rotating System | Screen can rotate 360degrees | ||
Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||
Supporting leg | Stretch distance 300mm | ||
Silent Generator Group | |||
Power | 28KW | Number of cylinders | Water-cooled inline 4-cylinder |
LED Screen | |||
Screen Size |
The right and left:
4000×2240mm; front of and behind: 2000×2240mm; |
Dot Pitch | 6 mm |
Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
Lifespan | 100,000hours | ||
Power parameter | |||
Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V |
Current | 45A | Average power consumption | 0.5kwh/㎡ |
Multimedia Control System | |||
Monitor | Support 8-way signal input | ||
Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
Sound | 120W | Speaker | 200W |
