Products

Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

The screen is 360° rotated

Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.


Fashion appearance , science and technology move feeling

Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic car launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.


Imported hydraulic system, security and stability

Imported hydraulic system security and stability, can travel 1000 mm;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.


Optional solar battery power supply

Independent power supply, high performance, uninterrupted power supply, not restricted by geographical location, safe and reliable, no pollution, no noise, environmental protection and beautiful, don't need too much maintenance.

Parameters

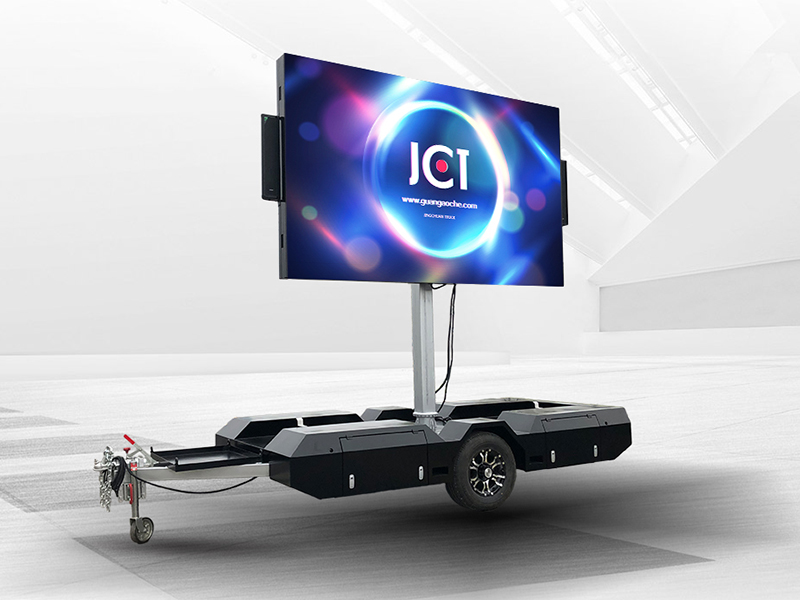

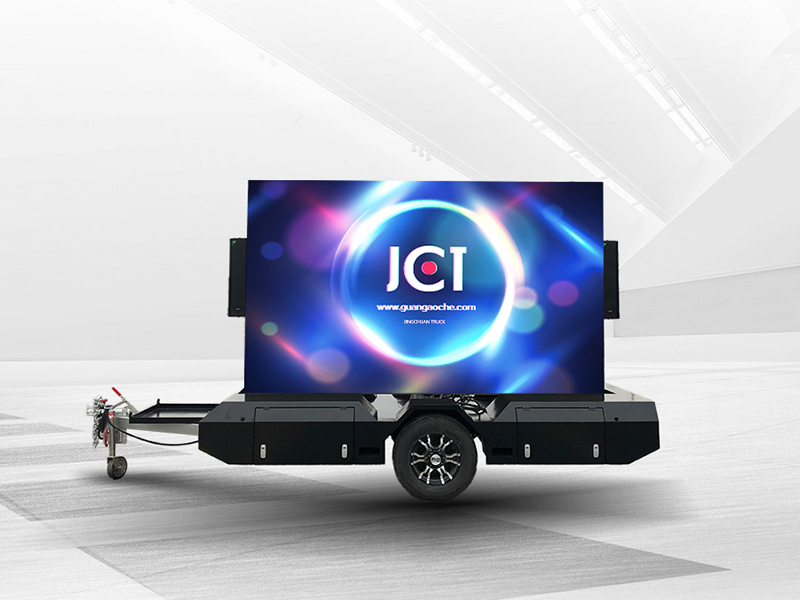

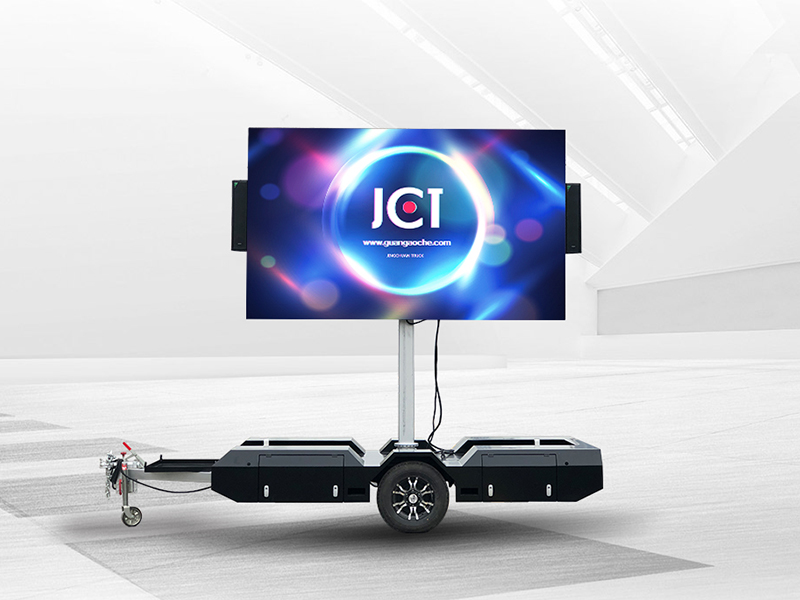

Mobile LED Trailer E-F6 creates IMPACT at your event!!

Great for experiential promotions or for placement in the centre of crowds.

Model

E-F6

Chassis

Brand

JCT

External Dimension

4965mm(L)*1800mm(W)*2681mm(H)

Supporting legs

4pcs

Tire

Solid rubber tires

Gross Trailer Mass (GTM)

1228KG

Brake

Handle/Hydraulic

LED Screen

Screen SIZE

3200mm×1920mm

Dot Pitch

6 mm

Module Size

320mm(W)*320mm(H)

Brightness

≥7500cd/ m²

Max Power

Consumption

680w/㎡

Average Power

Consumption

288w/㎡

Lifespan

100,000hours

Hydraulic lifting System

Hydraulic  Lifting

System

Lifting Range 1300mm

Hydraulic Rotating System

Screen can rotate 360degrees

Wing-against Level

Against Level 8wind after screen lift up 1000mm

Power parameter

Input Voltage

220V

Output Voltage

48V

Current

15A

Average power consumption

0.5kwh/㎡

Multimedia Control System

Optional configuration

LED Screen& Battery power & mechanical transmission is optional
