Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

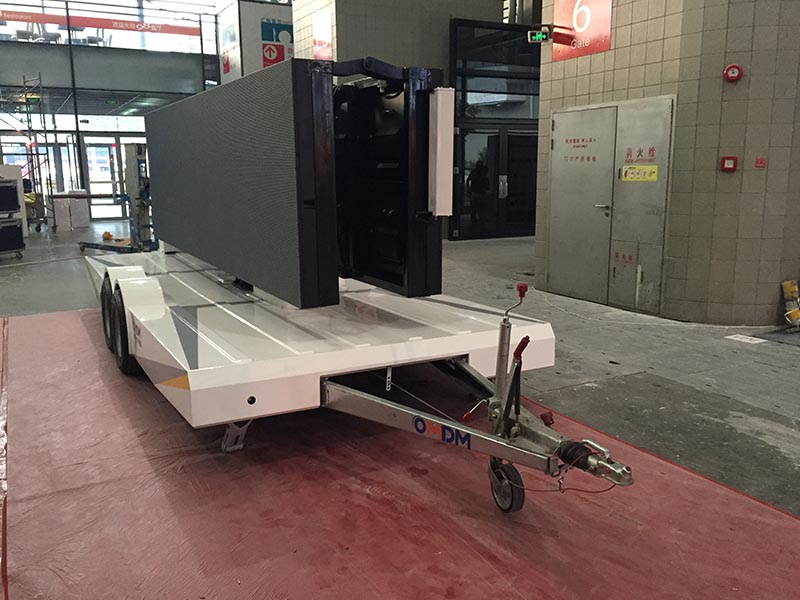

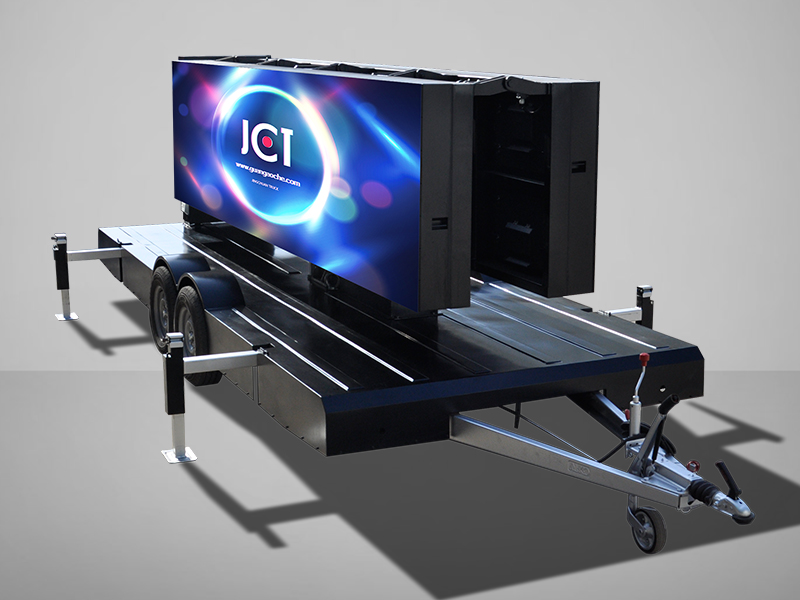

The screen can be folded
Exclusive LED foldable technology, shock and changeable visual experience;When folding double-side colleagues play, achieve 360 ° barrier-free visual coverage, expansion screen can reach 12 ㎡, visual effect is improved, at the same time limit due to effectively reduce transportation is high, can meet the special regional dispatching placed, expand the extension of media coverage.
The screen can be folded
Exclusive LED foldable technology, shock and changeable visual experience;When folding double-side colleagues play, achieve 360 ° barrier-free visual coverage, expansion screen can reach 12 ㎡, visual effect is improved, at the same time limit due to effectively reduce transportation is high, can meet the special regional dispatching placed, expand the extension of media coverage.
Fashion appearance , science and technology move feeling
Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic car launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.
Imported hydraulic system, security and stability
Imported hydraulic system security and stability, can travel 1000 mm;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.
E-F12 Technical Parameters

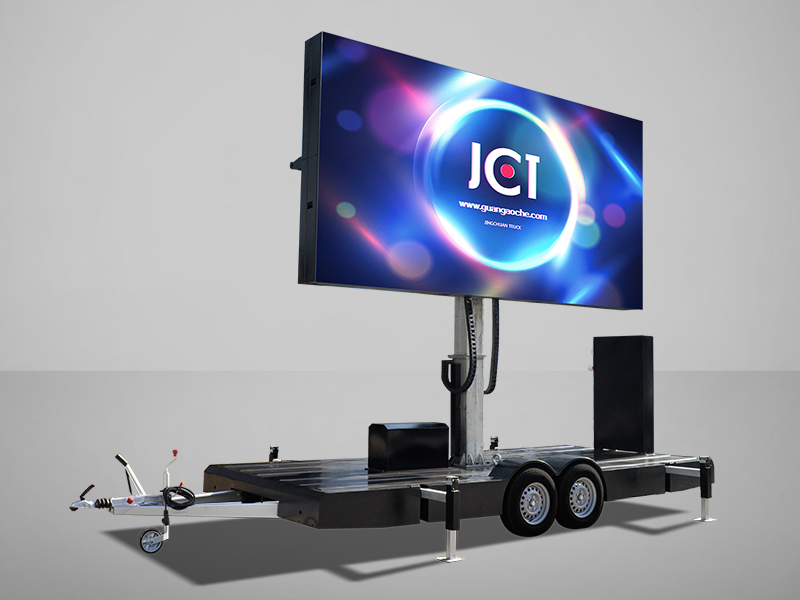

Mobile LED Trailer E-F12 creates IMPACT at your event!! 12m2 6mm virtuality outdoor screen for near 360°viewing angles Great for experiential promotions or for placement in the centre of crowds
| Model | E-F12 | ||
| Chassis | |||
| Brand | JCT | External Dimension | 6720mm*2300mm*2100mm |
| Brake | Handle/Hydraulic | Tire | Solid rubber tires |
| Supporting legs | 4pcs | ||
| LED Screen | |||
| Screen SIZE | 4480mm(W)*2560mm(H) | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| Hydraulic lifting System | |||
| Lifting System | Reach2000mm | ||
| Supporting system | Reach300mm | ||
| Folding System | 180 degree | ||
| Power parameter | |||
| Input Voltage | 220V | Output Voltage | 220V |
| Current | 25A | Average power consumption | 0.5kwh/㎡ |
| Multimedia Control System | |||
| Monitor | Support 8-way signal input | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 60W | Speaker | 100W |
| Optional configuration | LED Screen& Battery power & mechanical transmission is optional | ||
