Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
A variety of media equipment, space optimization, convenient stage

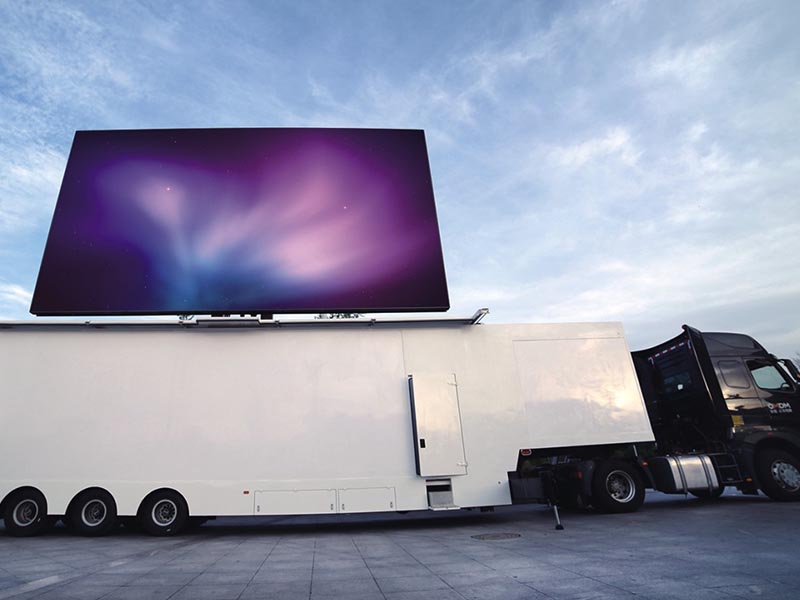

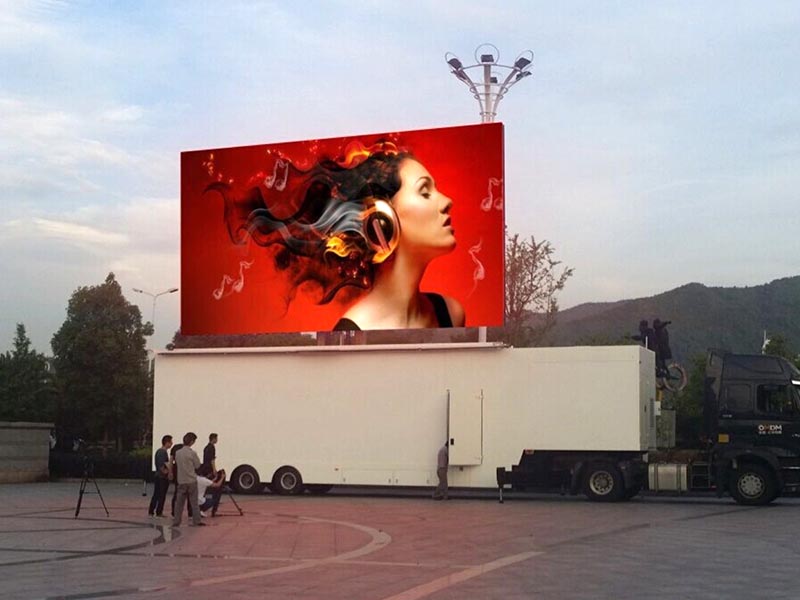

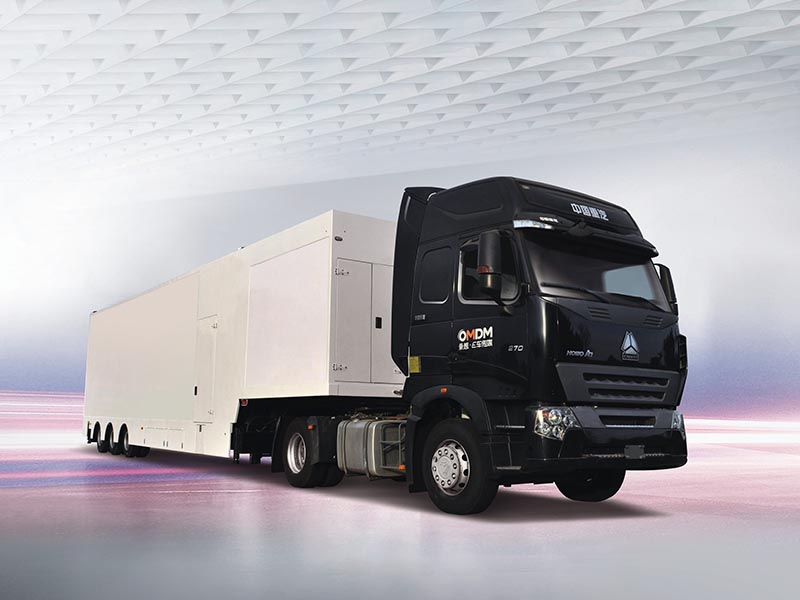

E-C60 Large Stage Exhibition Truck, Customized series cleverly will full color outdoor LED screen, the roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation, the equipment running more stable and media show more outstanding.
New cutting-edge integration design concept, are no longer satisfied with a single media, also is not only a simple load, but by modified based on the characteristics of activities, optimize the internal space, without the traditional stage structures, remove the time-consuming defect, the more effective and quickly.
A variety of media equipment, space optimization, convenient stage
E-C60 Large Stage Exhibition Truck, Customized series cleverly will full color outdoor LED screen, the roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation, the equipment running more stable and media show more outstanding.
New cutting-edge integration design concept, are no longer satisfied with a single media, also is not only a simple load, but by modified based on the characteristics of activities, optimize the internal space, without the traditional stage structures, remove the time-consuming defect, the more effective and quickly.
Has the breakthrough of the integration of technology, is a removable media device "big"!The "big" not only refers to the volume, it fill many blanks of removable media market , mobile dream theater "big", more is representative of a "big market", a "large view"
60 SQUARE METER EXTRA BIG LED SCREEN
| Model | E-C60 | ||||||
| Chassis | |||||||
| Brand | FOTON AUMAN | Power | Weichai | ||||
| Emission Standard | EuroⅣ/EuroⅤ | External Dimension | 14200mm×2550mm×4500mm | ||||
| Total Weight | 40000KG | Curb weight | 30000KG | ||||
| Hydraulic Lifting and Supporting System | |||||||
| Hydraulic Lifting System | Lifting Range 3500mm,bearing 15T | ||||||
| Hydraulic Folding System | Screen can fold 180 degrees | ||||||
| Hydraulic Rotating System | Screen can rotate 360degrees | ||||||
| Supporting leg | Stretch distance 300mm | ||||||
| Silent Generator Group | |||||||
| Power | 60KW | Number of cylinders | Water-cooled inline 6-cylinder | ||||
| LED Screen | |||||||
| Screen Size | 10000(W)×6000(H)mm | Dot Pitch | 6 mm | ||||
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² | ||||
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ | ||||
| Lifespan | 100,000hours | ||||||
| Silent Generator Group | |||||||
| Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V | ||||
| Current | 100A | Average power consumption | 0.5kwh/㎡ | ||||
| Multimedia Control System | |||||||
| Video Processor | Support 8-way signal input,4output,fluent video source switching | ||||||
| Notebook PC | Dual Core CPU,1G Graphics card,500G Hard disk | ||||||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||||||
| Sound | 400W-800W | Speaker | 1000W-1200W | ||||
| Stage | |||||||
| Dimension | 10000mm×3000mm×1200mm | ||||||
| Type | Combined outdoor stage,can piacing in the container after folding | ||||||
