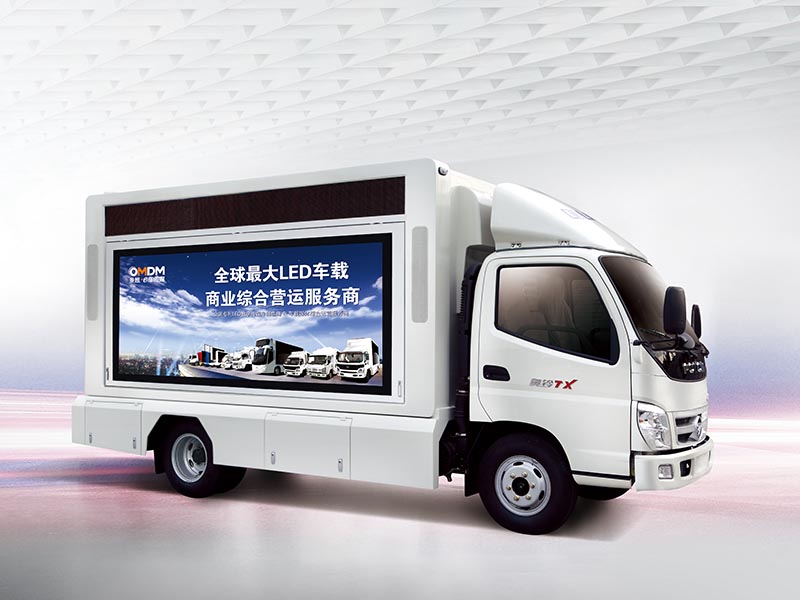

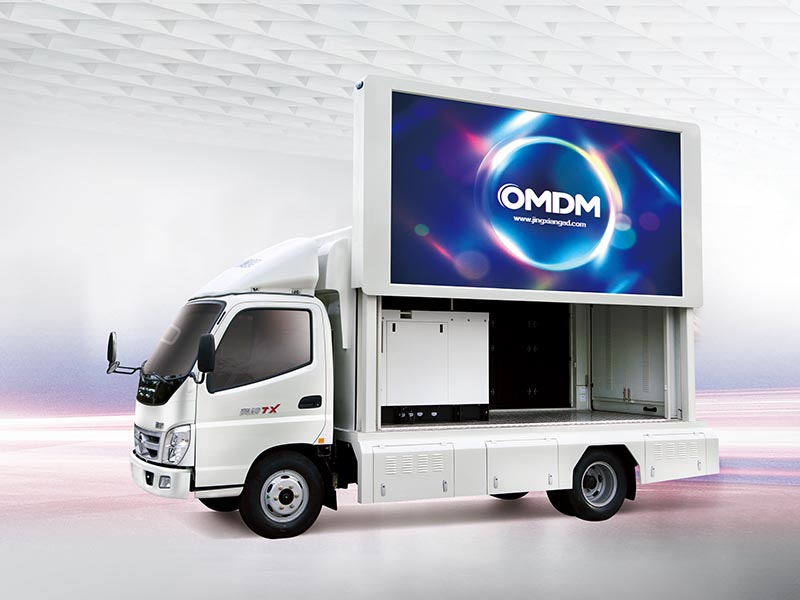

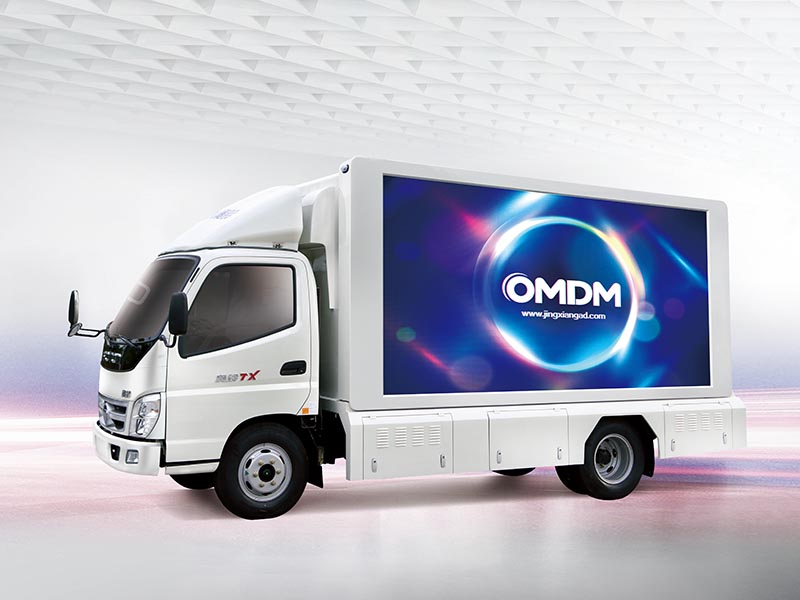

Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

Pioneering integrated cab design

Uniquely combined the media and electrical terminal operation together,, further optimize operation experience, make all operating in the cab.


Original creation for cruise

Fully optimized broadcast effect and the energy consumption ratio, to control the LED screen 6.2 ㎡, which can effectively extend the working hours;And assembling shield, further assurance products in normal use outdoor and harsh weather conditions.


Can be applied to any corner of the city

Can move freely in the city, also don't have the negative impact of roadway taking-up, blocking roads.Truly achieve advertising accompanying with seeding, into all corners of the city.


Eu standards, environmental protection

Unified the euro Ⅴ emission standards in line with international standards of automobile chassis, energy conservation and emission reduction, green environmental protection, reduce environmental restrictions on their activities.

Parameters

E-AL3360 Technical Parameters
Model E-AL3360
Chassis
Brand Fonton Ollin External Dimension 5995mm×2160mm×3240mm
Power Isuzu Total Weight 4495KG
Emission Standard EuroⅤ Curb weight 4365KG
Wheel base 3360mm Seat Single row 3seats
Silent Generator Group
Power 8KW Number of cylinders Water-cooled inline 4-cylinder
LED Screen
Screen Size 3520×1760mm Dot Pitch 6 mm
Module Size 320mm(W)*320mm(H) Brightness ≥7500cd/ m²
Max Power Consumption 680w/㎡ Average Power Consumption 288w/㎡
Lifespan 100,000hours
LED bar screen

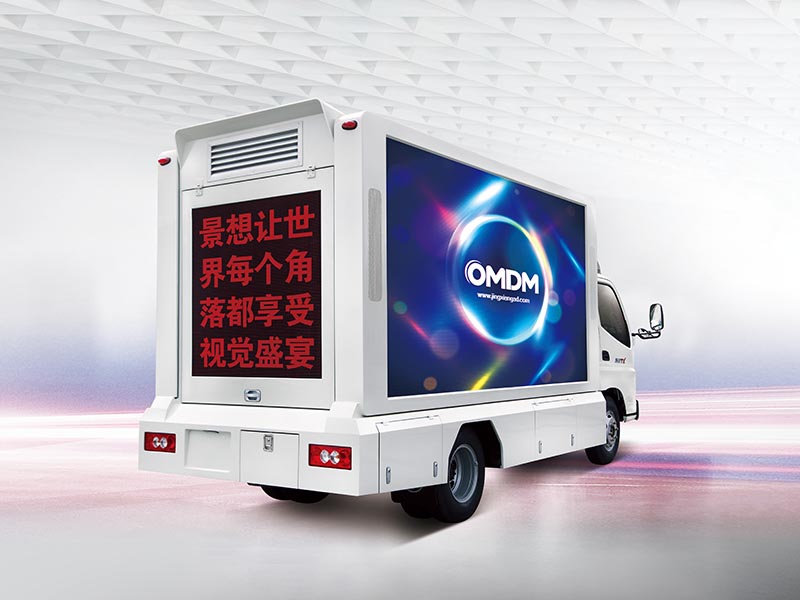

Side led Screen Size 3520mm×320mm Rear led Screen Size 1280×1440mm
Dot Pitch 10 mm Brightness ≥5000cd/ m²
Lifespan 100,000hours
Roller light box
Canvas size 3300mm×1450mm Roller Diameter 75 mm
Motor Power ≥60W Control modes Intelligent remote
Power parameter
Input Voltage 220V Output Voltage 220V
Current 20A Average power consumption 0.5kwh/㎡
Multimedia Control System
Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.
Sound 120W Speaker 200W
