Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

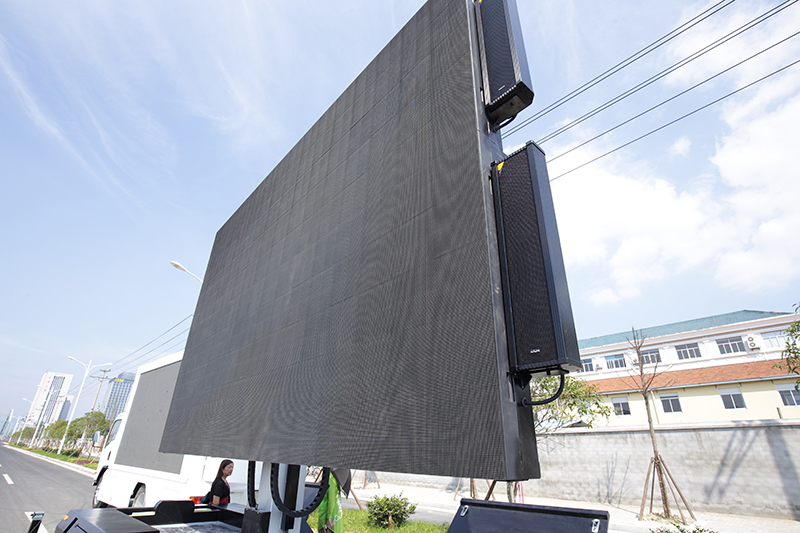

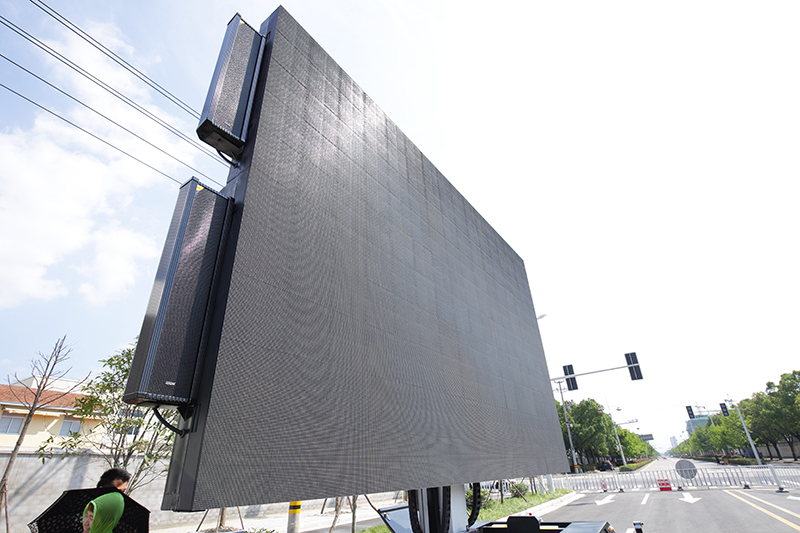

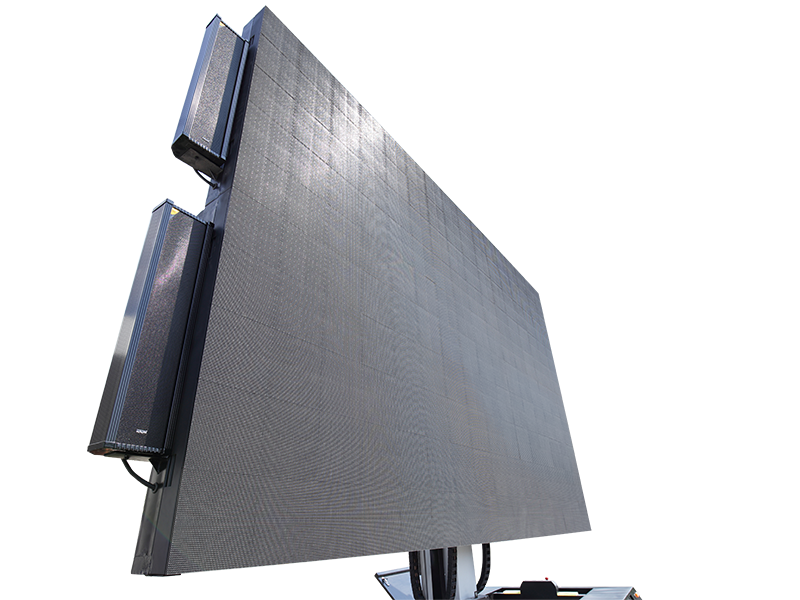

Double sides visual

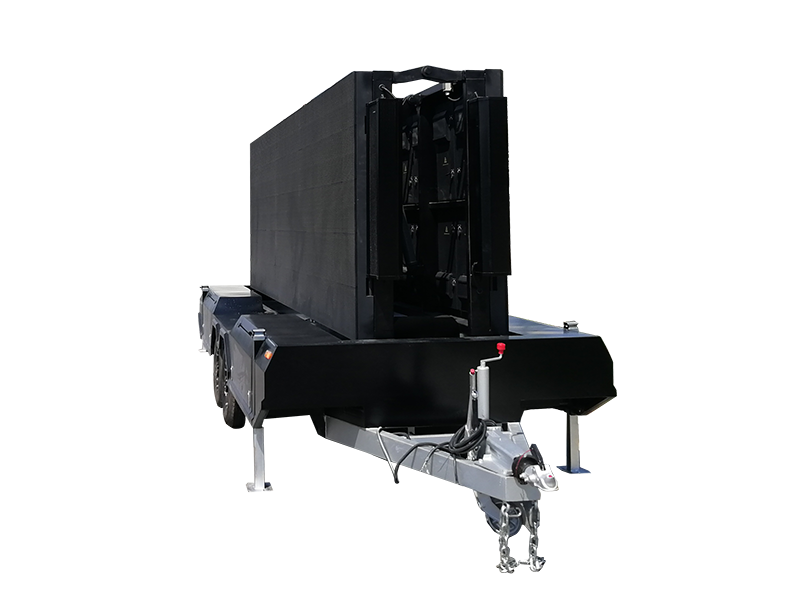

Exclusive LED foldable technology, shock and changeable visual experience: when folded double play at the same time, achieve 360 ° barrier-free visual coverage;When the screen can be up to 16 ㎡, visual effect is improved.at the same time, due to effectively reduce transportation height limit can meet the special regional dispatching and resettlement, expand the extension of media coverage.
Double sides visual
Exclusive LED foldable technology, shock and changeable visual experience: when folded double play at the same time, achieve 360 ° barrier-free visual coverage;When the screen can be up to 16㎡, visual effect is improved.at the same time, due to effectively reduce transportation height limit can meet the special regional dispatching and resettlement, expand the extension of media coverage.
Optional power, remote control moving

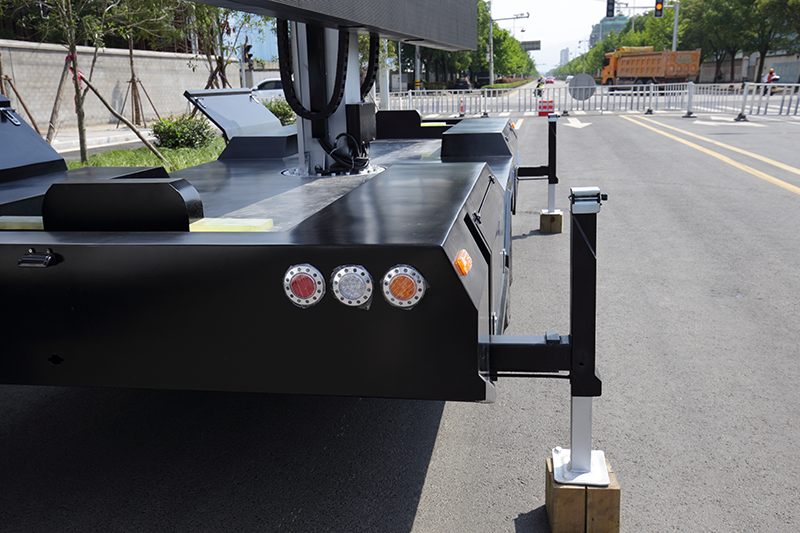

Optional chassis power system, using manual and motorized double system braking, selective intelligent remote control is flexible;Selected 16 manganese steel solid rubber tires, safe and reliable.
Fashion appearance , science and technology move feeling
Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic car launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.
Custom design as you like
The model according to the customer request custom LED screen area, another type of E - F16 (screen size 16 ㎡), E - F40 (screen size 40 ㎡) is optional.

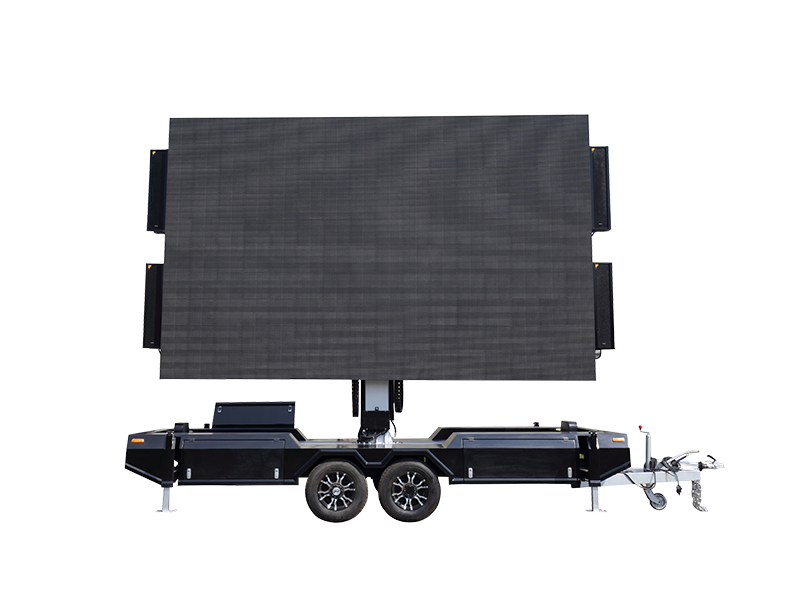

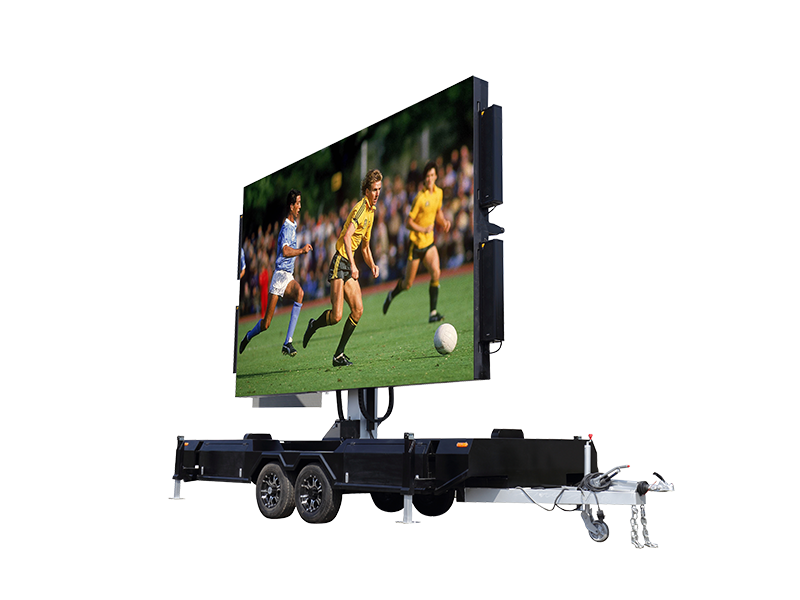

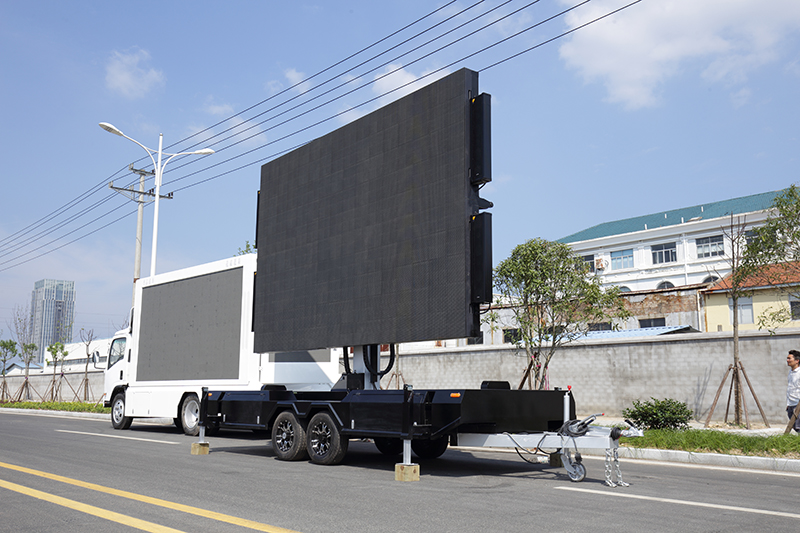

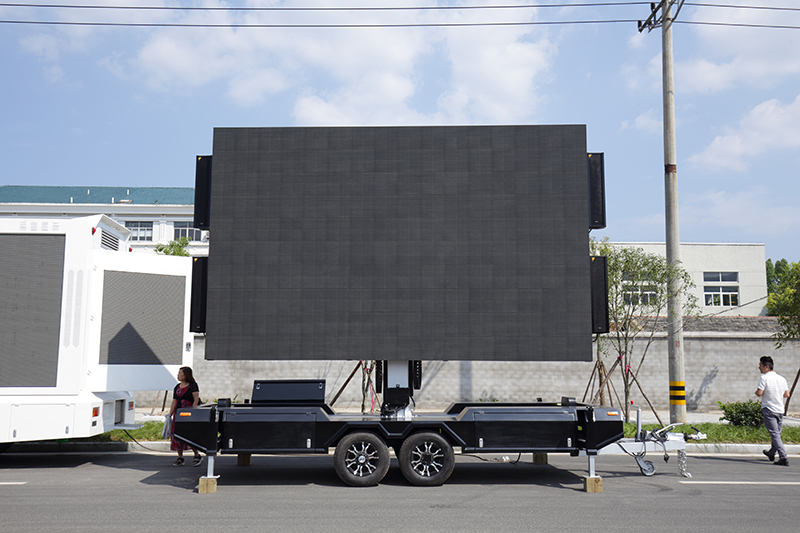

Mobile LED Trailer E-F16 creates IMPACT at your event!!
16㎡ 6mm virtuality outdoor screen for near 360°viewing angles
Great for experiential promotions or for placement in the centre of crowds
Model | E-F16 | ||||
Chassis | |||||
Brand | JCT | External Dimension | 7020mm(L)×2100mm(W)×2488mm(H) | ||
Brake | Handle/Hydraulic | Tire | Solid rubber tires | ||
Supporting legs | 4pcs | Gross Trailer Mass (GTM) | 3380KG | ||
LED Screen | |||||
Screen SIZE | 5120mm(W)*3200mm(H) | Dot Pitch | 6 mm | ||
Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² | ||
Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ | ||
Lifespan | 100,000hours | ||||

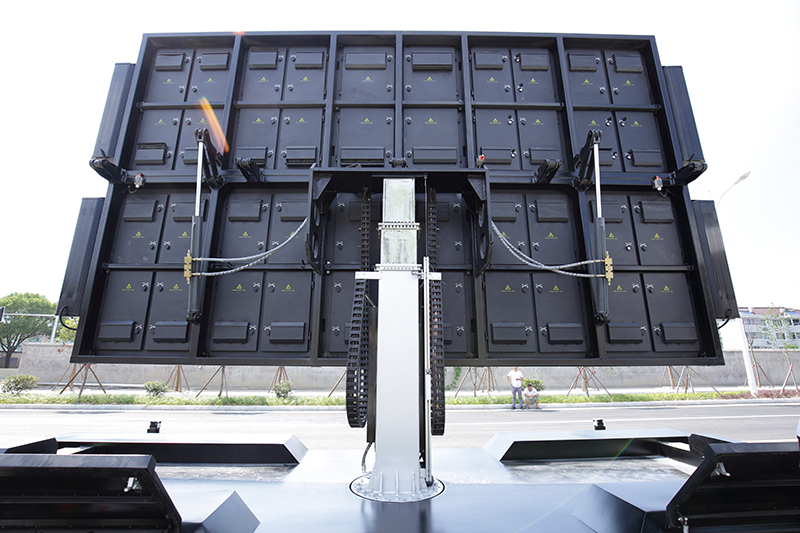

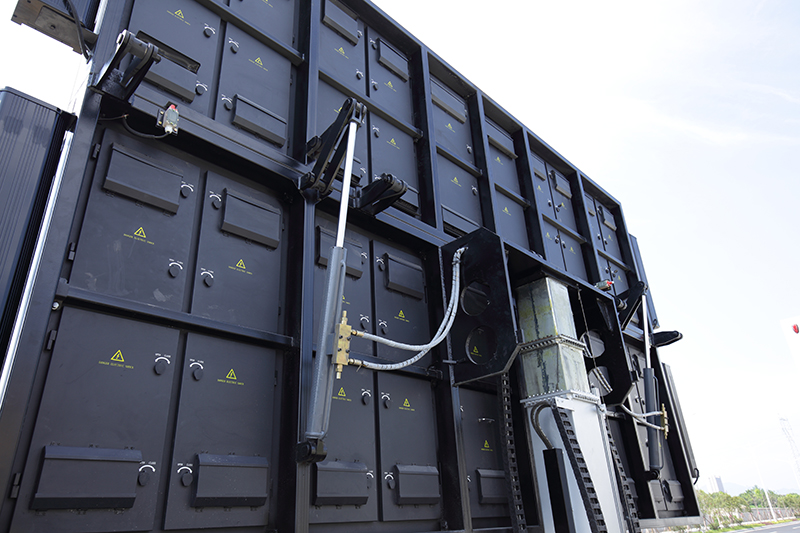

Hydraulic lifting System | |||||
Lifting System | Lifting Range 2500mm | ||||
Hydraulic Rotating System | Screen can rotate 360 degrees and fold 180 degrees | ||||
Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||||
Power parameter | |||||
Power System | 220V,25AH | battery | >8hours | ||
Input Voltage | 220V | Output Voltage | 220V | ||
Current | 25A | Average power consumption | 0.5kwh/㎡ | ||
Multimedia Control System | |||||
Monitor | Support 8-way signal input | ||||
Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||||
Sound | 60W | Speaker | 100W | ||
Optional configuration | LED Screen& Battery power & mechanical transmission is optional |
