Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

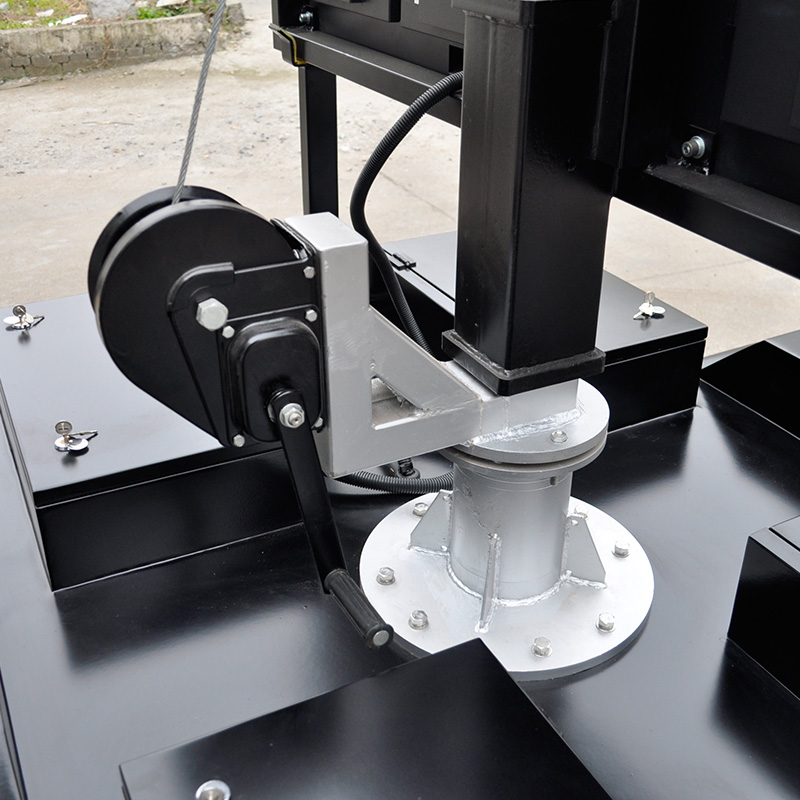

360°rotatable screen

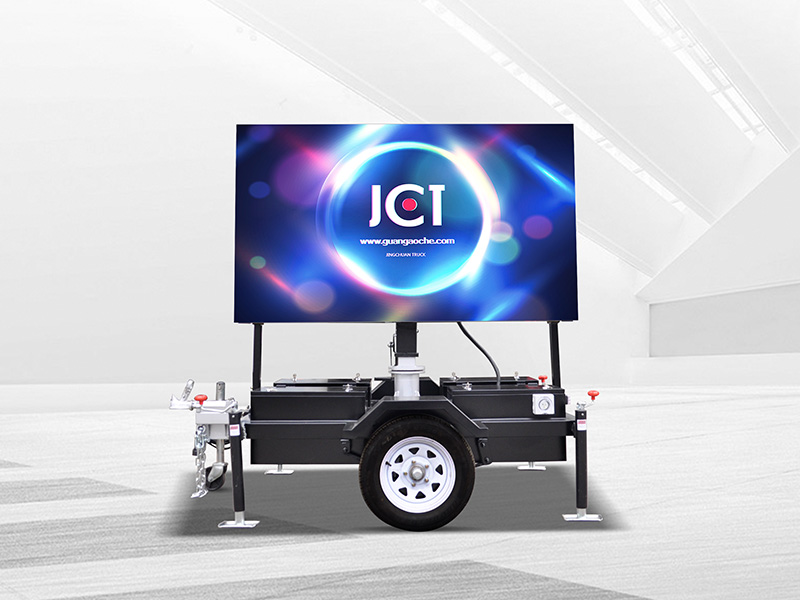

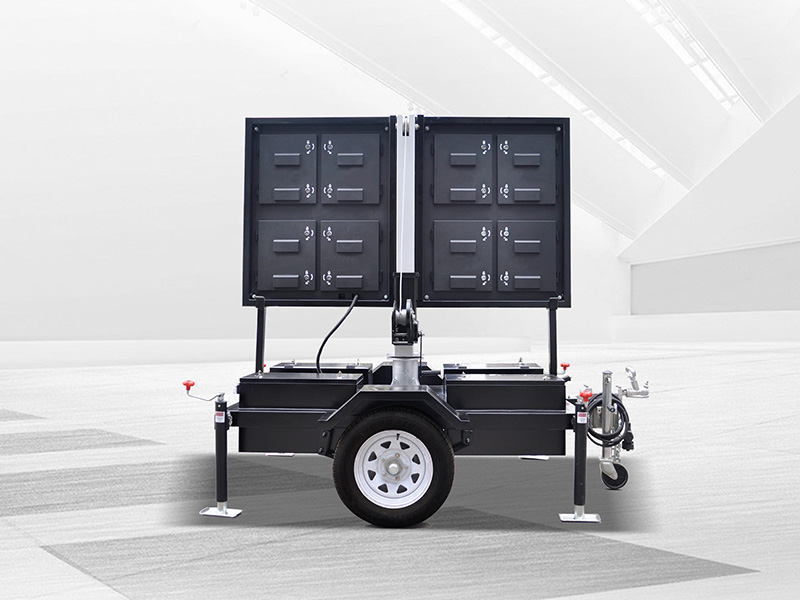

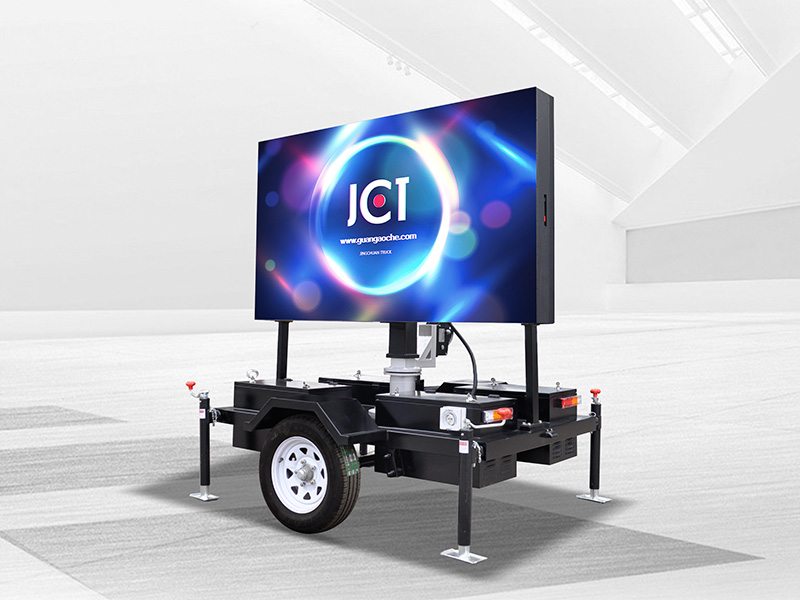

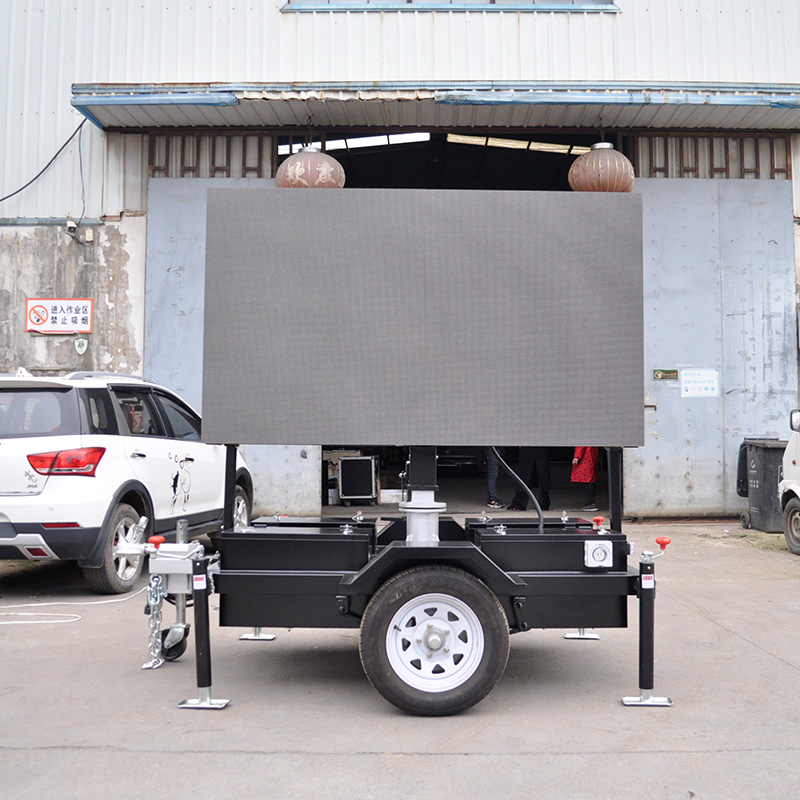

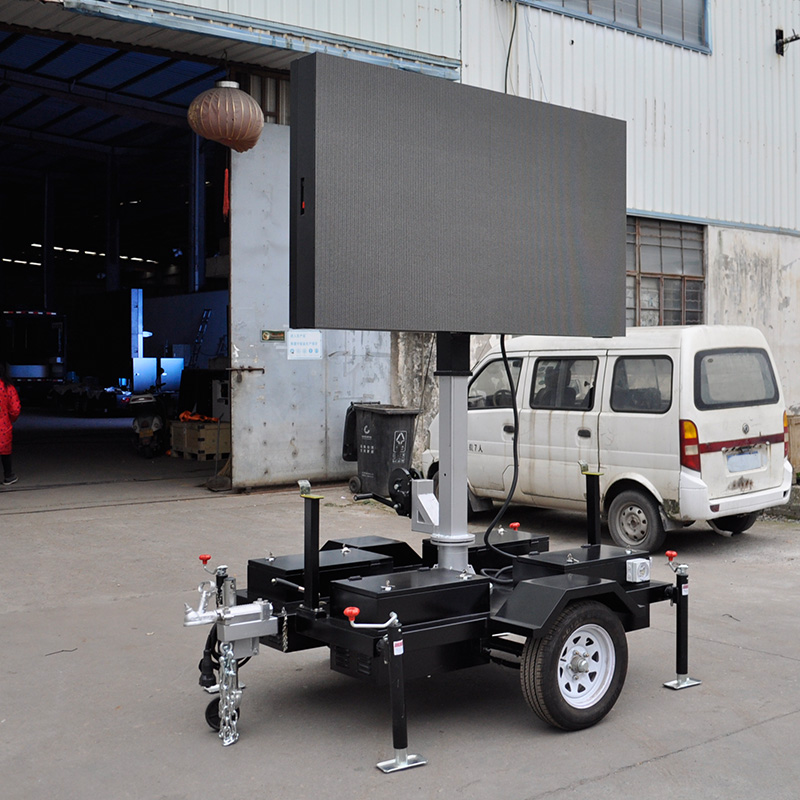

3㎡mobile led trailer integration support, and the functions of hydraulic lifting, rotating system, JingChuan company self-developed rotating guide pin can realize LED visual range 360 ° no dead Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.
Fashion appearance , science and technology move feeling
Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic trailer launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.

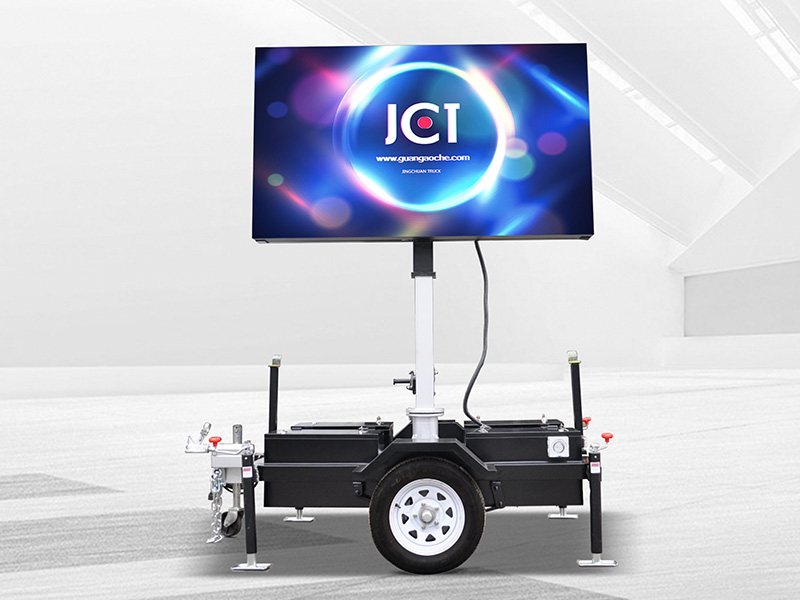

Imported hydraulic system, security and stability
Imported hydraulic system security and stability, stroke up to 1000 mm;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.

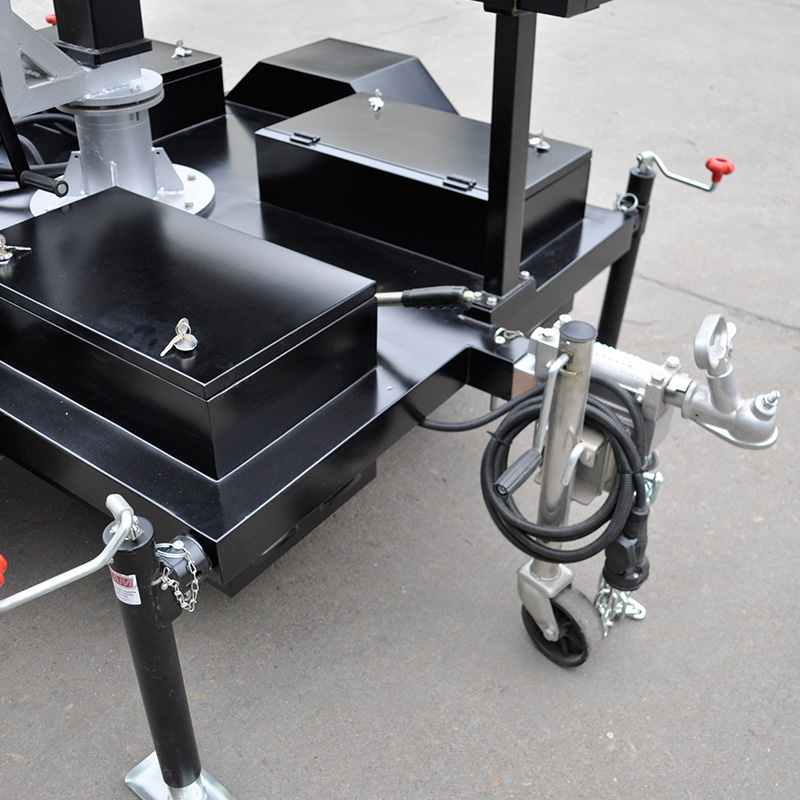

Unique traction bar design
3㎡mobile led trailer equipped with inertial device and hand brake, using the trailer can be towed to move, where more people to which broadcast and publicity, where to think of;Choose the mechanical structure of manual support legs, easy and fast operation;
Product technical parameters
1. Overall size: 2500×1800×2162mm, of which 400mm is inertial device, stroke: 1000mm;
2. LED outdoor full color screen (P3/P4/P5/P6) size: 2240*1280mm;
3. Lifting system: hydraulic cylinder imported from Italy with a stroke of 1000mm;
4. Equipped with multimedia playback system, supporting 4G, usb flash disk and mainstream video format.

Parameters

Model

ST3(3㎡ mobile LED trailer

Trailer appearance

Trailer size

2500×1800×2162mm

Tires

2 pcs

Axle

1 ton 5-114.3,Hand brake

Connector

50mm ball head, 4 hole Australian impact connector, wire brake

Supporting leg

load 1.5 tons,4 PCS



LED Screen

Screen SIZE

2240mm(W)*1280mm(H)

Dot Pitch

P3/P4/P5/P6

Lifespan

100,000hours



Hydraulic lifting System

Hydraulic  Lifting
System

Lifting Range 1000mm

Hydraulic Rotating System

Screen can rotate 360degrees

Wing-against Level

Against Level 8wind after screen lift up 1000mm

Power parameter (external prower supply)

Input voltage

Single phase 220V

Output voltage

220V

Inrush current

20A

Average power consumption

0.3kwh/㎡

Multimedia control system

Player

Nova TB2

receiving card

Nova-MRV316
