Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

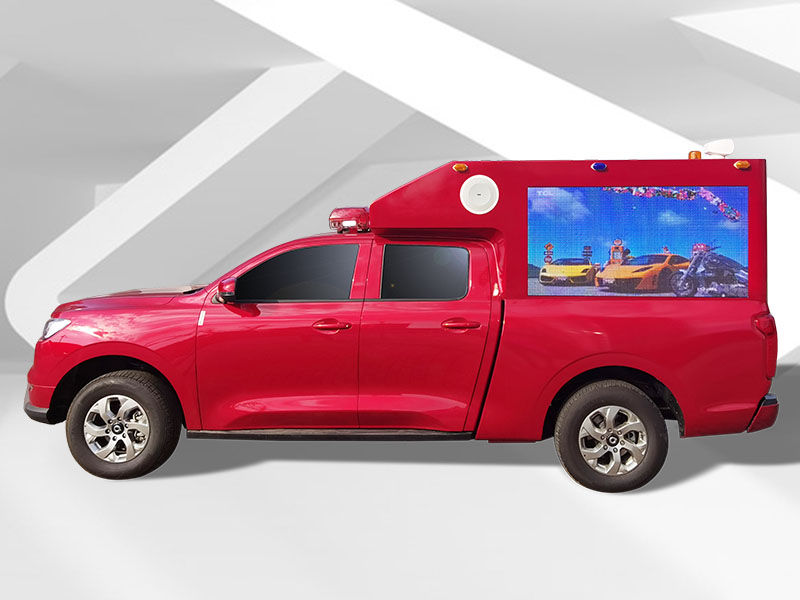

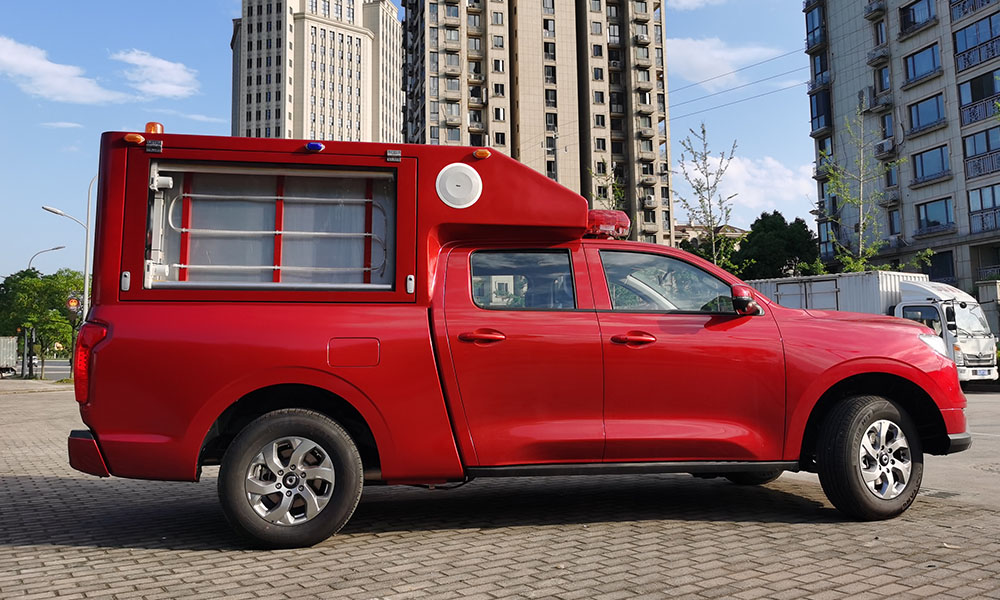

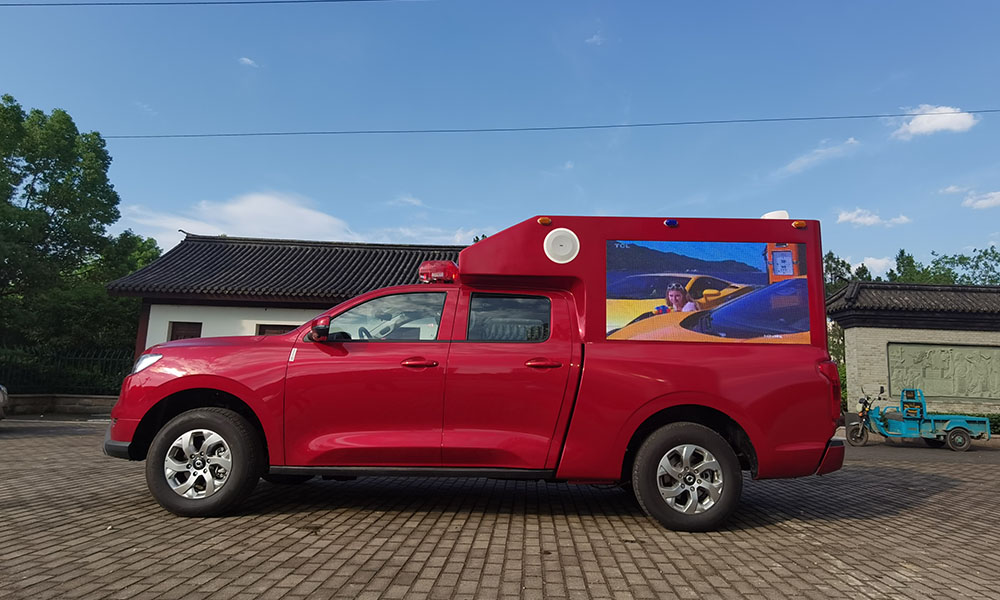

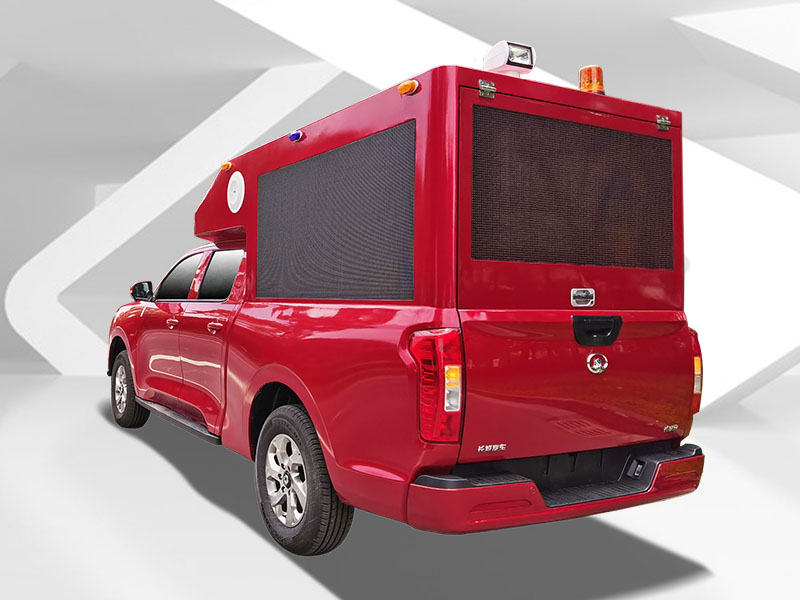

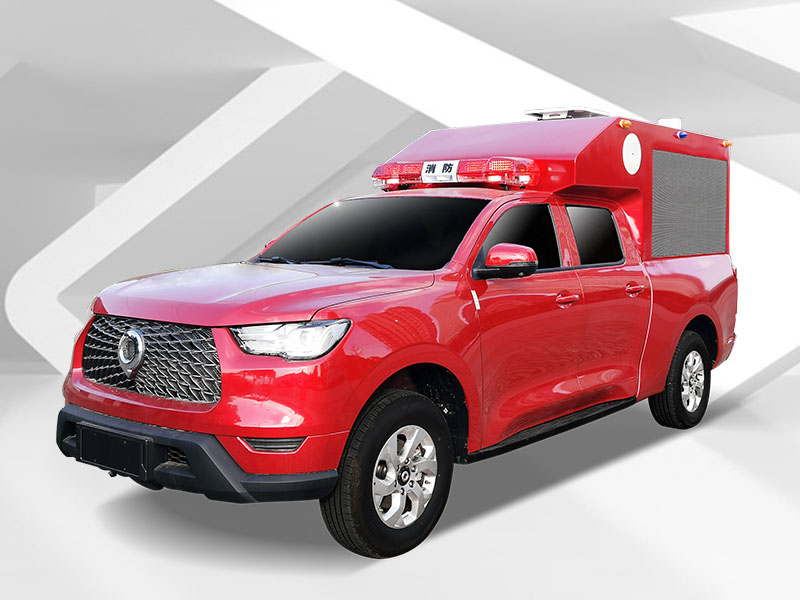

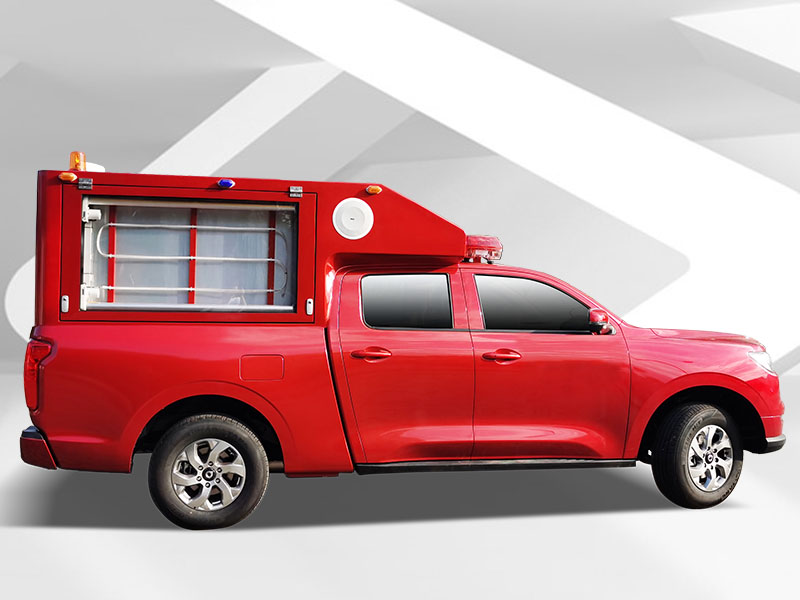

Great Wall CC1030QA20A 4WD is selected as the load-bearing chassis for Jingchuan's newly listed great wall fire propaganda vehicle. The overall body is compact and smooth. It meets the emission standard of national VI and meets the national vehicle requirements announcement. The whole vehicle of this great wall fire propaganda vehicle is made of high-quality baking paint, the color is fire red, and the body color is dazzling. The vehicle has obvious fire publicity signs, and is equipped with fire publicity and education facilities to spread fire knowledge in a mobile way or stop at a fixed point in schools, communities, rural areas and enterprises. Fire safety publicity and education can be implemented "face-to-face". This small fire propaganda vehicle can be used to prevent and respond to all kinds of fire knowledge, report fire, put out initial fire and evacuation and self rescue safety skills, so as to strengthen the interaction between fire agencies and the public.
| Model | great wall fire propaganda vehicle | ||
| Special vehicle chassis | |||
| Brand | Great wall CC1030QA20A 4WD | Overall dimension | 3470×1883×2400mm |
| displacement | ≥2.0L | emission standard | National VI |
| Seat | 5seats | ||
| Silent generator set | |||
| power | Single phase 220V / 5kW; Manual and electric starting modes; External mains power 220V | ||
| Left LED full color display | |||
| Size | 1536×768mm | Dot pitch | P3/P4/P5/P6（Optional） |
| Life | 100000 hours | ||
| Rear LED single red display | |||
| Size | 1280×640mm | Dot pitch | 10 mm |
| Life | 100000 hours | ||
| Roller canvas | |||
| Size | 1500×700mm | Number of canvases | 4-6pcs |
| control mode | Intelligent remote control | Roller diameter | 75mm |
| Power | |||
| input voltage | 220V | output voltage | 220V |
| electric current | 15A | Power consumption |
Average power consumption： 0.3wh/m² |
| Multimedia playback system (optional) | |||
| Video processor | 8-channel video signal input, 4-channel output, seamless video switching | ||
| Multimedia player | Support USB flash disk playback and mainstream video and picture formats. It can expand the realization of remote playback and realize multiple playback modes such as timing, plug-in and circulation. It also supports remote volume control, timing switch and other functions. | ||
| Fire demonstration system (optional) | |||
| Fire publicity simulation device | 1 set of smoke machine, 1 set of alarm, 10 sets of safety signs, 1 set of false fire simulation device and 1 set of blower device | ||
