Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
Oversized screen, perfect experience

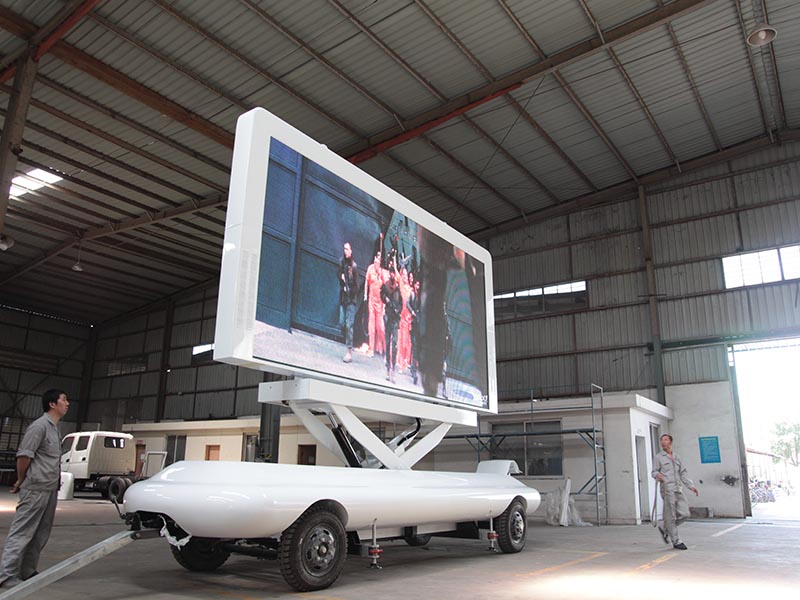

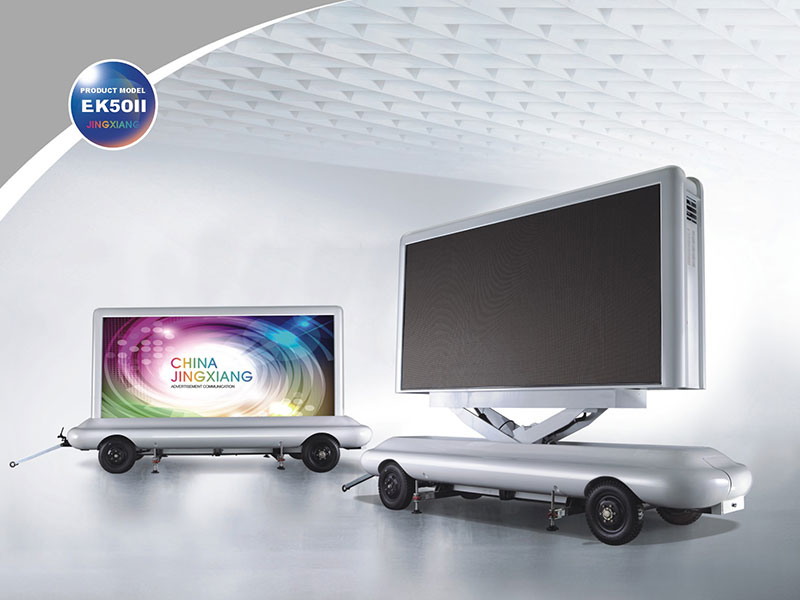

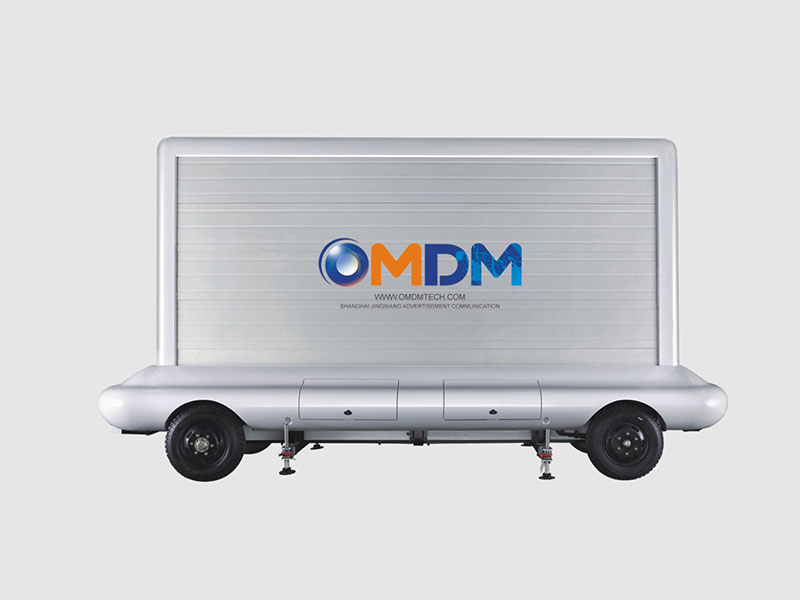

E-K50Ⅱ Large screen LED Trailer: 12 ㎡ full-color outdoor LED screen, mainstream 16:9 widescreen display on the screen size and resolution to achieve perfect balance, bring strong audio-visual experience with high-power stereo equipment;Military level of audio-visual integration control system ensure the smooth running stability, compatibility support various types of video files.
Oversized screen, perfect experience
E-K50Ⅱ Large screen LED Trailer: 12 ㎡ full-color outdoor LED screen, mainstream 16:9 widescreen display on the screen size and resolution to achieve perfect balance, bring strong audio-visual experience with high-power stereo equipment;Military level of audio-visual integration control system ensure the smooth running stability, compatibility support various types of video files.

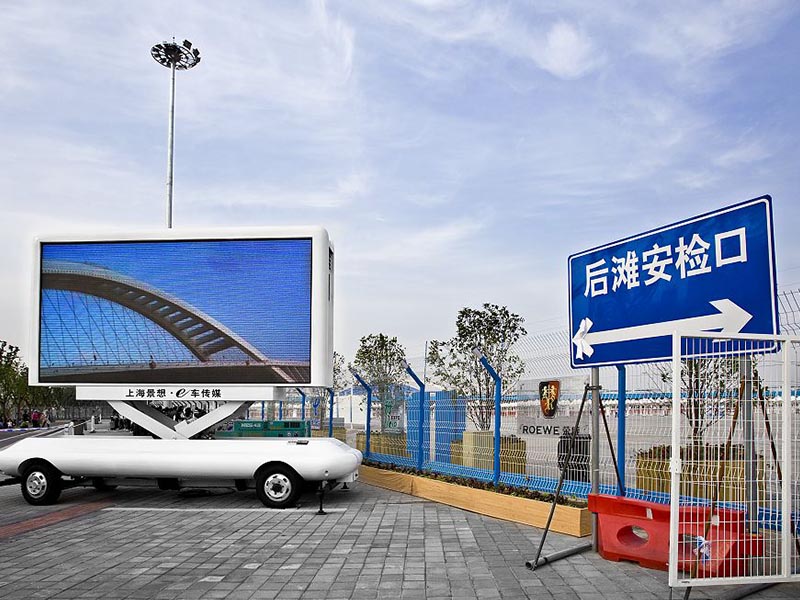

Outdoor warrior ,No Fear wind and rain
Give full consideration to the outdoor operation factors, the designer to reasonable proportion of the vehicle weight, give full consideration to drainage factors, set up a fixed support leg, and the key parts of waterproof design;Shell adopts full steel quality, across the board to improve combat, wind, seismic, prevent capsizing, rain, such as design standards, ensure ahead of the industry standard.

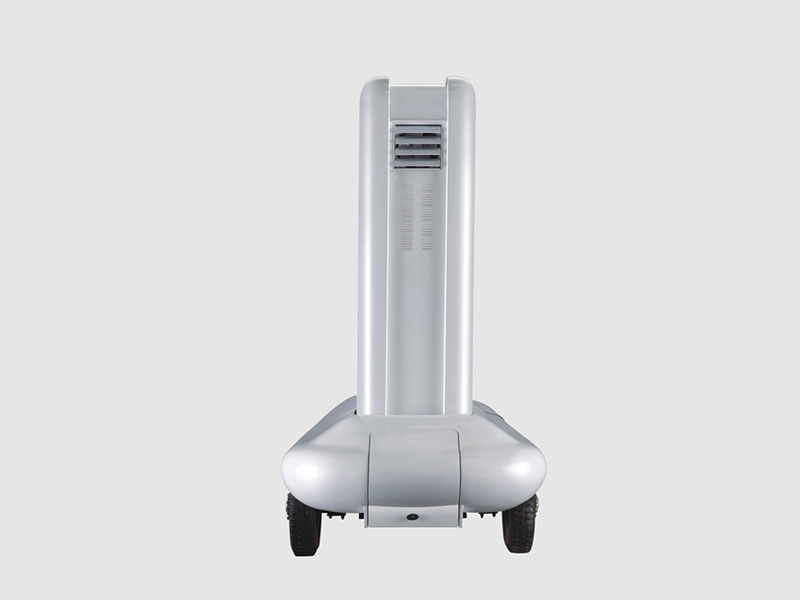

Streamline appearance, simple style and elegant
Designers to improve the function on the basis of balancing the appreciation of the body, the vehicle smooth lines , simple style and elegant, suitable for all kinds of environment, but also for the user to personalized decoration products to reserve enough space.

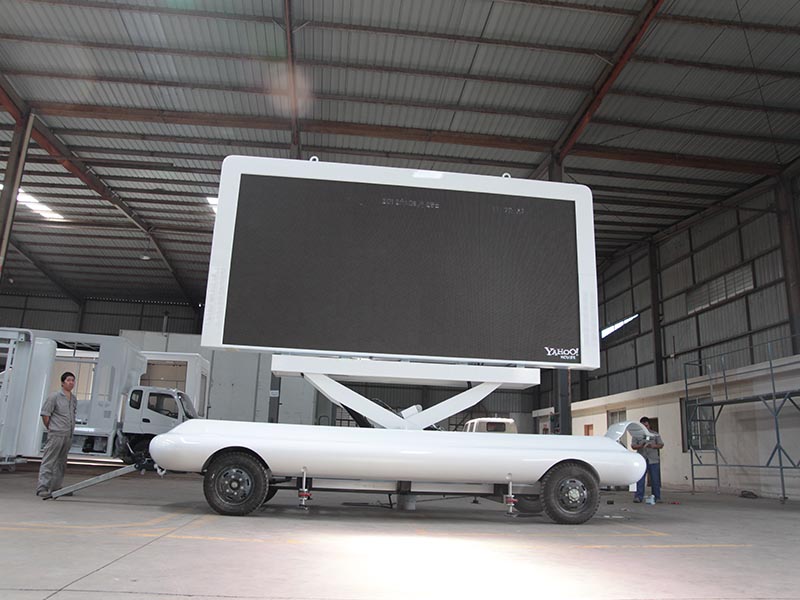

Imported hydraulic system, security and stability
Imported hydraulic lifting system security and stability, can travel 2 m;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.
| Model | E-K50Ⅱ | ||
| Chassis | |||
| Brand | JCT | External Dimension | 6700mm×1800mm×3700mm |
| Brake | Handle/Hydraulic | Tire | Solid rubber tires |
| Supporting legs | 4pcs | ||
| Hydraulic Lifting and Supporting System | |||
| Hydraulic Lifting System | Lifting Range 2000mm,bearing 3T | ||
| Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||
| Supporting leg | Stretch distance 300mm | ||
| LED Screen | |||
| Screen SIZE | 4800×2400mm | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| Power parameter | |||
| Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V |
| Current | 30A | Average power consumption | 0.5kwh/㎡ |
| Multimedia Control System | |||
| Monitor | Support 8-way signal input | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 120W | Speaker | 200W |
| Relevant model | E-K50Ⅲ | Screen SIZE | 4800×3200mm |
