Products

Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

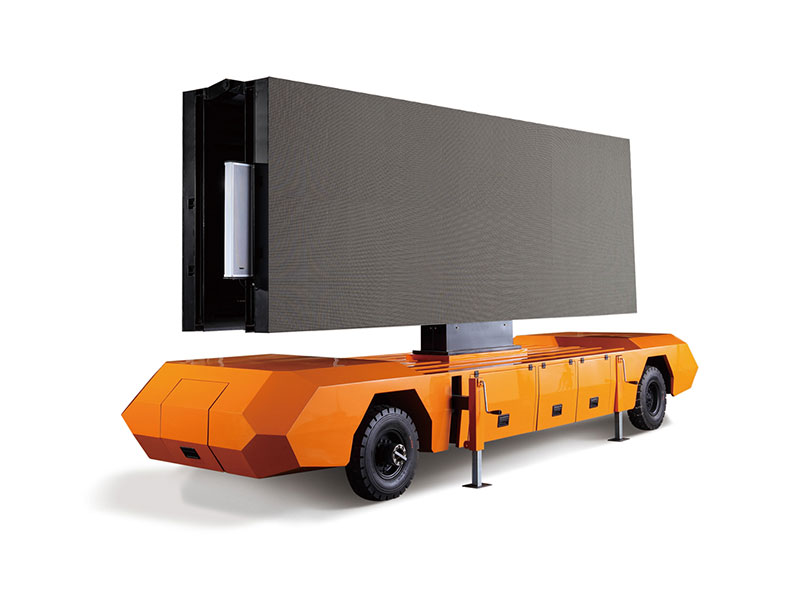

Double sides visual


Exclusive LED foldable technology, shock and changeable visual experience: when folded double play at the same time, achieve 360 ° barrier-free visual coverage;When the screen can be up to 22 ㎡, visual effect is improved.at the same time, due to effectively reduce transportation height limit can meet the special regional dispatching and resettlement, expand the extension of media coverage.


Optional power, remote control moving

Optional chassis power system, using manual and motorized double system braking, selective intelligent remote control is flexible;Selected 16 manganese steel solid rubber tires, safe and reliable.


Fashion appearance , science and technology move feeling

Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic car launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.


Custom design as you like

The model according to the customer request custom LED screen area, another type of E - F16 (screen size 16 ㎡), E - F40 (screen size 40 ㎡)  is optional.

Parameters

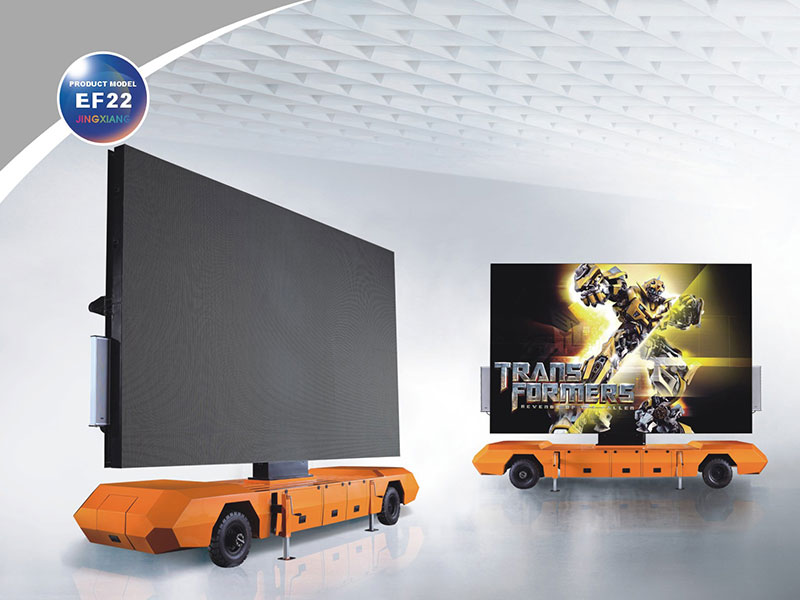

E-F22 Technical Parameters
Model E-F22
Chassis
Brand JCT External Dimension 7800mm*1800mm*2940mm
Brake Handle/Hydraulic Total Weight 5300KG
Minimum turnin diameter ≥16m Tire Solid rubber tires
LED Screen
Screen SIZE 5760mm(W)*3840mm(H) Dot Pitch 10 mm
Module Size 320mm(W)*320mm(H) Brightness ≥7500cd/ m²
Max Power Consumption 800w/㎡ Average Power Consumption 400w/㎡
Lifespan 100,000hours
Hydraulic lifting System
Lifting System Reach2000mm
Supporting system Reach300mm
Folding System 180 degree
Power parameter
Input Voltage Three-phase five-wire 380V Output Voltage 220V
Current 35A Average power consumption 0.5kwh/㎡

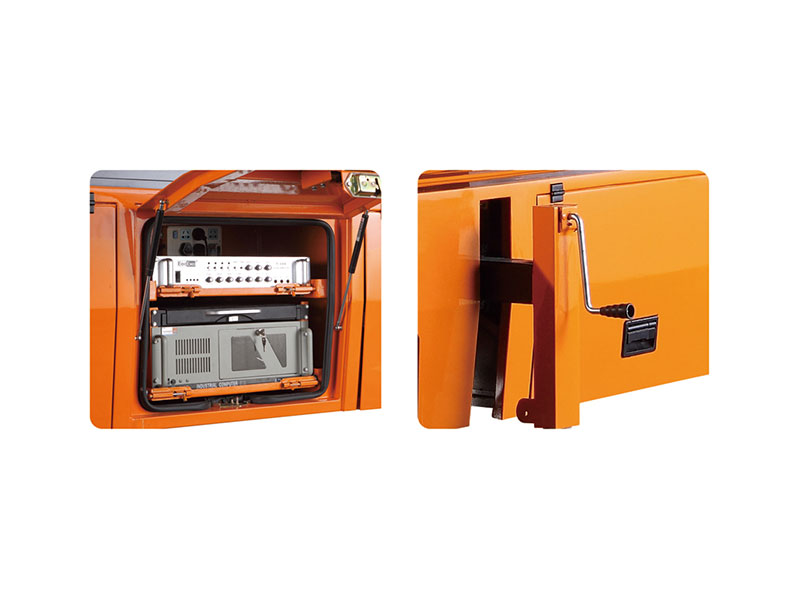

Multimedia Control System
Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.
Sound 120W Speaker 200W
Optional configuration LED Screen& Battery power & mechanical transmission is optional
