Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
Large capacity, mobile and flexible
Especially choosing super power and big space,put all the stage materials into the carriage,It only needs to open simply for completing all the operation when preparing for the show.Big sales promotion activity,big Theatrical performances,mobile exhibition,Mobile cinema,all can be showed at any place,any time.
Large capacity, mobile and flexible

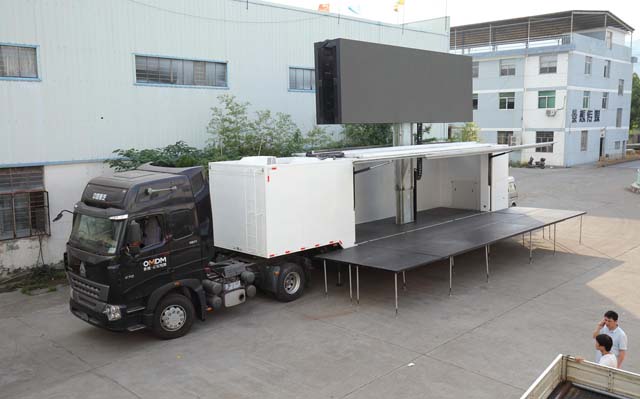

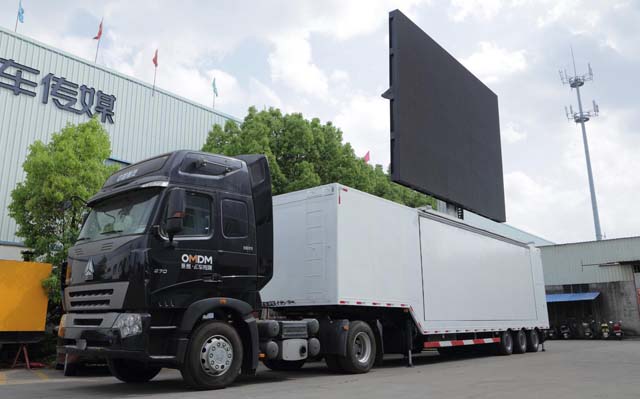

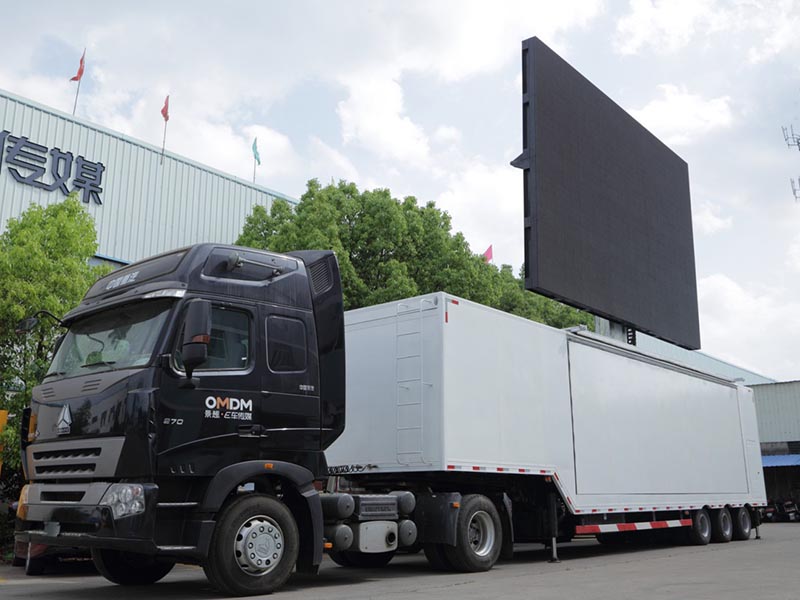

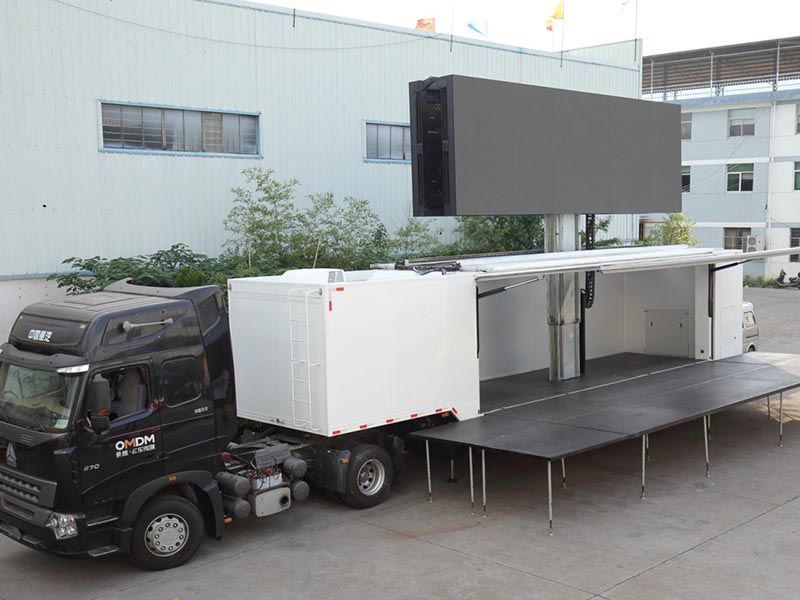

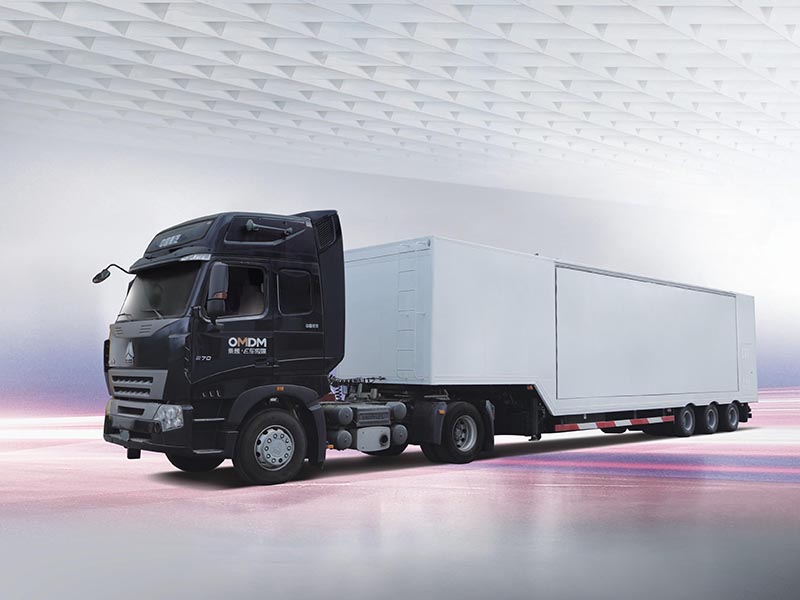

E-C40 Large container stage truck, Especially choosing super power and big space,put all the stage materials into the carriage,It only needs to open simply for completing all the operation when preparing for the show.Big sales promotion activity,big Theatrical performances,mobile exhibition,Mobile cinema,all can be showed at any place,any time.
Cutting-edge integration,high efficient execution
New cutting-edge integration design concept, are no longer satisfied with a single media, also is not only a simple load, but by modified based on the characteristics of activities, optimize the internal space, without the traditional stage structures, remove the time-consuming defect, the more effective more quickly.And can be combined closely with the other marketing communication means, to achieve functional derivatives, professional car TV editorial equipment on-site studio, equipped with professional vehicle mobile carnival, mobile KTV, or can be carried out in accordance with the brand customer needs a brand theme of decoration modified shop, etc.
40 SQUARE METER EXTRA BIG LED SCREEN
Model | E-C40 | ||||||
Chassis | |||||||
Brand | FOTON AUMAN | External Dimension | 12995mm*2550mm*3975mm | ||||
Power | Weichai | Total Weight | 40000KG | ||||
Emission Standard | EuroⅤ | Curb weight | 30000KG | ||||
Hydraulic Lifting and Supporting System | |||||||
Hydraulic Lifting System | Lifting Range 3500mm,bearing 8T | ||||||
Hydraulic Folding System | Screen can fold 180 degrees | ||||||
Hydraulic Rotating System | Screen can rotate 360degrees | ||||||
Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||||||
Supporting leg | Stretch distance 300mm | ||||||
LED Screen | |||||||
Screen Size | 8320mm(W)*4480mm(H) | Dot Pitch | 6 mm | ||||
Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² | ||||
Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ | ||||
Lifespan | 100,000hours |
|
|
||||
Silent Generator Group | |||||||
Power | 45KW | ||||||
Number of cylinders | Water-cooled inline 4-cylinder | ||||||
Power parameter | |||||||
Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V | ||||
Current | 50A | Average power consumption | 0.5kwh/㎡ | ||||
Multimedia Control System | |||||||
Notebook PC | Dual Core CPU,1G Graphics card,500G Hard disk | ||||||
Video Processor | Support 8-way signal input,4output,fluent video source switching | ||||||
Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||||||
Sound | 400W-800W | Speaker | 1000W-1200W | ||||
Stage | |||||||
Dimension | 10000mm*3000mm*1100mm | ||||||
Type | Combined outdoor stage,can piacing in the container after folding |
