Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

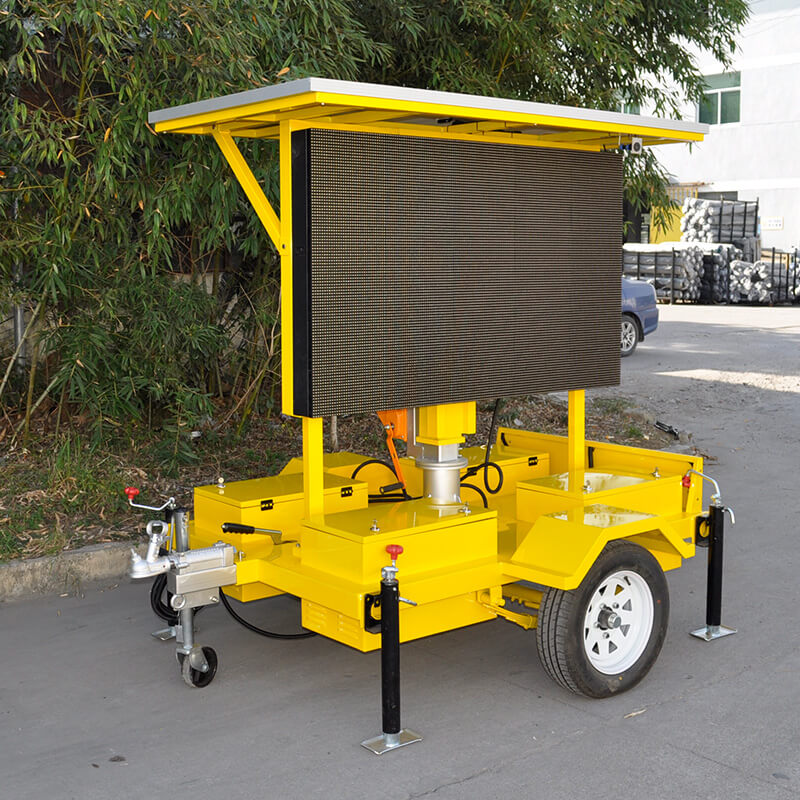

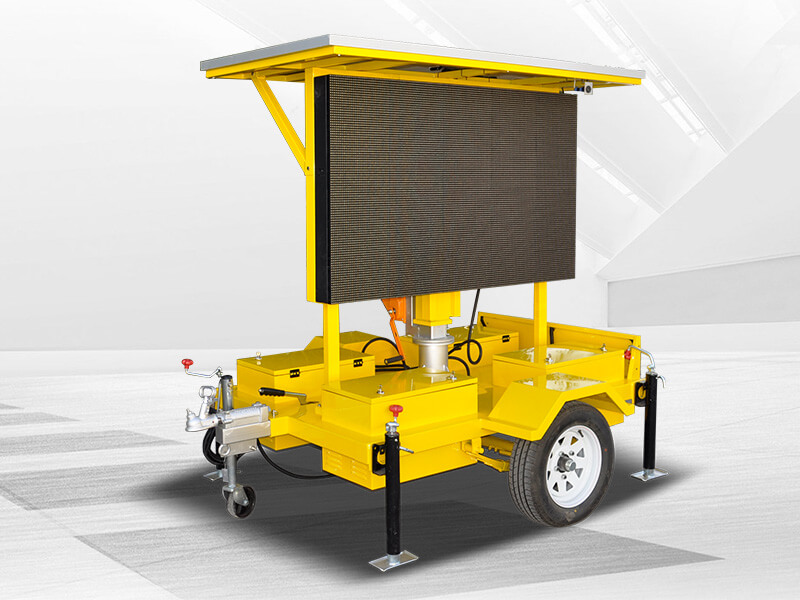

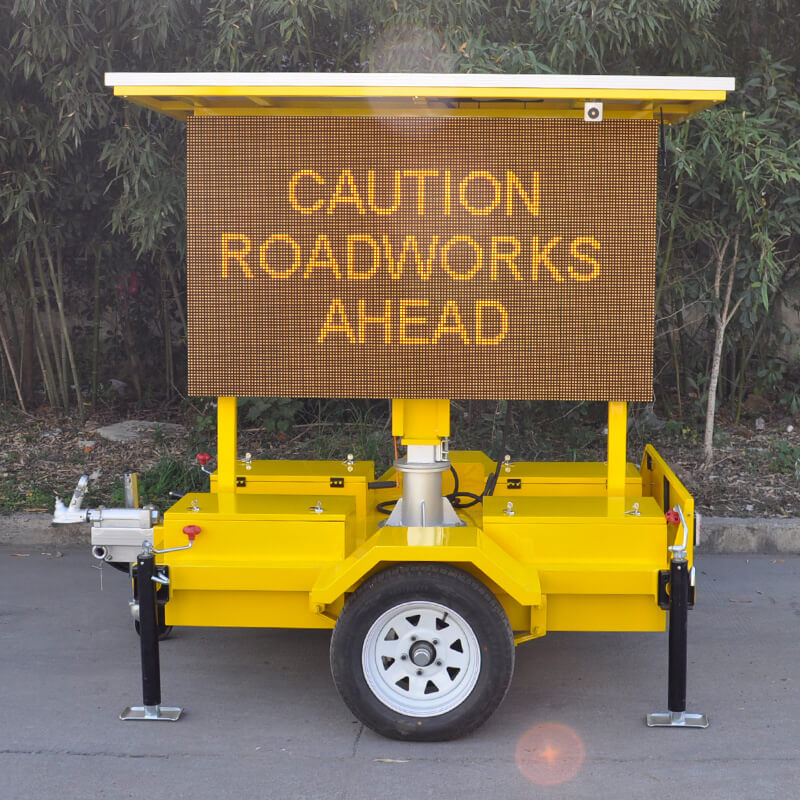

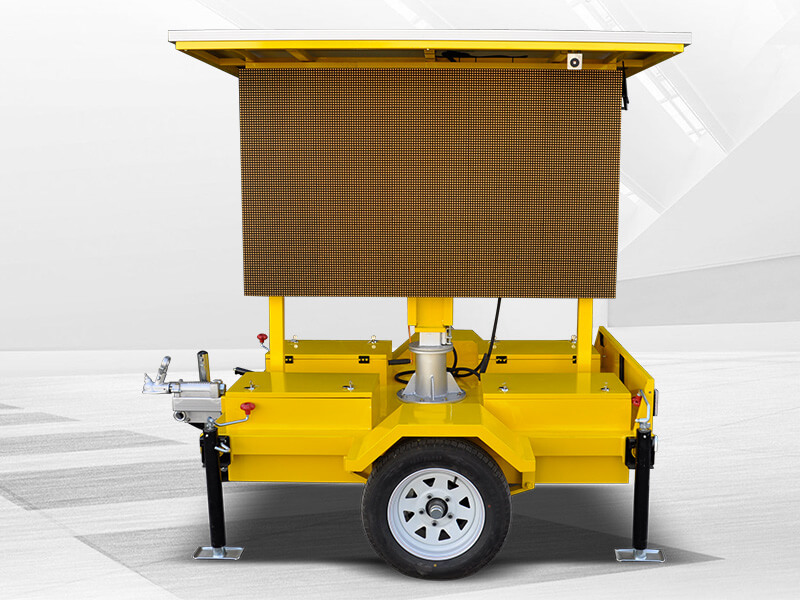

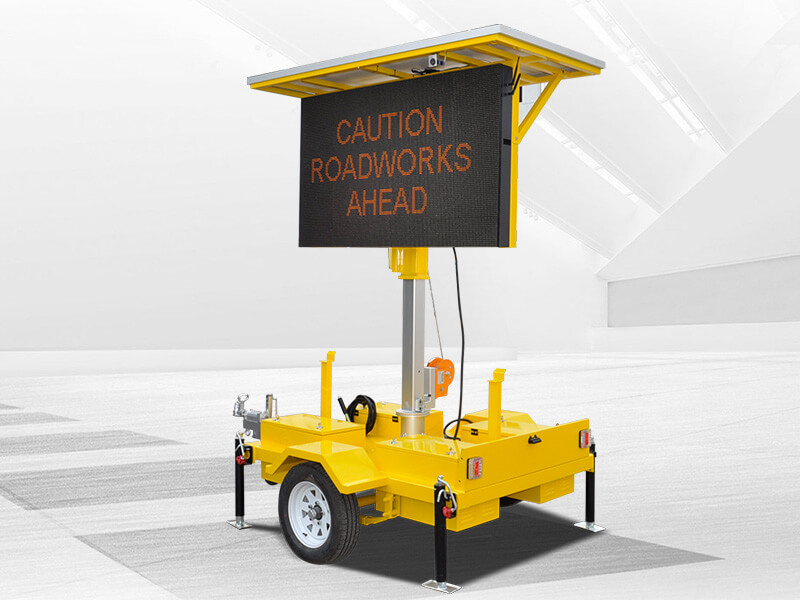

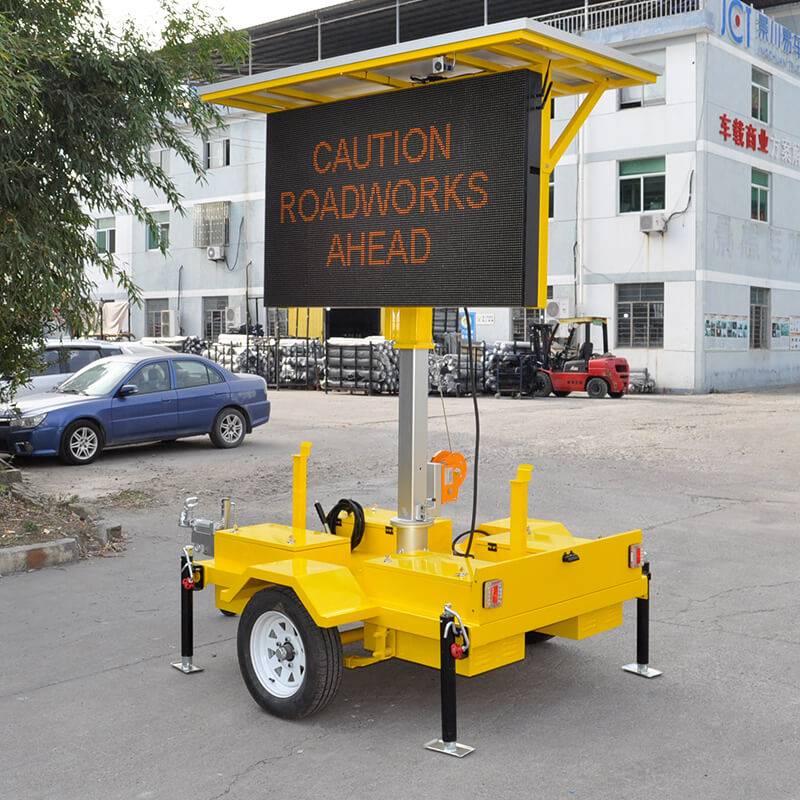

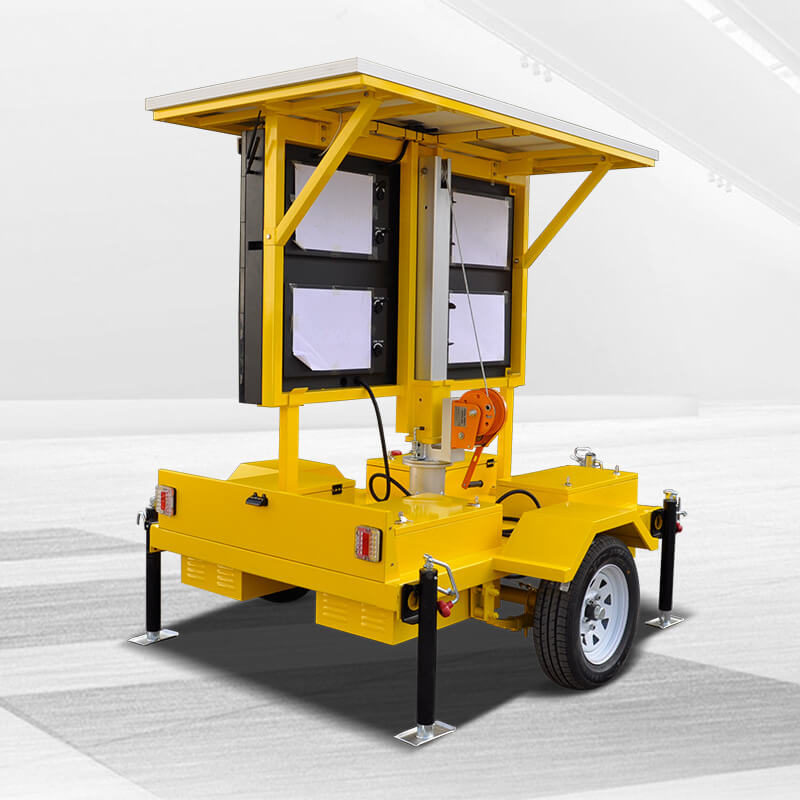

JCT VMS solar led trailer is used to release highway weather information, highway construction information, highway blocking information, road surface condition information, recommended detour plan information, highway dynamic operation information, and provide highway information for drivers. JCT VMS solar led trailer has a long service life, high brightness, low energy consumption, and can operate stably under harsh conditions. At the same time, this batch of JCT VMS solar led trailer also integrate a new system of support, hydraulic lifting, and rotation functions. The rotating guide pillar independently developed by Jingchuan Company can realize the LED screen's visual range of 360° without dead Angle, and further enhance the transmission effect. It is especially suitable for applications in crowded places such as downtown, assembly, outdoor sports events, etc. The orange trailer's chassis can attract the attention of the audience at a glance, allowing drivers or pedestrians to see the released information from a distance.


Advantages of JCT VMS solar led trailer:

1. Large light-emitting chip, low power consumption, energy saving, and supports mixed graphics and text display;

2. High brightness, reasonable viewing angle, intelligent brightness adjustment, the display content is still clearly visible under direct sunlight;

3. Equipped with self-checking function of equipment running status, timely feedback and maintenance;

4. VMS solar led trailer supports multiple communication methods, with adaptive communication interruption function;

5. With reset function, automatic data storage function and remote parameter setting function, it is safe, reliable and convenient;

6. It satisfies the all-weather outdoor working environment, and has high protection performance in terms of rain, moisture, corrosion, and lightning protection.

Parameters

Model VMS solar led trailer
Chassis
Brand JCT External Dimension 2382×1800×2074mm
Supporting legs 4pcs Tire Solid rubber tires
Gross Trailer Mass (GTM) 629KG Brake Handle/Hydraulic
single color screen(Single yellow variable induction screen)
Screen SIZE 1600*960mm Dot Pitch 10 mm
Lifespan 100,000hours
Manual lifting
Manual  Lifting
System

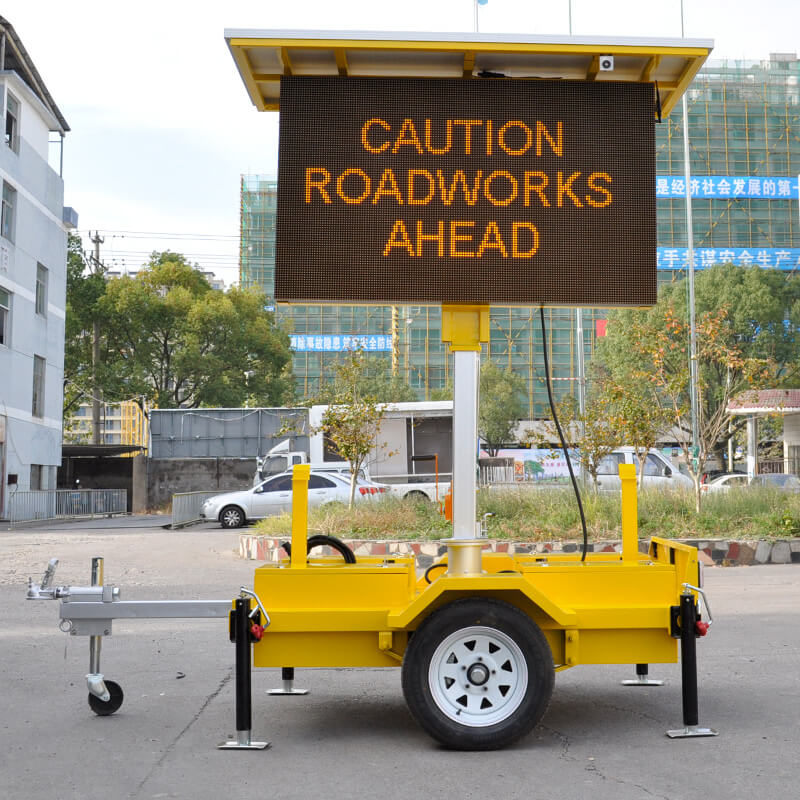

Lifting Range 800mm
Manual Rotating System Screen can rotate 330degrees
solar panel
Size 2000×1000mm,1 PCS power 410W/pcs,Total 410W/h
Solar controller(Tracer3210AN/Tracer4210AN)
input voltage 9-36V Output voltage 24V
Rated charging power 780W/24V Maximum power of photovoltaic array 1170W/24V

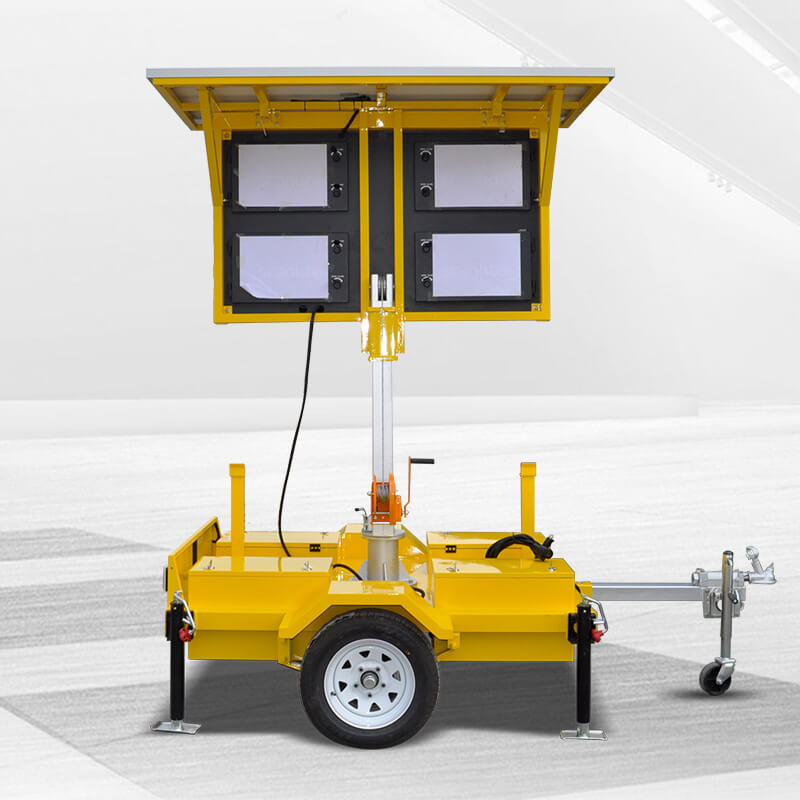

The battery
Dimension 181mm×192mm×356mm Battery specification 12V150AH*4 pcs,7.2 KWH
